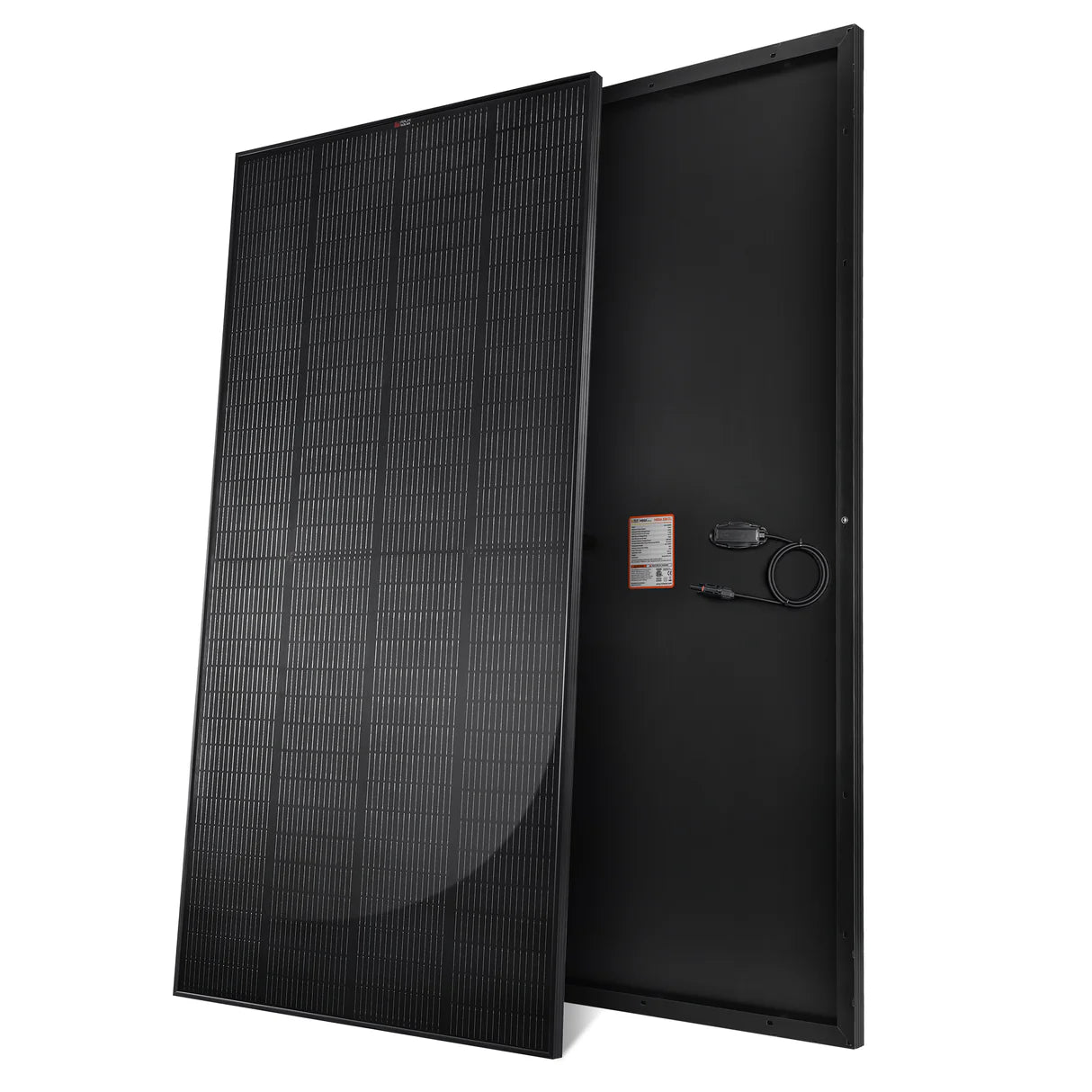

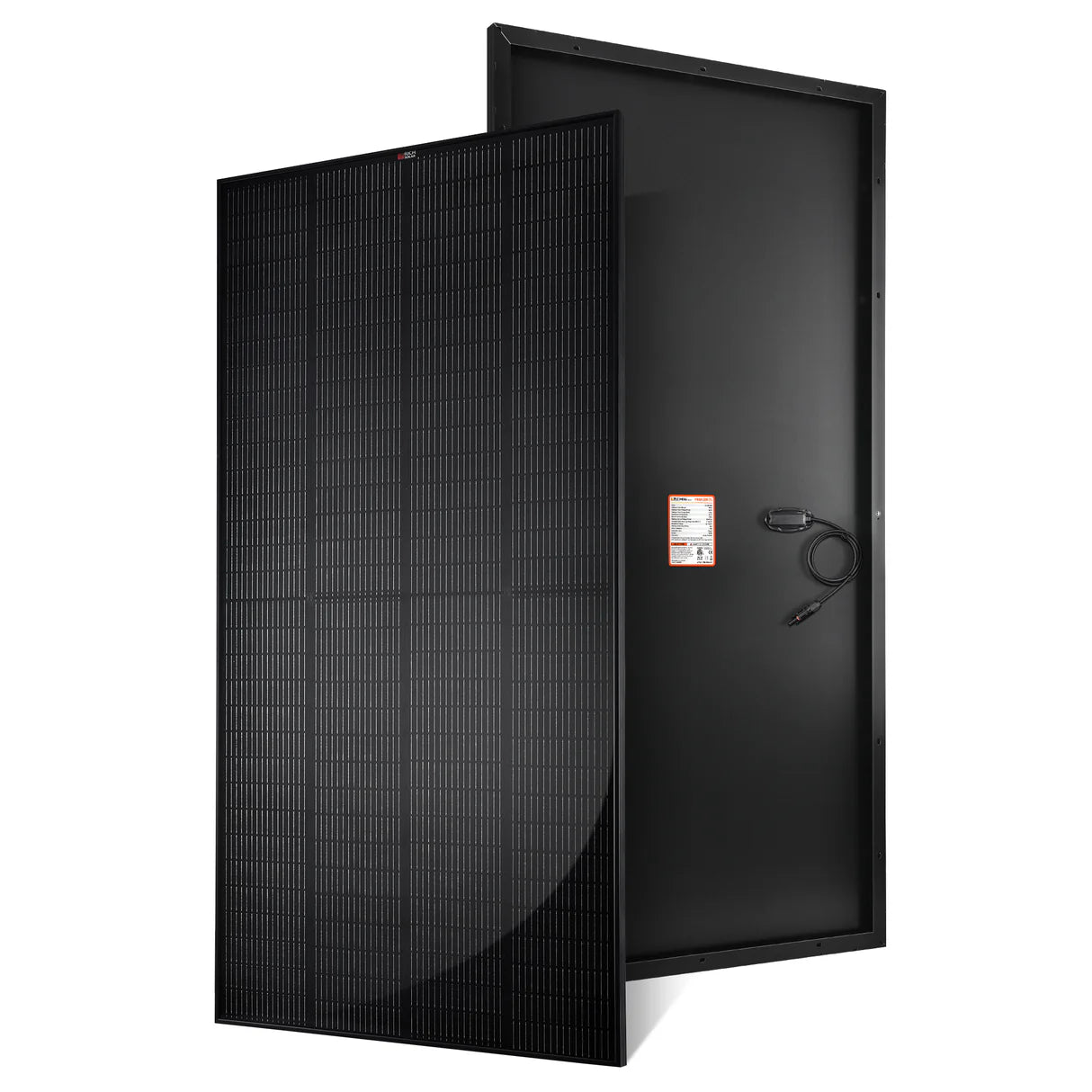

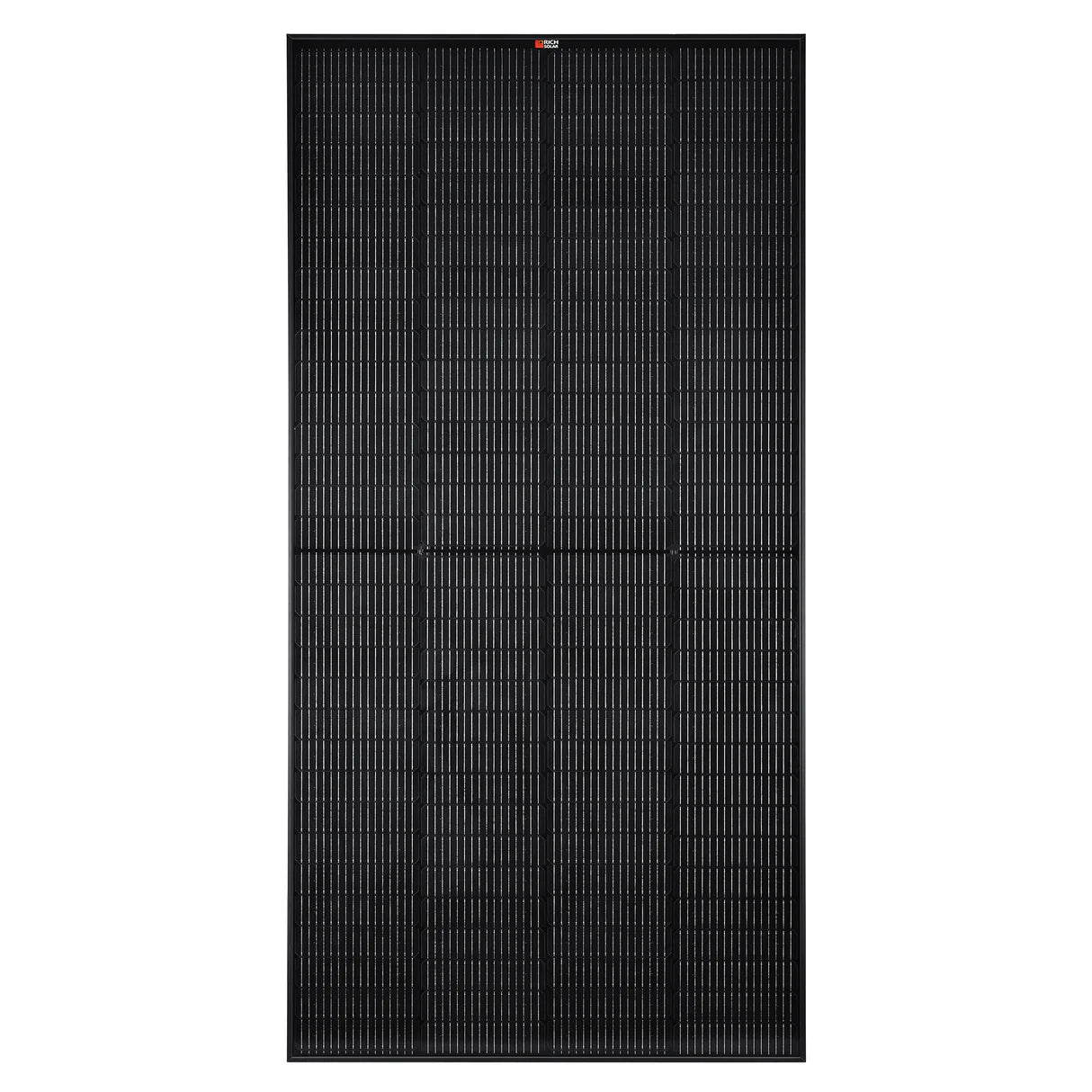

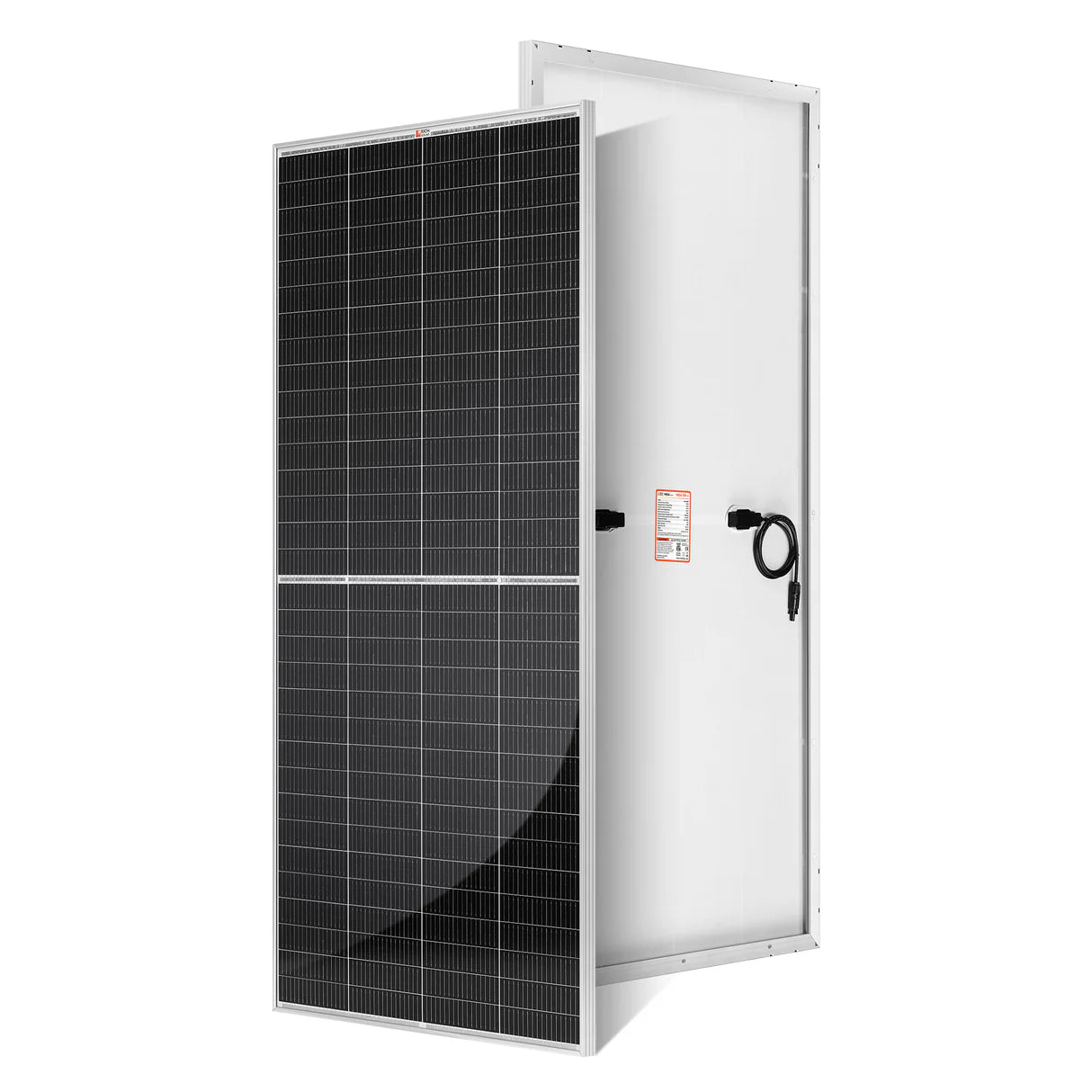

RICH Solar 250 Watt Solar Panel Overview
The MEGA 250 PRO ONYX solar panel stands out with its high efficiency of 21.4%, a robust 250W power output, and a durable build that includes tempered glass, aluminum, and monocrystalline silicon. Weighing 26.9 pounds and measuring 60.6 x 29.9 x 1.2 inches, it’s engineered to deliver excellent performance even under low light conditions. Key features include a 16 buss bar solar cell configuration, lightweight anodized aluminum frame, and high transmission AR coated tempered glass, ensuring reliability and longevity for both residential and commercial applications.
Material:
- Tempered Glass
- Aluminum
- Monocrystalline Silicon
Dimensions:

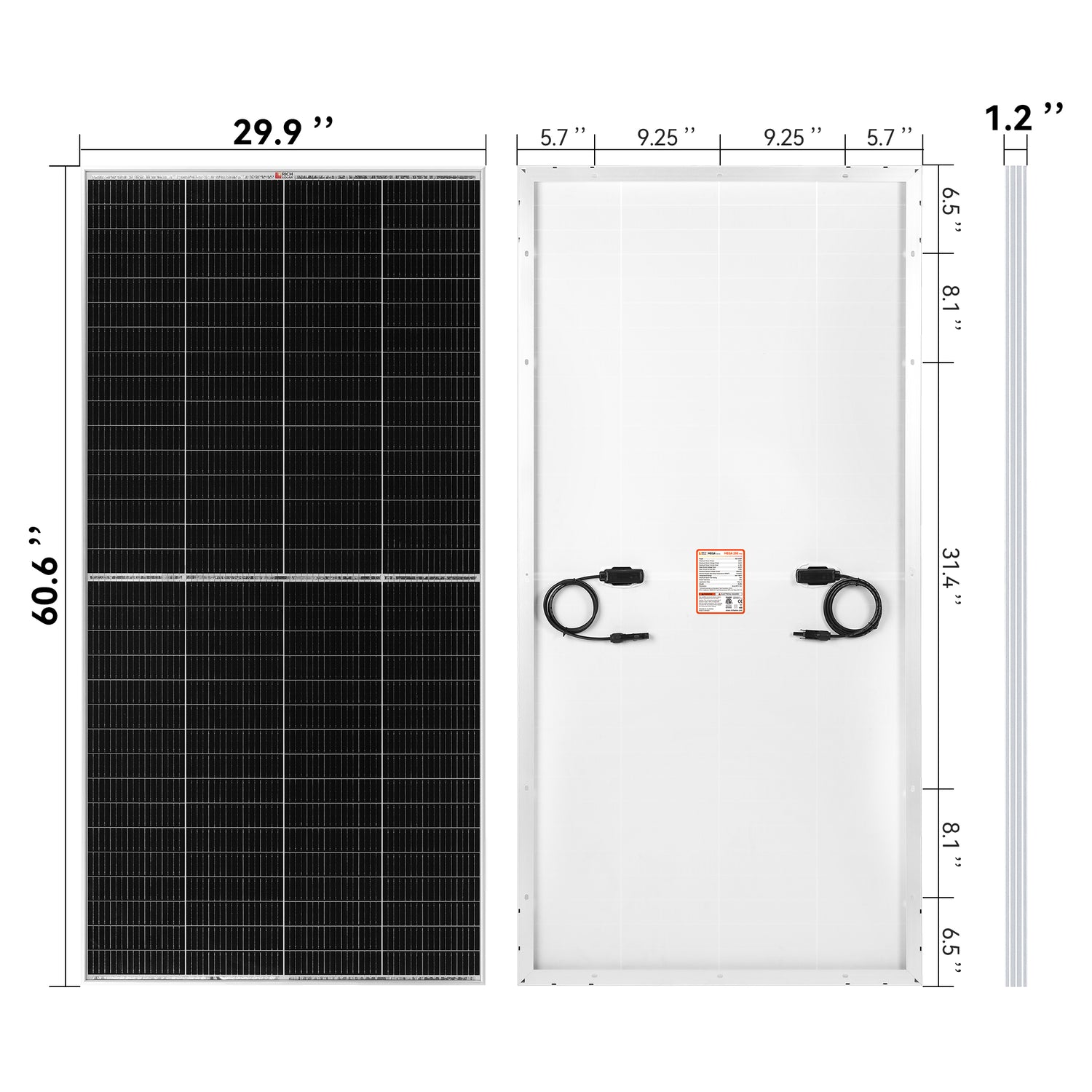

- 60.6 x 29.9 x 1.2 inches
Weight:
- 26.9 pounds
Efficiency:
- High Efficiency at 21.4%
RICH Solar 250W Solar Panel Features
- 16 Buss Bar Solar Cell Configuration: Enhances the panel's efficiency and reliability.
- Lightweight Anodized Aluminum Frame: Offers durability without adding extra weight.

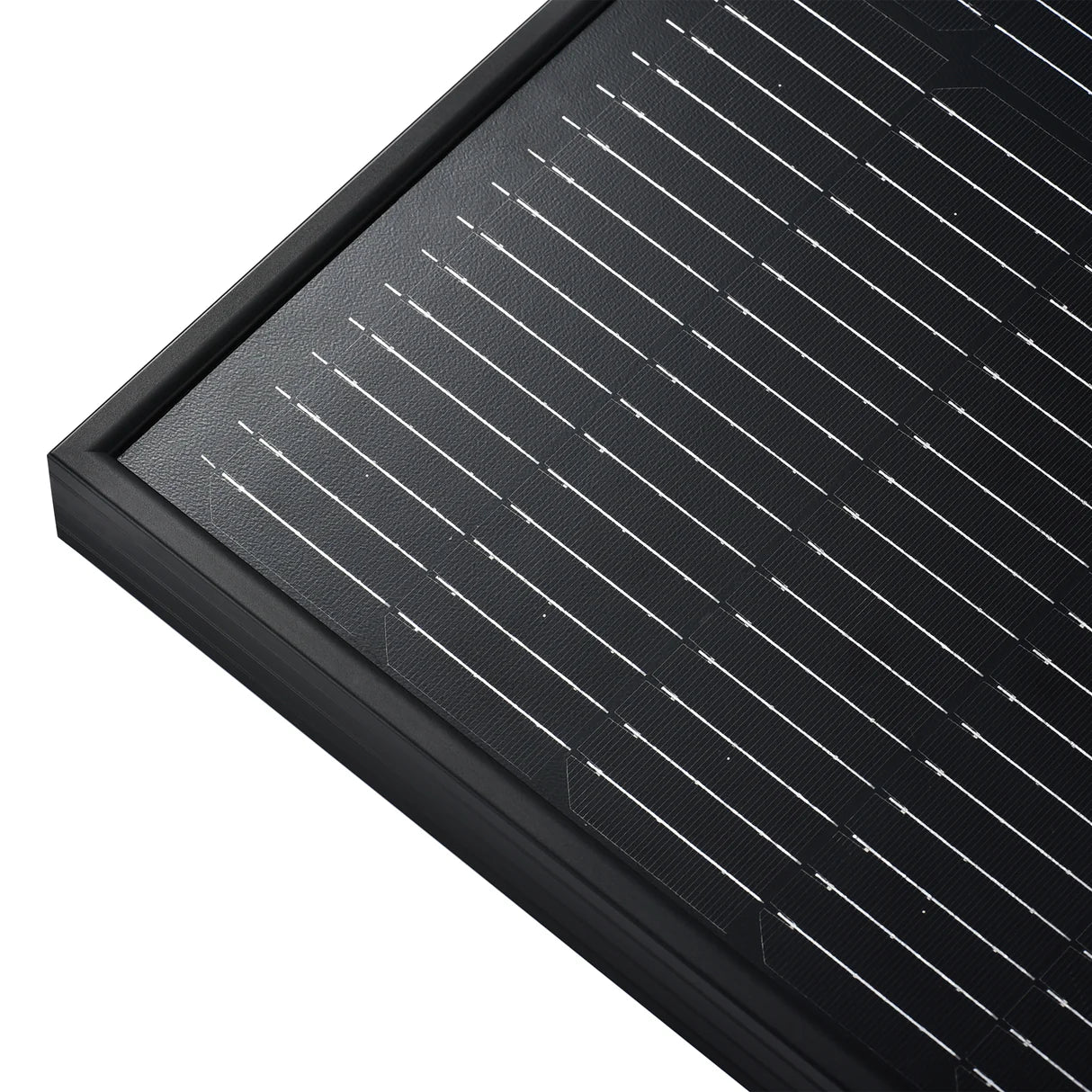

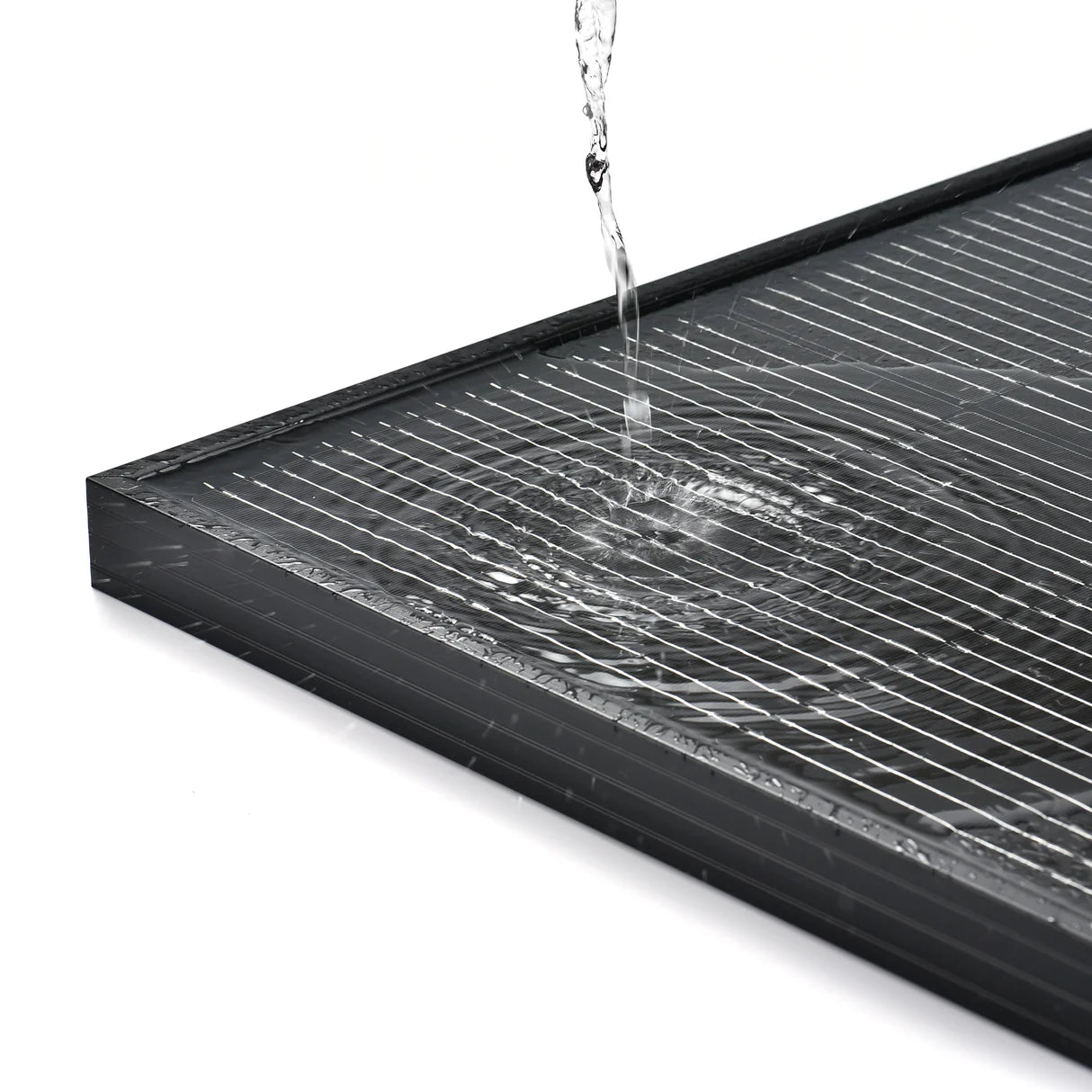

- High Transmission, AR Coated Tempered Glass: Anti-reflective coating improves light absorption, enhancing overall performance.
- Plug and Play Junction Box: Simplifies installation with industry-standard connectors.
- Quick Connect Cables: Compatible for series or parallel connections.
- Certified Durability: Built to withstand challenging environmental conditions, ensuring long-term performance. Certified to withstand 2400 Pa wind load, 5400 Pa snow load, and 35 mm hail stones at 97 km/h.
- Excellent Low Light Performance: Delivers optimal performance during cloudy days, mornings, and evenings.
- Highly Reliable: Due to stringent quality control, including over 30 in-house tests (UV, TC, HF, and many more), PID resistant, and 100% EL double inspection.
Installation:
- Versatile Application: Easy to install and handle for high-end off-grid and mobile applications.
- Pre-drilled Holes: Compatible with various mounting systems, including ground mounts, Z brackets, pole mounts, and tilt mounts.
- Inverter Compatibility: Works with both on-grid and off-grid inverters.
Warranty:
- 25 Years Limited Power Output Warranty: Assurance of the panel's performance and durability over time.
Technical Specifications:

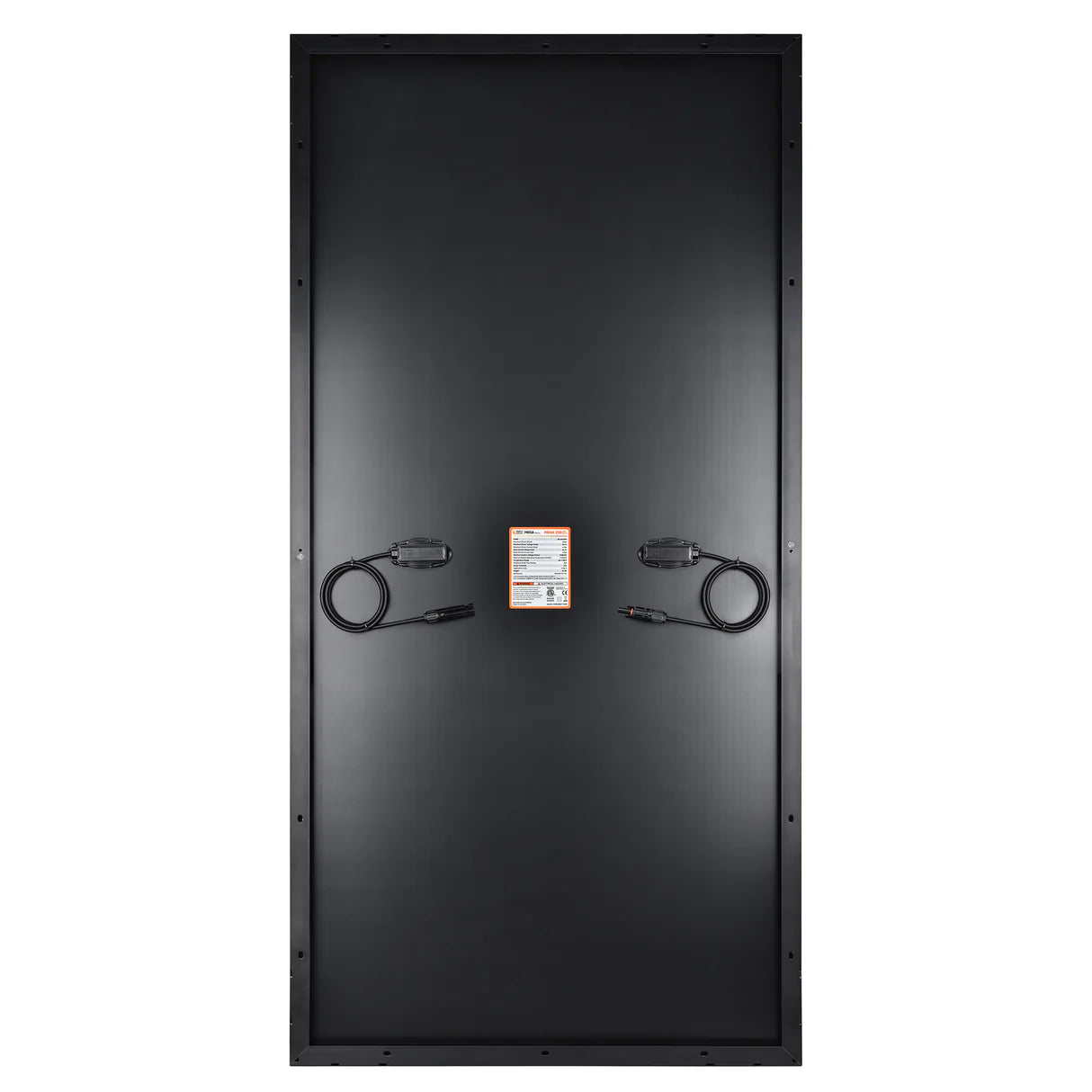

Built-in Components
- RICH SOLAR 250 Watt Monocrystalline Solar Panel
- Panel Leads: Pair of 3 feet each

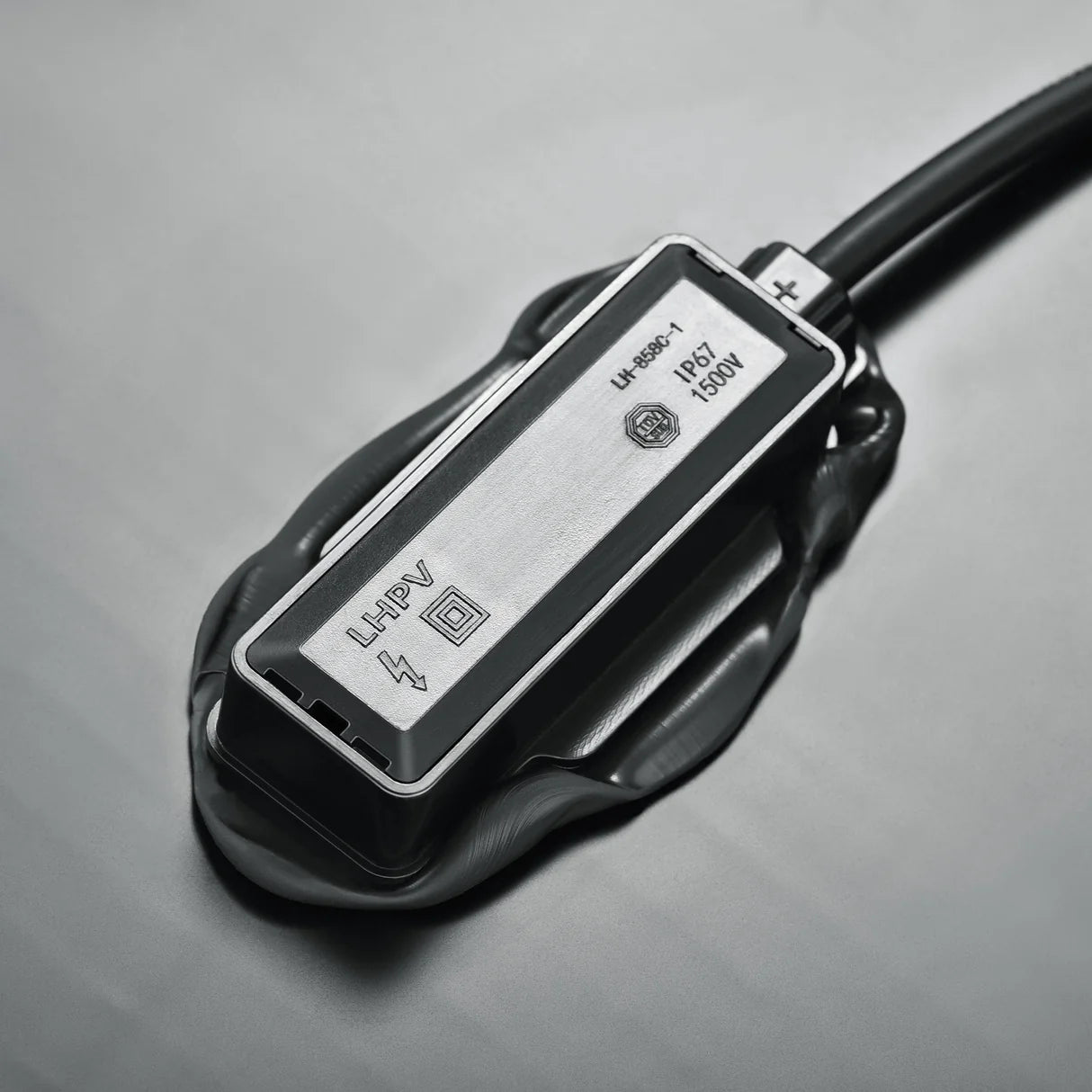

- IP67 Rated Waterproof Junction Box

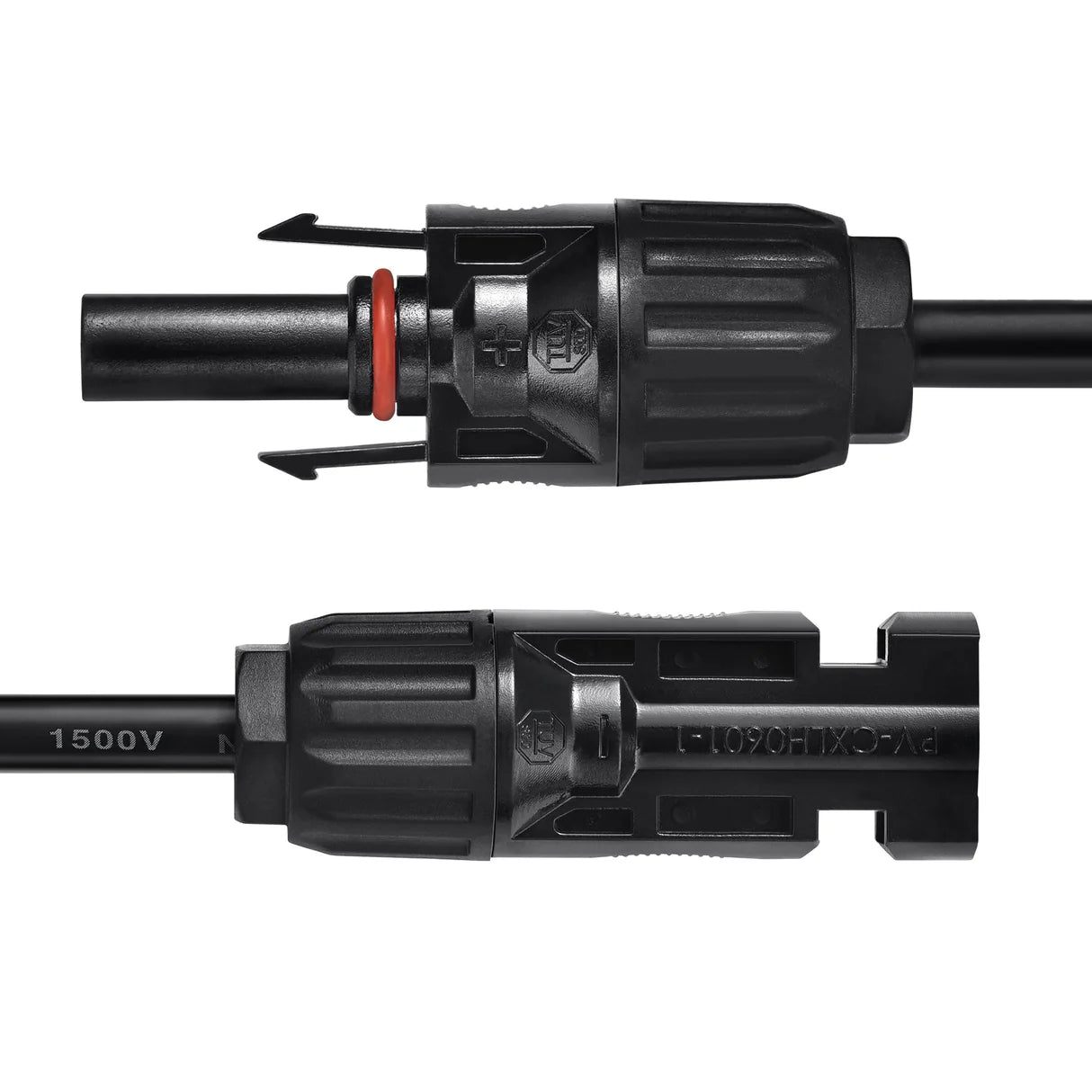

- IP67 Rated Waterproof Solar Connectors
- Bypass Diodes: Built-in the junction box to prevent power loss
RICH Solar 250W Solar Panel Specs
Electrical Data (STC)
| Parameter | Value |
|---|---|
| Peak Power Watts (Pmax) | 250W |
| Power Output Tolerance (Pmax) | 0~+5W |
| Maximum Power Voltage (Vmp) | 36.9V |
| Maximum Power Current (Imp) | 6.78A |
| Open Circuit Voltage (Voc) | 44.7V |
| Short Circuit Current (Isc) | 7.08A |
| Maximum System Voltage | 1500 VDC |
| Maximum Series Fuse Rating | 20A |
| Module Efficiency | 21.4% |
| STC | Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM = 1.5 |
Mechanical Data
| Parameter | Value |
|---|---|
| Solar Cells | Monocrystalline 7.2 x 1.8 in (182 x 45 mm) |
| Module Dimensions | 60.6 x 29.9 x 1.2 in (1540 x 760 x 30 mm) |
| Cell Orientation | 128 cells (2 x 64 cells) |
| Weight | 26.9 lb (12.2 kg) |
| Glass | 3.2 mm, High Transmission, AR Coated Tempered Glass |
| Backsheet | Black |
| Connector | Solar Connectors |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP67 Rated |
| Cables | Photovoltaic Technology Cable 4.0 mm² (#12 gauge), 47.2 in (1200 mm) Length |
Temperature Ratings
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C ~ +85°C |
| Nominal Module Operating Temperature (NMOT) | 45°C ± 2°C |
| Temperature Coefficient of PMAX | -0.39%/°C |
| Temperature Coefficient of VOC | -0.29%/°C |
| Temperature Coefficient of ISC | 0.05%/°C |
Curve Characteristics
The curve characteristics indicate the power output relative to the voltage under various conditions, ensuring optimal performance across different temperatures and irradiance levels.
The MEGA 250 PRO ONYX solar panel is engineered for efficiency and durability, making it an ideal choice for both residential and commercial applications. Its advanced features ensure excellent performance even under low light conditions, and its robust build guarantees longevity and reliability. With easy installation options and comprehensive compatibility with various systems, the MEGA 250 PRO ONYX is a versatile and high-performing solution for your solar energy needs.

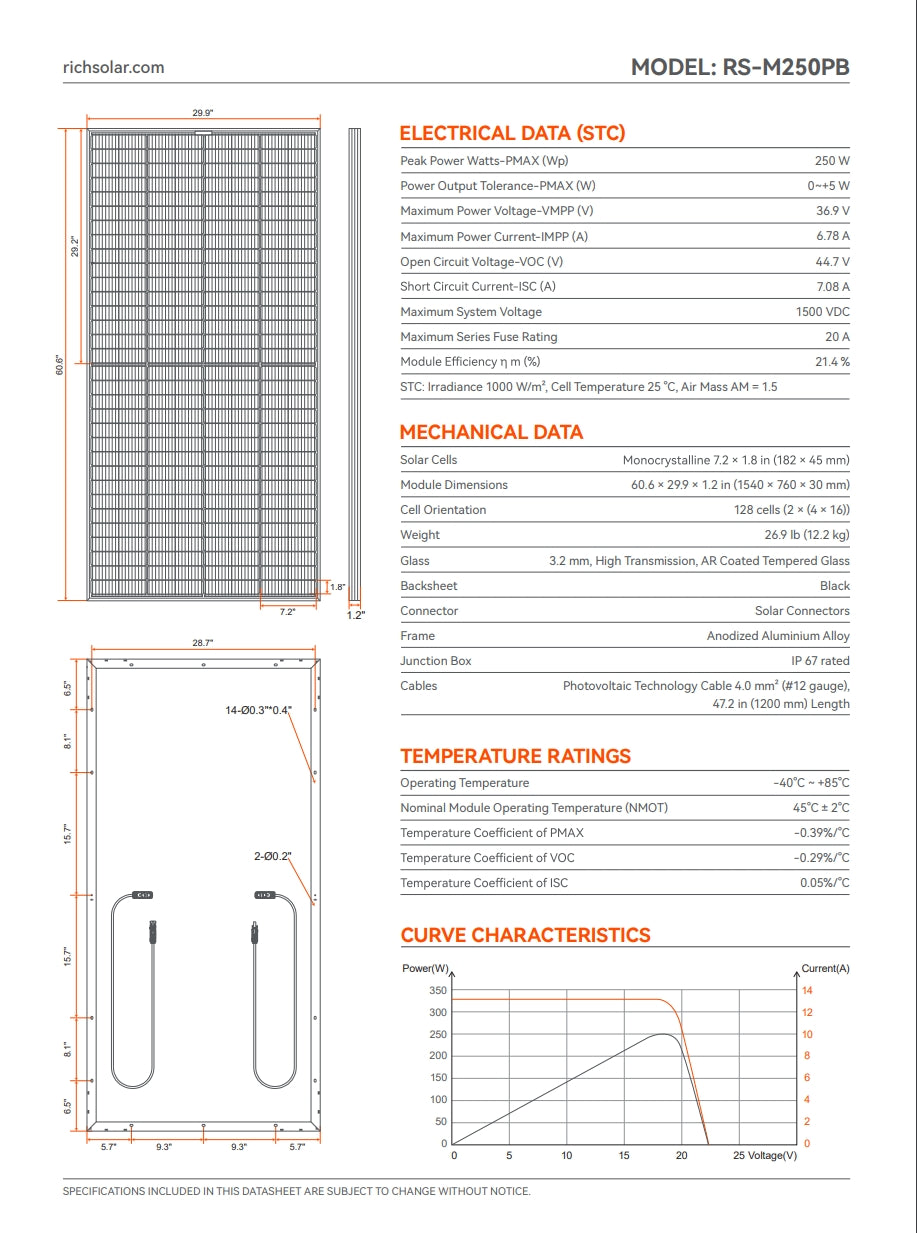

RICH Solar 250W Solar Panel Datasheet
Introducing the 'RICH MEGA' series solar panel, featuring a monocrystalline design with 16 bus bars and 128 cells. This high-performance panel boasts a maximum power output of 250W, with advanced features like anti-reflective coated tempered glass and industry-standard quick connect cables. With excellent low-light performance and PID resistance, this reliable panel is certified to withstand challenging environmental conditions. Easy installation and handling make it perfect for off-grid and mobile applications.
Rich Solar Mega 250W Solar Panel: Model RS-M2SOPB. Key specs include peak power (PMAX) of 250W ±5%, maximum power voltage (VMPP) of 36.9V, maximum power current (IMPP) of 6.78A, and open circuit voltage (VOC) of 44.7V. Module efficiency is 21.4%. Mechanical details include monocrystalline solar cells with a size of 7.2 x 1.8 inches, module dimensions of 60.6 x 29.9 x 1.2 inches, and weight of 26.9 pounds (12.2kg). The panel features anodized aluminum alloy frame, IP67-rated junction box, and high-transmission tempered glass with AR coating. Operating temperature range is -40°C to +85°C, with nominal module operating temperature at 28°C. Temperature coefficients are listed for PMAX, VOC, and ISC.
