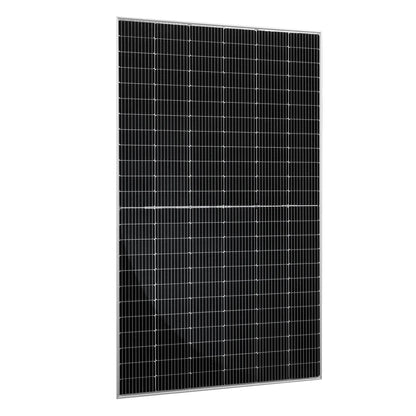

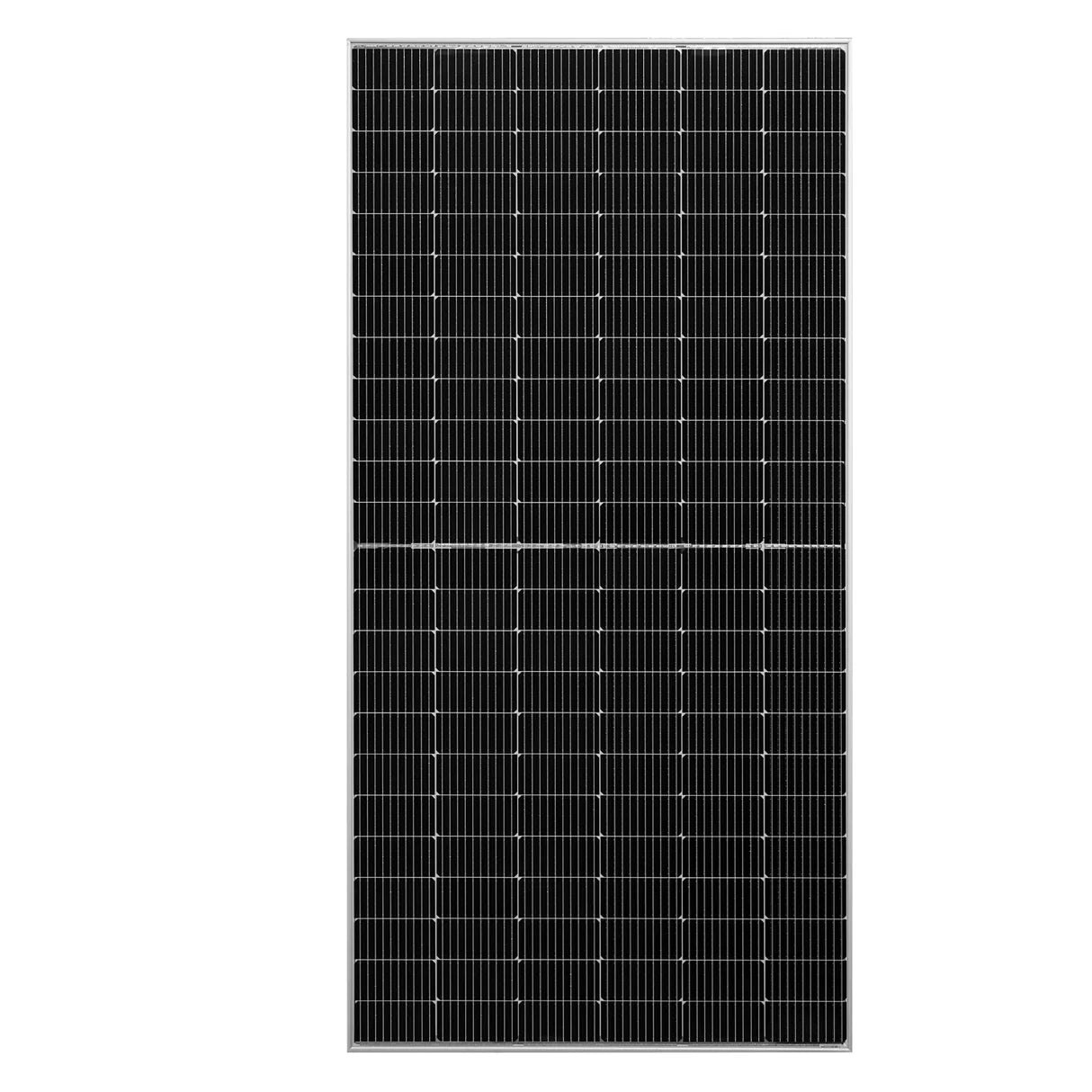

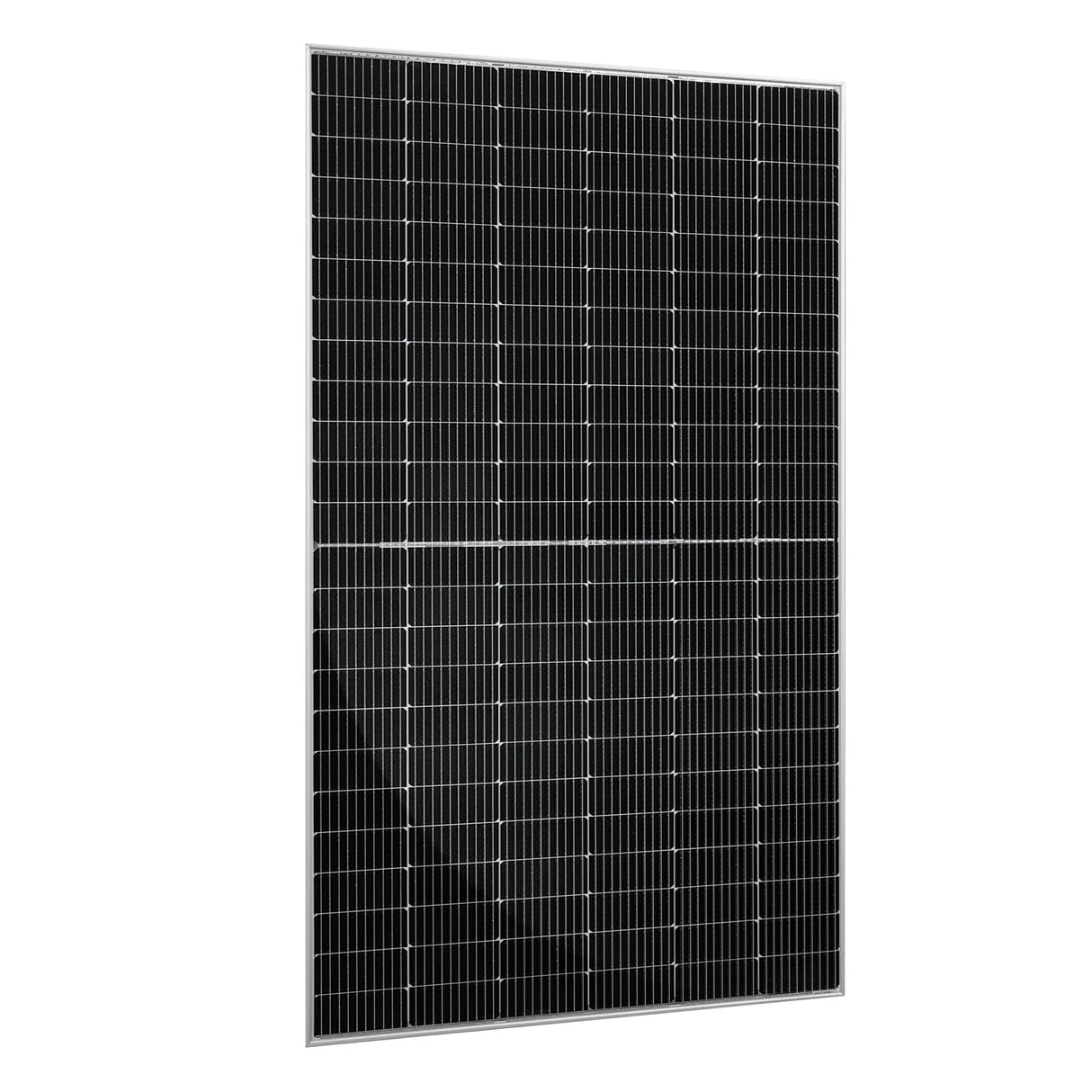

Rich Solar 550 Watt Solar Panel Overview
The Rich Solar 550 Watt Solar Panel (Model RS-M550) is a high-efficiency monocrystalline solar module designed for versatile energy applications, featuring a peak power output of 550W and a superior module efficiency of 21.3%. Built with advanced TOPCON technology and a 10-busbar solar cell configuration, this panel optimizes energy conversion and ensures reliable performance even in low-light conditions. It operates with a maximum power voltage of 42.0V and a maximum power current of 13.1A, delivering consistent energy output across a range of environments. With a robust design that includes a lightweight anodized aluminum frame and high-transmission, AR-coated tempered glass, the Rich Solar 550W panel is engineered to withstand harsh environmental conditions, including wind loads up to 2400 Pa and snow loads up to 5400 Pa. This panel's IP68-rated junction box and industry-standard quick-connect cables make it easy to install and integrate into both on-grid and off-grid systems.

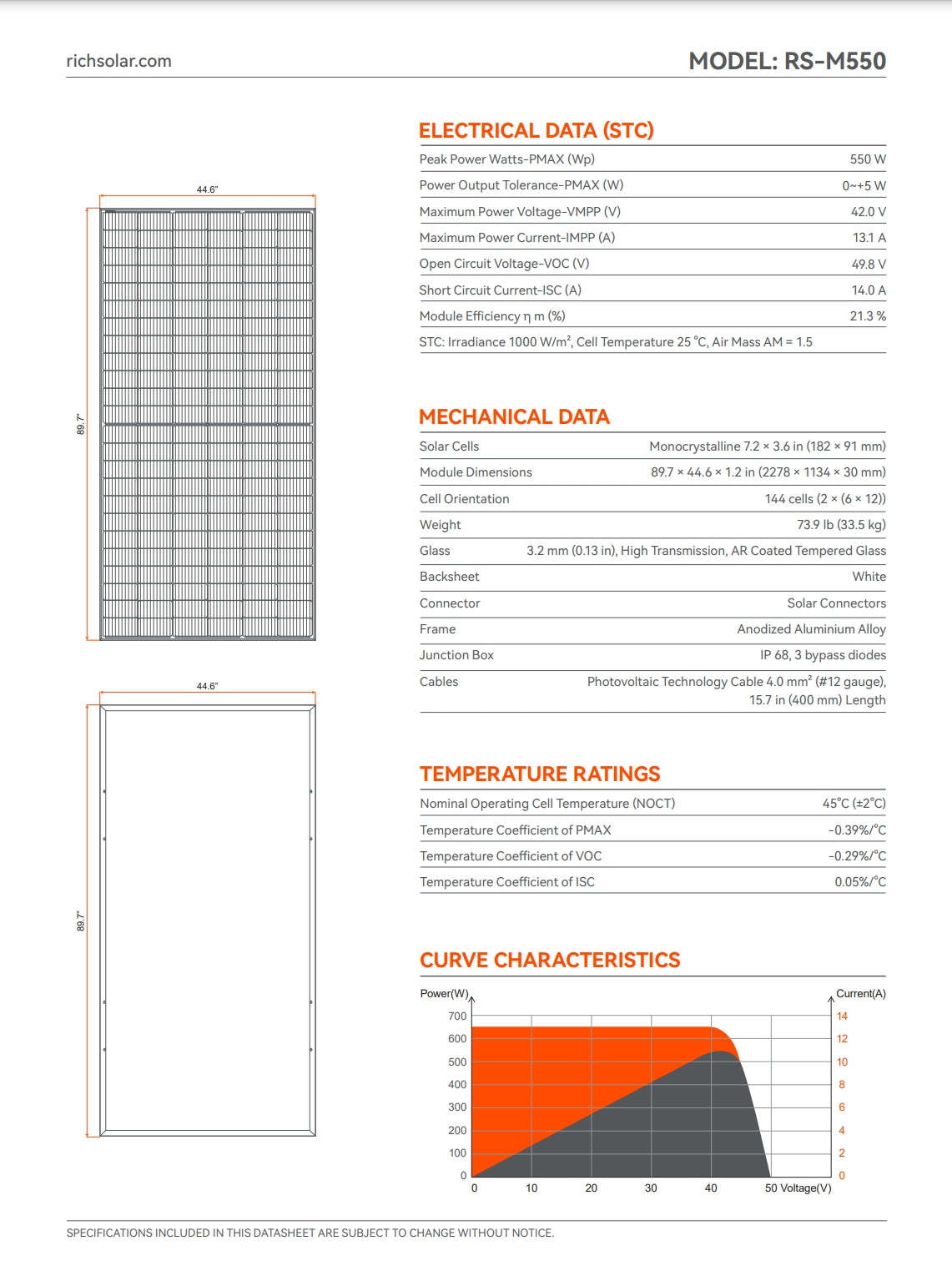

Rich Solar 550W Datasheet
Electrical Data (STC)
| Attribute | Value |
|---|---|
| Peak Power Watts-PMAX (W) | 550W |
| Power Output Tolerance-PMAX (W) | 0~+5W |
| Maximum Power Voltage-VMPP (V) | 42.0V |
| Maximum Power Current-IMPP (A) | 13.1A |
| Open Circuit Voltage-VOC (V) | 49.8V |
| Short Circuit Current-ISC (A) | 14.0A |
| Module Efficiency ηm (%) | 21.3% |
The Rich Solar 550W panel is constructed using 144 half-cut monocrystalline cells arranged in a 6x24 format. This advanced cell design is supported by a 10-busbar configuration, which enhances the panel’s performance by reducing resistance and improving overall efficiency.
Mechanical Data
| Attribute | Value |
|---|---|

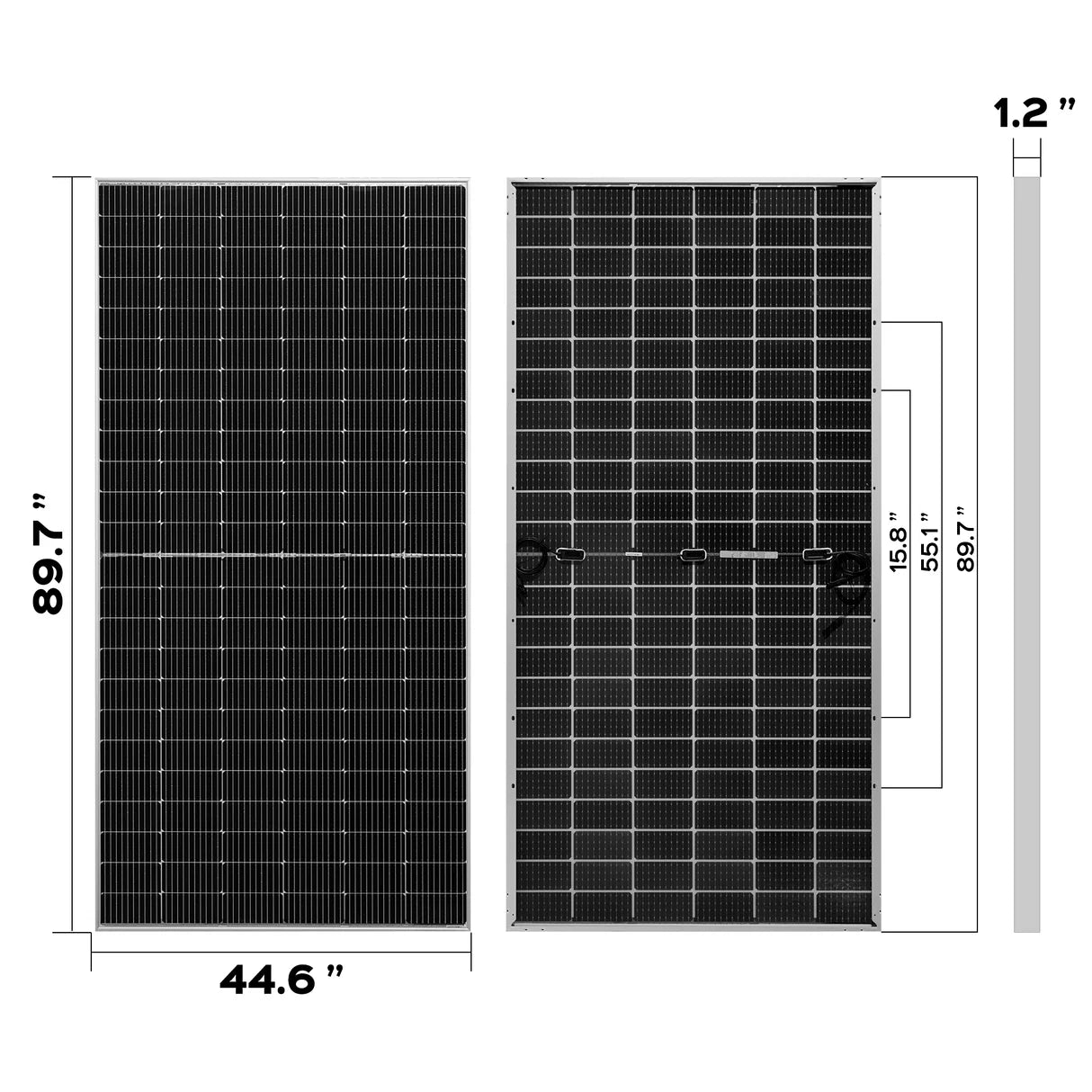

| Dimensions | 89.7 x 44.6 x 1.2 in |
| Weight | 73.9 lb (33.5 kg) |
| Glass | 3.2 mm (0.13 in), High Transmission, AR Coated Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Backsheet | White |
| Connector | Solar Connectors |
| Junction Box | IP 68, 3 Bypass Diodes |
| Cables | Photovoltaic Technology Cable 4.0 mm² (#12 gauge), 15.7 in (400 mm) Length |
Temperature Ratings
| Attribute | Value |
|---|---|
| Nominal Operating Cell Temperature (NOCT) | 45°C (±2°C) |
| Temperature Coefficient of PMAX | -0.39%/°C |
| Temperature Coefficient of VOC | -0.29%/°C |
| Temperature Coefficient of ISC | +0.05%/°C |
Rich 550W Solar Panel Key Features
- 10-Busbar Solar Cell Configuration: Enhances performance by reducing resistance and maximizing efficiency.
- TOPCON Technology: Provides superior energy conversion and reliability.
- Lightweight Anodized Aluminum Frame: Ensures easy handling and installation while resisting corrosion for long-term durability.
- High Transmission, AR Coated Tempered Glass: Protects the cells from the environment while enhancing light capture.
- Plug and Play Junction Box: IP68-rated, ensuring complete protection against dust and water ingress.
- Certified to Withstand Harsh Conditions: Withstands wind loads up to 2400 Pa, snow loads up to 5400 Pa, and hail stones up to 35 mm at 97 km/h.
Installation
The Rich Solar 550W Solar Panel is designed for easy installation, featuring pre-drilled holes compatible with various mounting systems such as ground mounts, Z brackets, pole mounts, and tilt mounts. This flexibility makes it suitable for high-end off-grid, mobile, and on-grid solar systems. The panel is also compatible with both on-grid and off-grid inverters, providing versatility for different energy setups.
Warranty
The Rich Solar 550W Solar Panel comes with a robust warranty package, offering:
- 25-Year Limited Power Output Warranty: Ensuring long-term energy production reliability.
- 10-Year Material and Workmanship Warranty: Covering any manufacturing defects or material issues.
Whether you're looking to power your home, RV, boat, or remote cabin, the Rich Solar 550 Watt Solar Panel provides a reliable, efficient, and durable solution for all your solar energy needs.

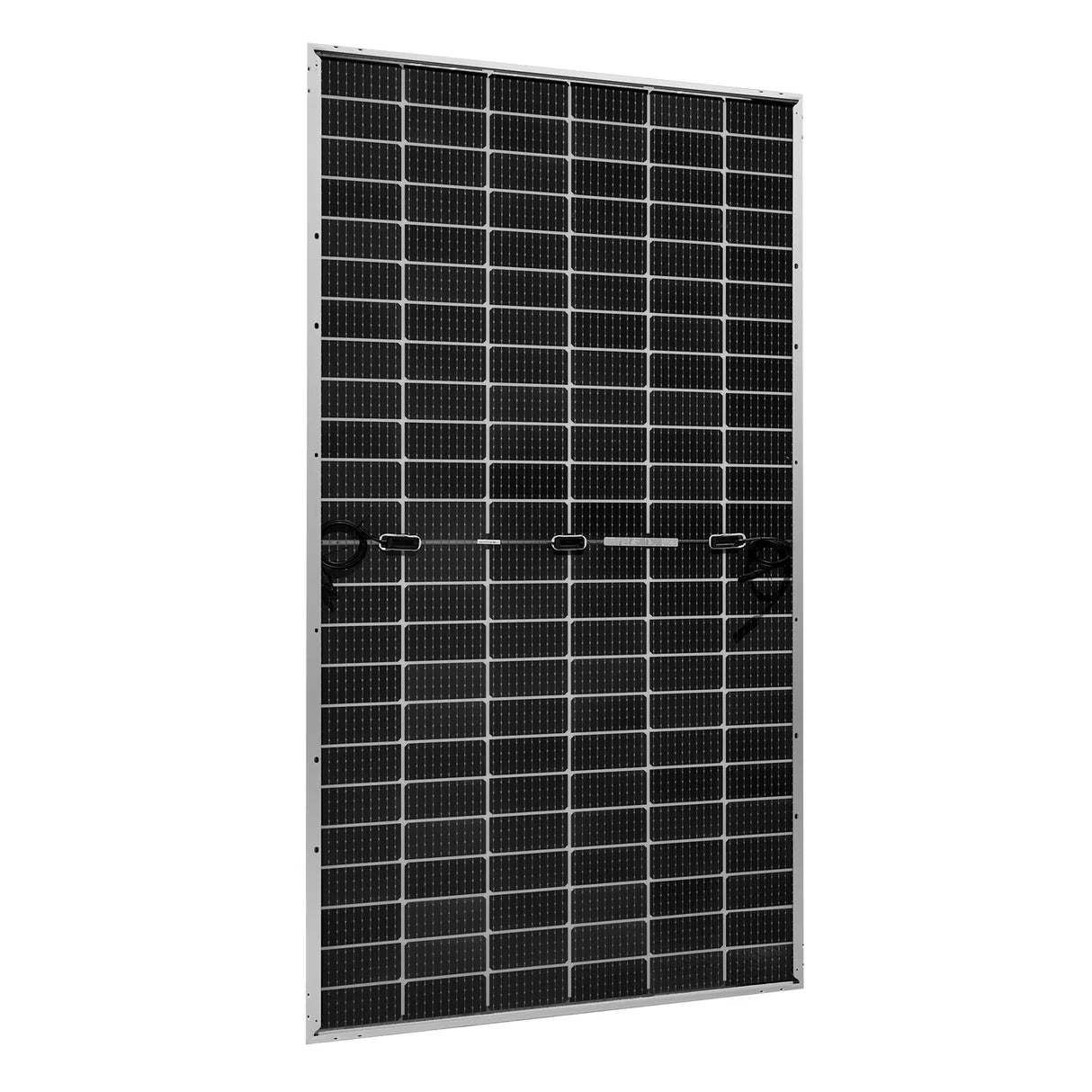

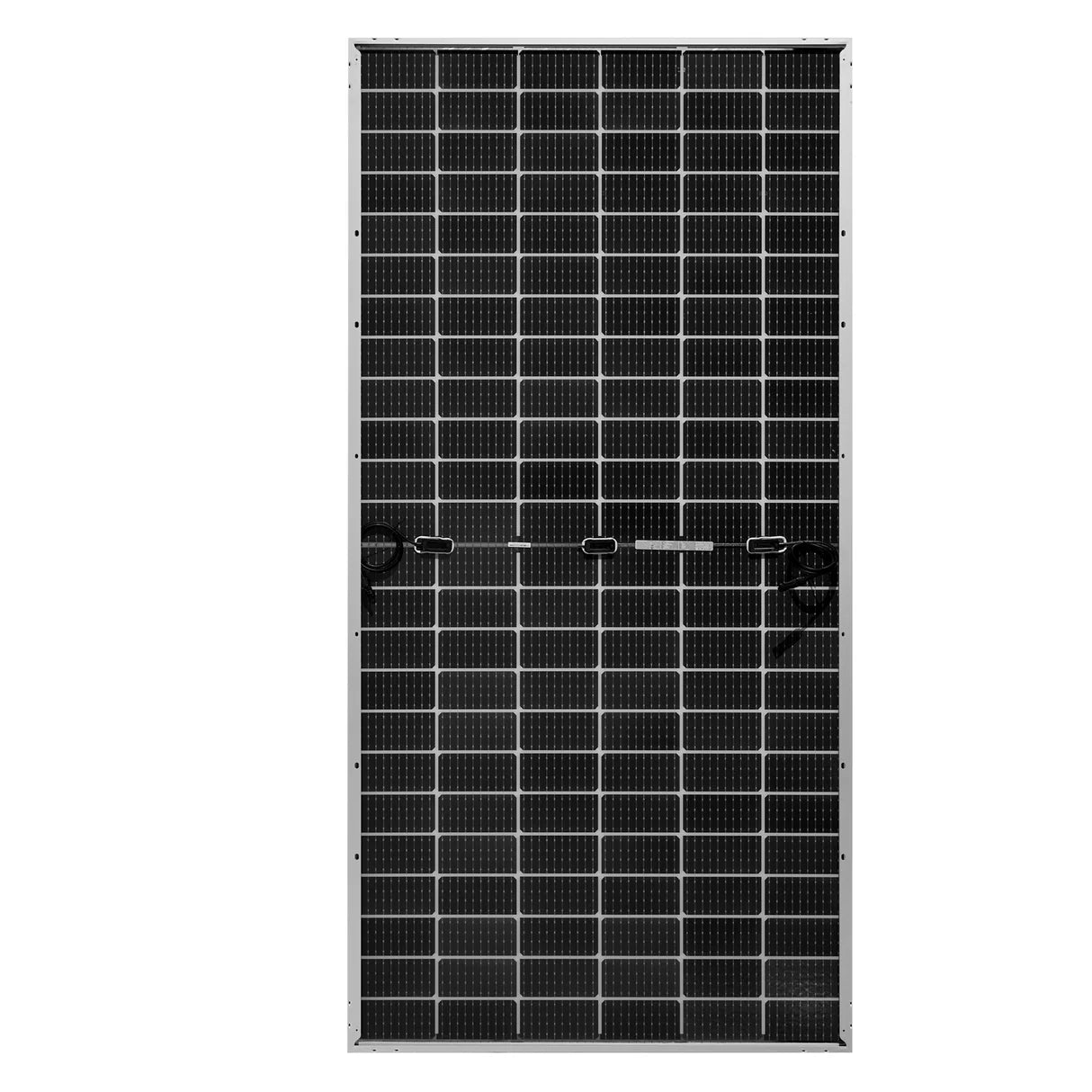

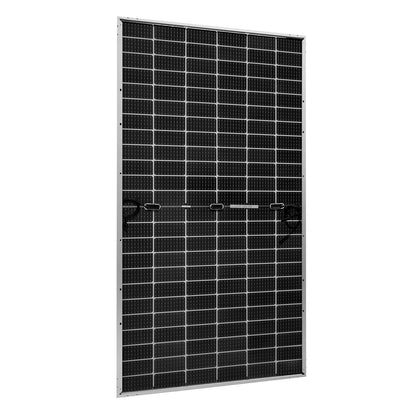

Rich Solar Mega 550 Bifacial Solar Panel, 550W, Ideal for Large-Scale Energy Generation and Commercial Applications.
Choose Rich Solar for reliable off-grid solutions since 2005, offering top-quality products and exceptional customer service.

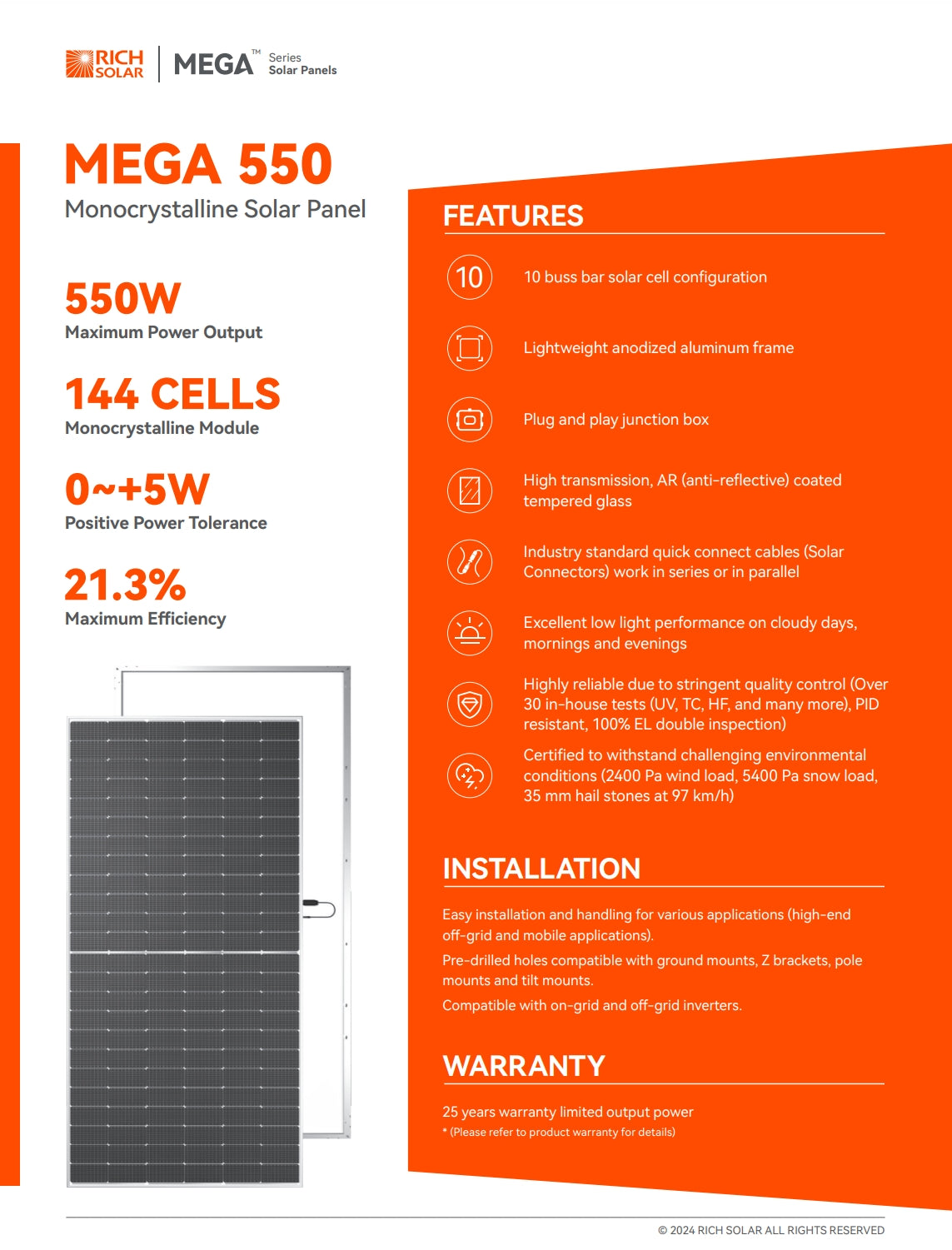

Rich Solar's Mega Series 550W Monocrystalline Solar Panel features a 10x10 buss bar configuration, lightweight aluminum frame, and high-efficiency cells. It boasts a maximum power output of 550W, with a positive power tolerance and quick connect cables for easy installation and connection.
Rich Solar's Mega 550 Bifacial solar panel features a peak power output of 550 watts, with a maximum power voltage of 42.0 volts and current of 13.1 amps, making it suitable for a range of applications from residential to commercial use.
