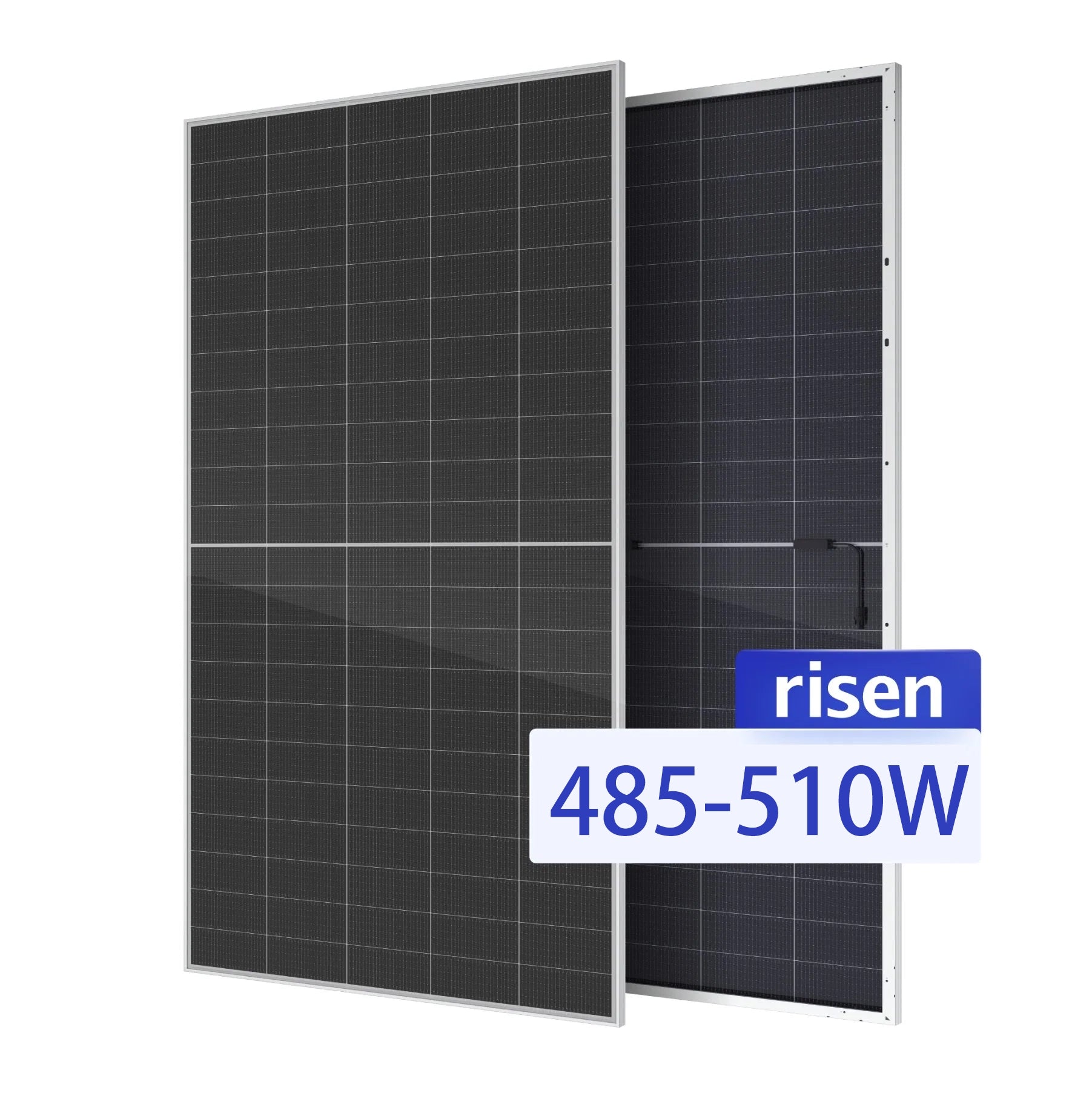

Risen Titan 500W Monocrystalline PERC Solar Panel (485W - 510W)
The Risen 500W Solar Panel (Titan RSM150-8-485M-510M) is designed for high-efficiency solar installations, providing a power output range between 485W and 510W. With 150 monocrystalline PERC cells, this panel delivers excellent energy efficiency and performance. The module’s 20.8% maximum efficiency ensures optimal energy production, making it ideal for utility-scale, commercial, and residential solar projects.
Certified for 1500VDC system voltage, the Risen Titan panel meets industry-leading standards and is equipped to handle 5400 Pa snow load and 2400 Pa wind load. These features, combined with its high reliability and excellent low-irradiance performance, make it suitable for use in a wide range of environmental conditions.
Risen 500 Watt Solar Panel Key Features:
- High Power Output: Provides power output from 485W to 510W, with a module efficiency of up to 20.8%.
- 150 Monocrystalline PERC Cells: Ensures efficient solar energy capture and conversion.
- Low Temperature Coefficient: Industry-leading temperature coefficient of -0.34%/°C, ensuring high performance even in extreme conditions.
- PID Resistance: Excellent protection against potential induced degradation (PID), ensuring long-term energy yield.
- Durability: Certified for 5400 Pa snow load and 2400 Pa wind load, ensuring resistance to harsh environmental conditions.
- Extended Warranty: Includes a 12-year product warranty and a 25-year linear power warranty, with degradation rates of 0.55% annually, ensuring 84.8% efficiency after 25 years.
- Anti-Reflective Coating: Minimizes power loss from dirt and dust while offering protection against environmental factors like salt mist, ammonia, and sand.
Risen 500W Solar Panel Specs:
| Specification | Details |
|---|---|
| Model Number | RSM150-8-500M |
| Rated Power (Pmax) | 500W |
| Module Efficiency | 20.4% |
| Maximum Power Voltage (Vmp) | 42.88V |
| Maximum Power Current (Imp) | 11.66A |
| Open Circuit Voltage (Voc) | 51.01V |
| Short Circuit Current (Isc) | 12.45A |
| Temperature Coefficient of Pmax | -0.34%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
| Maximum System Voltage | 1500V DC |
| Nominal Operating Temperature | 44°C ± 2°C |
| Snow Load | 5400 Pa |
| Wind Load | 2400 Pa |
| Module Dimensions | 2220 x 1102 x 35mm |
| Weight | 27 ± 1 kg |
| Junction Box | IP68, 3 Schottky bypass diodes |
| Connector | Risen Twinsel PV-SY02, IP68 |

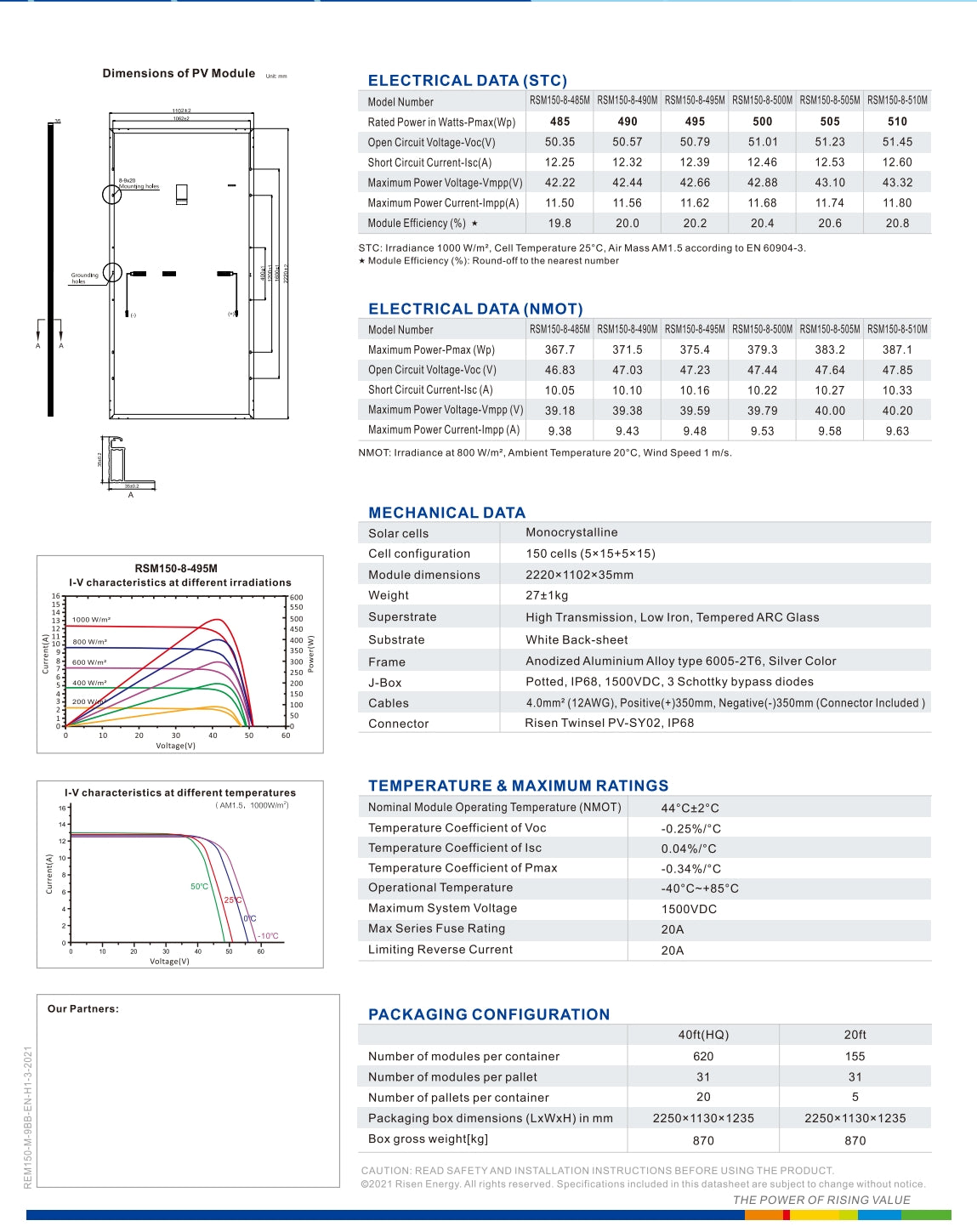

Risen 500W Datasheet
Electrical Characteristics (STC):
| Model | RSM150-8-485M | RSM150-8-490M | RSM150-8-495M | RSM150-8-500M | RSM150-8-505M | RSM150-8-510M |
|---|---|---|---|---|---|---|
| Rated Power (Pmax) | 485W | 490W | 495W | 500W | 505W | 510W |
| Open Circuit Voltage (Voc) | 50.35V | 50.57V | 50.79V | 51.01V | 51.23V | 51.45V |
| Short Circuit Current (Isc) | 12.25A | 12.32A | 12.38A | 12.45A | 12.52A | 12.58A |
| Max Power Voltage (Vmp) | 42.22V | 42.44V | 42.66V | 42.88V | 43.10V | 43.32V |
| Max Power Current (Imp) | 11.50A | 11.56A | 11.61A | 11.66A | 11.72A | 11.77A |
| Module Efficiency (%) | 19.8% | 20.0% | 20.2% | 20.4% | 20.6% | 20.8% |
Electrical Characteristics (NMOT):
| Model | RSM150-8-485M | RSM150-8-490M | RSM150-8-495M | RSM150-8-500M | RSM150-8-505M | RSM150-8-510M |
|---|---|---|---|---|---|---|
| Maximum Power (Pmax) | 367.7W | 371.5W | 375.4W | 379.3W | 383.2W | 387.1W |
| Open Circuit Voltage (Voc) | 46.83V | 47.03V | 47.23V | 47.44V | 47.64V | 47.83V |
| Short Circuit Current (Isc) | 10.05A | 10.10A | 10.15A | 10.20A | 10.25A | 10.30A |
| Max Power Voltage (Vmp) | 39.18V | 39.38V | 39.58V | 39.78V | 39.98V | 40.18V |
| Max Power Current (Imp) | 9.38A | 9.43A | 9.48A | 9.53A | 9.58A | 9.63A |
Mechanical Data:
| Specification | Details |
|---|---|
| Cell Type | Monocrystalline PERC |
| Cell Configuration | 150 cells (5x15 x 5x15) |
| Module Dimensions | 2220 x 1102 x 35mm |
| Weight | 27 ± 1 kg |
| Front Cover | High transmission, low iron, tempered ARC glass |
| Backsheet | White backsheet |
| Frame | Anodized aluminum alloy |
| Junction Box | Potted, IP68, 1500V DC, 3 bypass diodes |
| Cables | 4.0mm² (12AWG), 350mm (+), 350mm (-) |
| Connector | Risen Twinsel PV-SY02, IP68 |
Temperature & Maximum Ratings:
| Specification | Details |
|---|---|
| Nominal Module Operating Temperature (NMOT) | 44°C ± 2°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
| Temperature Coefficient of Pmax | -0.34%/°C |
| Operational Temperature | -40°C ~ +85°C |
| Maximum System Voltage | 1500V DC |
| Max Series Fuse Rating | 20A |
| Limiting Reverse Current | 20A |
Packaging Configuration:
- 40ft (HQ) container: 620 modules
- 20ft container: 155 modules
- Modules per pallet: 31 modules
- Pallets per container: 31 pallets (40ft HQ)
- Packaging Box Dimensions (L x W x H): 2250 x 1130 x 1235mm
- Box Gross Weight: 870kg
The Risen Titan RSM150-8-485M-510M Solar Panel offers superior efficiency, reliability, and durability for large-scale solar projects. With advanced PERC technology, an industry-leading warranty, and a robust design, this panel is built to maximize energy production in all conditions. The combination of excellent low irradiance performance, high mechanical load resistance, and a low temperature coefficient makes this solar module ideal for a variety of applications, from commercial to utility-scale installations.

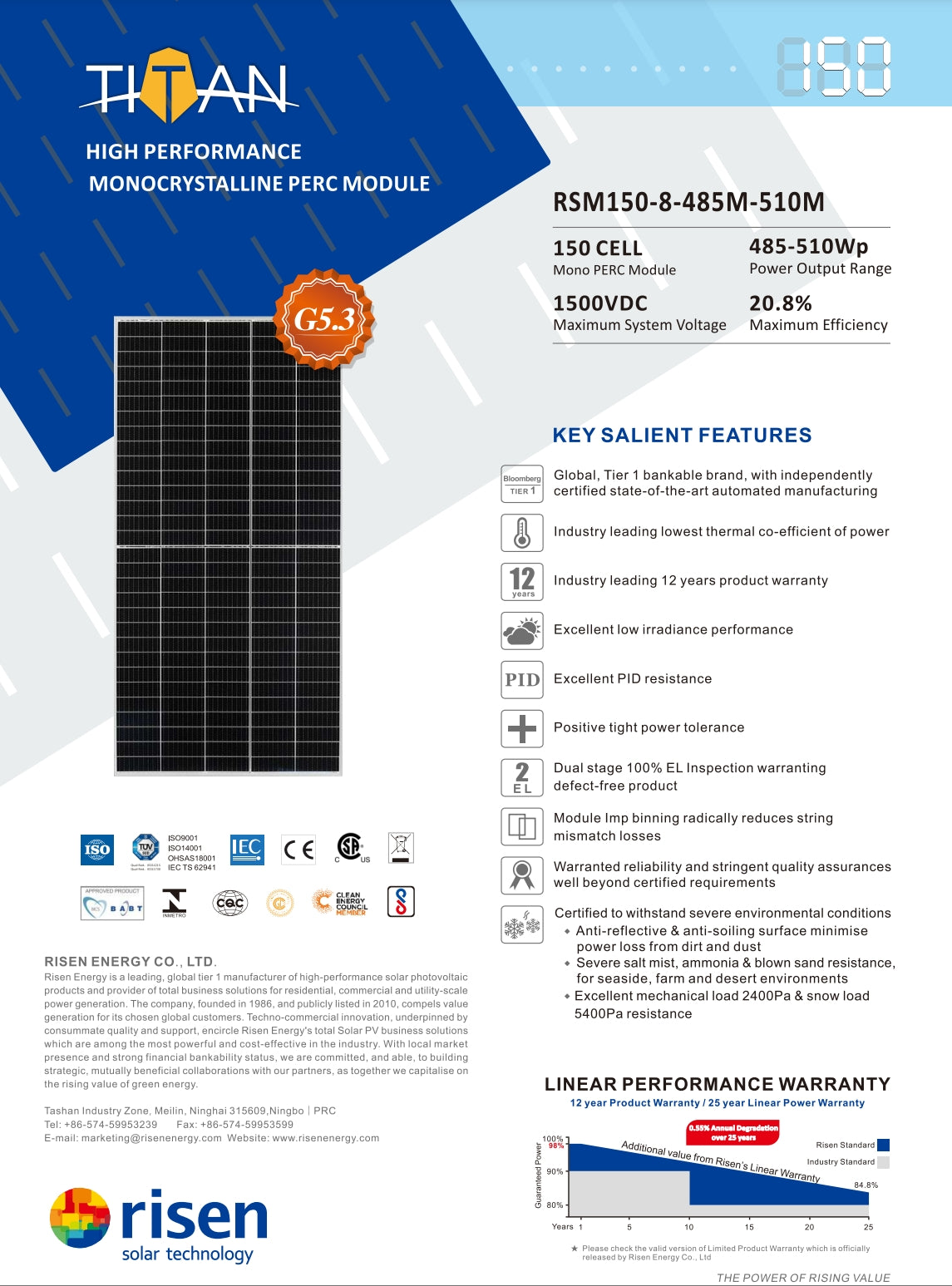

Risen Energy presents the RSM150-8-485M-5NM, a high-performance monocrystalline PERC module with 150 cells and a power output range of 485-510Wp. The module features a maximum system voltage of 1500VDC, with an efficiency of up to 20.8% and a thermal coefficient of power of -12. Industry-leading low irradiance performance and PID resistance ensure excellent power output. The module also boasts a tight power tolerance of ±2%, with dual-stage EL inspection ensuring defect-free products. Risen Energy ISO9001-certified manufacturing process and strict quality controls guarantee reliable products that withstand severe environmental conditions.
Risen 500W Solar Panel (485-510 Watt) PV Module: Dimensions: 2220*1102*35mm Electrical Data: Rated Power (Pmax): 485-510 Wp Open Circuit Voltage (Voc): 50.35-51.45 V Short Circuit Current (Isc): 12.25-12.60 A Maximum Power Voltage (Vmpp): 42.22-43.32 V Module Efficiency: 19.8-20.8% Mechanical Data: Cell Configuration: Monocrystalline Cell, 150 cells (5*15+5*15) Module Dimensions: 2220*1102*35mm Weight: 27±1 kg Frame: Anodized Aluminium Alloy type 6005-2T6, Silver Color
