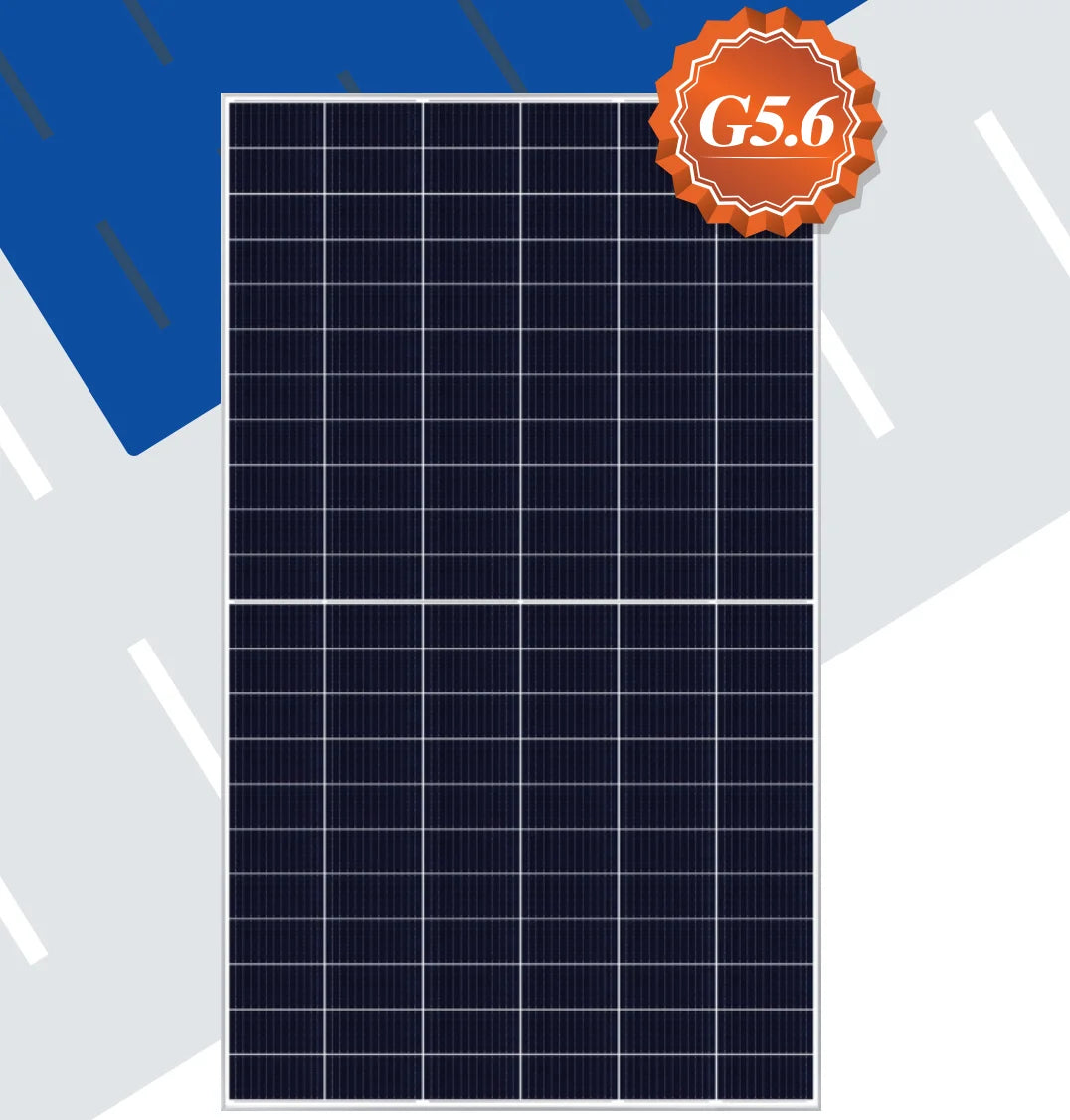

Risen 650 Watt Solar Panel Overview
The Risen 650 Watt Solar Panel (645-670W) is a high-performance solar solution designed to deliver exceptional efficiency and durability. Manufactured in Zhejiang, China, this solar panel features advanced Mono PERC, half-cell technology, ensuring optimal energy production. With dimensions of 2384130335mm, a panel efficiency of up to 21.6%, and the ability to handle a maximum system voltage of 1500VDC, the Risen solar panel is built for superior performance.
Key specifications include a maximum power output range of 645-670W, making it suitable for various large-scale installations. The panel consists of 132 cells (6x11x6x11 configuration) with a cell size of 210mm*210mm, providing robust and efficient energy conversion. The anodized aluminum alloy silver frame and high-strength alloy steel ensure durability and resilience against environmental factors.
Risen 650W Solar Panel Features
- High Efficiency: Boasting a maximum panel efficiency of up to 21.6%, the Risen 650W solar panel maximizes energy yield, ensuring optimal performance.
- Advanced Technology: Incorporates PERC, half-cell technology with 132 mono-crystalline cells (210mm*210mm), enhancing energy output even under low-light conditions.
- Durable Construction: Features a robust anodized aluminum alloy silver frame and high-quality single glass for excellent protection and longevity.
- Certified Quality: The panel is certified by CE, TUV, ISO, and IEC, ensuring top-tier manufacturing standards and performance reliability.
- Long-term Warranty: Comes with a 25-year warranty, ensuring sustained and reliable energy production over its lifespan.
- Efficient Packaging: Packaged efficiently with 31 panels per pallet and 558 panels per 40HQ container, facilitating easy transportation and installation.
Risen 650 Watt Solar Panel Technical Data
Electrical Data (STC)
Model Number | RSM132-8-645M | RSM132-8-650M | RSM132-8-655M | RSM132-8-660M | RSM132-8-665M | RSM132-8-670M |
---|---|---|---|---|---|---|
Rated Power in Watts-Pmax (Wp) | 645 | 650 | 655 | 660 | 665 | 670 |
Open Circuit Voltage-Voc (V) | 45.15 | 45.35 | 45.55 | 45.75 | 45.95 | 46.15 |
Short Circuit Current-Isc (A) | 18.18 | 18.23 | 18.27 | 18.32 | 18.36 | 18.43 |
Maximum Power Voltage-Vmpp (V) | 37.58 | 37.76 | 37.96 | 38.16 | 38.36 | 38.74 |
Maximum Power Current-Impp (A) | 17.17 | 17.22 | 17.27 | 17.32 | 17.37 | 17.42 |
Module Efficiency (%) | 20.8 | 20.9 | 21.1 | 21.2 | 21.4 | 21.6 |
*STC: Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3.
- Module Efficiency (%): Round-off to the nearest number
Electrical Data (NMOT)
Model Number | RSM132-8-645M | RSM132-8-650M | RSM132-8-655M | RSM132-8-660M | RSM132-8-665M | RSM132-8-670M |
---|---|---|---|---|---|---|
Maximum Power-Pmax (Wp) | 488.6 | 492.4 | 496.2 | 500.0 | 503.8 | 507.6 |
Open Circuit Voltage-Voc (V) | 41.99 | 42.18 | 42.36 | 42.56 | 42.73 | 42.92 |
Short Circuit Current-Isc (A) | 14.91 | 14.95 | 14.99 | 15.03 | 15.07 | 15.11 |
Maximum Power Voltage-Vmpp (V) | 34.87 | 35.04 | 35.21 | 35.38 | 35.54 | 35.71 |
Maximum Power Current-Impp (A) | 14.01 | 14.05 | 14.09 | 14.13 | 14.17 | 14.21 |
*NMOT: Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1 m/s.
Mechanical Data
Parameter | Value |
---|---|
Solar cells | Monocrystalline |
Cell configuration | 132 cells (6×11×6×11) |
Module dimensions | 2384×1303×35mm |
Weight | 35.5 kg |
Superstrate | High Transmission, Low Iron, Tempered ARC Glass |
Substrate | White Back-sheet |
Frame | High strength alloy steel |
J-Box | Potted, IP68, 1500VDC, 3 Schottky bypass diodes |
Cables | 4.0mm² (12AWG), Positive(+)350mm, Negative(-)230mm |
Connector | Risen Twinsel PV-SY02, IP68 |
Temperature & Maximum Ratings
Parameter | Value |
---|---|
Nominal Module Operating Temperature (NMOT) | 44°C±2°C |
Temperature Coefficient of Voc | -0.25%/°C |
Temperature Coefficient of Isc | 0.04%/°C |
Temperature Coefficient of Pmax | -0.34%/°C |
Operational Temperature | -40°C~+85°C |
Maximum System Voltage | 1500VDC |
Max Series Fuse Rating | 30A |
Limiting Reverse Current | 30A |
Packaging Configuration
Parameter | Value |
---|---|
Number of modules per container | 558 |
Number of modules per pallet | 31 |
Number of pallets per container | 18 |
Packaging box dimensions (L×W×H) in mm | 1320×1120×2520 |
Box gross weight (kg) | 1145 |
Customer Support
For any inquiries or assistance in selecting the right model for your project, please contact us. Our team is available to provide information, updates on new products, and the latest pricing, considering the frequent changes in raw material costs and exchange rates. We are dedicated to offering timely and comprehensive support to meet your solar energy needs.
The Risen 650 Watt Solar Panel (645-670W) combines advanced technology, high efficiency, and robust construction, making it the ideal choice for sustainable energy solutions in large-scale installations.
Risen 650W Datasheet

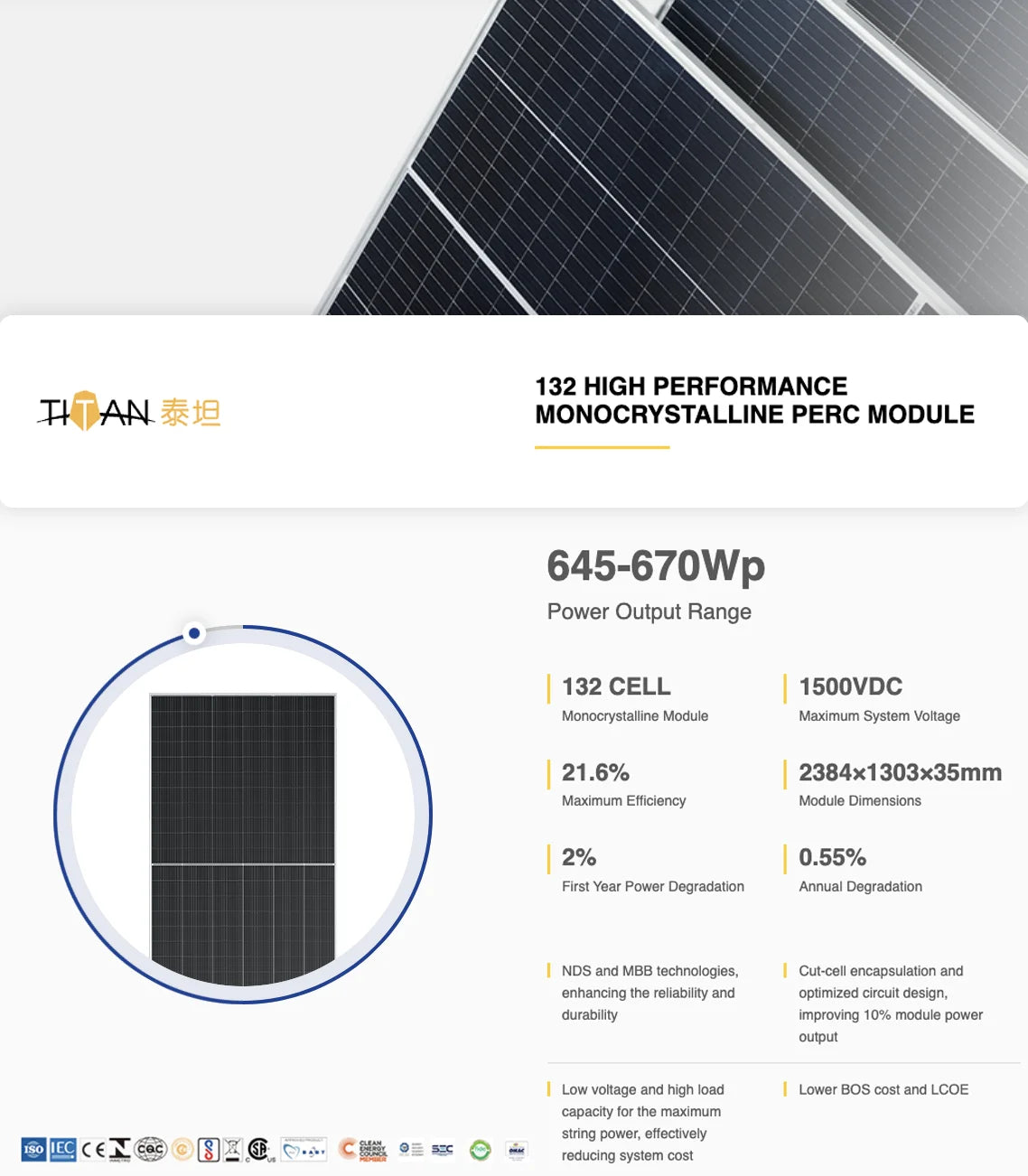

High-performance Risen solar panel features monocrystalline PERC technology, with a 645-670W power output range, 132 cells and a max voltage of 1500V DC. The module has a maximum efficiency of 21.6%, dimensions of 2384x1303*35mm, and a first-year degradation rate of 2%. Optimized circuit design and durability improvements ensure reliable performance, with low voltage and high load capabilities for reduced system costs.

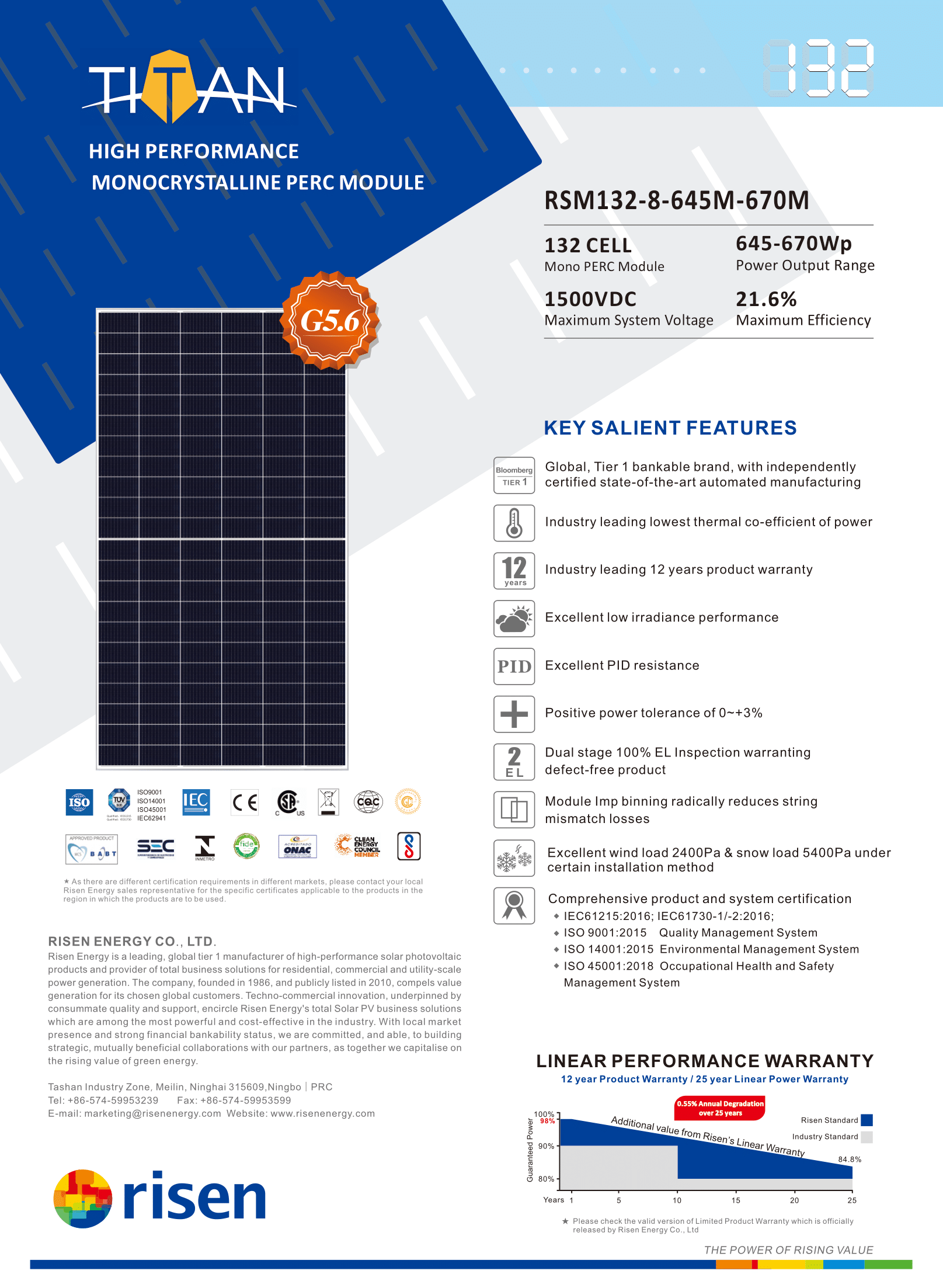

Risen Energy's RSM132-8-645M-670M module features high-performance monocrystalline PERC technology with a power output range of 645-670Wp, Tier 1 certification, and comprehensive product and system certifications.

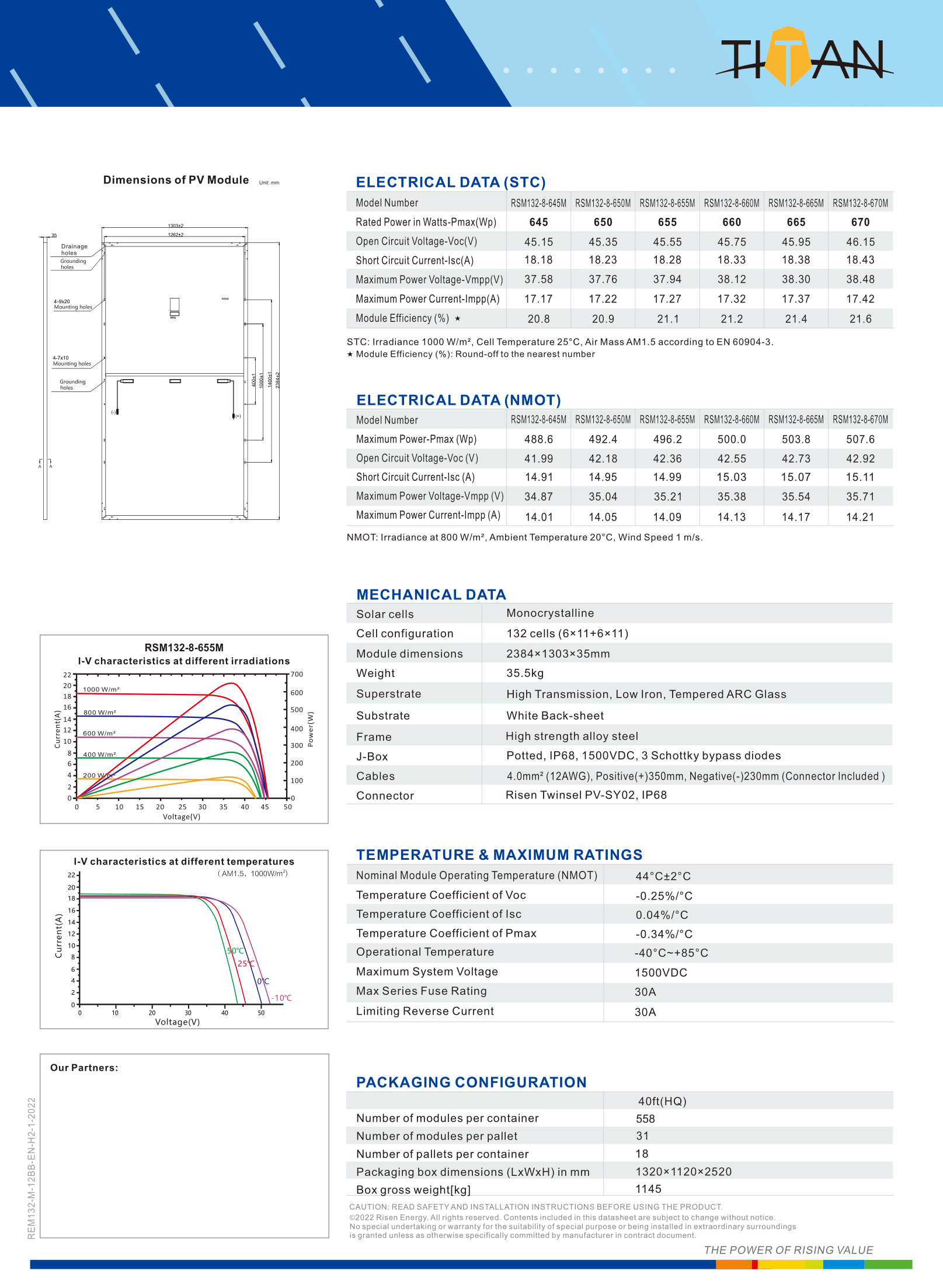

Risen 650W Solar Panel (645-670W) - High-efficiency monocrystalline solar cells with module dimensions of 2384*1303*35mm. Rated power: 645-670W; open circuit voltage: 45.15-46.15V; short circuit current: 18.18-18.43A. Maximum power voltage and current: 37.58-38.48V, 17.17-17.42A respectively. Module efficiency: 20.8-21.6%. Operating temperature range: -40°C to +85°C; maximum system voltage: 1500VDC. CAUTION: read safety and installation instructions before using the product.

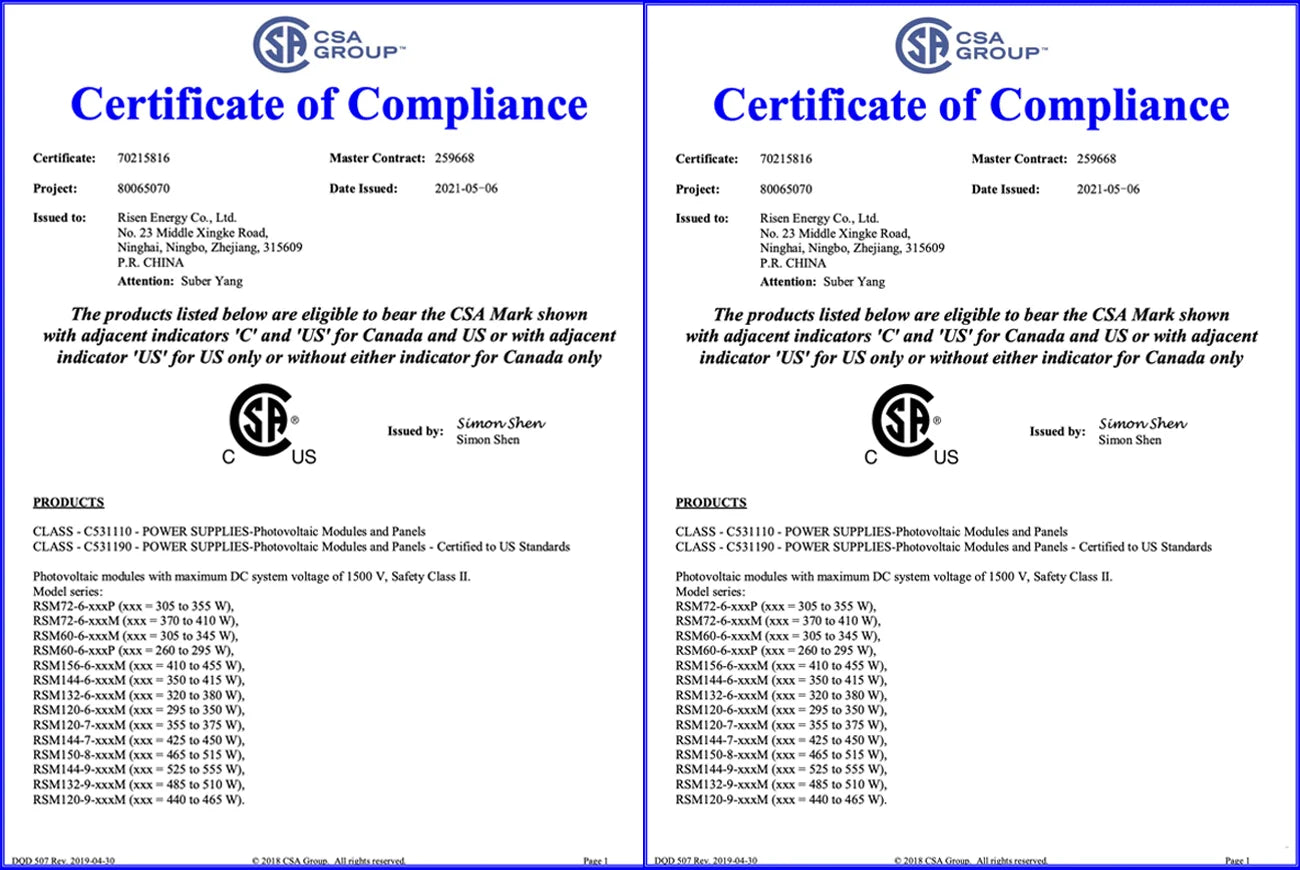

Risen Solar Panel Product Certification Certificate: This product complies with US standards. The photovoltaic module has a maximum DC system voltage of 1500V, Safety Class IL. Model series include RSM7Z-6-XXXP (305-355W), RSM72-6-xxM (370-410W), and more. All models are certified to US standards for photovoltaic modules and fans. The CSA Mark is eligible for products bearing the 'C' and 'US' indicators, or without either indicator for Canada-only certification.

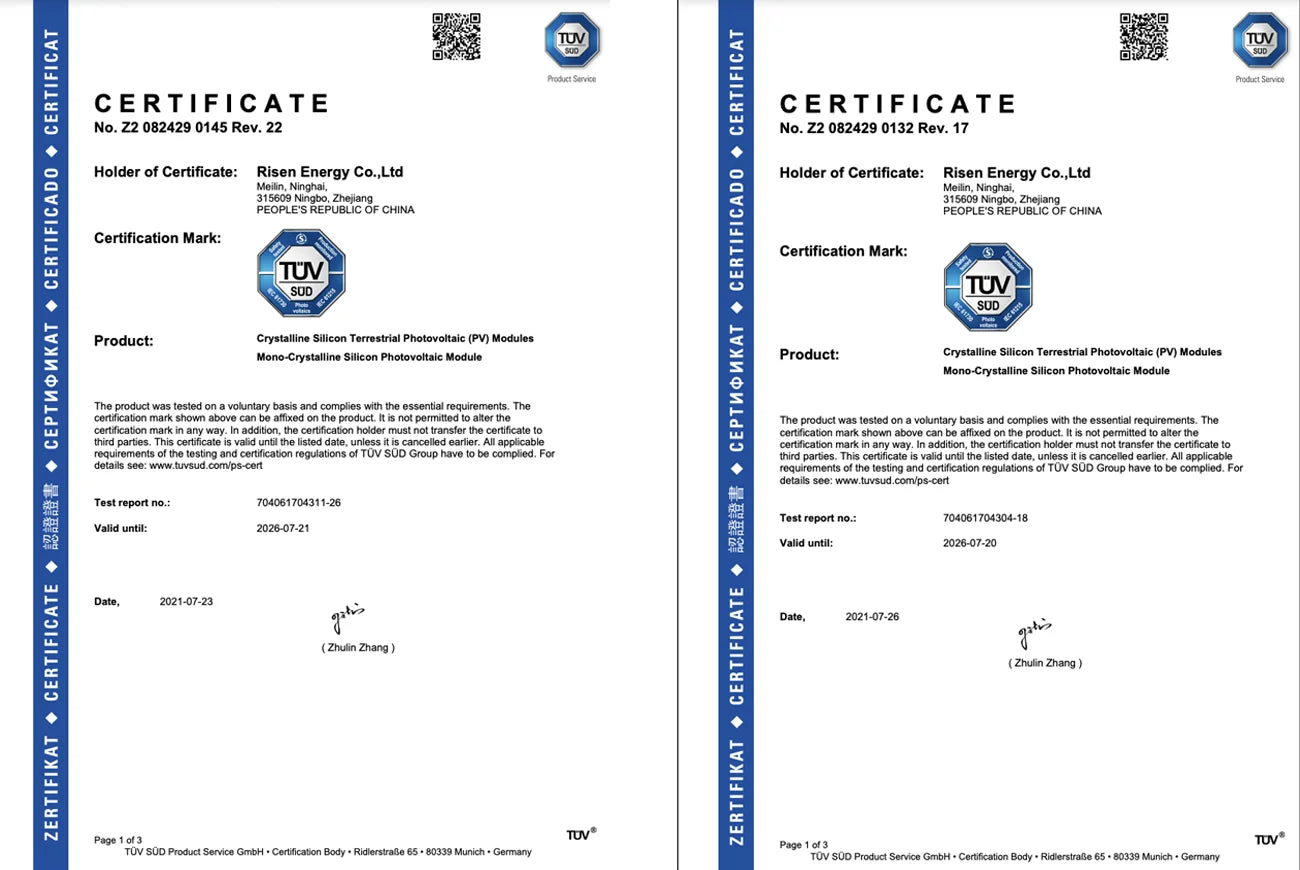

Risen Energy Co., Ltd. certifies that this Risen 650W Solar Panel (645-670W) complies with essential requirements for crystalline silicon terrestrial photovoltaic modules. The product was tested voluntarily and meets standards. The certification mark above can be affixed on the product, but must not be altered or transferred to third parties. This certificate is valid until 2026-07-21 unless cancelled earlier. For details, see www.tuvsud.com/cert. Testing reports: 704051704311-26 and 704061704304-18.

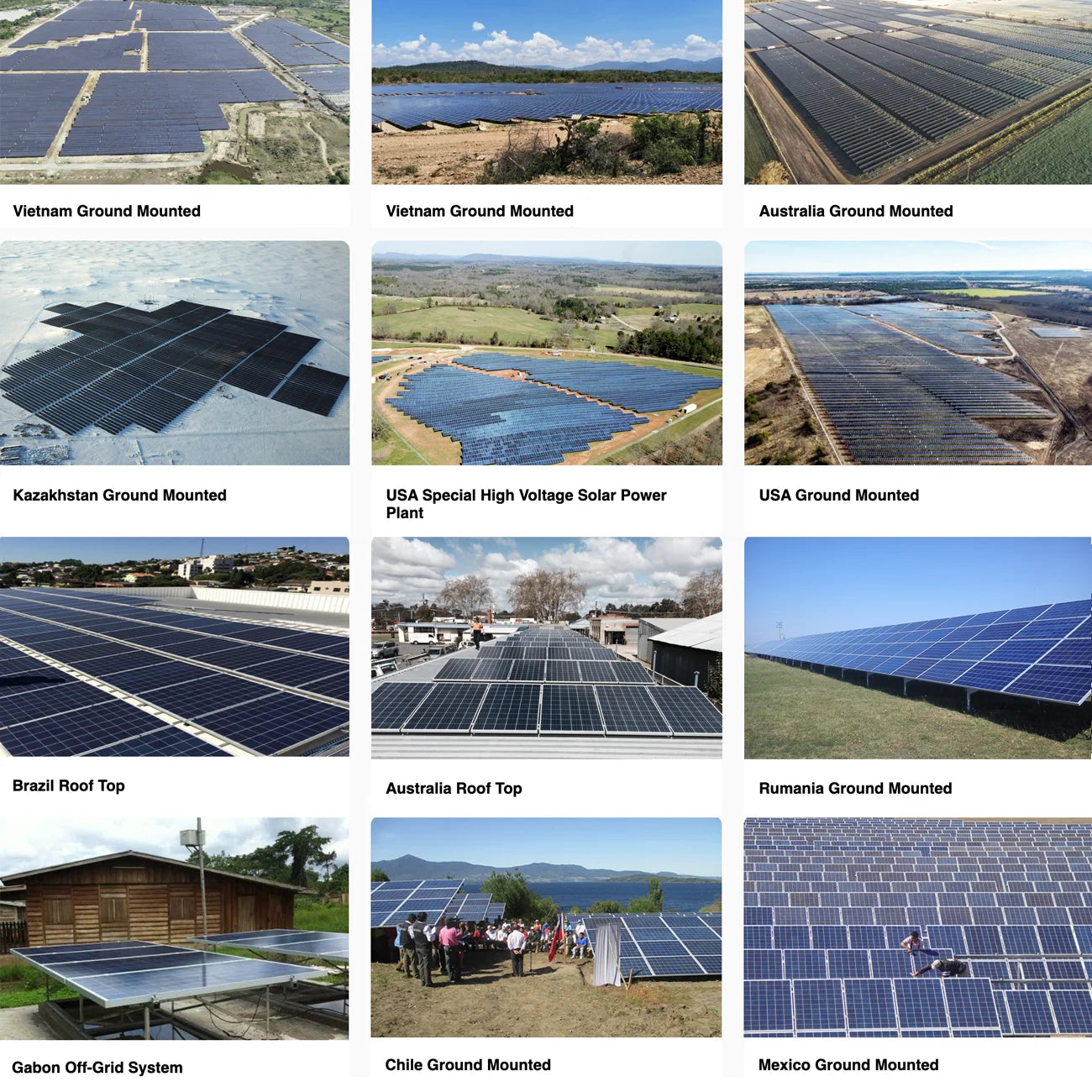

Vietnam, Australia, Kazakhstan, and US ground-mounted solar power systems, plus roof-top installations in Brazil and Chile, with off-grid solutions for Gabon and special high-voltage projects in the USA.
Risen presents the Risen E646 solar panel with impressive power output of 645-670W, promising rising value and efficiency.
