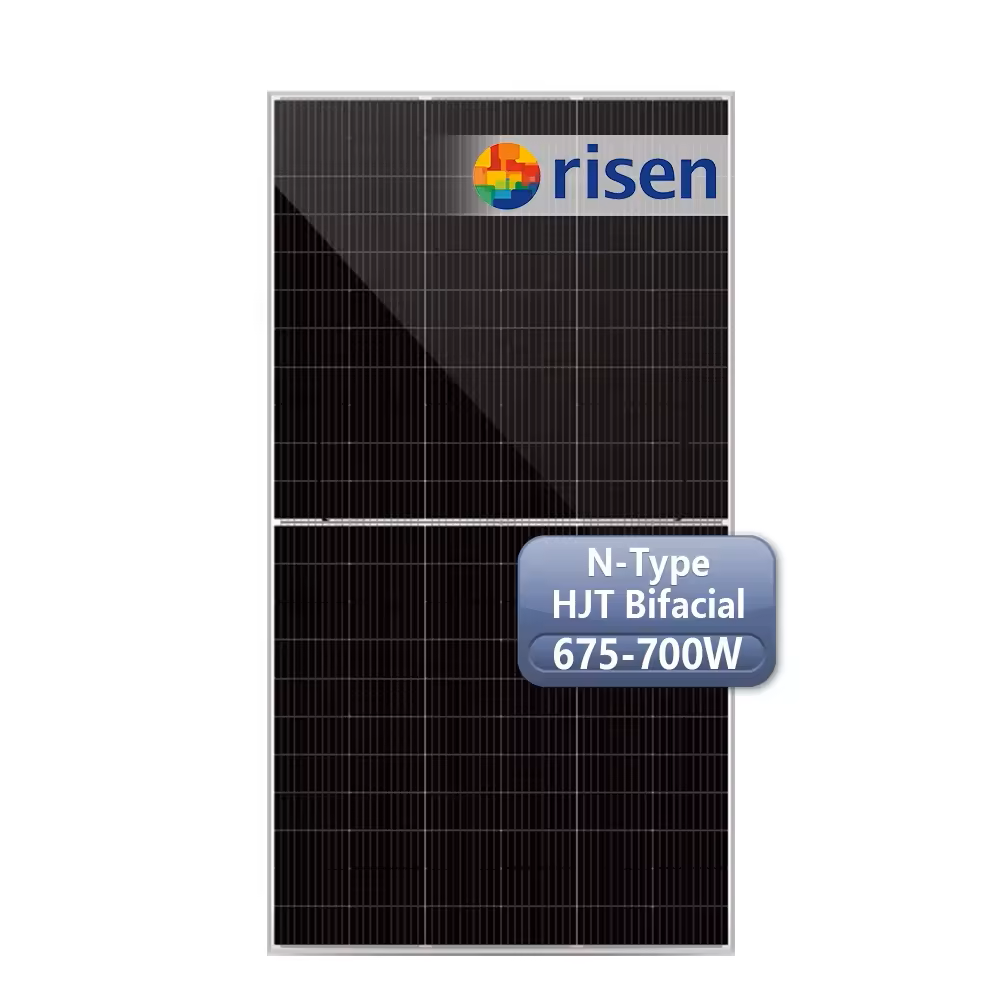

Risen 700W Solar Panel Overview
The Risen 700W Solar Panel, model RSM132-8-675-700BHDG, is designed with cutting-edge Heterojunction Technology (HJT) and bifacial capabilities. This high-performance solar panel boasts 132 cells (210mm x 210mm) and achieves an impressive efficiency of 22.5%. With dimensions of 2384*1303*35mm and a weight of 41kg, it is engineered for optimal energy generation and durability. The panel features a high transmission AR coated heat-strengthened glass and an anodized aluminum alloy frame, available in black or silver, ensuring robust construction. Ideal for various solar power applications, the Risen 700 watt solar panel provides a 25-year output power guarantee, reinforcing its reliability and longevity.
Risen 700 Watt Solar Panel Specifications
| Parameter | Details |
|---|---|
| Solar Cell Type | Heterojunction, Bifacial |
| Cell Size | 210mm x 210mm |
| Number of Cells | 132 (6*22) |
| Panel Dimensions | 2384*1303*35mm |
| Weight | 41kg |
| Brand Name | Risen |
| Model Number | RSM132-8-675-700BHDG |
| Glass | High Transmission, AR Coated Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy (Black or Silver) |
| J-Box | Potted, IP68, 1500VDC, 3 Schottky Bypass Diodes |
| Connector | Risen Twinsel PV-SY02, IP68 |
| Warranty | 25 Years Output Power Guarantee |
Electrical Data (STC)
| Model | RSM132-8-675 | RSM132-8-680 | RSM132-8-685 | RSM132-8-690 | RSM132-8-695 | RSM132-8-700 |
|---|---|---|---|---|---|---|
| Rated Power (W) | 675 | 680 | 685 | 690 | 695 | 700 |
| Open Circuit Voltage (Voc) | 49.38 | 49.47 | 49.55 | 49.62 | 49.71 | 49.80 |
| Short Circuit Current (Isc) | 17.40 | 17.48 | 17.56 | 17.64 | 17.72 | 17.82 |
| Maximum Power Voltage (Vmpp) | 41.90 | 42.00 | 42.10 | 42.20 | 42.30 | 42.40 |
| Maximum Power Current (Impp) | 16.12 | 16.20 | 16.28 | 16.36 | 16.44 | 16.52 |
| Module Efficiency (%) | 21.7 | 21.8 | 21.9 | 22.0 | 22.1 | 22.2 |
Electrical Data (NMOT)
| Model | RSM132-8-675 | RSM132-8-680 | RSM132-8-685 | RSM132-8-690 | RSM132-8-695 | RSM132-8-700 |
|---|---|---|---|---|---|---|
| Maximum Power (Pmax) | 515.6 | 519.3 | 523.0 | 526.7 | 530.4 | 534.5 |
| Open Circuit Voltage (Voc) | 46.27 | 46.35 | 46.43 | 46.52 | 46.61 | 46.70 |
| Short Circuit Current (Isc) | 13.72 | 13.79 | 13.86 | 13.93 | 14.00 | 14.08 |
| Maximum Power Voltage (Vmpp) | 38.71 | 38.78 | 38.85 | 38.93 | 39.00 | 39.07 |
| Maximum Power Current (Impp) | 13.32 | 13.39 | 13.46 | 13.53 | 13.60 | 13.68 |
Mechanical Data
- Cell Configuration: 132 cells (6116*11)
- Substrate: High Strength Alloy Steel
- Frame: High Strength Alloy Steel
- J-Box: Potted, IP68, 1500VDC, 3 Schottky Bypass Diodes
- Cables: 4.0mm², Positive (350mm), Negative (230mm), Connector Included
- Connector: Risen Twinsel PV-SY02, IP68
Temperature & Maximum Ratings
- Nominal Module Operating Temperature (NMOT): 43°C ± 2°C
- Temperature Coefficient of Voc: -0.22%/°C
- Temperature Coefficient of Isc: 0.047%/°C
- Temperature Coefficient of Pmax: -0.24%/°C
- Operational Temperature: -40°C ~ +85°C
- Maximum System Voltage: 1500VDC
- Max Series Fuse Rating: 35A
- Limiting Reverse Current: 35A
Features and Benefits
- Higher Efficiency and Power Generation: The Risen 700 watt solar panel achieves an efficiency of 22.5%, leveraging N-type HJT technology for maximum power output.
- Robust Construction: The panel features high-strength alloy steel for the substrate and frame, ensuring durability under various environmental conditions.
- Bifacial Technology: Enables additional energy harvesting from the rear side, increasing overall power output.
- Comprehensive Certifications: Certified under IEC61215, IEC61730, ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 for quality, environmental, and safety standards.
- Excellent Durability: Withstands high snow loads up to 5400 Pa and wind loads up to 2400 Pa, suitable for harsh climates.
Warranty
- 25 Years Output Power Guarantee: Ensures long-term performance and reliability.
- 15 Years Product Warranty: Covers material and workmanship defects.
The Risen 700 watt solar panel is a high-performance, reliable choice for both residential and commercial solar power installations, providing exceptional efficiency and durability with advanced HJT and bifacial technology.

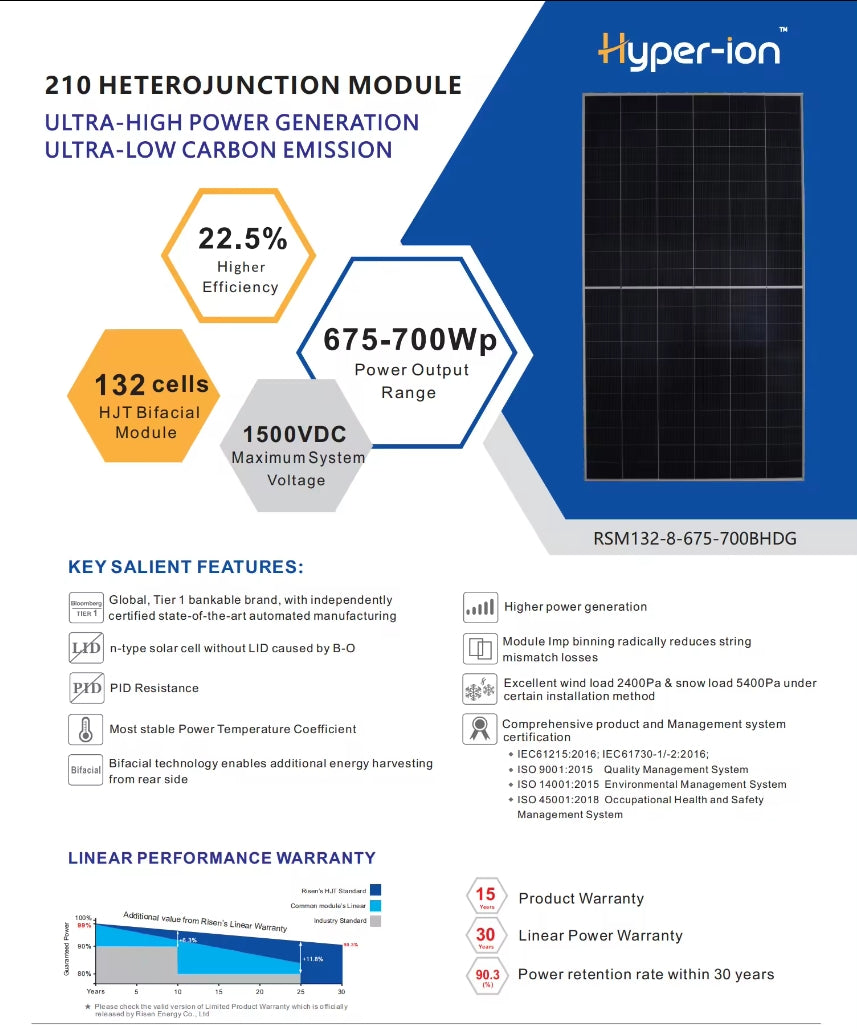

Risen's 700W solar panel features a hyper-ion 210 heterojunction module with ultra-high power generation, ultra-low carbon emission, and 22.5% higher efficiency. Its key salient features include independently certified state-of-the-art manufacturing, n-type solar cells without LID caused by B-0 module imp binning, excellent wind load of 2400Pa and snow load of 5400Pa, comprehensive product management system certifications, and bifacial technology for additional energy harvesting.

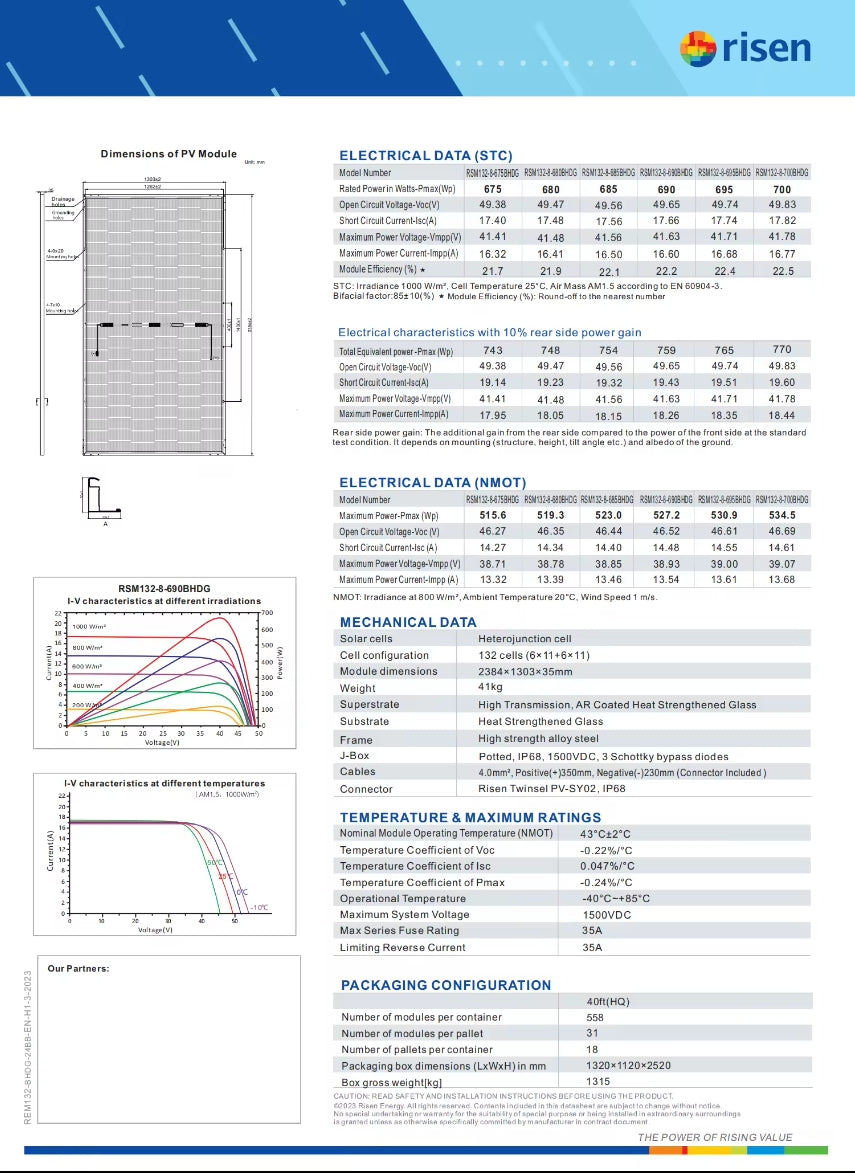

Risen 700W Solar Panel: Electrical Data. STC Electrical Characteristics - Voc: 49.38-49.83V, Isc: 14.27-14.61A, Mpp: 41.41-41.78V, Imp: 16.32-16.77A, Efficiency: 21.7-22.5%. Module Dimensions: 2384*1303*35mm. Weight: 41kg. Packaging Configuration: 558 modules per container.
