Rosen 700W Solar Panel Overview
The Rosen Solar 700W Solar Panel, part of the RS-132HC series, is engineered with advanced PERC half-cell technology. This monocrystalline panel features 132 cells (622) and boasts a maximum power output of 700W. With a high efficiency of 22.5%, dimensions of 2385*1303*35mm, and a weight of 34.4kg, it is designed for optimal performance and durability. It also includes a robust IP68 rated junction box and a 25-year power warranty, making it a top choice for various solar energy applications.
Rosen 700 Watt Solar Panel Specifications
| Parameter | Details |
|---|---|
| Solar Cell | Monocrystalline, 210mm |
| Cell Orientation | 132 cells (6*22) |
| Size | 2385*1303*35mm |
| Brand Name | Rosen Solar |
| Model Number | RSM700-132HC |
| Weight | 34.4kg |
| Glass | 3.2mm, High Transparency solar glass |
| Encapsulant Material | EVA/POE |
| Backsheet | White |
| Frame | Silver, Anodized Aluminium Alloy |
| J-Box | IP68 rated |
| Connector | MC4 EVO2/TS4* |
| Warranty | 25 year Power Warranty |
Technical Specification Data (STC)
| Model of Solar Panel | RS650M-132HC | RS660M-132HC | RS680M-132HC | RS690M-132HC | RS700M-132HC |
|---|---|---|---|---|---|
| Peak Power Watts-Pmax (Wp) | 650 | 660 | 680 | 690 | 700 |
| Maximum Power Voltage-Vmpp (V) | 37.9 | 38.3 | 39.1 | 39.5 | 39.9 |
| Maximum Power Current-Impp (A) | 17.16 | 17.24 | 17.40 | 17.48 | 17.55 |
| Open Circuit Voltage-Voc (V) | 45.0 | 45.4 | 46.2 | 46.8 | 47.2 |
| Short Circuit Current-Isc (A) | 18.39 | 18.47 | 18.63 | 18.71 | 18.79 |
| Module Efficiency (%) | 20.9 | 21.2 | 21.9 | 22.2 | 22.5 |
| Power Output Tolerance-Pmax (W) | 0~+5 | 0~+5 | 0~+5 | 0~+5 | 0~+5 |
| Temperature Coefficient of Pmax | -0.34%/℃ | -0.34%/℃ | -0.34%/℃ | -0.34%/℃ | -0.34%/℃ |
| Temperature Coefficient of Voc | -0.26%/℃ | -0.26%/℃ | -0.26%/℃ | -0.26%/℃ | -0.26%/℃ |
| Temperature Coefficient of Isc | 0.05%/℃ | 0.05%/℃ | 0.05%/℃ | 0.05%/℃ | 0.05%/℃ |
| STC | Irradiance 1000W/m², Cell Temperature 25℃, Air Mass AM1.5. *Measuring tolerance: ±3%. |
Features and Benefits
-
More Power
- Up to 700W module power with efficiency up to 22.5%.
- Up to 3.5% lower Levelized Cost of Energy (LCOE) and up to 5.7% lower system cost.
- Comprehensive Light-Induced Degradation (LID) and LeTID mitigation technology, reducing degradation by up to 50%.
- Enhanced shading tolerance for better performance in partial shading conditions.
-
More Reliable
- 40°C lower hot spot temperature to greatly reduce module failure rate.
- Minimized micro-crack impacts for increased durability.
- Supports heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa.
-
Warranty and Certifications
- 12-year enhanced product warranty on materials and workmanship.
- 25-year linear power performance warranty, with the first year power degradation not exceeding 2% and subsequent annual degradation not exceeding 0.55%.
Construction Details
- EVA: High transmittance EVA with high GEL content for better encapsulation and protection from vibration.
- Solar Cell: Available in 5BB, 6BB, 9BB, 10BB, 12BB configurations with high efficiency.
- Frame: 35mm or 40mm anodized aluminum alloy, available in black or silver color.
- Junction Box: IP68 rated waterproof junction box with full-glue filling.
- Connector: Compatible with MC4, MC4 EVO2, and TS4 connectors.
- Label: Waterproof customized labels available for OEM/ODM with your logo.
This combination of high efficiency, advanced technology, and robust construction makes the Rosen Solar 700W Solar Panel an excellent choice for both residential and commercial solar power installations.
Rosen 700W Solar Panel Datasheet

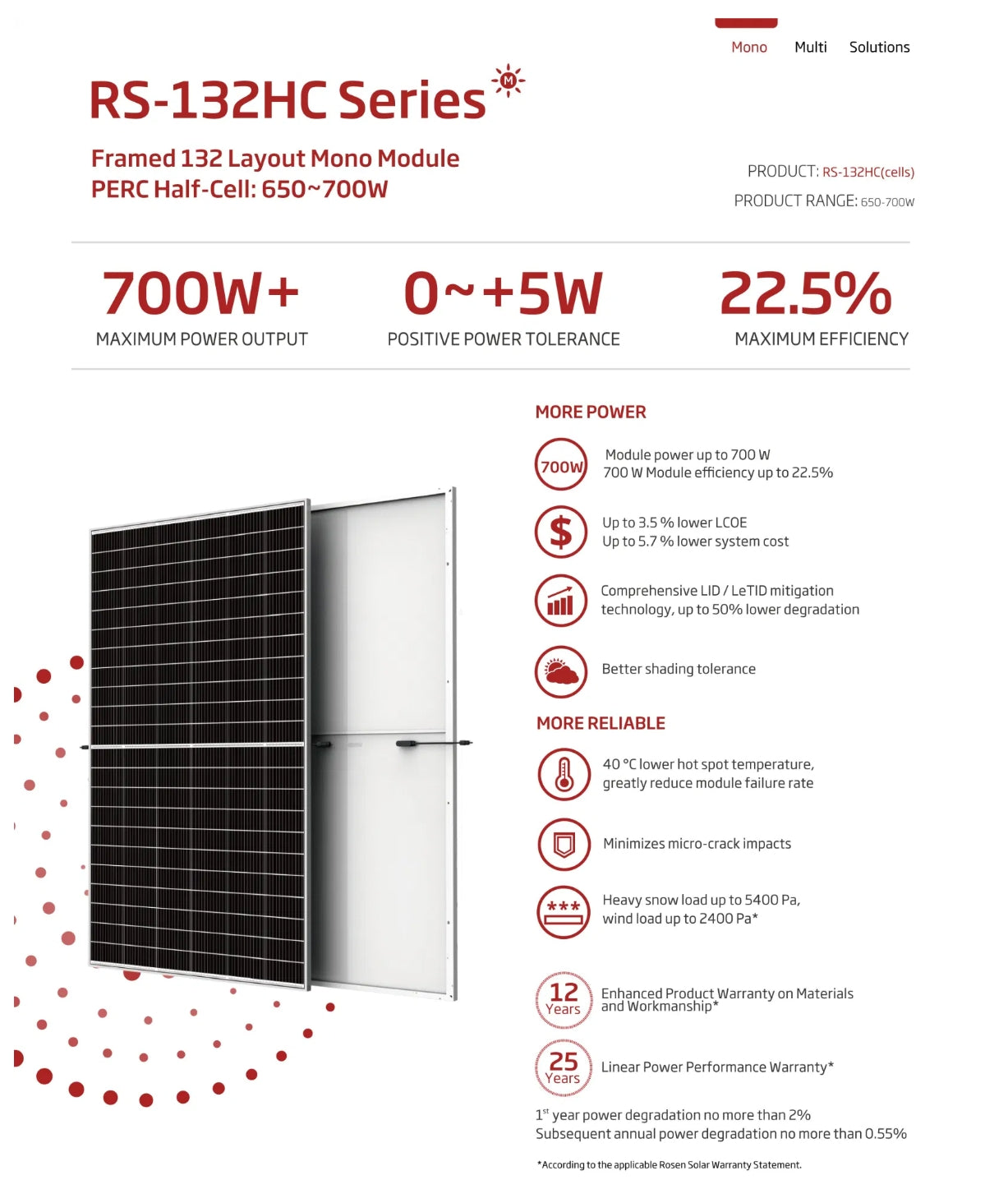

Rosen Solar's RS-132HC series framed mono module features a power range of 650W-700W, with maximum power output of up to 22.5%. It boasts high efficiency, reduced LCOE, and lower system costs due to improved shading tolerance. The module also offers enhanced reliability through comprehensive LID/LeTID mitigation technology and minimized micro-crack impacts. Additionally, it features a heavy snow load capacity of up to 5400 Pa and wind load of up to 2400 Pa. Rosen Solar provides a 12-year warranty on materials and workmanship, as well as linear power performance guarantees for up to 1 year with no more than 2% degradation, followed by subsequent annual degradation of no more than 0.55%.

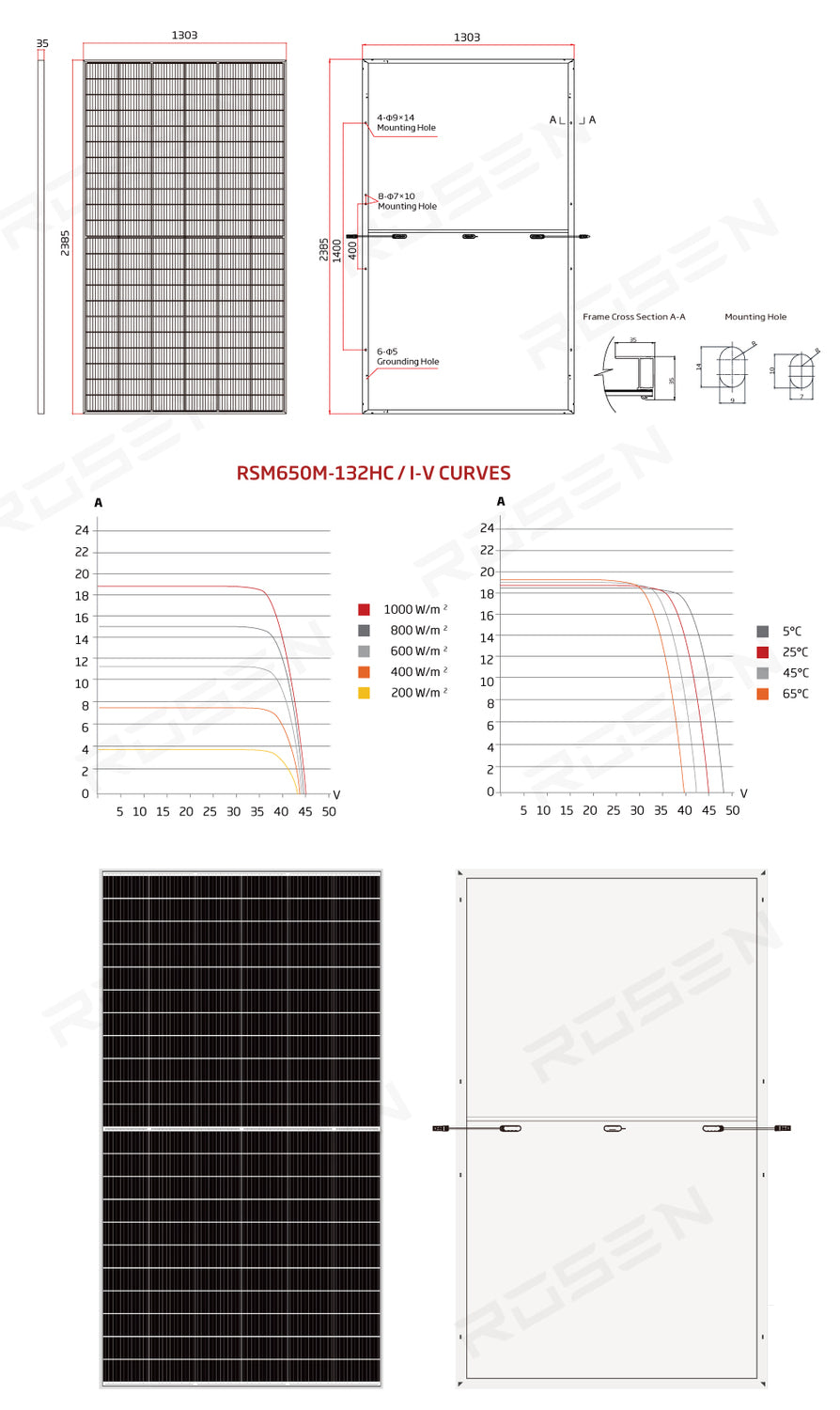

Rosen Solar's 700W solar panel features a high-efficiency output of 650-700W, with a robust design and reliable performance.

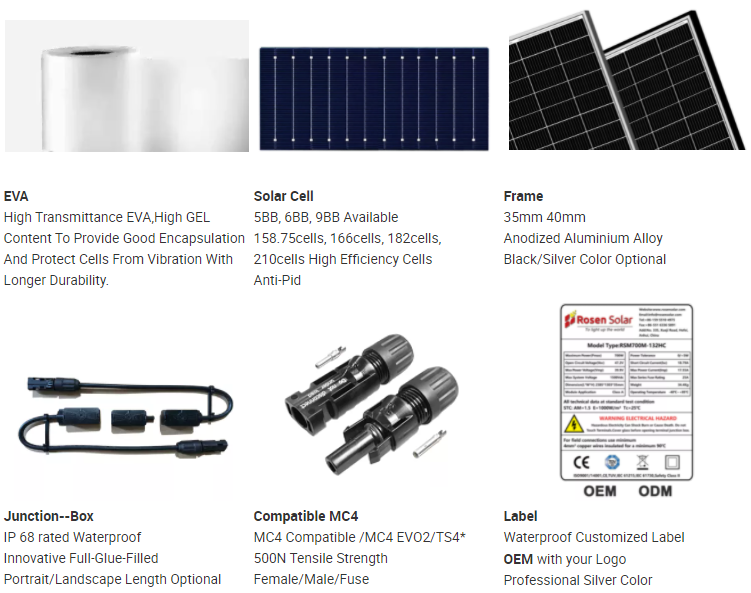

Rosen Solar 700W solar panel features EVA solar cell frame, high transmittance and GEL encapsulation, available in 35mm and 40mm content. It has 158-182 cells with high efficiency and anti-pid protection. The junction box is compatible with MC4 labels and has IP68 rated waterproofing. Optional color options include black and silver. The anodized aluminum alloy provides a durable and vibration-resistant design.
