SankoPower 650 Watt Solar Panel Overview
The SankoPower 650 Watt Solar Panel is a state-of-the-art solar solution designed for maximum efficiency and durability. With a maximum power output of 650W and a module efficiency of up to 21.7%, it ensures optimal energy production. This solar panel features 210mm Mono PERC cells with 12BB half-cell technology, providing superior performance even under shading or low-light conditions. The panel operates at a maximum power voltage of 37.4V and a maximum power current of 17.38A, with an open-circuit voltage of 45.2V and a short-circuit current of 18.46A. Its robust design includes a silver anodized aluminum alloy frame and IP68-rated junction box, making it suitable for various environmental conditions. The SankoPower 650W solar panel is the ideal choice for large-scale ground installations, offering high power output and long-term reliability with a minimal annual linear degradation of less than 0.55%.
SankoPower 650W Solar Panel Key Features
- Half Cell Technology: Reduces internal resistance and enhances power output even in low light.
- High Efficiency: Achieves module efficiencies up to 21.7%, ensuring maximum energy yield.
- Durability: Anodized aluminum alloy frame and IP68-rated junction box for robust environmental protection.
- Low Degradation: Anti-LID and anti-PID technologies maintain over 98% efficiency in the first year.
- Compatibility: Standard industry size, compatible with other brands and inverters for easy integration.
- Environmental Resilience: Tested for harsh conditions including salt mist, ammonia, and sand blowing, ensuring reliability in diverse climates.
650W Half Cell Mono Solar Panel Technical Data
Solar Panel, Solar Modules, Monocrystalline Module, PV Modules PVSK-645M PVSK-650M PVSK-655M PVSK-660M PVSK-665M PVSK-670M PVSK-675M
650W Half Cell Mono Solar Panel Mechanical Parameters
| Electrical Specification (STC*) | |||||||
| Maximum Power Pmax(W) | 645 | 650 | 655 | 660 | 665 | 670 | 675 |
| Maximum Power Voltage Vmp(V) | 37.2 | 37.4 | 37.6 | 37.8 | 38.0 | 38.2 | 38.4 |
| Maximum Power Current lmp(A) | 17.34 | 17.38 | 17.42 | 17.46 | 17.50 | 17.54 | 17.58 |
| Open Circuit Voltage Voc(V) | 45.0 | 45.2 | 45.4 | 45.6 | 45.8 | 46.0 | 46.2 |
| Short Circuit Current lsc(A) | 18.41 | 18.46 | 18.50 | 18.55 | 18.60 | 18.65 | 18.70 |
| Module Efficiency (%) | 20.7 | 20.9 | 21.0 | 21.2 | 21.4 | 21.5 | 21.7 |
| Power Output Tolerance (W) | 0~+5 | ||||||
| *lrradiance 1000W/m², Module Temperature 25°C. Air Mass 1.5 | |||||||
| Electrical Specification (NOCT*) | |||||||
| Maximum Power Pmax(W) | 488 | 492 | 496 | 500 | 504 | 509 | 513 |
| Maximum Power Voltage Vmp(V) | 34.7 | 34.9 | 35.1 | 35.3 | 35.5 | 35.7 | 35.9 |
| Maximum Power Current lmp(A) | 14.05 | 14.09 | 14.13 | 14.18 | 14.22 | 14.27 | 14.31 |
| Open Circuit Voltage Voc(V) | 42.4 | 42.6 | 42.8 | 43.0 | 43.2 | 43.4 | 43.6 |
| Short Circuit Current lsc(A) | 14.81 | 14.85 | 14.88 | 14.92 | 14.96 | 15.00 | 15.04 |
| * lrradiance 800W/m². Ambient Temperature 20℃. Wind Speed 1m/s | |||||||
| Mechanical Data | |||||||
| Number of Cells | 132 Cells (6×22) | ||||||
| Dimensions of Module L*W*H[mm] | 2385×1303×35mm(93.85×51.29×1.38 inches) | ||||||
| Weight [kg] | 35.7Kg | ||||||
| Glass | High transparency solar glass 3.2mm （0.13 inches) | ||||||
| Backsheet | White | ||||||
| Frame | Silver, anodized aluminium alloy | ||||||
| J-Box | IP68 Rated | ||||||
| Cable | 4.0mm²(0.006 inches²), 300mm(11.8 inches) | ||||||
| Number of diodes | 3 | ||||||
| Wind/ Snow Loas | 2400Pa/ 5400Pa* | ||||||
| Connector | MC Compatible | ||||||
| * For more details please check the installation manual | |||||||
| Temperature Ratings | |
| Nominal Operating Cell Temperature（NOCT） | 43±2°C |
| Temperature Coefficient of Isc | 0.04%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of PMAX | -0.340%/°C |
| Maximum Ratings | |
| Operational Temperature | -40~+85°C |
| Maximum System Voltage | 1500V DC-(H） |
| Max Series Fuse Rating | 25A |
| Packaging Configuration | |
| Module per box | 31 pcs |
| Module per 40' container | 558 pcs |
| Optional | |
| Connector | ■ MC Original |

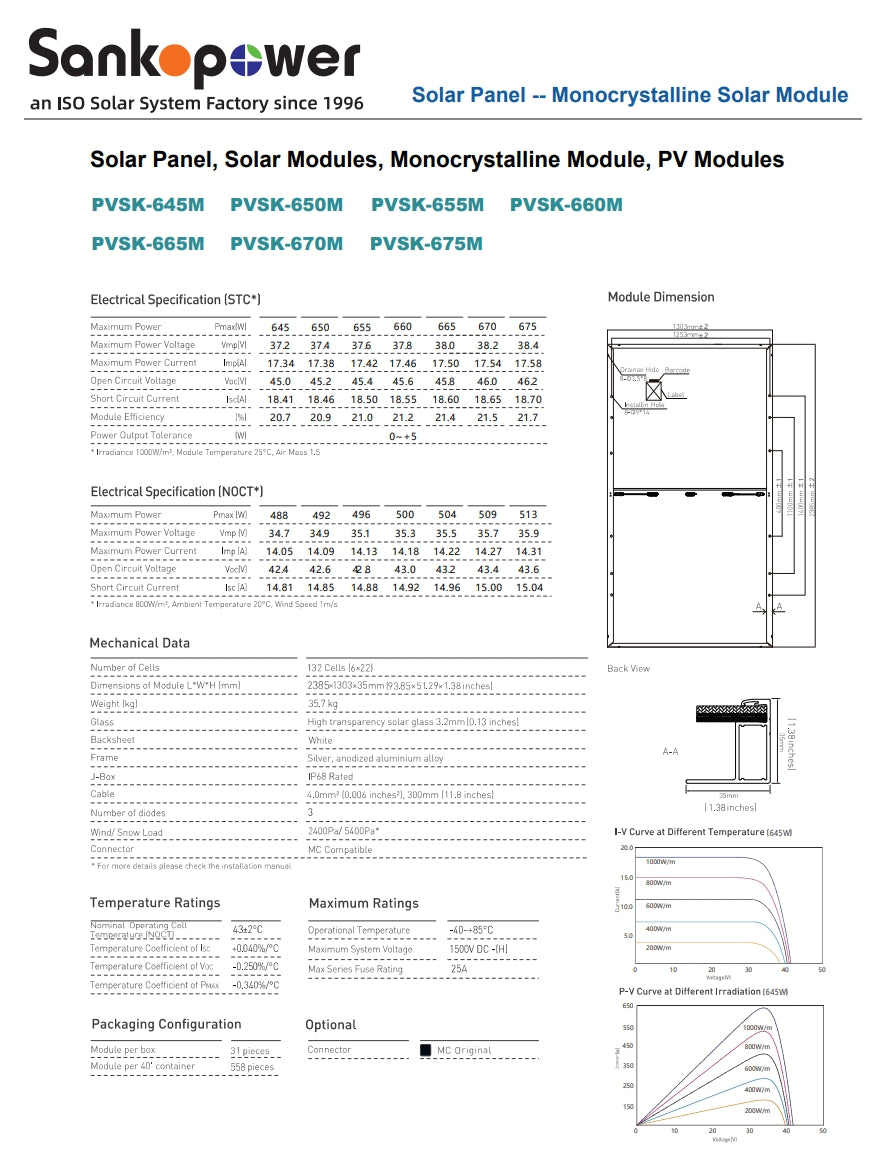

SankoPower 650 Watt Solar Panel Datasheet

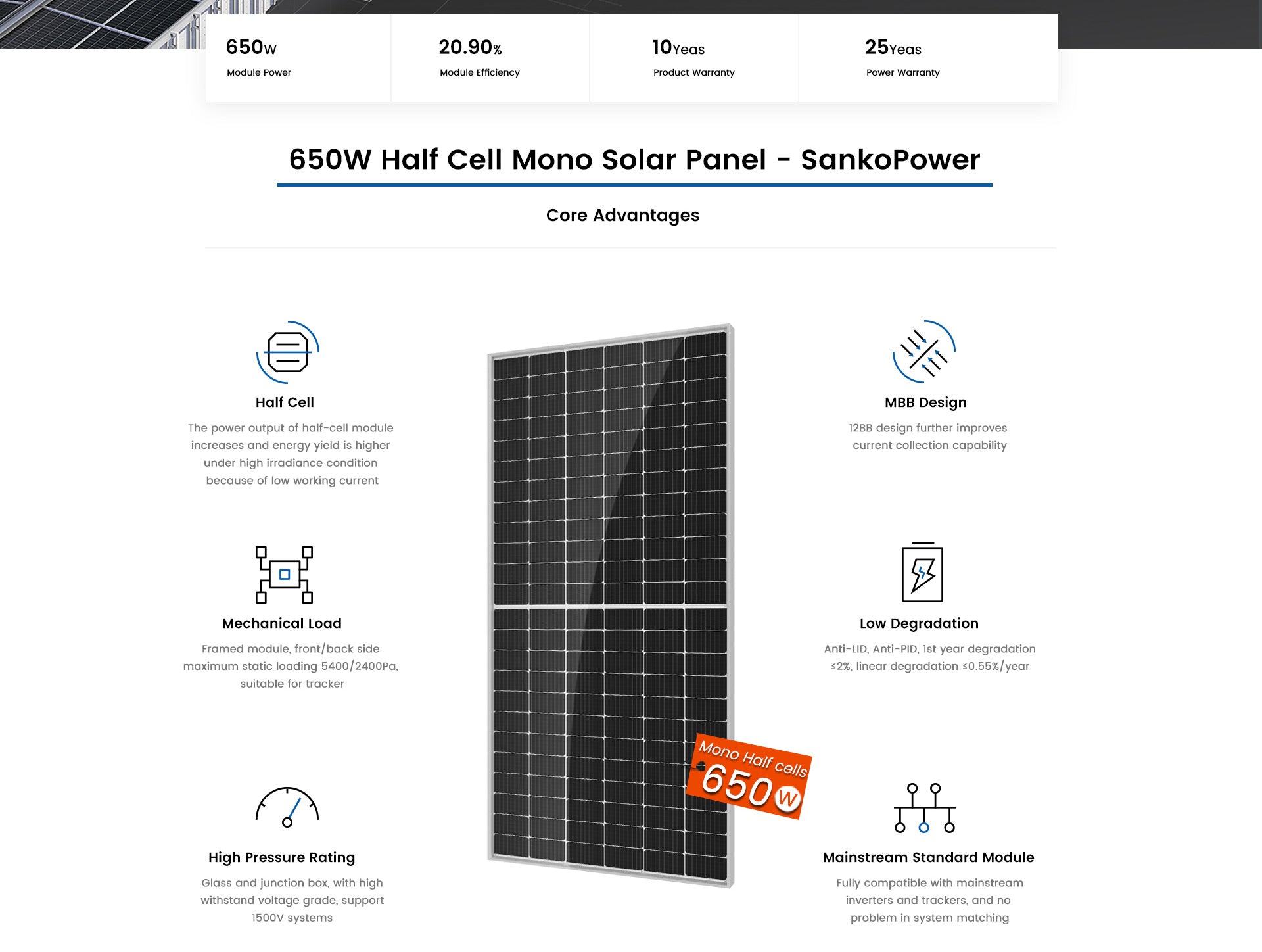

Introducing the SankoPower 650 Watt Solar Panel (645W-675W) featuring half-cell MBB design for improved energy yield under high irradiance conditions. With a power output of 650W, it boasts a module efficiency of 20.90%. This solar panel is backed by a 25-year warranty and has a low working current with mechanical load resistance to ensure maximum static loading capacity. It also features anti-LID and anti-PID technologies for optimal performance. Suitable for trackers, this panel supports mainstream inverters and withstands high pressures up to 1500V, ensuring seamless system integration.

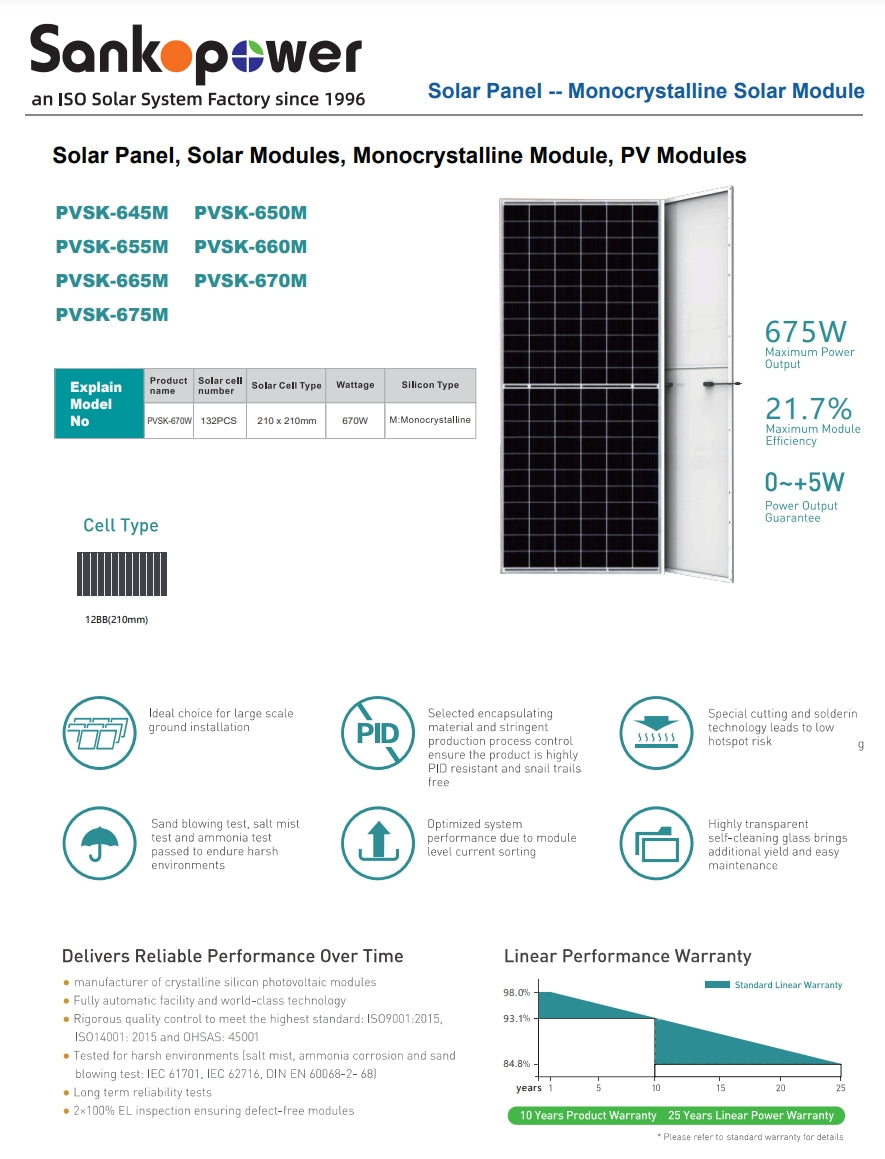

Since 1996, SankoPower has been an ISO-certified solar system factory. Our monocrystalline solar modules feature high-quality materials and rigorous manufacturing processes. With a maximum power output of 675W, our PVSK-650M module boasts a high-efficiency rate of 21.7%. We guarantee a reliable performance over time with a linear warranty. Our modules are designed for harsh environments, withstanding extreme temperatures, sand blowing tests, and salt mist corrosion testing. A 10-year product warranty and 25-year linear power warranty ensure the reliability of our products. SankoPower's state-of-the-art facility and world-class technology guarantee the highest standards of quality control, meeting ISO9001:2015, IEC 61701, and OHSAS 45001 standards.
Sankepewer, an ISO-certified solar system manufacturer since 1996, presents their 650W monocrystalline solar panel module. This product features electrical specifications including maximum power, open circuit voltage, short-circuit current, and efficiency. The mechanical data includes number of cells, dimensions, weight, and frame material. The product also comes with a temperature rating and is compatible with various connectors and mounting systems.

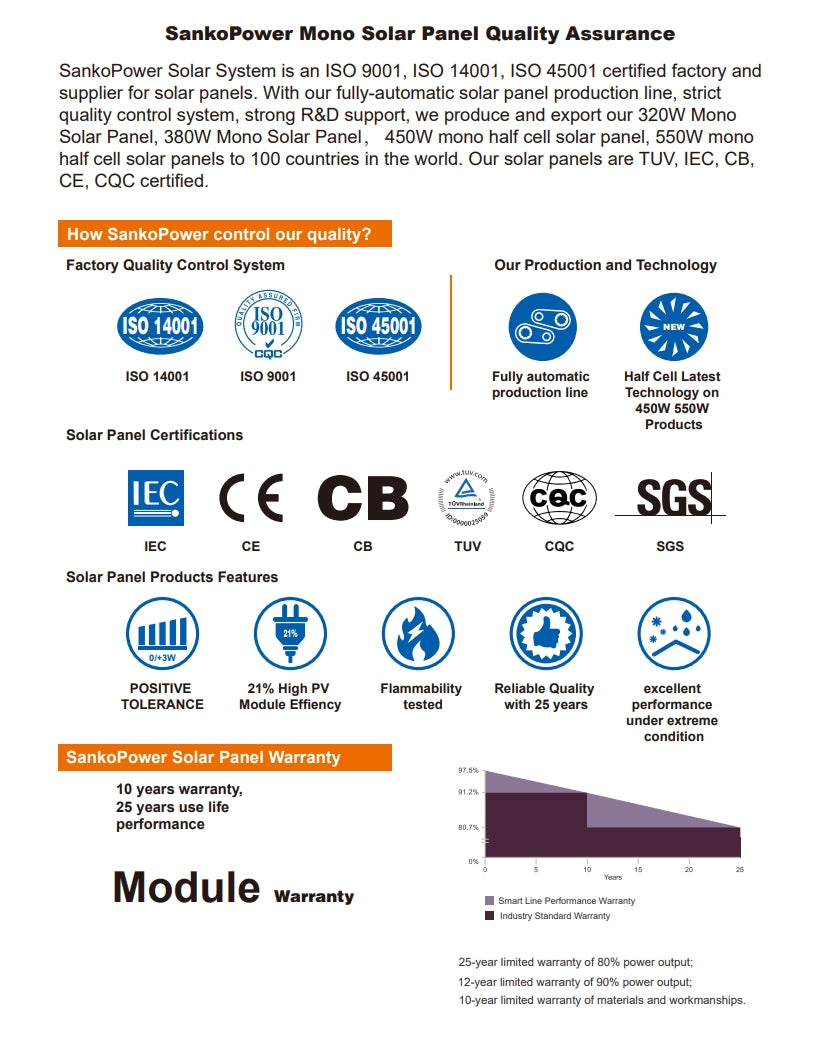

Quote: 'SankoPower, a certified ISO 9001, ISO 14001, and ISO 45001 factory and supplier, ensures high-quality solar panels with strict quality control, R&D support, and TUV, IEC, CB, CE, and CQC certifications. Our mono solar panel products feature 21% efficiency, reliability, and a 10-year warranty for materials and workmanship, as well as a 25-year limited warranty for power output.'
