SEG 550W Solar Panel

SEG 550W Solar Panel (SEG-550-BMA-TB) Overview

The SEG 550W Solar Panel (SEG-550-BMA-TB) is an advanced solar module designed for maximum energy production and durability, utilizing bifacial technology to capture sunlight from both sides of the panel. Featuring 144 monocrystalline PERC cells and 21.29% module efficiency, this panel is ideal for both residential and commercial installations that demand high performance and reliability. The silver anodized aluminum frame ensures robustness, capable of withstanding 5400 Pa front load and 3600 Pa rear load—making it resilient to harsh weather conditions, including heavy snow and wind.

With dimensions of 89.69 x 44.65 x 1.38 inches and a weight of 27.0 kg (59.52 lbs), the SEG 550W Solar Panel offers an excellent balance of power output and installation flexibility. It is optimized for high system voltages, supporting up to 1500V DC, and comes with a 25-year performance warranty, ensuring long-term efficiency and peace of mind.

SEG 550 Watt Solar Panel Key Features:

• Bifacial Technology: Captures sunlight from both sides of the panel, boosting energy production.
• High Efficiency: Provides up to 550W of power output with 21.29% efficiency, ensuring optimal performance even under low-light conditions.
• Durable Construction: The anodized aluminum frame and 3.2mm AR-coated tempered glass offer superior protection against extreme weather conditions.
• Optimized for Versatility: Compatible with various mounting systems, making it easy to install on rooftops, ground mounts, or large-scale solar farms.
• Low Degradation Rate: Backed by a 25-year linear power output warranty, ensuring minimal power loss over time.

SEG 550W Solar Panel Datasheet

Electrical Specifications

Mechanical Specifications

Performance Characteristics

The SEG 550W Solar Panel is designed for superior performance, even in high-temperature environments. With a Pmax temperature coefficient of -0.35%/°C and a Voc temperature coefficient of -0.27%/°C, this panel maintains a high level of efficiency as temperatures rise. The bifacial design further enhances its performance, capturing reflected light from the ground or surrounding surfaces to maximize energy production.

Temperature Ratings

Durability and Environmental Performance

Built to withstand the elements, the SEG 550W Solar Panel can handle 5400 Pa front load and 3600 Pa rear load, making it suitable for installations in areas that experience heavy snow, wind, and other challenging weather conditions. Additionally, its IP68-rated junction box ensures protection against dust, water, and debris, further extending its lifespan in outdoor environments.

Warranty and Certifications

The SEG 550W Solar Panel comes with an industry-leading 25-year linear power output warranty and a 15-year product warranty, ensuring long-lasting performance with minimal degradation over time. The panel is certified to meet several international standards, including:

• IEC 61215
• IEC 61730
• UL 61730
• ISO 9001
• ISO 14001
• ISO 45001

These certifications confirm the panel’s compliance with global safety, quality, and environmental standards.

Applications

The SEG 550W Solar Panel is highly versatile and suitable for a wide range of applications, including:

• Commercial Installations: Ideal for large-scale solar farms and commercial rooftops, offering high power output and durability.
• Residential Installations: Suitable for homes looking to maximize energy production with a compact, efficient panel.
• Utility Projects: Supports high-voltage systems and offers long-term reliability for utility-scale solar energy projects.

Packing Configuration

This detailed product description of the SEG 550W Solar Panel (SEG-550-BMA-TB) covers all the key features, electrical and mechanical specifications, performance characteristics, and applications, ensuring that you have all the information you need to evaluate its suitability for your solar energy project.

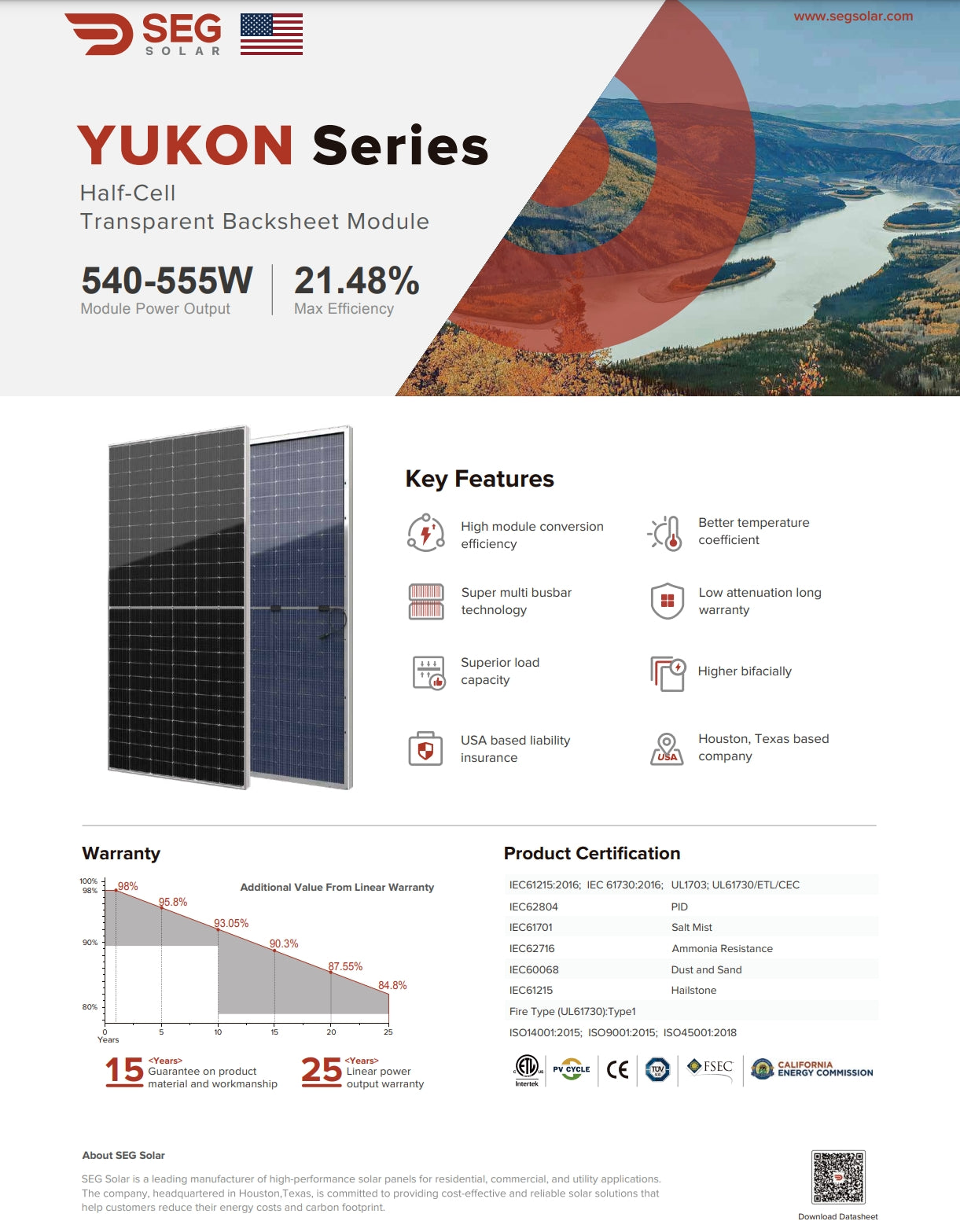

SEG Solar offers a high-performance solar panel product, the 3SEG S0 LARYUKON Series Half-Cell Transparent Backsheet Module with a maximum power output of 540-555W and an efficiency rate of 21.48%. The module features include high conversion rates, better temperature coefficients, super multi busbars, low attenuation technology, and superior load handling. The product also comes with a linear warranty that provides additional value from the manufacturer commitment to quality and reliability. The product meets international standards for certification, including IEC61215, IEC61730, UL703, and ETL/IEC 95.890. SEG Solar is a leading manufacturer of high-performance solar panels for residential, commercial, and utility applications, headquartered in Houston, Texas. The company is committed to providing cost-effective and reliable solar solutions that help customers reduce their energy costs and carbon footprint.

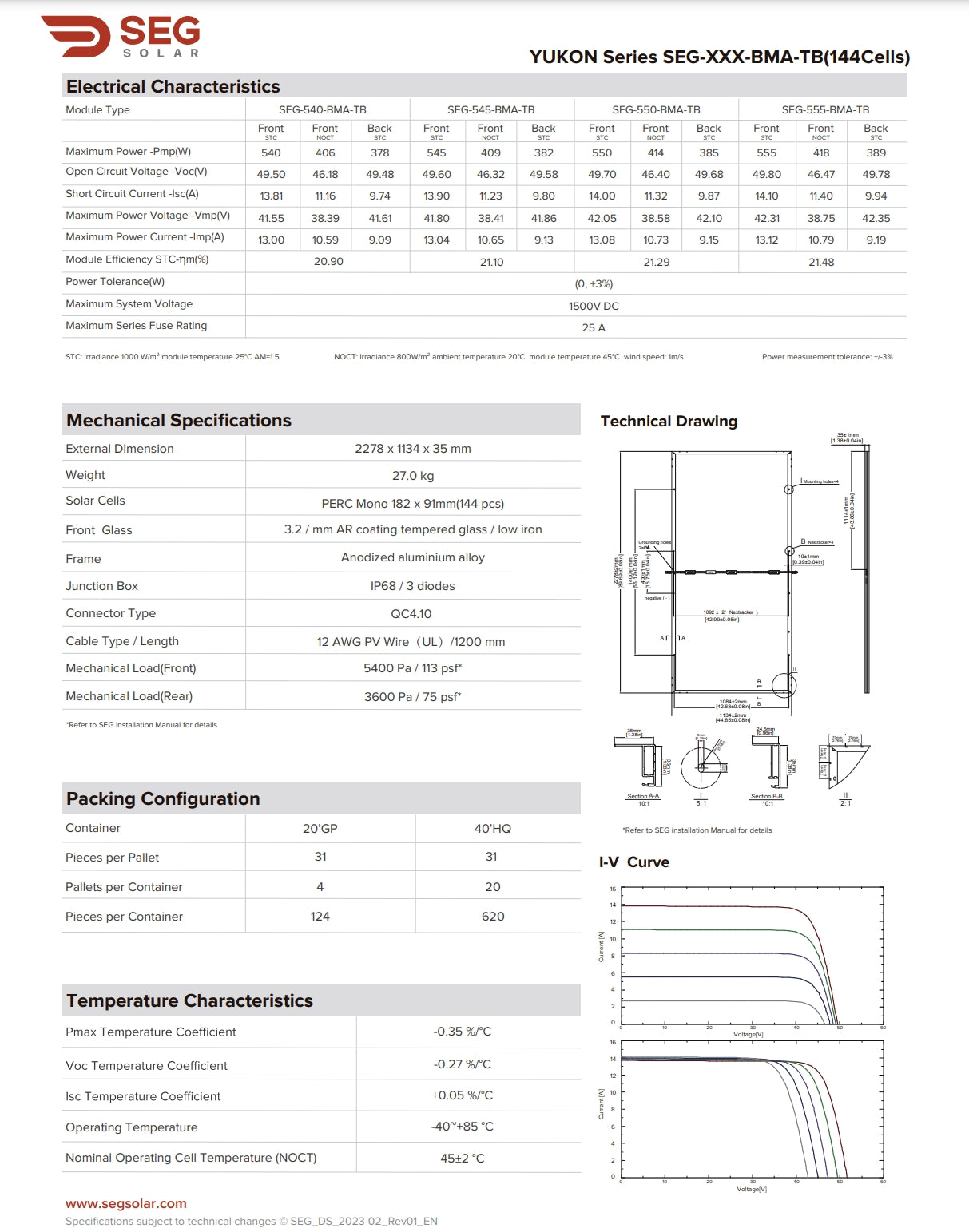

SEG 550W Solar Panel Product Image Electrical Characteristics: Module Type: SEG-550-BMA-TB Maximum Power: 550 W (-Pmp) Open Circuit Voltage: 49.7 V (-Voc) Short Circuit Current: 14 A (-Isc) Maximum Power Voltage: 42.1 V (-Vmp) Mechanical Specifications: External Dimension: 2278 x 1134 x 35 mm Weight: 27 kg Solar Cells: PERC Mono (182 x 91mm, 144 pcs) Front Glass: 3.2 mm AR coating tempered glass low iron Technical Drawing: Junction Box IP68 Connector Type: OC4.10 Cable Type: Length 12 AWG PV Wire (UL) /1200 mm Temperature Characteristics: Pmax Temperature Coefficient: -0.35 %/°C Voc Temperature Coefficient: 0.27 %/°C Isc Temperature Coefficient: +0.05 %/°C Operating Temperature: 40°C to 85°C Nominal Operating Cell Temperature (NOCT): 45±2°C
