Overview
This Solar Deck Panel Junction Connector is a male + female wire PV cable connector set for solar panel cabling. Note: this is a Solar Deck Panel Junction Connector, not a normal solar panel connector.
Key Features
- Rated voltage/current: 1000 V DC, 30A
- Connecting system: crimping connection
- Suitable cable size: 2.5mm2–6mm2
- Flame class: UL94-V0
- Safety/protection class: II
- Insulation material: PPO+PA
- Contact material: copper, tin plated
- Force ratings: withdrawal force ≥50N; insertion force ≤50N
- Protection rating information differs by source: protection degree IP67 (labelled spec) vs “No waterproof” (provided description)

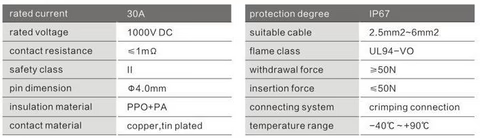

Specifications
| Rated voltage | 1000 V DC |
| Rated current | 30A |
| Contact resistance | <1 mΩ (labelled spec); “Less than 1 Mohms” (provided description) |
| Safety class | II |
| Protection degree / Waterproof class | IP67 (labelled spec); “No waterproof” (provided description) |
| Pin dimension | Φ4.0mm |
| Insulation material | PPO+PA |
| Contact material | copper, tin plated |
| Suitable cable | 2.5mm2–6mm2 |
| Flame class | UL94-V0 |
| Temperature range | -40°C to +90°C (labelled spec); -40°C to +85°C (provided description) |
| Connecting system | crimping connection |
| Withdrawal force | ≥50N |
| Insertion force | ≤50N |
What’s Included

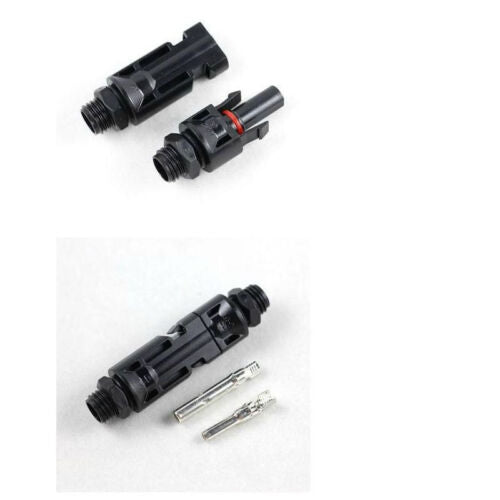

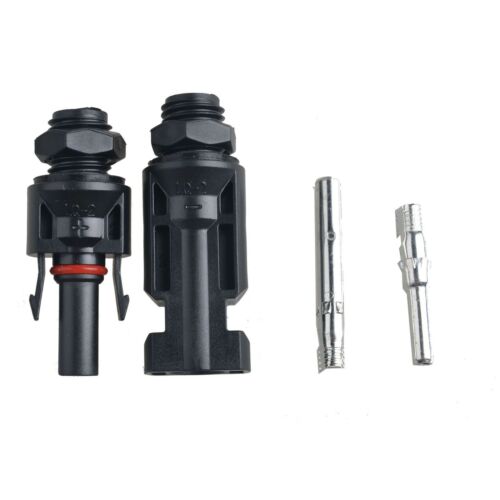

- Male solar panel cable connector
- Female solar panel cable connector
Applications
- PV cable assemblies and solar panel wiring connections
- Branch plug connections and junction box-related PV cable routing
For compatibility questions (cable size, mating type, or installation use), contact https://tsolar.top/ or service@tsolar.top.
Details

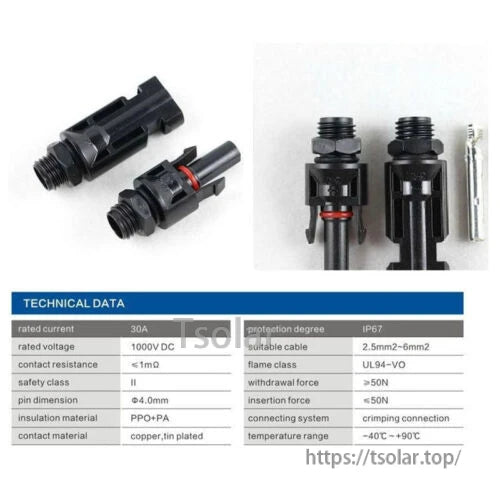

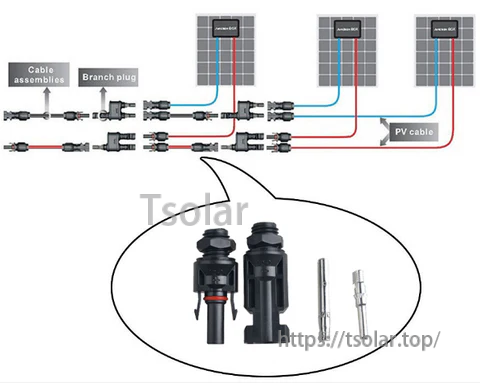

This solar deck panel junction connector kit includes branch plugs and PV cable assemblies for parallel panel wiring.
Solar deck panel junction connector specifications list 30A rated current, 1000V DC rated voltage, IP67 protection, and crimping connection for 2.5–6mm² cable.
