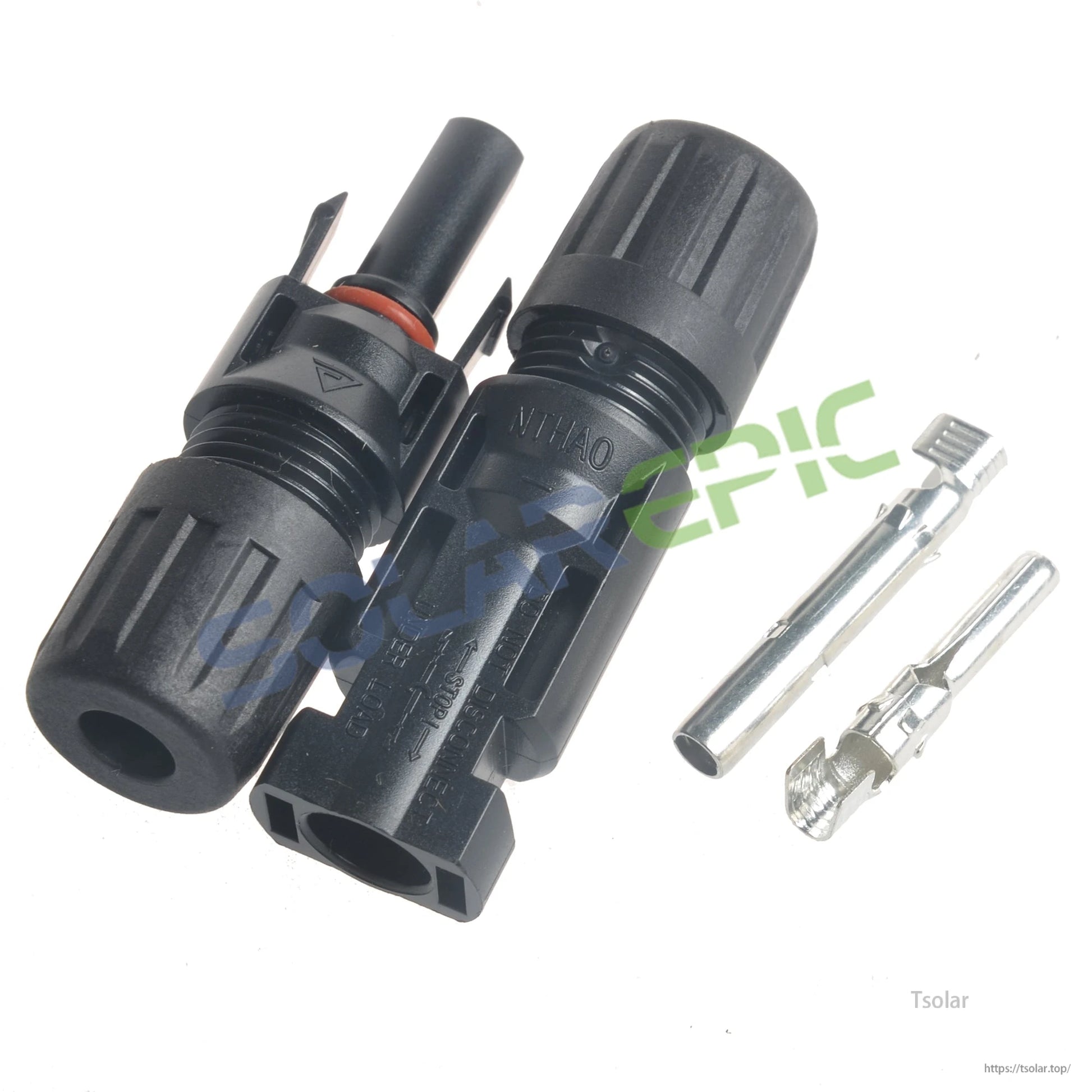

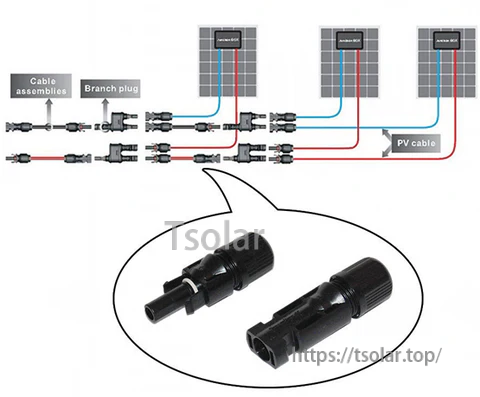

Solar panel cable connector set (male + female) for PV cable connections, designed as a waterproof wire adapter with snap-in locking. Diagram labels indicate typical use in cable assemblies, branch plug connections, and PV cable runs.
Key Features

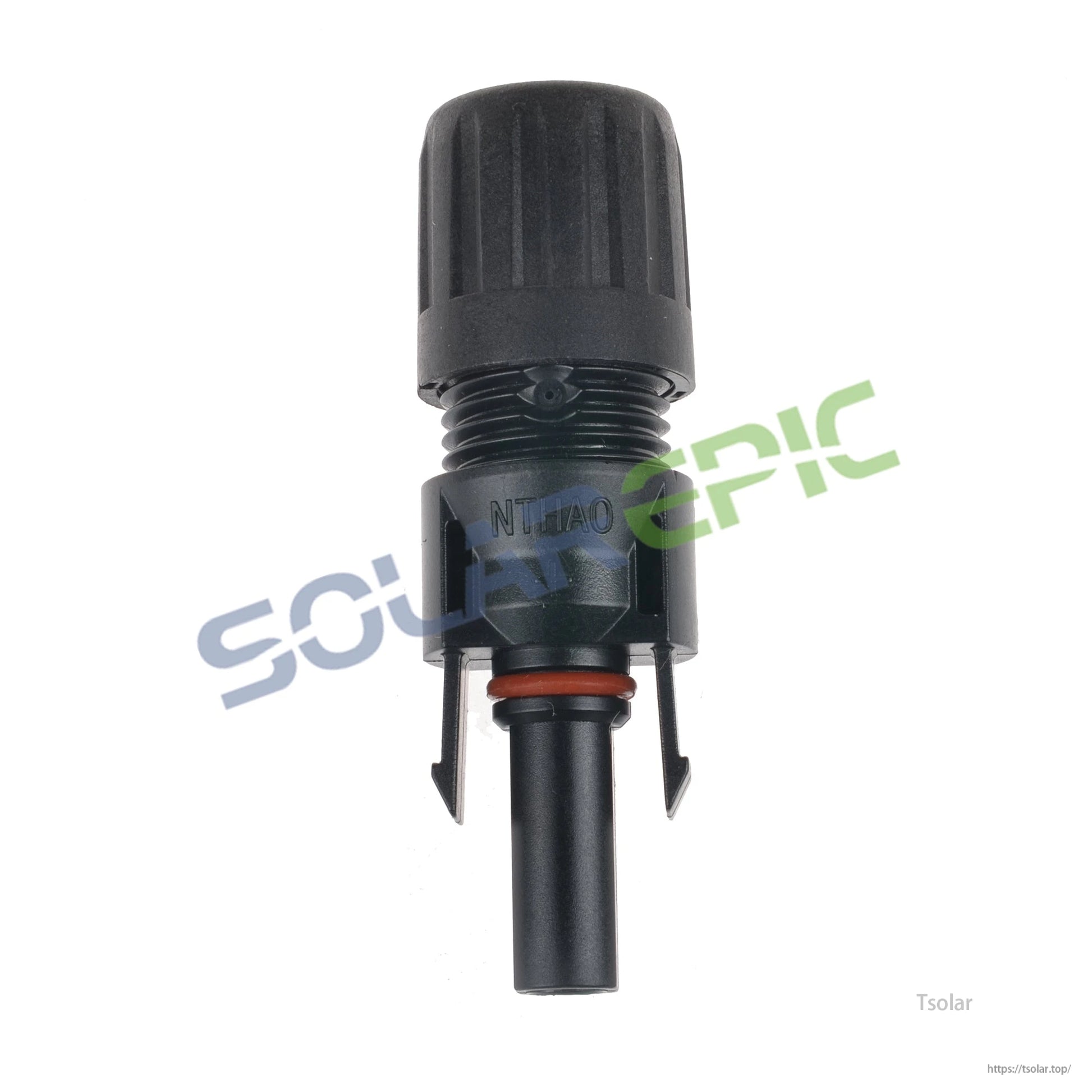

- IP67 protection degree
- Snap-in locking system
- PPO insulation material
- Copper contacts, silver plated
Specifications
| Rated voltage | 1000V |
| Rated current | 30A (4mm2, 6mm2) |
| Test voltage | 6KV (50Hz) |
| Protection degree | IP67 |
| Insulation material | PPO |
| Contact material | Copper (silver plated) |
| Operating temperature | -40°C to +90°C |
| Safe class | 2 |
| Flame class | UL94-V0 |
| Contact resistance (plug connectors) | ≤ 5mΩ |
| Insertion force | ≤ 50N |
| Withdraw force | ≥ 50N |
| Suitable cable | 2.5mm2 / 4mm2 / 6mm2 (AWG14/12/10) |
For compatibility or installation questions, contact https://tsolar.top/ or service@tsolar.top.
What’s Included

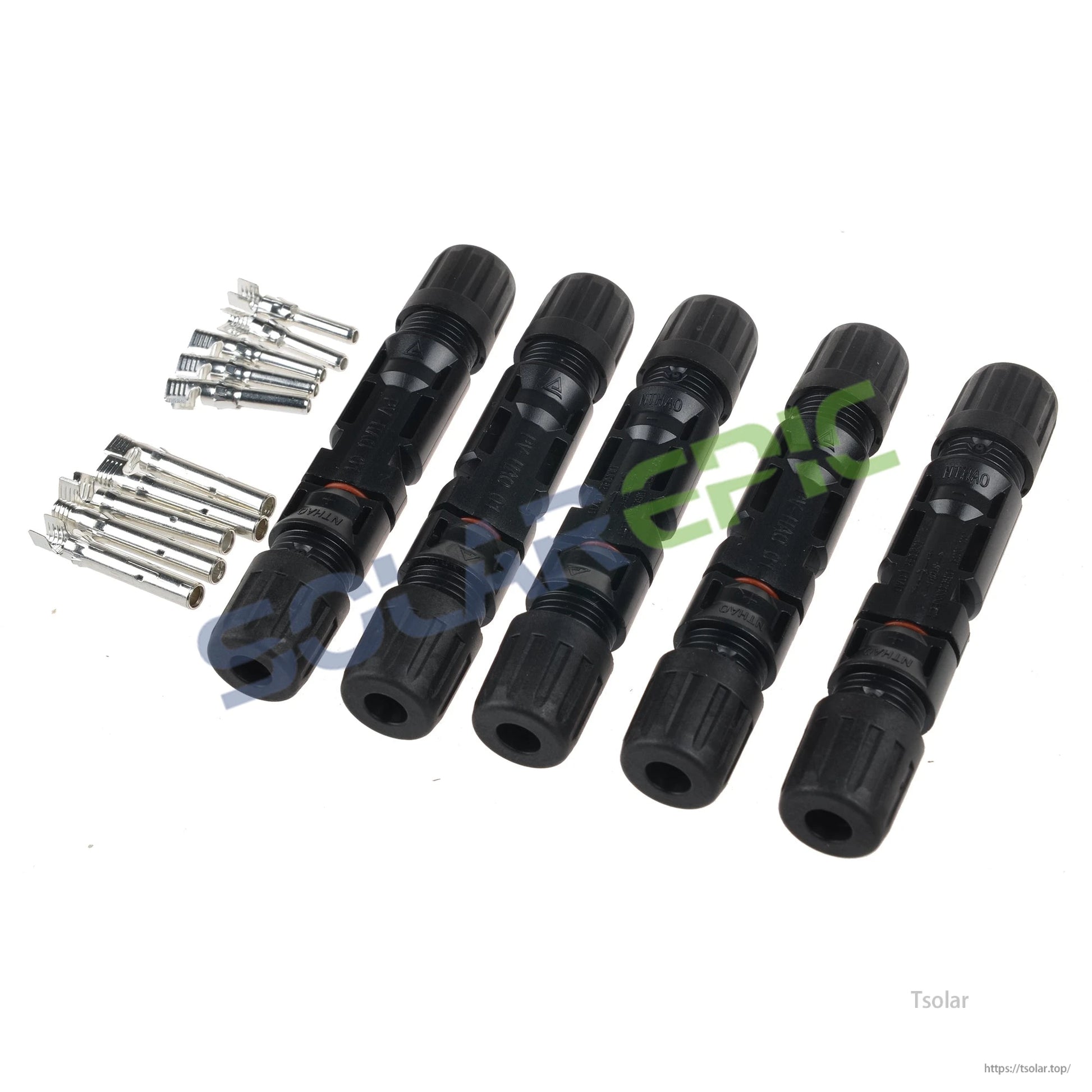

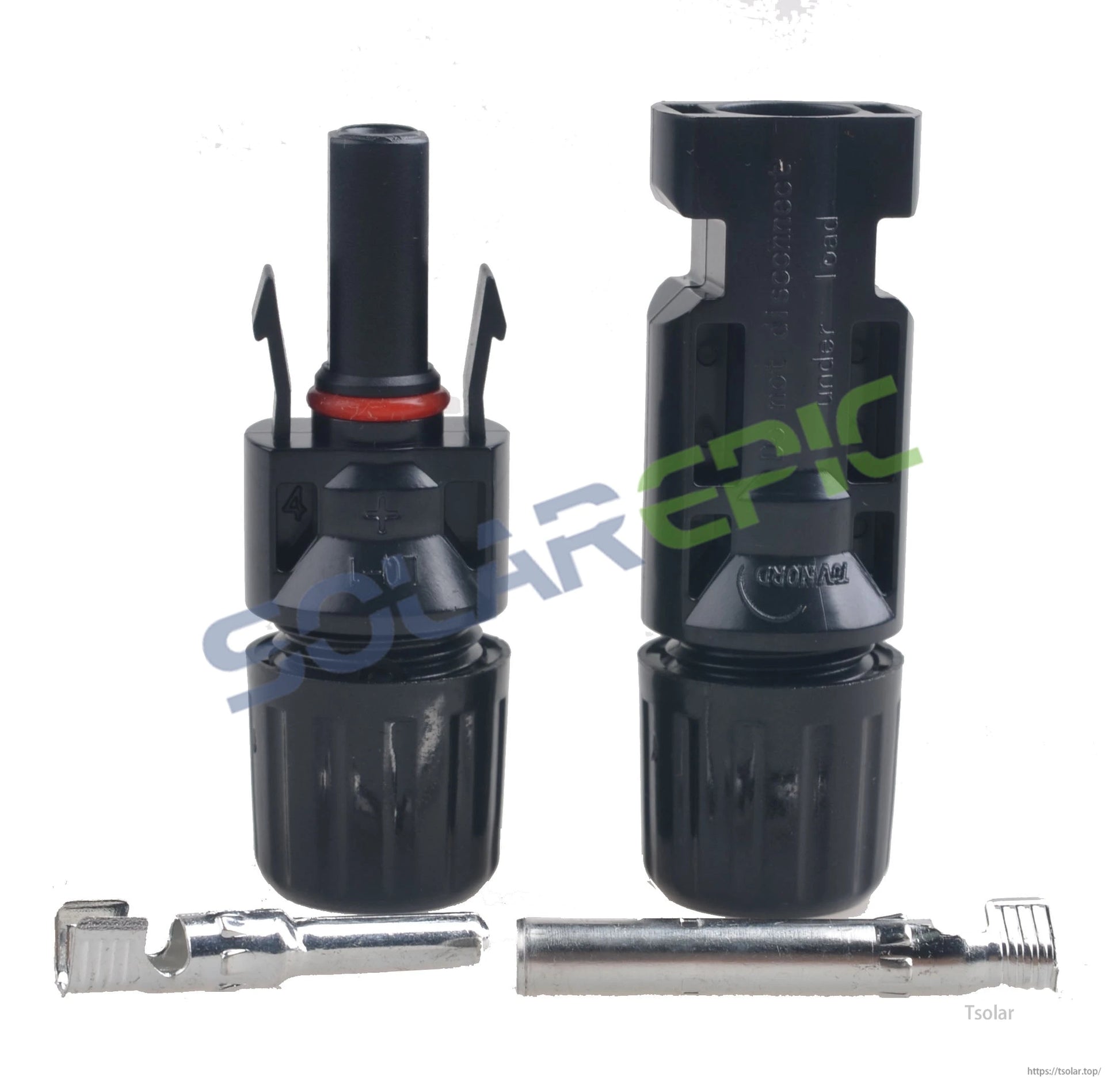

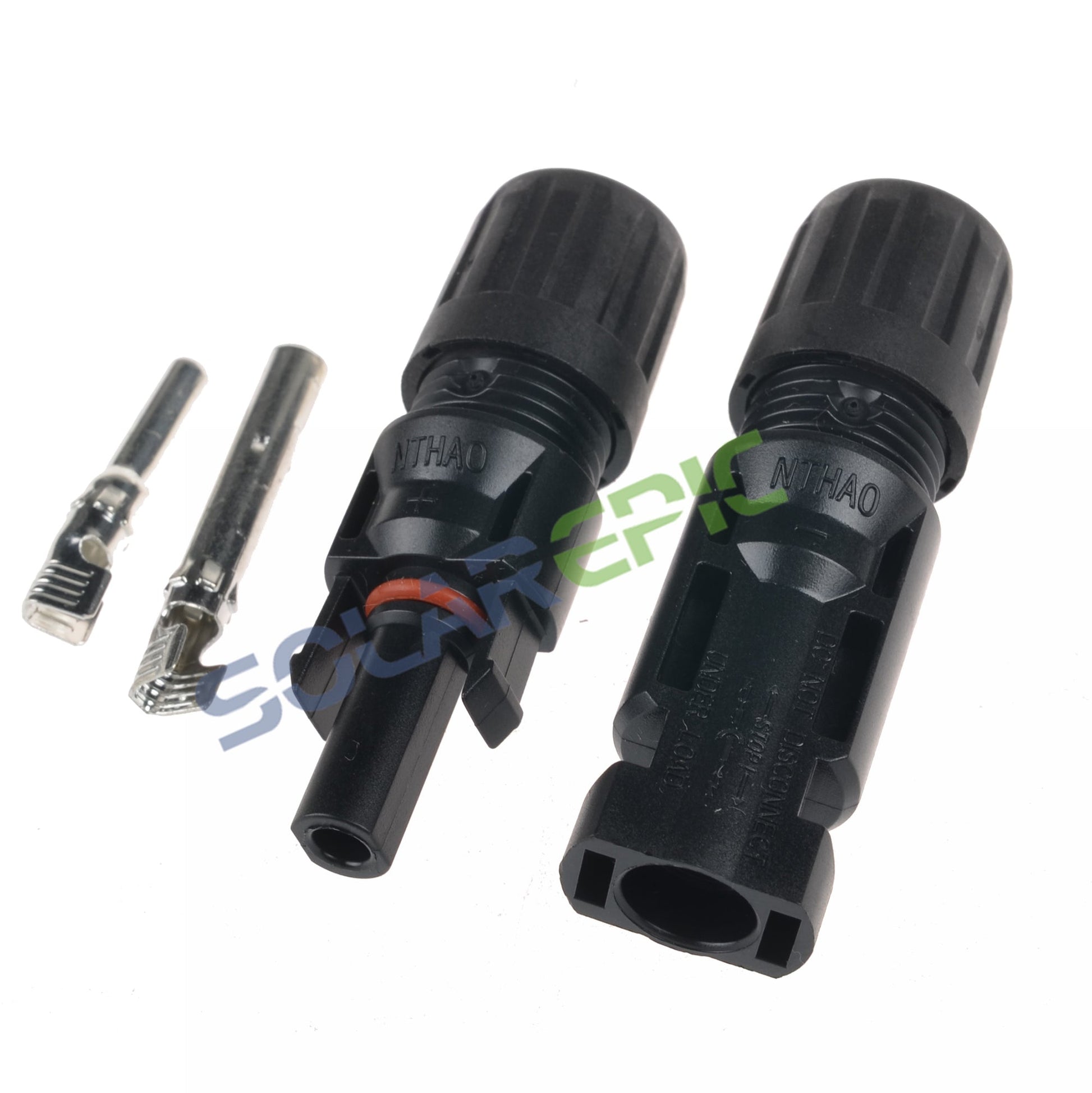

- Male solar panel cable connector
- Female solar panel cable connector
Applications
- PV cable assemblies

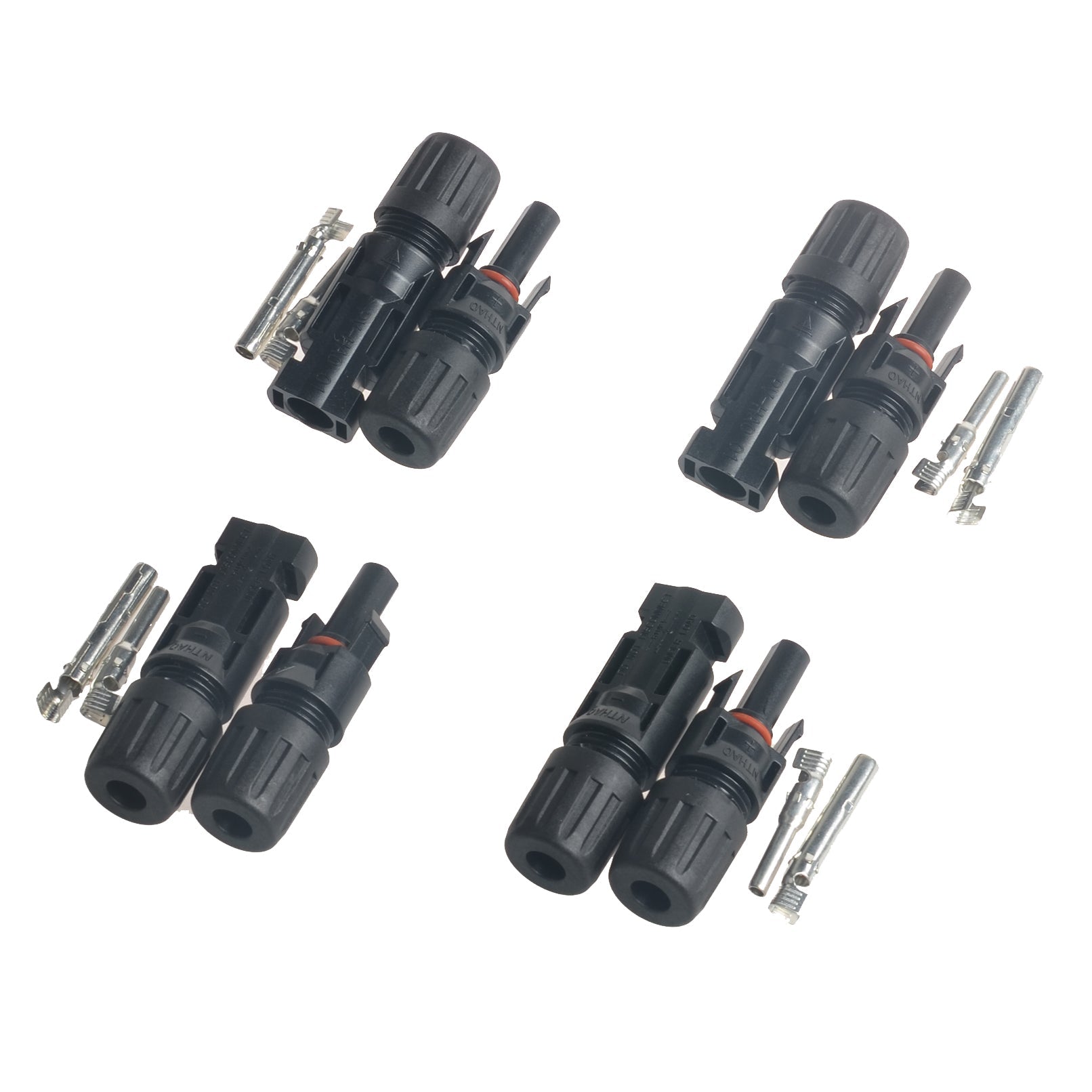

- Branch plug and PV cable connections
Details
Solar panel branch connectors let multiple panel leads join into a single PV cable run using plug-and-play cable assemblies.
