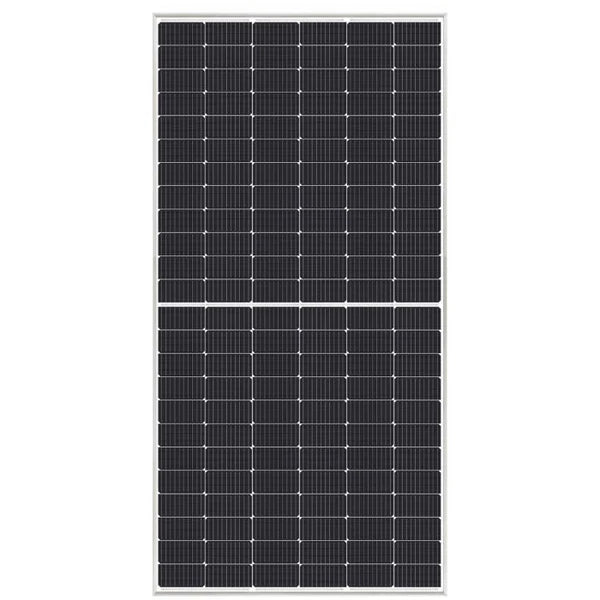

Solar4America 550W Solar Panel

Solar4America 550W Solar Panel

Regular price $3,490.00 USD
Regular price Sale price $3,490.00 USD
Sale Sold out
Shipping calculated at checkout.

1 orders in last 30 days

Quantity
View full details

Solar4America 550W Solar Panel Overview

The Solar4America 550W Solar Panel is a top-tier, American-made solar solution designed to deliver exceptional efficiency and durability for both residential and commercial applications. With a power output of 550 watts, this panel features 144 half-cut monocrystalline cells and advanced PERC technology, ensuring a high module efficiency of 21.3%. The bifacial design allows for energy capture from both sides of the panel, maximizing power generation, especially in reflective environments. Built with a robust 35mm anodized aluminum frame and 3.2mm anti-reflective coated tempered glass, the Solar4America 550W panel is engineered to withstand harsh environmental conditions, including wind loads up to 2400 Pa and snow loads up to 5400 Pa. It comes with a comprehensive 25-year power warranty, ensuring 80% power output after 25 years, making it a reliable and long-term investment for sustainable energy solutions.

Solar4America 550W Solar Panel Advantage

  1. Maximized Energy Production:

    • 550W Power Output: With a peak power output of 550 watts, the Solar4America panel ensures that your solar array generates more energy, reducing the number of panels needed for the same output compared to conventional solar panels.
    • 21.3% Module Efficiency: This high-efficiency rating is achieved through cutting-edge 10BB half-cut cell technology, which minimizes energy loss and optimizes light absorption even in less-than-ideal conditions.
  2. Innovative Bifacial Design:

    • Bifacial Energy Gain: The panel’s bifacial design allows it to capture sunlight from both the front and back sides, significantly boosting overall energy yield. This feature is particularly beneficial in environments with reflective surfaces, such as white rooftops or open fields, where additional energy can be harnessed from the underside of the panel.
    • Increased Durability and Longevity: With its bifacial nature, the panel not only produces more energy but also benefits from reduced wear and tear over time, contributing to a longer operational lifespan.
  3. Robust Build for Long-Term Reliability:

    • Heavy-Duty Construction: The Solar4America 550W panel is built with a sturdy 35mm anodized aluminum alloy frame, which provides exceptional resistance to mechanical stress. It is paired with a 3.2mm anti-reflective coated tempered glass that protects the solar cells while ensuring maximum light transmission.
    • Weather-Resistant Design: Certified to withstand harsh environmental conditions, this panel can endure wind loads up to 2400Pa and snow loads up to 5400Pa, making it suitable for installations in areas prone to extreme weather.
  4. Versatile and Easy Installation:

    • Streamlined Installation Process: The panel's dimensions (89.69” x 44.65” x 1.38”) and relatively lightweight design (61.73 lbs) facilitate easy handling and installation. It is compatible with a variety of mounting systems, including ground mounts and commercial rooftop setups.
    • Flexible Application: Whether you're powering a residential property or a commercial enterprise, this solar panel is adaptable to various installation methods, ensuring a custom fit for your energy needs.
  5. Exceptional Warranty Coverage:

    • 25-Year Power Warranty: Solar4America stands behind its product with a robust 25-year linear power warranty. The warranty guarantees 97% power output in the first year, 90% up to the 10th year, and 80% up to the 25th year.
    • 12-Year Product Warranty: In addition to the power warranty, the panel is covered by a 12-year product warranty that protects against manufacturing defects, faulty wiring, and premature wear and tear.

Solar4America 550W Specifications

Electrical Specifications:

Parameter S4A530 S4A535 S4A540 S4A545 S4A550
Maximum Power (Pmax) 530W 535W 540W 545W 550W
Max Power Voltage (Vmp) 41.32V 41.38V 41.40V 41.40V 41.96V
Max Power Current (Imp) 12.83A 12.94A 13.04A 13.11A 13.11A
Open Circuit Voltage (Voc) 49.24V 49.37V 49.49V 49.61V 49.92V
Short Circuit Current (Isc) 13.06A 13.19A 13.29A 13.41A 14.00A
Module Efficiency 20.50% 20.70% 20.90% 21.10% 21.30%

Mechanical Specifications:

  • Dimensions: 89.69” x 44.65” x 1.38” (2278 x 1134 x 35mm)
  • Weight: 61.73 lbs (28kg)
  • Frame: Anodized Aluminum Alloy, Silver Color
  • Glass: 3.2mm Anti-Reflective Coated Tempered Glass
  • Solar Cells: 144 cells (6 x 24), Monocrystalline, 182 x 91mm
  • Junction Box: IP68 Rated with 3 Bypass Diodes
  • Cable & Connector: Length +15.75in, -7.87in / +55.12in, -55.12in, 1x4mm² / MC4/PV-COO2/PV-GZX1500

Thermal Performance and Temperature Characteristics

The Solar4America 550W Solar Panel is designed to perform efficiently across a wide range of environmental conditions. The panel's temperature coefficients ensure that it maintains high efficiency even under extreme temperatures, making it suitable for diverse climates.

Temperature Characteristics:

Parameter Value
Nominal Operating Cell Temperature (NOCT) 43°C (±2°C)
Temperature Coefficient of Pmax -0.35%/°C
Temperature Coefficient of Isc +0.048%/°C
Temperature Coefficient of Voc -0.26%/°C

These specifications highlight the panel's ability to minimize power loss due to temperature increases. The lower the temperature coefficient, the less impact heat will have on the panel's performance, ensuring consistent energy production even on hot days.

Bifacial Rearside Power Gain

One of the standout features of the Solar4America 550W panel is its bifacial rearside power gain capability. The panel is engineered to capture additional sunlight from the rear side, which can significantly boost overall energy production, especially when installed in environments with high reflectivity.

Bifacial Rearside Power Gain:

Module Pmax Gain (W) Voc (V) Isc (A) Vmp (V) Imp (A) Bifaciality (%)
578W 49.90 14.7 41.96 13.77 70%±5
605W 49.92 15.4 41.96 14.42 70%±5
633W 49.92 16.08 41.96 14.63 70%±5
660W 49.92 16.78 41.96 15.03 70%±5
688W 49.92 17.5 41.96 15.73 70%±5

This table demonstrates the panel's capability to generate additional power by capturing sunlight from both sides, effectively increasing the total energy yield and enhancing the return on investment for the user.

Certifications and Compliance

Solar4America ensures that their 550W panels meet the highest industry standards. The panel is fully certified for safety, performance, and environmental sustainability, making it a reliable choice for any solar installation.

Certifications:

  • UL 61730: Complies with safety standards for photovoltaic (PV) modules.
  • IEC 61215: Ensures the panel's long-term reliability and performance.
  • IEC 61730: Covers the safety qualification of the solar panel.
  • IEC 61701: Demonstrates resistance to salt mist corrosion, making it suitable for coastal installations.
  • IEC 62804: PID (Potential Induced Degradation) resistance certification.
  • TUV Certification: Validates the panel’s compliance with international standards.
  • Fire Rating: Type 1 rating ensures the panel's safety in fire-prone areas.

These certifications provide peace of mind to installers and users, ensuring that the Solar4America 550W panel can be confidently installed in a variety of environments.

Versatile Application Scenarios

The Solar4America 550W Solar Panel is versatile and can be deployed in multiple scenarios, offering significant energy savings and environmental benefits:

  1. Residential Rooftop Installations:

    • Ideal for homeowners looking to reduce energy bills and carbon footprint.
    • The bifacial design ensures maximum energy generation even in limited space.
  2. Commercial and Industrial Installations:

    • Suitable for large-scale solar projects where efficiency and durability are critical.
    • The robust design and high output make it perfect for commercial rooftops and ground-mounted systems.
  3. Agricultural and Remote Installations:

    • Perfect for off-grid and agricultural applications where reliability and consistent power output are crucial.
    • The panel's high efficiency ensures that energy needs are met even in remote areas.
  4. Specialty Applications:

    • The panel’s durability and certifications make it suitable for harsh environments, including coastal areas and regions with extreme weather conditions.

Packaging and Logistics

Solar4America understands the importance of efficient packaging and logistics in large solar projects. The panels are packed with care to ensure they reach the installation site in perfect condition.

Packaging Specifications:

Parameter Value
Pallet Dimensions 92.52 x 45.67 x 49.61 in
Pallet Quantity 31 Modules
Truck Quantity 651 Modules (53’ Truck)
Safety Protection Class Class II
Module Fire Performance Type 1

These logistics details ensure that the panels are handled and transported safely, reducing the risk of damage and ensuring that installation can proceed without delays.

Conclusion

The Solar4America 550W Solar Panel offers a comprehensive solution for anyone seeking high-efficiency, American-made solar technology. With its advanced bifacial design, superior durability, and industry-leading certifications, this panel is an excellent choice for a wide range of applications. Whether you're a homeowner looking to cut energy costs or a business aiming to achieve sustainability goals, the Solar4America 550W panel delivers reliable, long-term performance.

Its robust warranties and certifications further enhance the panel's appeal, providing peace of mind that your investment is protected for decades to come. Make the smart choice with Solar4America and join the growing community of users who are powering their lives with clean, efficient solar energy.

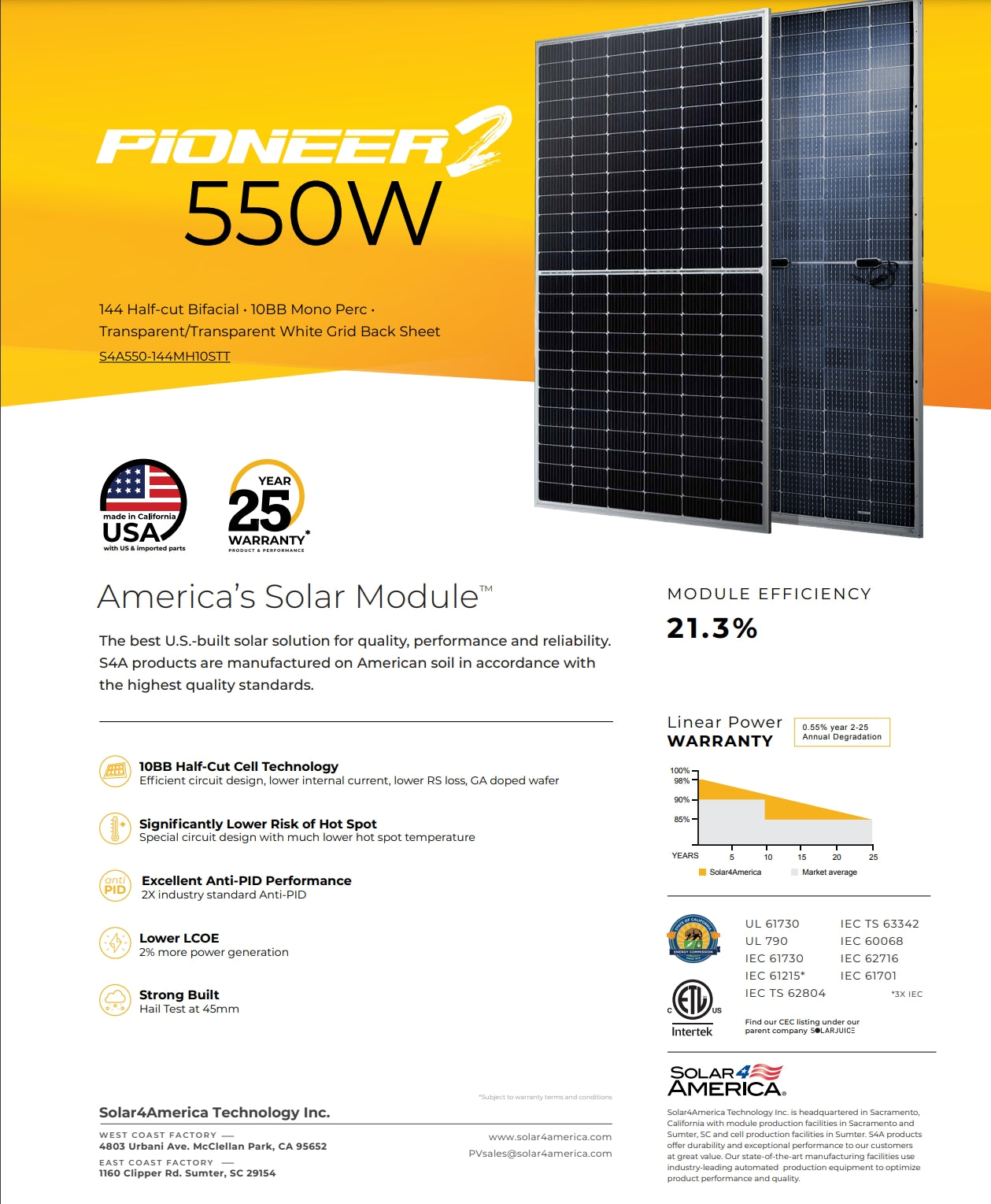

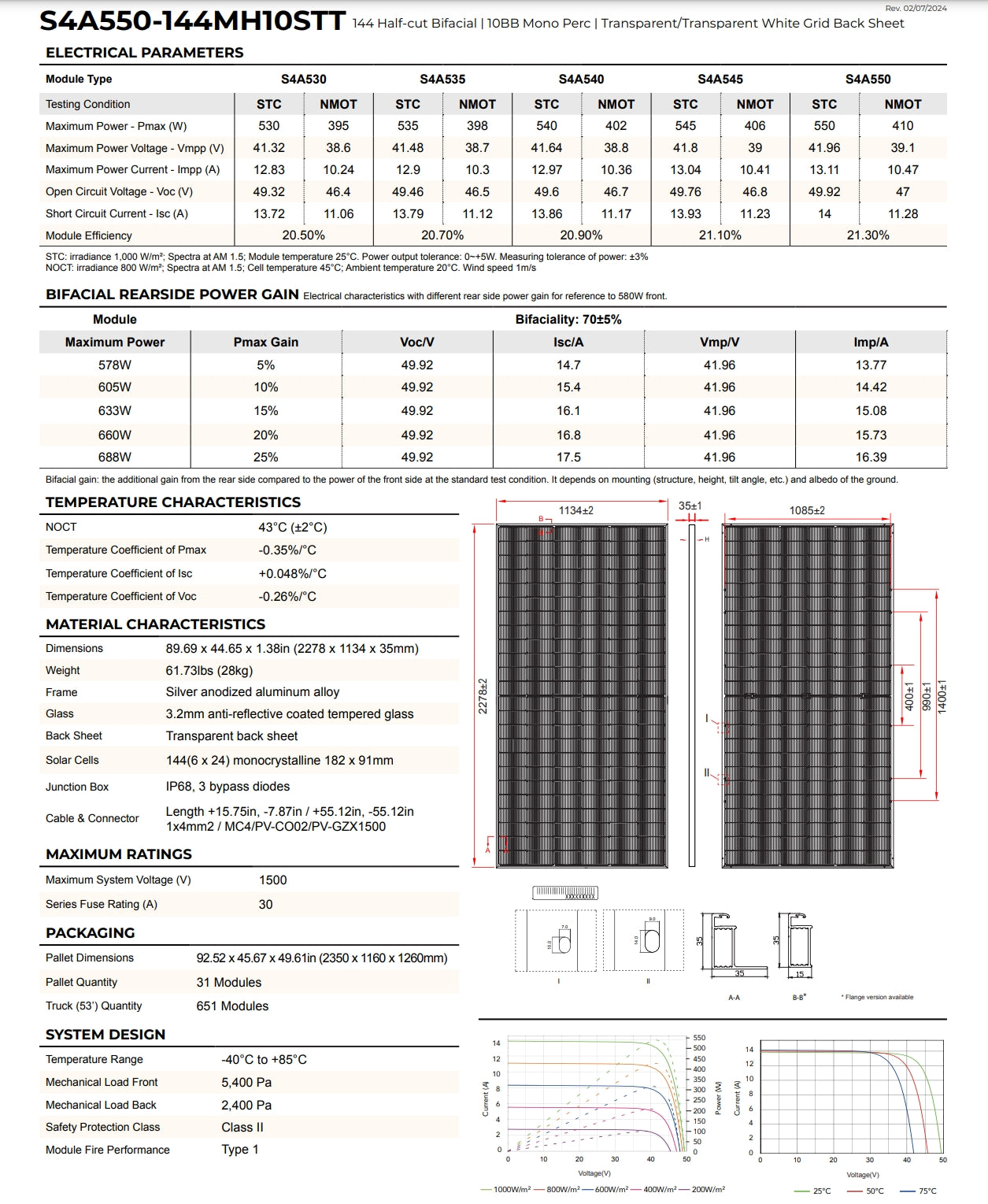

Solar4America 550W Datasheet

Solar4America 550W Solar Panel, Solar4America's 550W solar panel features high-efficiency cells and reliable manufacturing process.

Solar4America's 550W Solar Panel features 144 half-cut bifacial mono-PERC cells with 21.3% efficiency, backed by a 25-year warranty. Our products are designed for quality, performance, and reliability, manufactured in the USA according to high standards. Enjoy excellent anti-PID performance, linear power, and significantly lower risk of hot spots. With 100% efficient circuit design and GA-doped wafer technology, our panel delivers 2% more power generation than industry average. Learn more about Solar4America Technology Inc., headquartered in Sacramento, California, with module production facilities on the West Coast and cell production facilities on the East Coast.

Solar4America 550W Solar Panel, High-efficiency solar panel with 550W power, 21.3% efficiency, and bifacial design for optimal energy harvesting.

Solar4America 550W Solar Panel: High-Efficiency Bifacial Module with Transparent Back Sheet. Key Features: * Maximum Power: 550W (STC), 410W (NMOT) * Efficiency: Up to 21.30% (STC) * Bifaciality: 70% rear side power gain * Temperature Characteristics: -40°C to +85°C, with temperature coefficient of Pmax, Isc, and Voc * Dimensions: 89.69 x 44.65 x 1.38in, weight: 61.73lbs (28kg) * Frame: Silver anodized aluminum alloy, glass: 3.2mm anti-reflective coated tempered glass * Junction Box: IP68 with bypass diodes * Maximum Ratings: 1500V system voltage, 30A series fuse rating * Packaging: Pallet dimensions: 92.52 x 45.67 x 49.61in (2350 x 1160 x 1260mm), pallet quantity: 31 modules
