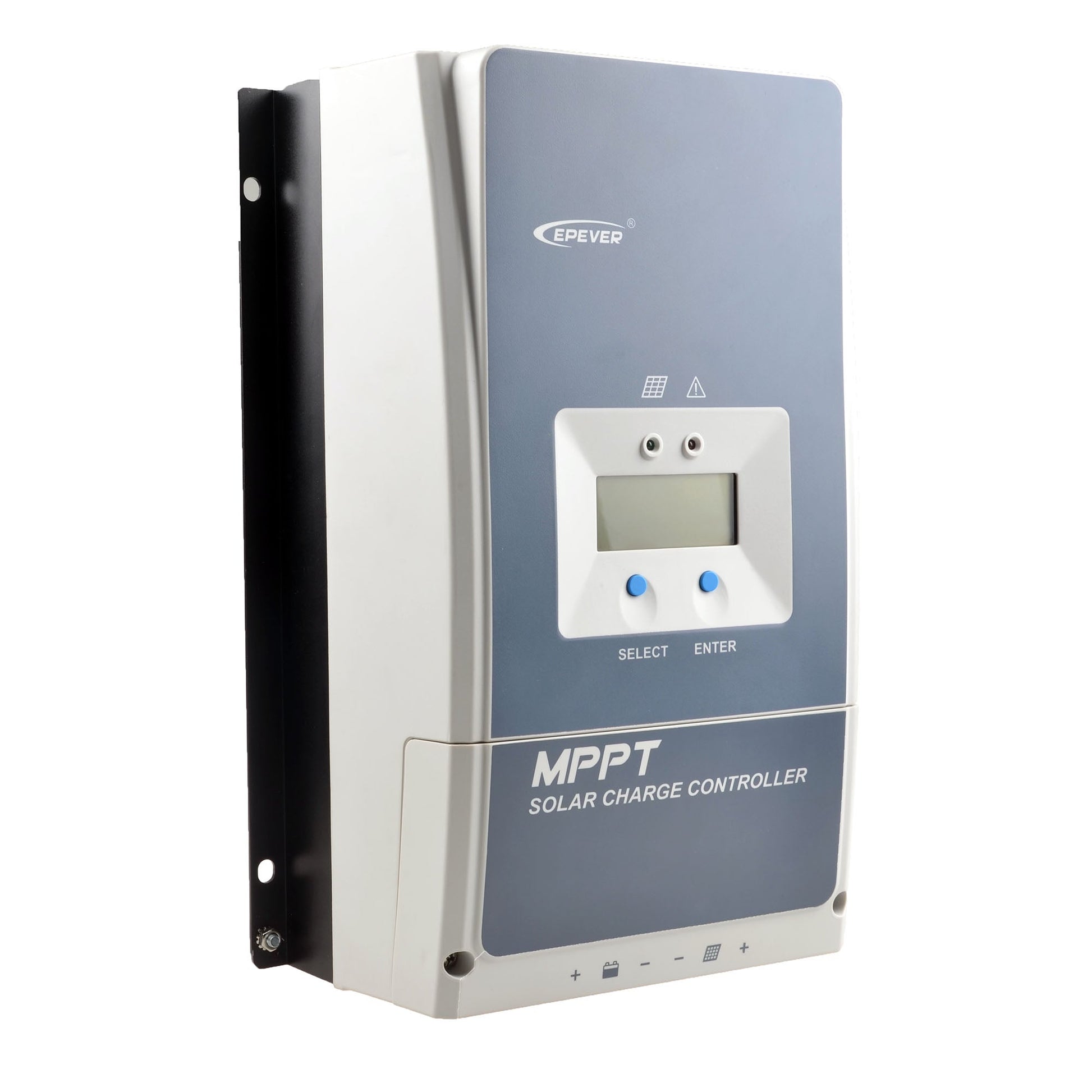

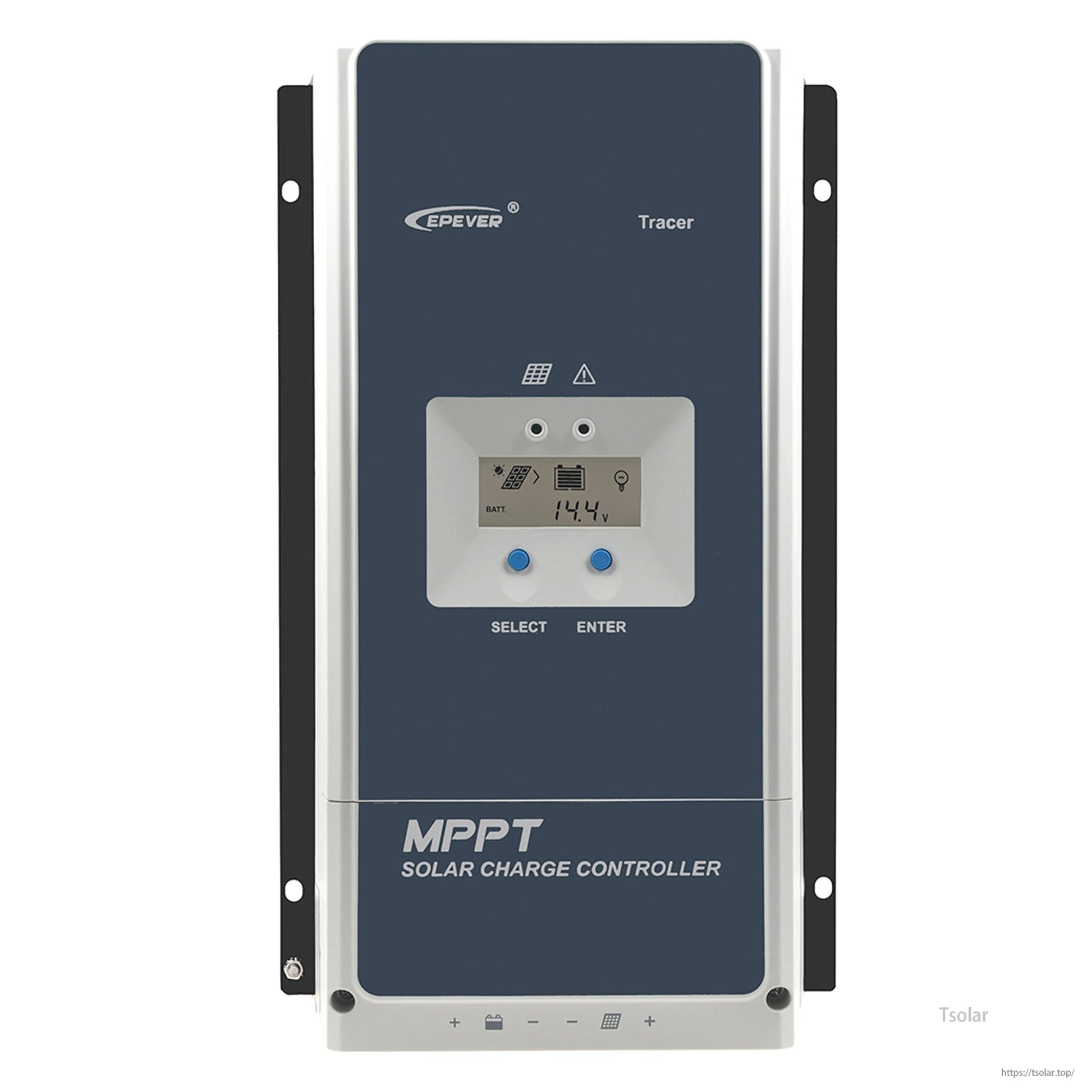

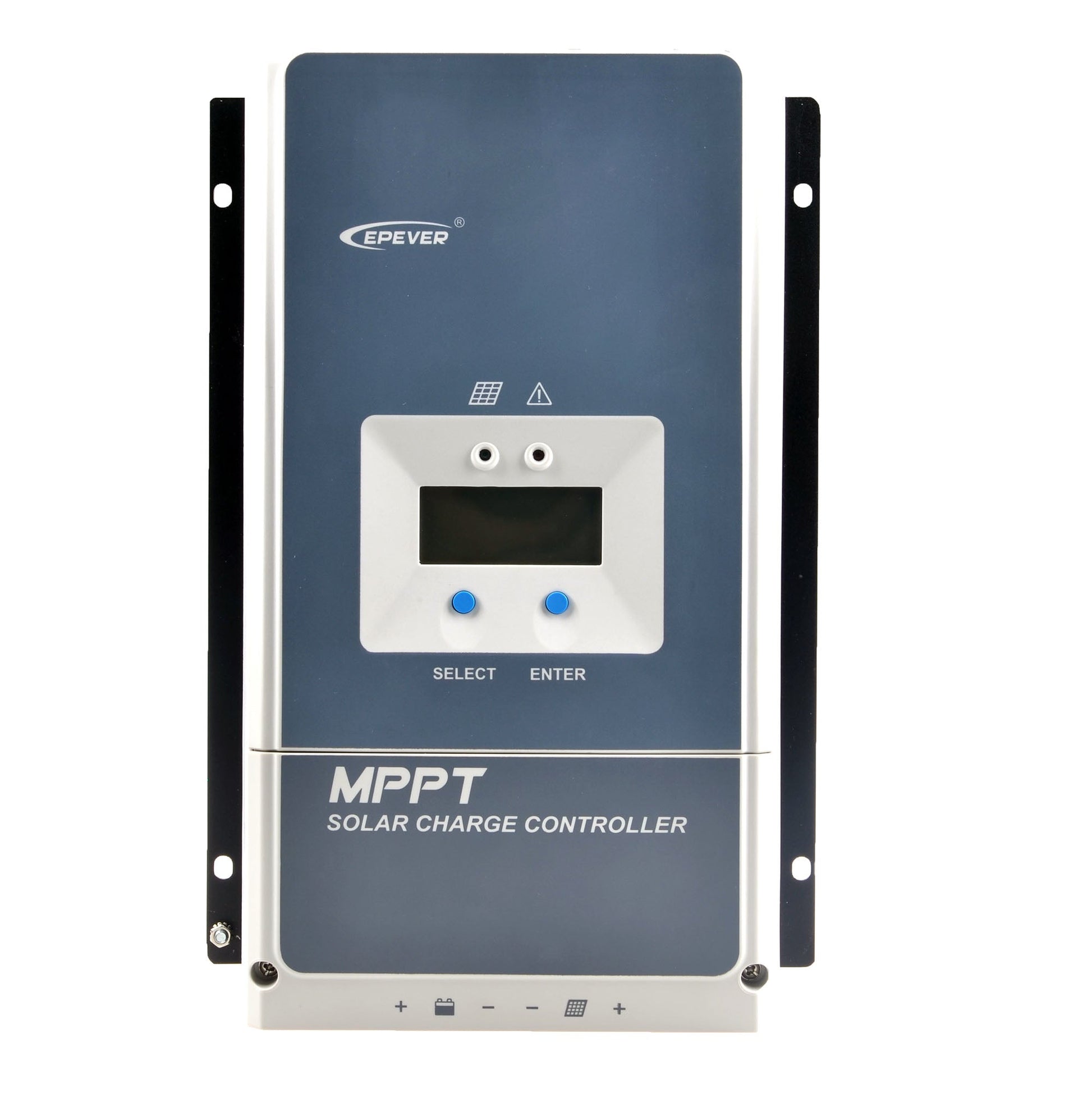

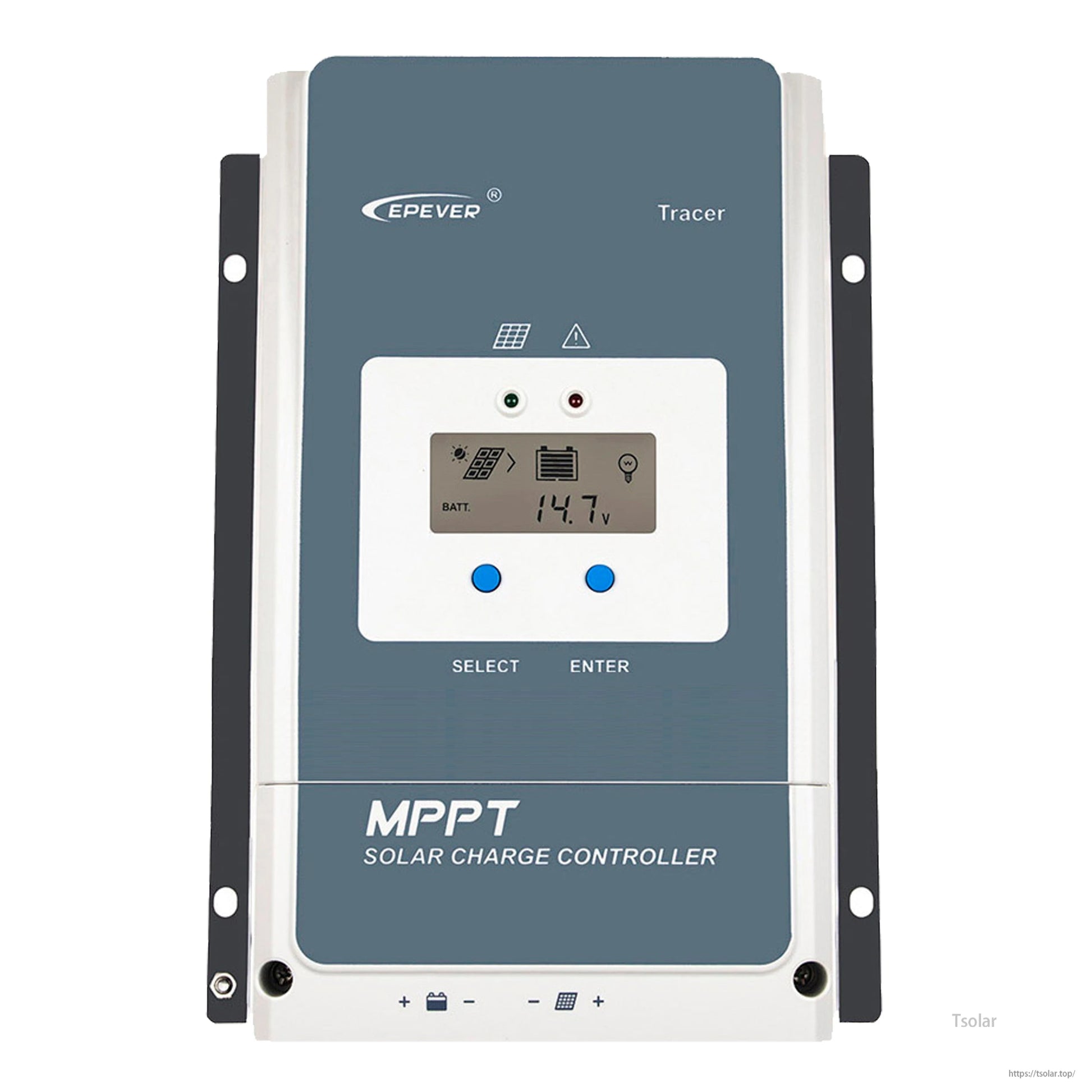

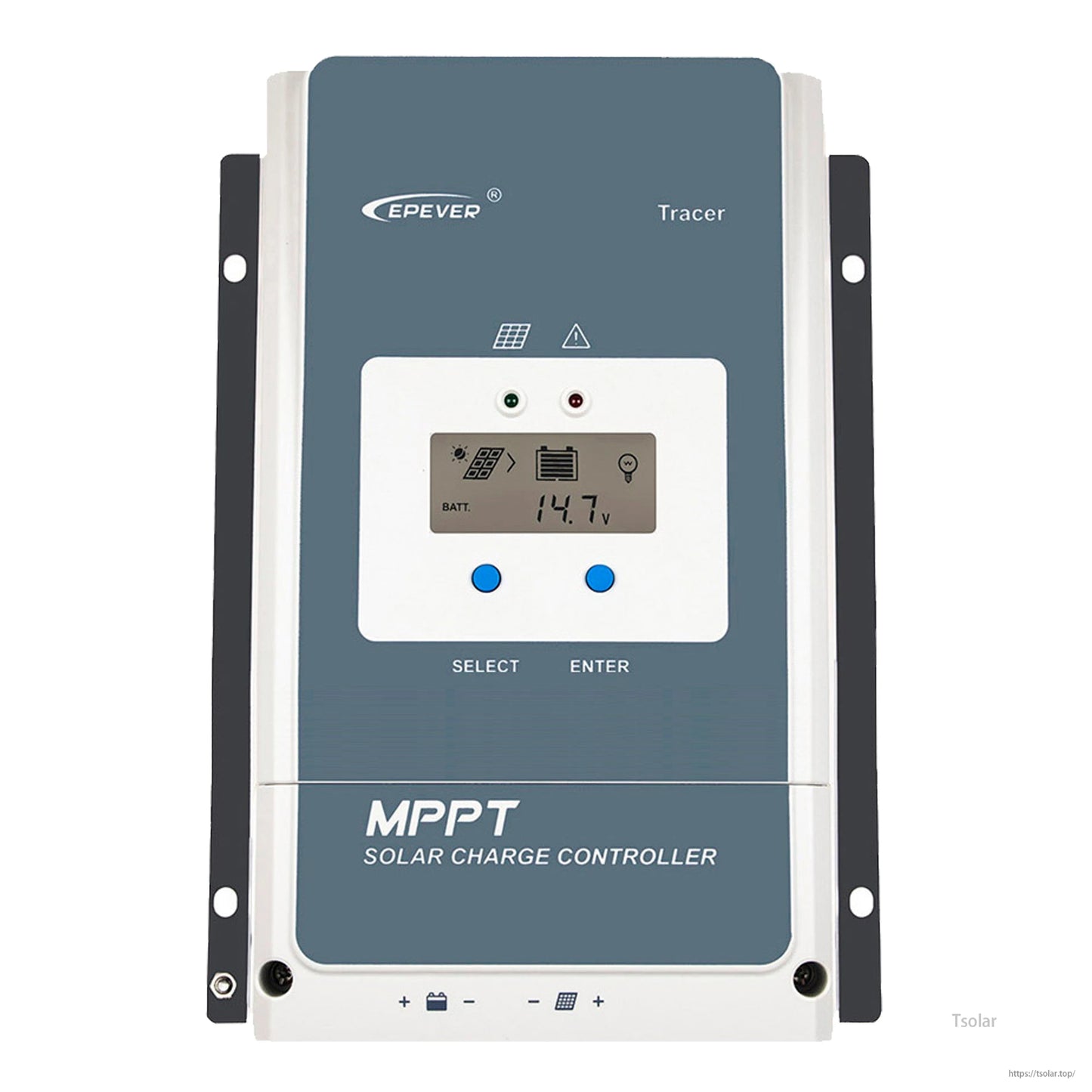

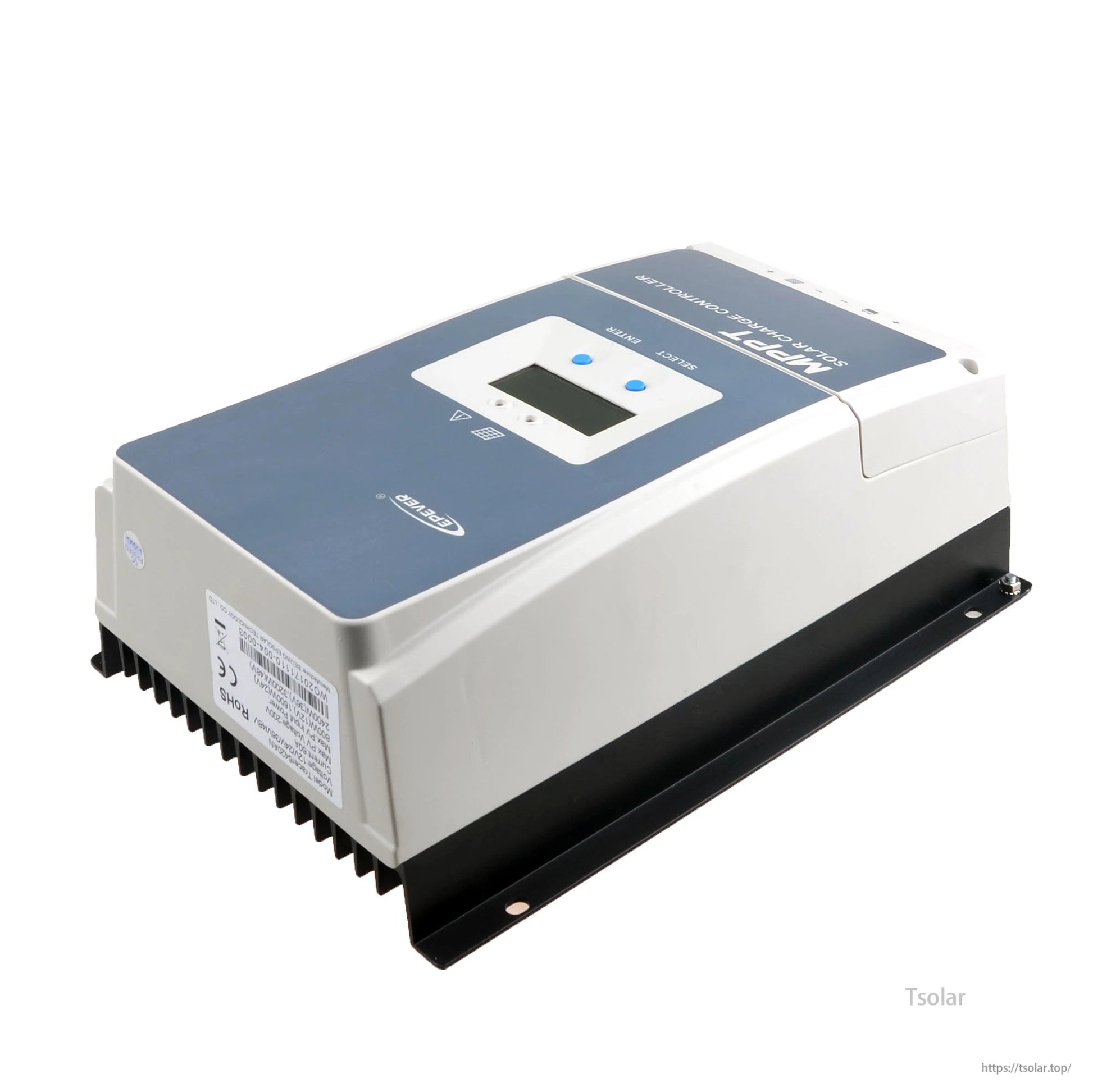

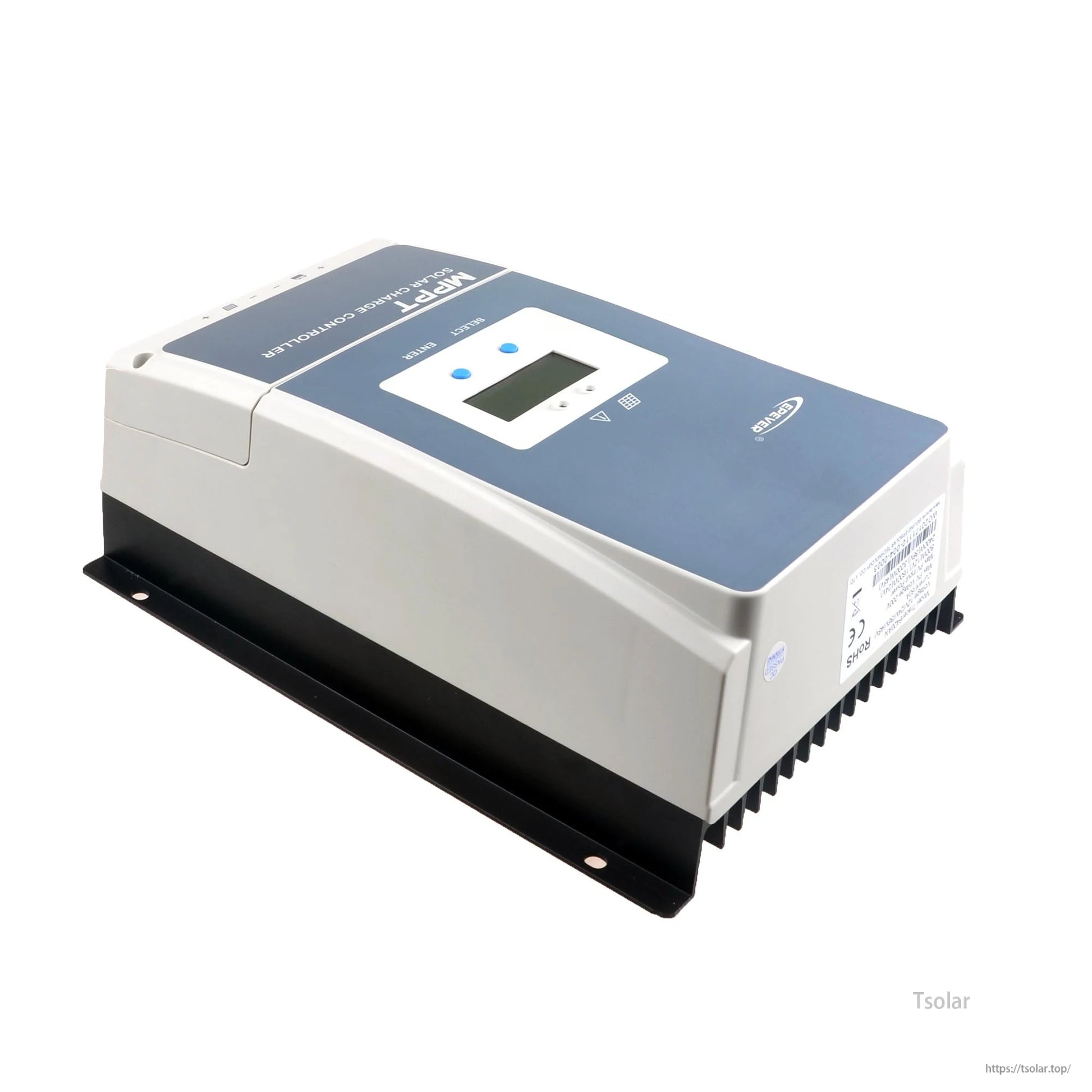

Overview
The Epever Tracer-AN series is an MPPT solar charge controller designed for 12/24/36/48VDC (auto) battery systems, with 150V or 200V PV input options and charge current ratings from 50A to 100A. It uses multiphase synchronous rectification technology (MSRT), an advanced MPPT control algorithm, a dual-core processor architecture, and a common negative design to deliver fast response and stable operation.
Key Features
- MSRT (multiphase synchronous rectification technology) and advanced MPPT control algorithm
- High response speed, high reliability, high industrial standard
- Maximum DC/DC transfer efficiency as high as 98.7%
- Advanced MPPT technology & ultra-fast tracking speed; tracking up to 99.5%
- Accurate recognition and tracking of multiple-peaks maximum power point
- Wide MPP operating voltage range
- Charging power/current limiting and automatic over-temperature power reduction
- Supports 4 charging options: Sealed, Gel, Flooded, User
- Battery temperature compensation function
- Real-time energy statistics function
- Load relay control for diversified load work modes
- Auto-control of utility and generator relay design
- Remote temperature sensor and remote voltage sensor design
- Isolated RS-485 with 5VDC/200mA protected output (MODBUS protocol)
- Monitoring and parameter setting via mobile phone APP or PC software
Specifications

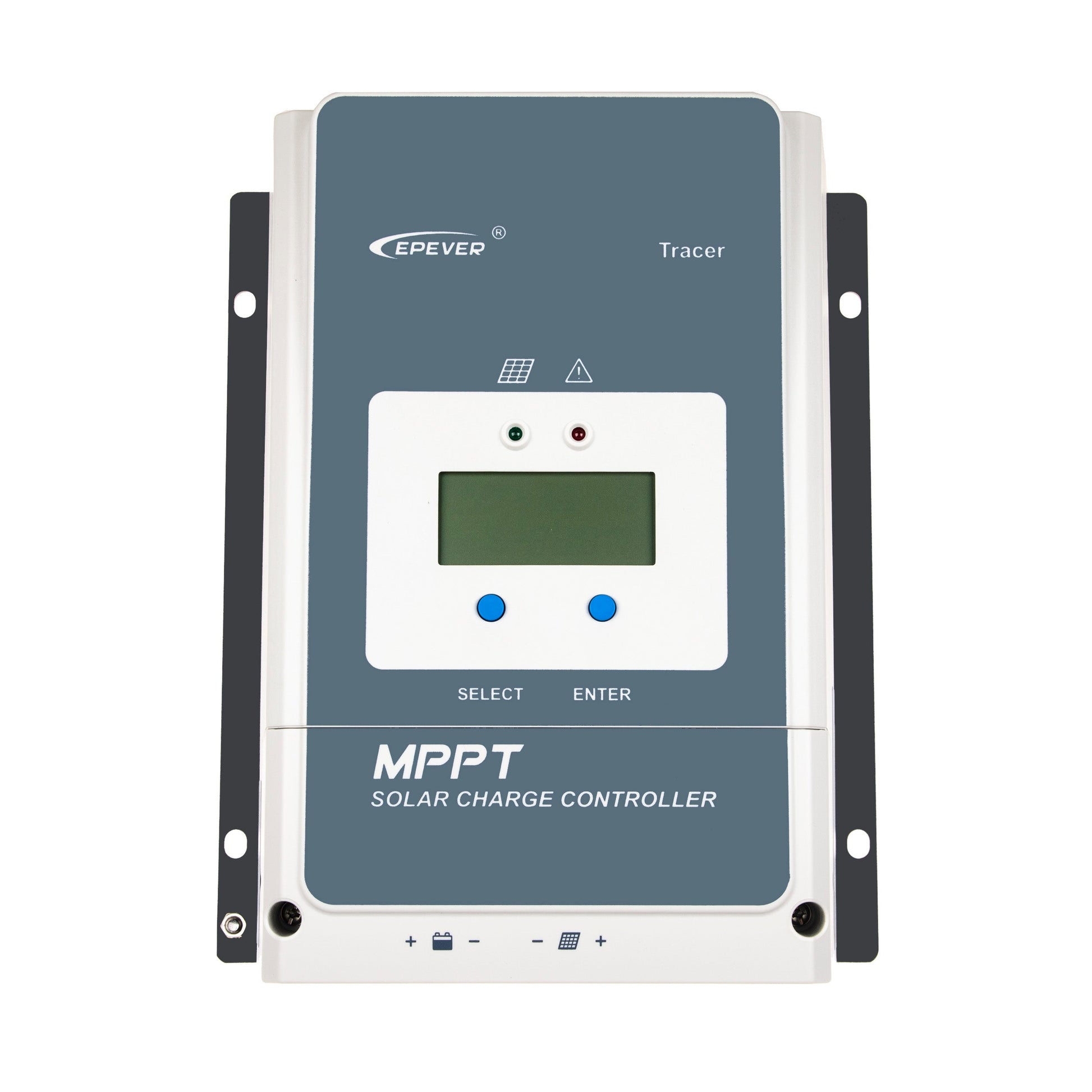

Models
- 150V PV input series: Tracer5415AN / Tracer6415AN / Tracer8415AN / Tracer10415AN
- 200V PV input series: Tracer5420AN / Tracer6420AN / Tracer8420AN / Tracer10420AN
Electrical Parameters

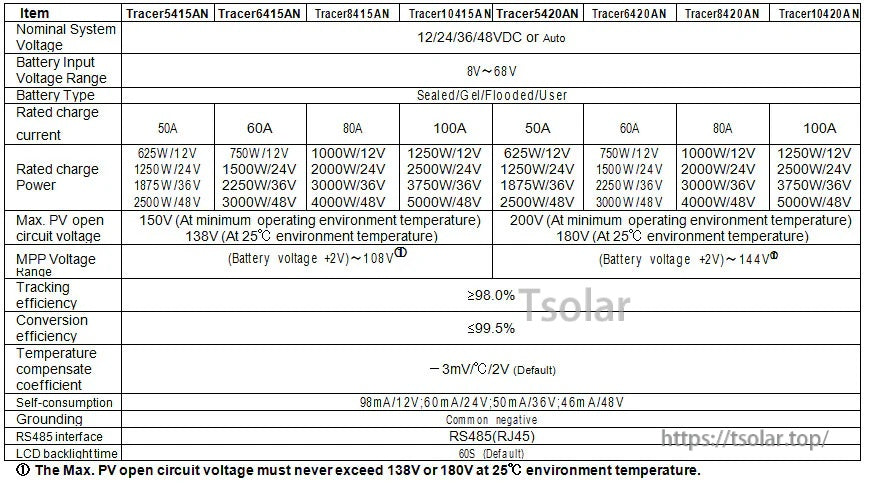

| Nominal system voltage | 12/24/36/48VDC or Auto |
| Battery input voltage range | 8V~68V |
| Battery type | Sealed / Gel / Flooded / User |
| Rated charge current | 50A / 60A / 80A / 100A (model-dependent) |
| Rated charge power |
50A: 625W/12V; 1250W/24V; 1875W/36V; 2500W/48V 60A: 750W/12V; 1500W/24V; 2250W/36V; 3000W/48V 80A: 1000W/12V; 2000W/24V; 3000W/36V; 4000W/48V 100A: 1250W/12V; 2500W/24V; 3750W/36V; 5000W/48V |
| Max. PV open circuit voltage |
150V series: 150V (at minimum operating environment temperature); 138V (at 25°C environment temperature) 200V series: 200V (at minimum operating environment temperature); 180V (at 25°C environment temperature) |
| MPP voltage range |
150V series: (Battery voltage +2V) ~ 108V 200V series: (Battery voltage +2V) ~ 144V |
| Tracking efficiency | ≥98.0% |
| Conversion efficiency | ≤99.5% |
| Temperature compensate coefficient | -3mV/°C/2V (Default) |
| Self-consumption | 98mA/12V; 60mA/24V; 50mA/36V; 46mA/48V |
| Grounding | Common negative |
| RS485 interface | RS485 (RJ45) |
| LCD backlight time | 60s (Default) |
PV voltage note: The Max. PV open circuit voltage must never exceed 138V or 180V at 25°C environment temperature.

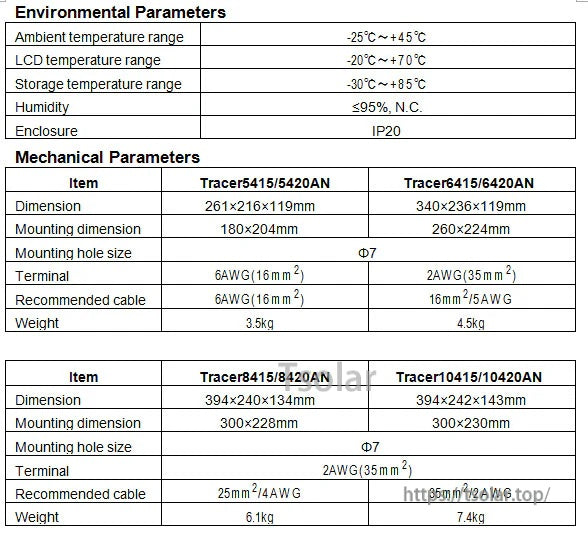

Environmental Parameters
| Ambient temperature range | -25°C~+45°C |
| LCD temperature range | -20°C~+70°C |
| Storage temperature range | -30°C~+85°C |
| Humidity | ≤95%, N.C. |
| Enclosure | IP20 |

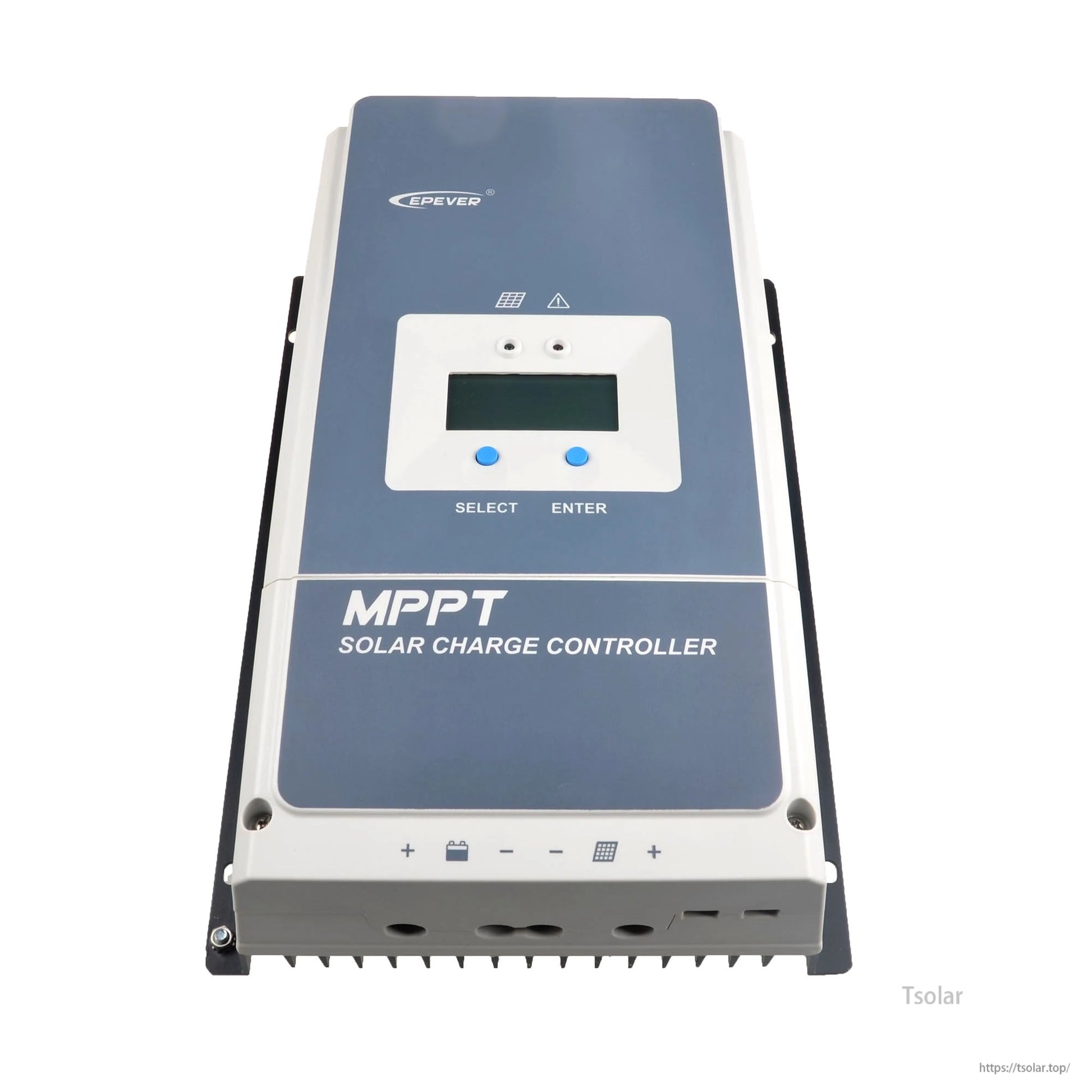

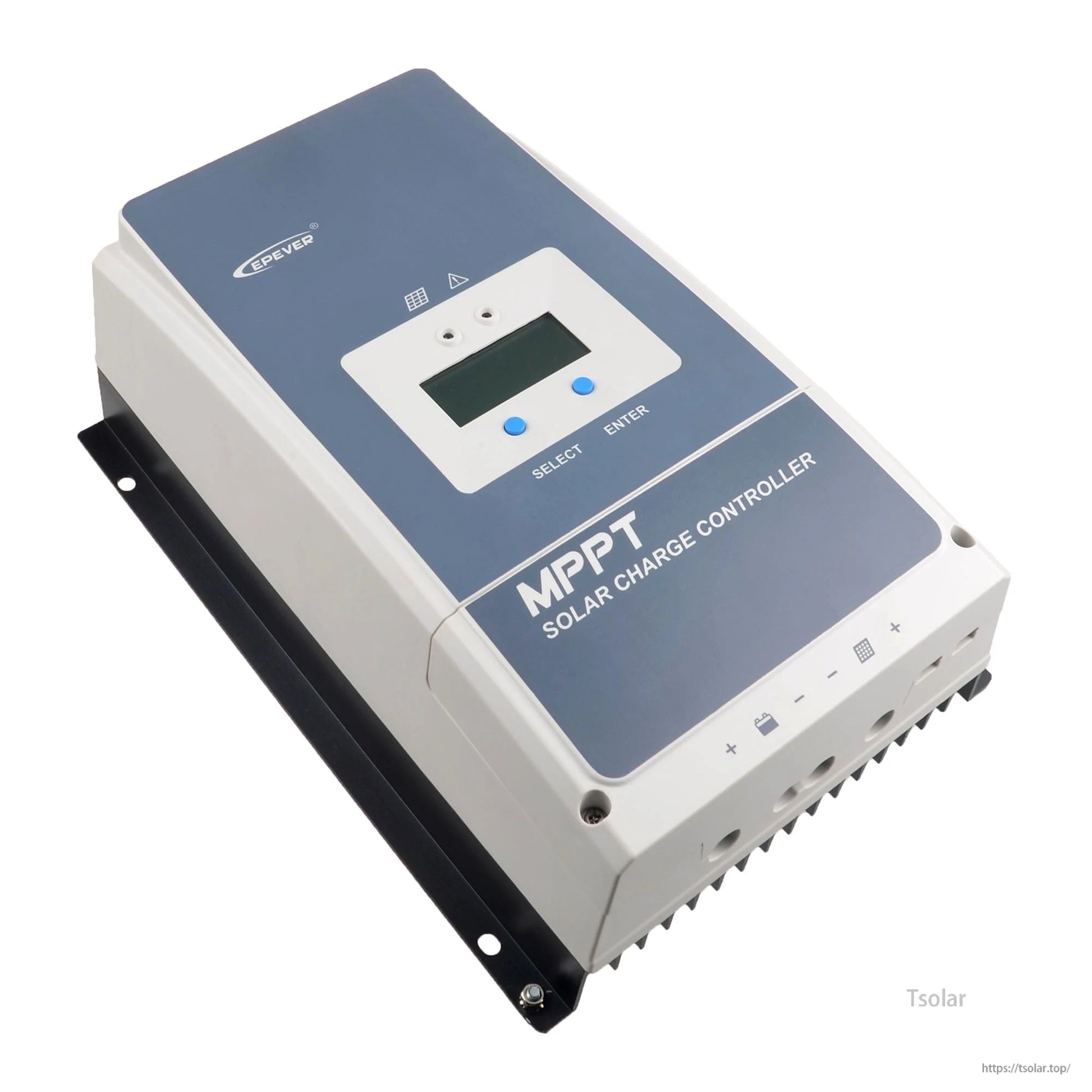

Mechanical Parameters
| Model group | Tracer5415/5420AN | Tracer6415/6420AN | Tracer8415/8420AN | Tracer10415/10420AN |
| Dimension | 261×216×119mm | 340×236×119mm | 394×240×134mm | 394×242×143mm |
| Mounting dimension | 180×204mm | 260×224mm | 300×228mm | 300×230mm |
| Mounting hole size | Φ7 | Φ7 | Φ7 | Φ7 |
| Terminal | 6AWG (16mm²) | 2AWG (35mm²) | 2AWG (35mm²) | 2AWG (35mm²) |
| Recommended cable | 6AWG (16mm²) | 16mm² / 5AWG | 25mm² / 4AWG | 35mm² / 2AWG |
| Weight | 3.5kg | 4.5kg | 6.1kg | 7.4kg |
Applications
- Off-grid PV battery charging systems (12V/24V/36V/48V)
- Systems requiring RS-485 (MODBUS) monitoring and parameter configuration
- Installations needing PV input options up to 150V or 200V (model-dependent)
For model selection and compatibility confirmation, contact customer support at https://tsolar.top/ or service@tsolar.top.
Manuals
Details
Epever Tracer AN MPPT controllers support 12/24/36/48V auto system voltage and come in 50A to 100A charging options with RS485 communication.
Epever Tracer AN MPPT charge controllers list operating temperature ranges, IP20 enclosure rating, and model-specific mounting dimensions for easier installation planning.
