Overview
The SolarEpic 60A MPPT solar charge controller is designed for 12V/24V battery systems with up to 150V max PV open-circuit voltage. It supports lead-acid and lithium batteries, includes an MH-M80 remote meter and a remote temperature sensor, and provides MPPT tracking with a 4-stage charging algorithm.
Key Features
- 60A MPPT charging; nominal system voltage: 12V / 24V
- Max. PV input power: 840W (12V battery) / 1680W (24V battery)
- Max. PV open-circuit voltage: 150V
- Negative grounding design
- 4-stage battery charging
- Battery compatibility: lead-acid and lithium
- Controller interface: 1.3 inches OLED screen, function button, and 3 status LEDs (charging status / load output status / error)
- Four load control modes
- Electronic protections: reverse polarity protection (battery and array), solar short circuit protection, over-temperature protection, load short circuit protection, load over-current protection, heat sink temperature limit protection, over-volt / low-volt protection, battery shedding protection
- Data & communications: dual RJ45; private protocol and MODBUS; dry contact via RJ45 port; PC software: SolarMate; meter support: MH-M80 / MH-S80
Specifications
| Model | SolarEpic NS24H60 |
| Controller Type | MPPT solar charge controller |
| Nominal System Voltage | 12V, 24V |
| Rated Charge Current | 60A |
| Rated Load Current | 30A |
| Max. PV Open Circuit Voltage | 150V |
| Max. PV Input Power | 840W (12V battery) / 1680W (24V battery) |
| Max. Wire Size | 25mm2 / 3AWG |
| Display | 1.3 inches OLED |
| Communication Port | Dual RJ45 |
| Communication Protocols | Private protocol and MODBUS |
| PC Software | SolarMate |
| Meter | MH-M80 / MH-S80 |
| Dry Contact | Via RJ45 port |
| Terminals | PV+/PV-/BAT+/BAT-/LOAD+/LOAD-; temperature sensor terminals; dedicated grounding wire terminal |
What’s Included
- SolarEpic NS24H60 60A MPPT solar charge controller
- MH-M80 remote meter (OLED display; supports parameter setting)
- MH-M80 accessories: 3.3 ft (1.0 m) cable (extendable), mounting frame, mounting screws
- Remote temperature sensor (default charging/discharging temperature is 25 °C without temperature compensation when not connected)
Applications
- 12V/24V solar battery charging systems using lead-acid or lithium batteries
- PV systems requiring up to 150V max PV open-circuit voltage and up to 60A charging current
For pre-sales questions, compatibility checks, or technical support, contact https://tsolar.top/ or service@tsolar.top.
Details

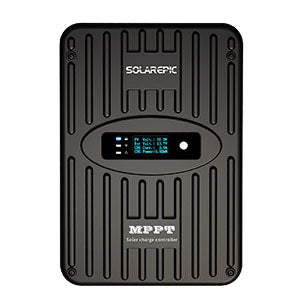

SolarEpic MPPT solar charge controller branding clearly labels the unit for easy identification during installation.

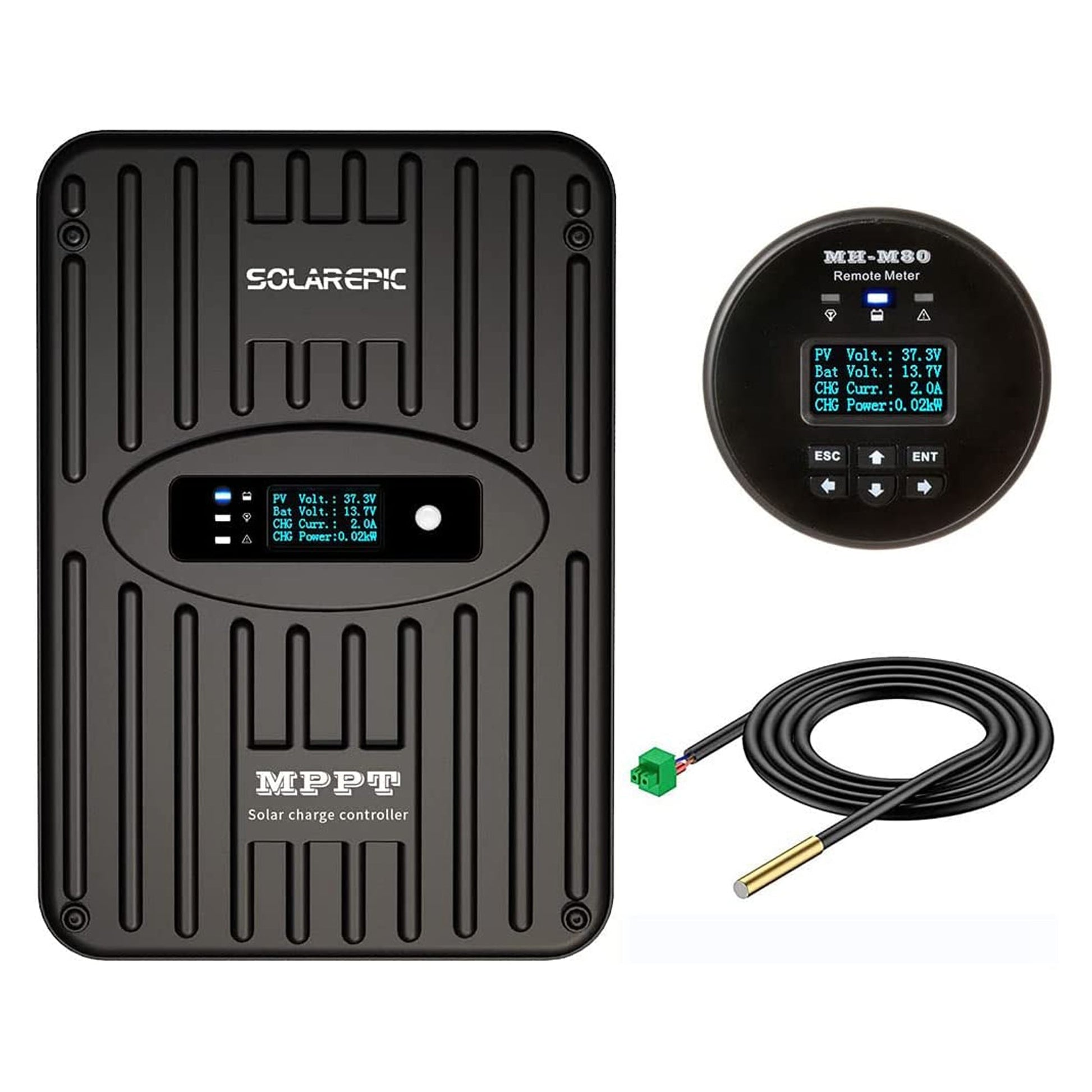

The SolarEpic 60A MPPT charge controller supports lead-acid and lithium batteries, with 4-stage charging, up to 150V PV open-circuit voltage, and includes an MH-M80 remote meter and temperature sensor.

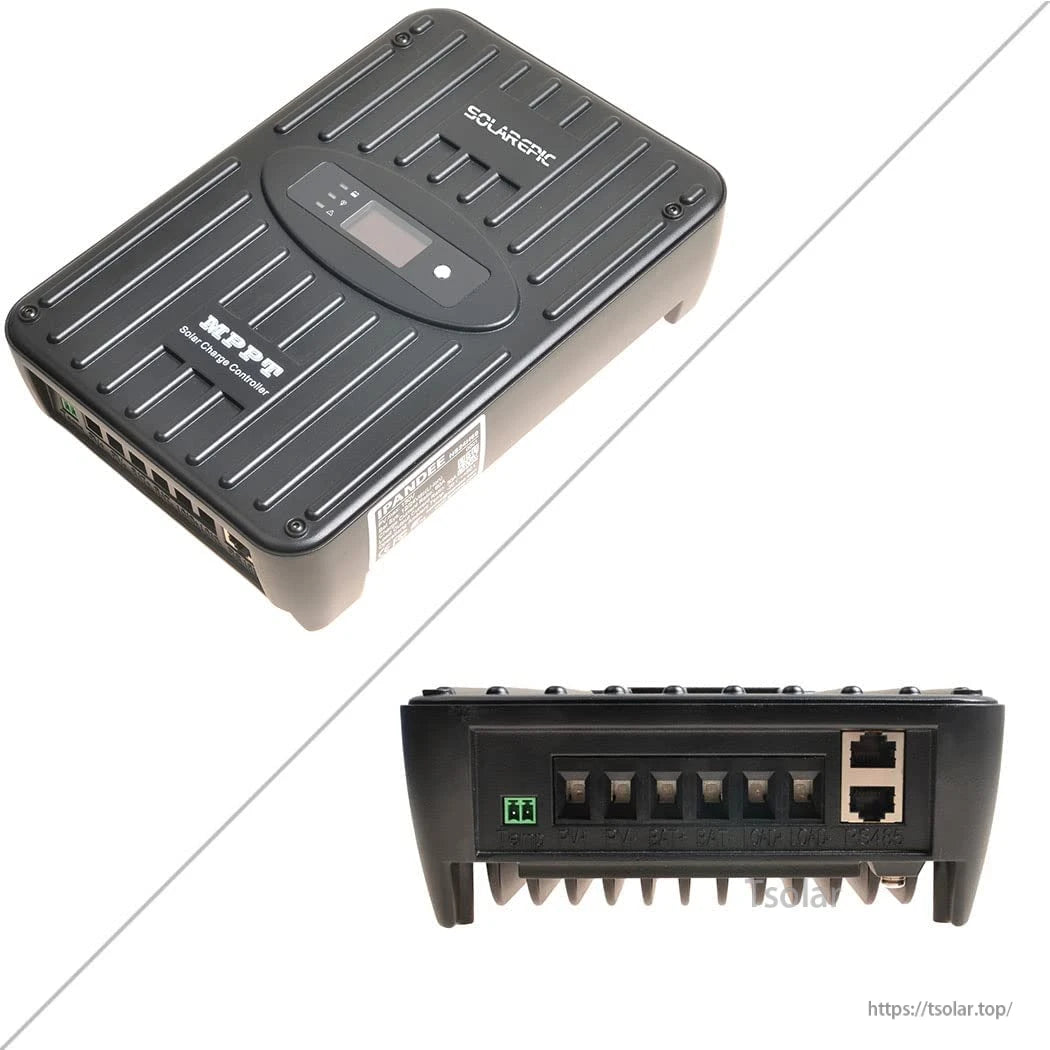

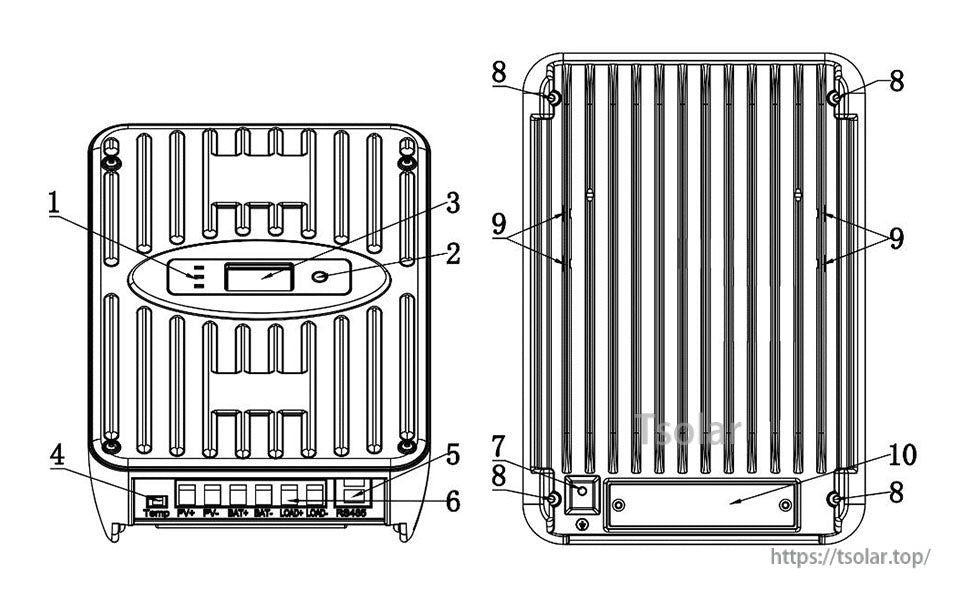

The SolarEpic 60A MPPT solar charge controller features a front LCD panel and a bottom terminal block for straightforward wiring and monitoring.

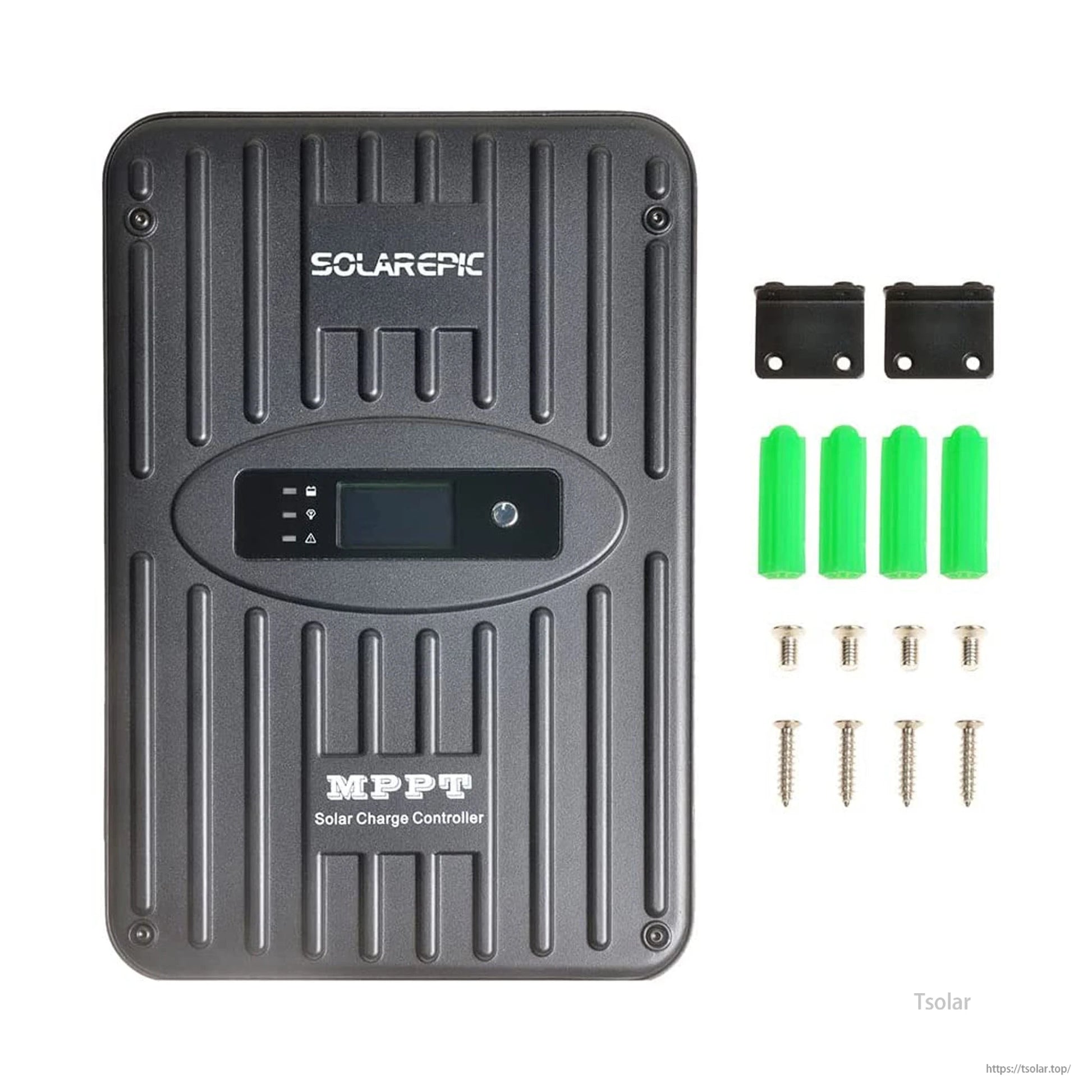

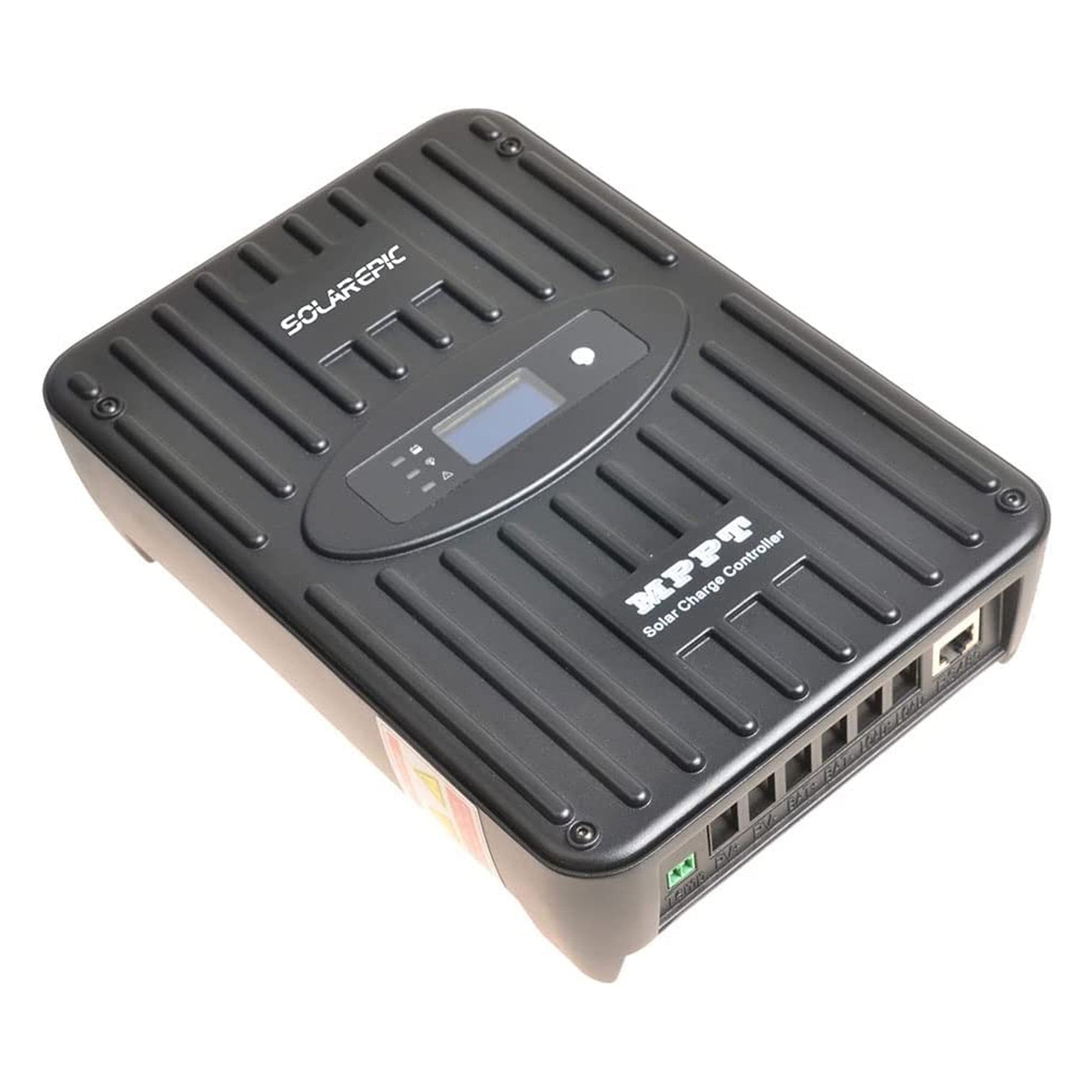

The SolarEpic MPPT solar charge controller features a built-in LCD screen for viewing system status at a glance.

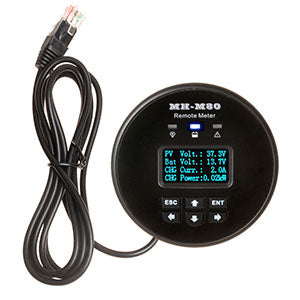

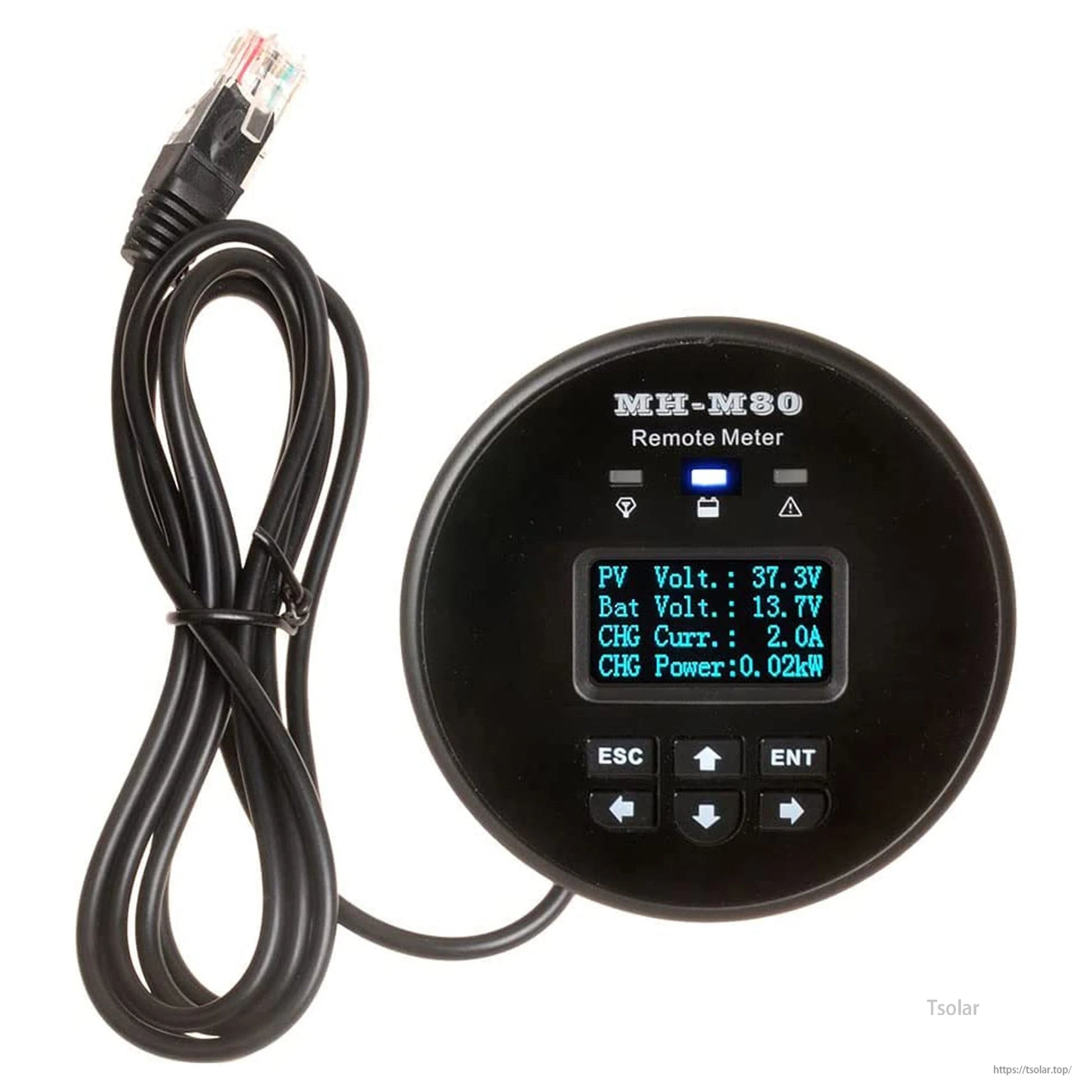

The wired remote meter provides a round, easy-to-read display with PV and battery voltage plus charge current and state-of-charge readouts.
The included temperature sensor probe connects via the green terminal plug for battery temperature monitoring.
