Overview
The SolarEpic EM2460 Explorer-M Series is an MPPT solar charge controller designed for 12V/24V battery systems with up to 100V PV input (open circuit voltage). It supports lead-acid and lithium (LiFePO4) battery charging and provides a dedicated DC load output.
Key Features
- Battery system compatibility: 12V/24V
- PV input: 100V max (open circuit voltage); also noted as 100V (138V @77F)
- MPPT technology; tracking efficiency up to 99.5%
- Maximum DC/DC transfer efficiency up to 98.7%
- PV activation feature to allow charging even when the battery is protected due to LVD
- Positive grounding design
- Supports 4 charging options: Sealed, Gel, Flooded, User
- Compatible with more units connected in parallel
- Optional WiFi module support for monitoring via app/PC
For product selection and installation support, contact https://tsolar.top/ or email service@tsolar.top.
Specifications
| Model | EM2460 |
| Series | Explorer-M |
| Battery System | 12V/24V |
| Max Charging Current | 60A |
| Max Discharging/Load Current | 30A |
| Max PV Input | 100V (Open Circuit Voltage) |
| Max Solar Panel Power | 780W (12v battery system) / 1560W (24V battery system) |
| Charging Stage | 3 |
| Battery Type | Sealed, Gel, Flooded and Lithium (LifePo4) |
| Max Wire Size | #3 gauge |
| Recommended Wire Size | #8 gauge |
| Package Dimensions | 13.78 x 10.24 x 5.12 inches |
| Item Weight | 6.56 pounds |
| Manufacturer | iPanda |
| ASIN | B088TNY3XW |
Applications
- 12V/24V solar charging systems using lead-acid batteries (Sealed, Flooded, GEL)
- 12V/24V solar charging systems using lithium-ion batteries (LiFePO4)
- Systems requiring a DC load output (e.g., DC lighting) and PV activation support
Video
Details

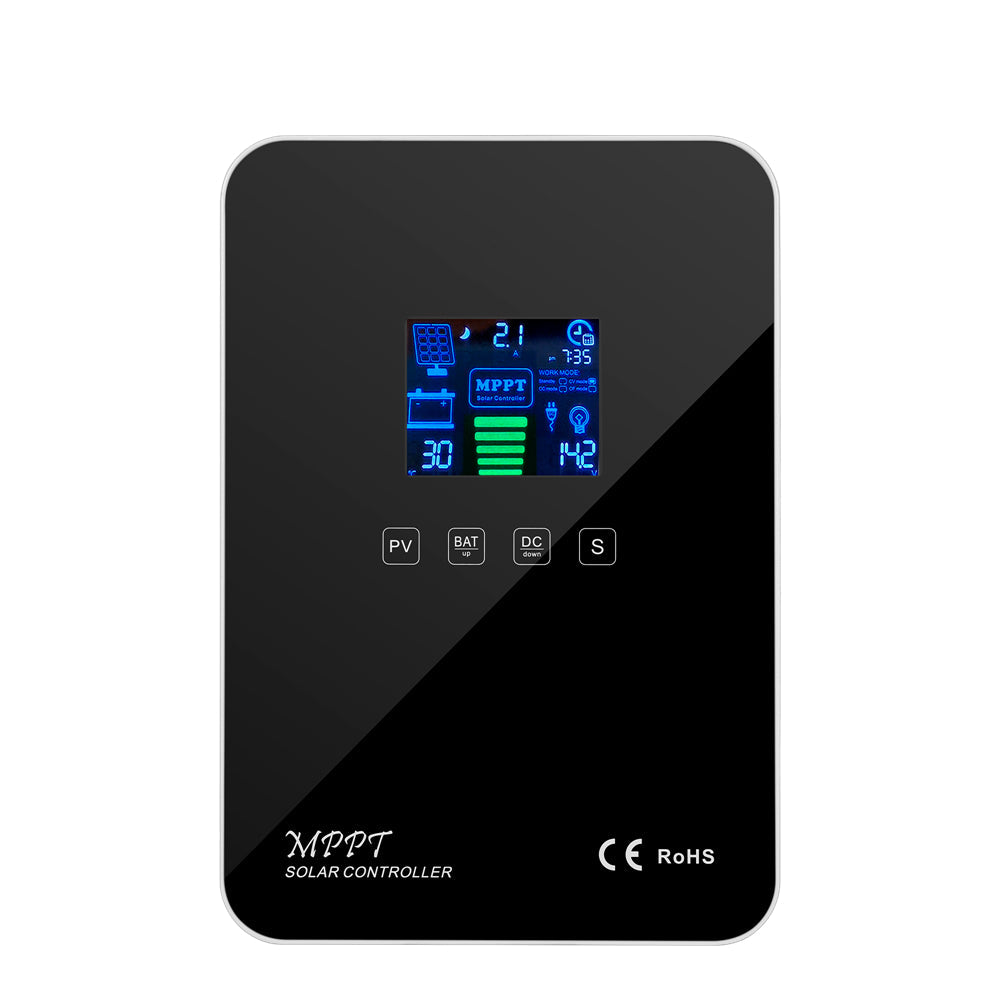

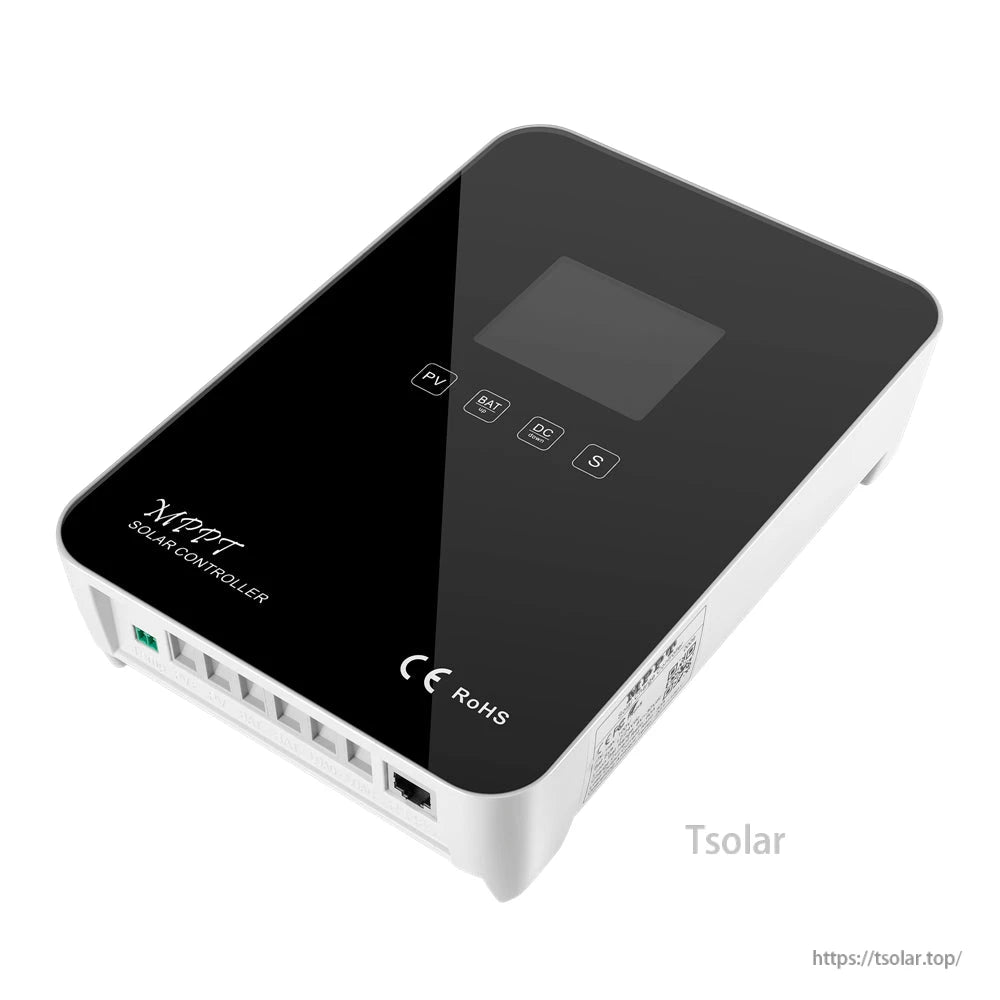

The SolarEpic MPPT solar charge controller branding clearly identifies the unit for compatible solar charging setups.

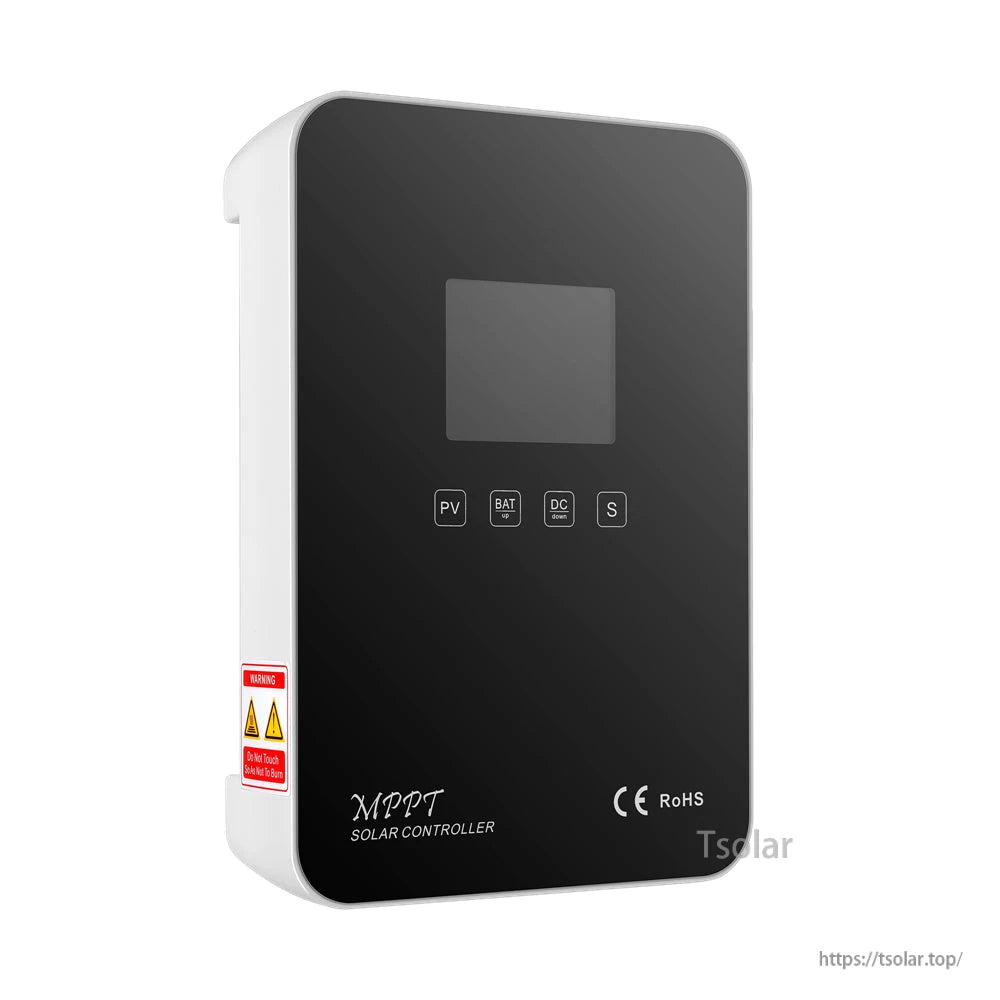

The SolarEpic Explorer-M MPPT controller supports 12V/24V batteries with a positive-ground design and up to 100V PV input (138V at 77°F).

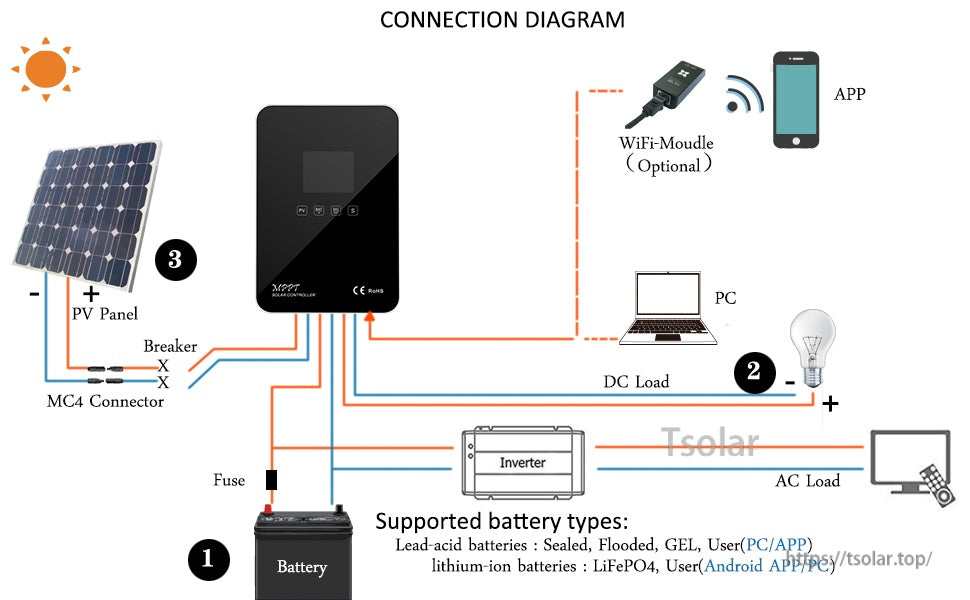

The EM2460 MPPT charge controller wiring diagram connects PV panel input through a breaker to a 12V/24V battery with fused DC load, plus optional WiFi app monitoring and inverter AC load support.
