Overview

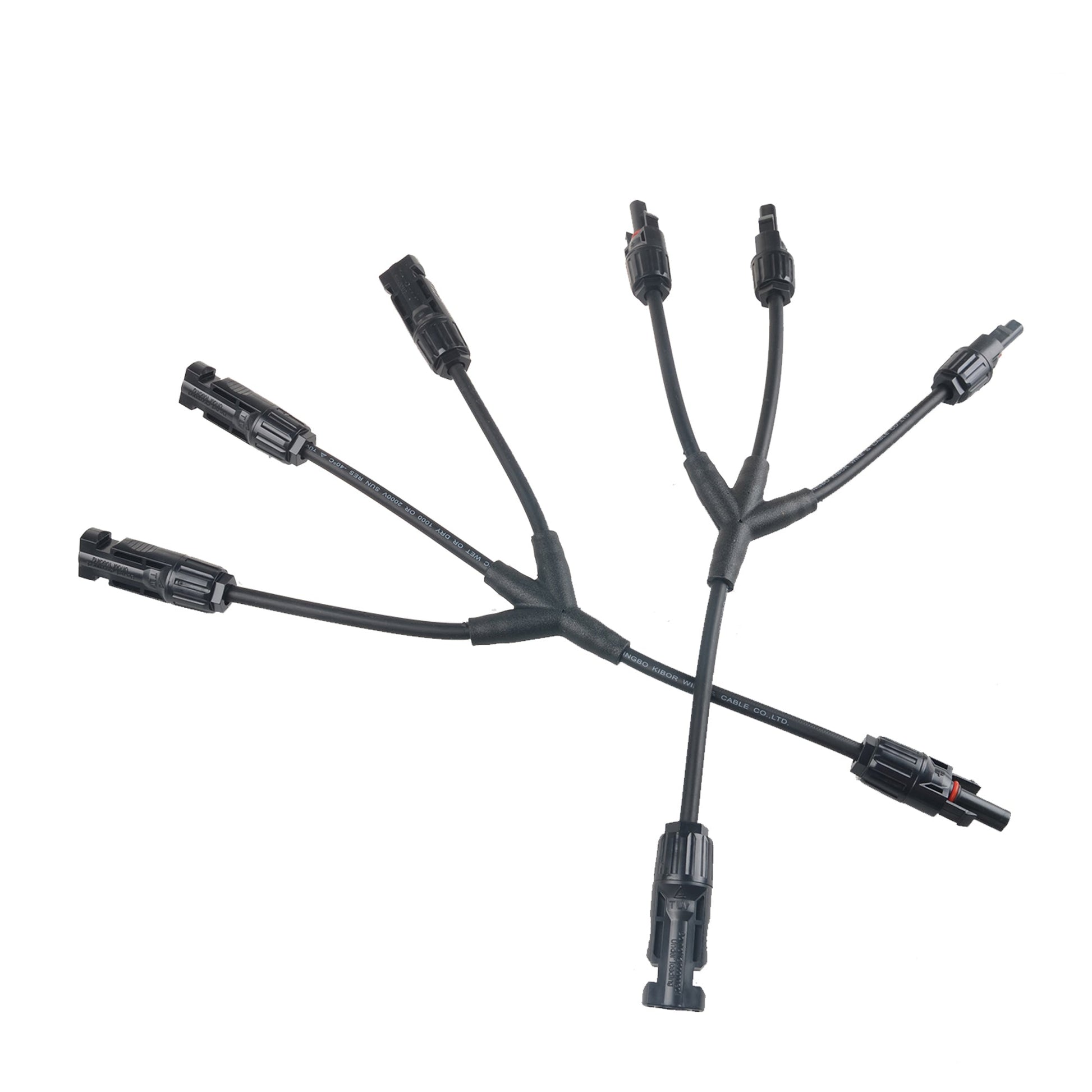

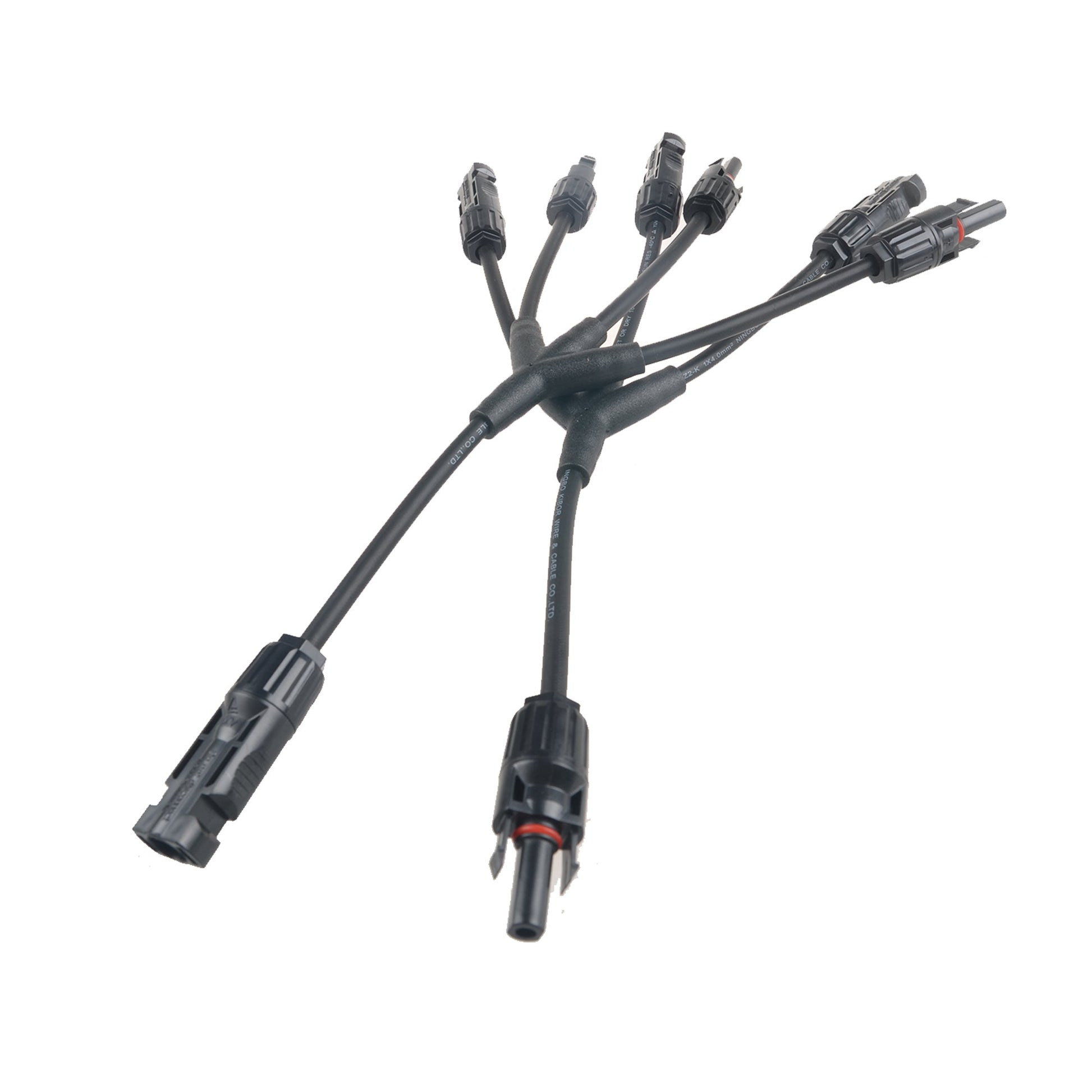

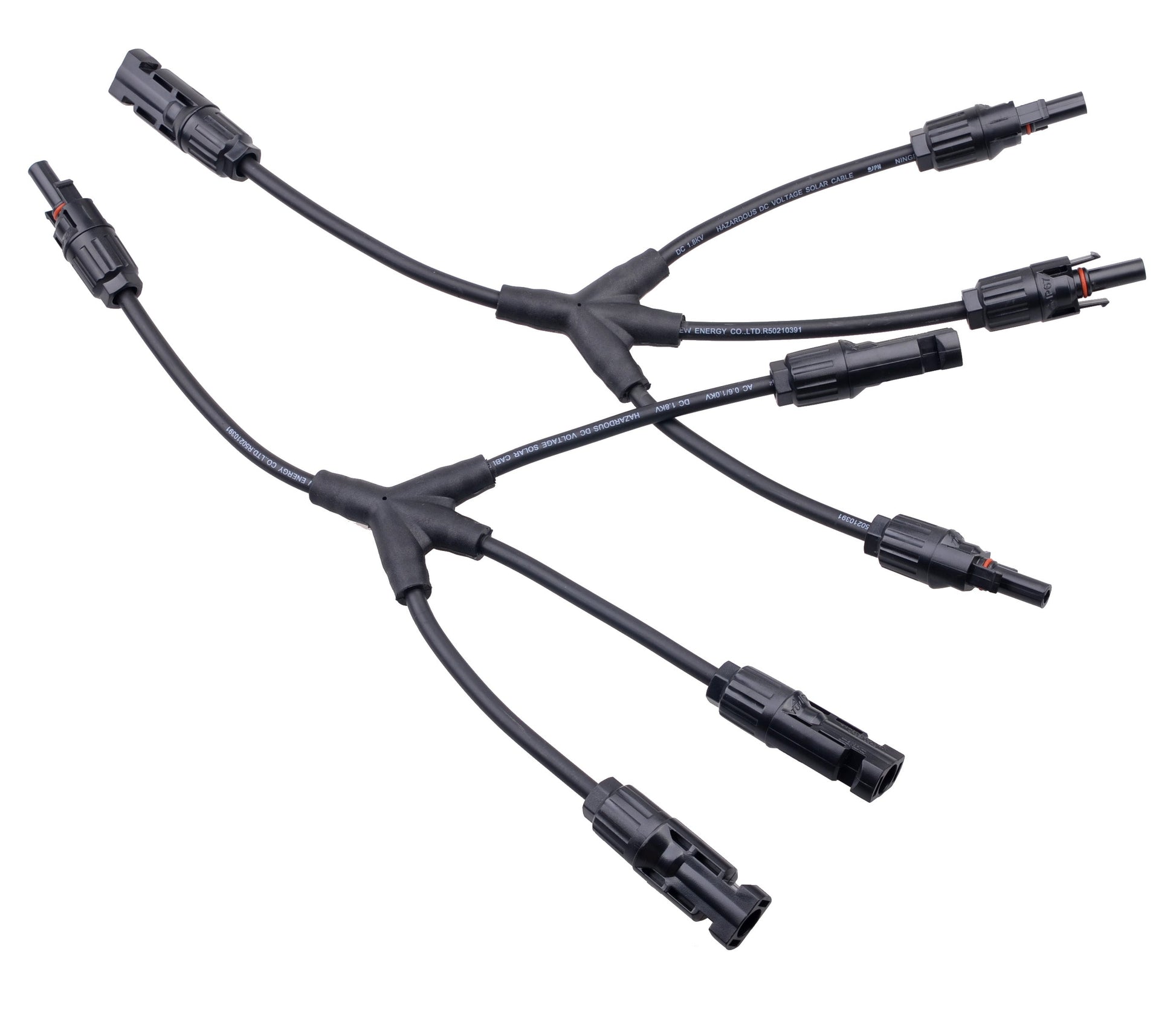

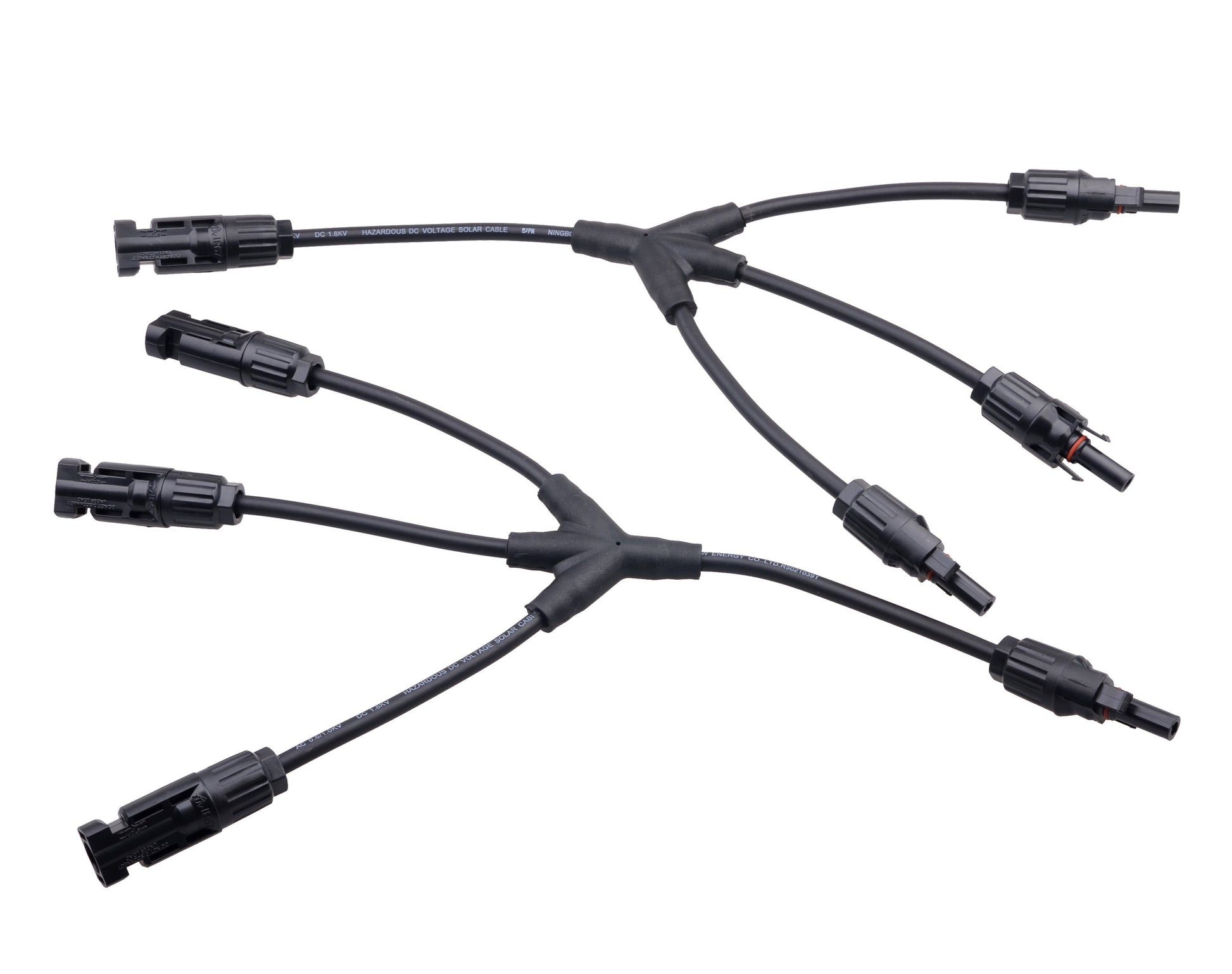

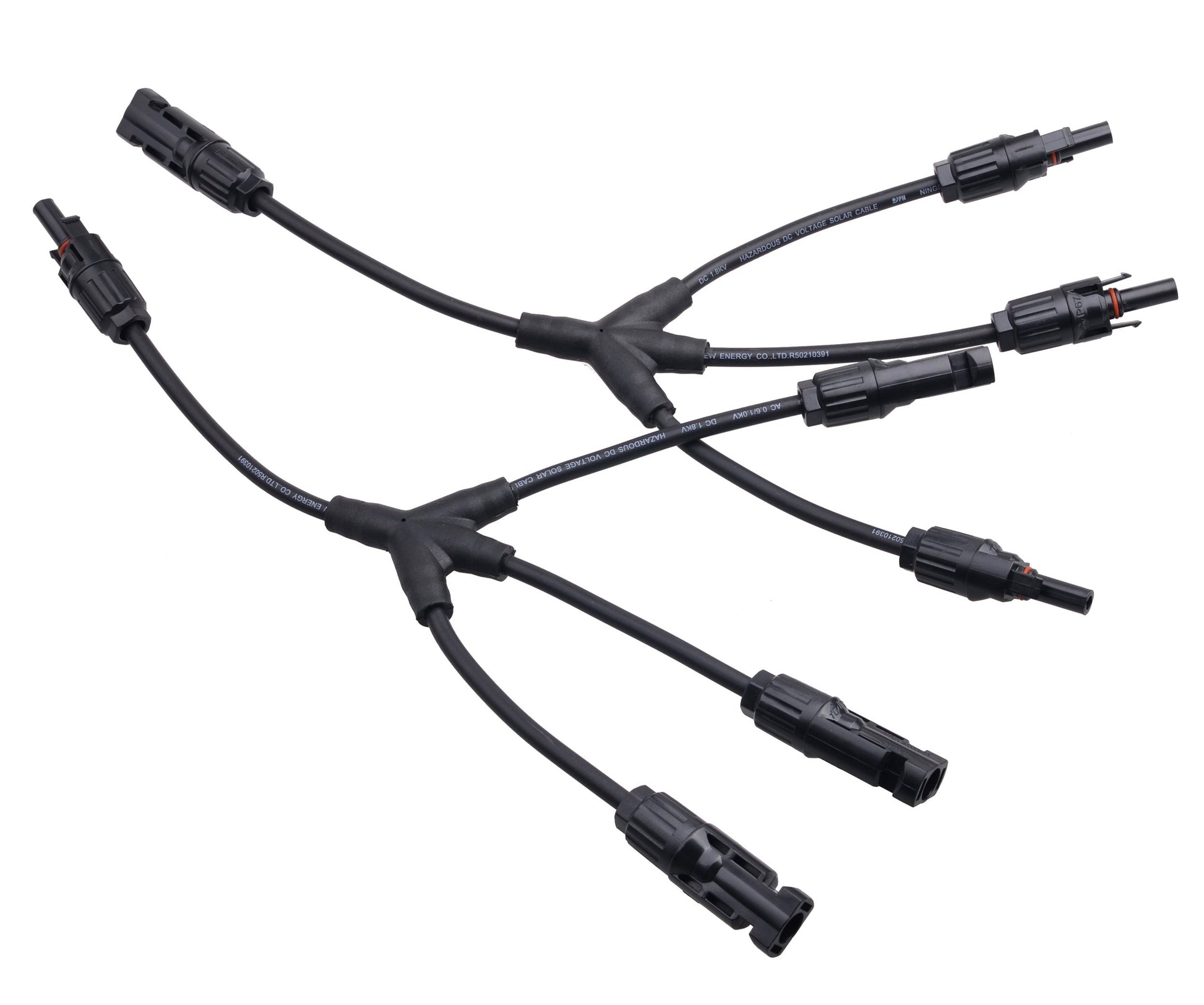

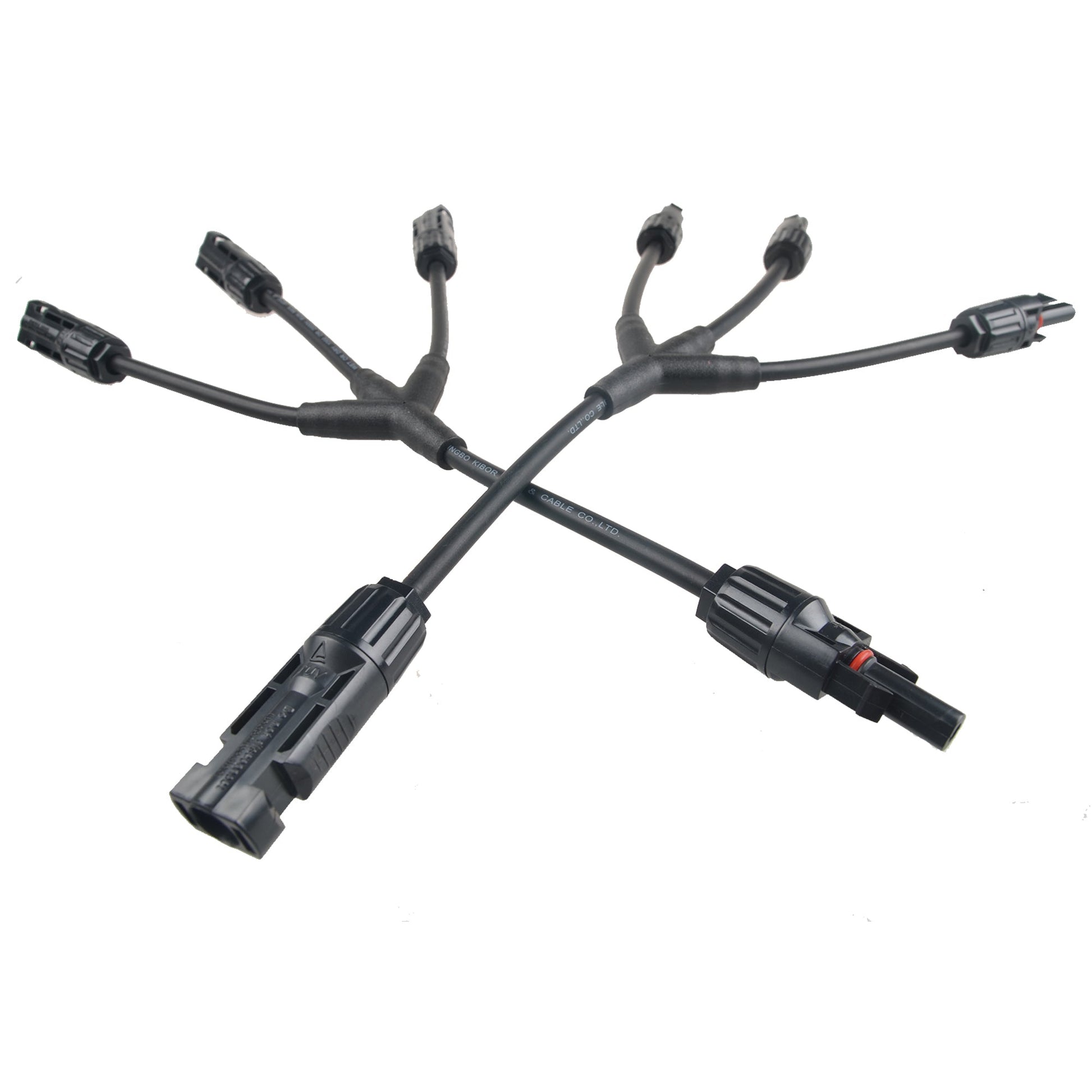

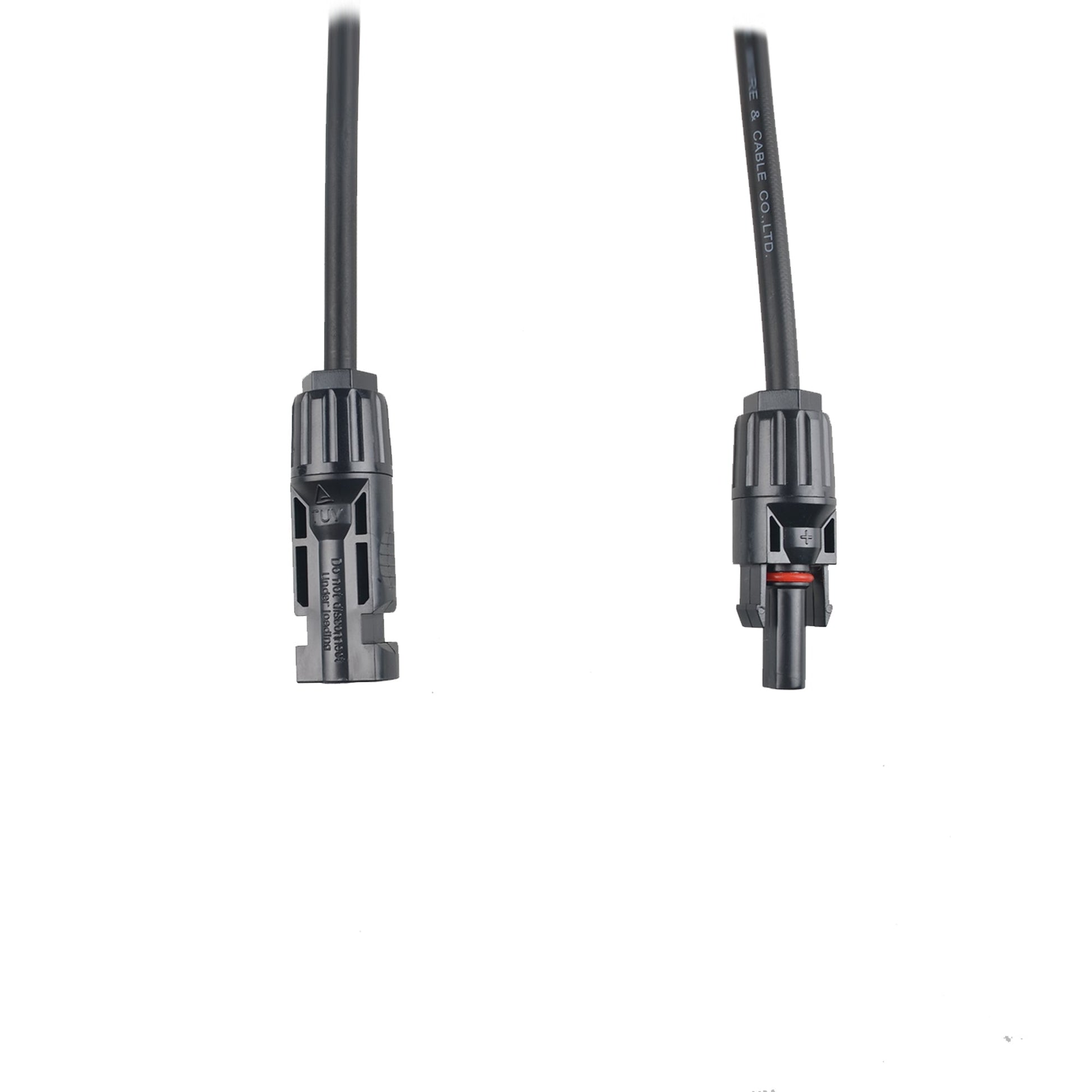

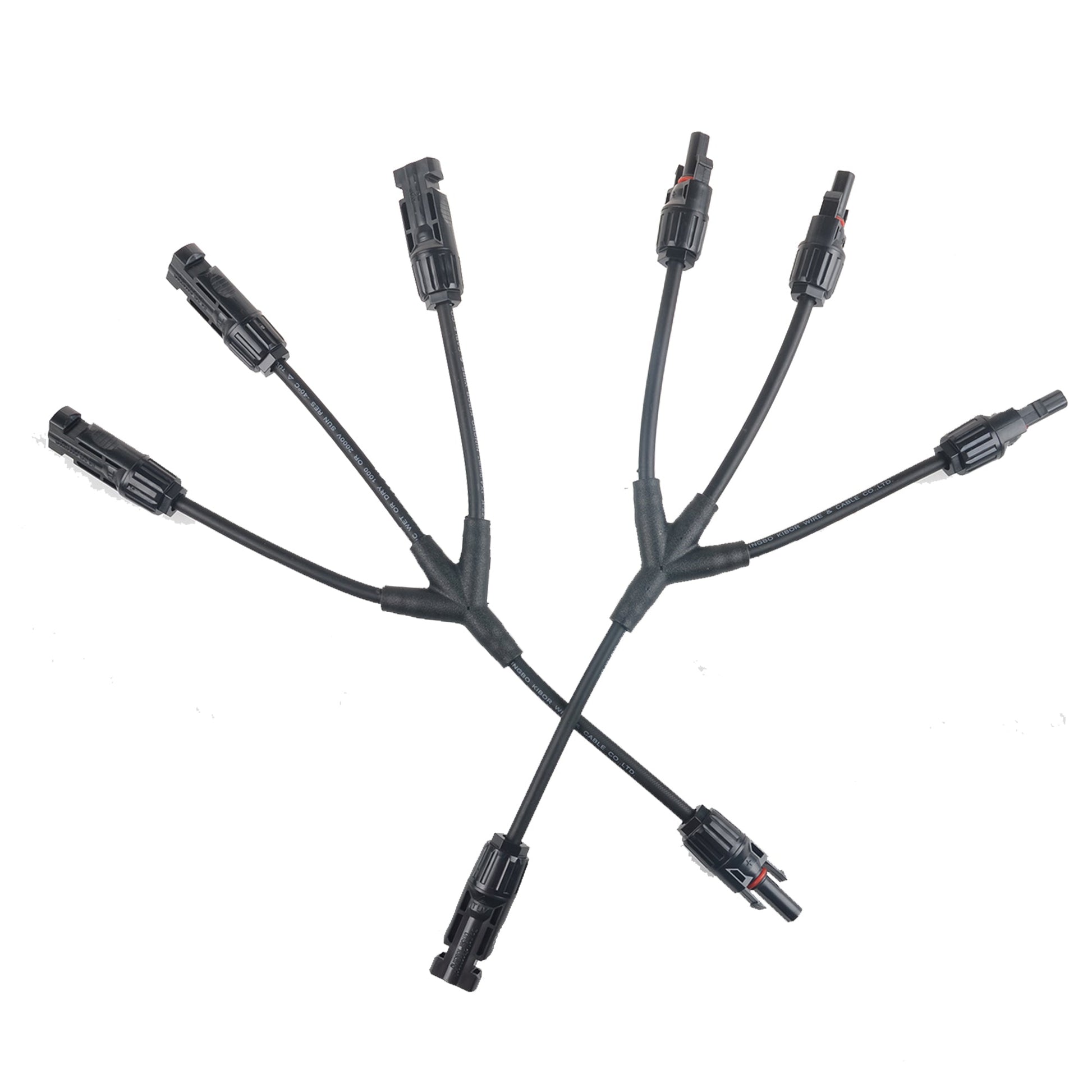

The SolarEpic MC4 3 in 1 Solar Y Branch Connector Cable is designed for reliable solar panel parallel wiring. This 2PCS MC4 solar connector set features model MC4-Y3, supports TUV 1000V DC / UL 600V DC, and is compatible with 2.5mm² to 6mm² cables (14AWG to 10AWG). With IP68 protection, silver-plated copper conductors, and a durable PPO housing, it is suitable for demanding solar power connection applications.
Key Features
- 3 in 1 MC4 Y branch connector for solar panel cable splitting
- Rated current: 20A-30A
- Rated voltage: TUV 1000V DC / UL 600V DC
- Fits 2.5mm²-6mm² cable / 14AWG-10AWG
- Silver-plated copper conductor for stable conductivity
- Low contact resistance: ≤5mΩ
- IP68 waterproof rating under IEC 60529
- PPO material housing for durability
- Operating temperature range: -40°C to +85°C
- Flame retardant grade: UL94V-0
Specifications
- Brand: SolarEpic
- Model: MC4-Y3
- Product Type: MC4 Solar Y Branch Connector Cable
- Configuration: 3 in 1
- Rated Voltage: TUV 1000V DC / UL 600V DC
- Rated Current: 20A-30A
- Wire Gauge: 2.5mm²-6mm² / 14AWG-10AWG
- Terminal Specification: φ4.0mm
- Withstand Voltage: TUV 6000V AC (1 min) / UL 2200V DC (1 min)
- Safety Class: II
- Connector Conductor Material: Copper, Silver Plated
- Contact Resistance: ≤5mΩ
- Housing Material: PPO
- Protection Rating: IP68 (IEC 60529)
- Temperature Rating: -40°C to +85°C
- Flame Retardant Grade: UL94V-0
Package Includes
- 2 x MC4 Solar Y Branch Connector Cables
