Overview

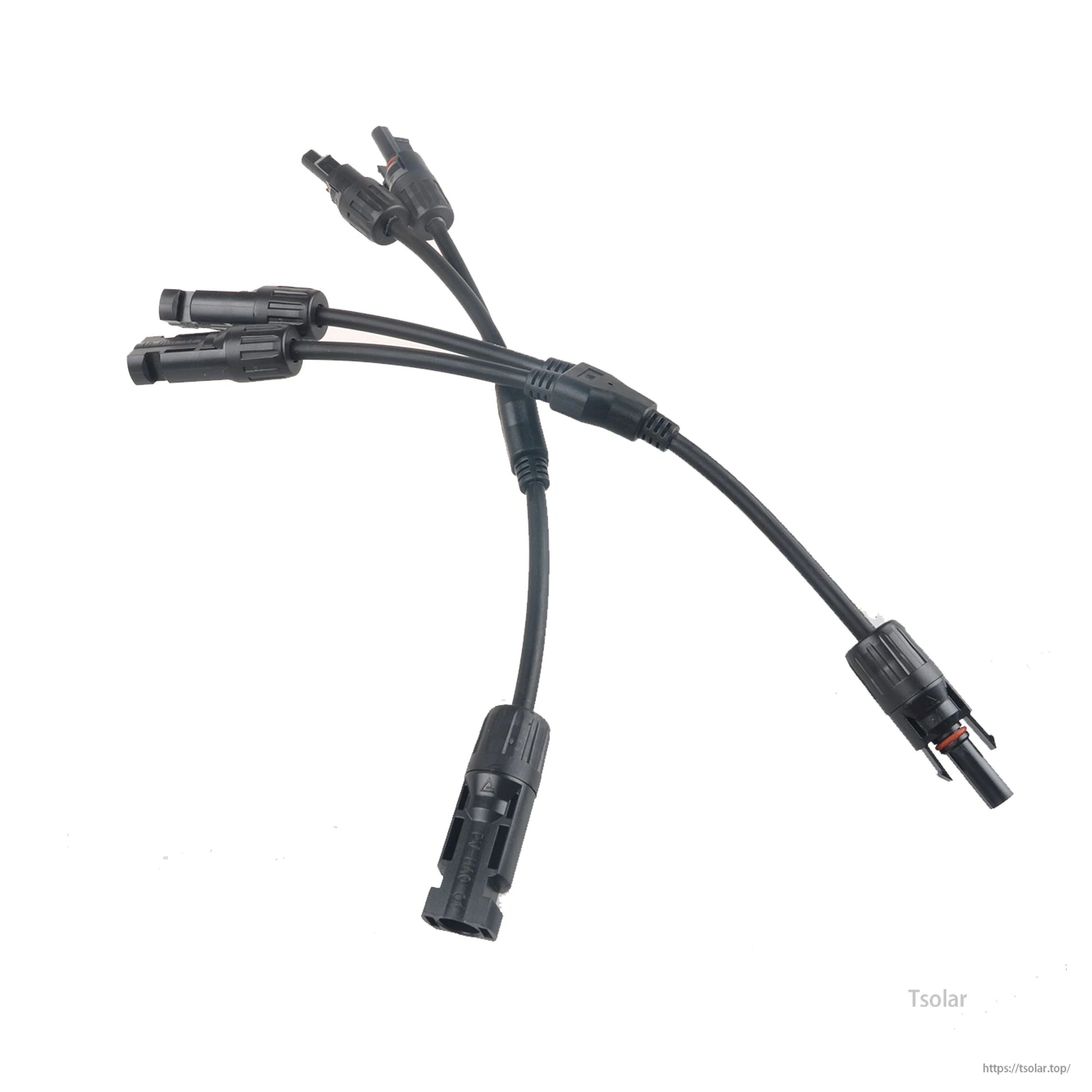

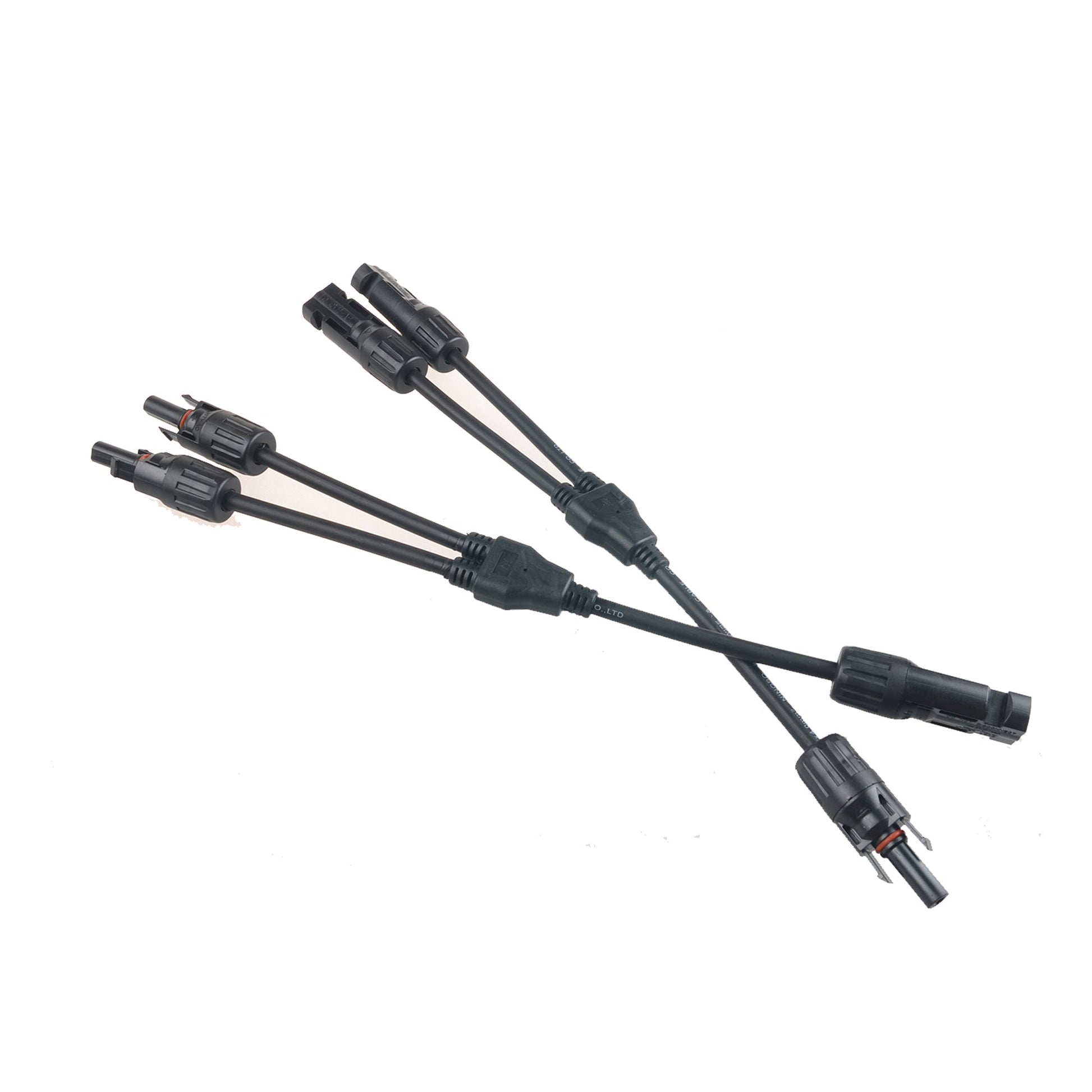

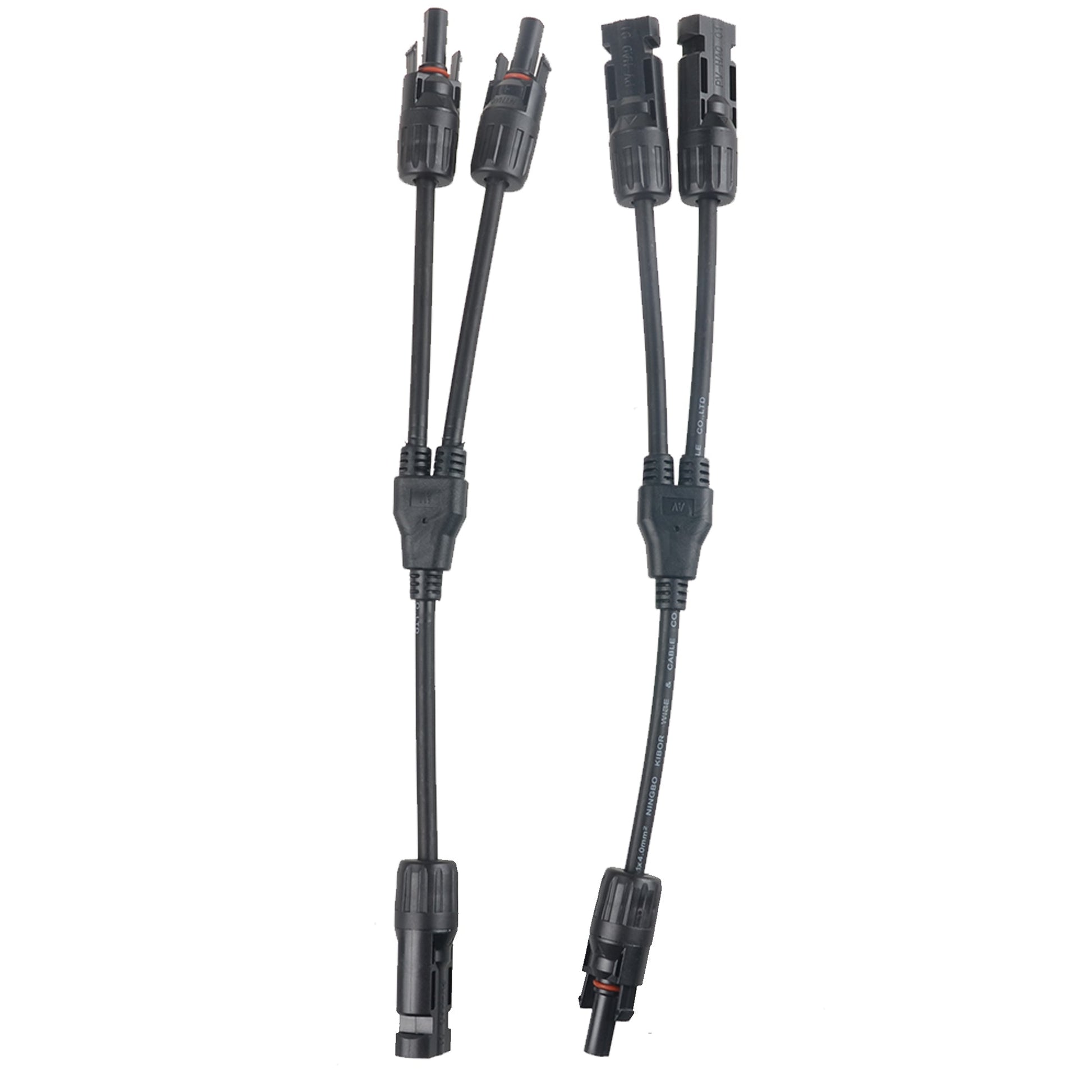

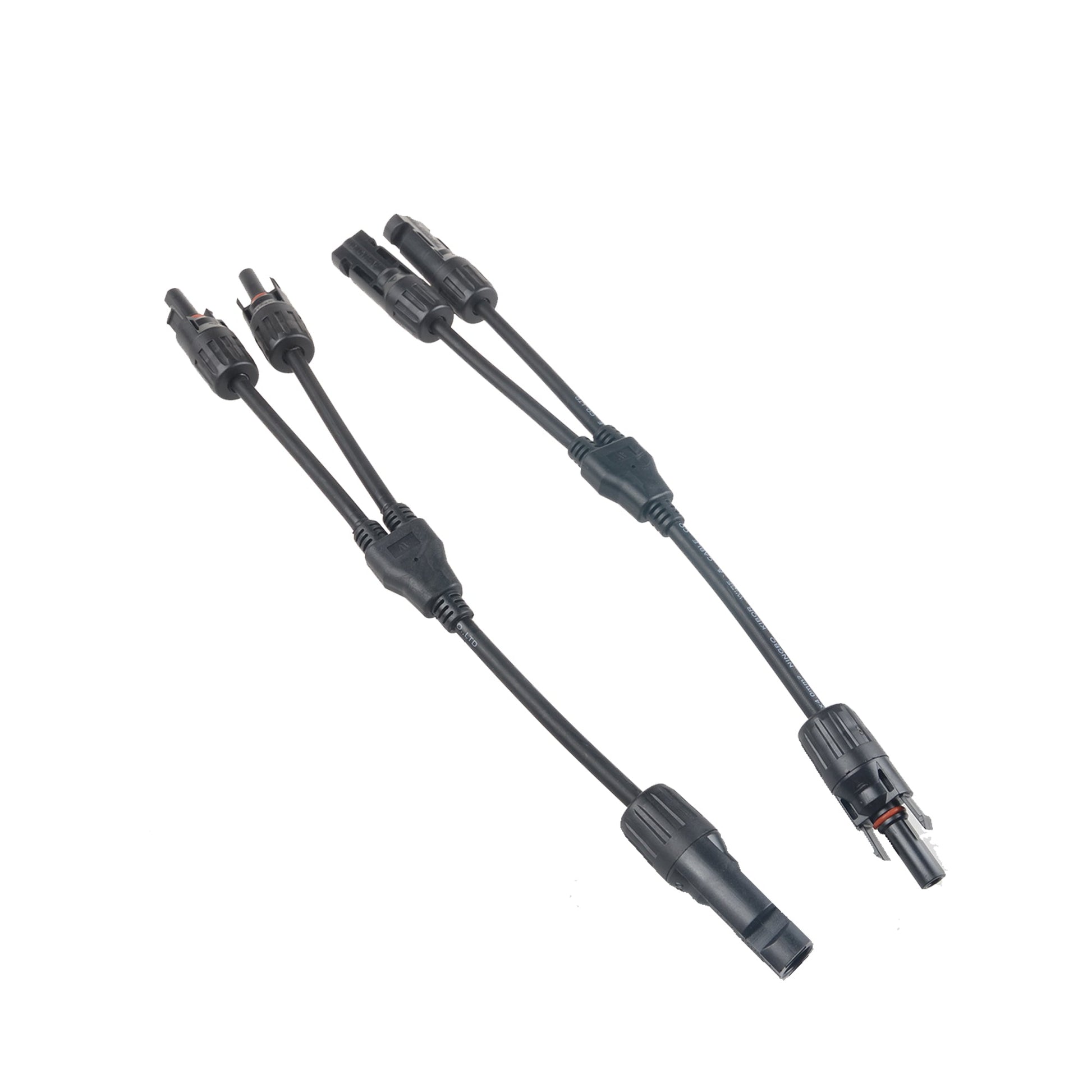

SolarEpic SA3 is a Y branch connector set for solar panel MC4 cable connector wiring, configured as 1M2F + 2M1F. Designed for DC solar connections where a compact branch/combiner connector is required.
Key Features
- Model: SA3
- Color: Black
- Degree of protection: IP67 (IEC 60529)
- Flame Retardant Grade: UL94V-O
Specifications
| Model | SA3 |
| Color | Black |
| Rated current | 20A (4mm²) |
| Rated voltage | 1000V DC |
| Contact resistance | <2mΩ |
| Insulation resistance | >500mΩ |
| Suitable single core cable section | 2.5mm2, 4mm2, 6mm2 |
| Cable outer diameter | Φ5mm ～ Φ 7mm |
| Connector insulation material | PPO |
| High voltage | TUV6000 V AC(1 min) / UL 2200V DC(1 min) |
| Degree of protection | IP67 (IEC 60529) |
| Temperature rating | -40 degree ~ +85 degree |
| Flame Retardant Grade | UL94V-O |
What’s Included

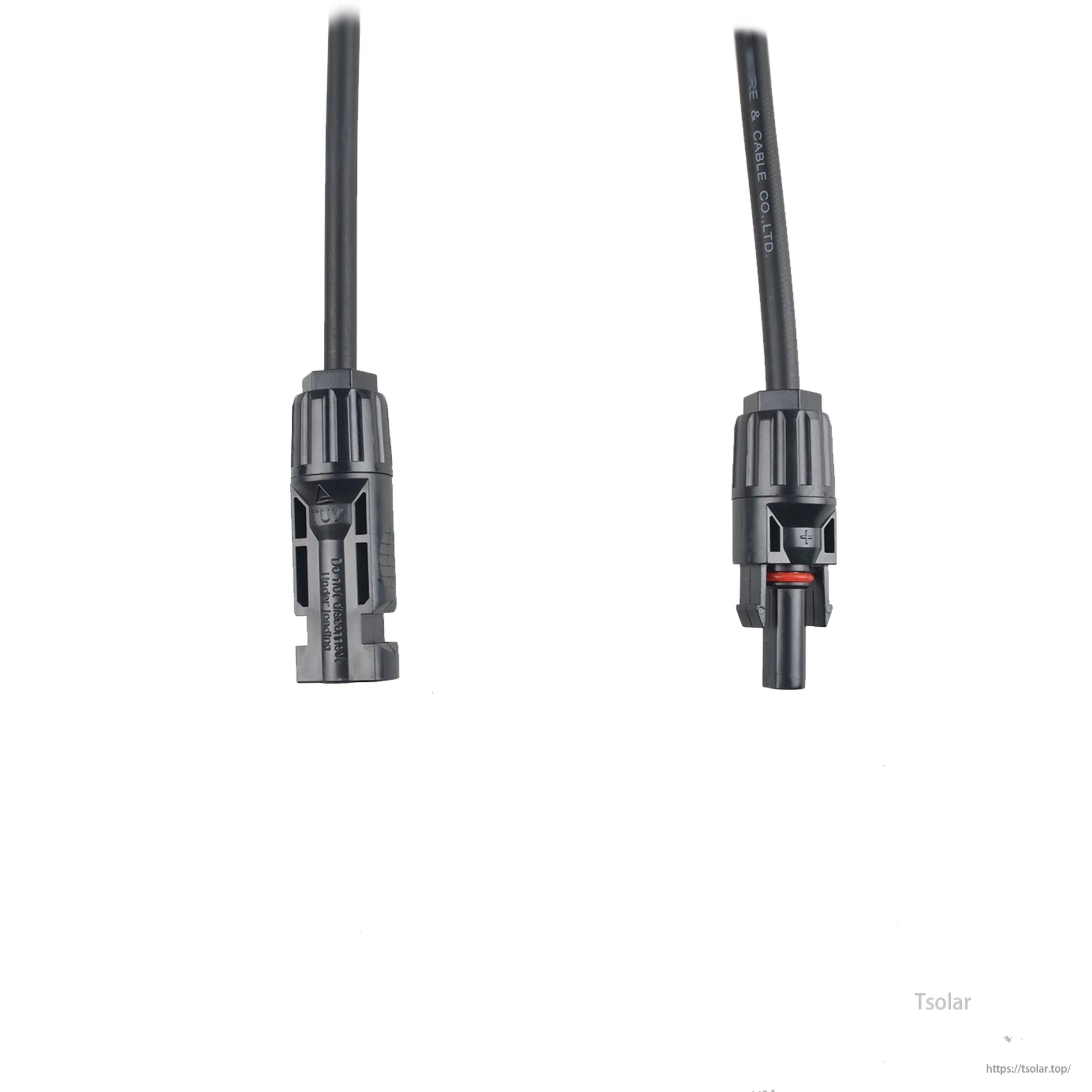

- 1 x pair x Solar panel MC4 connectors
For compatibility and order support, contact service@tsolar.top or visit https://tsolar.top/.
Applications
- Solar panel MC4 cable branching/parallel connection setups (within the listed cable size and electrical ratings)
