Solarever 550W Solar Panel Overview
The Solarever 550W Solar Panel is a high-efficiency module designed to deliver superior energy production and reliability across a variety of applications. With a maximum power output of 550W and a module efficiency of up to 21.68%, this solar panel is engineered using advanced Mono PERC cell technology and multi-busbar solar cells, ensuring enhanced energy capture and conversion. Whether you're powering a residential rooftop system or a large-scale commercial installation, the Solarever 550W panel is built to provide consistent performance even in low-light conditions, thanks to its optimized design that minimizes power losses and maximizes output.
The panel's durability is underscored by its robust construction, including an anodized aluminum alloy frame and IP68-rated junction box, which together provide high resistance to environmental stresses. With the ability to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa, the Solarever 550W panel is equipped to handle the harshest outdoor environments, from high humidity to heavy snow and strong winds. Additionally, the panel is certified for PID resistance, ensuring long-term performance and minimal degradation over time.
The Solarever 550 Watt Solar Panel is ideal for a range of applications, from residential rooftops to commercial ground mounts, and is especially suited for environments where reliability and efficiency are paramount. Its low-light performance makes it a great choice for installations in regions with frequent overcast conditions or where maximizing energy production is crucial.
Solarever 550W Key Features and Benefits
- High Efficiency: The panel boasts a maximum module efficiency of up to 21.68%, thanks to the half-cell structure and multi-busbar technology, which reduce resistance and increase power output.
- Durability in Extreme Conditions: Certified to withstand wind loads of 2400 Pa and snow loads of 5400 Pa, this panel is built to endure challenging environmental conditions, including high humidity, salt mist, and ammonia exposure.
- PID Resistance: The panel features excellent Anti-PID performance, ensuring limited power degradation over time, which is crucial for long-term reliability and efficiency.
- Low-Light Performance: Advanced glass and cell surface textured design enhance the panel's performance in low-light conditions, ensuring consistent energy production during cloudy days, early mornings, and late evenings.
- Severe Weather Resilience: Built to handle extreme weather, this panel is a reliable choice for installations in regions prone to heavy snow, strong winds, or high humidity.
Solarever 550W Solar Panel Specifications
| Attribute | Value |
|---|---|
| Maximum Power (Pmax) | 550W |
| Maximum Power Voltage (Vmp) | 41.99V |
| Maximum Power Current (Imp) | 13.10A |
| Open Circuit Voltage (Voc) | 49.72V |
| Short Circuit Current (Isc) | 14.02A |
| Module Efficiency | 21.31% |
| Maximum System Voltage | 1500VDC (IEC) |
| Dimensions | 89.68 in x 44.64 in x 1.37 in |
| Weight | 61.7 lbs |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Maximum Fuse Rating | 25A |
| Operating Temperature | -40°C to +85°C |
Mechanical Characteristics
| Cell Type | Mono PERC 182×91mm |
|---|---|
| Number of Half-cells | 144 (6x24) |
| Dimensions | 2278 x 1134 x 35mm (89.68 x 44.64 x 1.37 in) |
| Weight | 28.0 kg (61.7 lbs) |
| Front Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated, connected compatible with MC4 |
| Output Cables | 450mm/1200mm or Customized Length |
| Fire Rating | UL Type 1, IEC Class C |
| Maximum Static Load | 5400Pa (front side), 2400Pa (back side) |
Electrical Performance & Temperature Dependence
| Module Type | SE-182*91-550M-144 | SE-182*91-555M-144 | SE-182*91-560M-144 |
|---|---|---|---|
| Maximum Power (Pmax) | 550W | 555W | 560W |
| Maximum Power Voltage (Vmp) | 41.99V | 42.14V | 42.29V |
| Maximum Power Current (Imp) | 13.10A | 13.17A | 13.24A |
| Open Circuit Voltage (Voc) | 49.72V | 49.87V | 49.97V |
| Short Circuit Current (Isc) | 14.02A | 14.08A | 14.14A |
| Module Efficiency (STC) | 21.31% | 21.48% | 21.68% |
| Operating Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Maximum System Voltage | 1500VDC (IEC) | 1500VDC (IEC) | 1500VDC (IEC) |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% |
| Temperature Coefficients of Pmax | -0.35%/°C | -0.35%/°C | -0.35%/°C |
| Temperature Coefficients of Voc | -0.29%/°C | -0.29%/°C | -0.29%/°C |
| Temperature Coefficients of Isc | 0.048%/°C | 0.048%/°C | 0.048%/°C |
| Nominal Operating Cell Temperature (NOCT) | 45±2°C | 45±2°C | 45±2°C |
Linear Performance Warranty
- Up to 25-Year Product Warranty
- 25-Year Linear Power Warranty
The Solarever 550W Solar Panel is engineered to deliver optimal performance across a wide range of applications. Its advanced technology, superior durability, and excellent energy efficiency make it a reliable choice for anyone looking to harness solar energy effectively.

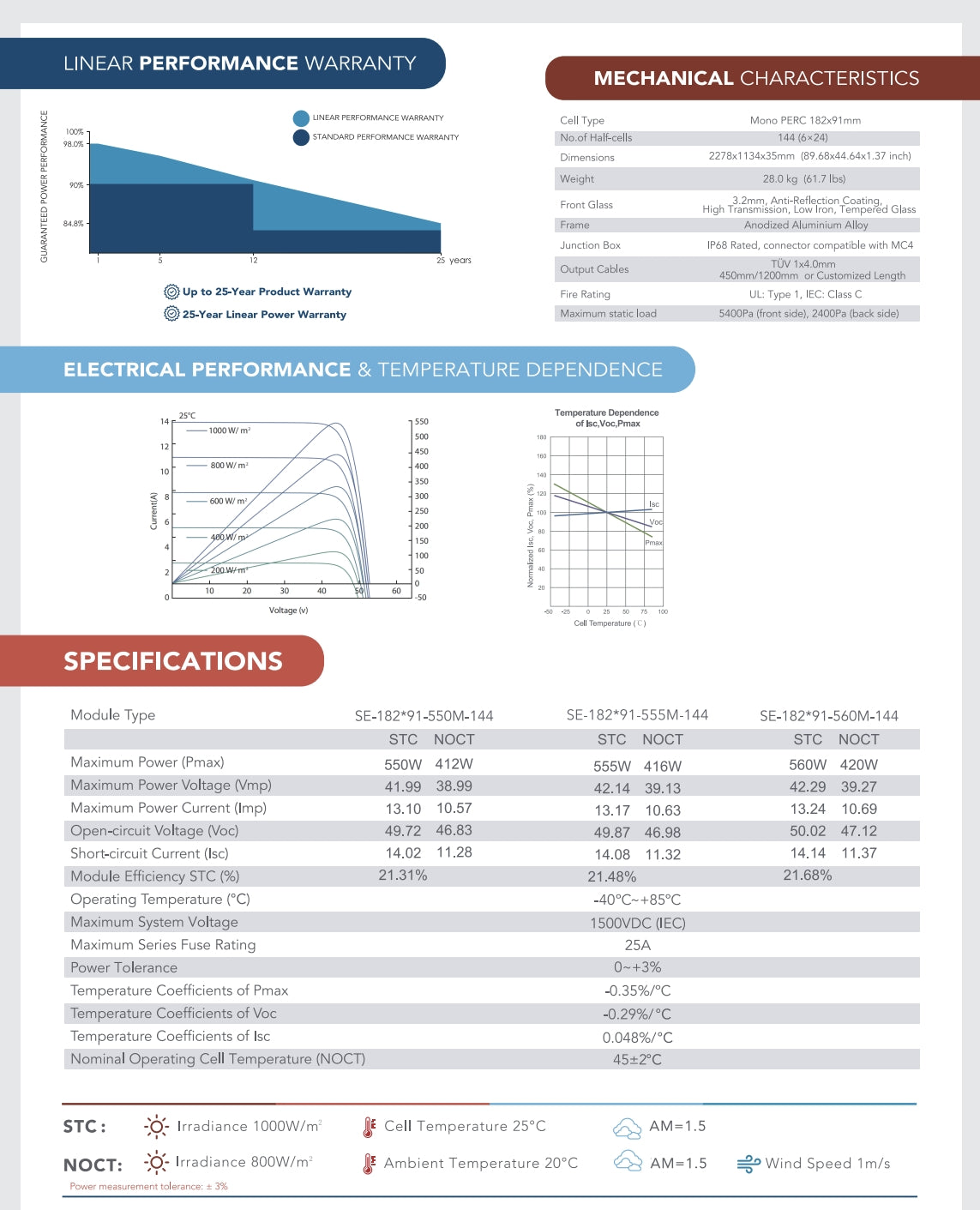

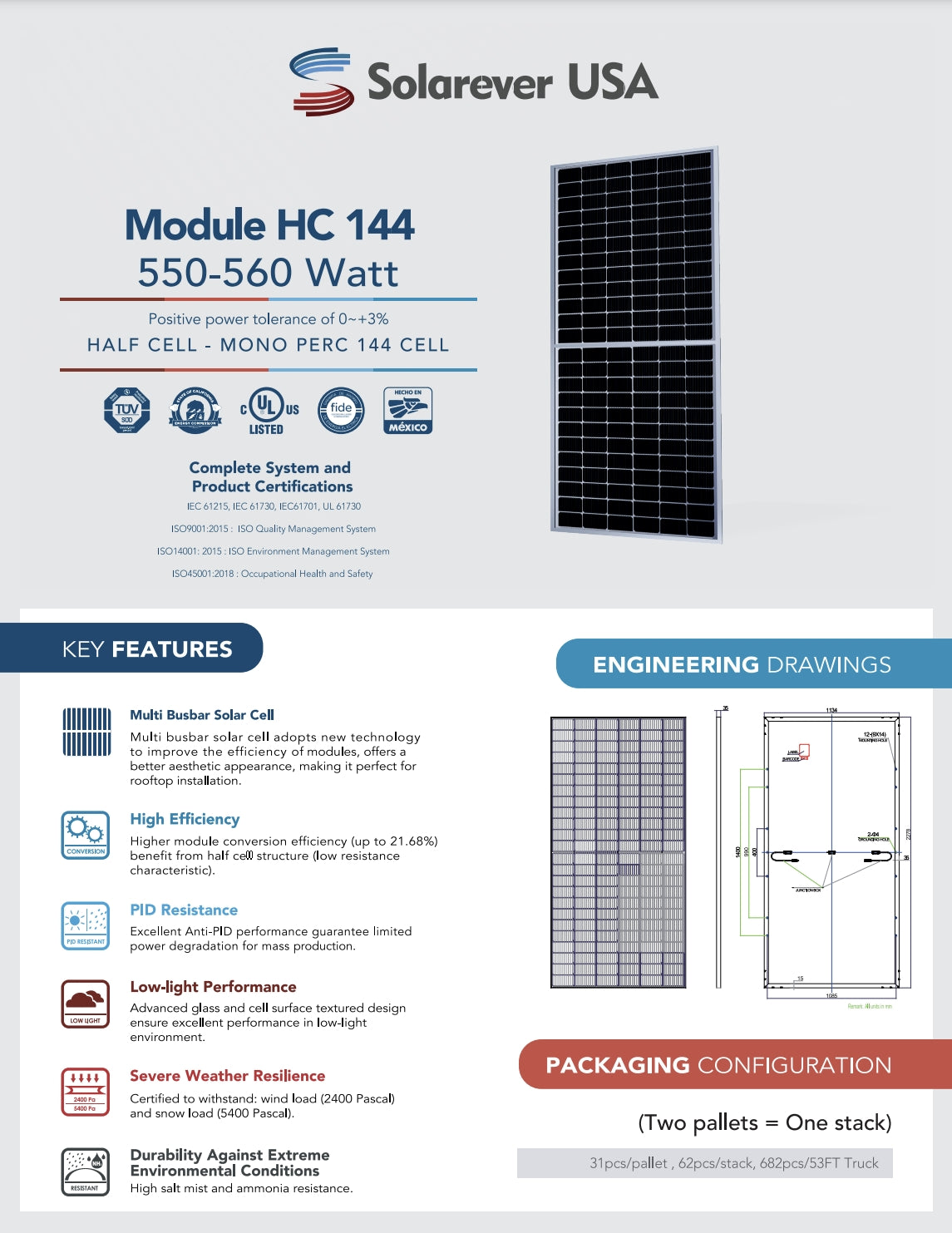

Solarever 550W Datasheet
Solarever 550W Solar Panel: Half-cell mono PERC module with a positive power tolerance of 0~+3%, featuring high efficiency (up to 21.689%), anti-PID performance, excellent low-light performance, and severe weather resilience.
Solarever 550W Solar Panel features a monocrystalline PERC cell type, with 144 half-cells and dimensions of 2278x1134x35mm. Weighing 28kg, it has an anodized aluminum alloy frame, IP68-rated junction box, and MC4-compatible connectors. The product comes with a 25-year warranty, linear performance guarantee, and complies with UL fire rating standards. Maximum static load is 540Pa front side and 2400Pa back side.
