Overview
The SolarPlay Q2402M Portable Power Station is a high-capacity LiFePO4 Battery system designed for home energy backup and outdoor use. As a portable power station that works as a solar generator when paired with SolarPlay solar panels, it offers dependable AC and DC power, fast AC charging, UPS functionality, and comprehensive BMS protection. This listing covers two variants: Q2402M (2304Wh/2500W) and Q2501 (2160Wh/2400W).
Key Features
- Large capacity and output: Q2402M 2304Wh, rated 2500W AC; Q2501 2160Wh, rated 2400W AC.
- LiFePO4 battery chemistry with long cycle life: Q2402M >3500 cycles; Q2501 3000+ cycles (per product visuals).
- Fast AC charging up to 1100W and manually adjustable charge power steps (300W/500W/700W/900W/1000W).
- Solar charging supported via XT90 input (up to 500W max; 11.5–48V for Q2402M).
- Pure sine wave AC output with 50/60Hz switchable frequency and overload/short-circuit protection.
- UPS mode with automatic switchover in 0.08s to keep essential loads running.
- Comprehensive BMS: over-charge, over-discharge, over-current, short-circuit, high/low temperature protection.
- Quiet operation (<25 dB, per product visuals) and clear LCD display for status, power, and remaining time.
Specifications
General
| Brand | SOLARPLAY |
| Product Type | Portable Power Station |
| Application | Home Energy |
| Certification | CE |
| Origin | Mainland China |
| Display Screen | Yes |
| Battery Number | 1 |
| Battery Core Manufacturer | Other |
| Hign-concerned Chemical | None |
| Replacement Battery | Yes |
| Set Type / Bundle | Charger Sets / Bundle 2 |
Q2402M (Orange Black)
| Capacity | 2304Wh |
| Cell Type | LiFePO4 |
| Cycle Life | >3500 Times |
| Rated voltage of single battery | 3.2V |
| Rated voltage of battery pack | 51.2V |
| Battery pack output voltage range | 38.4V–57.6V |
| AC Charging | AC mains input, 1100W max |
| Manual charge power steps | 300W / 500W / 700W / 900W / 1000W |
| XT90 Input | 11.5–48V / 500W max |
| AC Output | 50/60Hz (switchable), rated 2500W, pure sine wave with overload and short-circuit protection |
| USB | QC3.0 18W ×2; Type-C-A (PD 20W) ×3; Type-C-B (PD 100W) ×1 |
| DC5521 | 12V/3A ×2 |
| XT-60 Output | 12V/25A |
| Car Charging Output | 12V/10A |
| Shutdown Current | <500uA |
| Working Temperature | -10–40 °C |
| Environment Humidity | ≤ 90% RH |
| Product Size | 389mm × 280mm × 343mm |
| Product Weight | 21.8kg |
| Package Size | 47.4 × 35.8 × 44.2cm |
| Package Weight | 24.5kg |
Q2501 (Dark Grey)
| Capacity / Rated AC Output | 2160Wh / 2400W |
| Max Output | 4800W |
| Input Power (adjustable) | 300W, 500W, 700W, 1100W |
| Battery | LiFePO4 (3000+ Lifecycle per visuals) |
| Output Ports | 2×AC, 2×DC, 1×XT60, 1×Car Ignition, 6×USB |
| Product Size | 39.1 × 28.5 × 31.9cm |
| Product Weight | 21.7kg |
| Package Size | 47.4 × 35.8 × 41.7cm |
| Package Weight | 24.75kg |
SolarPlay 200W Solar Panel (optional accessory)
| Rated Power (Pm) | 200W |
| Conversion Efficiency | Up to 23.4% |
| Materials | ETFE film, monocrystalline silicon |
| Unfolded Size | 58 × 172 × 3 cm / 22.8 × 67.7 × 11.8 inches |
| Weight | 6.1kg / 13.5lbs |
| Output Voltage (max) | 18V |
| Output Current (max) | 11.1A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 13.3A |
Note: Solar panels are shown for compatibility and are not listed in the standard accessories.
What’s Included
- 1 × Power Station
- 1 × 0.6m Solar Charging Cable
- 1 × 1.5m AC Charging Cable
- 1 × User Manual
Applications
- Home emergency backup with UPS support (switching in 0.08s).
- Outdoor camping and RV power; external work and mobile operations.
- Daily energy saving and disaster preparedness.
Details
Portable power station: 2304Wh, 2500W output, 1100W input.

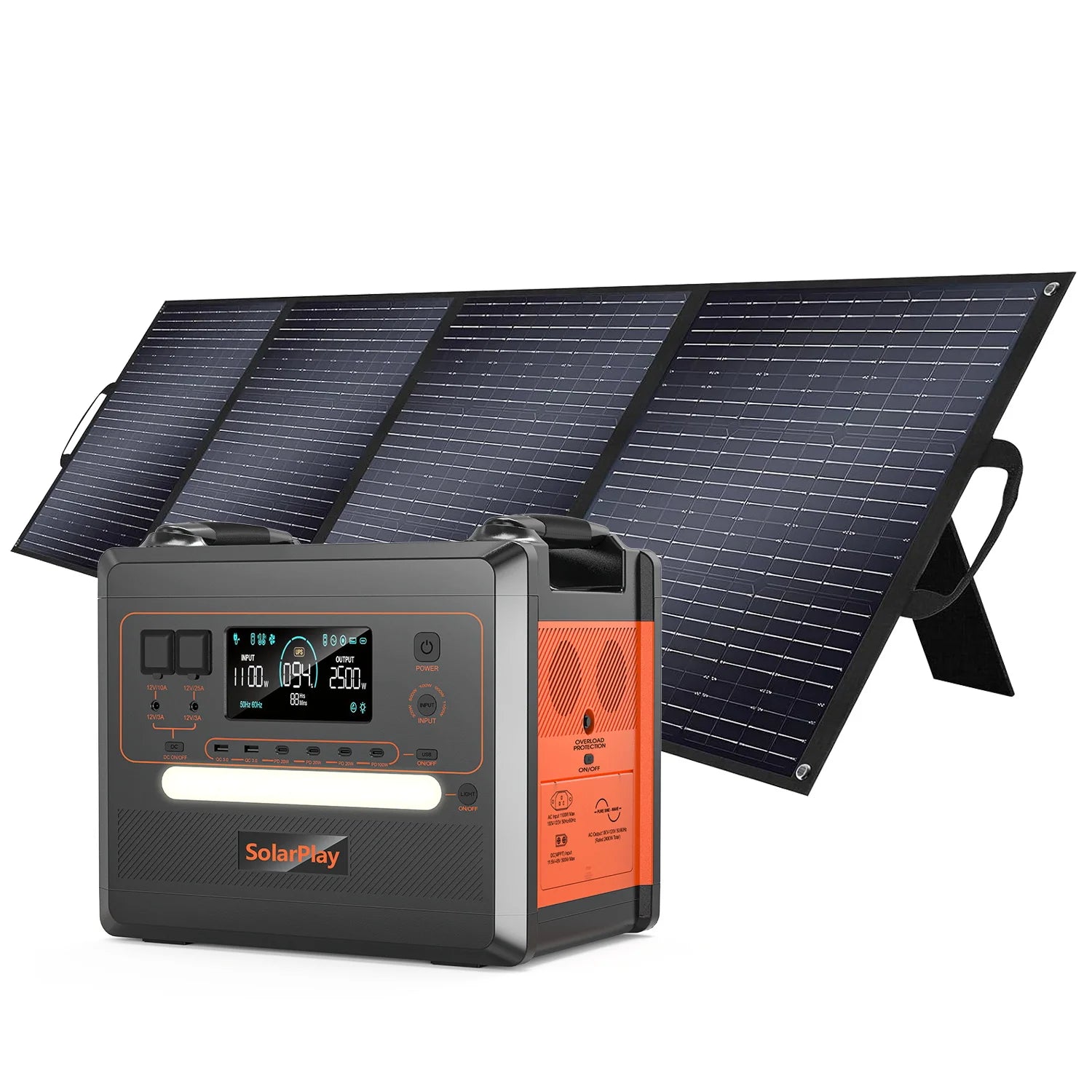

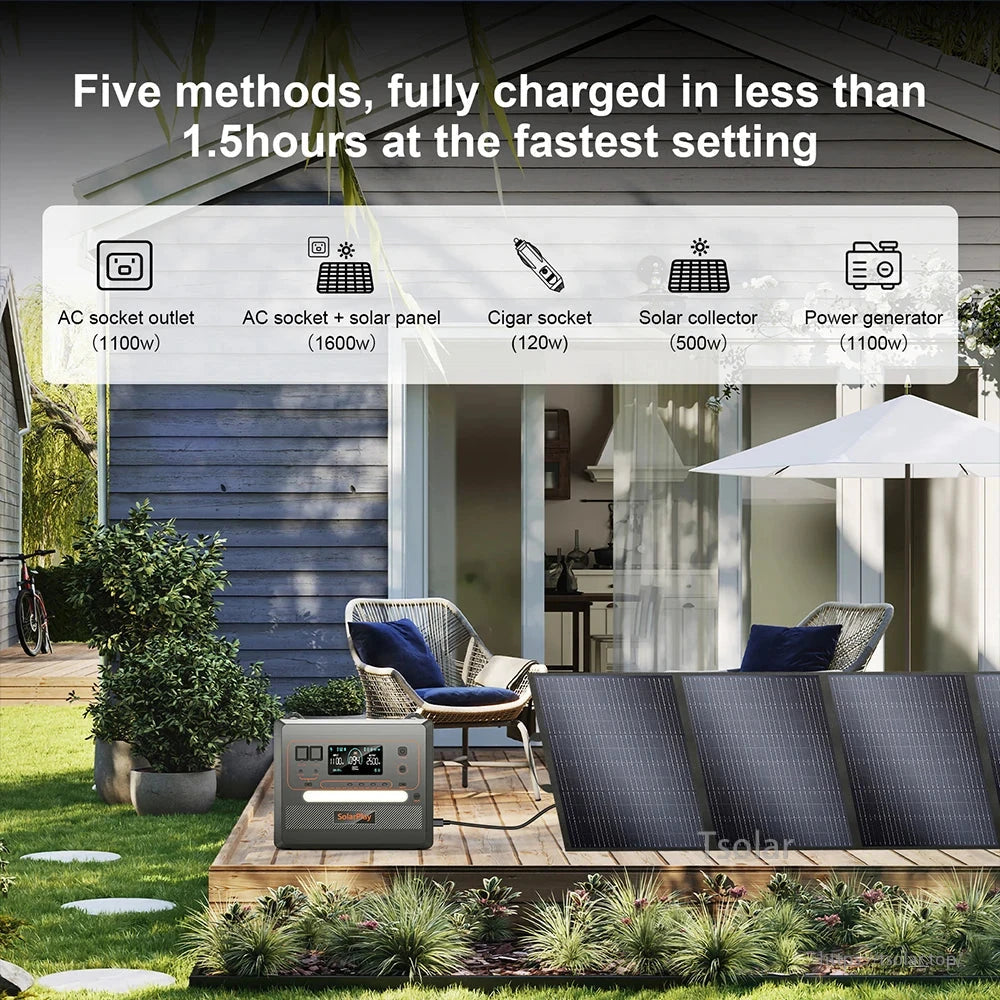

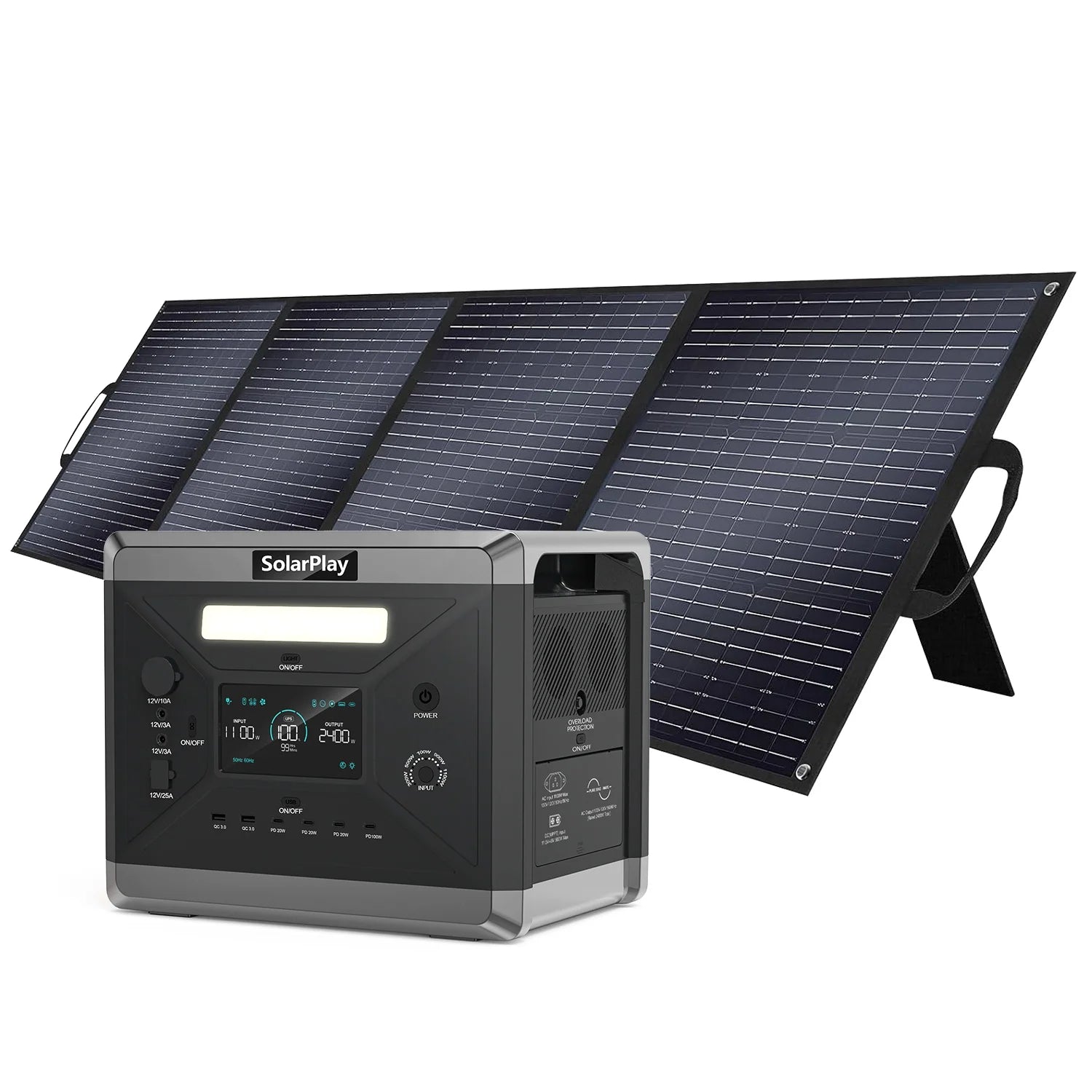

Portable power station with 4 charging methods and solar panels

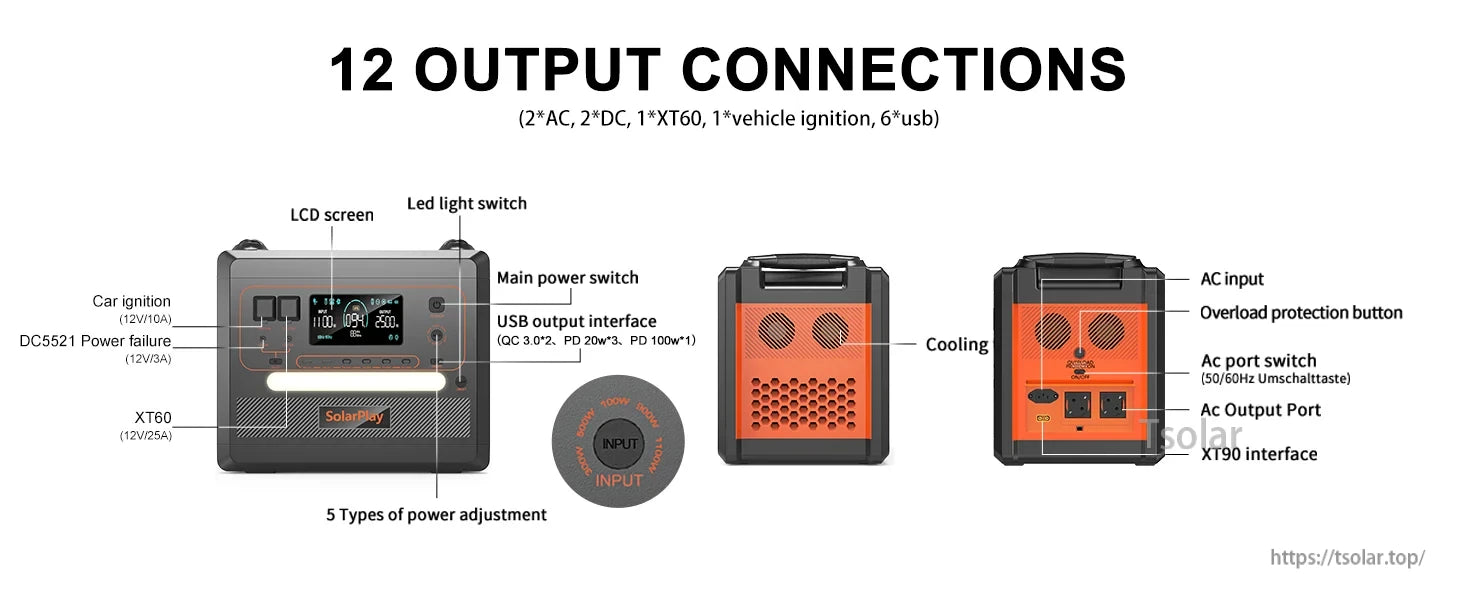

Portable power station with 12 outputs: 2 AC, 2 DC, 1 XT60, 1 vehicle ignition, 6 USB. Features LCD screen, cooling system, overload protection, and multiple I/O for versatile use.

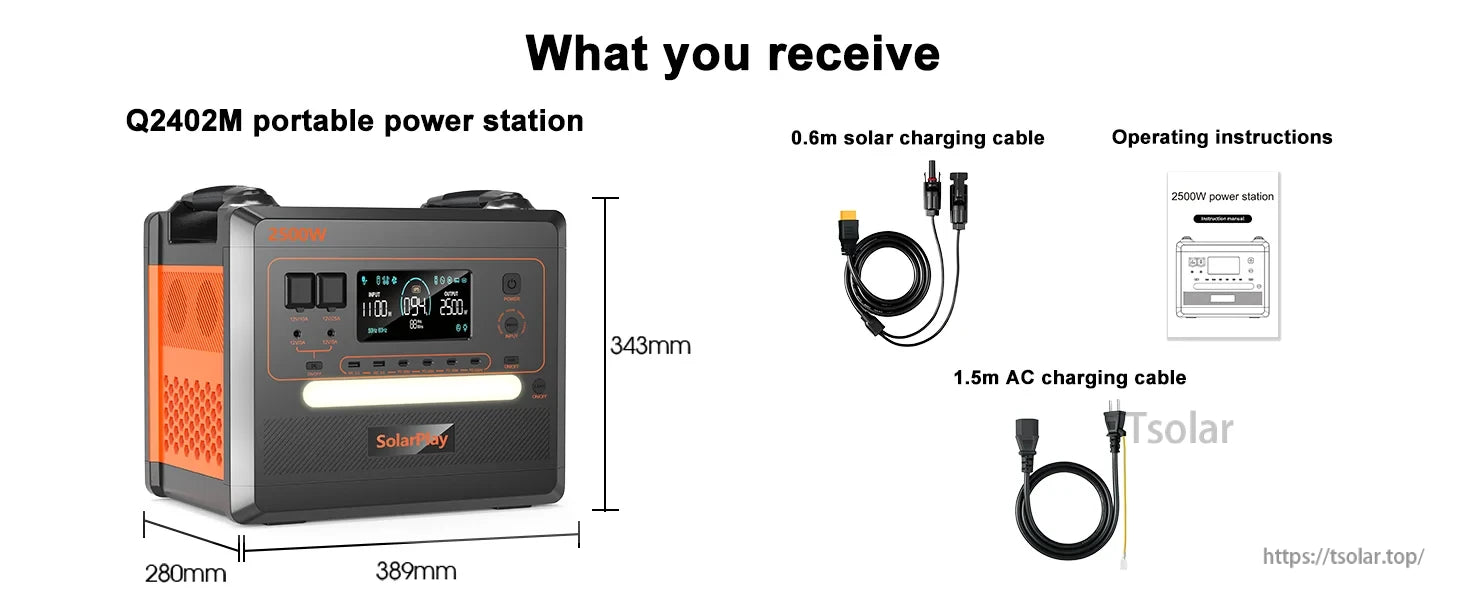

SolarPlay Q2402M 2500W power station with solar and AC cables, operating instructions, dimensions 389x280x343mm.
SolarPlay Q2402M 2500W/2304Wh power station. Features: 2304Wh capacity, 1.5-hour fast charging, 4000W output, charges 12 devices, BMS protection, pure sine wave, multiple safety systems.

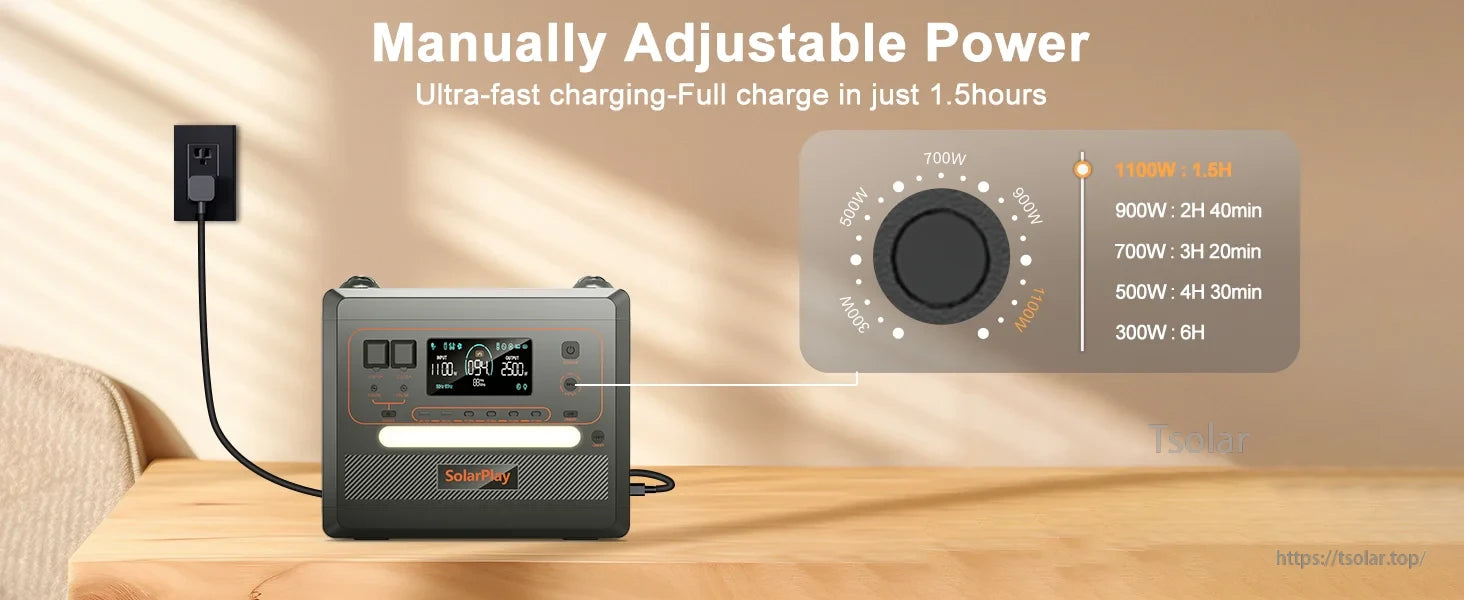

Portable SolarPlay Q2402M power station features manual power adjustment, 1100W ultra-fast charging, and full recharge in just 1.5 hours.
Portable power station for camping, outdoor work, daily use, and emergencies. Perfect for long outages and saving energy. Compact, reliable, and easy to use wherever needed. (29 words)
SolarPlay Q2501 2400W portable power station ideal for camping, powering outdoor meals and adventures.
Portable 2400W/2160Wh LiFePO4 power station with 500W solar charging, UPS mode, 1.5-hour charge, 14 ports, and adjustable output.

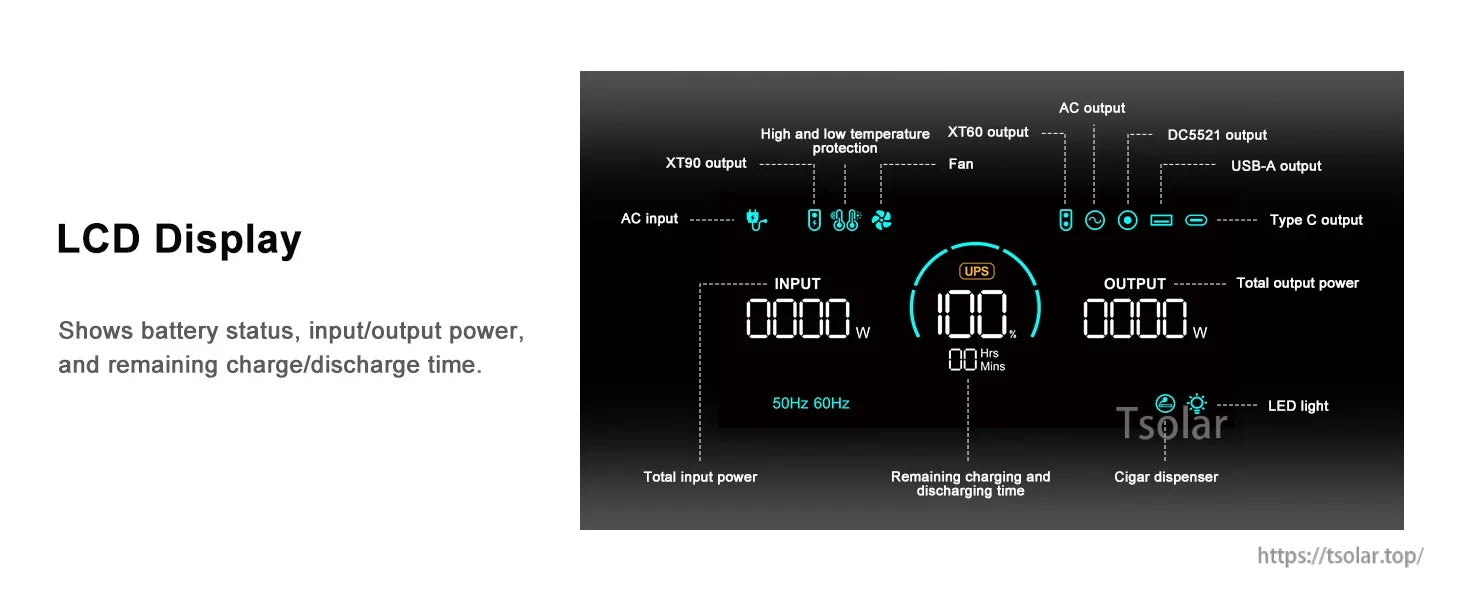

LCD Display indicates battery status, input/output power, and remaining charge/discharge time. Features include AC input, XT90 and XT60 outputs, high and low temperature protection, fan, AC output, DC5521, USB-A, and Type C outputs. Displays total input and output power in watts, UPS status at 100%, frequency at 50Hz/60Hz, and remaining time in hours and minutes. Additional functions: LED light, cigar dispenser, and total output power monitoring.
Solar power station for outdoor use, eco-friendly charging

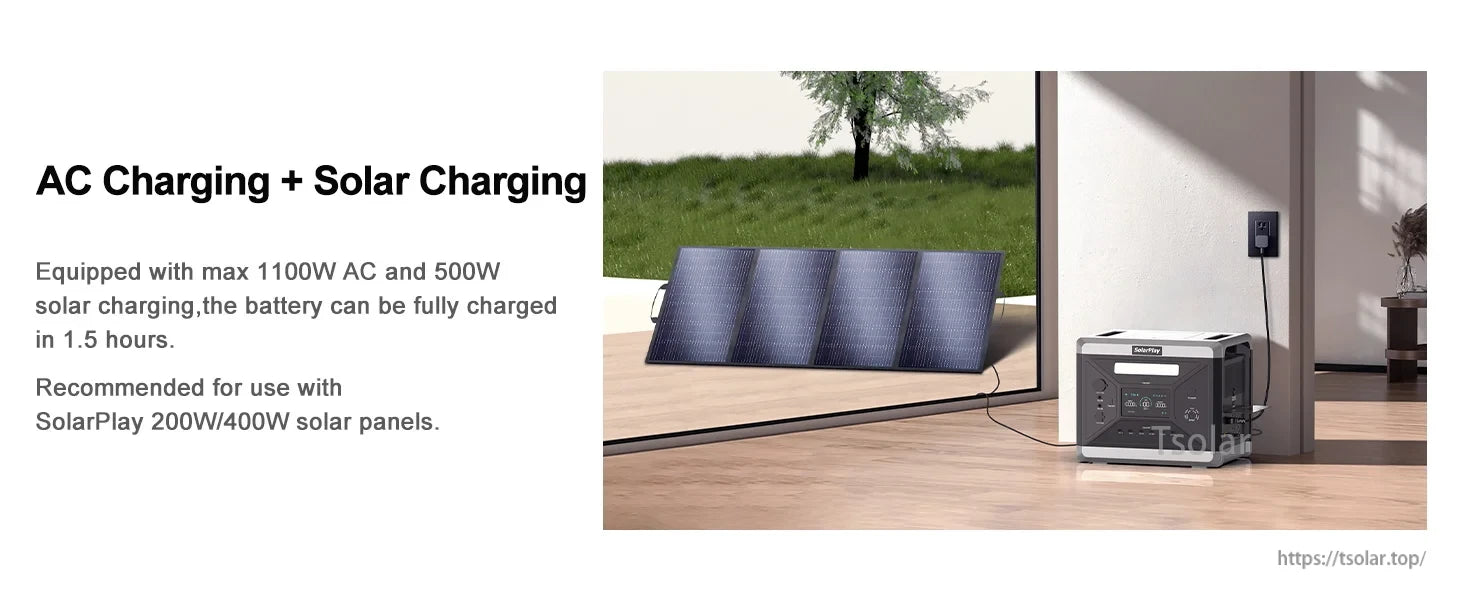

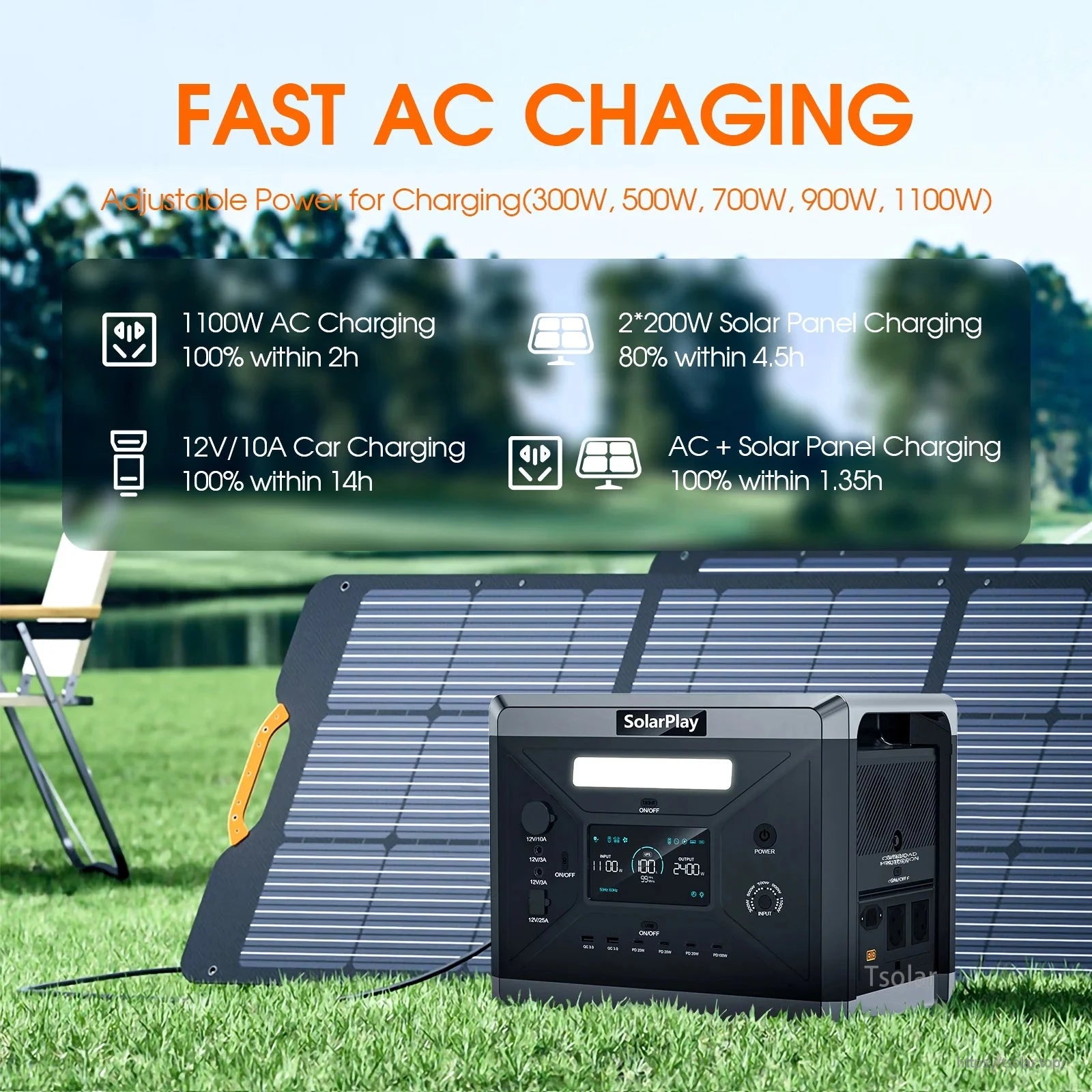

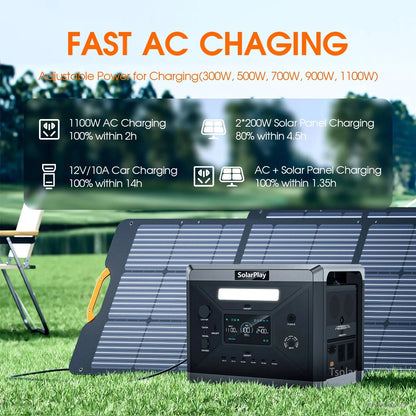

AC and solar charging, 1100W AC, 500W solar, full charge in 1.5 hours, compatible with SolarPlay 200W/400W panels.

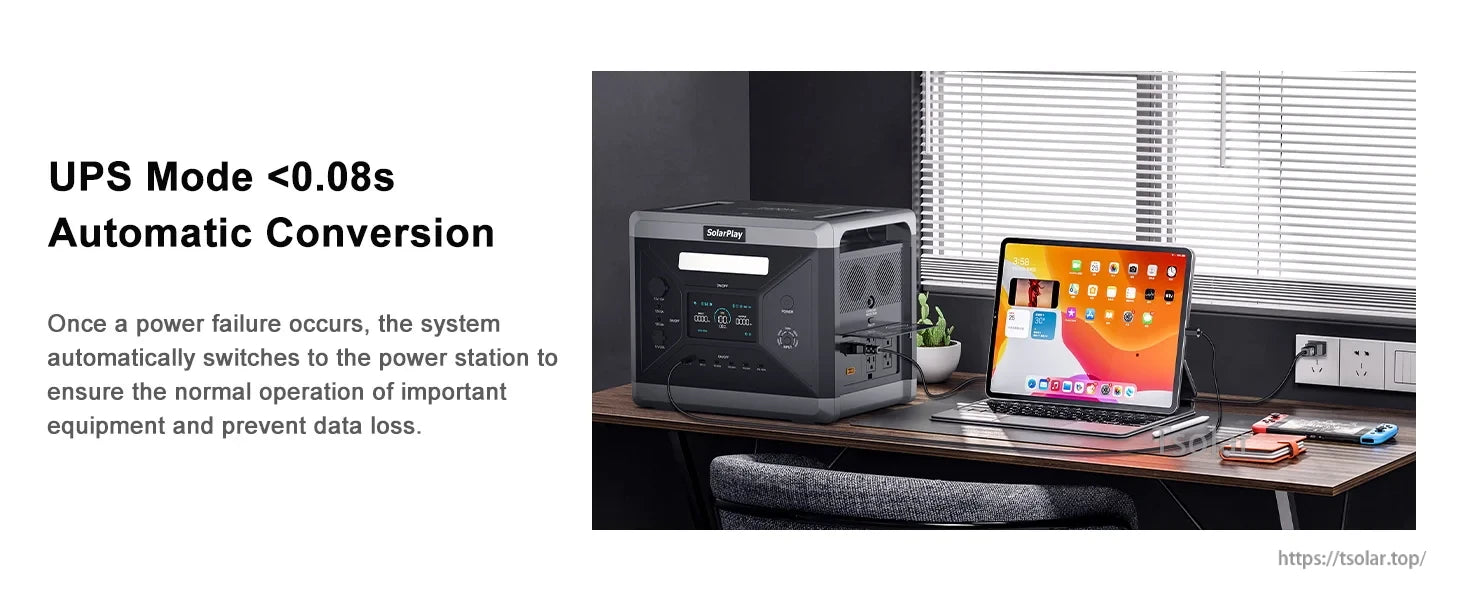

SolarPlay Q2402M UPS mode <0.08s automatic conversion for seamless power backup.

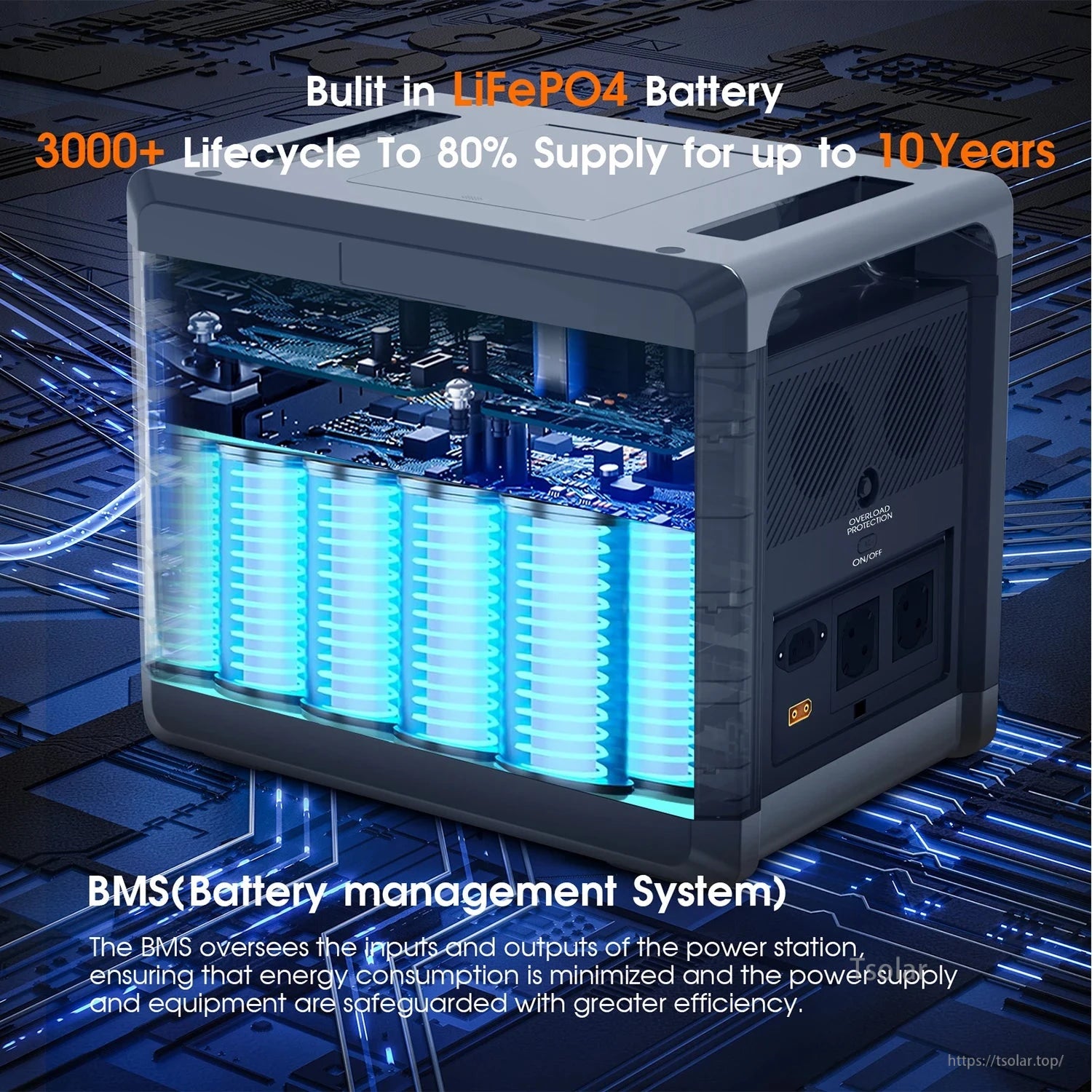

BMS System ensures battery safety with real-time monitoring.
Quiet operation under 25 dB, ideal for nighttime device charging without disturbing sleep.

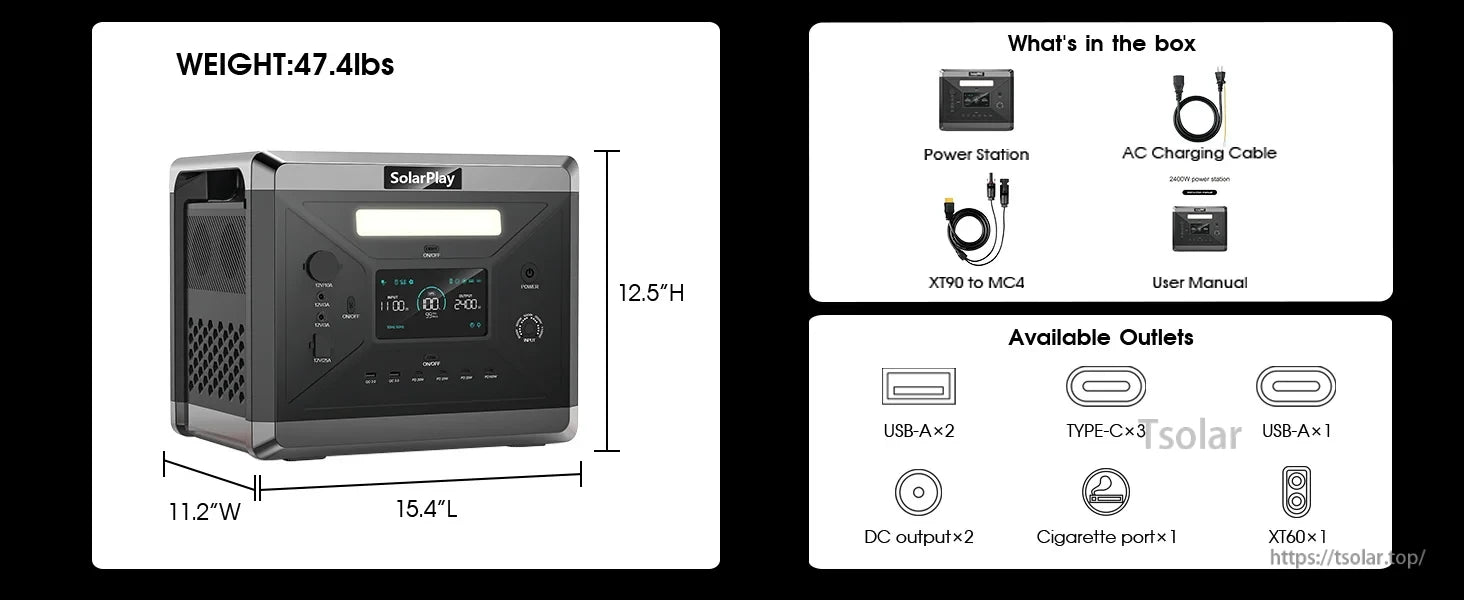

SolarPlay Q2402M power station weighs 47.4lbs, measures 15.4"L x 11.2"W x 12.5"H. Includes AC cable, XT90 to MC4, manual. Features USB-A, USB-C, DC, cigarette port, and XT60 outlets.

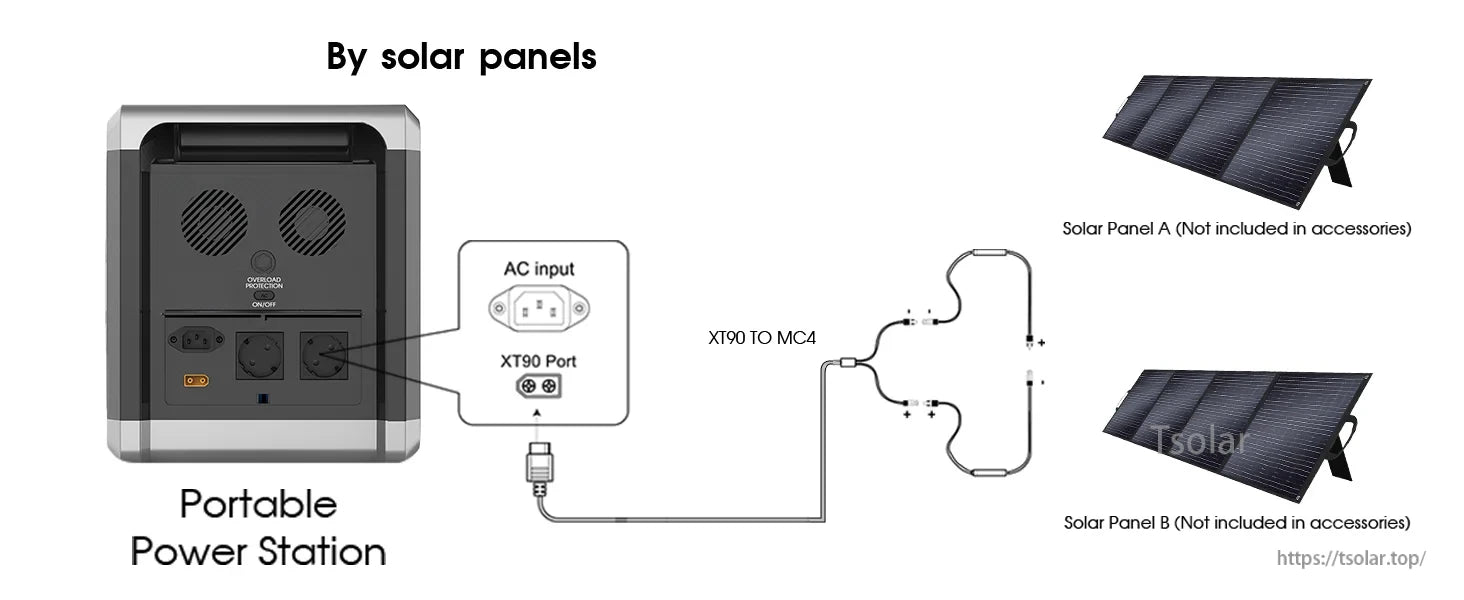

Portable power station links to solar panels via XT90 to MC4 cable, with AC input and XT90 port.

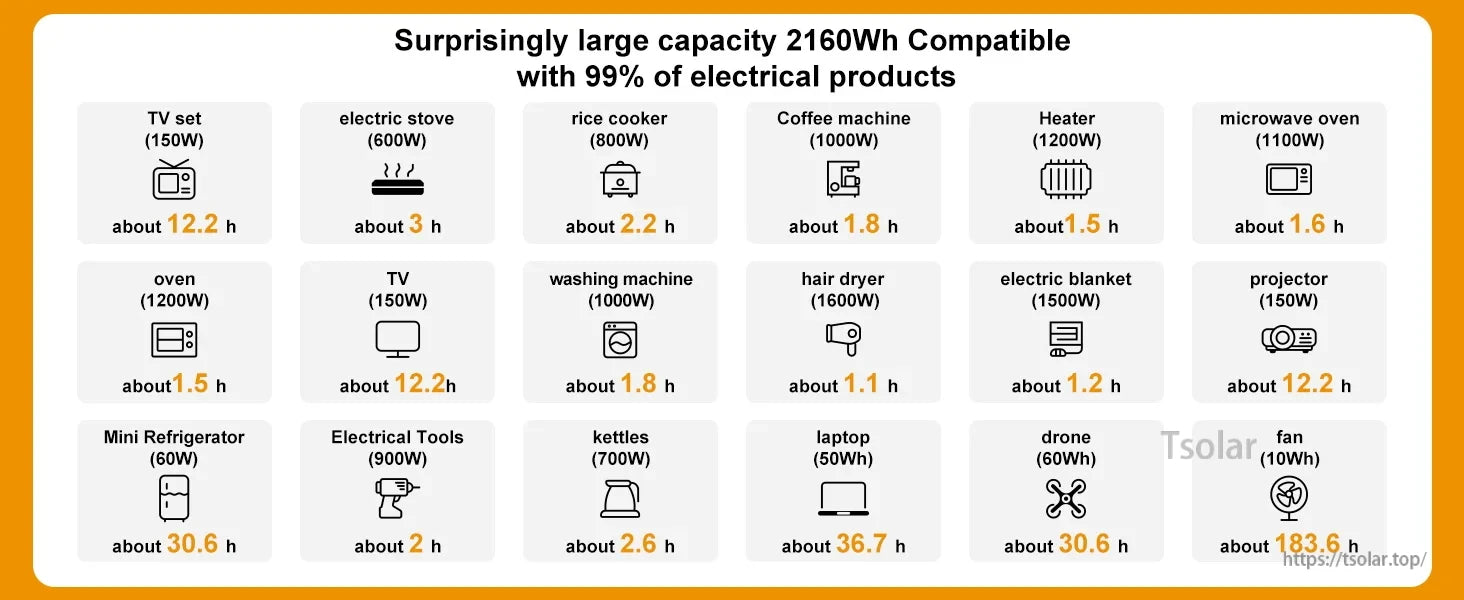

Portable 2160Wh power station runs most devices—TV, fridge, laptop, tools, heater, and more—for up to 183.6 hours. Ideal for home backup, camping, and outdoor use with reliable, long-lasting power supply.

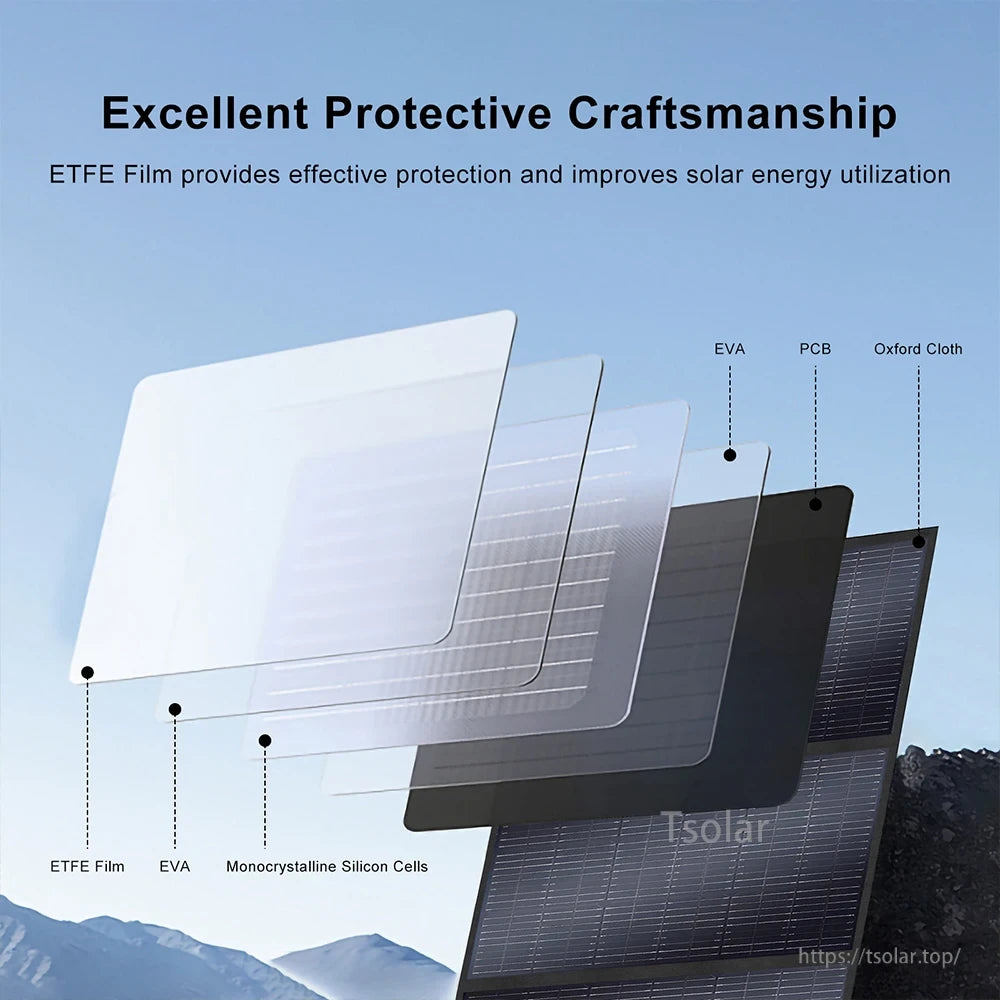

Excellent Protective Craftsmanship with ETFE Film and Solar Cells

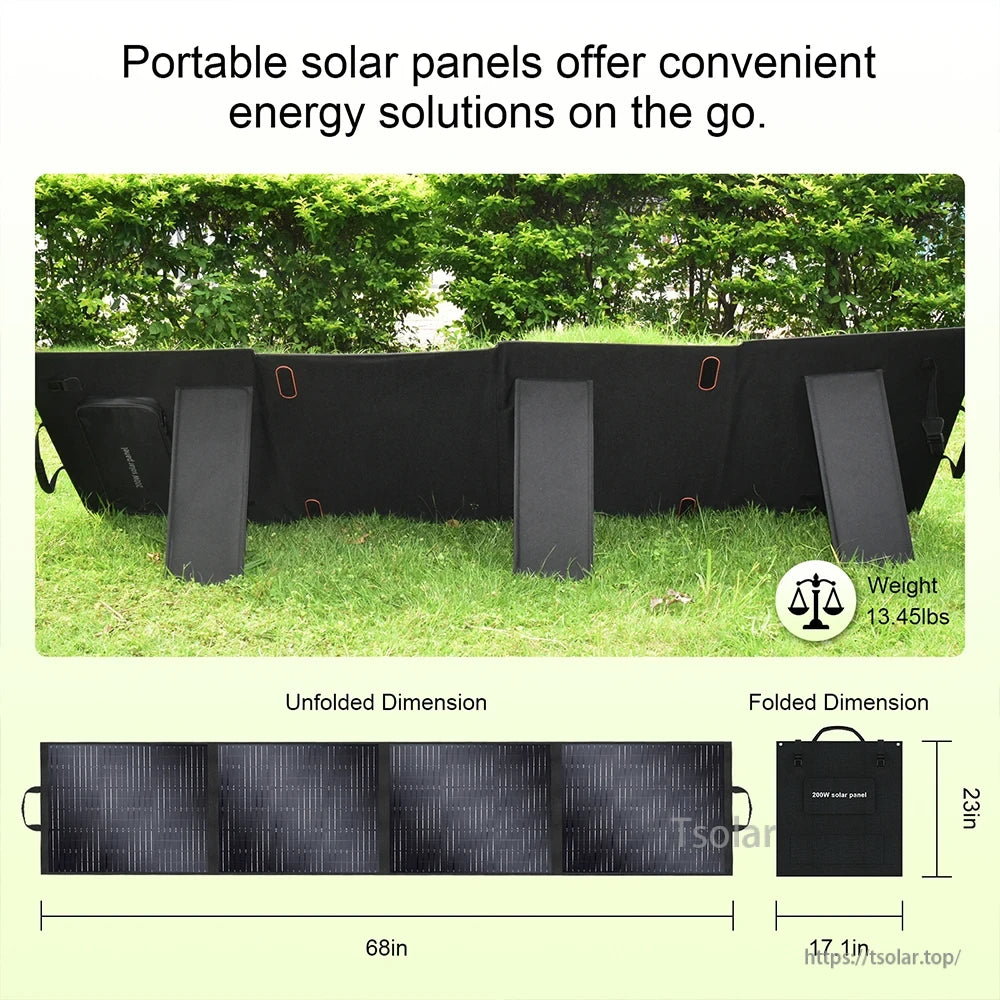

200W portable solar panel, 13.45lbs, unfolds to 68in, folds to 17.1in

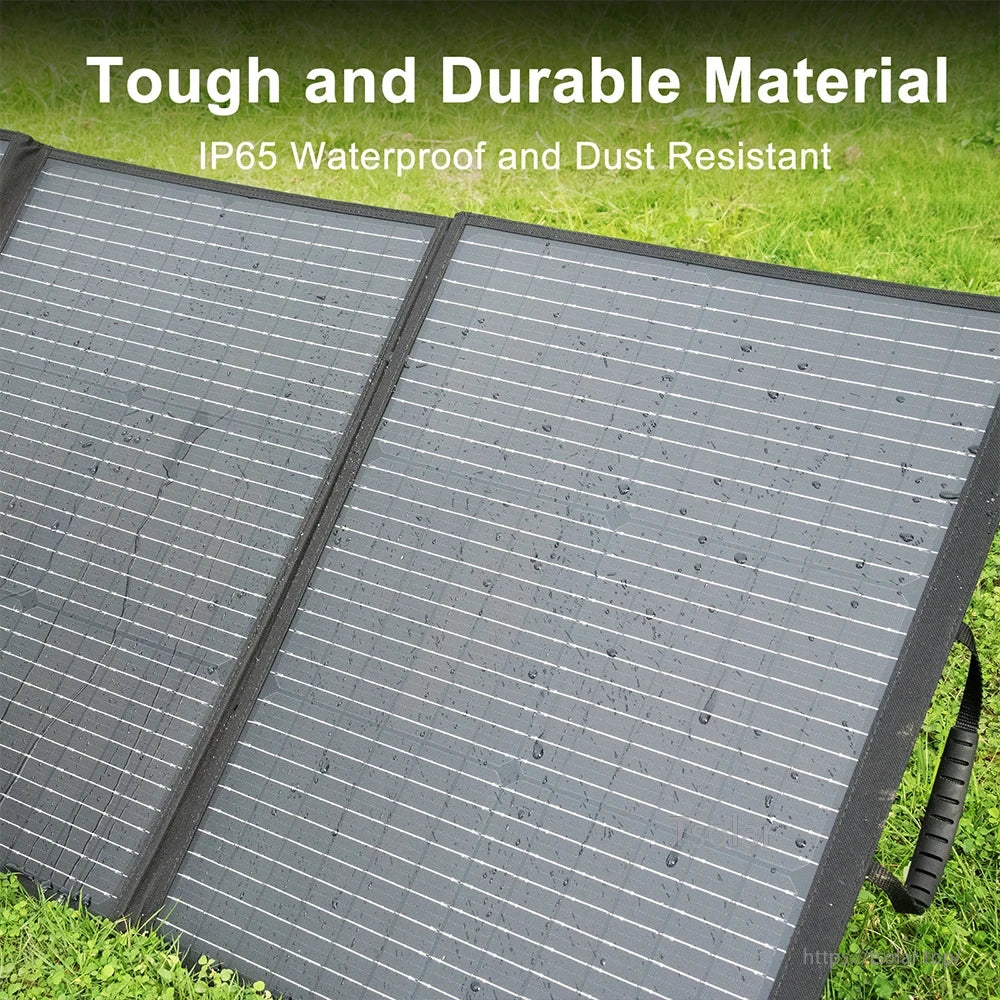

Tough durable material, IP65 waterproof and dust resistant solar panels.

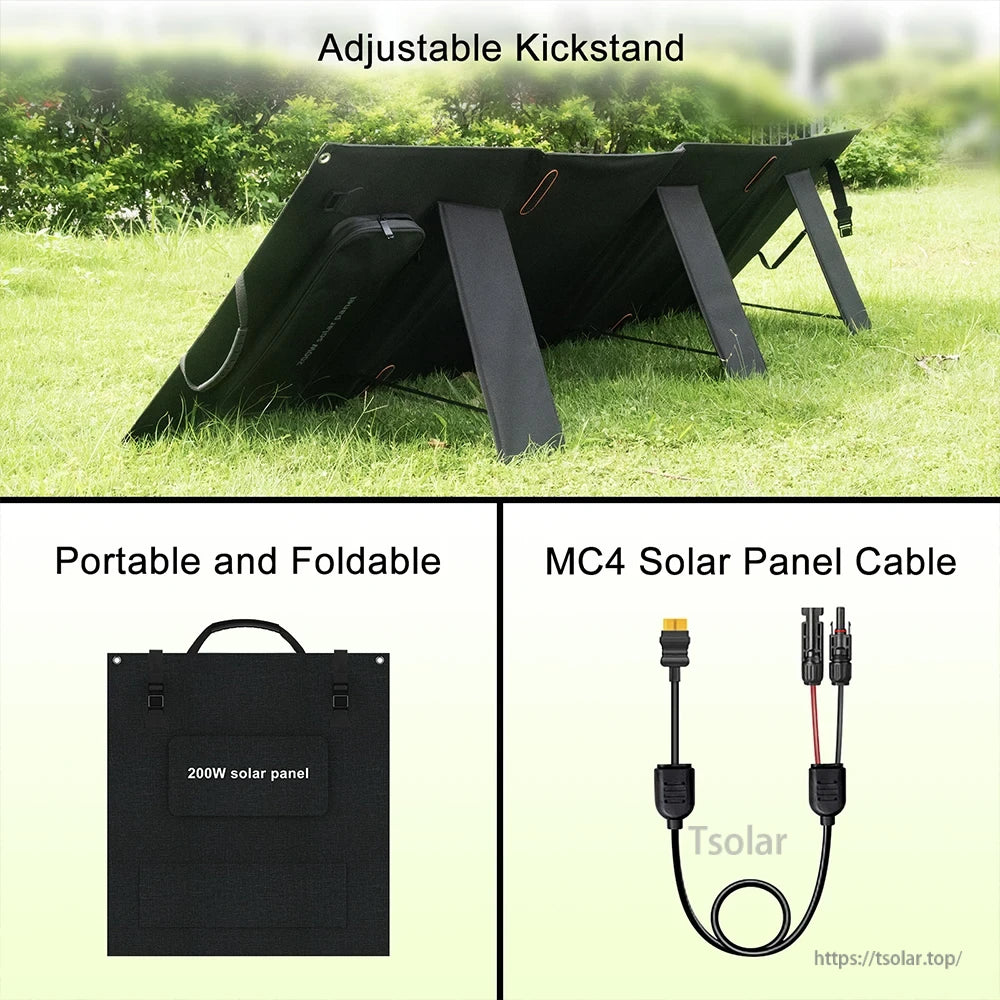

Portable foldable 200W solar panel with adjustable kickstand and MC4 solar cable.
SolarPlay 200W high efficiency, lightweight solar panel vs others
High conversion efficiency 200W solar panel, 23.4% cell efficiency, 21.6V open circuit voltage, 200W max output power.
Portable solar panels for outdoor travel and home use, lightweight and easy to handle.
