Overview

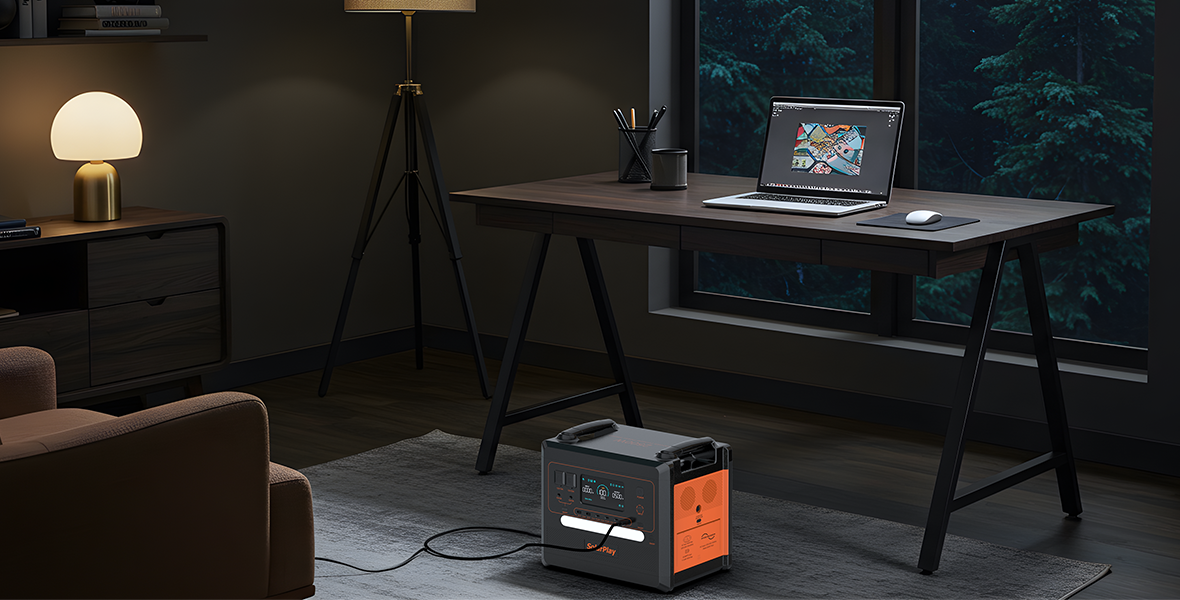

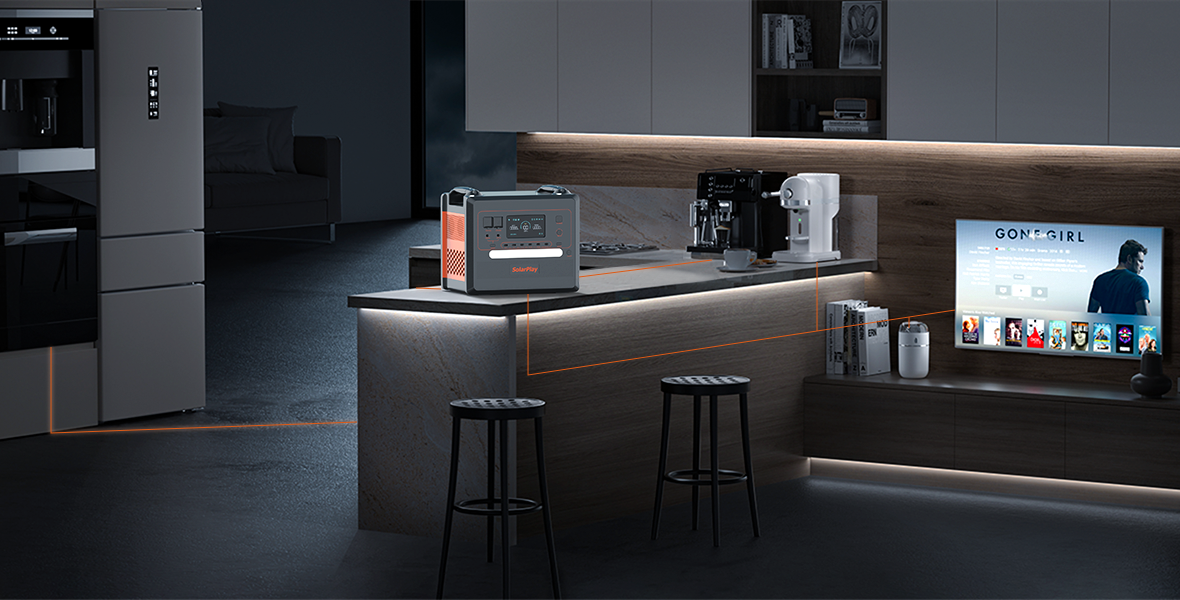

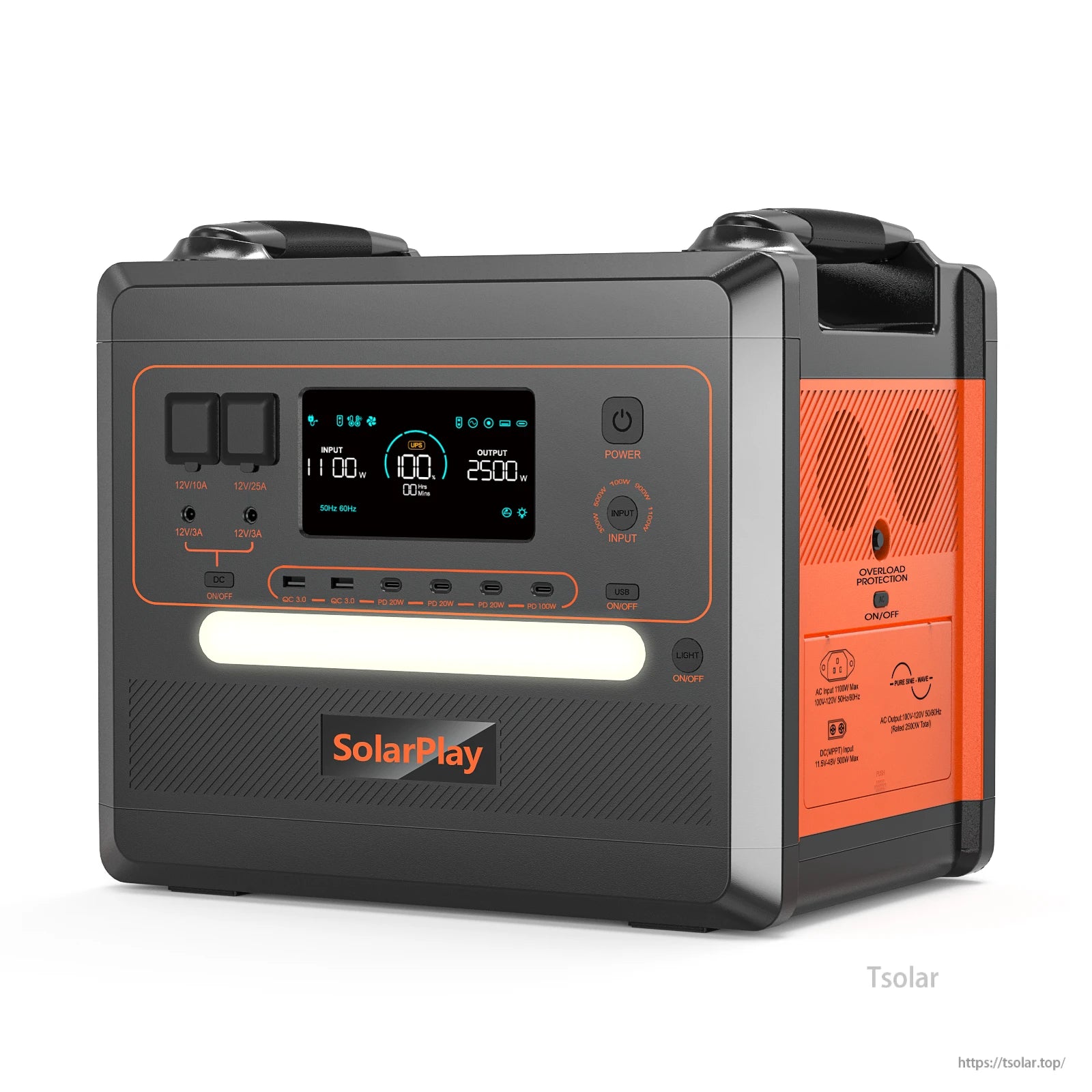

The SolarPlay Q2402M Portable Power Station is a high-capacity 2304Wh LiFePO4 unit designed for reliable mobile and backup power. It delivers 2500W output, integrates a trolley for easier transport, and offers UPS functionality that switches to battery in 0.08 seconds. With 12 versatile output ports and a 50/60Hz switchable AC mode, the SolarPlay Q2402M supports camping, home backup, and workshop use with stable, long-life performance.
Key Features

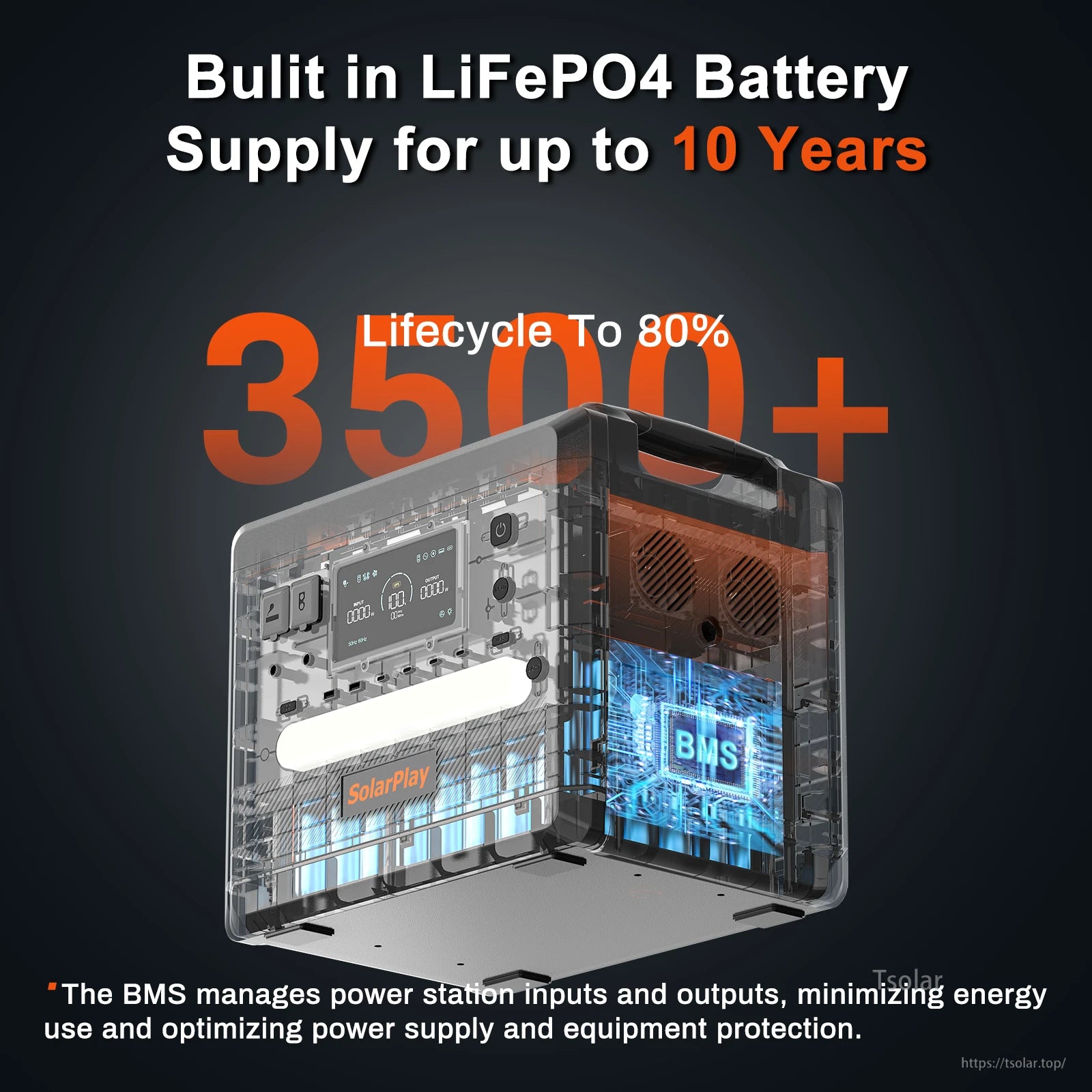

- 2304Wh capacity with LiFePO4 cells rated for 3500+ cycles (up to 10 years).
- Rated 2500W output to run essential appliances and tools.

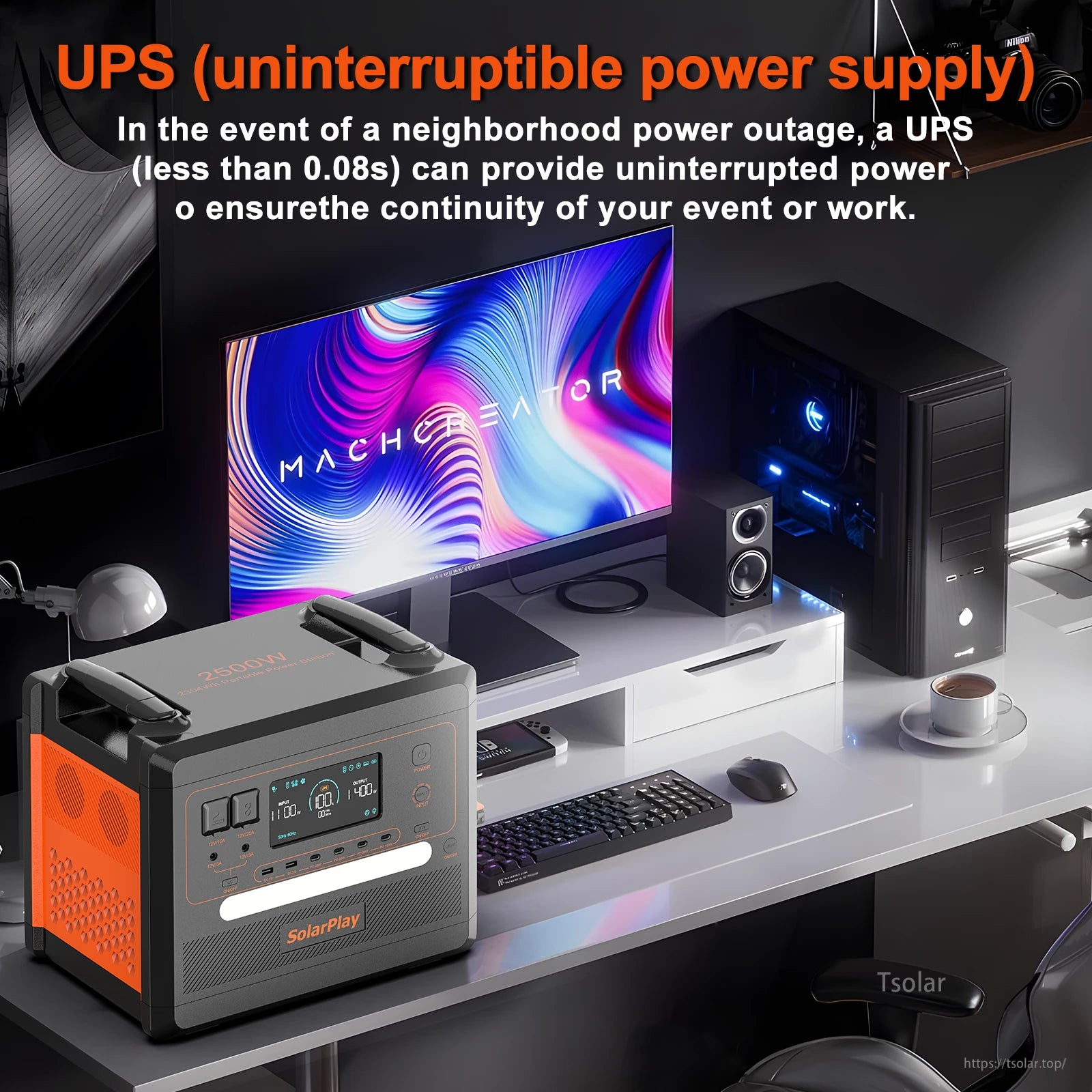

- Built-in UPS with 0.08 s transfer time for uninterrupted power to connected AC loads.
- 12 output ports: 2×AC, 2×DC5521, 1×XT60, 1×car ignition, and 6×USB.
- USB configuration per labeling: QC 3.0×2, PD 20w×3, PD 100w×1.
- AC frequency switch button: 50/60Hz.

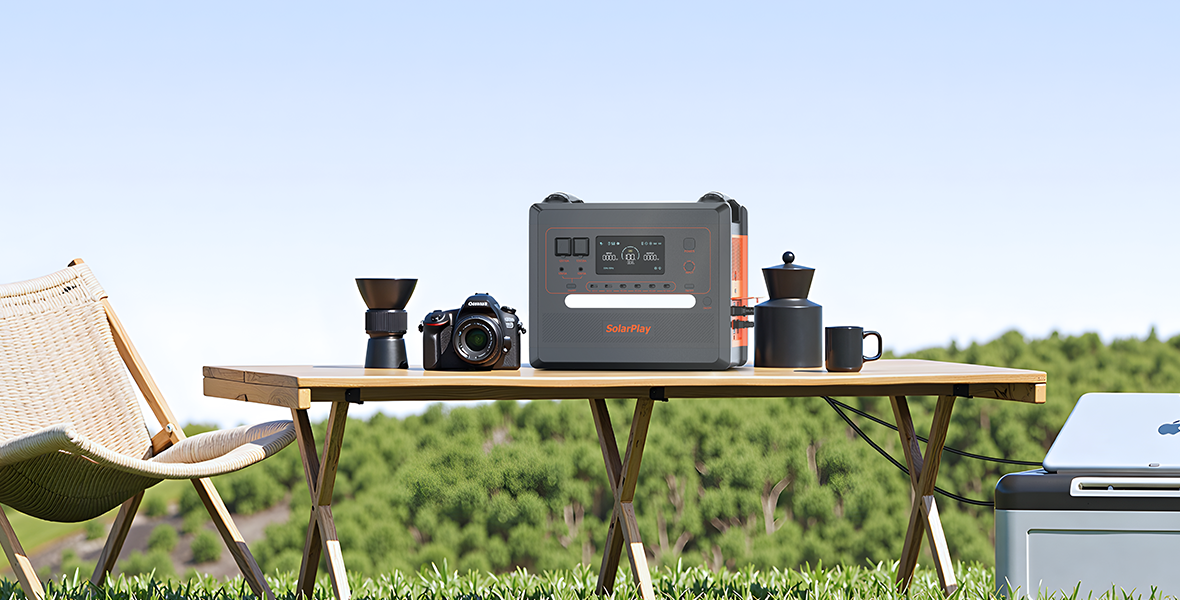

- Manual charging power adjustment: 300W / 500W / 700W / 900W / 1000W.
- Comprehensive BMS protections: overcharge, over-discharge, high/low temperature, overcurrent, and short circuit.
- Informative LCD screen indicating input/output power, remaining time, and active ports; front LED light with dedicated switch.

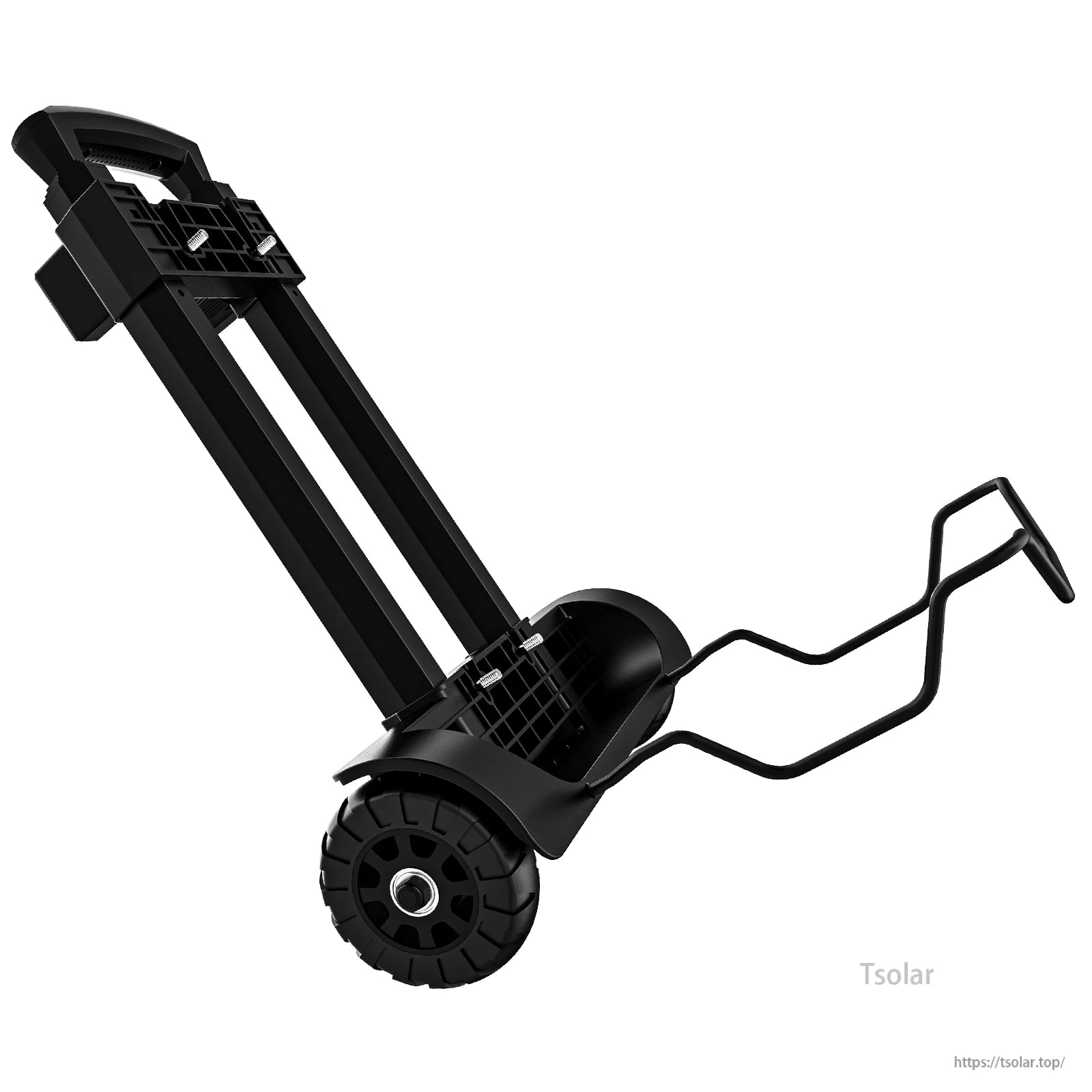

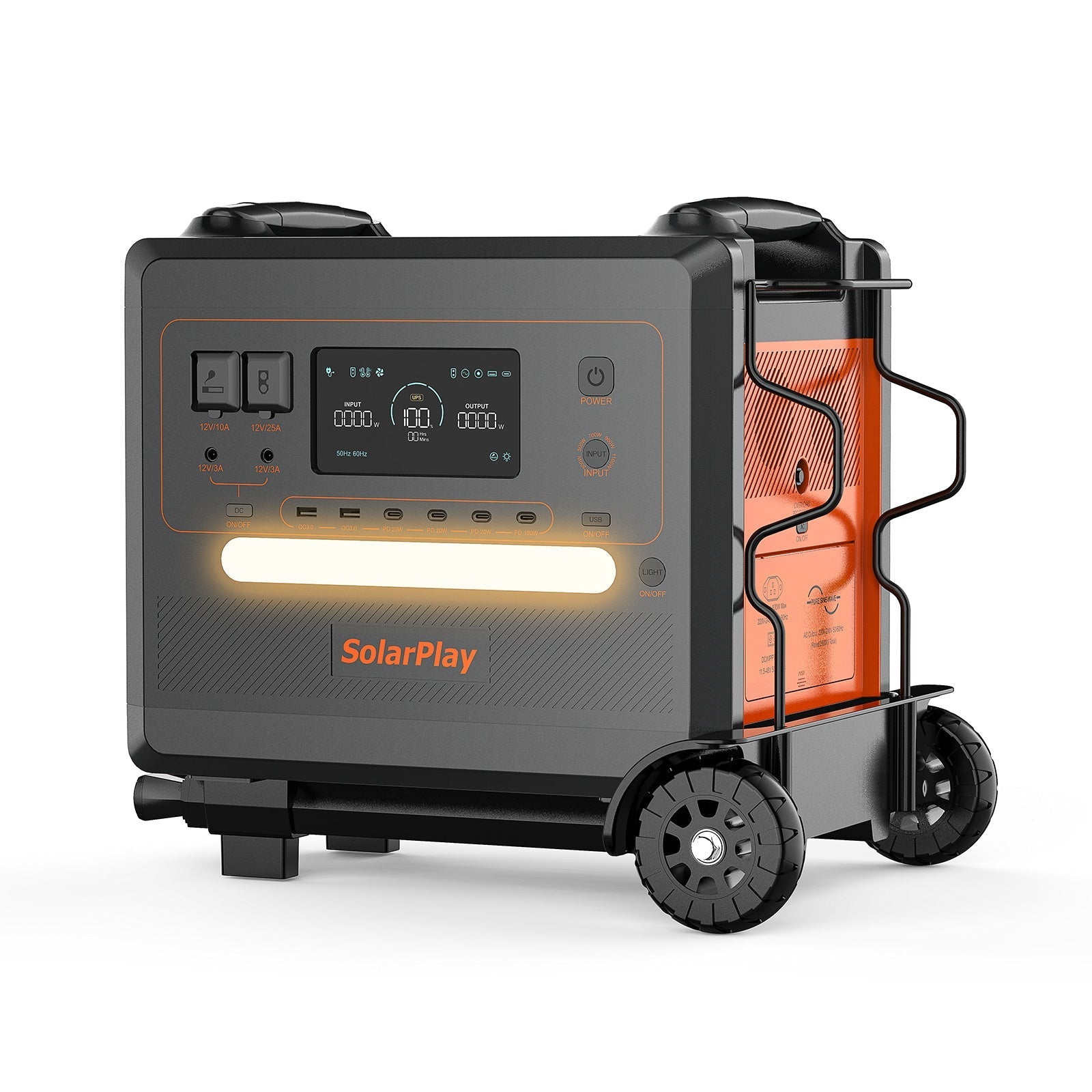

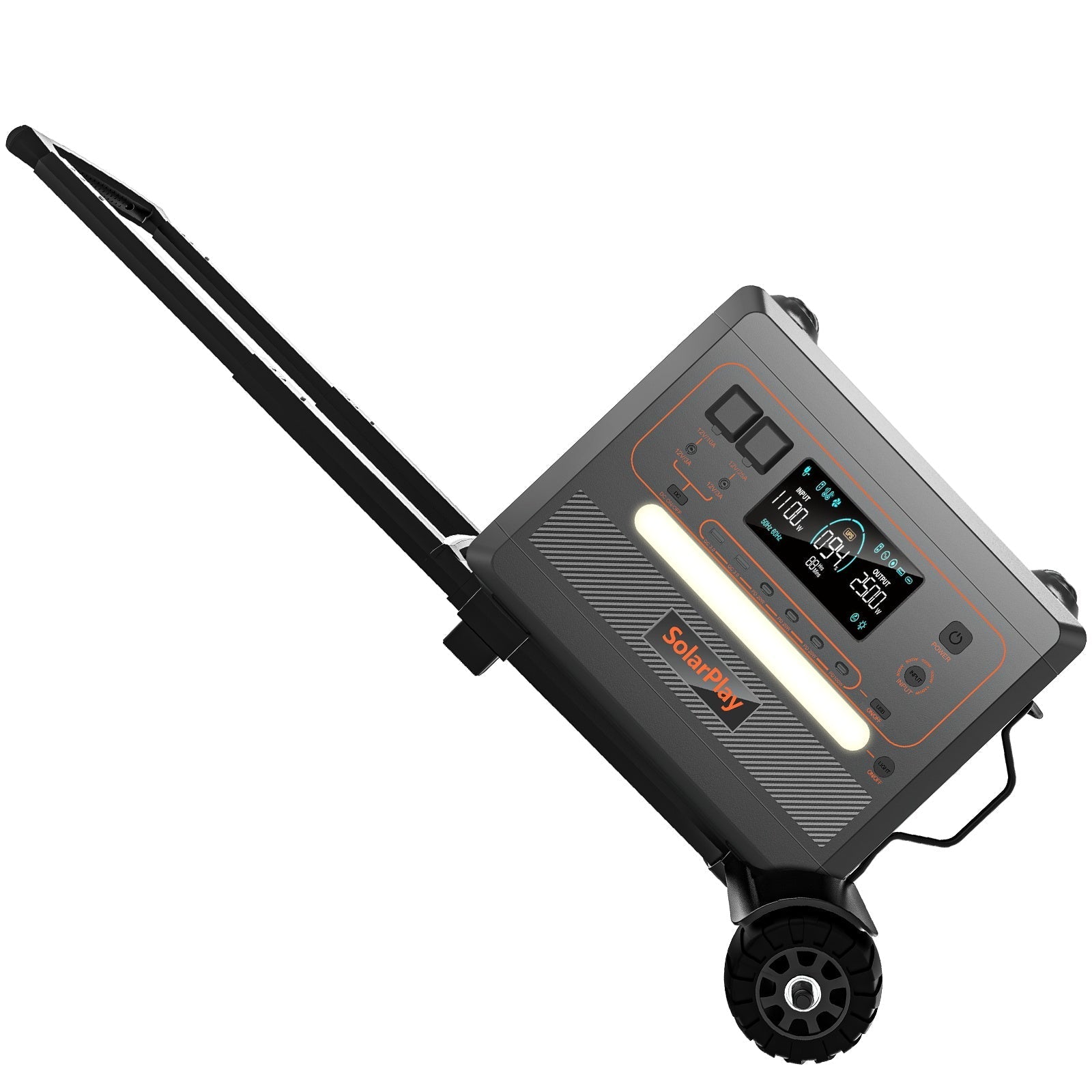

- Trolley design with integrated wheels to aid mobility.
Specifications
| Model | SolarPlay Q2402M |
|---|---|
| Product type | Portable Power Station |
| Battery chemistry | LiFePO4 |
| Capacity | 2304Wh |
| Rated output power | 2500W |
| UPS transfer time | 0.08 s |
| AC frequency | 50/60Hz switchable |
| Total outputs | 12 ports |
| AC outputs | 2×AC |
| DC outputs | 2×DC5521 (12V/3A) |
| XT60 port | 1×XT60 (12V/25A) |
| Car ignition | 1×12V/10A |
| USB outputs | QC 3.0×2; PD 20w×3; PD 100w×1 |
| Charging power adjustment | 300W / 500W / 700W / 900W / 1000W |
| Display | LCD screen |
| Lighting | Front LED light with switch |
| Inputs | AC input; XT90 interface |
| Protections | Overcharge, over-discharge, high/low temperature, overcurrent, short circuit |
| Dimensions (H×L×W) | 38.9cm × 34.2cm × 28cm |
What’s Included
- Q2402M portable power station (trolley integrated)
- 0.6m solar charging cable (MC4 to XT90)
- 1.5 m AC charging cable
- User manual
Applications
- Outdoor power for camping, picnics, photography, and field work
- Home backup power with UPS support for sensitive electronics
- Workshops and DIY tools within the rated 2500W output
Details

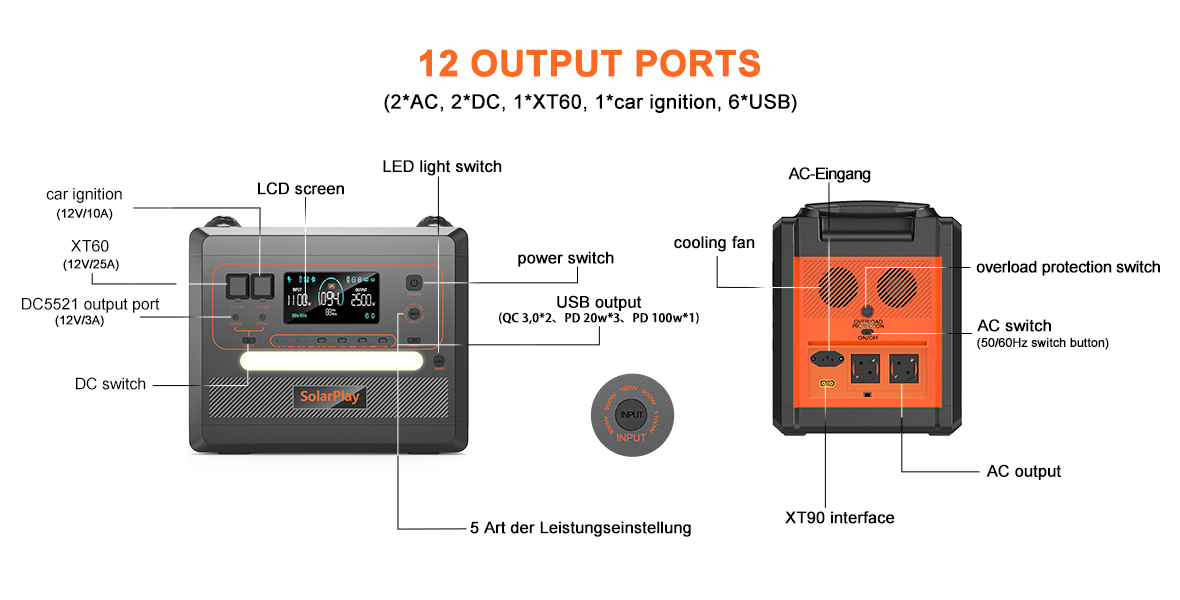

Portable power station with 12 ports: 2 AC, 2 DC, 1 XT60, 1 car ignition, 6 USB. Features LCD screen, LED switch, cooling fan, overload protection, and XT90 interface for versatile use.

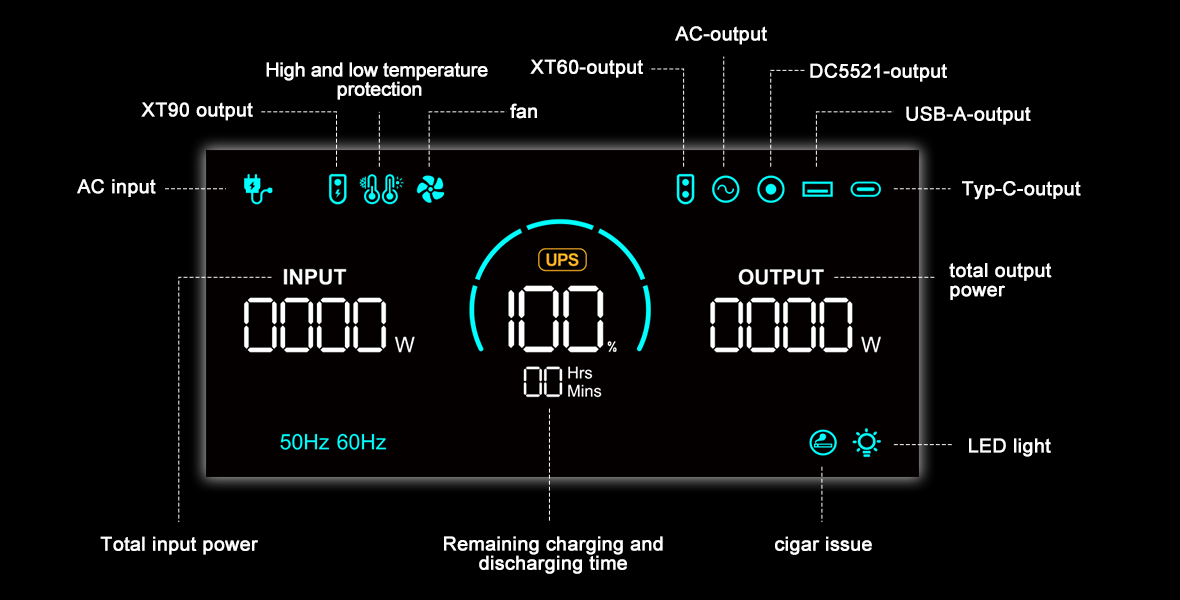

Portable power station displays input/output power, UPS status, remaining time, frequency, and output ports: AC, DC, USB, with LED light controls.

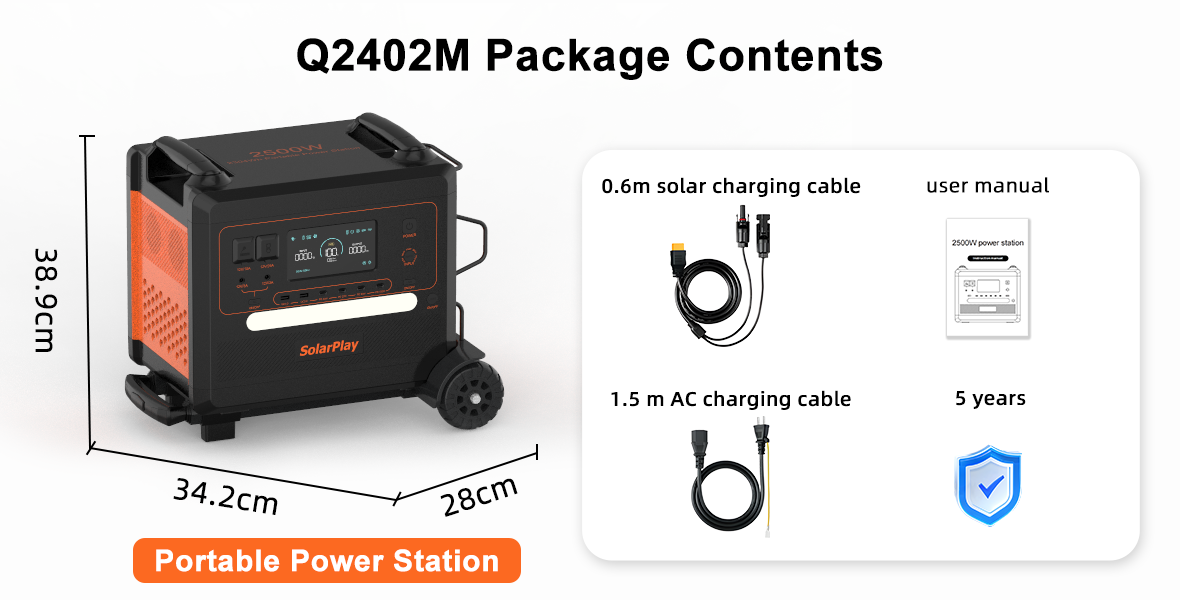

Portable power station includes solar and AC cables, manual, 5-year warranty. Measures 38.9×34.2×28 cm.
