Overview

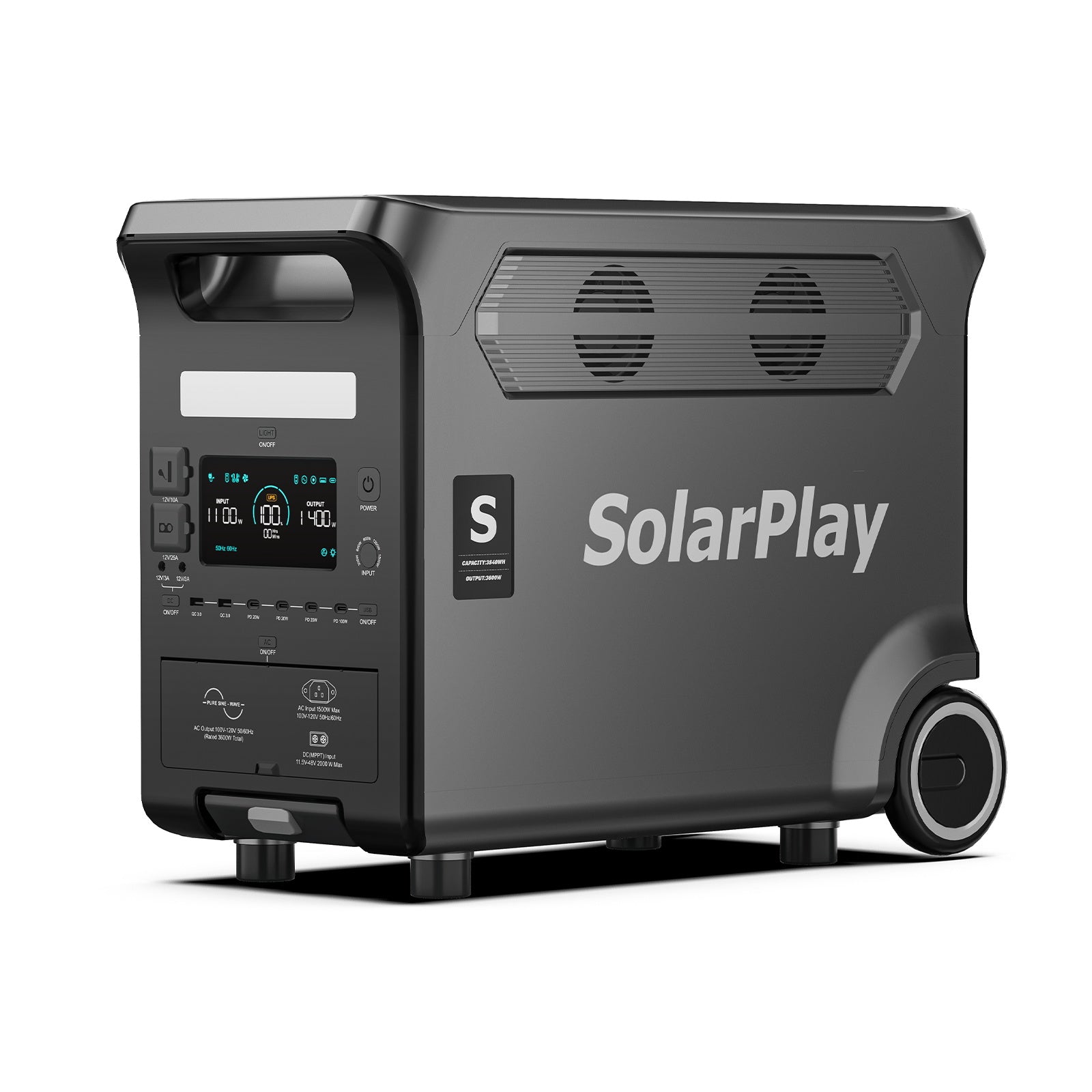

The SolarPlay Q3600 Portable Power Station delivers 3600W rated output and 3840Wh capacity with a 7200W surge, providing dependable backup power for camping, RVs, off‑grid work, and home emergencies. With LiFePO4 cells, pure sine wave 220V/110V output, fast multi‑source charging, and UPS switchover ≤20ms, the SolarPlay Q3600 is engineered for high‑demand, sensitive electronics.
Key Features
- High power and capacity: 3600W rated, 7200W peak, 3840Wh for running high‑load appliances including induction cookers and air conditioners.
- Super fast charging: Full charge in 2.5 hours via AC; supports solar input up to 2000W, car charging, and combined AC + solar.

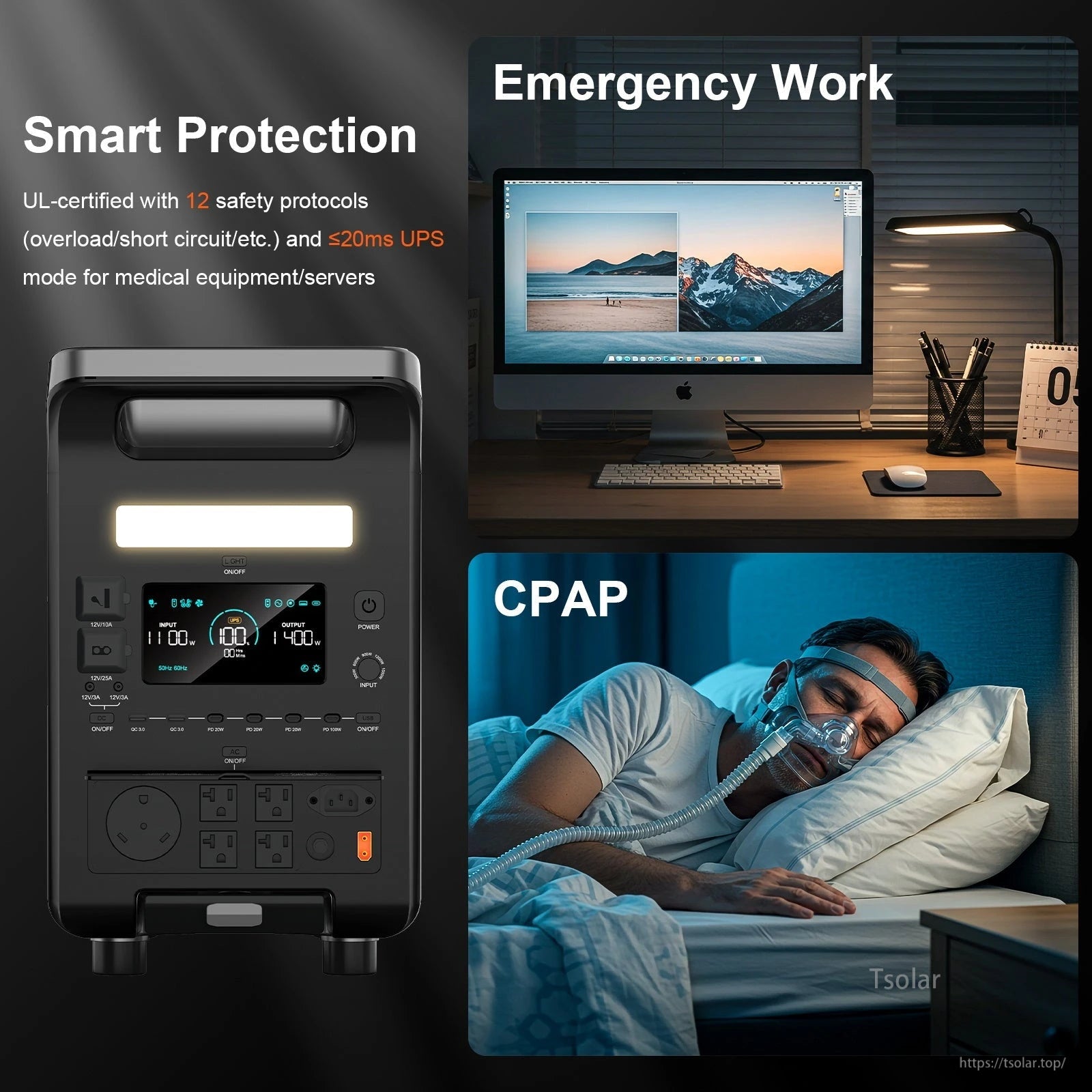

- UPS protection: Uninterruptible power supply with transfer time ≤20ms for servers, medical and other sensitive equipment.
- Comprehensive safety: 12 full circuit protections and BMS; UL/CE certified.
- Wide device compatibility: Pure sine wave 220V/110V output and 15 total ports covering AC, USB, and 12V DC.

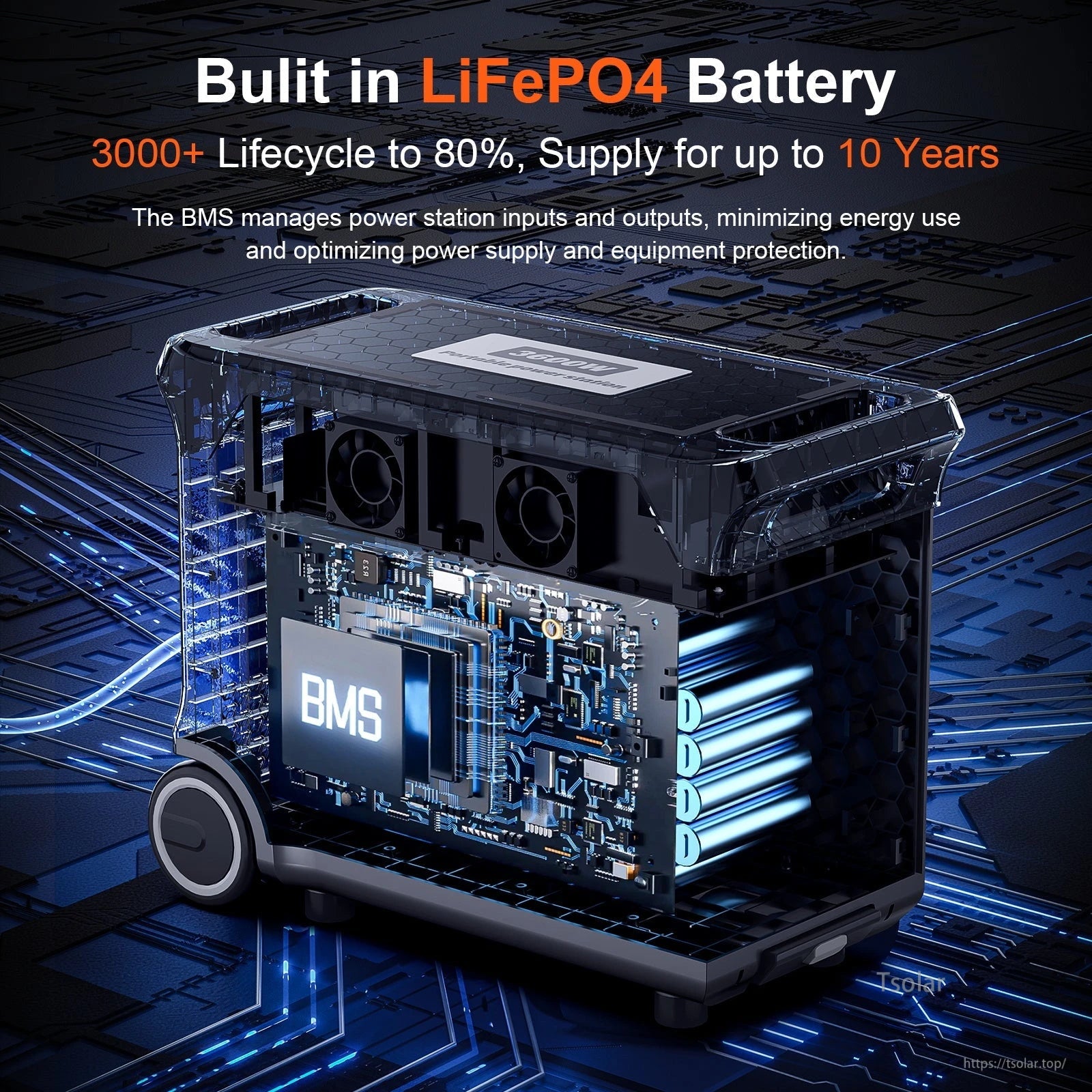

- Longevity and quiet operation: LiFePO4 battery rated for 3000+ cycles (≈80% capacity retention) and 0‑noise operation; 10‑Year lifespan indicated.
Specifications
| Model | SolarPlay Q3600 |
| Product type | Portable Power Station |
| Rated output | 3600W |
| Capacity | 3840Wh |
| Surge/Peak | 7200W |
| Battery chemistry | LiFePO4 |
| Cycle life | 3000+ cycles (≈80% capacity retention) |
| Estimated lifespan | 10‑Year Lifespan |
| Outputs (total) | 15 ports |
| AC output | Pure sine wave, 220V/110V supported |
| AC outlets | 4 × AC outputs + NEMA TT‑30 |
| USB‑A | 2 × USB‑A output ports |
| USB‑C | 3 × USB‑C 20W; 1 × USB‑C 100W output port |
| 12V DC | Cigarette lighter output; 12V XT60 output |
| UPS switchover | ≤20ms |
| Protections | 12 full circuit protections; BMS |
| Certifications | UL/CE |

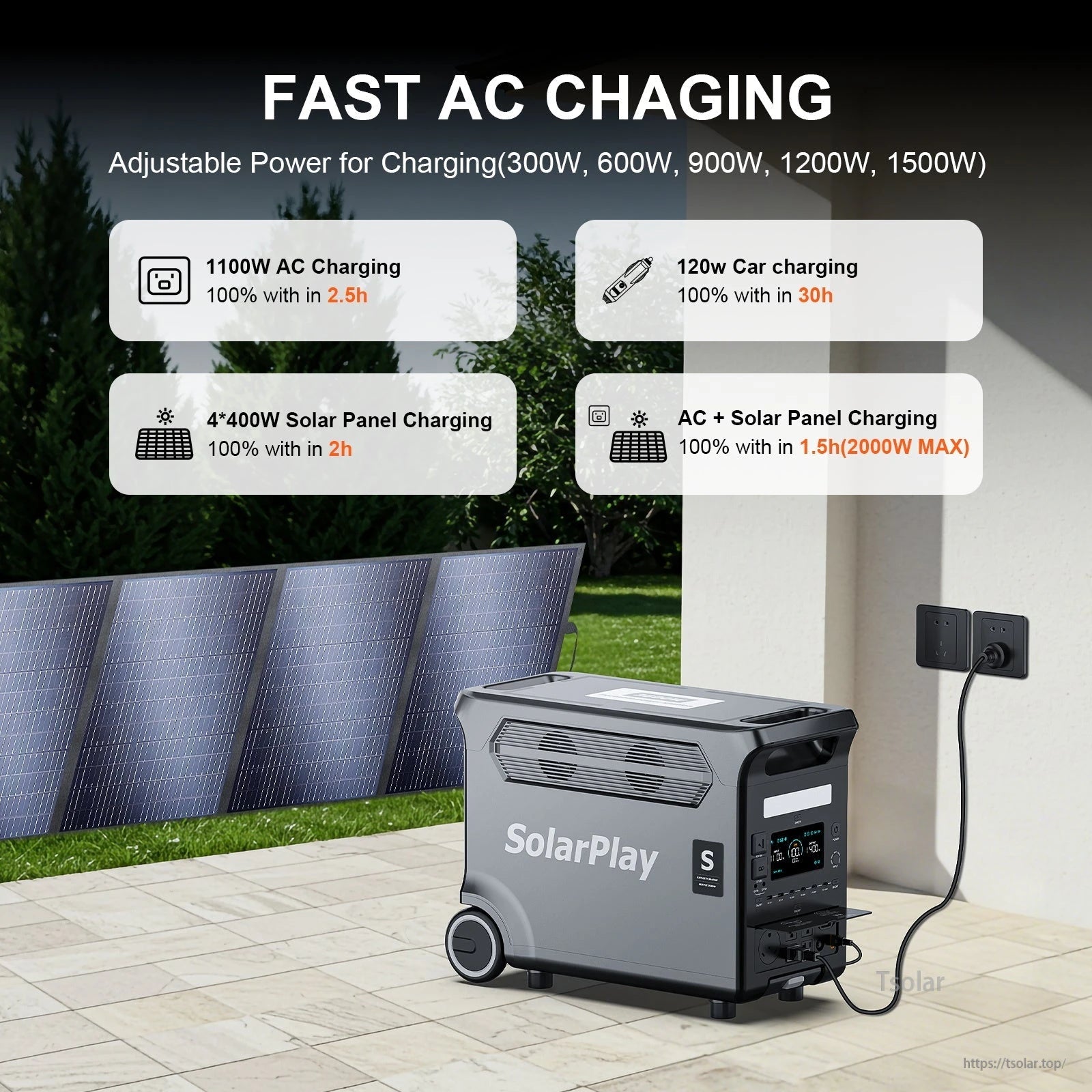

| Charging methods | AC, Solar, Car charging, AC + Solar |
| AC recharge | 2.5 hours (1100W) |
| Solar input | Up to 2000W input; solar charging 1.8–2hrs (4*400W) |
| AC + Solar recharge | 1.5hrs (2000W MAX) |
| Car charging | 30hrs (120W) |
| Noise | 0 noise operation |
Applications
- Home backup: TV (150W) ≈ 22 hours, air conditioner (1150W) ≈ 2.8 hours, washing machine (1000W) ≈ 3.3 hours.
- Kitchen and comfort: Rice cooker (800W) ≈ 4 hours, toaster (650W) ≈ 5 hours, electric blanket (1500W) ≈ 2.2 hours, heater (1200W) ≈ 2.7 hours, blender (300W) ≈ 11 hours.
- Outdoor/RV: Laptops, drones, fridges, power tools, and more via AC/USB/12V ports including NEMA TT‑30 and XT60.
Details

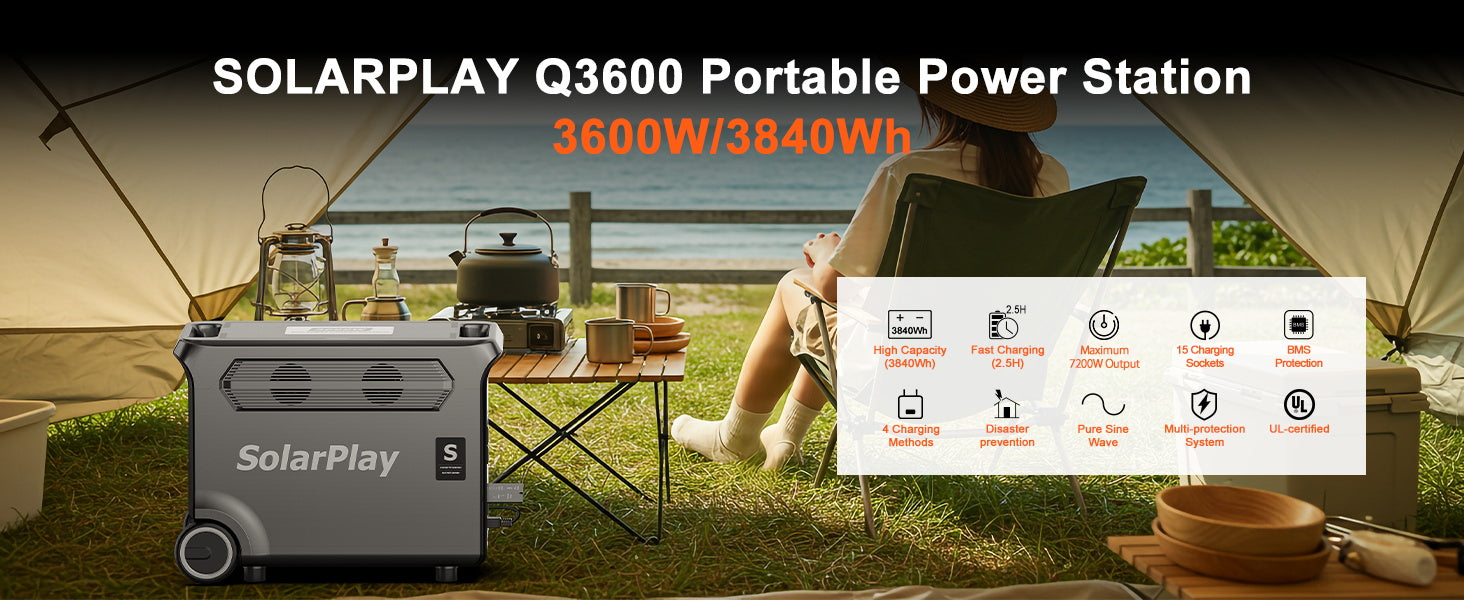

SolarPlay Q3600 delivers 3600W/3840Wh capacity, 15 sockets, pure sine wave, fast 2.5H charging, multi-protection, UL certification, and BMS for reliable outdoor power.

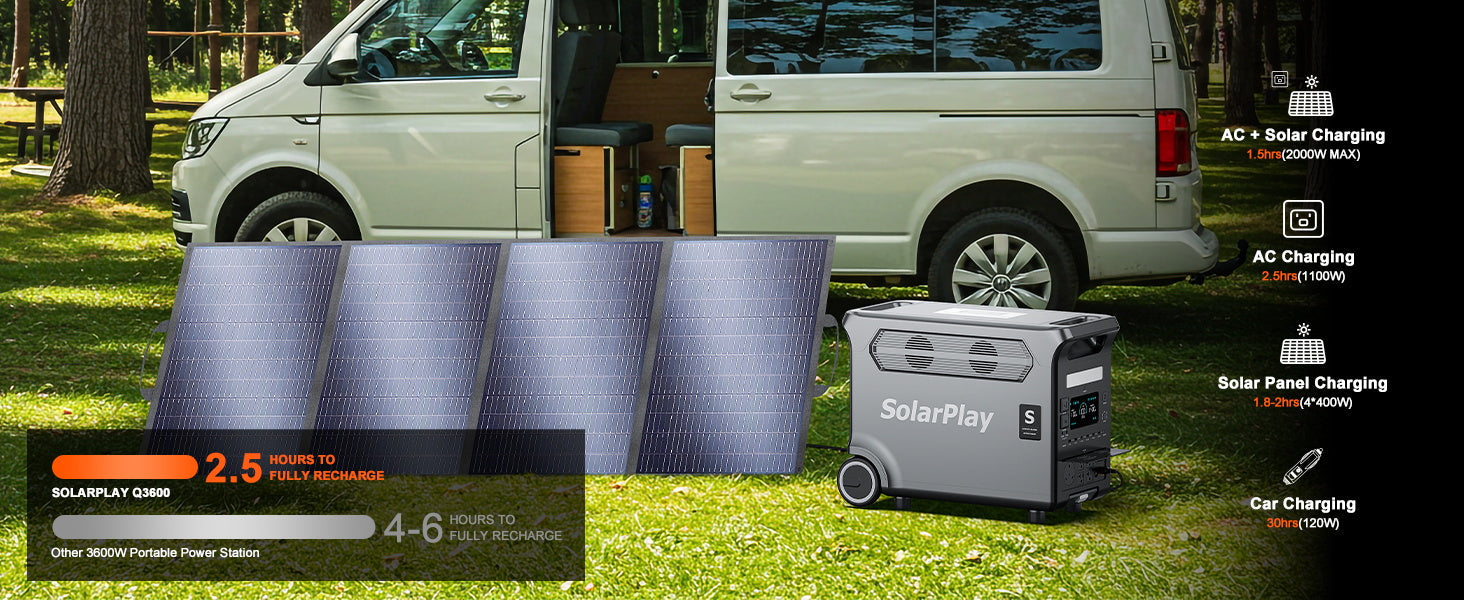

SolarPlay Q3600 charges in 2.5 hours via solar, 1.5 hours with AC+solar, 2.5 hours with AC, 1.8–2 hours with solar panels, or 30 hours from a car.

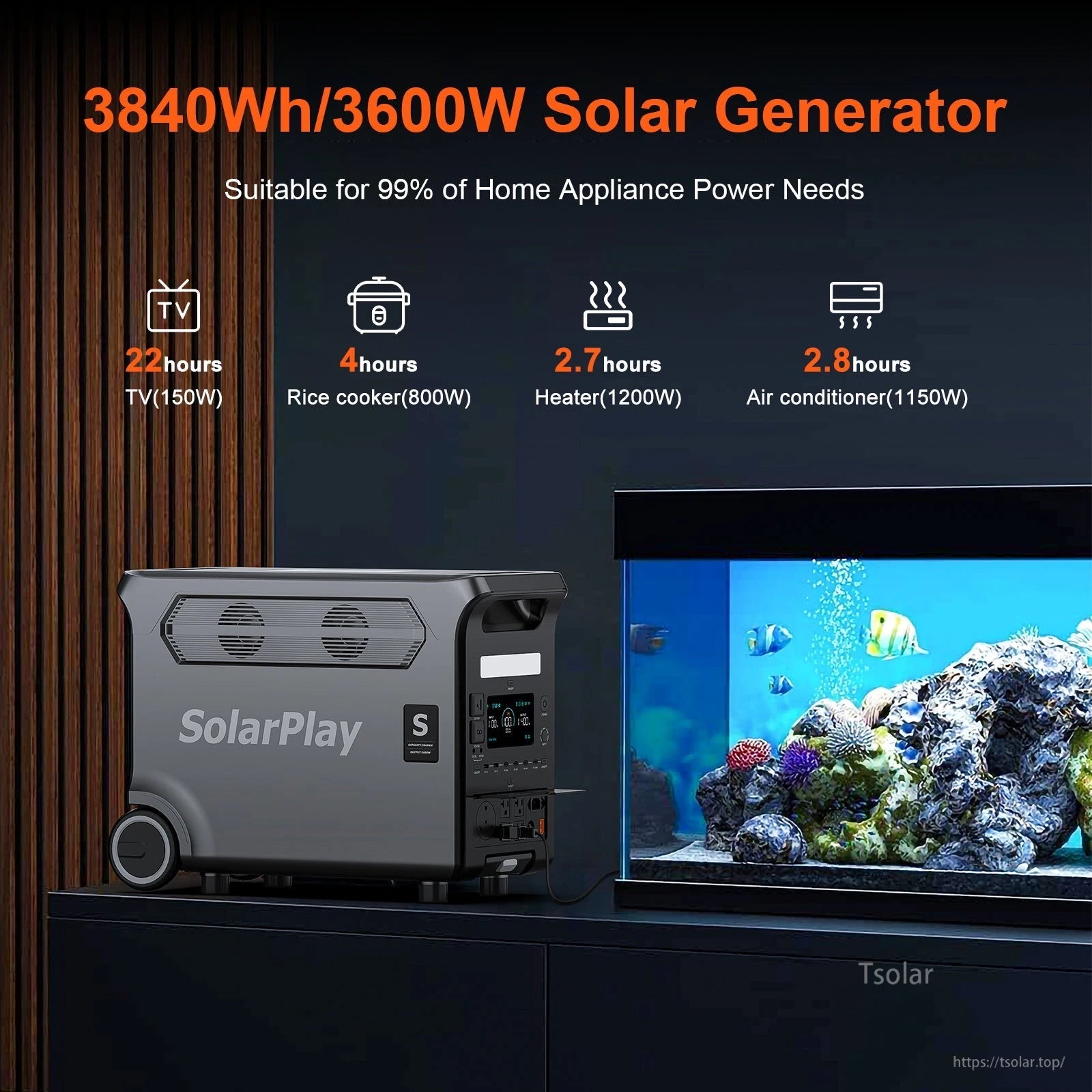

SolarPlay Q3600 powers TV 22h, blender 11h, rice cooker 4h, electric blanket 2.2h, heater 2.7h, toaster 5h, AC 2.8h, washing machine 3.3h.

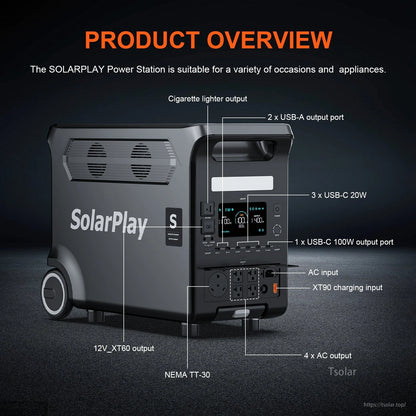

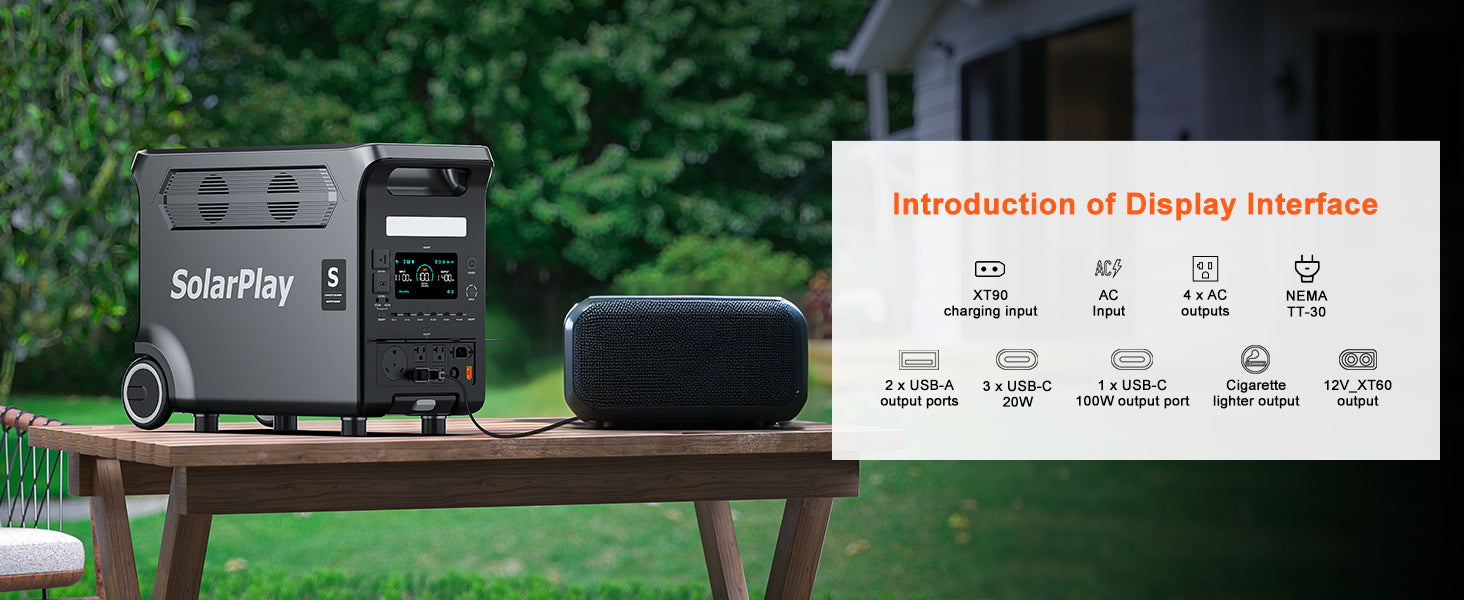

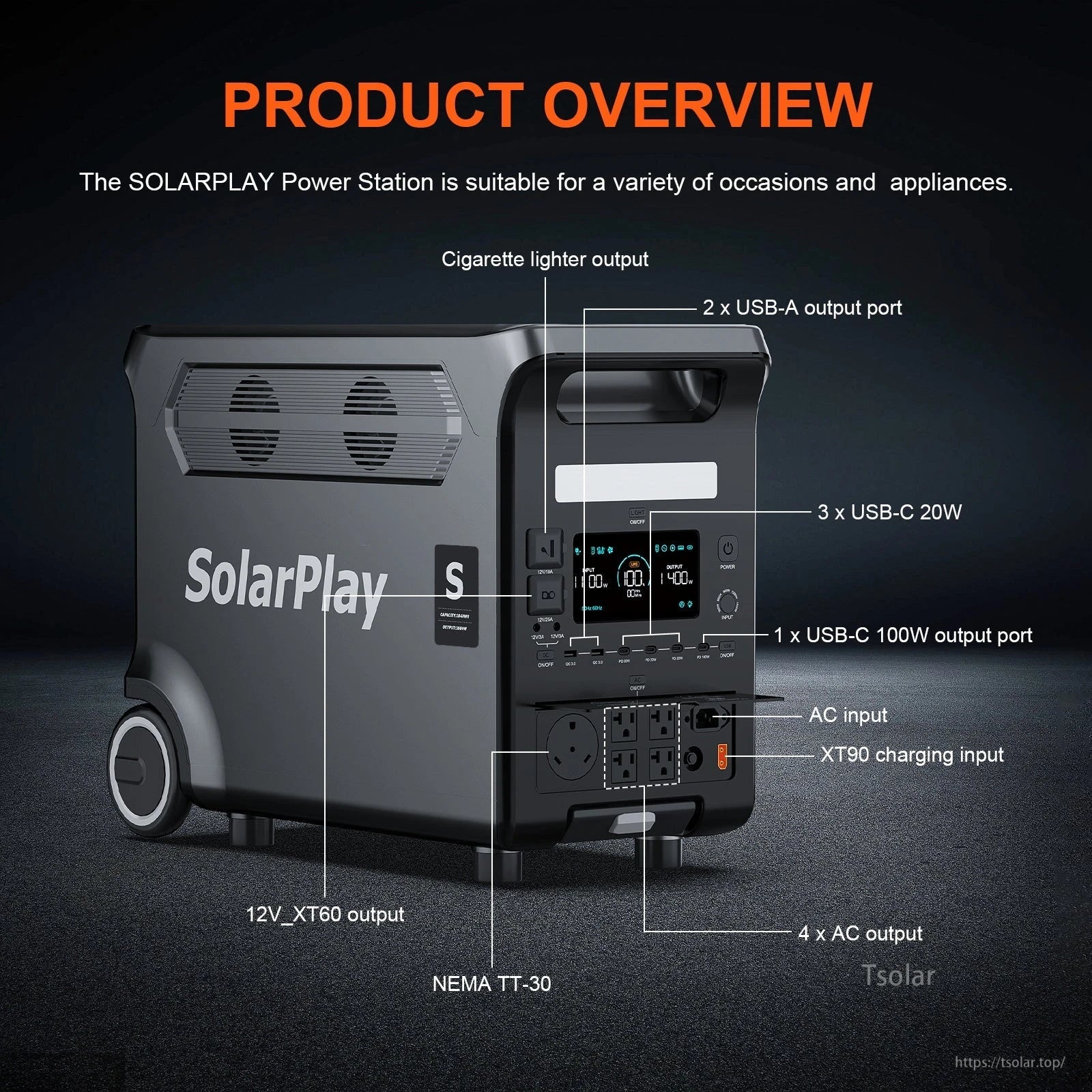

Portable SolarPlay Q3600 power station offers AC, USB-A, USB-C, cigarette lighter, and 12V XT60 outputs, plus XT90 input and digital display.
