Overview
The SOLARPLAY S200 is a 200W Foldable Solar Panel built with monocrystalline silicon cells and ETFE film for outdoor and home backup use. Designed as a four-panel portable array, it delivers dependable 18V solar charging for camping, tourism trips, RV setups, and powering portable power stations.
Key Features
200W output with stable electrical performance
Maximum power 200W (Pm). Output voltage up to 18V (max) and output current up to 11.1A (max). Open circuit voltage (Voc) 21.6V; short circuit current (Isc) 13.3A.
High conversion efficiency
ETFE film + monocrystalline silicon construction achieves up to 23.4% cell efficiency; spec lists Module Efficien 24%.
Portable four-panel design
Four foldable panels with integrated handle and adjustable kickstands for easy setup. Lightweight at 6.1kg/13.45lbs.
Series/parallel expandability
Supports connection of multiple panels (up to three) in series (increase voltage) or in parallel (increase current).
Wide operating temperature
Designed to operate in ambient temperatures from -10℃ to 65℃; optimal operating temperature +25℃. Backed by a five-year warranty.
Specifications
| Brand Name | SOLARPLAY |
| Model Number | S200 |
| Type | Solar Panel |
| Product Type | Foldable Solar Panel |
| Flexible Solar Panel | No |
| Foldable Solar Panel | Yes |
| Material | Monocrystalline Silicon |
| Construction Layers | ETFE Film, EVA, Monocrystalline Silicon Cells, PCB, Oxford Cloth |
| Certification | CE |
| Max. power (Pm) | 200W |
| Output Voltage (max) | 18V |
| Output Current (max) | 11.1A |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 13.3A |
| Module Efficien | 24% |
| Cell Efficiency | 23.4% |
| Number of Panels | 4 |
| Number of Cells | 1 |
| Unfolded Size (image) | 68 in × 23 in |
| Folded Size (image) | 17.1 in × 23 in |
| Unfolded Size (spec) | 58 × 172 × 3 cm (22.8 × 67.7 × 11.8 inches) |
| Size (spec) | 39 × 28 × 31 cm |
| Weight | 6.1 kg / 13.45 lbs |
| Ambient Operating Temperature | -10℃ to 65℃ |
| Optimal Operating Temperature | +25℃ |
| Series/Parallel Connection | Up to three panels |
| Origin | Mainland China |
| is_customized | Yes |
| Hign-concerned Chemical | None |
| Warranty | 5 years |
Applications
Suitable for family camping trips, tourism and RV travel, hiking, disaster prevention, and home backup power. Ideal for charging compatible portable power stations and other solar-ready devices.
Usage Guidelines
1) Keep panels dry during use; avoid rain exposure. 2) Not a waterproof product—use in dry environments to avoid moisture. 3) Prolonged outdoor exposure to sun and rain can discolor or peel the surface film and reduce efficiency; bring panels indoors after use. Proper cleaning and maintenance extend service life.
Details

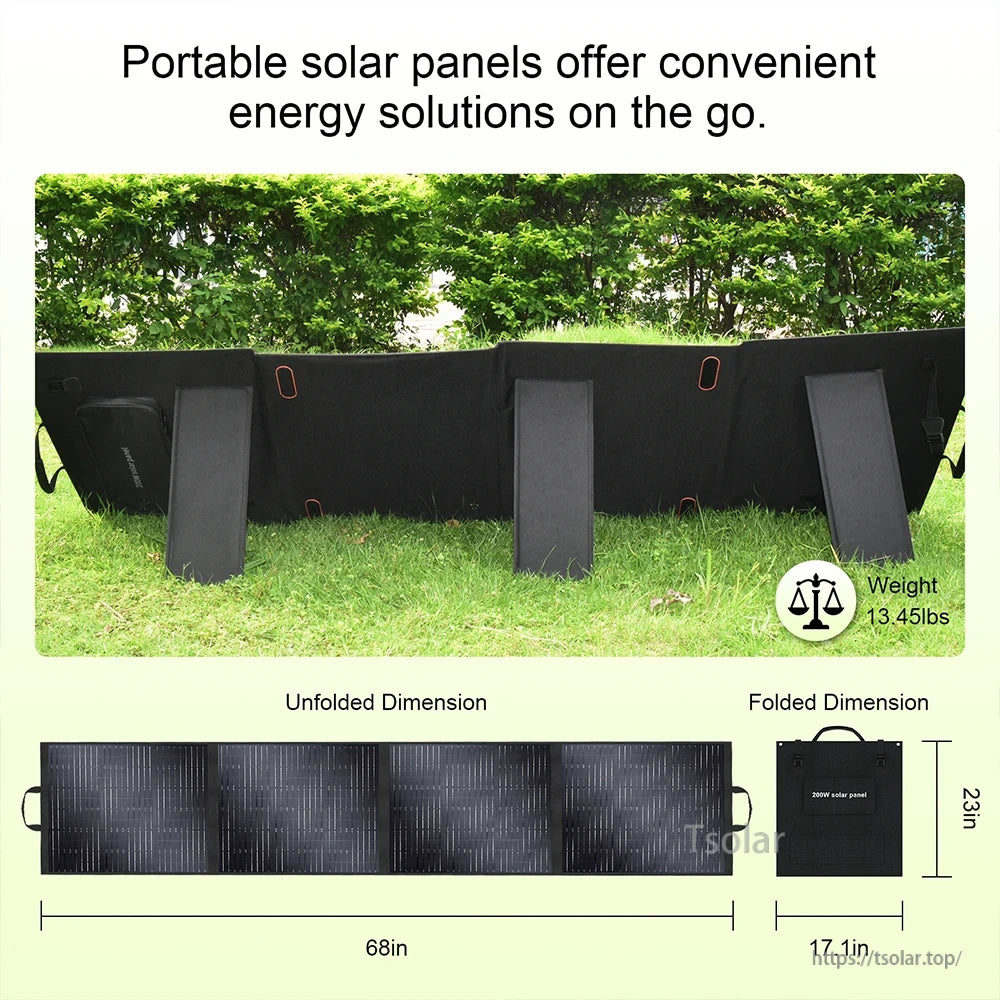

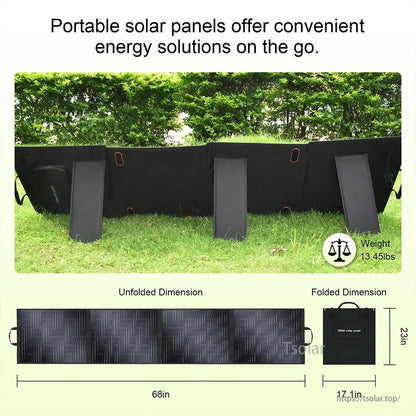

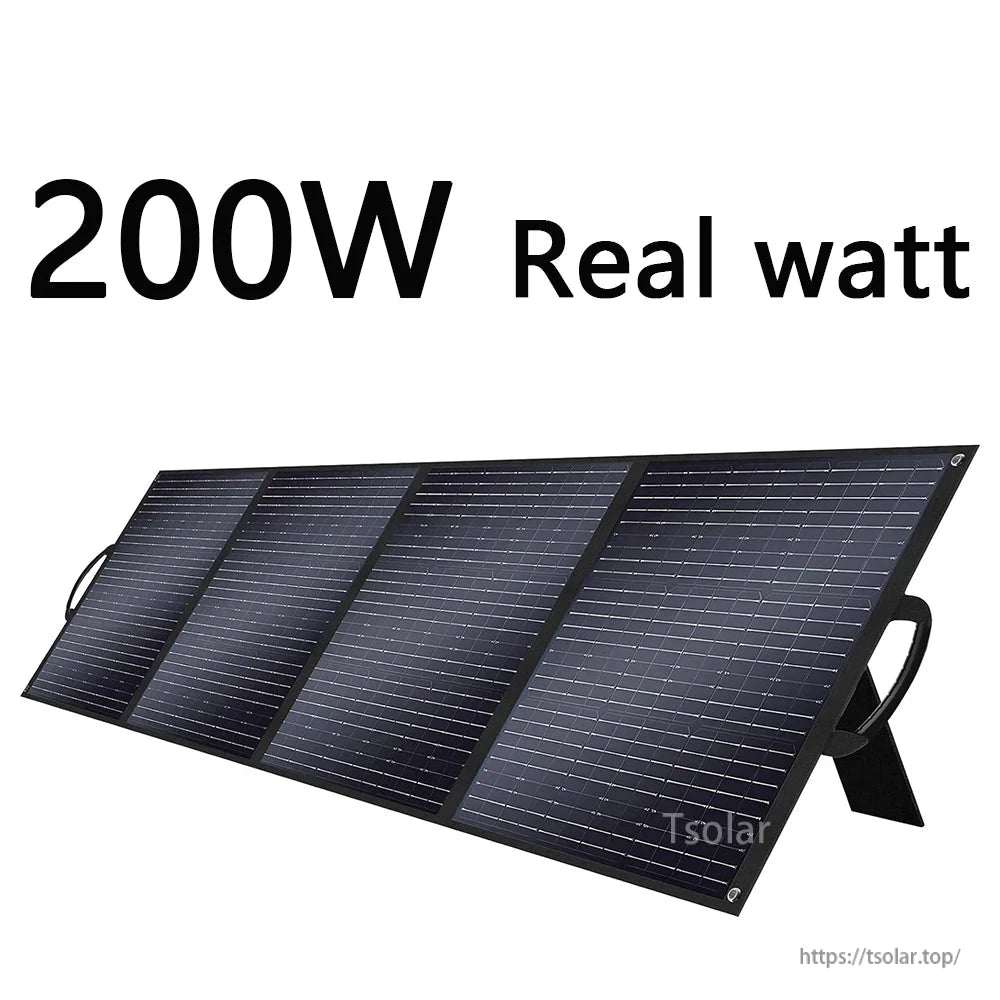

200W portable solar panel, 13.45lbs, 68in unfolded, 17.1in folded

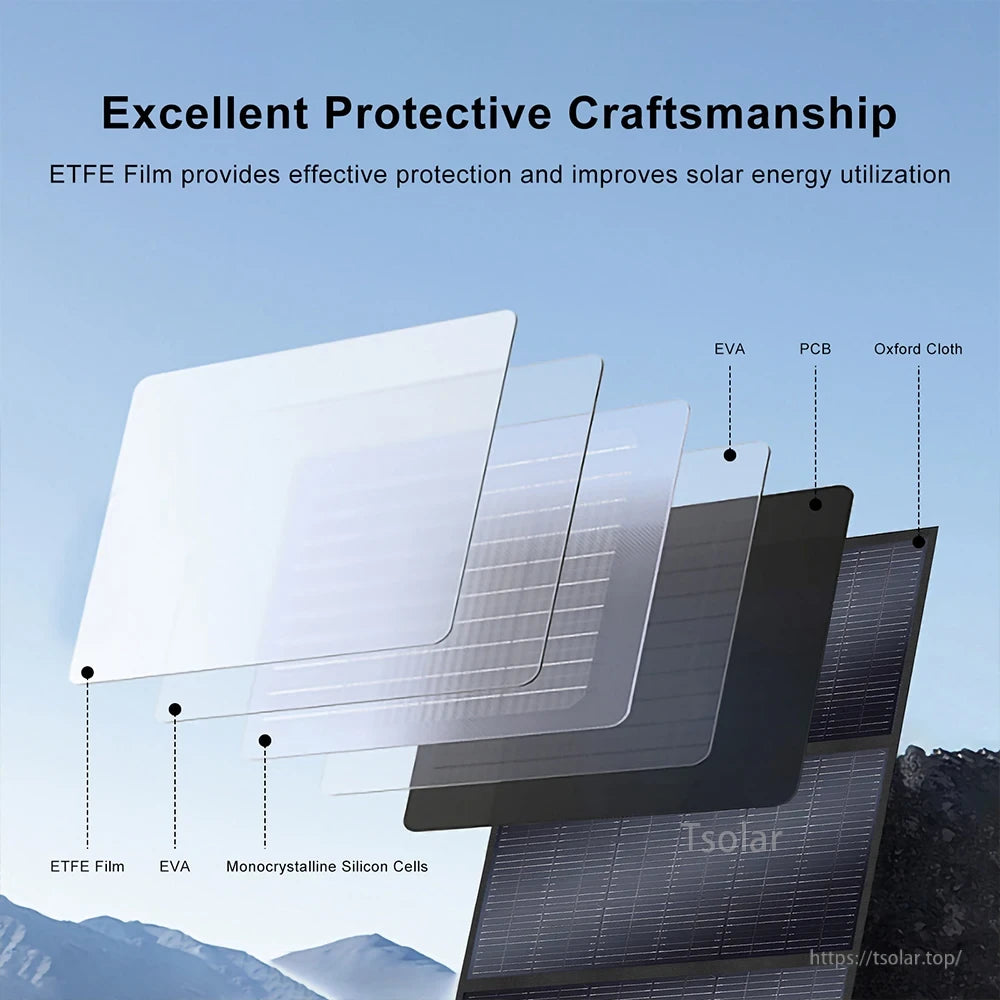

ETFE Film protects and enhances solar energy efficiency in foldable panel

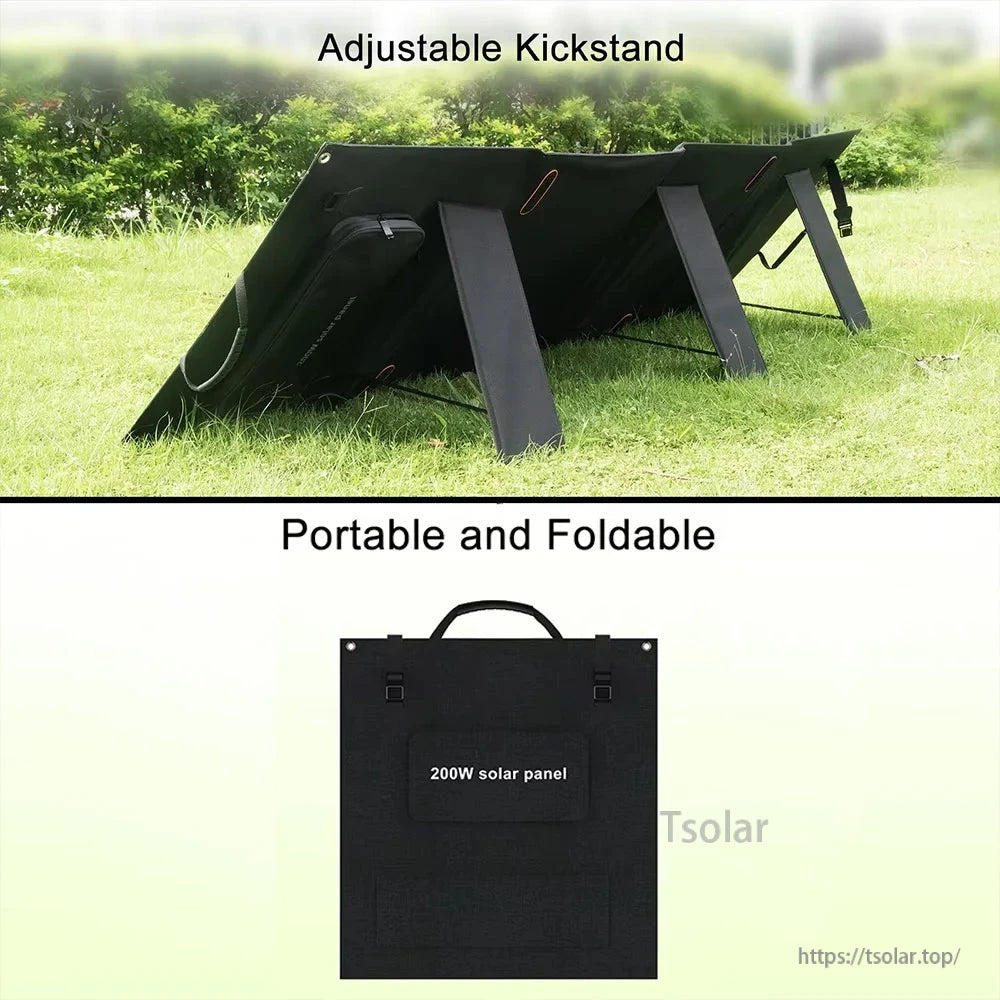

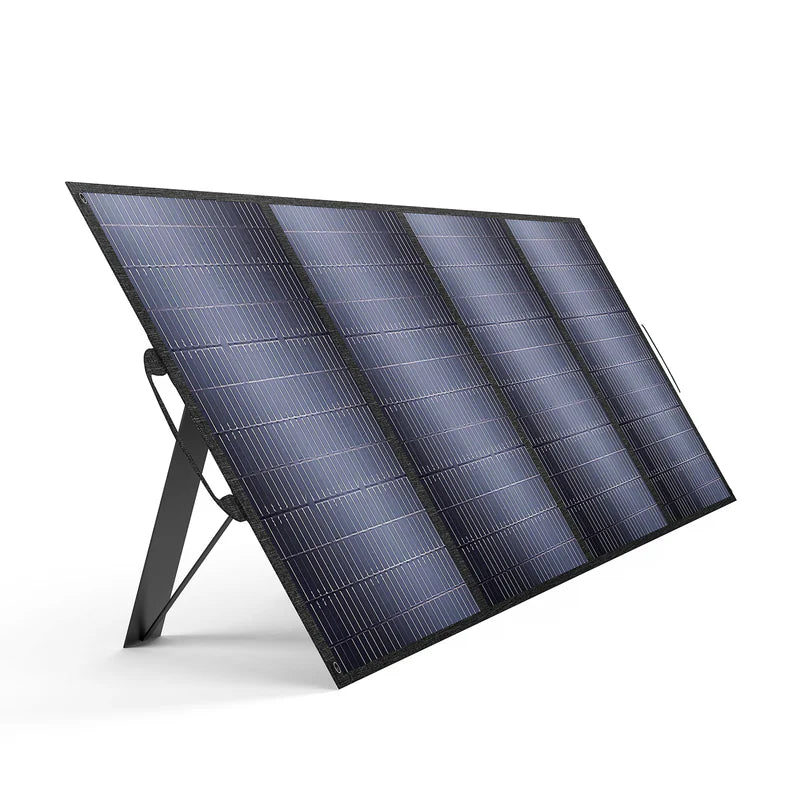

Portable foldable 200W solar panel with adjustable kickstand.

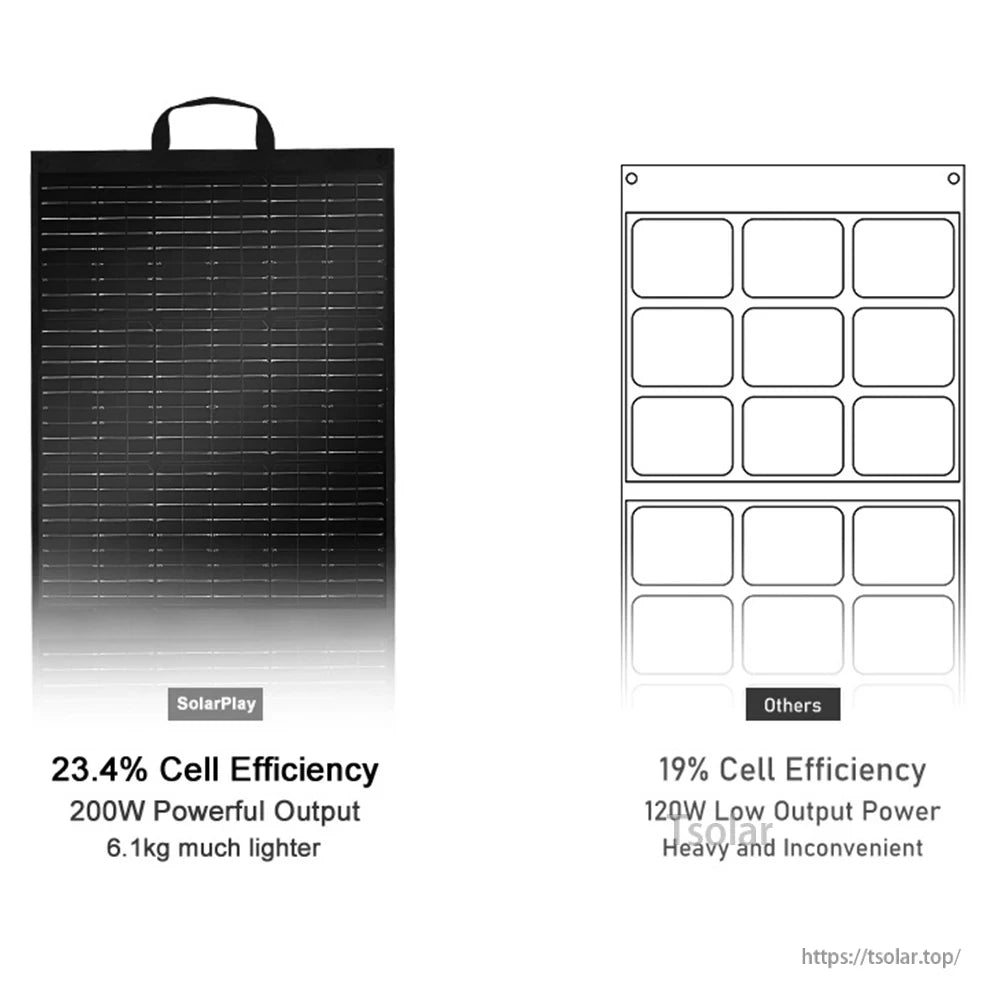

SolarPlay 200W panel, 23.4% efficiency, lightweight; others 120W, 19%, heavier

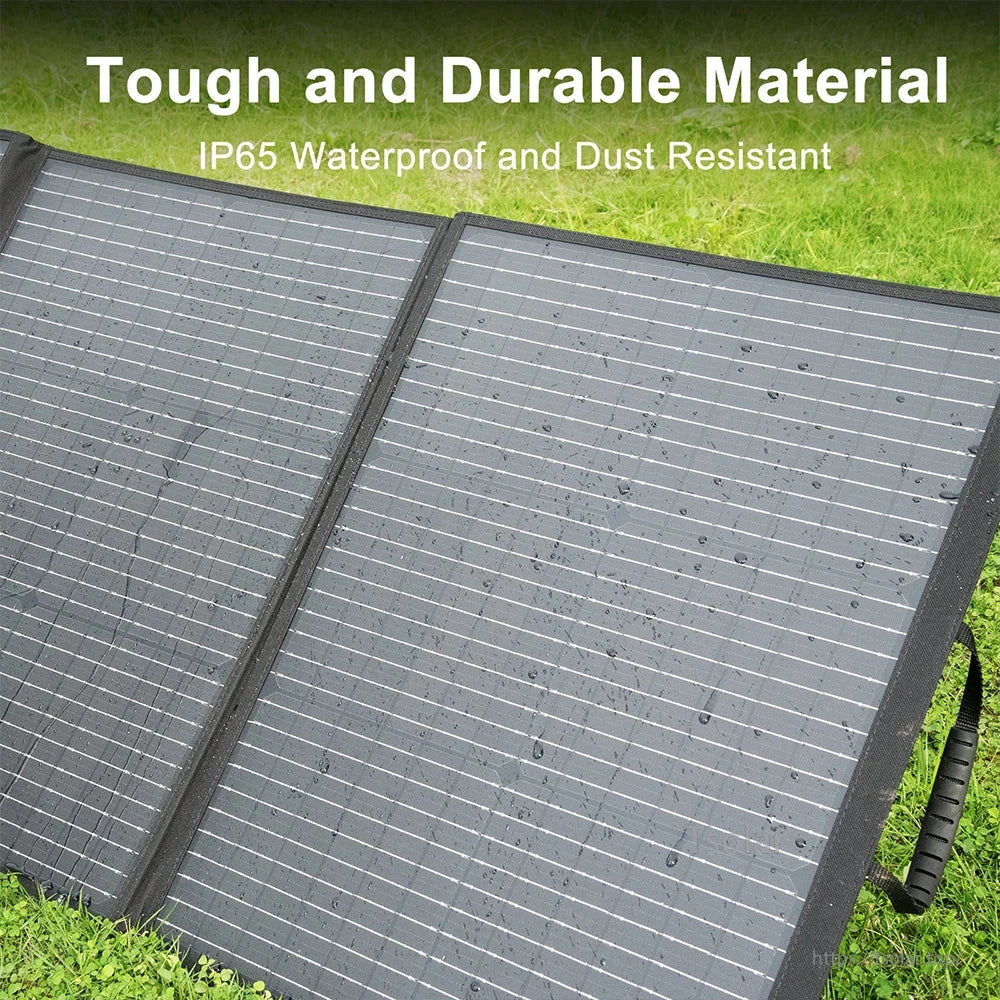

Tough durable material, IP65 waterproof and dust resistant solar panel.

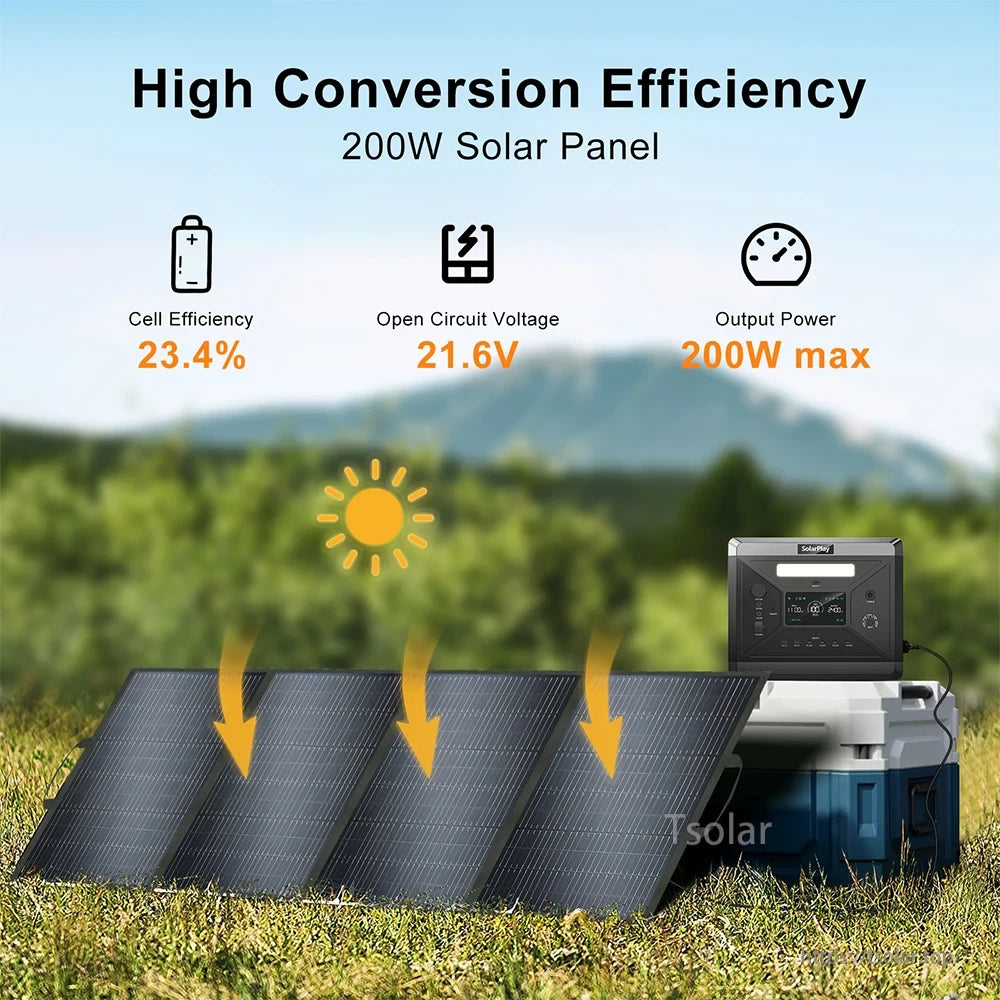

High conversion efficiency 200W solar panel, 23.4% cell efficiency, 21.6V open circuit voltage, 200W max output power.
Portable solar panels for outdoor travel and home use, lightweight and easy to handle.
