Overview
The SoloEpic SA5 solar panel adaptor cable is a 4-in-1 MC4 Y branch connector set designed to simplify parallel-style connections in photovoltaic distributed small systems. It is built for outdoor use conditions and uses riveted, fastened cable connectors for secure connections.
Key Features
- Anti-aging and UV resistant for outdoor harsh conditions
- Riveted and fastened cable connector construction
- Common mother connector design for convenient plug-in without tools
- Plug design intended to reduce damage to the socket buckle
Specifications
| Cable specification | 2.5mm2 ~ 6.0mm2 / 14AWG~10 AWG |
| Terminal specifications | Ø4.0mm |
| Rated current | 20A ~ 30A |
| Rated voltage | TUV 1000VDC / UL600VDC |
| Withstanding voltage | TUV 6000V AC (1min) / UL2200V DC (1min) |
| Pollution level | II |
| Terminal material | Copper, Silver plated |
| Contact resistance | ≤5mmΩ |
| Waterproof degree | IP68 (IEC 60529) |
| Safety class | II |
| Withdrawal force | ≥50N |
| Insertion force | ≤50N |
| Insulation material | PPO |
| Temperature range | 40 ℃ ~ +85 ℃ |
| Flammability rating | UL94V-0 |
For product selection and technical support, contact https://tsolar.top/ or service@tsolar.top.
What's Included

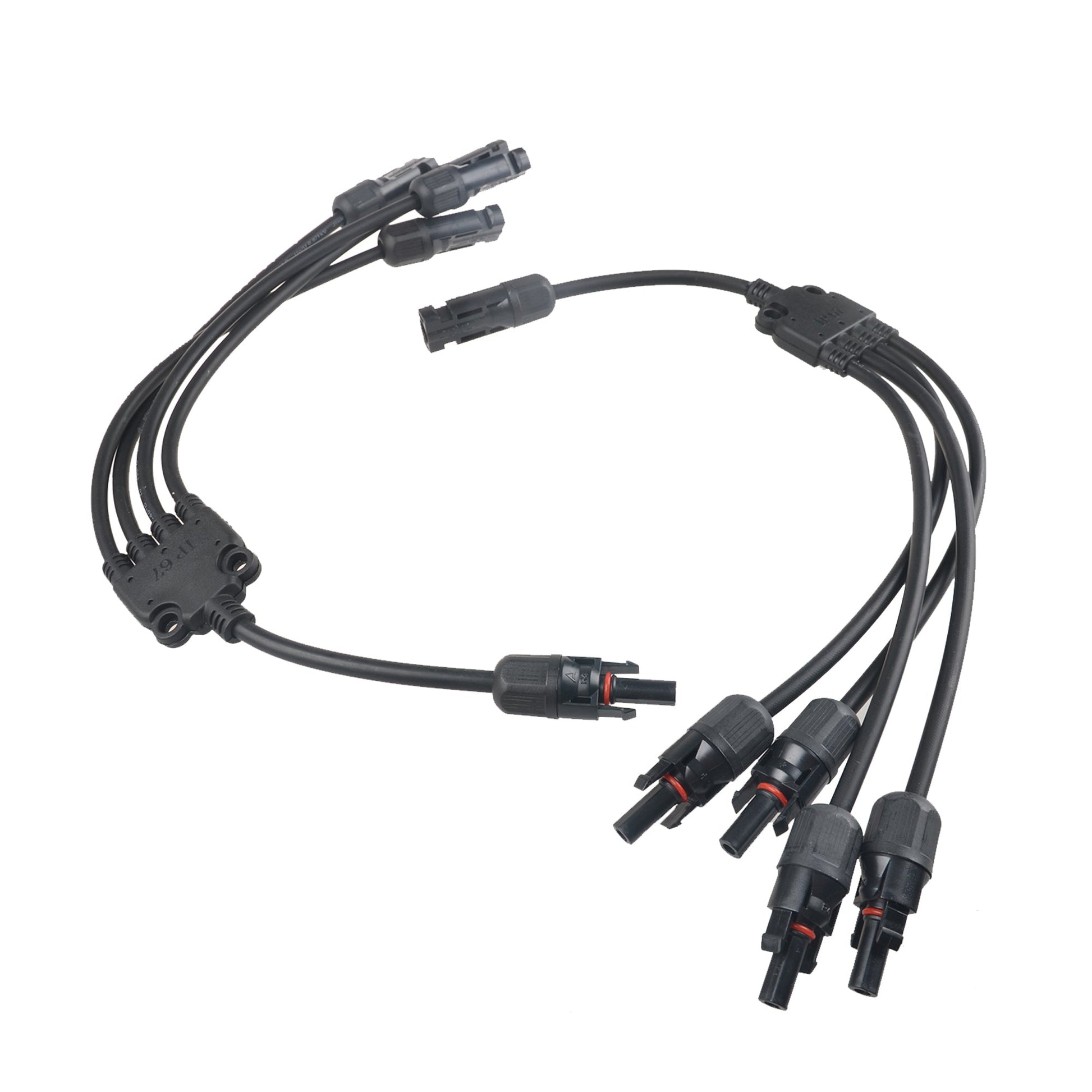

- 1 Pair Y Type (1 to 4) MC4 Solar Panel Cable Connectors:
- 1 male to 4 female (M/FFFF)
- 1 female to 4 male (F/MMMM)
Applications
- Photovoltaic distributed small systems
- Outdoor solar panel wiring where a 1-to-4 MC4 branch connection is required
