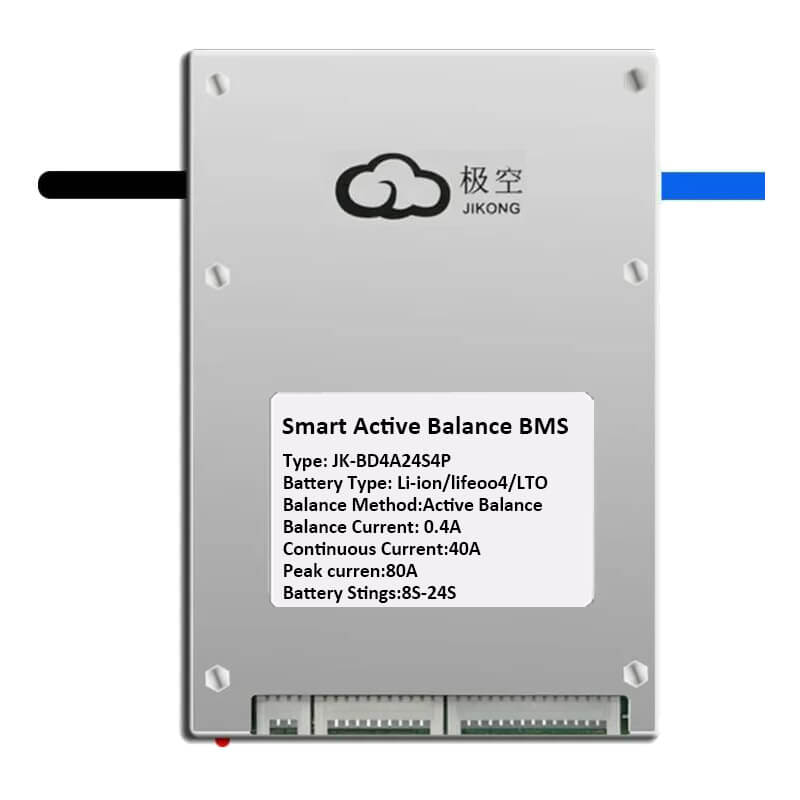

JKBMS BD4A24S4P Active Balance BMS 7S-24S 0.4A Balancer 40A w/ Bluetooth RS485 CAN (LiFePO4/Li-ion/LTO)

Overview

The JKBMS BD4A24S4P is an active balance BMS designed for multi-string battery packs, with built-in Bluetooth monitoring and support for RS485 communication (CANBUS available as a customized interface). It supports Li-ion (7S624S), LiFePO4 (8S624S), and LTO (12S624S) configurations, and provides 0.4A active balancing with 40A continuous charge/discharge capability.

Key Features

• Active Balance (Full State On): 0.4A (400mA) balancing current
• 40A continuous current: continuous charge current 40A; continuous discharge current 40A
• Peak discharge capability: maximum discharge current 60A (MAX 2min)

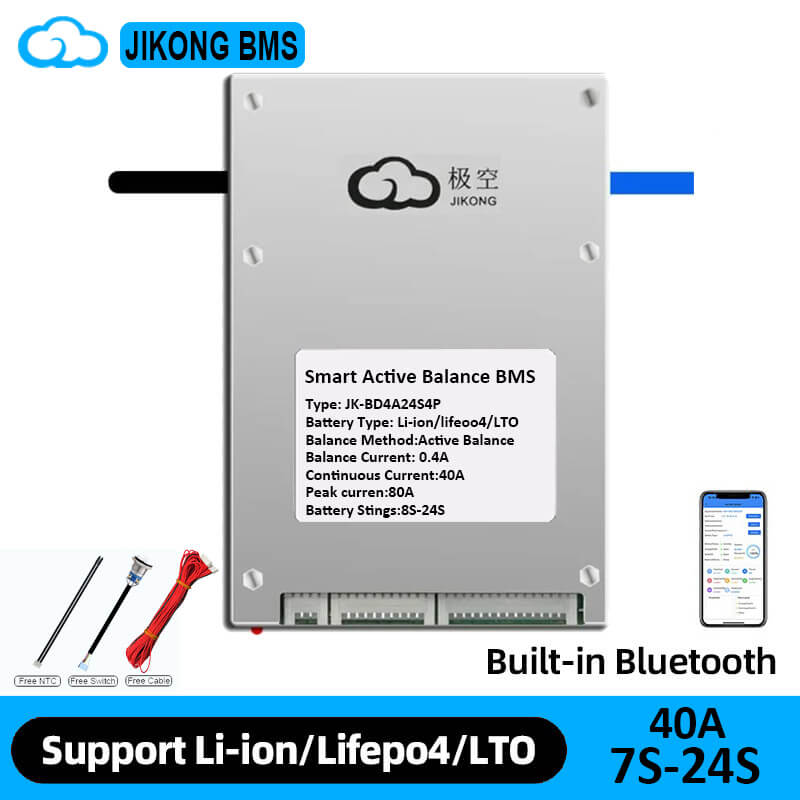

• Bluetooth built-in: supports Android / iOS phone monitoring; requires the specified Bluetooth application for activation and data viewing
• Communications: RS485 (default); CANBUS (customized)
• Protections described: over charge protection, over discharge protection, over current protection, short circuit protection, all-in protection (cable drop/poor contact), over temperature protection
• Smart working mode switching (as described):
  • Storage Mode: for transportation/storage/offline or wireless transmission off mode; does not consume battery pack current
  • Normal Working Mode: returns to normal working mode when the charger is inserted (from storage/off mode); protection, equalization, and communication functions return to normal working
  • Standby Mode: when the pack is static (no charge/discharge current and no equilibrium current); enters standby after the set time (1630 days can be set)
  • Shutdown: automatic shutdown voltage; shuts down when a cell falls below the shutdown voltage (described as preventing long-time power waste and battery pack damage)

For technical questions, wiring confirmation, or after-sales support, contact service@tsolar.top.

Specifications
