Overview
The JKBMS BD6A24S15P is an active balance smart BMS (Battery Management System) for Li-ion, LiFePO4, and LTO battery packs. It supports 7S–24S battery strings (chemistry-dependent), provides 0.6A active balancing (Full State On), and is rated for 150A continuous charge/discharge with Bluetooth built-in for Android/iOS monitoring.
Key Features
- Active balance: Active Balance (Full State On), 600mA (0.6A) balance current
- Battery strings supported: Li-ion 7S–24S; LiFePO4 8S–24S; LTO 12S–24S
- Continuous current: 150A continuous charge current; 150A continuous discharge current
- Maximum discharge current (MAX 2 min): 300A
- Power supply mode: battery pack self-powered
- Wiring method/output: same port / common port

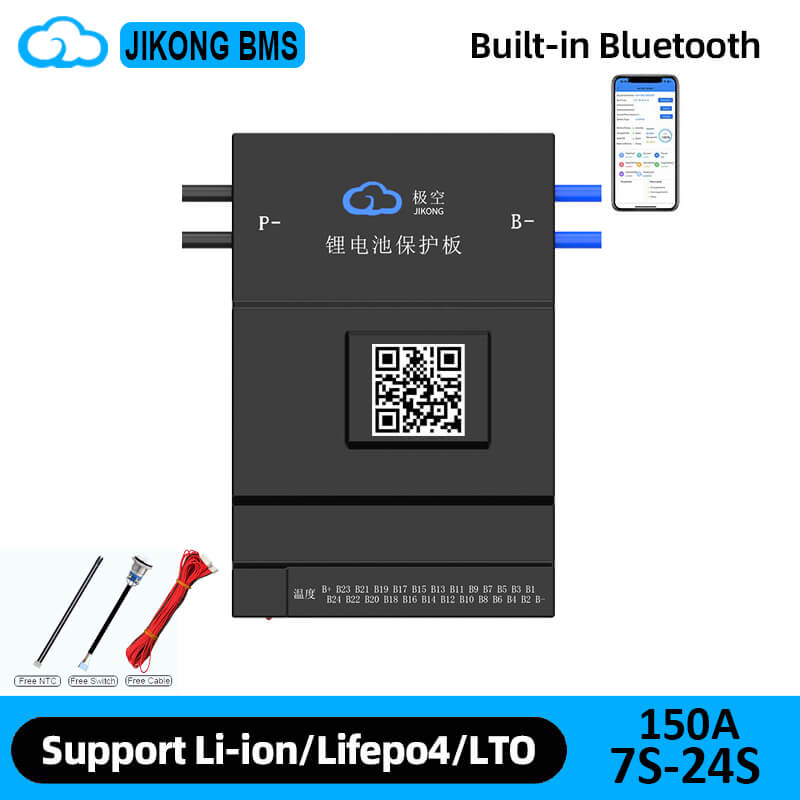

- Bluetooth: built-in; supports Android / iOS phones
- Interfaces: RS485 (default); CANBUS/HEAT (customized)
- Protection/functions listed: over charge protection, over discharge protection, over current protection, short circuit protection, all-in protection (cable drop/poor contact), over temp protection
- App usage notes: download the specified Bluetooth application and activate the BMS; find the relevant serial number to check data
Specifications

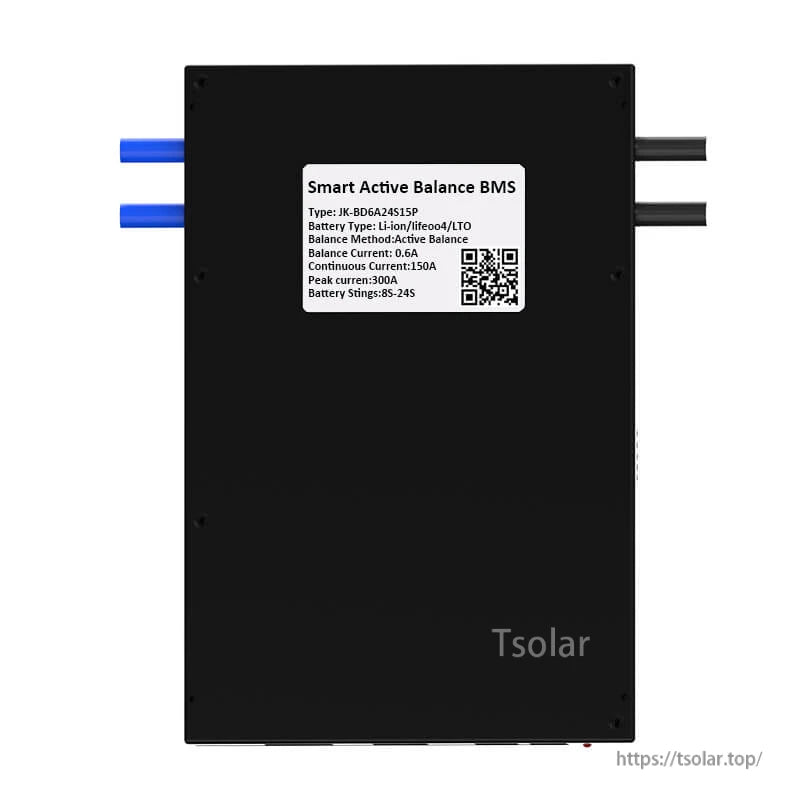

| Model | BD6A24S15P |
| Balance method | Active Balance (Full State On) |
| Balance current | 0.6A (600mA) |
| Number of battery strings (Li-ion) | 7S-24S |
| Number of battery strings (LiFePO4) | 8S-24S |
| Number of battery strings (LTO) | 12S-24S |
| Continuous charge current | 150A |
| Continuous discharge current | 150A |
| Maximum discharge current (MAX 2 min) | 300A |
| Over charge protection current (ADJ) | 10-150A |
| Conductive resistance in main circuit | 0.65mΩ |
| Wiring output | Common Port |
| Power supply mode | The battery pack is self-powered |
| Single cell voltage detection range | 0-5V, error <10mV over full operating range (typical error value <5mV) |
| Single cell voltage range | 1-5V |
| Voltage acquisition accuracy | ±5mV |
| Support single cell voltage dropout detection | Yes |
| Total voltage detection range | 0-100V, <0.5%FSR (FSR = full scale) |
| Current sense shunt | -150A~300A, error <0.5%FSR |
| SoC estimation accuracy | Error <8% (operating conditions) |
| Battery remaining capacity accuracy | Error range is less than 8% |
| Total Cycle AH cumulative value | Half of the charge/discharge value |
| Over charge protection voltage | 1.2-4.35V Adjustable |
| Over charge release voltage | 1.2-4.35V Adjustable |
| Over discharge protection voltage | 1.2-4.35V Adjustable |
| Over discharge release voltage | 1.2-4.35V Adjustable |
| Over current detect delay | 2~120S Adjustable |
| Temperature detection | -40~125°C |
| Quantity of temperature detection | 3Pcs |
| Operating temperature | -40~85°C |
| Storing temperature | -40~95°C |
| Operating power consumption | <5mA (without communication) / 15mA (485/CAN) |
| Standby power consumption | <2mA |
| Other interfaces (default) | RS485 |
| Other interfaces (customized) | CANBUS/HEAT |
| Bluetooth function | Support for Android & IOS phone |
| Size | 162*102*20mm |

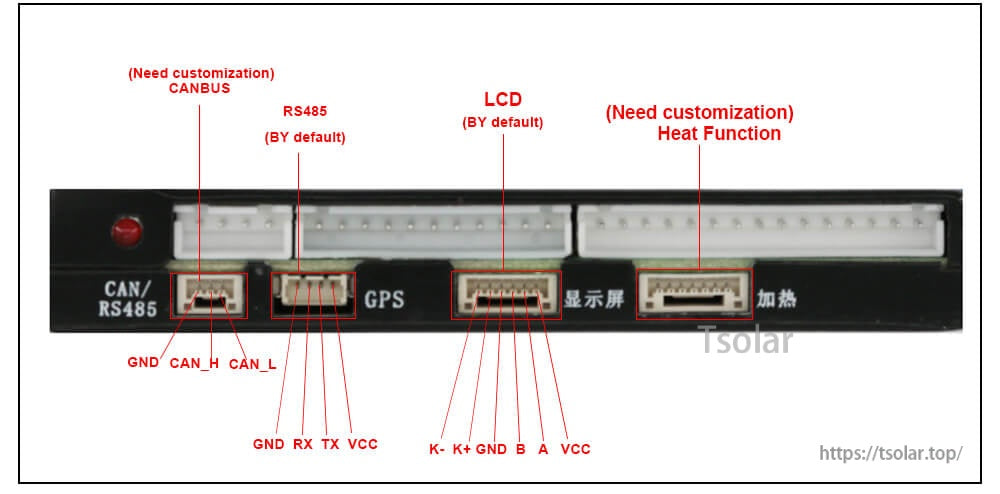

Interfaces & Port Notes
- RS485 (by default): GND, RX, TX, VCC
- CANBUS (need customization): GND, CAN_H, CAN_L
- LCD (by default): K-, K+, GND, B, A, VCC
- Heat function (need customization)

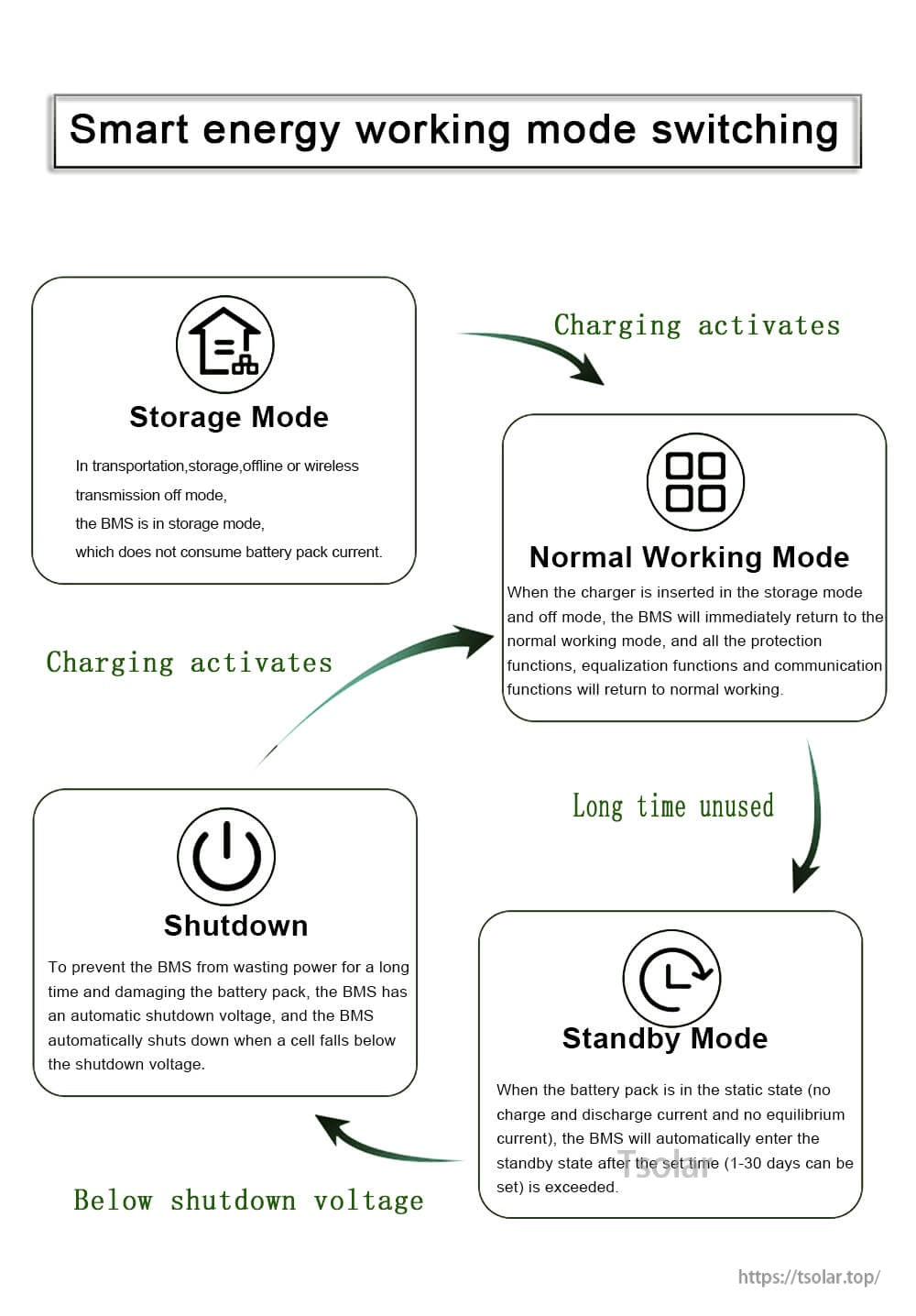

Operating Modes (as described)
- Storage Mode: for transportation/storage/offline or wireless transmission off mode; does not consume battery pack current
- Normal Working Mode: when the charger is inserted in storage mode/off mode, the BMS returns to normal working mode; protection, equalization, and communication functions return to normal working
- Standby Mode: in static state (no charge/discharge current and no equilibrium current), the BMS enters standby after the set time (1-30 days can be set)
- Shutdown: automatic shutdown voltage; shuts down when a cell falls below the shutdown voltage (intended to prevent long-term power waste and battery pack damage)
For product selection and after-sales support, contact service@tsolar.top or visit https://tsolar.top/.
Details
Built on the JK smart BMS platform, active balancing helps keep series cells closer in voltage for more consistent pack performance.
Multiple series configurations and interface options are available across the JKBMS range; select the version that matches your battery chemistry and string count.

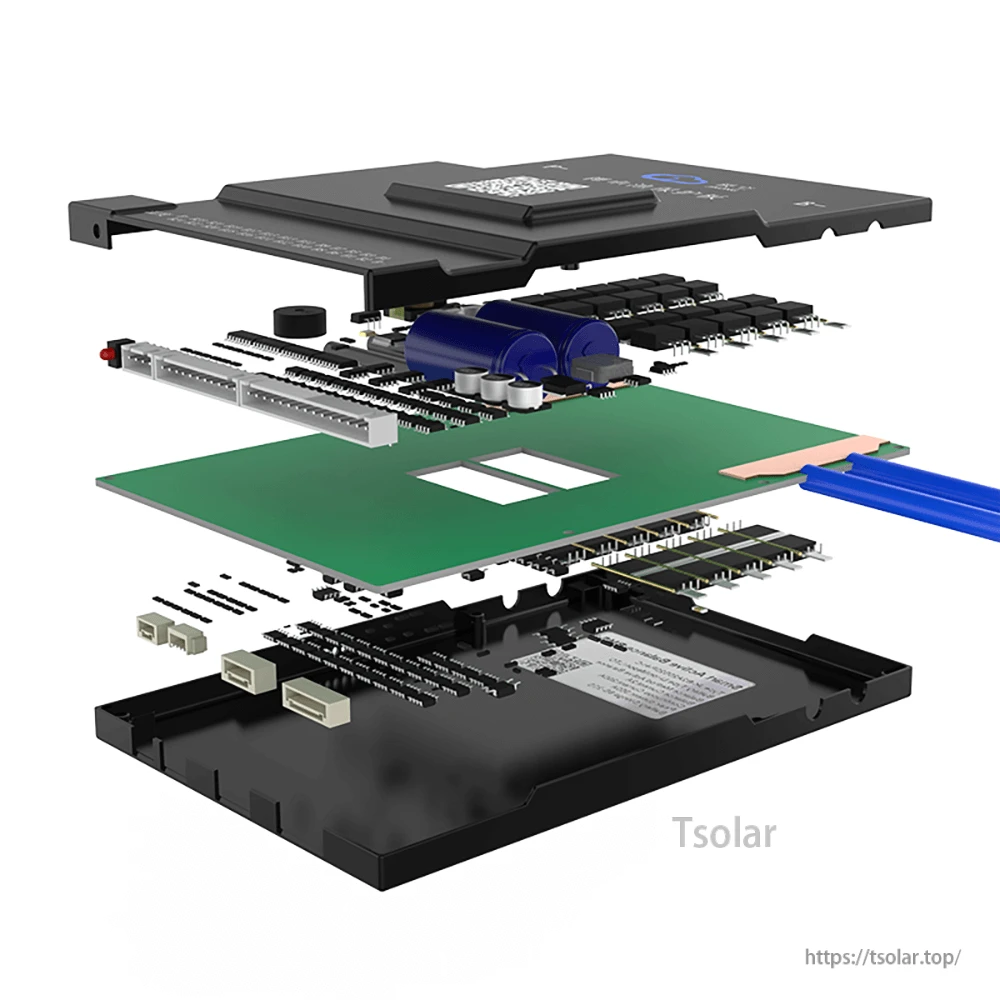

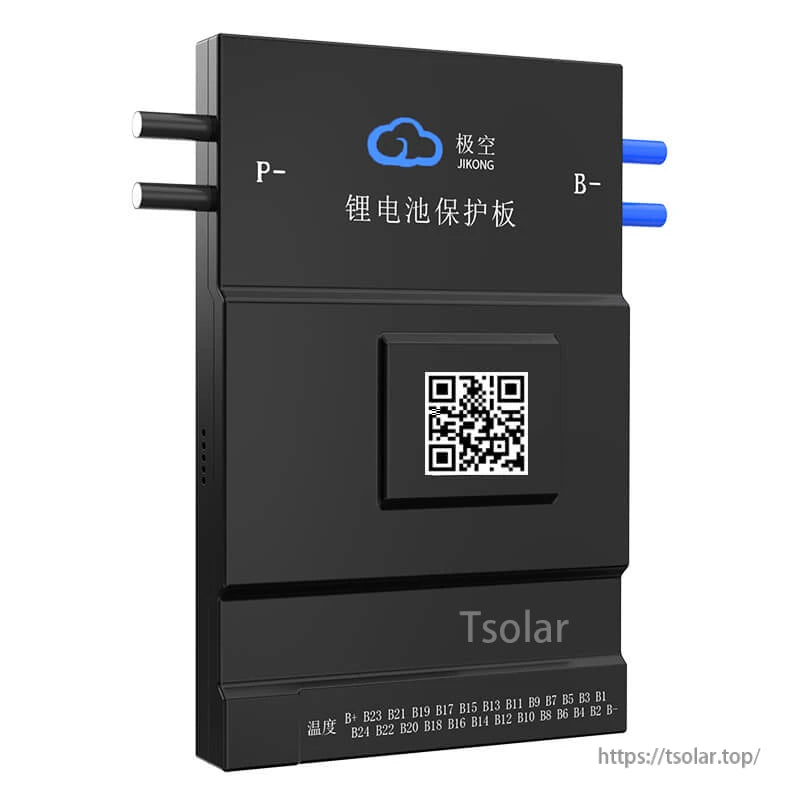

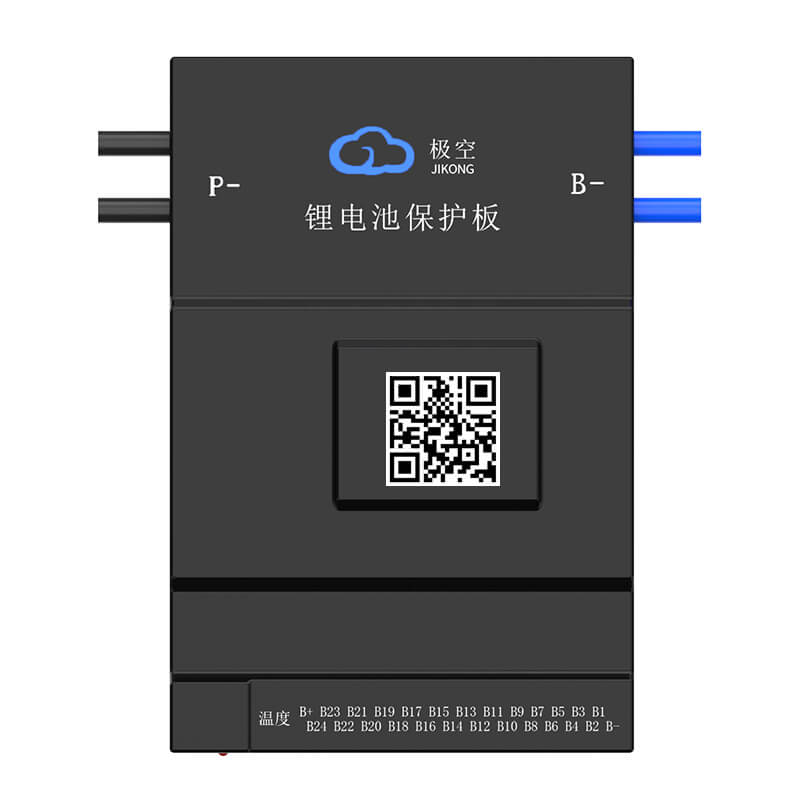

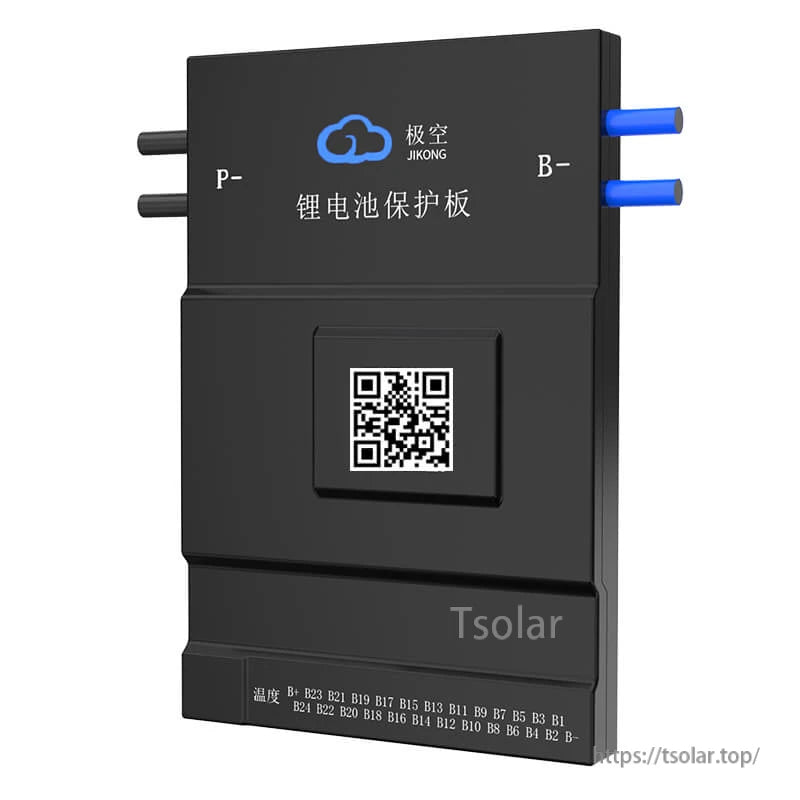

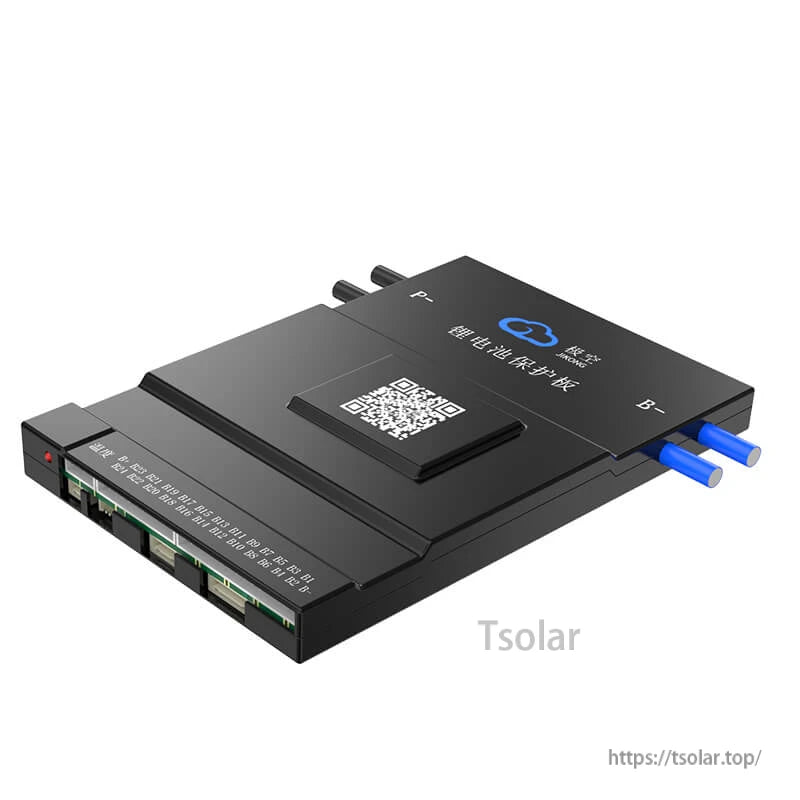

A compact enclosure and multi-connector layout make it easier to route balance leads and communication wiring during installation.

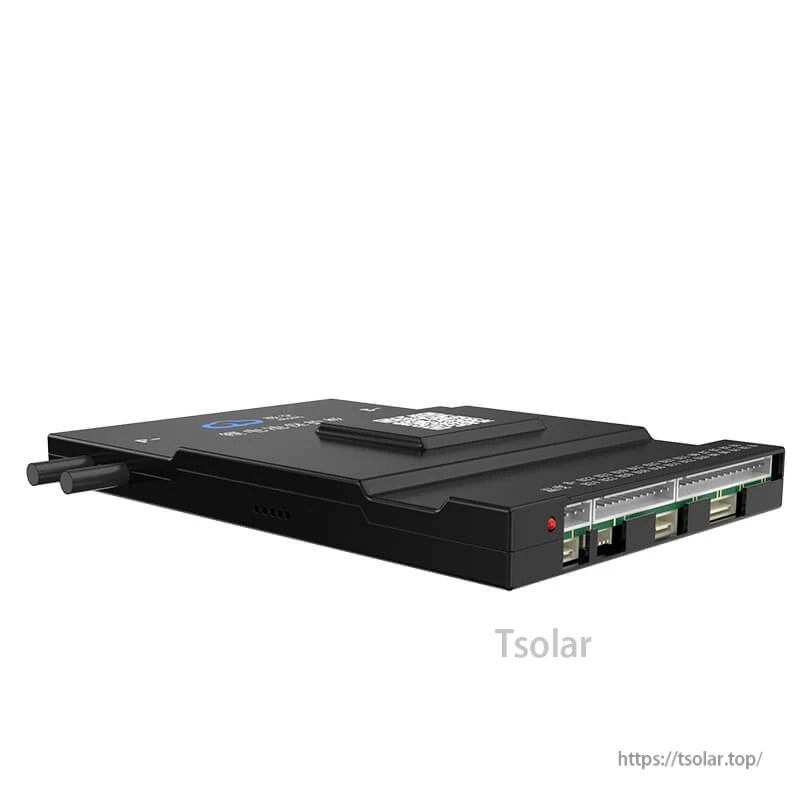

Connection headers provide paths for RS485 by default, with CANBUS and heating-function support available on compatible versions.

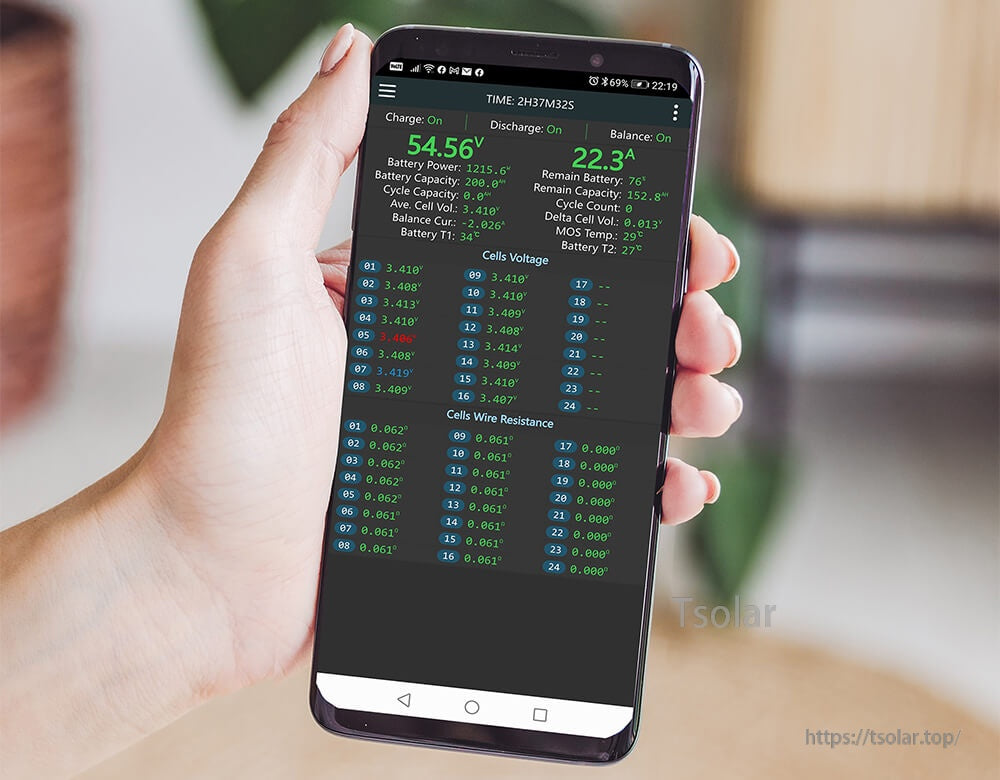

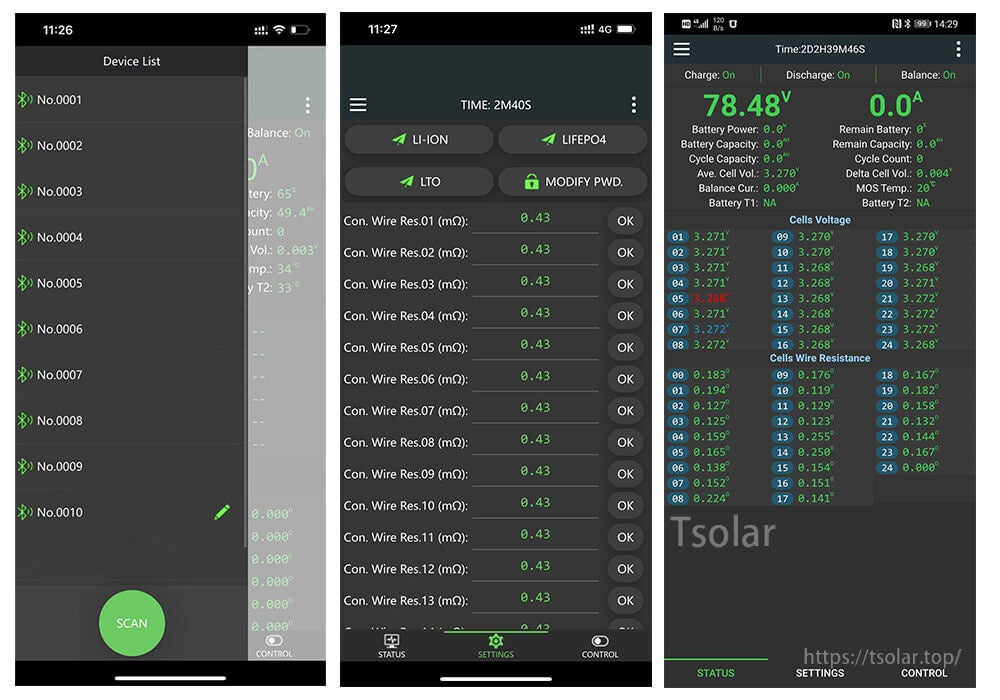

Bluetooth monitoring on iOS/Android lets you check pack voltage, current, and per-cell readings directly from the app.

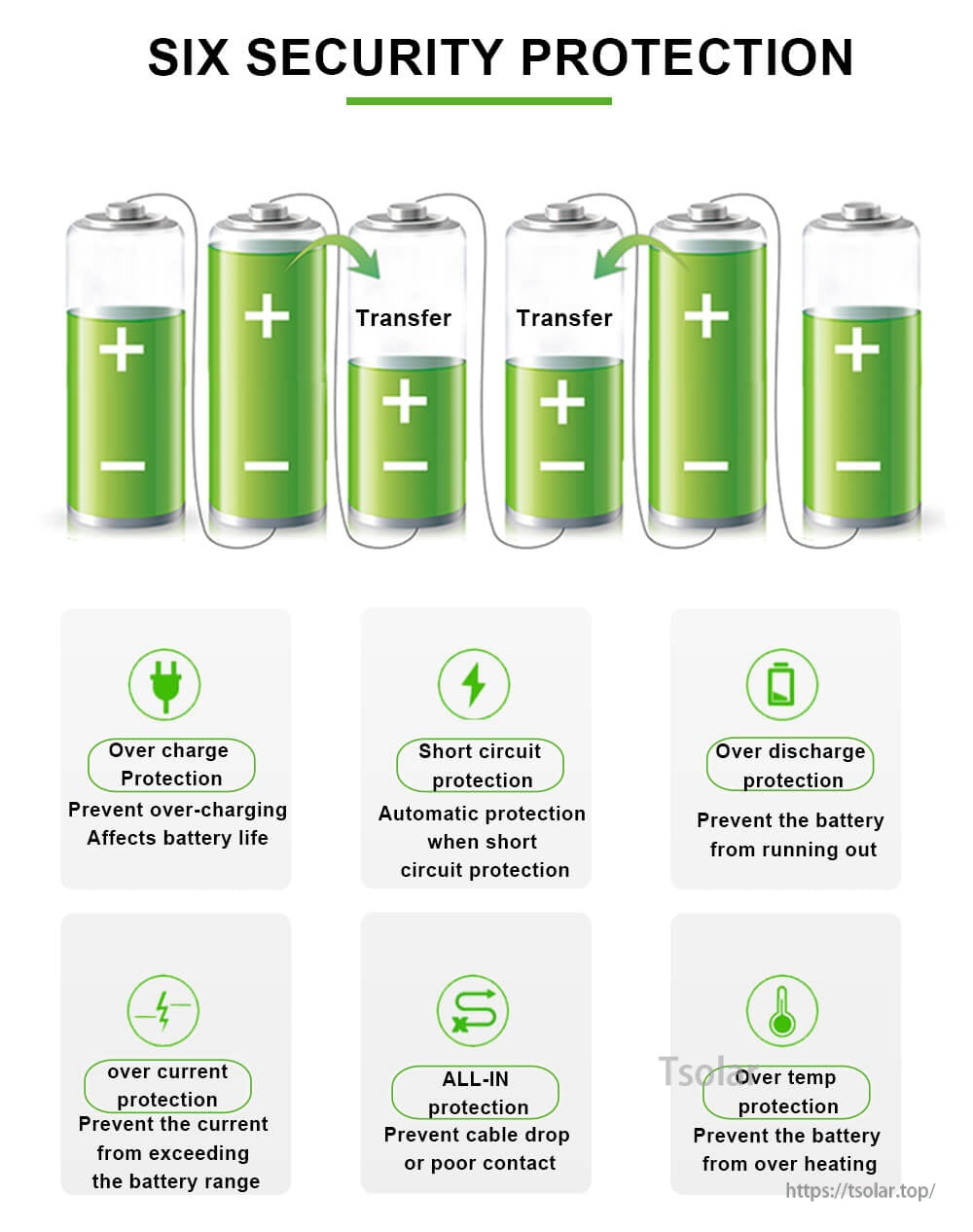

Layered protection features help safeguard the battery pack against common fault conditions such as over-charge, short-circuit, and over-temperature.
Smart operating modes reduce idle drain by switching between storage, standby, and shutdown behavior based on pack state.

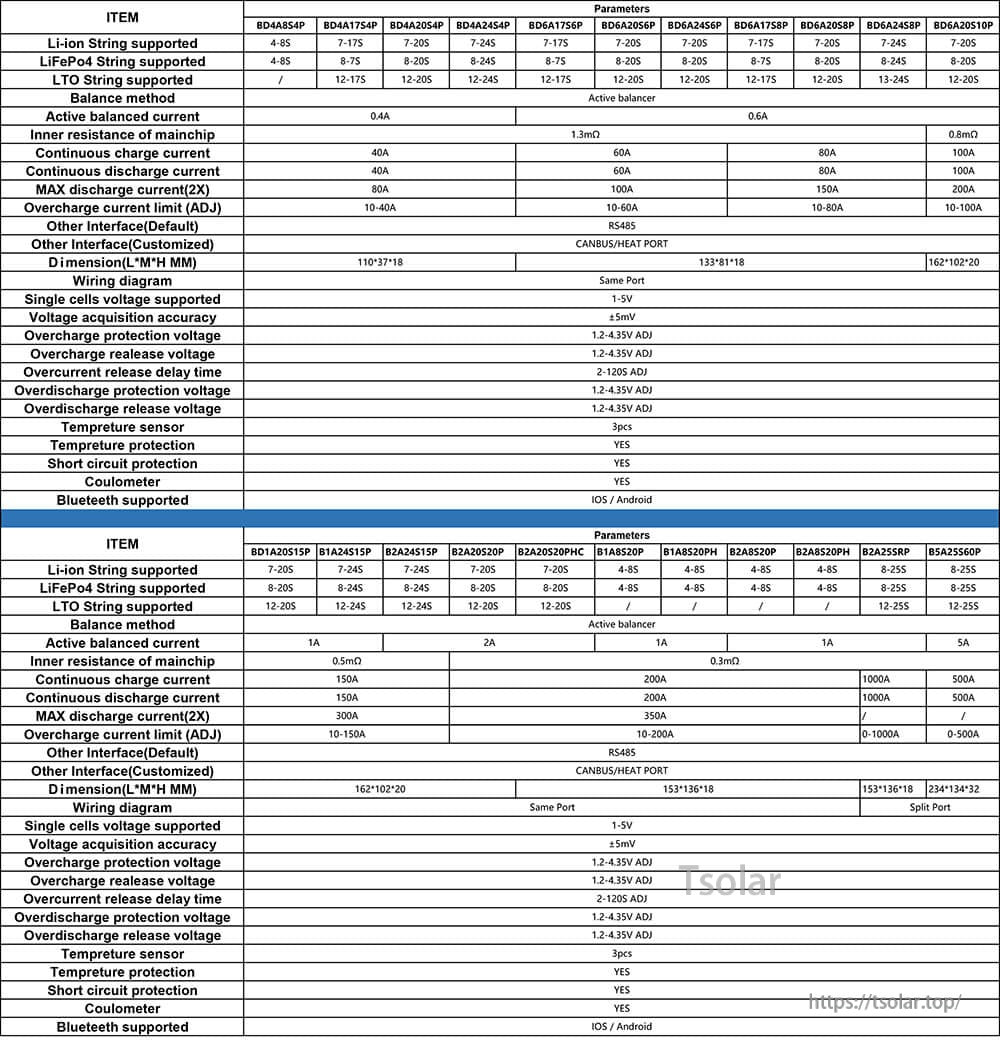

Use the specification chart to confirm supported series strings, balancing current, and communication interfaces before ordering.
