Overview

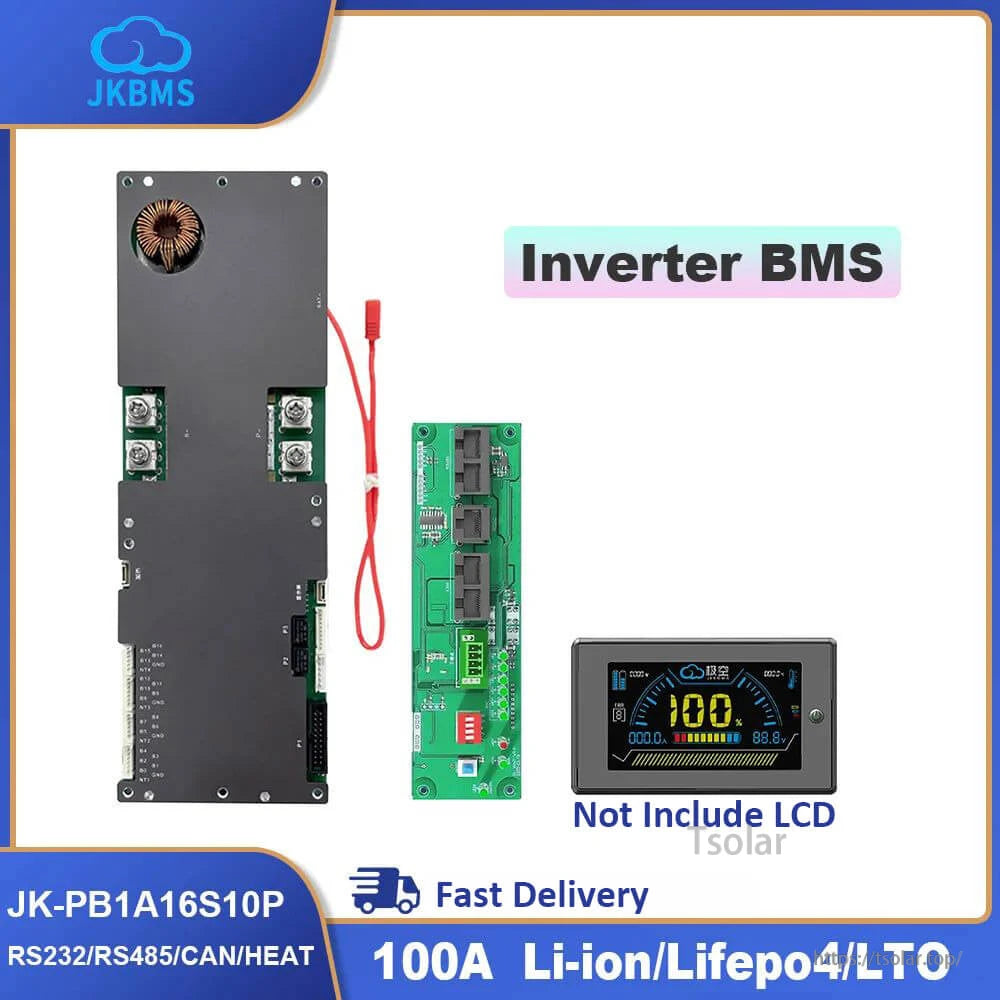

The JKBMS PB1A16S10P is an active-balance smart inverter BMS for family energy storage battery packs using LiFePO4, Li-ion, or LTO cells. It supports 7S–16S (Li-ion), 8S–16S (LiFePO4), and 14S (LTO), provides 1A active balancing (Full State On), and integrates Bluetooth monitoring plus RS485 communication (default) for system integration.
PB series inverter BMS models (PB2A16S20P, PB2A16S15P, PB1A16S15P, PB1A16S10P) are upgraded to the latest V19 version; all orders placed after June 1, 2025 are set to version V19 by default.
Key Features
- Active balancing: Active Balance (Full State On), balance current 1000 mA (1A).
- 100A continuous current: Continuous charge current 100A; continuous discharge current 100A; maximum discharge current 200A (MAX 2min).
- Battery pack self-powered: Power supply mode: the battery pack is self-powered.
- Cell & pack measurement: Single cell voltage detection range 0–5V (typical error <5 mV; error <10 mV over full operating range); total voltage detection range 0–100V (<0.5%FSR).
- Protections & monitoring: short circuit protection, temperature protection, coulomb counter, SoC estimation (error <8% under operating conditions).
- Communication: Bluetooth built-in (Android/iOS); RS485 (default); CANBUS/HEAT (customized).
- Operating modes: Storage Mode, Normal Working Mode, Shutdown, Standby Mode (standby time settable 1–30 days).
For wiring guidance, communication configuration, and setup support, contact https://tsolar.top/ or email service@tsolar.top.

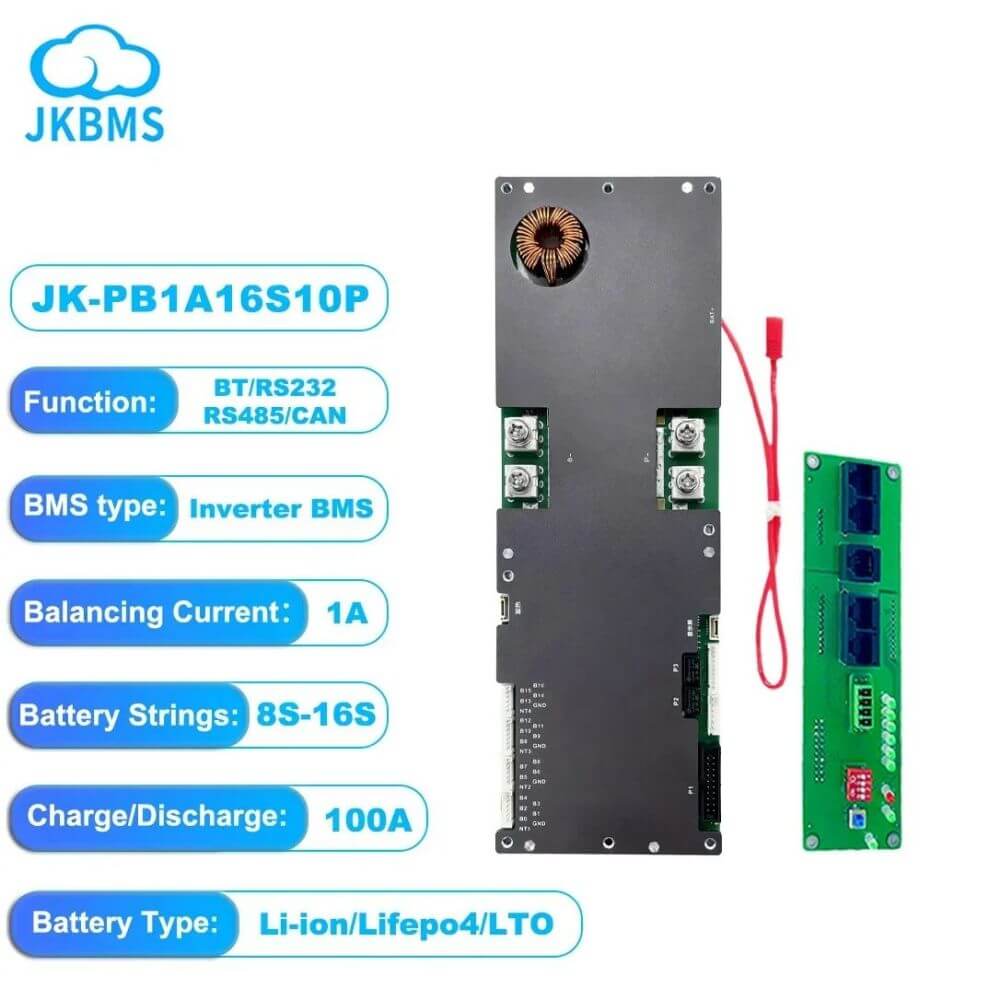

Specifications
| Model | PB1A16S10P |
| Supported battery types | LiFePO4 / Li-ion / LTO |
| Number of battery strings (Li-ion) | 7S–16S |
| Number of battery strings (LiFePO4) | 8S–16S |
| Number of battery strings (LTO) | 14S |
| Balance method | Active Balance (Full State On) |
| Balance current | 1A (1000 mA) |
| Continuous charge current | 100A |
| Continuous discharge current | 100A |
| Maximum discharge current (MAX 2min) | 200A |
| Over charge protection current (ADJ) | 10–100A |
| Conductive resistance in main circuit | 1 mΩ |
| Wiring output / wiring method | Common Port (same port) |
| Single cell voltage range | 1–5V |
| Single cell voltage detection range | 0–5V |
| Single cell voltage detection error | <10 mV over full operating range; typical <5 mV |
| Voltage acquisition accuracy | ±5 mV |
| Support single cell voltage dropout detection | Yes |
| Over charge protection voltage | 1.2–4.35V Adjustable |
| Over charge release voltage | 1.2–4.35V Adjustable |
| Over discharge protection voltage | 1.2–4.35V Adjustable |
| Over discharge release voltage | 1.2–4.35V Adjustable |
| Over current detect delay | 2–120S Adjustable |
| Total voltage detection range | 0–100V |
| Total voltage detection accuracy | <0.5%FSR (FSR = full scale) |
| Current sense shunt | -150A to 300A, error <0.5%FSR |
| SoC estimation accuracy | Error <8% (operating conditions) |
| Battery remaining capacity | Error range <8% |
| Total cycle AH cumulative value | Half of the charge/discharge value |
| Operating power consumption | <5 mA (without communication) / 15 mA (485/CAN) |
| Standby power consumption | <2 mA |
| Temperature detection range | -40 to 125°C |
| Quantity of temperature detection | 4Pcs |
| Operating temperature | -40 to 85°C |
| Storing temperature | -40 to 95°C |
| Short circuit protection | Yes |
| Temp protection | Yes |
| Coulomb counter | Yes |
| Bluetooth function | Bluetooth built-in; support for Android & iOS phone |

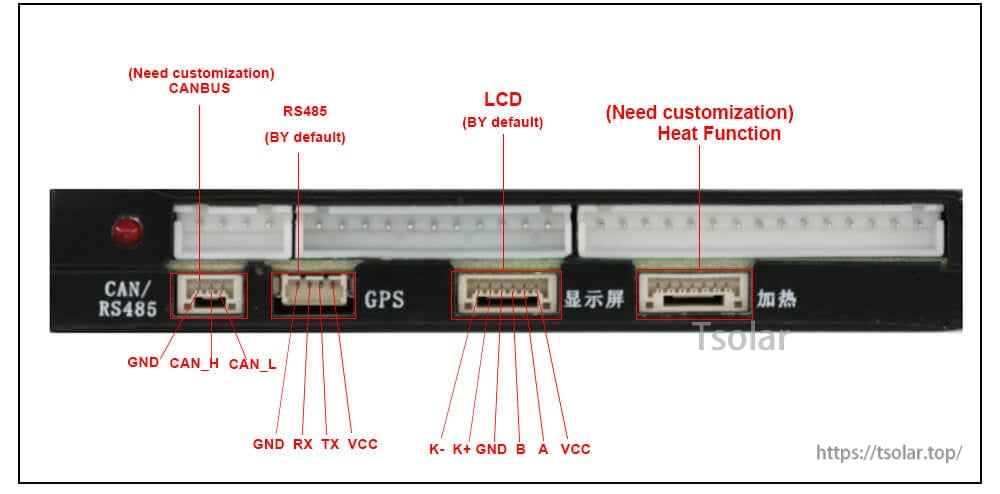

| Other interfaces (default) | RS485 |
| Other interfaces (customized) | CANBUS/HEAT |
| Size | 300*100*18mm |
Protection Functions
- Over charge protection
- Short circuit protection
- Over discharge protection
- Over current protection
- All-in protection (prevents cable drop or poor contact)
- Over temperature protection
Communication & App Notes
- Built-in Bluetooth module; supports iOS/Android system.
- Download the specified Bluetooth application and activate the BMS.
- Open the Bluetooth application and find the relevant serial number to check data.
Applications
- Home/family energy storage battery packs (LiFePO4, Li-ion, LTO)
- Inverter battery systems requiring active balancing, 100A continuous current, and RS485/CANBUS communication
Details
Built for home energy storage packs, the PB series smart inverter BMS combines active balancing with system communications for cleaner integration.
Choose the correct string count and current rating for your pack; the PB lineup covers multiple cell chemistries and stack sizes.

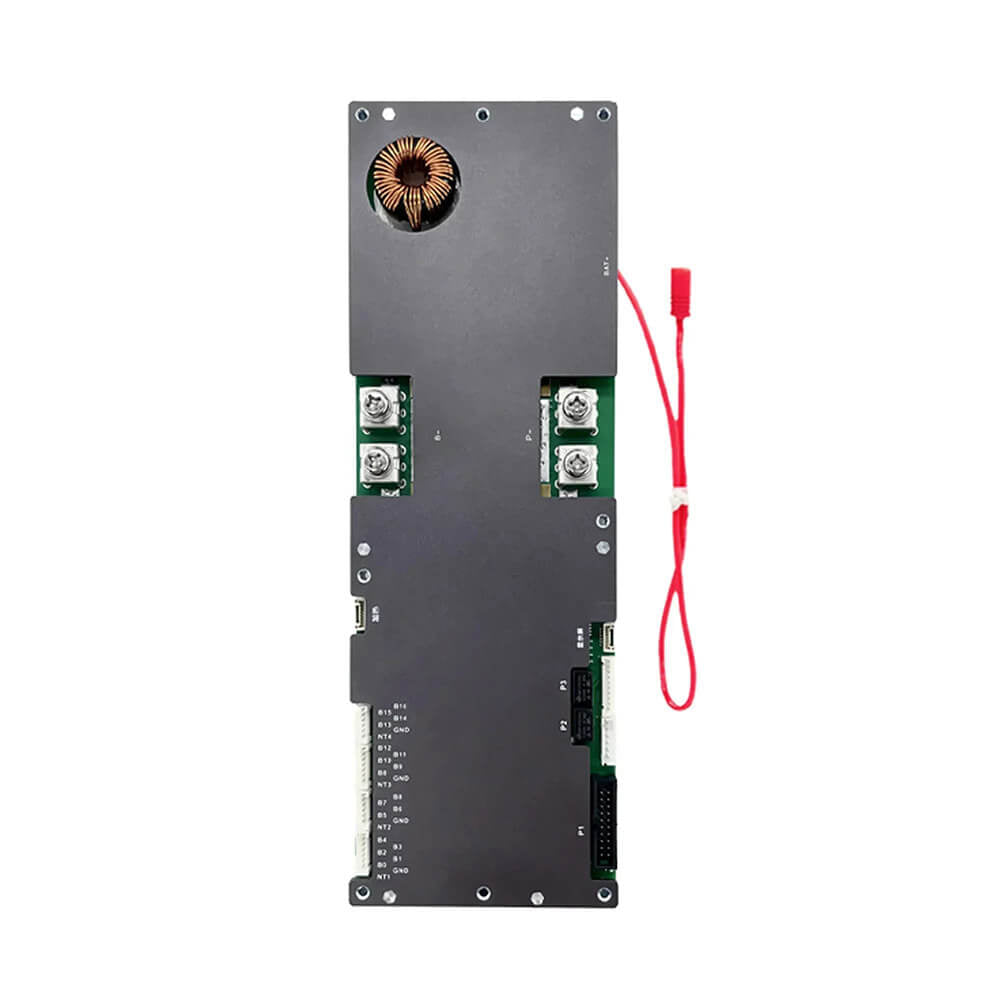

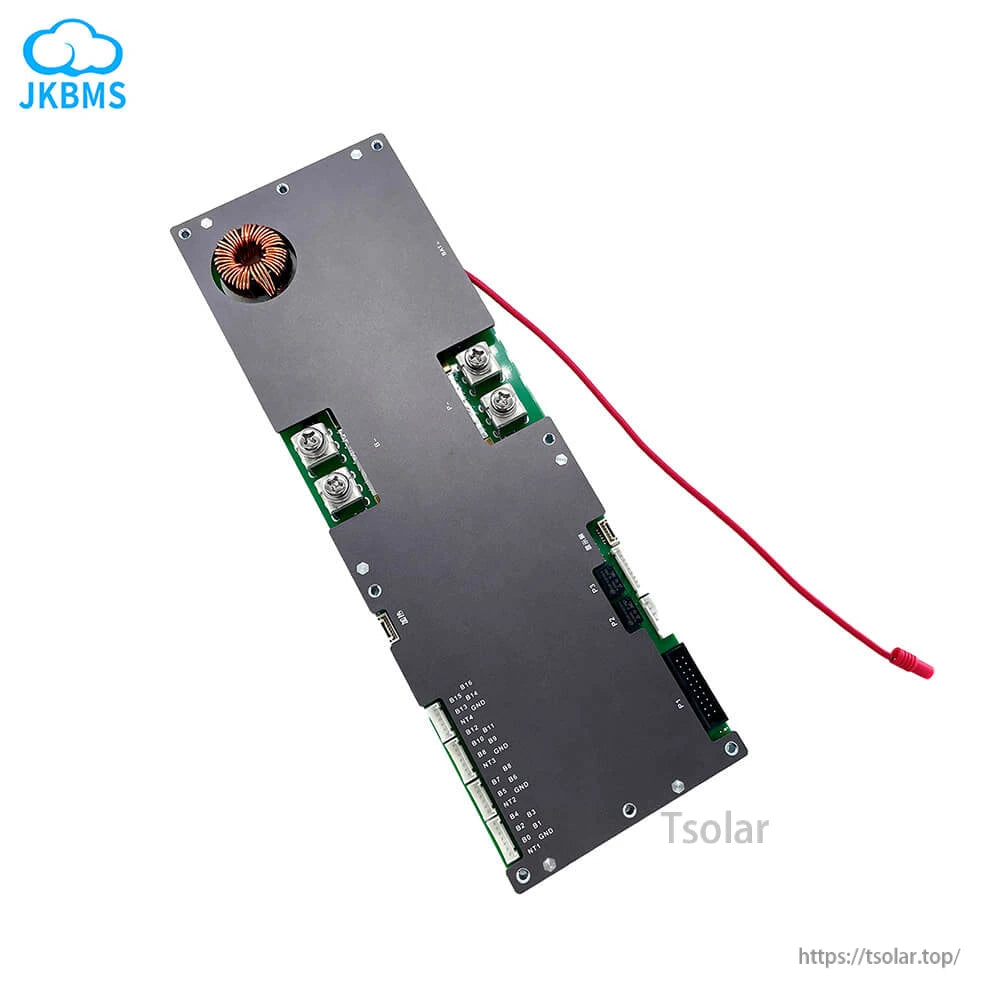

A multi-layer internal design brings together the control board, high-current path, and connector interfaces in a compact enclosure.

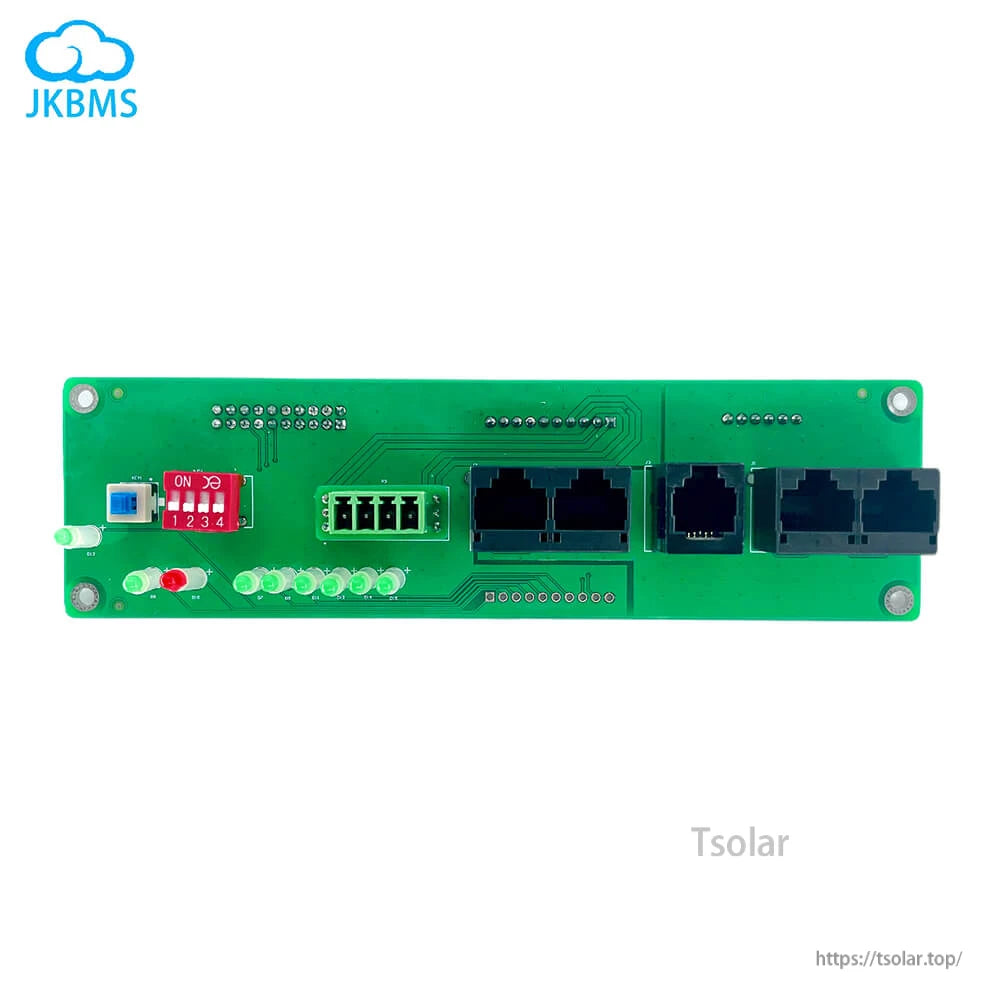

RS485 is the default communication interface, with CANBUS and heating control available as customization options.

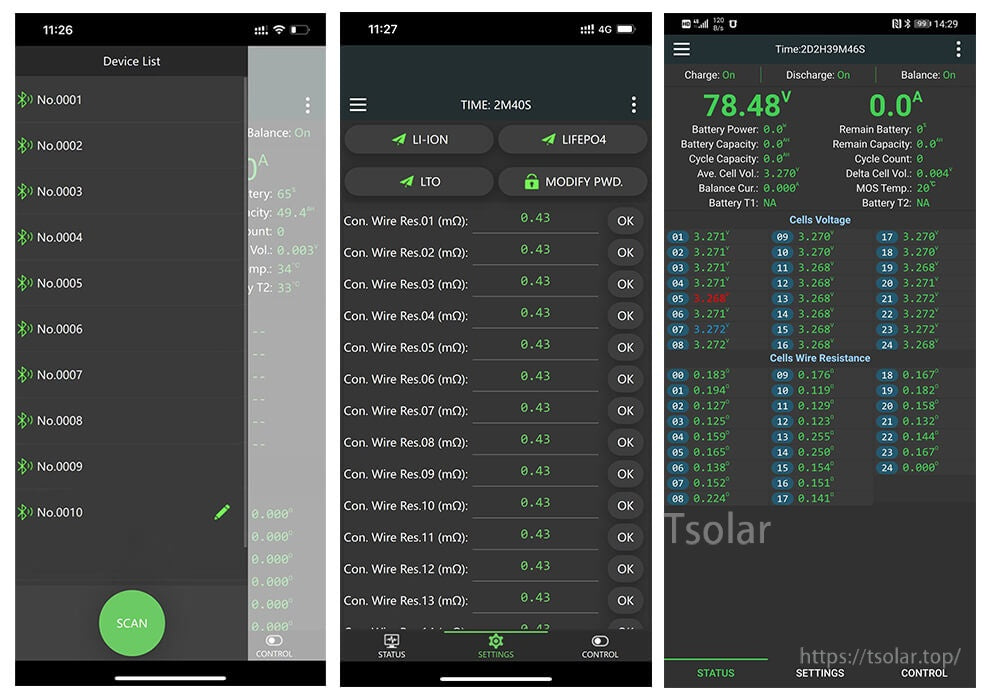

Bluetooth monitoring provides quick access to pack status, cell voltages, and real-time charge/discharge information from a phone.
App controls include battery type selection and configuration tools, alongside detailed per-cell readings for troubleshooting and tuning.
Layered protections help safeguard the pack against common electrical and temperature fault conditions during operation.
Power modes such as Storage, Standby, and Shutdown are designed to reduce pack drain when the system sits unused.
