Overview
The JKBMS 4.3 LCD Display Adapter is a display and communication accessory designed for use with JIKONG (JK) Smart BMS systems. It provides a 4.3-inch LCD status display and supports Bluetooth app monitoring as well as RS485/CANBUS communication (as specified).
Key Features

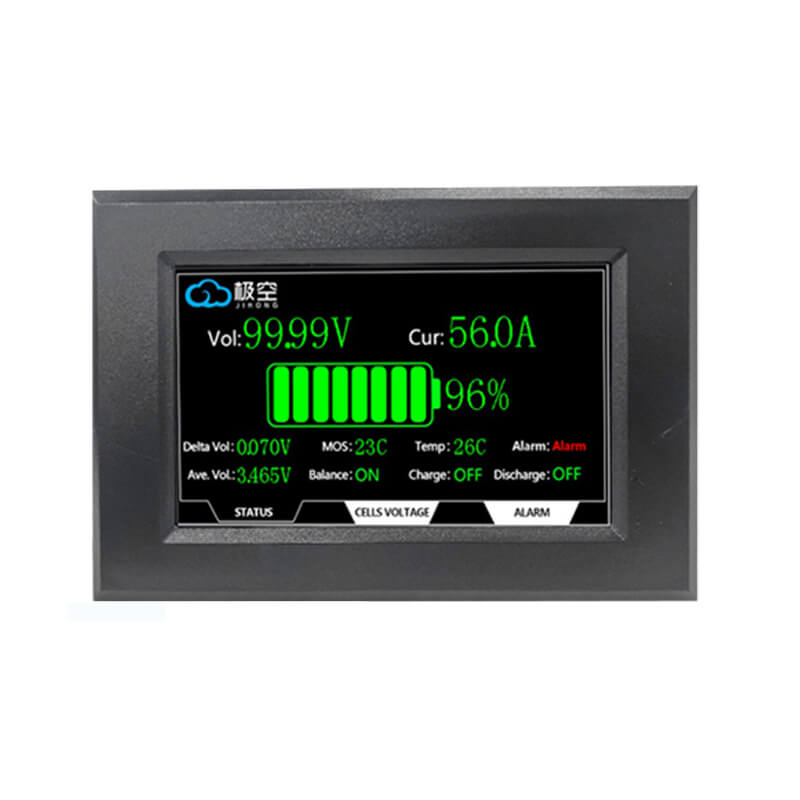

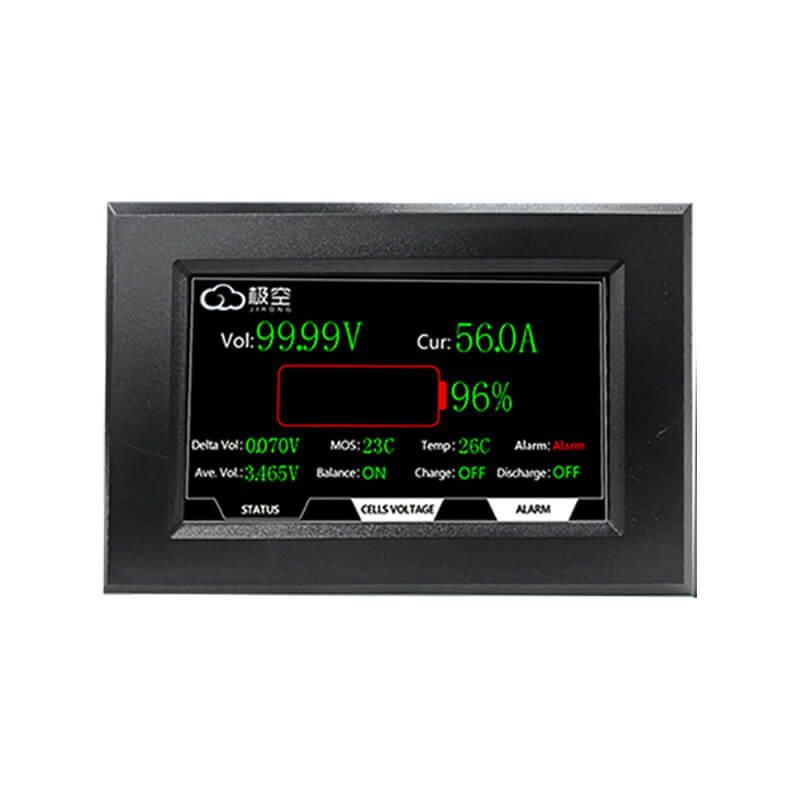

- 4.3-inch LCD display adapter for JIKONG/JK Smart BMS
- Built-in Bluetooth module
- Supports RS485/CANBUS communication
- Supports iOS/Android systems

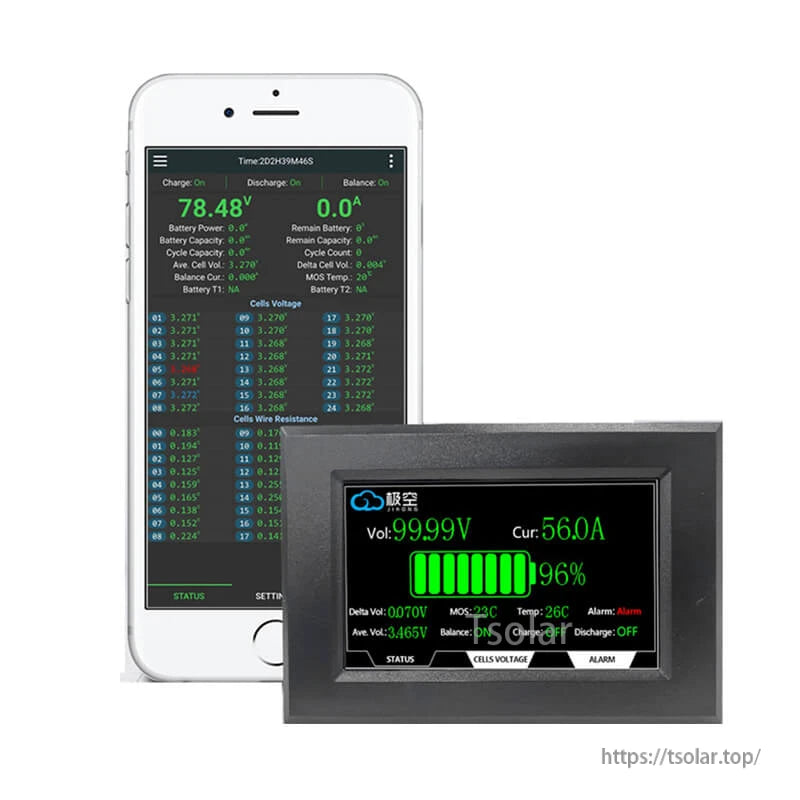

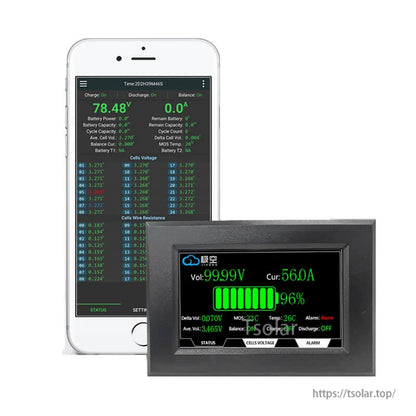

- App usage (as described): download the specified Bluetooth application and activate the BMS; open the Bluetooth application, find the relevant serial number, then check data
Six Security Protection (BMS-related functions as described)
- Over charge protection: Prevent over-charging affects battery life
- Short circuit protection: Automatic protection when short circuit protection
- Over discharge protection: Prevent the battery from running out
- Over current protection: Prevent the current from exceeding the battery range
- All-in protection: Prevent cable drop or poor contact
- Over temp protection: Prevent the battery from over heating
Specifications
| Display size | 4.3 LCD Display |
| Communication | Bluetooth; RS485/CANBUS |
| Mobile OS support | iOS / Android |

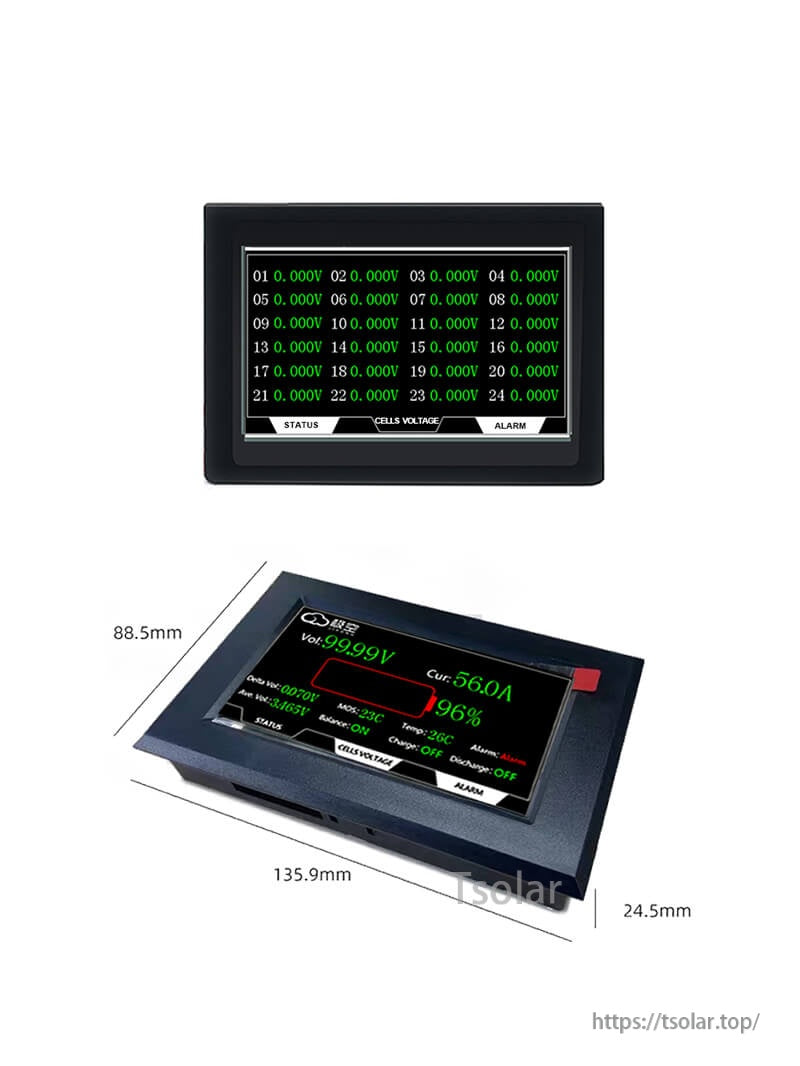

| Dimensions (L x W x H) | 135.9 mm x 88.5 mm x 24.5 mm |
| Drawing dimensions shown | 114.8; 106.5 ± 0.3 (B x e2); 96.6 (V.A.); 95 (A.A.); 57.4; 68.2 ± 0.3; 66.5; 55.3; 30.2; 121.9 ± 0.2; 74.7 ± 0.2; 33.2; 27.1; 7.9; 4 x φ3.2; 3.6; 4.4 |

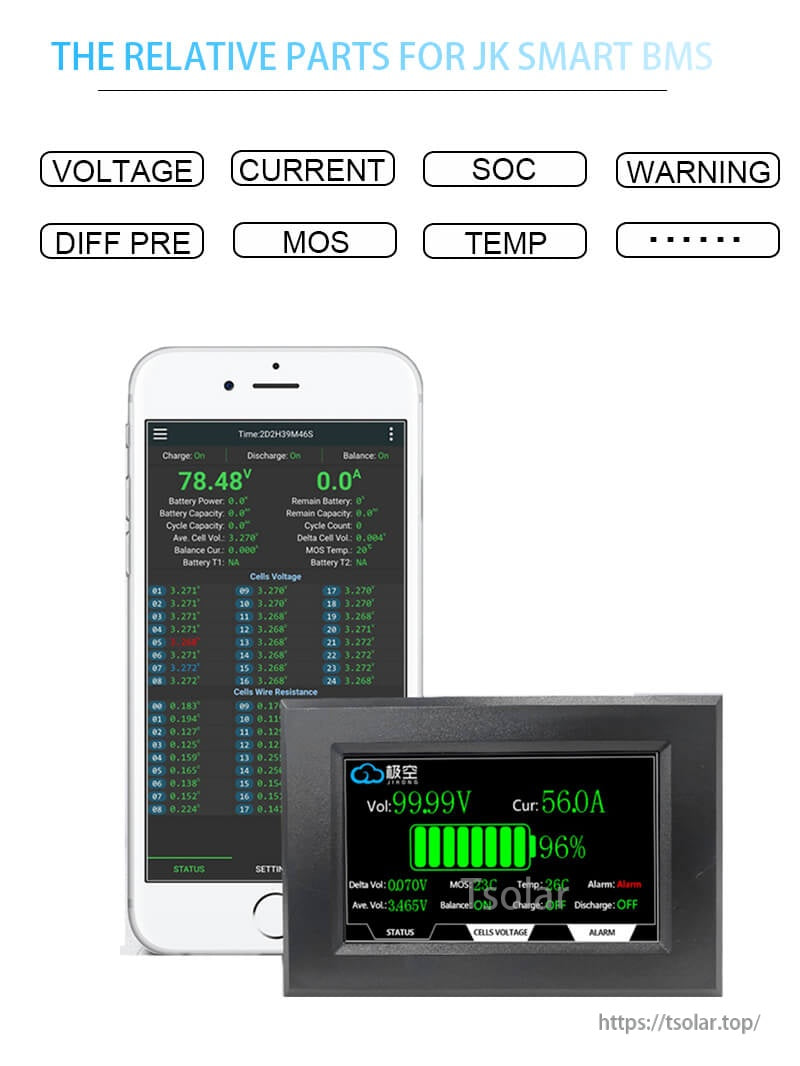

| LCD/BMS on-screen items shown | VOLTAGE; CURRENT; SOC; WARNING; DIFF PRE; MOS; TEMP; …… |
Connector / Pin Labels Shown
| CAN/RS485 header | CANBUS (Need customization); RS485 (By default) |
| CAN pins | GND; CAN_H; CAN_L |
| RS485 pins (labeled near GPS) | GND; RX; TX; VCC |
| LCD header | LCD (By default) |
| LCD pins | K-; K+; GND; B; A; VCC |
| Heat function header | Heat Function (Need customization) |
What’s Included (Options)
- 4.3 LCD Display
- 4.3 LCD Display with 3M Extension Cable

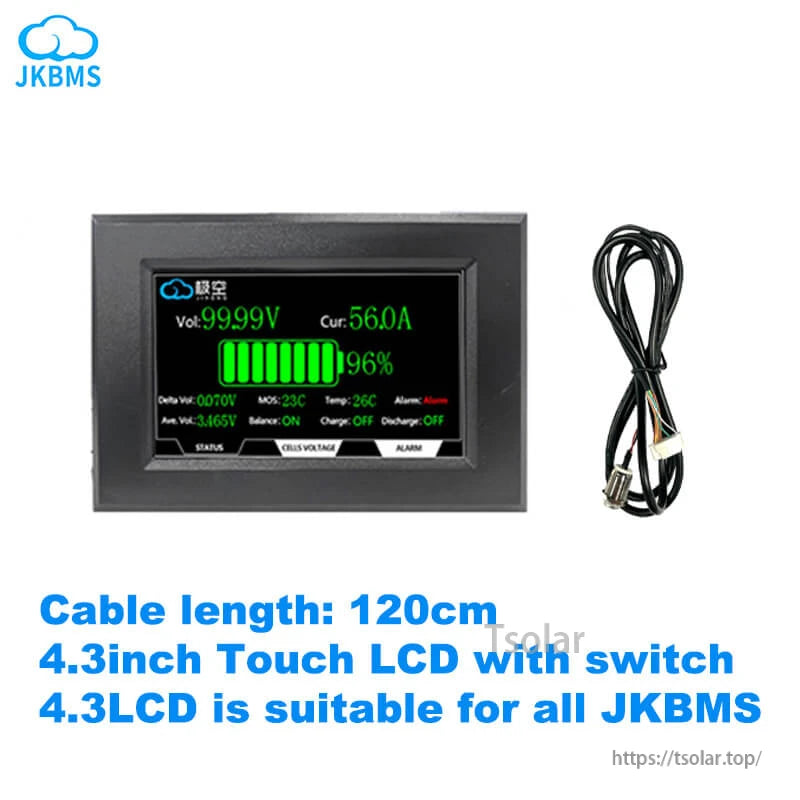

- Only 3M Extension Cable
Support
For pre-sales compatibility checks or after-sales support for this JKBMS 4.3 LCD Display Adapter for JIKONG BMS, contact service@tsolar.top or visit https://tsolar.top/.
