Overview

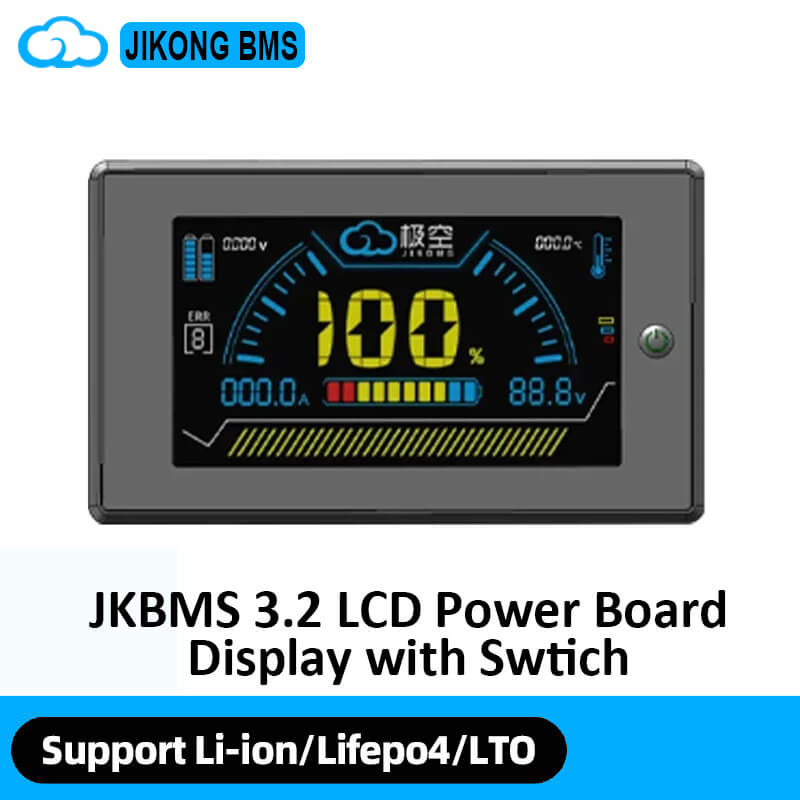

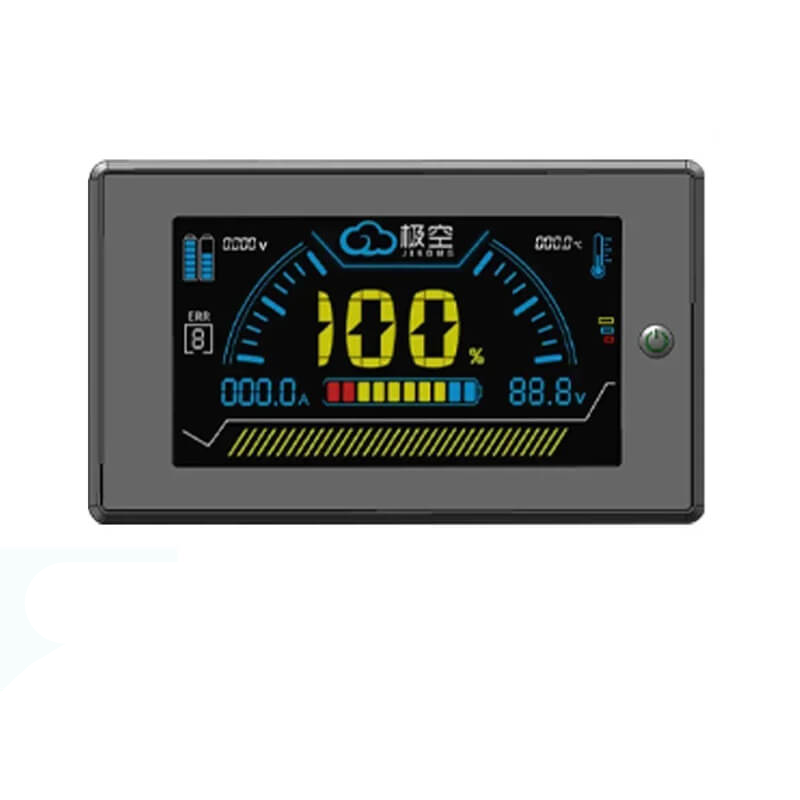

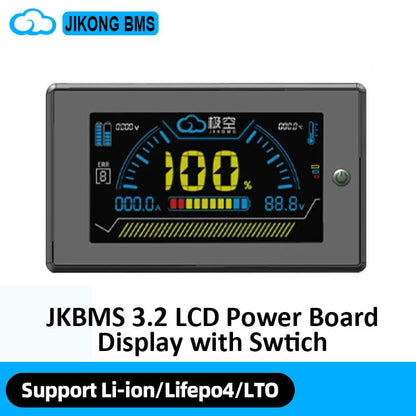

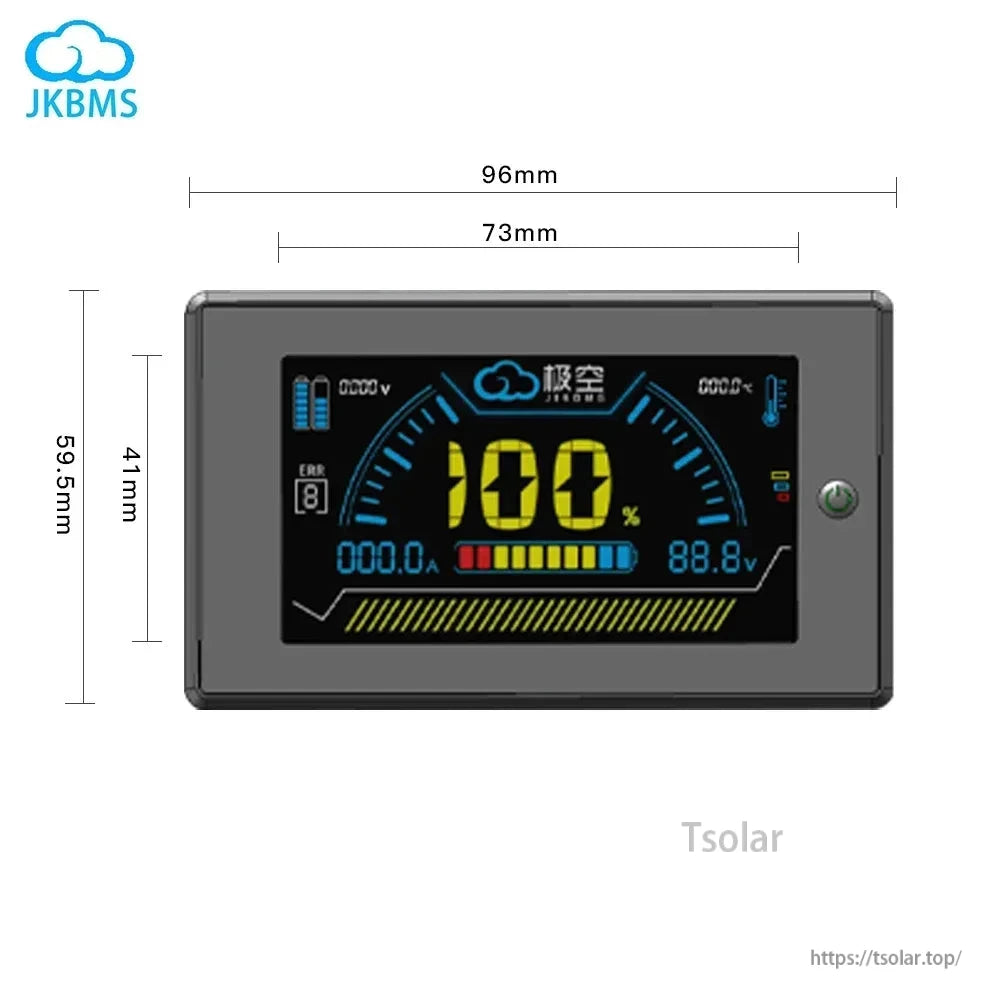

The JKBMS 3.2 LCD Power Board Display for JIKONG BMS is an LCD display and power-board accessory intended for JK/JIKONG Smart BMS systems, providing real-time monitoring and user interaction. The provided page text also contains the wording “JKBMS 2.5 LCD Power Board Display for JIKONG BMS” in the Additional Information section.
Key Features
- Real time monitoring: SOC, CURRENT, VOLTAGE, WARNING
- Function of activation BMS by press button
- Bulit-in Bluetooth Module
- Support RS485/CANBUS Communication
- Support IOS/Android System

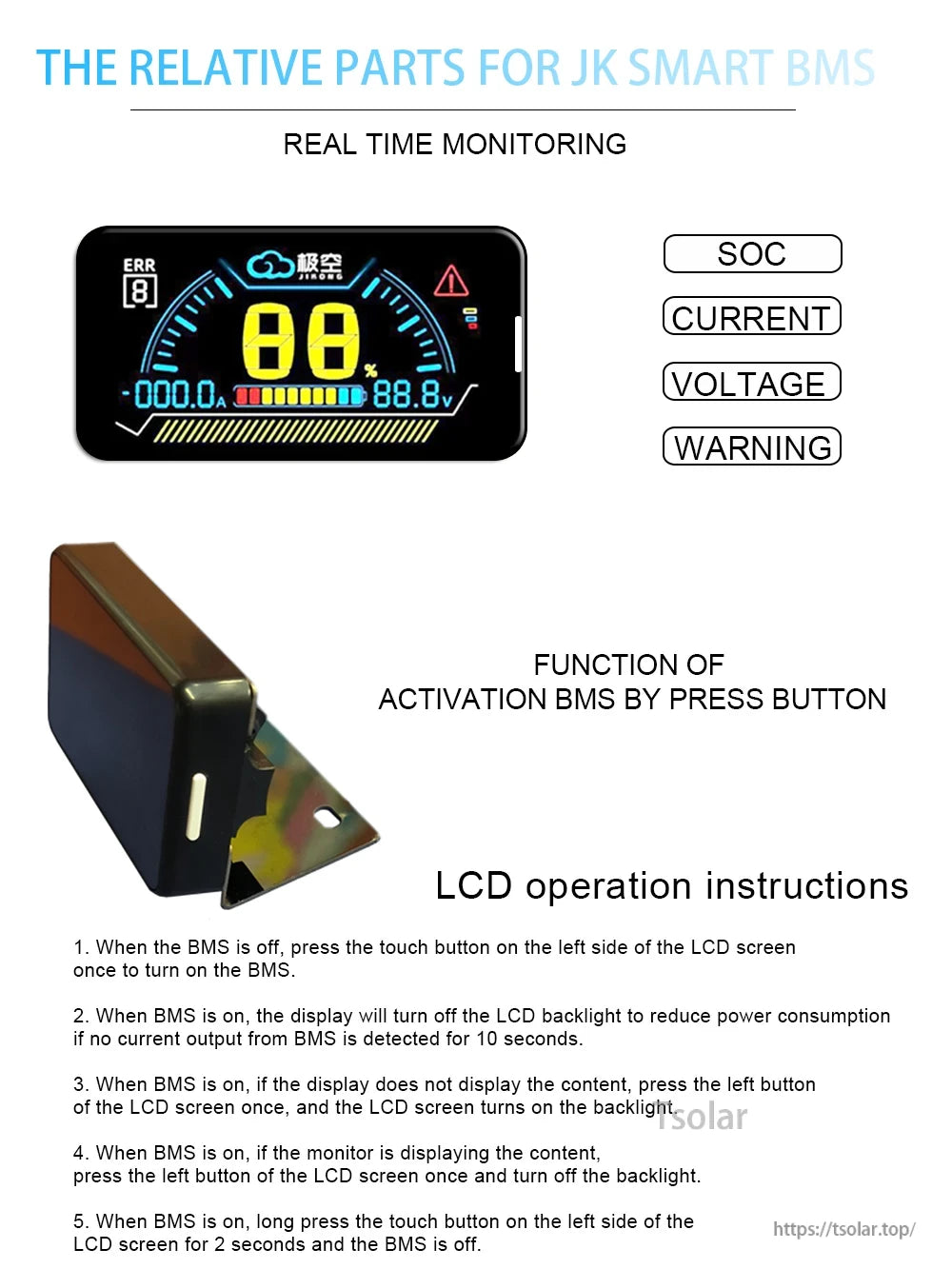

LCD Operation Instructions (as provided)
- When the BMS is off, press the touch button on the left side of the LCD screen once to turn on the BMS.
- When BMS is on, the display will turn off the LCD backlight to reduce power consumption if no current output from BMS is detected for 10 seconds.
- When BMS is on, if the display does not display the content, press the left button of the LCD screen once, and the LCD screen turns on the backlight.
- When BMS is on, if the monitor is displaying the content, press the left button of the LCD screen once and turn off the backlight.
- When BMS is on, long press the touch button on the left side of the LCD screen for 2 seconds and the BMS is off.
Communication Ports / Pinout (as provided)
- CANBUS (Need customization): GND, CAN_H, CAN_L
- RS485 (BY default): GND, RX, TX, VCC
- LCD (BY default): K-, K+, GND, B, A, VCC
- Heat Function (Need customization)
Bluetooth App Notes (as provided)
- Download the specified Bluetooth application and activate the BMS.
- Open the Bluetooth application and find the relevant serial number,then you can check all the data.
For compatibility confirmation with a specific JK/JIKONG BMS model and harness/port type, contact customer service at service@tsolar.top or visit https://tsolar.top/.
Protection Functions Mentioned in Provided Materials
SIX SECURITY PROTECTION
- Over charge protection: Prevent over-charging affects battery life
- Short circuit protection: Automatic protection when short circuit protection
- Over discharge protection: Prevent the battery from running out
- Over current protection: Prevent the current from exceeding the battery range
- All-in protection: Prevent cable drop or poor contact
- Over temp protection: Prevent the battery from over heating
Smart Energy Working Mode Switching (as provided)
- Storage Mode: In transportation, storage, offline or wireless transmission off mode, the BMS is in storage mode, which does not consume battery pack current.
- Normal Working Mode: When the charger is inserted in the storage mode and off mode, the BMS will immediately return to the normal working mode, and all the protection functions, equalization functions and communication functions will return to normal working.
- Shutdown: To prevent the BMS from wasting power for a long time and damaging the battery pack, the BMS has an automatic shutdown voltage, and the BMS automatically shuts down when a cell falls below the shutdown voltage.
- Standby Mode: When the battery pack is in the static state (no charge and discharge current and no equilibrium current), the BMS will automatically enter the standby state after the set time (1-30 days can be set) is exceeded.
Diagram labels shown: “Smart energy working mode switching”, “Charging activates”, “Long time unused”, “Below shutdown voltage”.
Reference Text Shown in Provided JK Smart BMS Materials
The following model/feature text appears in the provided materials and is listed here for reference.

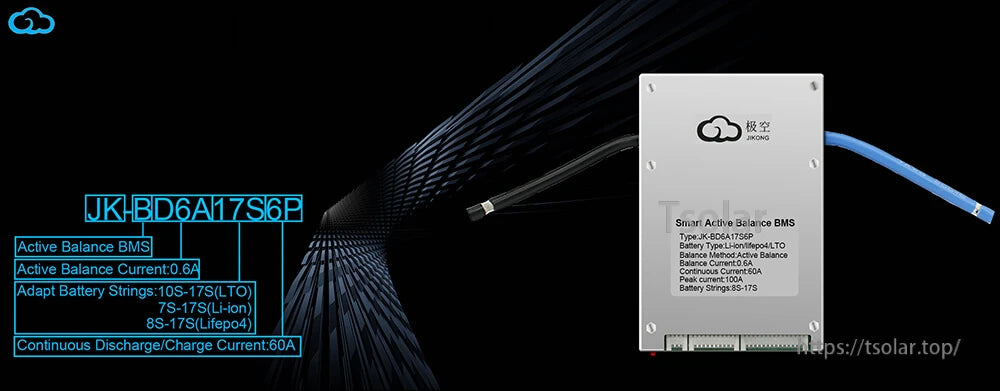

JK-BD6A17S6P (text shown)
- Active Balance BMS
- Active Balance Current: 0.6A
- Adapt Battery Strings: 10S-17S (LTO); 7S-17S (Li-ion); 8S-17S (Lifepo4)
- Continuous Discharge/Charge Current: 60A
- Device label text shown: “Smart Active Balance BMS”; “Type: JK-BD6A17S6P”; “Battery Type: LiFePO4”; “Balance Method: Active balance”; “Balance Current: 0.6A”; “Continuous Current: 60A”; “Peak current: 100A”; “Battery Strings: 03-17S”.

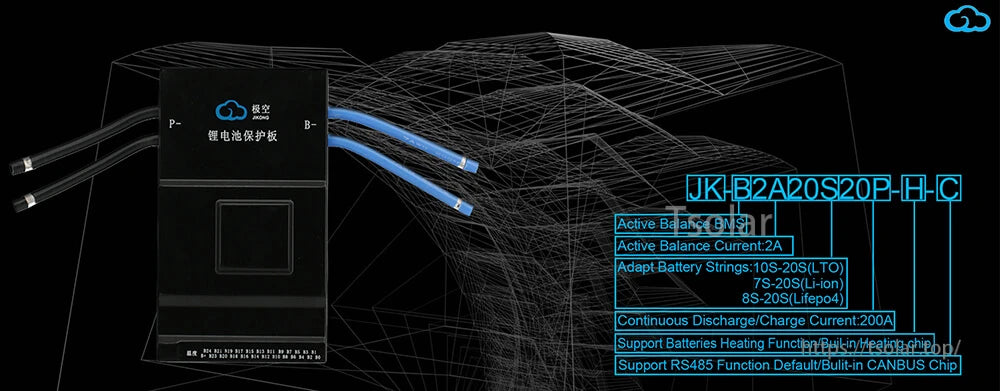

JK-B2A20S20P-H-C (text shown)
- Active Balance BMS
- Active Balance Current: 2A
- Adapt Battery Strings: 10S-20S (LTO); 7S-20S (Li-ion); 8S-20S (Lifepo4)
- Continuous Discharge/Charge Current: 200A
- Support Batteries Heating Function / Buil-in Heating chip
- Support RS485 Function Default / Built-in CANBUS Chip
Specification Table Note (visibility limits)
A multi-model specification table is included in the provided materials. Some entries (model columns and certain values) are not reliably legible at the provided resolution, so they are not restated here to avoid inaccuracies. Readable/common items shown include: Balance method: Active balancer; Other Interface (Default): RS485; Other Interface (Customized): CANBUS/HEAT PORT; Single cells voltage supported: 1-5V; Voltage acquisition accuracy: ±5mV; Temperature sensor: 3pcs; Temperature protection: YES; Short circuit protection: YES; Coulometer: YES; Bluetooth supported: IOS / Android.
Details
Get a quick read on SOC, current, voltage, and alerts, plus a one-touch button for BMS activation and backlight control.
JK/JIKONG smart BMS compatibility varies by model and harness—confirm the correct version before ordering.
An exploded view highlights the multi-board design and internal connectors used for communications and accessories.
Port labels make wiring straightforward for RS485, LCD connections, and optional CANBUS/heat functions where supported.

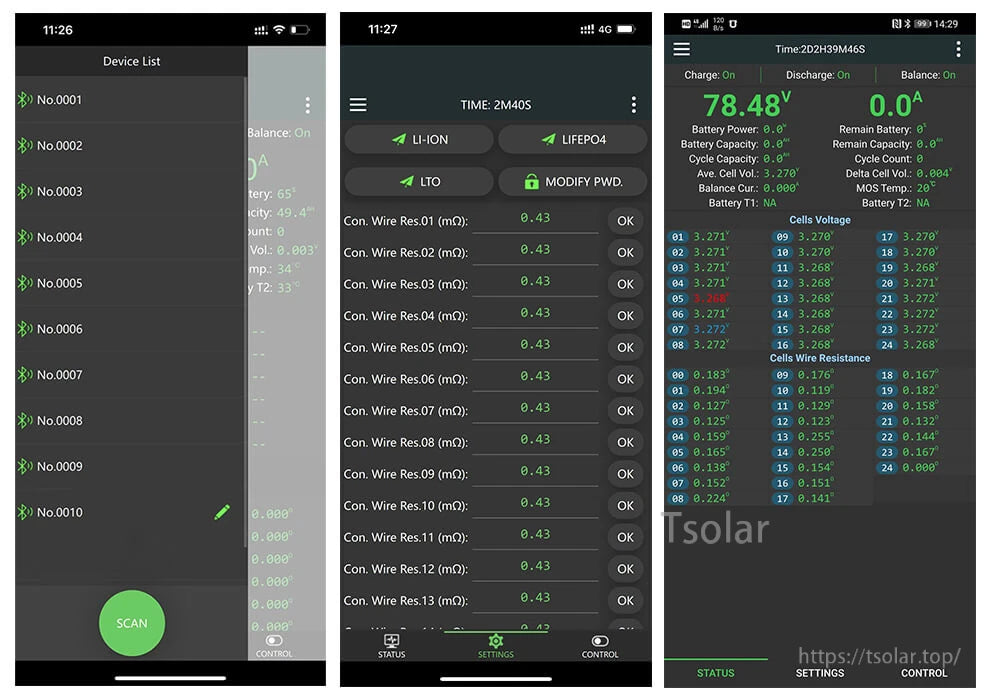

Bluetooth monitoring in the mobile app provides live pack data and per‑cell readings for quick status checks.
Built-in protection logic helps guard against common battery fault conditions during charging and discharge.
Smart energy modes support storage, standby, and normal operation behavior to help reduce idle drain.
