Overview

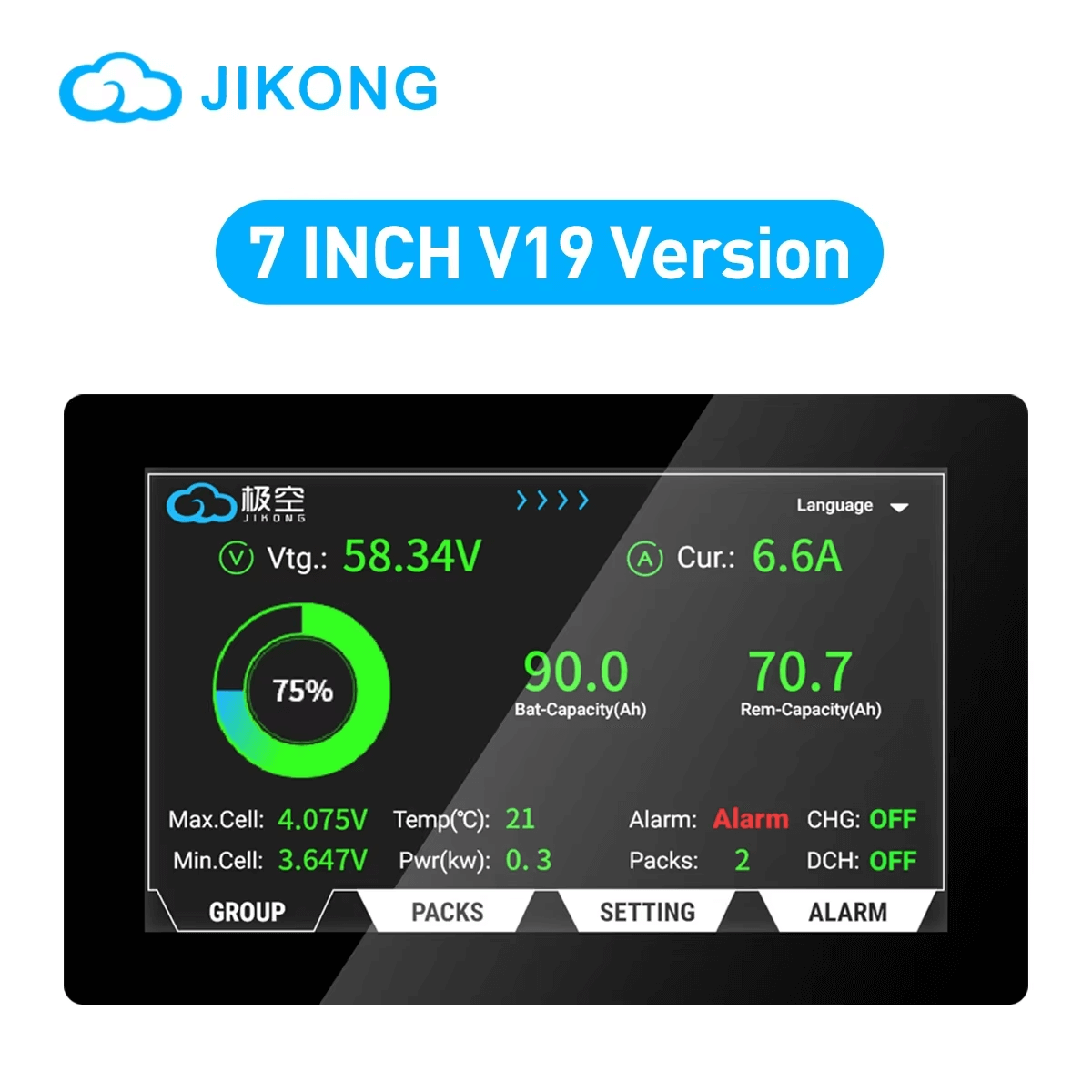

The JKBMS V19 Version 7.0 Inch LCD Display Adapter is a 7-inch TFT touch display designed for JiKong (JIKONG) V19 BMS systems. It supports a wide working power supply range (default 9~36V) and is intended for use with PB series V19 models, including dedicated support for PBxA16SxxP series inverters that use the BMS V19 version.
Key Features
- 7-inch TFT display
- Resolution: 1024*600
- Wide power supply working range (default): 9~36V
- Languages: Chinese / English / Thai / Vietnamese
- UART connector interface (BMS to display connection)

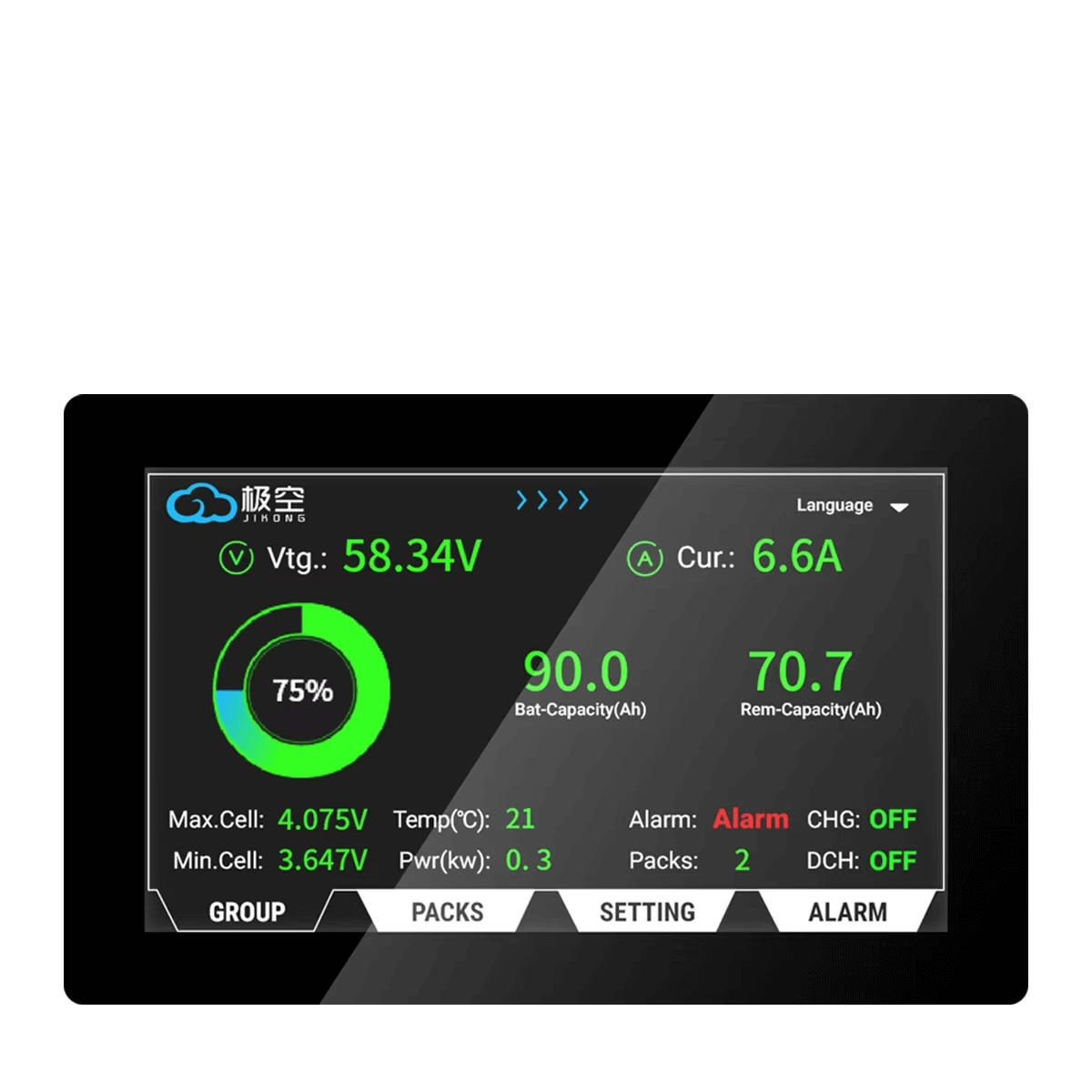

- On-screen pages shown include: GROUP / PACKS / SETTING / ALARM

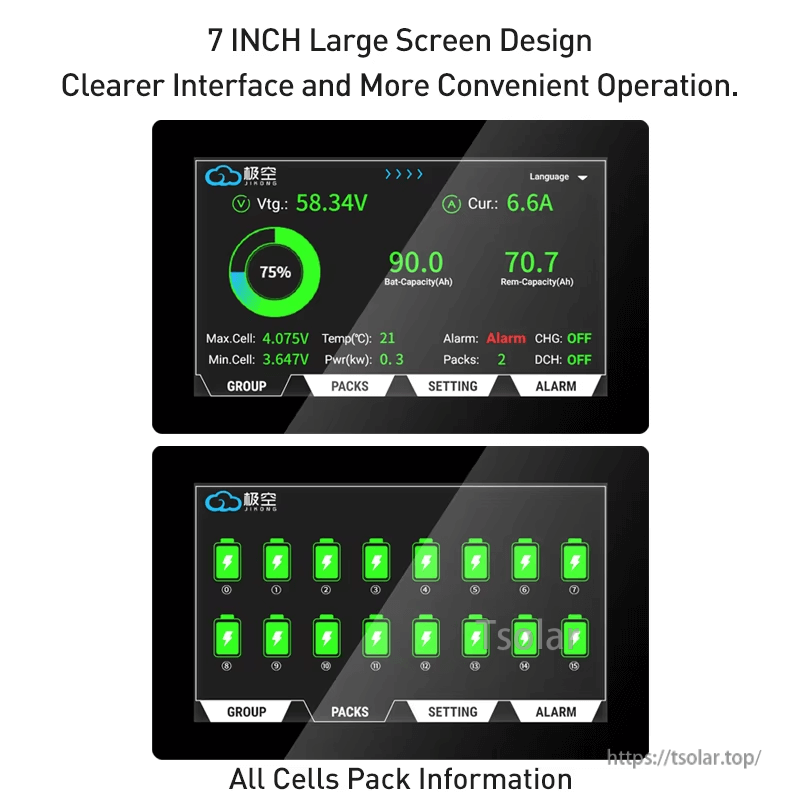

- Display pages shown for pack and cell information (examples shown: total voltage, current, capacity, remaining capacity, max/min cell voltage, temperature, power, charge/discharge status, alarm status)

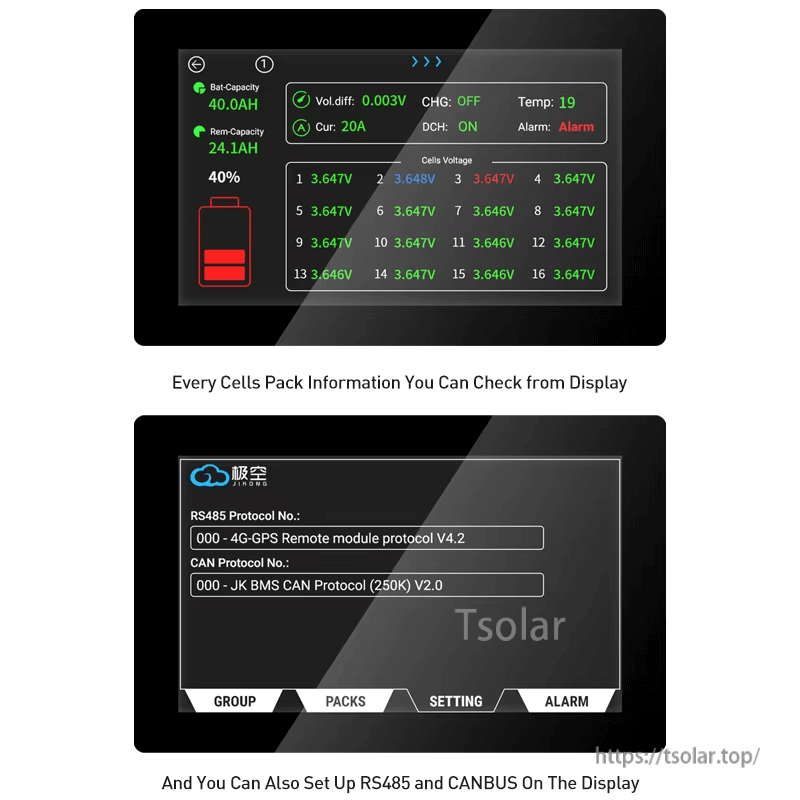

- RS485 and CANBUS settings are shown as configurable on the display (when supported by the connected system)
For selection help or compatibility confirmation, contact support at service@tsolar.top or visit https://tsolar.top/.
Specifications
| Display category | TFT |

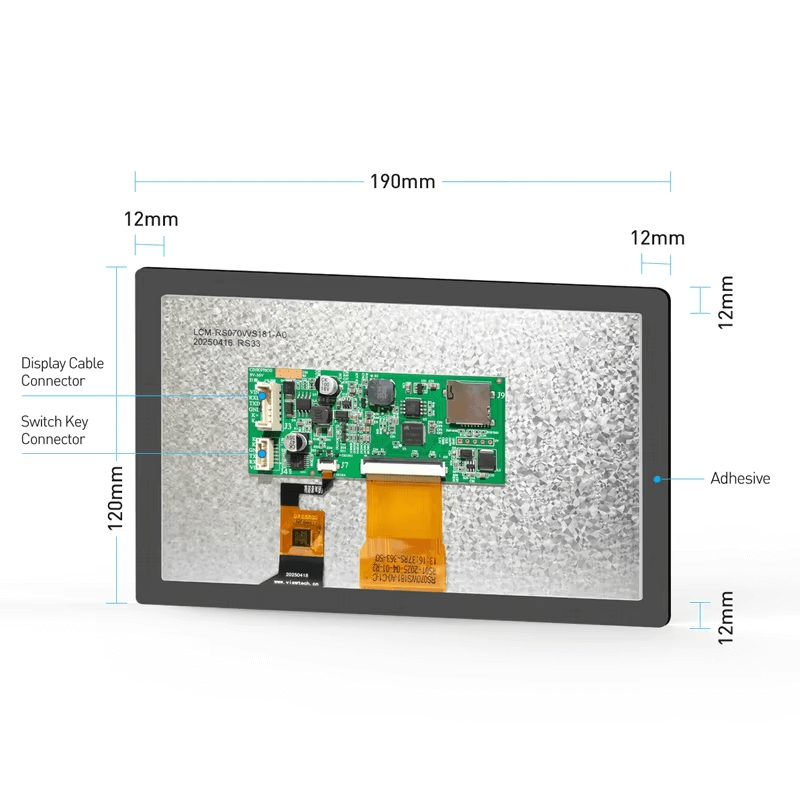

| Display size | 7 INCH |
| Resolution | 1024*600 |
| Power supply working range (default) | 9~36V |
| Languages | Chinese / English / Thai / Vietnamese |
| Operating temperature | -20~+70°C |
| Storage temperature | -30~+80°C |
| Cable length | 50cm |

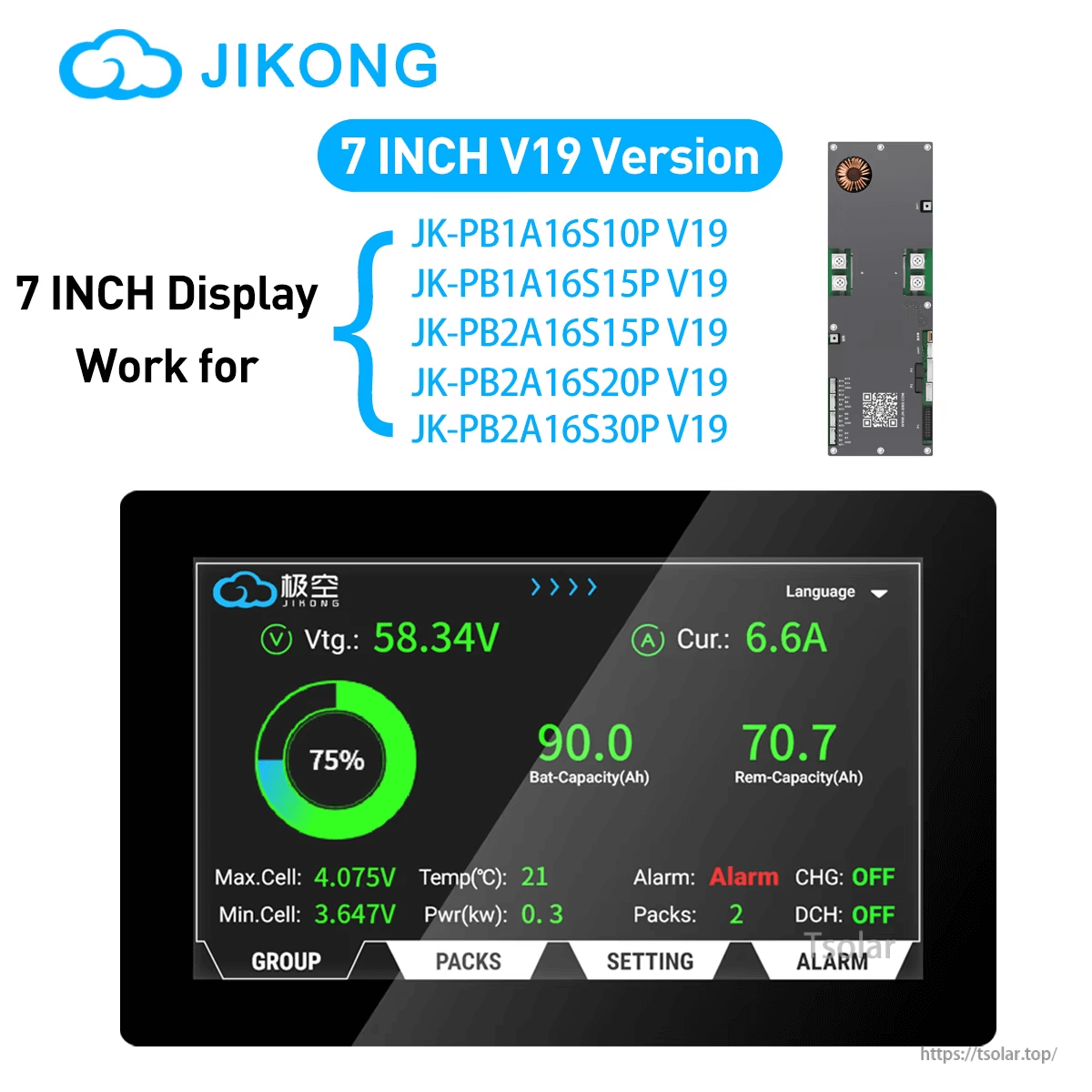

Compatibility (V19 display only)
- JK-PB1A16S10P V19
- JK-PB1A16S15P V19
- JK-PB2A16S15P V19
- JK-PB2A16S20P V19
- JK-PB2A16S30P V19
Connector pin labels shown (system-side reference)
- CANBUS (need customization): GND, CAN_H, CAN_L
- RS485 (by default): GND, RX, TX, VCC
- LCD (by default): K-, K+, GND, B, A, VCC
- Heat function (need customization)
What’s Included
- Display x 1
- Cable x 1 (length: 50cm)
Applications
- Local monitoring and configuration interface for compatible JiKong (JIKONG) V19 BMS installations
- Battery pack status viewing for energy storage and off-grid power systems using JK-PB V19 series BMS models
Available Options
- 7.0 LCD Display
- 4.3 LCD Display with 3M Extension Cable
- Only 3M Extension Cable
Notes
- V19 Display only for JiKong V19 BMS.
- The connected BMS/system may support features shown in the interface such as RS485/CANBUS configuration and protection/alarm states; functionality depends on the matched V19 BMS model and system configuration.
