SunGold Power 440W Solar Panel Overview
The SunGold Power 440W Solar Panel is a high-efficiency solar module designed to deliver exceptional performance for both residential and commercial solar power systems. Featuring Mono PERC Half-Cut Technology, this panel provides a module efficiency of up to 20.33%. With a power output of 440W, dimensions of 1909 x 1134 x 35 mm (75.16 x 44.65 x 1.38 inches), and a weight of 24.5 kg (54.0 lbs), the SunGold Power 440W Solar Panel is built to maximize energy production. It boasts a robust construction capable of withstanding harsh environmental conditions, making it ideal for off-grid, on-grid, and hybrid solar systems.
SunGold Power 440W Key Features
- High Efficiency Module: Achieves up to 20.33% efficiency with Mono PERC Half-Cut Technology, providing more output per surface area.
- High Tolerance: Half-cell technology enhances power output and performance by offering higher shade tolerance due to a unique wiring system and increased number of cells.
- Versatile Use: Suitable for off-grid, on-grid, and hybrid solar systems, making it an ideal choice for RVs, tiny houses, marine applications, household power supplies, and commercial buildings.
- Reliable Warranty: Includes a 10-year workmanship warranty and a 25-year linear performance warranty. TUV certified, with UL certification pending.
- Robust Construction: The anodized aluminum frame withstands corrosion and damage, and the IP68-rated junction box ensures long-term weather endurance.

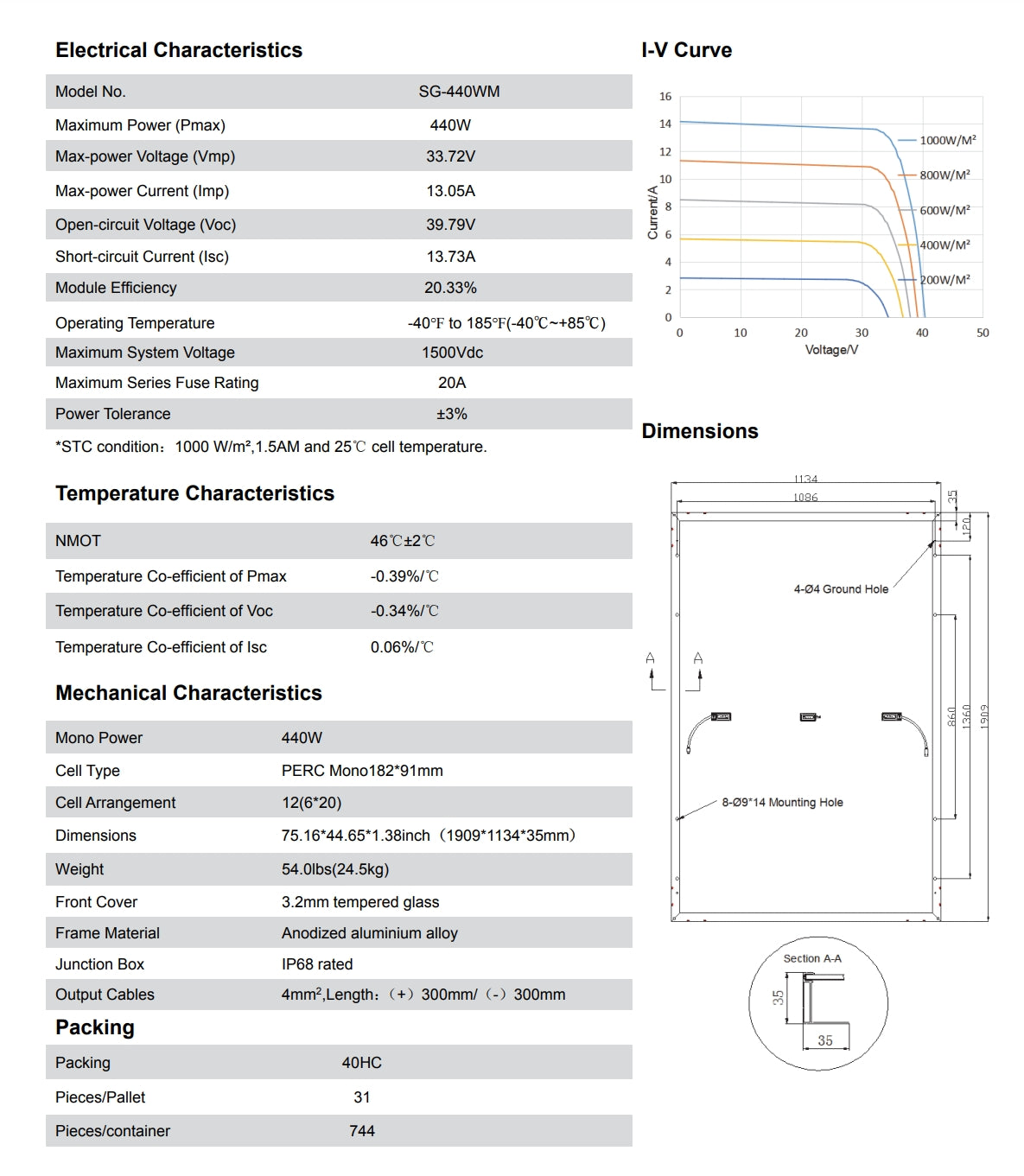

SunGold Power 440 Watt Solar Panel Datasheet
Electrical and Mechanical Specifications
| Parameter | Value |
|---|---|
| Model Number | SG-440WM |
| Peak Power (Pmax) | 440 W |
| Production Tolerance | ±3% |
| Maximum Power Current (Imp) | 13.05 A |
| Maximum Power Voltage (Vmp) | 33.72 V |
| Short Circuit Current (Isc) | 13.73 A |
| Open Circuit Voltage (Voc) | 39.79 V |
| Module Efficiency | 20.33% |
| Dimensions (LxWxH) | 1909 x 1134 x 35 mm (75.16 x 44.65 x 1.38 in) |
| Weight | 24.5 kg (54.0 lbs) |
| Maximum System Voltage | 1500 VDC |
| Wind Resistance | 2400 Pa |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Maximum Series Fuse Rating | 20 A |
| Junction Box | IP68 rated |
| Front Cover | 3.2 mm tempered glass |
| Frame Material | Anodized aluminum alloy |
| Output Cables | 4 mm², Length: (+) 300 mm, (-) 300 mm |
Electrical Performance (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 440 W |
| Maximum Power Voltage (Vmp) | 33.72 V |
| Maximum Power Current (Imp) | 13.05 A |
| Open-Circuit Voltage (Voc) | 39.79 V |
| Short Circuit Current (Isc) | 13.73 A |
| Power Tolerance | ±3% |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Nominal Module Operating Temperature (NMOT) | 46°C ± 2°C |
| Temperature Coefficient of Pmax | -0.39% / °C |
| Temperature Coefficient of Voc | -0.34% / °C |
| Temperature Coefficient of Isc | +0.06% / °C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Cell Type | PERC Mono 182 x 91 mm |
| Cell Arrangement | 12 (6 x 20) |
| Dimensions (LxWxH) | 1909 x 1134 x 35 mm (75.16 x 44.65 x 1.38 in) |
| Weight | 24.5 kg (54.0 lbs) |
| Front Cover | 3.2 mm tempered glass |
| Frame Material | Anodized aluminum alloy |
| Junction Box | IP68 rated |
| Output Cables | 4 mm², Length: (+) 300 mm, (-) 300 mm |
Packing and Shipping
| Parameter | Value |
|---|---|
| Packing Type | 40HC |
| Pieces per Pallet | 31 |
| Pieces per Container | 744 |
Warranty
- 25-Year Linear Product Workmanship Warranty: Ensures long-term reliability.
- 10-Year Workmanship Warranty: Covers materials and workmanship.
The SunGold Power 440W Solar Panel combines advanced Mono PERC Half-Cut Technology and robust construction to deliver high efficiency and reliable performance. Whether for off-grid, on-grid, or hybrid solar systems, this panel is designed to provide maximum energy production and long-term reliability.

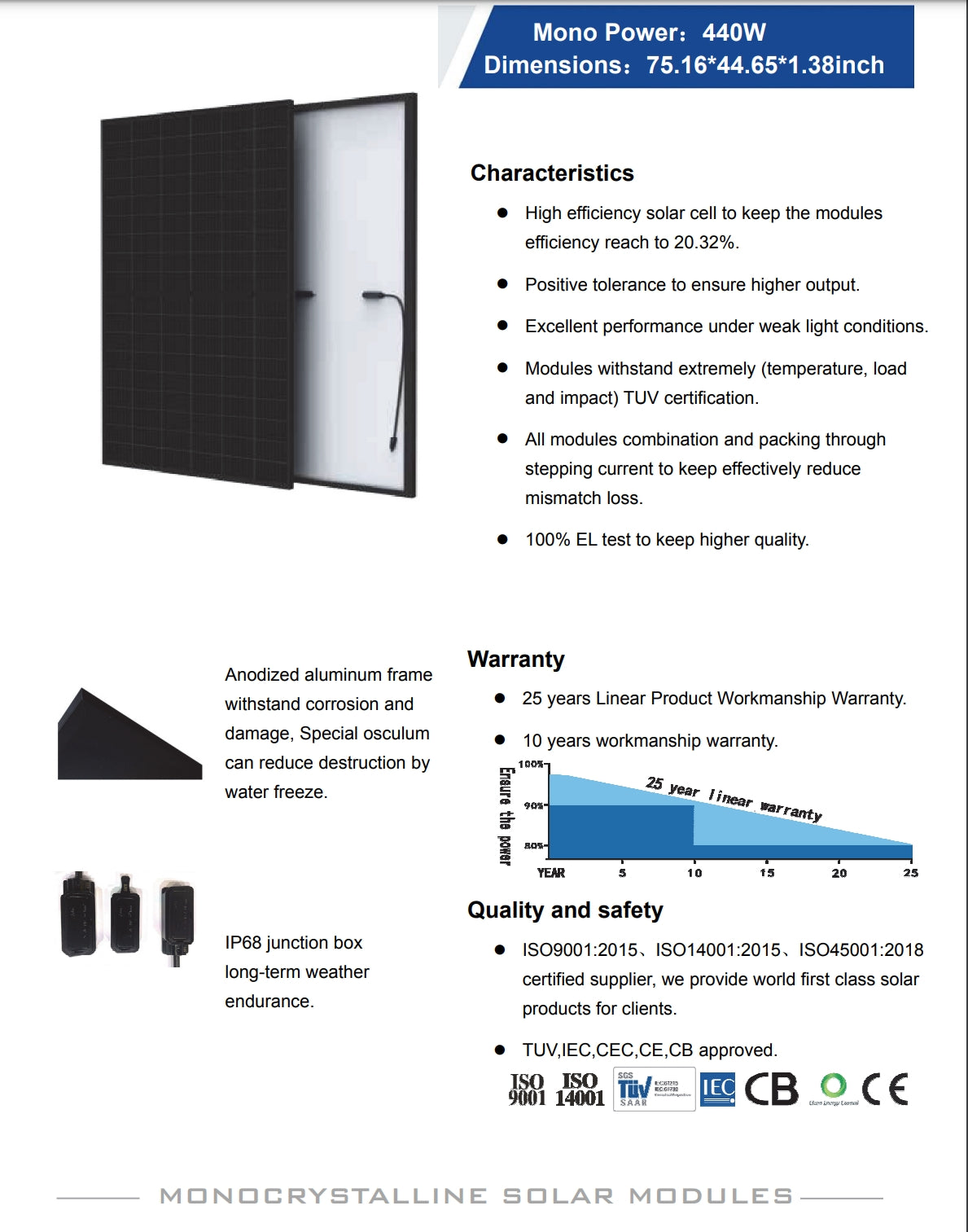

SunGold Power 440W Solar Panel: High-efficiency module with a power output of 440W, featuring excellent performance under weak light conditions and high resistance to temperature, load, and impact. Certified by TUV, IEC, CEC, CE, and CB, with a 25-year linear product workmanship warranty and 10-year special warranty against water freeze damage.
SunGold Power 440W Solar Panel Details
OFF-GRID & ON-GRID SOLUTION & HYBRID SYSTEM
This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.
440W Mono-Black PERC solar panel with IP68 grade, offering a high-efficiency and waterproof design for easy installation.

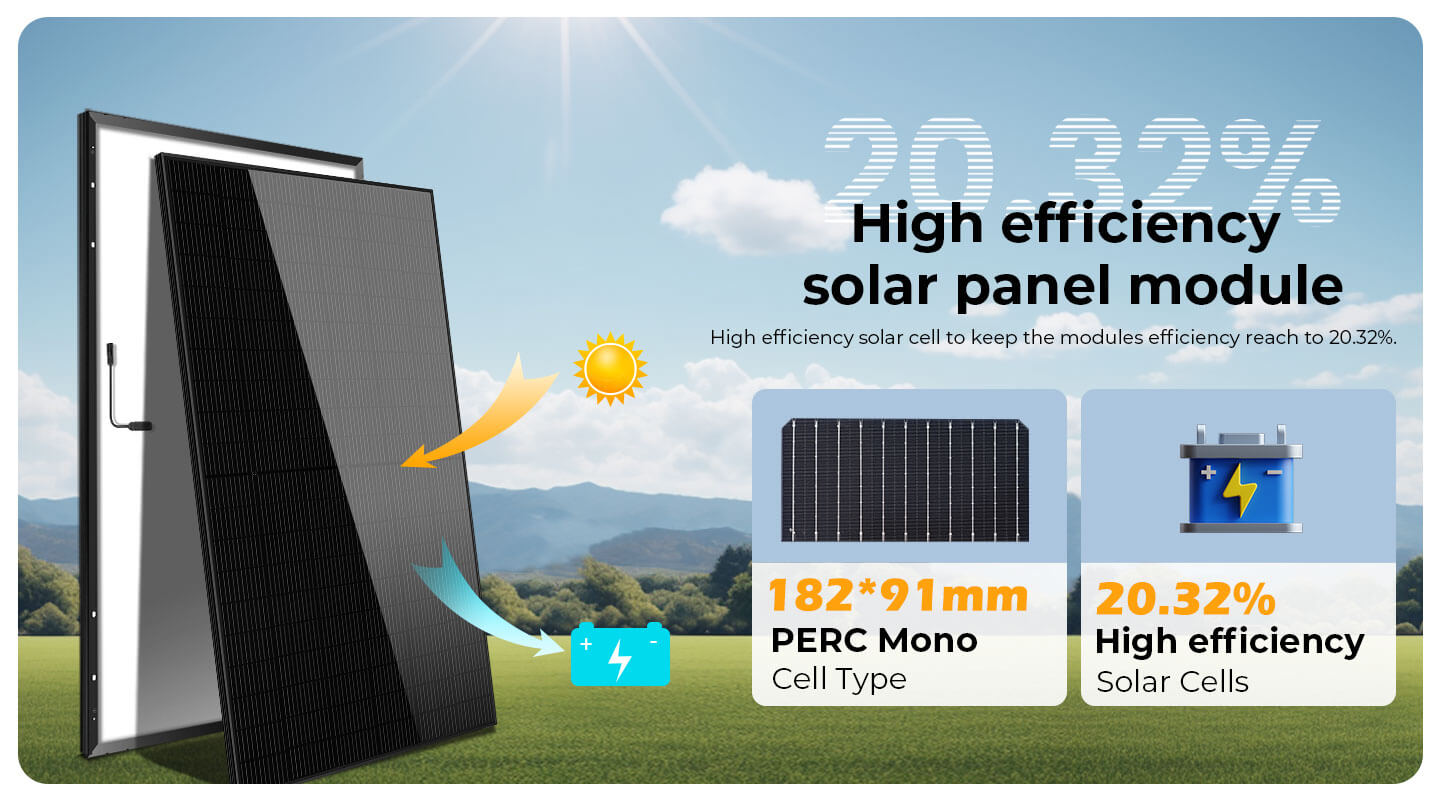

HIGH EFFICIENCY
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.
High-efficiency solar panel module with 20.32% efficiency, featuring PERC mono high-efficiency cells in a compact 182x91mm design.

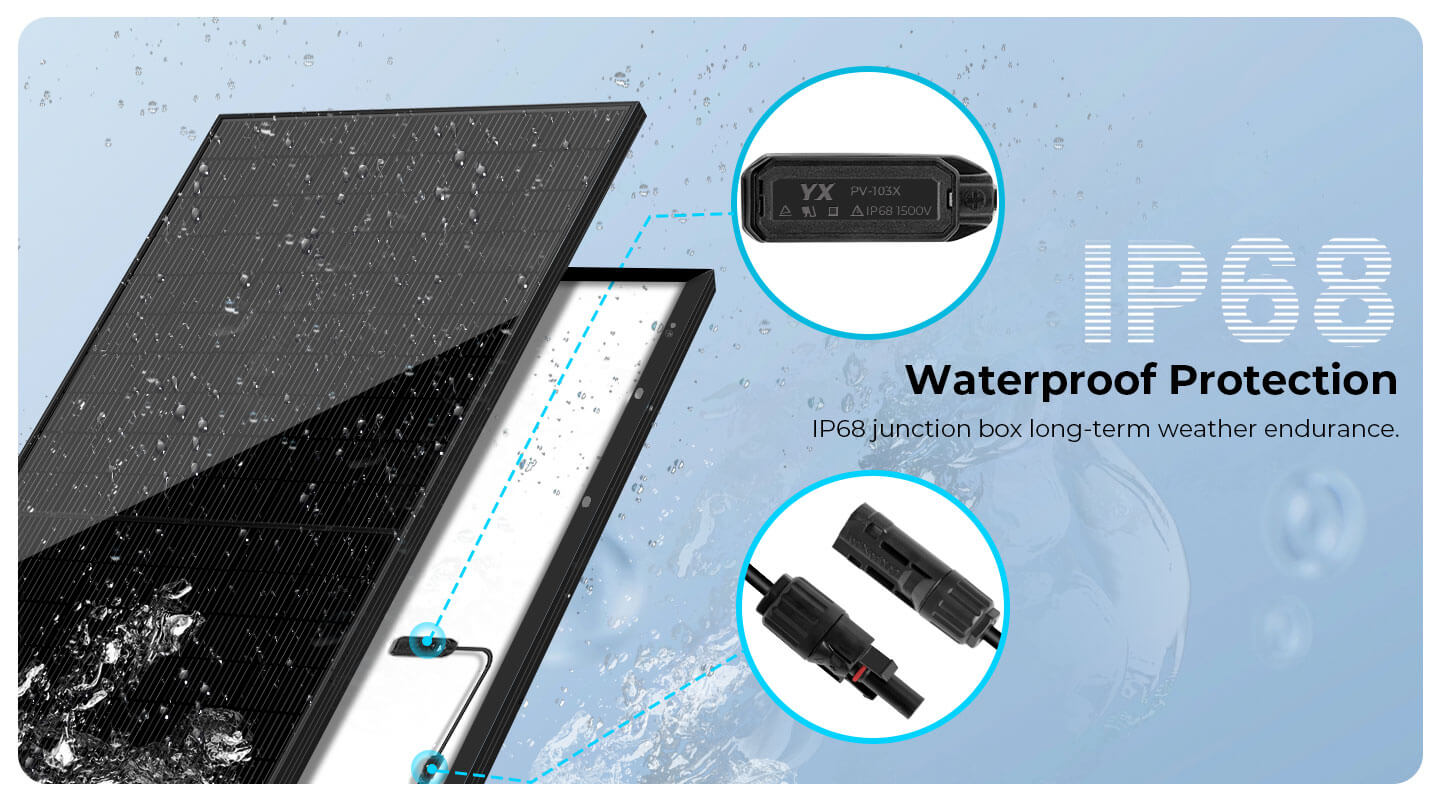

WATER PROOF
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Featuring a waterproof IP68 junction box and long-term weather endurance, this solar panel offers reliable protection against harsh conditions.
SNOW AND WIND PROTECTION
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Enjoy a durable and efficient solar panel with Wind Load: 10-Year Warranty, Snow load: up to 2400Pa, Operating Temperature: up to 54°C, and 25-year performance guarantee at 80% output capacity.
HOME SOLAR SYSTEM
With balanced power, improved stability, and economical electricity costs.

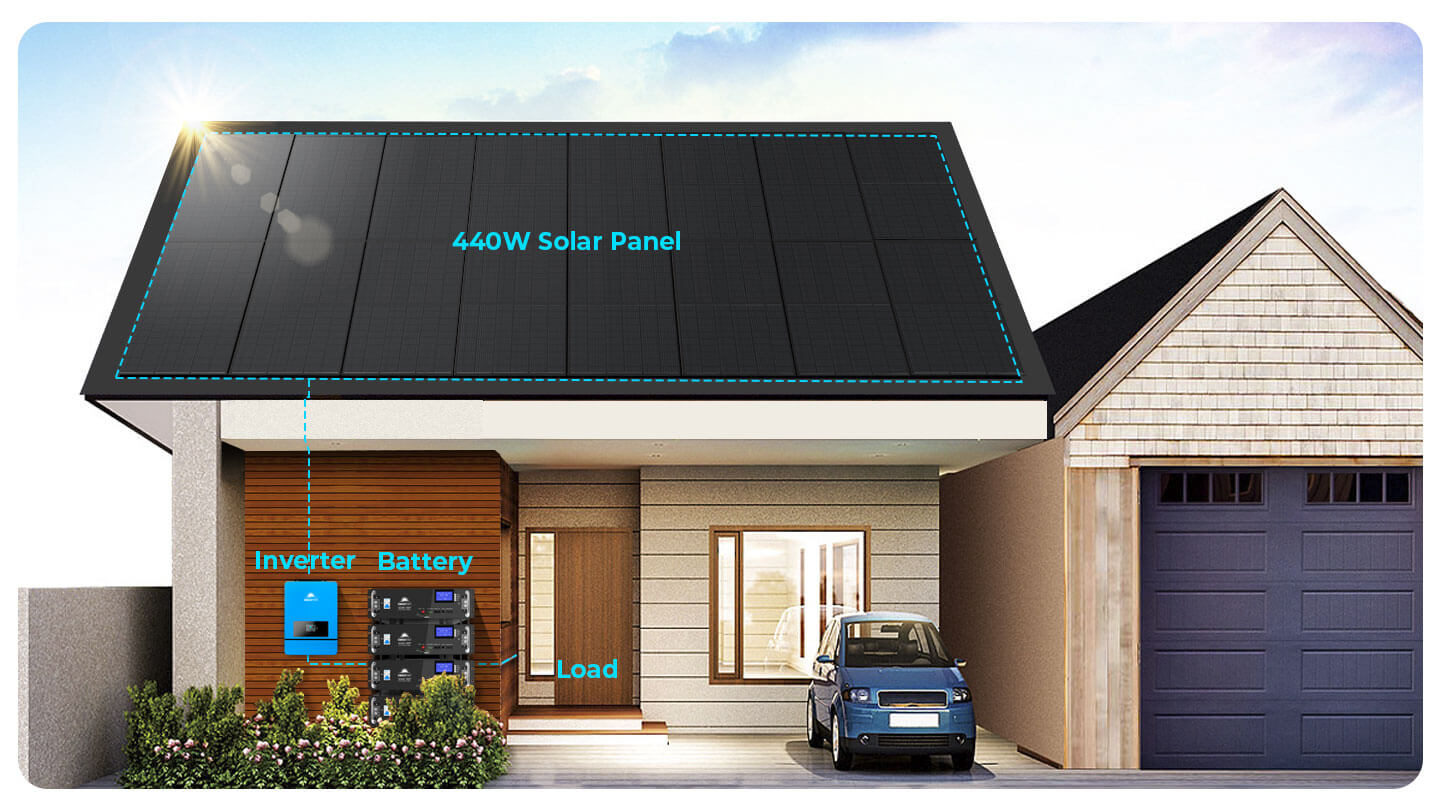

440W Solar Panel for charging inverters and batteries with load support.
SunGold Power 440W Solar Panel for residential solar power systems, home charging stations, and off-grid applications.

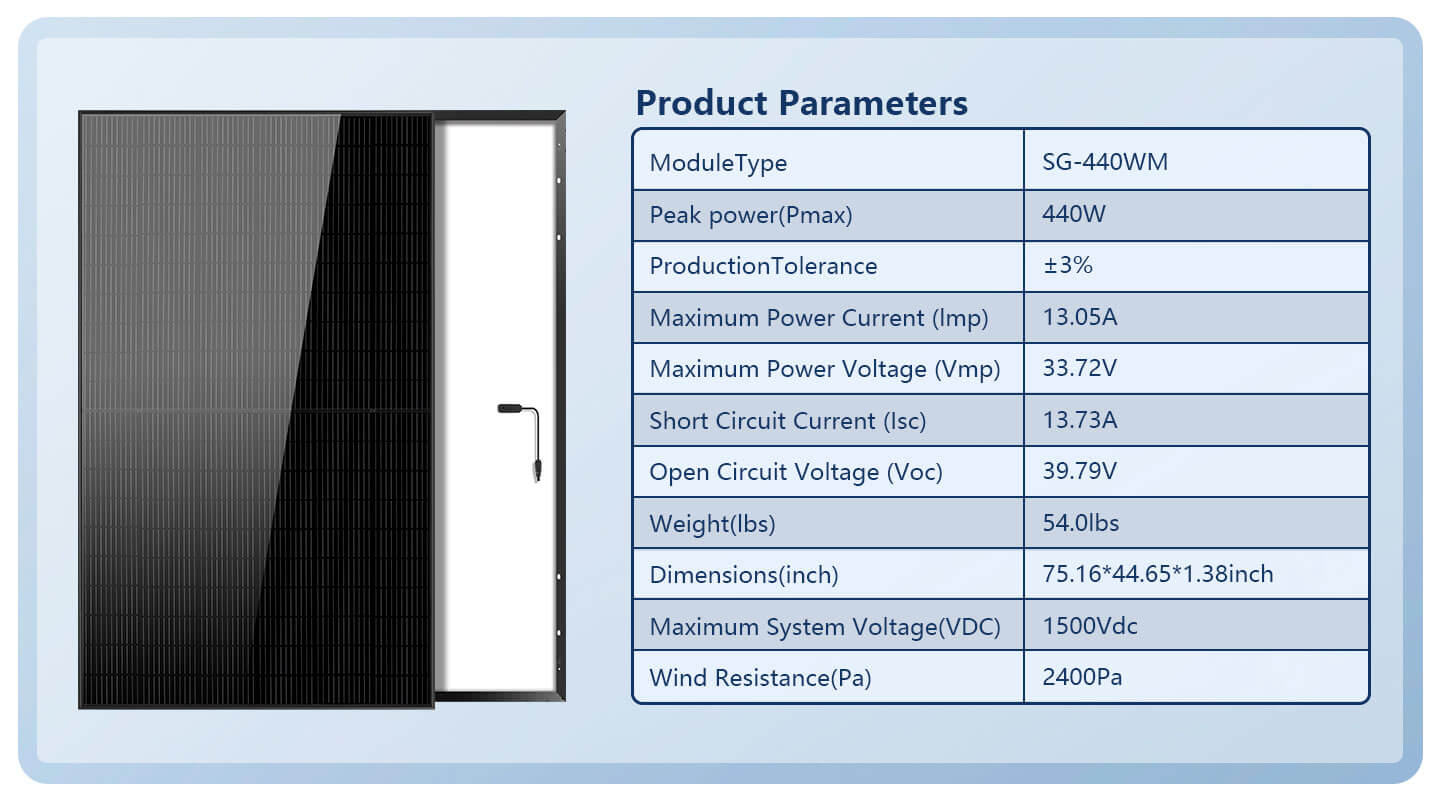

SunGold Power's SG-440WM solar panel delivers 440W of peak power, with a production tolerance of +3%. Its maximum power current is 13.05A and voltage is 33.72V, while the short circuit current reaches 13.73A at an open circuit voltage of 39.79V. Weighing in at 54lbs, this panel measures 75.16x44.65x1.38 inches and can handle up to 1500Vdc system voltage. Its robust construction withstands wind resistance pressures of 2400Pa.
