SunGold Power 500W Solar Panel Overview
The SunGold Power 500W Solar Panel (SG-500WM) is a high-efficiency, monocrystalline PERC module designed for both on-grid and off-grid solar systems, making it suitable for a wide range of applications, including hybrid systems. With its 500W peak power and 21.05% module efficiency, this panel is ideal for maximizing energy output while minimizing space usage. It is built with 132 PERC Mono half-cells (182mm x 91mm), delivering consistent power even in low-light conditions.
Designed for long-lasting durability, the panel is equipped with a 3.2mm tempered glass front cover and an anodized aluminum alloy frame, making it resistant to wind, snow, and harsh environmental conditions. The IP68-rated junction box ensures protection from dust and water, making this panel highly reliable even in challenging climates. Additionally, SunGold offers an industry-leading 25-year linear product warranty, guaranteeing long-term performance and peace of mind.
SunGold Power 500 Watt Solar Panel Key Features:
- High Power Output: Delivers 500W of power with 21.05% efficiency, ensuring high energy production for residential and commercial systems.
- PERC Monocrystalline Cells: Built with 182 x 91mm PERC Mono half-cells for improved performance and reduced power loss.
- Durable Construction: Withstands 2400 Pa of wind pressure and 5400 Pa of snow load, making it ideal for areas prone to extreme weather.
- Waterproof Design: The IP68-rated junction box ensures reliable performance, even in wet environments.
- Positive Power Tolerance: The panel comes with a power tolerance of ±3%, ensuring higher energy yields.
- Long-Term Warranty: Includes a 25-year linear product warranty and a 10-year workmanship warranty, ensuring reliability over decades of use.
SunGold Power 500W Datasheet
Electrical Characteristics
| Parameter | Details |
|---|---|
| Maximum Power (Pmax) | 500W |
| Maximum Power Voltage (Vmp) | 37.60V |
| Maximum Power Current (Imp) | 13.30A |
| Open Circuit Voltage (Voc) | 44.36V |
| Short Circuit Current (Isc) | 14.09A |
| Module Efficiency | 21.05% |
| Maximum System Voltage | 1500V DC |
| Power Tolerance | ±3% |
Mechanical Characteristics
| Parameter | Details |
|---|---|
| Dimensions (L x W x H) | 82.44 x 44.65 x 1.38 inches (2094 x 1134 x 35 mm) |
| Weight | 56.2 lbs (25.5 kg) |
| Number of Cells | 132 (6 x 22) |
| Cell Type | Monocrystalline PERC |
| Front Glass | 3.2mm Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Output Cables | 4mm² (+300mm, -300mm) |
Temperature Characteristics
| Parameter | Details |
|---|---|
| NOCT | 46°C ± 2°C |
| Temperature Coefficient of Pmax | -0.36% / °C |
| Temperature Coefficient of Voc | -0.28% / °C |
| Temperature Coefficient of Isc | +0.048% / °C |
| Operating Temperature | -40°F to 185°F (-40°C to +85°C) |
Performance and Efficiency
The SunGold Power 500W Solar Panel employs high-efficiency monocrystalline PERC cells, which are known for their superior energy conversion and longevity. With a 21.05% module efficiency, this panel ensures maximum power output, even in low-light conditions. Its positive power tolerance of ±3% ensures that the panel consistently produces higher energy yields.
The PERC technology (Passivated Emitter and Rear Cell) adds an extra layer to reflect unused sunlight back into the cells, maximizing energy absorption and efficiency.
Durability and Weather Resistance
This panel is designed to withstand harsh environmental conditions. It can endure 2400 Pa of wind load and 5400 Pa of snow load, making it suitable for installations in regions with extreme weather. The anodized aluminum frame is corrosion-resistant and provides extra protection against environmental damage, while the IP68 junction box ensures complete protection from dust and water, allowing the panel to perform optimally even in adverse conditions.
Applications
The SG-500WM Solar Panel is a versatile solution for:
- On-Grid and Off-Grid Systems: Perfect for hybrid systems, reducing power bills, or powering complete off-grid houses.
- Residential and Commercial Use: Suitable for homes, businesses, and large-scale commercial projects.
- Hybrid Systems: Can be integrated into solar systems that store energy in batteries, offering continuous power supply.
Packing and Shipping
| Parameter | Details |
|---|---|
| Packing (40HC) | 31 pieces per pallet |
| Pieces per Container | 682 pieces |
| Package Weight | 124.6 lbs (for 2 panels) |
| Package Dimensions | 85.4 x 47.6 x 3.5 inches (for 2 panels) |
Warranty and Certifications
| Warranty | Details |
|---|---|
| Material and Workmanship Warranty | 25 Years Linear Product Workmanship |
| Performance Warranty | 5-year 95%, 10-year 90%, and 25-year 80% output warranty |
| Certifications | Details |
|---|---|
| Certifications | CE, TUV, ISO9001, ISO14001, ISO45001 |
The SunGold Power 500W Solar Panel (SG-500WM) is designed for durability, high performance, and long-term reliability, making it the perfect choice for both residential and commercial solar energy systems. Its high efficiency, robust construction, and versatile applications ensure maximum energy production and a secure investment for decades to come.
| Model Type | SG-500WM |
|---|---|
| Peak Power (Pmax) | 500W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.30A |
| Maximum Power Voltage (Vmp) | 37.60V |
| Short Circuit Current (Isc) | 14.09A |
| Open Circuit Voltage (Voc) | 44.36V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 132(6*22) |
| Cell Type | PERC Mono182*91mm |
| Certifications | CE TUV |
| Product Weight | 56.2lbs |
| Product Dimension | 82.44*44.65*1.38inch |
| Package Weight | 124.6lbs（2PCS） |
| Package Dimension | 85.4*47.6*3.5inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty. |
SunGold Power 500 Watt Solar Panel Details
OFF-GRID & ON-GRID SOLUTION & HYBRID SYSTEM
This high efficiency PERC Solar panel works for both on-grid /off-grid solar/hybrid solar system, storing energy with battery, reducing power bills, or powering complete off-grid house.
500W Monocrystalline Black PERC Solar Panel with A+ Efficiency and IP68 Waterproof Rating, suitable for long-term use and easy installation.
HIGH EFFICIENCY
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.
High-efficiency solar panel module with high-efficiency solar cells, reaching an efficiency of up to 21.05%. The dimensions are 182x91mm.

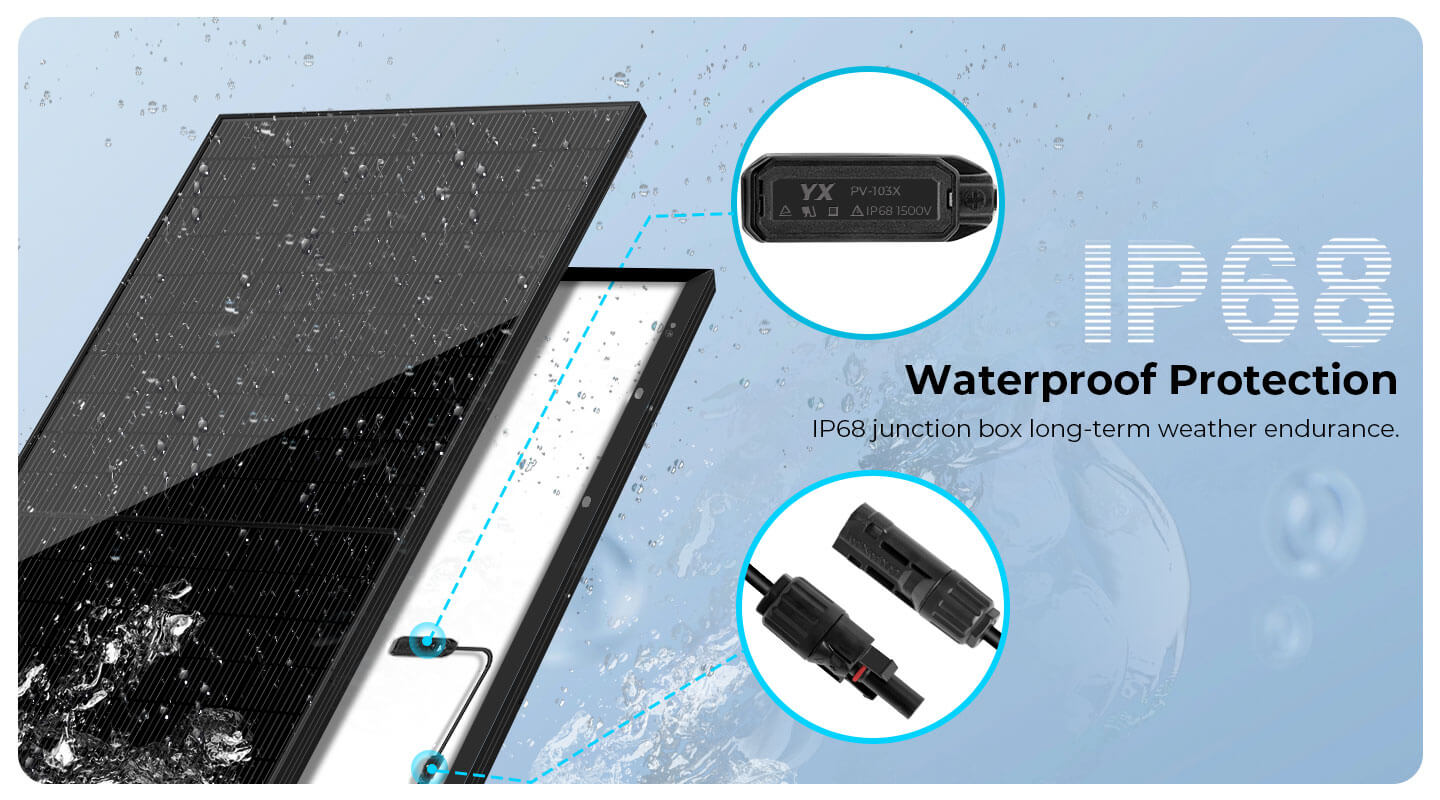

WATER PROOF
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
SunGold Power 500W Solar Panel features a waterproof and durable design with a long-lasting lifespan. It equipped with a Junction Box that provides reliable connections and meets IP68 standards for protection against harsh weather conditions.
SNOW AND WIND PROTECTION
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Wind Load Operating Snow load 10-Year Warranty, Up to 24.00 Pa Temperature Up to 54.00 Pa 25-Year Warranty with 80% Output Efficiency

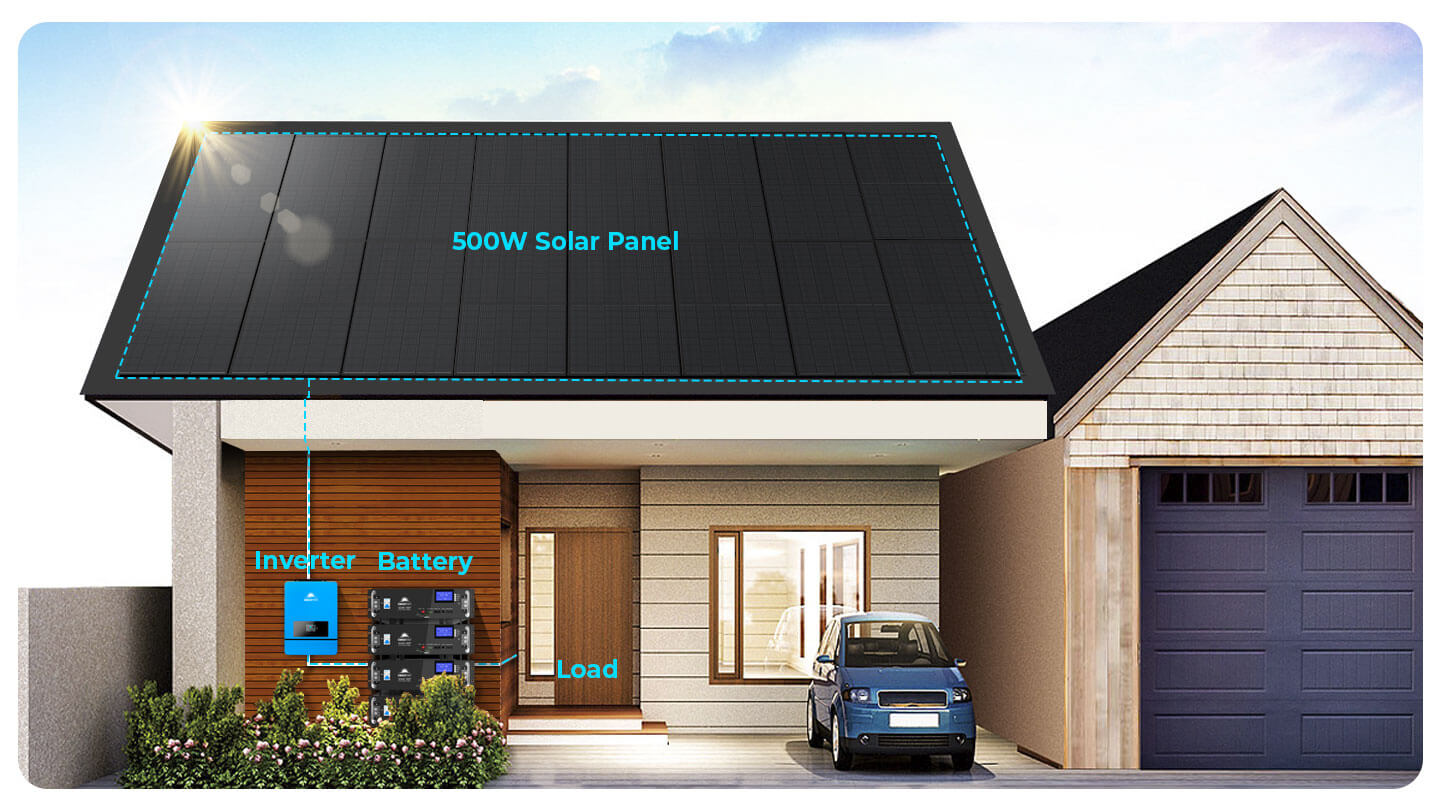

HOME SOLAR SYSTEM
With balanced power, improved stability, and economical electricity costs.
SunGold Power 500W Solar Panel Product Description: High-efficiency monocrystalline silicon solar panel, durable and weather-resistant design, ideal for residential and commercial applications.
Application PV System Home Power Charging Station - 500W Solar Panel

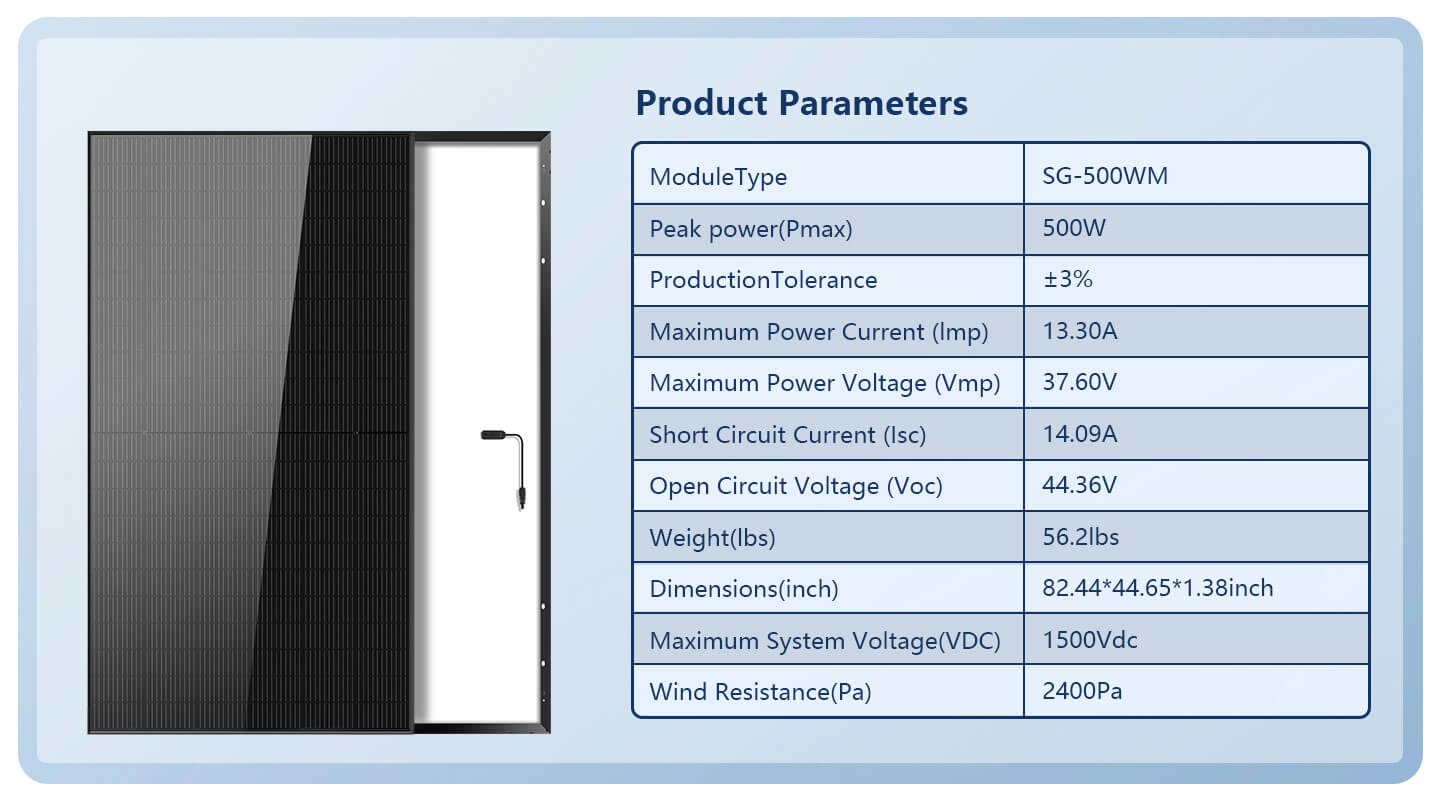

The SunGold Power SG-500W Solar Panel Module Type: SG-Soowm Peak power (Pmax): 500W Production Tolerance: +3% Maximum Power Current (Imp): 13.30A Maximum Power Voltage (Vmp): 37.60V Short Circuit Current (Isc): 14.09A Open Circuit Voltage (Voc): 44.36V Weight (lbs): 56.21bs Dimensions (inch): 82.44 x 44.65 x 1.38 inch Maximum System Voltage (VDC): 1500Vdc Wind Resistance (Pa): 2400Pa
SunGold Power 500W Datasheet

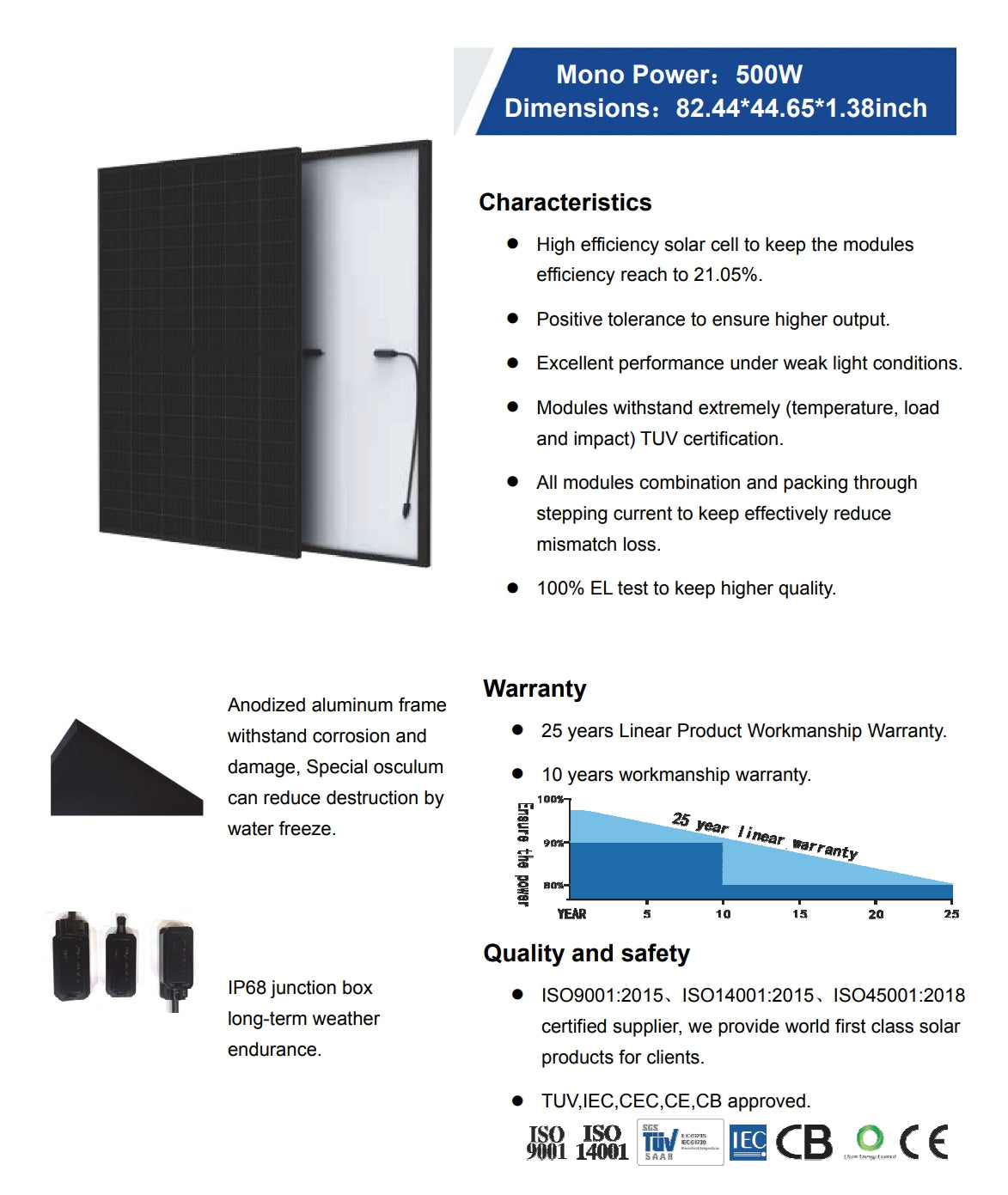

The SunGold Power 500W Solar Panel features a high-efficiency solar cell with an efficiency of 21.05%. It has a positive tolerance to ensure higher output and excellent performance under weak light conditions. The module withstands extreme temperatures, loads, and impacts, earning TUV certification. To reduce mismatch loss, the modules are combined and packed using stepping current technology. Each module undergoes 100% EL testing to ensure high quality. The anodized aluminum frame is corrosion-resistant, backed by a 25-year linear product workmanship warranty and a 10-year special osculum warranty. The IP68 junction box meets ISO9001:2015, ISO14001:2015, and ISO45001:2018 standards for long-term weather certification.
Electrical Characteristics: FV Curve Model No. SG-5000W Maximum Power (Pmax) 10000W Max-Power Voltage (Vmp) 37.6V Max-Power Current (Imp) 13.3A Open-Circuit Voltage (Voc) 44.36V Short-Circuit Current (Isc) 14.09A Module Efficiency 21.05% Operating Temperature -40°F to 185°F Maximum System Voltage 1500Vdc Voltage NV Maximum Series Fuse Rating 20A Power Tolerance +3% Temperature Characteristics: Temperature Coefficient of Pmax -0.36%/°C Temperature Coefficient of Voc -0.28%/°C Ground Hole Temperature Coefficient of Isc 0.048%/°C Mechanical Characteristics: Mono-Power Cell Type Mono-182*91mm Cell Arrangement (6*22) Dimensions 82.44*44.65*1.38mm Weight 56.2ibs Front Cover 3.2mm tempered glass Mounting Hole Frame Material Anodized aluminium alloy Junction Box IP68 rated Output Cables 4mm Length: 300mm Packing Packing per section A-31 Pieces/Pallet, total pieces per container: 682
