SunGold Power 550W Solar Panel Overview
The SunGold Power 550W Solar Panel (Model SG-550WM) is a high-efficiency, durable solar module designed for versatile applications, including off-grid systems, residential, and marine use. With a peak power output of 550W, a high module efficiency of 21.28%, and key electrical parameters like 13.11A maximum power current (Imp) and 41.96V maximum power voltage (Vmp), this panel ensures optimal energy generation even in challenging conditions. The robust design includes 144 PERC monocrystalline cells, a corrosion-resistant aluminum frame, and tempered glass for long-term outdoor use. The IP68-rated junction box provides excellent protection against dust and water, making it suitable for harsh environments. Withstanding wind loads up to 2400Pa and operating at a maximum system voltage of 1500V, this panel is versatile and easy to install. Backed by a 25-year performance warranty, the SunGold Power 550W Solar Panel is a reliable choice for powering homes, RVs, boats, and more.
SunGold Power 550 Watt Solar Panel Specifications
| Model Type | SG-550WM |
|---|---|
| Peak Power (Pmax) | 550W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.11A |
| Maximum Power Voltage (Vmp) | 41.96V |
| Short Circuit Current (Isc) | 14.01A |
| Open Circuit Voltage (Voc) | 49.9V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 144(6x 24),60 cells in series |
| Cell Type | PERC Monocrystalline (7.2x 3.6 in) |
| Certifications | CE TUV |
| Product Weight | 56.9lbs |
| Product Dimension | 89.8*44.9*1.4inch |
| Package Weight | 128.7lbs（2PCS） |
| Package Dimension | 92.1*47.2*3.5inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 10 year material and workmanship warranty |

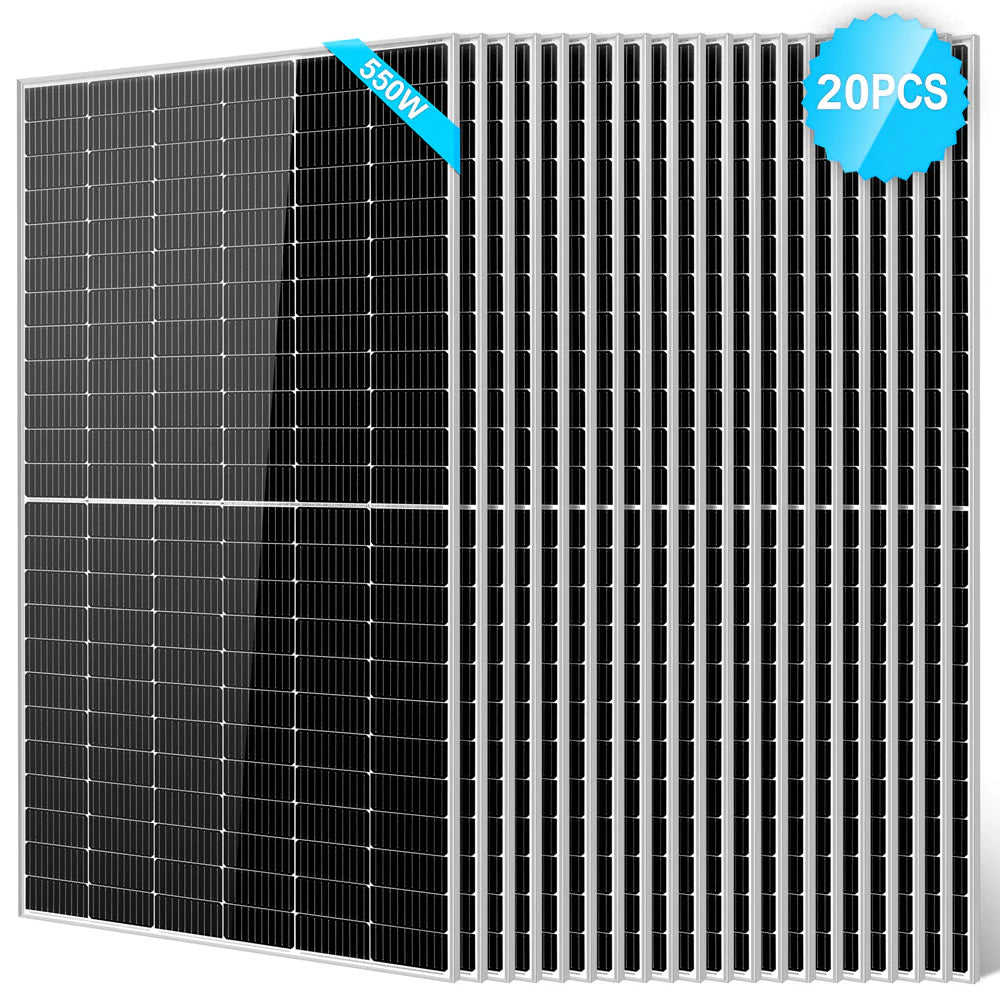

SunGold Power 550W Solar Panel
SunGold Power 550W Monocrystalline PERC Solar Panel, Grade A, waterproof, long lifespan with easy installation and IP68 protection.
550 WATT MONOCRYSTALLINE PERC SOLAR PANEL FOR OFF GID SYSTEM
Sungoldpower PERC solar panel provides quiet, clean energy, which makes it easy to get all the electrical power you need for the sun to supply a cabin, camper, RV, or boat. Each panel features highly efficient silicon solar cells. It also comes with an IP68-rated junction box, making it suitable for marine applications. The aluminum frame (corrosion-resistant) is ideal for extended outdoor use, enhancing the overall lifespan of a solar panel.
Generating power by using solar panels is the best utilization of the amount of sunlight. By doing so, you can minimize your energy bills and get free energy for an extended period.
Enjoy high-efficiency power generation with our SunGold Power 550W Solar Panel, featuring durable 1.4-inch Grade A solar cells with a conversion rate of 21.3%, a corrosion-resistant aluminum frame and tempered glass for added protection.
Enjoy reliable outdoor use with our IP68 Junction Box, featuring complete protection against environmental particles and low-pressure water jets. Solar Connectors ensure waterproofing, eliminating worries about bad weather. Easy installation is ensured by pre-drilled holes on the back panel and corrosion-free aluminum construction, making it compatible with various mounting systems, including ground and rooftop mounts.
SunGold Power 550W solar panel charges controller, inverter, battery, powering PV and AC appliances.
Enjoy reliable performance with SunGold Power's solar panel, featuring wind load and operating temperatures up to 2400Pa and 5400Pa respectively, backed by a 25-year 80% power guarantee.
SunGold Power 550W Solar Panel for home power, camping, parking lots, or marine use, suitable for streetlights and other applications.
SunGold Power's SG-S5OWM module features a peak power output of 550W, with a production tolerance of +/-3%. It also boasts impressive specifications, including a maximum power current of 13.11A and voltage of 41.96V, as well as a short circuit current of 14.01A and open circuit voltage of 49.9V. Weighing in at 56.9lbs and measuring 89.8x44.9x1.4 inches, this module is designed to withstand wind resistance up to 2400Pa and operate within a maximum system voltage of 1500V DC.

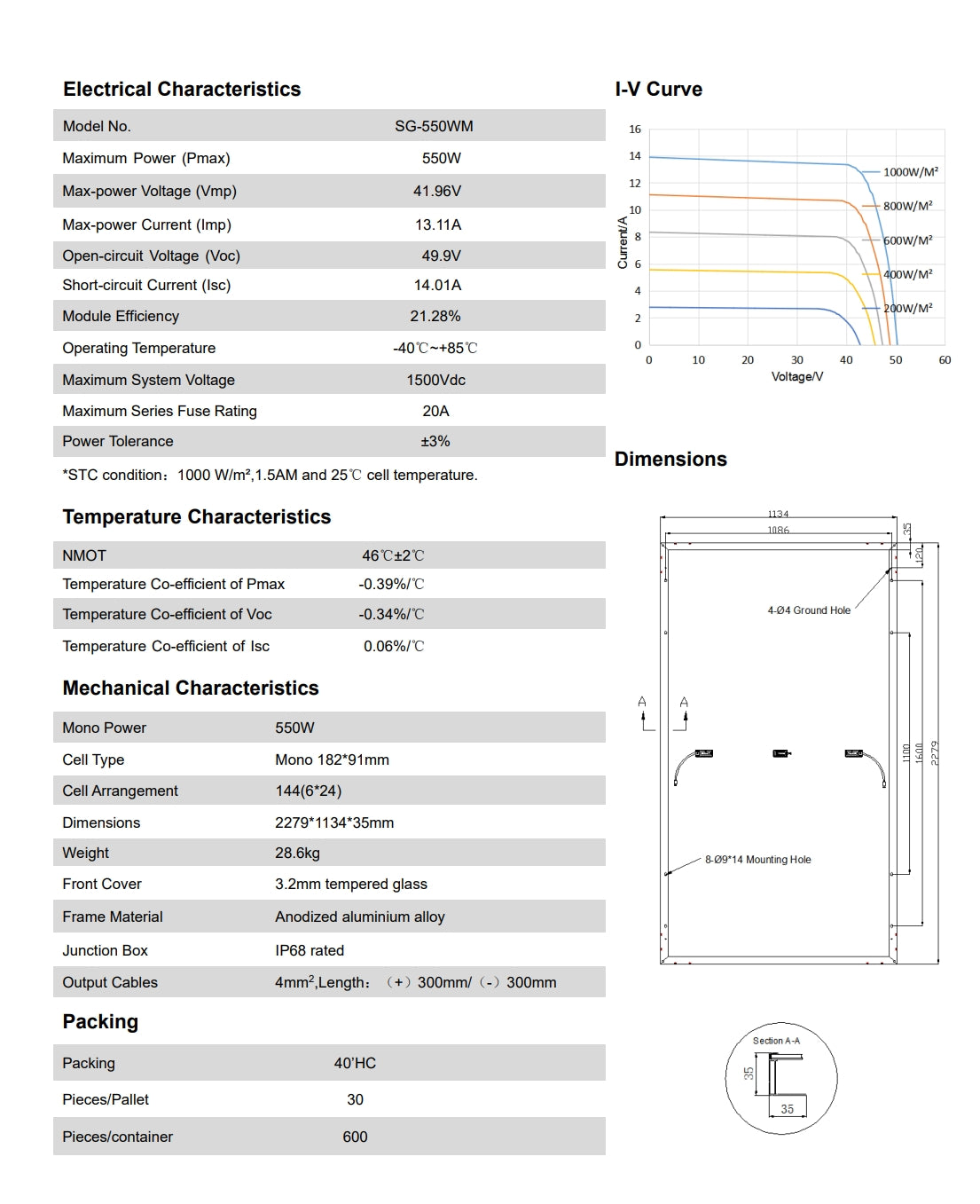

SunGold Power 550W Datasheet

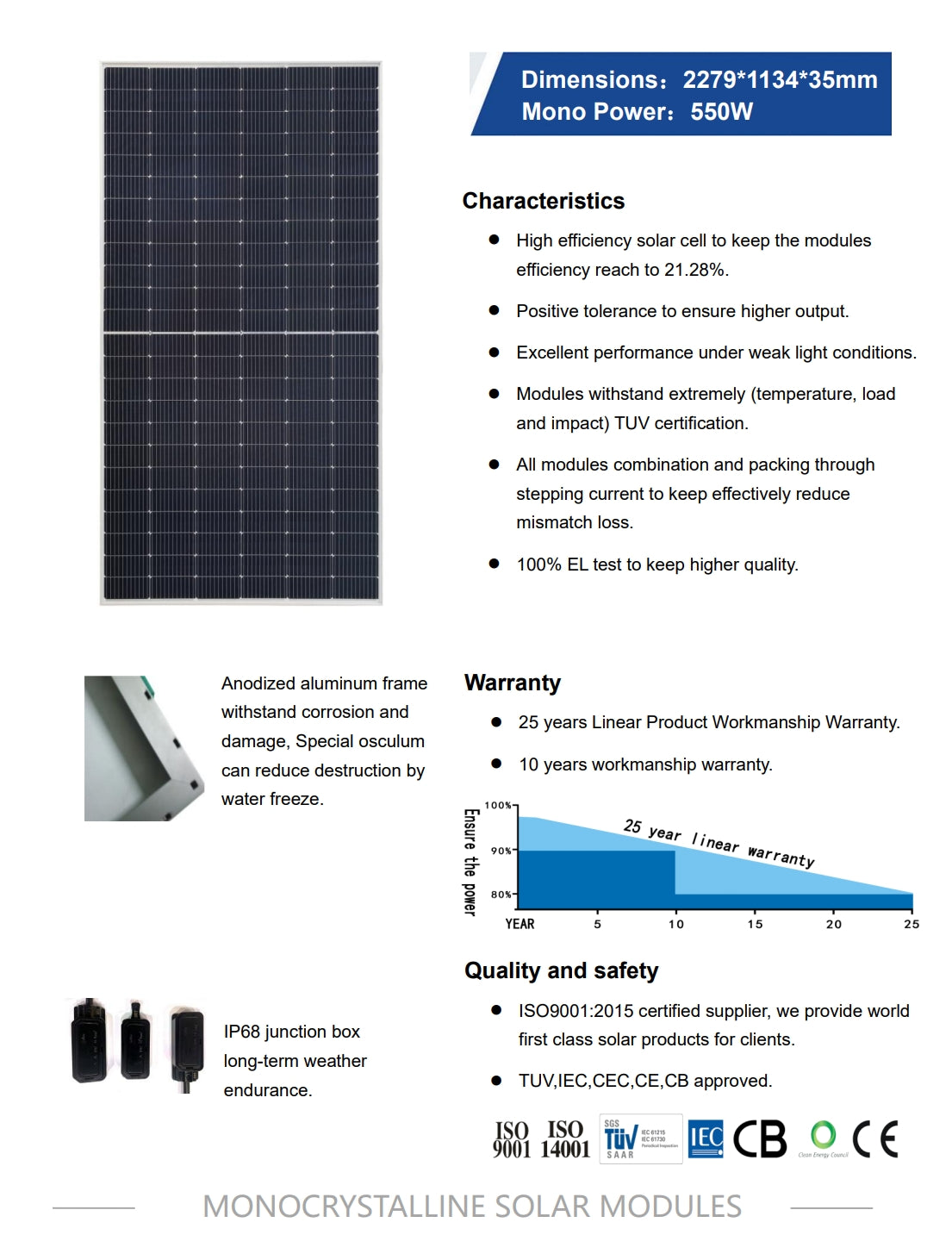

Introducing the SunGold Power 550W Solar Panel: a high-efficiency module with 21.28% efficiency, featuring positive tolerance for higher output and excellent performance under weak light conditions. The module withstands extreme temperatures, loads, and impacts, and comes with TUV certification. A 100% EL test ensures high quality, while anodized aluminum frames prevent corrosion. Enjoy a 25-year linear product workmanship warranty, as well as a special osicum coating that reduces destruction by 10 years. Our ISO9001:2015 certified supplier provides world-class solar products with long-term weather endurance, TUV, IEC, CEC, CE, and CB approvals.
SunGold Power 550W Solar Panel features a maximum power output of 550 watts, with a voltage open-circuit of 49.9V and short-circuit current of 14.01A. The operating temperature range is -40°C to +85°C, and the module efficiency is 21.28%. The solar panel also has a maximum system voltage of 1500Vdc and a power tolerance of ±3%.
