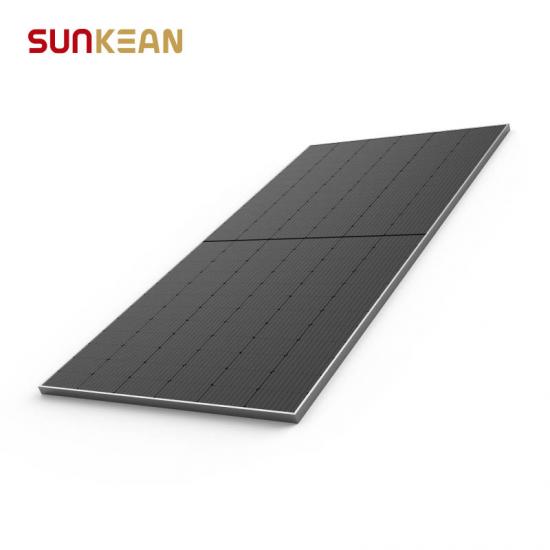

Sunkean 700W Solar Panel Overview
The Sunkean 700W Solar Panel is a cutting-edge solution designed to deliver maximum energy output and reliability, making it ideal for commercial and utility-scale installations. Featuring 132 half-cut HJT cells (210 x 105 mm) with MBB (multi-busbar) technology, this panel offers an impressive 22.54% module efficiency, ensuring high performance even in low-light conditions. The Sunkean 700W Solar Panel has a robust anodized aluminum frame and a dual-glass design, making it highly durable and capable of withstanding harsh environments with static loading capacities of 5400 Pa on the front side and 2400 Pa on the rear side. With a bifaciality rate of up to 90% and double-sided power generation, this solar panel guarantees higher energy yields and a lower levelized cost of energy (LCOE), resulting in long-term savings. Backed by a 30-year power warranty and minimal degradation rates, the Sunkean 700W Solar Panel offers a guaranteed power generation rate of no less than 93% after 25 years, ensuring lasting reliability and performance.
Key Features of the Sunkean 700W Solar Panel:
-
N-type HJT Technology for Lower LCOE:
HJT technology provides a lower temperature coefficient and better low irradiance performance, effectively reducing the levelized cost of energy (LCOE). -
Fire Class A and Harsh Environment Adaptability:
The dual-glass module uses high transparent glass on the back, making it highly resistant to harsh environments while maintaining a Class A fire rating. -
30-Year Power Warranty:
The dual-glass structure extends the lifespan to 30 years, offering 5 years more longevity than traditional single-glass modules. -
Double-Sided Power Generation for Higher Yield:
With a bifaciality up to 90%, this panel can achieve a power generation gain of 7% to 30% from the backside, maximizing energy yield. -
Robust Mechanical Loading Capacity:
Certified to withstand wind loads of 2400 Pa and snow loads of 5400 Pa, ensuring durability in extreme conditions.
Sunkean 700W Datasheet
Mechanical Characteristics
| Specification | Details |
|---|---|
| Cell Type | HJT 210 x 105mm |
| Number of Cells | 132 pcs (6x22) |
| Dimensions | 2384 x 1303 x 33 mm |
| Weight | 38.3 kg |
| Frame | Anodized Aluminium |
| Junction Box | IP68, 3 bypass diodes |
| Cable & Length | 4mm², 300 mm |
| Packaging | 33 pcs/pallet, 594 pcs per 40' HC |
Electrical Characteristics @ STC
| Module Type | SKE680S9T-132 | SKE685S9T-132 | SKE690S9T-132 | SKE695S9T-132 | SKE700S9T-132 |
|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 680W | 685W | 690W | 695W | 700W |
| Open Circuit Voltage (Voc/V) | 49.51V | 49.71V | 49.91V | 50.11V | 50.31V |
| Short Circuit Current (Isc/A) | 17.13A | 17.15A | 17.17A | 17.19A | 17.21A |
| Voltage at Maximum Power (Vmp/V) | 42.08V | 42.32V | 42.55V | 42.77V | 43.00V |
| Current at Maximum Power (Imp/A) | 16.16A | 16.19A | 16.22A | 16.25A | 16.28A |
| Module Efficiency (%) | 21.89% | 22.06% | 22.22% | 22.37% | 22.54% |
*Under Standard Test Conditions (STC) of 1000 W/m² irradiance, AM 1.5 spectrum, and 25°C cell temperature. Measurement tolerance is ±3.0%.
Integrated Power @ STC (Reference to 690W front)
| Power Gains | 5% | 10% | 15% | 20% | 25% |
|---|---|---|---|---|---|
| Max. Power Output Pmax (W) | 725W | 759W | 792W | 826W | 861W |
| Max. Power Voltage Vmp (V) | 42.55V | 42.55V | 42.45V | 42.45V | 42.45V |
| Max. Power Current Imp (A) | 17.03A | 17.84A | 18.65A | 19.46A | 20.28A |
| Open Circuit Voltage Voc (V) | 49.91V | 49.91V | 50.01V | 50.01V | 50.01V |
| Short Circuit Current Isc (A) | 18.03A | 18.89A | 19.75A | 20.60A | 21.46A |
Operating Parameters
| Specification | Details |
|---|---|
| Operational Temperature | -40°C~+85°C |
| Power Output Tolerance | 0~3% |
| Maximum System Voltage | DC1500V |
| Maximum Series Fuse Rating | 35A |
| Bifaciality | 90 ± 5% |
| NOCT | 45°C |
| Fire Rating | Class A |
Mechanical Loading
| Specification | Details |
|---|---|
| Front Side Maximum Static Load | 5400 Pa |
| Rear Side Maximum Static Load | 2400 Pa |
| Hailstone Test | 25mm hailstone at 23 m/s |
Temperature Ratings (STC)
| Parameter | Details |
|---|---|
| Temperature Coefficient of Isc | +0.047%/°C |
| Temperature Coefficient of Voc | -0.220%/°C |
| Temperature Coefficient of Pmax | -0.240%/°C |
The Sunkean 700W Solar Panel with HJT technology is designed for superior performance, offering high efficiency, double-sided power generation, and exceptional durability across challenging environments. With features such as 90% bifaciality, optimized LCOE, and a 30-year power warranty, the Sunkean 700W Solar Panel stands out as a reliable choice for maximizing energy yield and long-term investment returns.
