SUNKET 580W Solar Panel Product Description
Overview
The SUNKET 580W Solar Panel is a high-performance solar module designed to meet the demands of modern solar energy applications. With advanced PERC, half-cell, bifacial, and double-glass technology, the SUNKET 580W Solar Panel offers exceptional efficiency, durability, and power output. This versatile solar panel is ideal for residential, commercial, and industrial installations.
Mechanical Specifications
| Attribute | Specification |
|---|---|
| Solar Cells | 182mm (156 Half-Cell) |
| Dimensions | 2464113435mm |
| Weight | 32.1 kg |
| Front Cover | 3.2 mm thick, tempered glass |
| Back Cover | TPT (Tedlar-PET-Tedlar) |
| Encapsulation Material | EVA (Ethylene Vinyl Acetate) |
| Frame | Anodized aluminum alloy |
| Frame Color | Silvery |
| Output Cables | 4.0 mm², Cable length: 1200 mm |
| Connector | MC4 Compatible |
| Mechanical Load | 5400 Pa |
| Junction Box | IP68 |
Electrical Specifications
| Attribute | Specification |
|---|---|
| Module Type | SKT580M10-24 |
| Maximum Power (Pmax) | 580W |
| Open Circuit Voltage (Voc) | 53.54V |
| Short Circuit Current (Isc) | 13.77A |
| Max. Power Voltage (Vm) | 44.34V |
| Max. Power Current (Im) | 13.09A |
| Module Efficiency (%) | ≥20.76% |
| Temperature Coefficient of Isc | 0.048%/℃ |
| Temperature Coefficient of Voc | -0.280%/℃ |
| Temperature Coefficient of Pm | -0.350%/℃ |
Working Conditions
| Attribute | Specification |
|---|---|
| Maximum System Voltage | 1500Vdc (IEC/UL) |
| Maximum Series Fuse Rating | 25A |
| Operating Temperature | -40~+85℃ |
| Power Tolerance | (0, +4.99W) |
Product Attributes
- Model No.: SKT580M10-24
- Brand: Sunket
- Place of Origin: China
- Types of: PERC, Half Cell, Bifacial, Double-Glass, All Black
Supply Ability & Additional Information
- Packaging: Standard Exported Pallet
- Productivity: 4000 pcs/day
- Transportation: Ocean, Land, Air
- Supply Ability: 2GW/Year
- Certificate: CE, TUV, INMETRO, PSI, COCHS
- HS Code: 8541430000
- Ports: Shanghai, Guangzhou, Ningbo
- Payment Type: L/C, T/T
- Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
Packaging & Delivery
- Selling Units: Watt/Watts
- Package Type: Standard Exported Pallet
Introduction
The SUNKET 580W Solar Panel utilizes advanced solar cell technology, including 182mm half-cells, PERC, bifacial, and double-glass construction, to deliver high efficiency and reliable performance. This panel is designed to withstand harsh environmental conditions, ensuring long-term durability and consistent energy production.
Features
- High Efficiency: With a module efficiency of ≥20.76%, the SUNKET 580W Solar Panel maximizes energy output from a compact form factor.
- Advanced Cell Technology: PERC and half-cell designs enhance power generation and reduce resistance losses.
- Durability: The panel's robust construction, including a 3.2 mm tempered glass front cover and TPT back cover, provides excellent protection against environmental stress.
- Wide Operating Temperature Range: Capable of operating in temperatures from -40℃ to +85℃, the SUNKET 580W Solar Panel is suitable for various climates.
- High Mechanical Load Capacity: Withstands mechanical loads up to 5400 Pa, ensuring resilience in extreme weather conditions.
- Reliable Connections: Equipped with MC4 compatible connectors and IP68 rated junction box for secure and durable electrical connections.
Benefits
- Increased Power Output: High-efficiency cells and advanced design features ensure maximum power generation.
- Enhanced Reliability: Durable materials and construction techniques result in a long lifespan and reliable performance.
- Versatility: Suitable for a wide range of applications, including residential, commercial, and industrial installations.
The SUNKET 580W Solar Panel is an excellent choice for those seeking high performance, reliability, and efficiency in solar energy systems. With its advanced technology and robust construction, the SUNKET 580W Solar Panel provides a dependable solution for maximizing energy production in various environments.

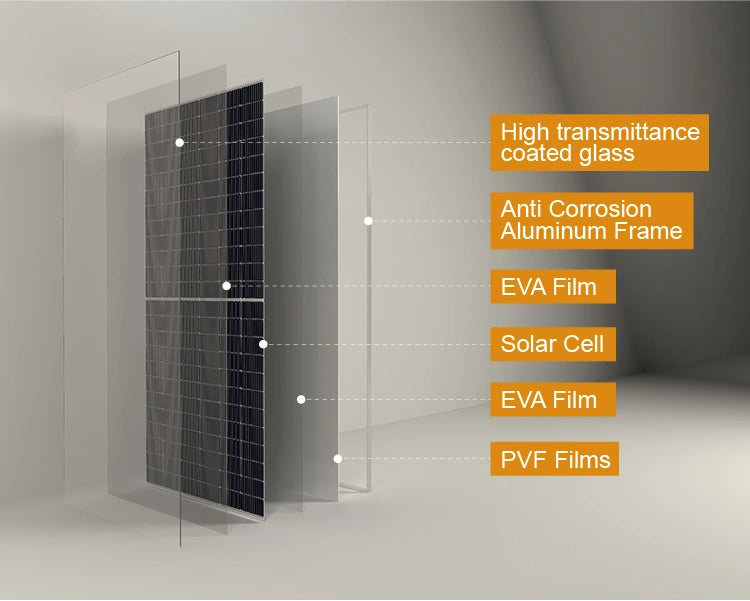

Features high-transmittance coated glass, anti-corrosion aluminum frame, and EVA film with solar cell and PVF films for efficient energy harvesting.

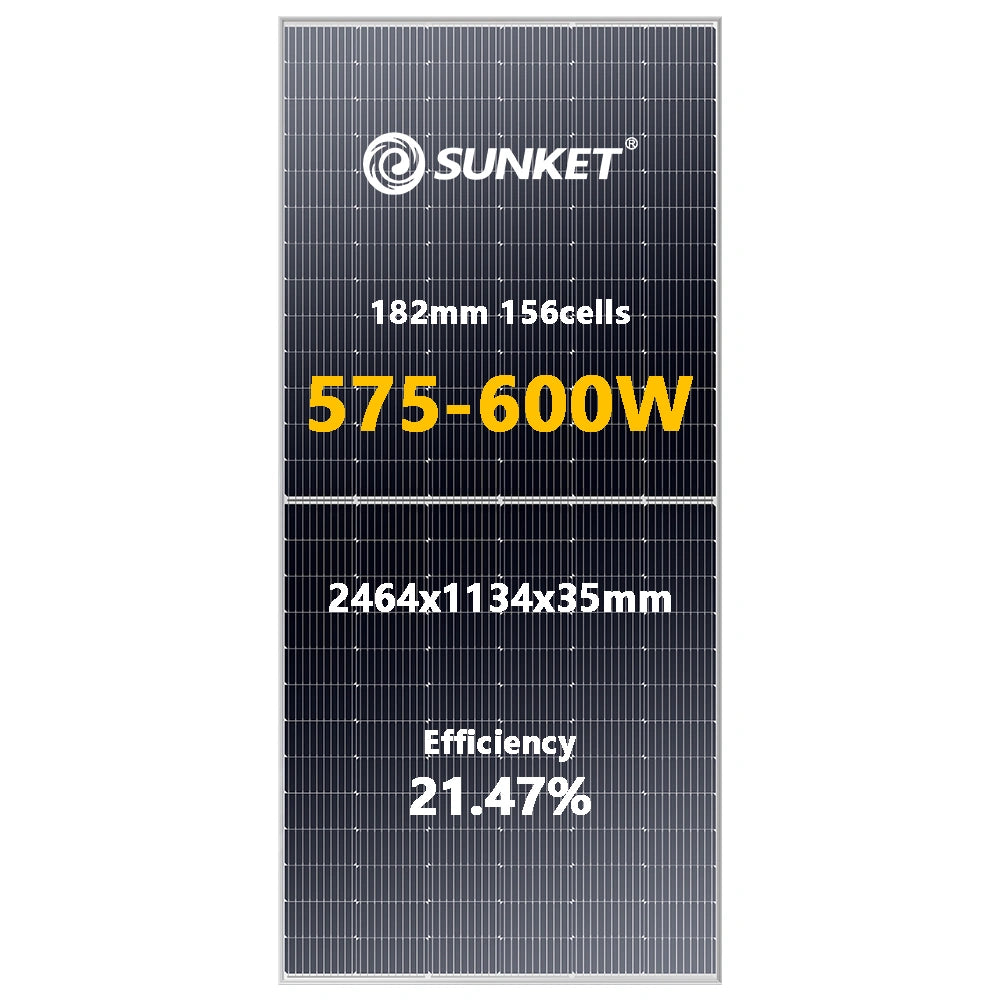

Sunket 580W Solar Panel with a power output of 575-600 watts.
