SunPower Maxeon 6 440W Solar Panel Overview
The SunPower Maxeon 6 440W Solar Panel is a state-of-the-art solar module designed to deliver unmatched efficiency and reliability. With a power output range of 420-440W and an efficiency of up to 22.8%, this panel is part of the innovative SunPower Maxeon product line. The Maxeon 6 is built on decades of design expertise and is backed by hundreds of patents, pushing the boundaries of solar innovation, reliability, and sustainability. The panel's dimensions are 1872 x 1032 x 40 mm, and it weighs 21.8 kg, making it an ideal choice for residential applications.
SunPower Maxeon 6 440W Key Features
- High Efficiency: Achieves up to 22.8% efficiency, providing more power output per surface area.
- Robust Design: Dimensions of 1872 x 1032 x 40 mm and a weight of 21.8 kg, with high-transmission tempered anti-reflective glass and a black anodized aluminum frame.
- Durability: Tested for impact resistance and certified for high wind and snow loads, ensuring long-term reliability.
- Wide Application: Suitable for residential applications, providing maximum energy production and savings advantages.
- Comprehensive Warranty: 25-year SunPower Complete Confidence Panel Warranty, ensuring product reliability and performance.
SunPower Maxeon 6 440W Specs
Electrical and Mechanical Specifications
| Parameter | Value |
|---|---|
| Power Output (Pmax) | 440 W |
| Power Tolerance | +5/-0% |
| Panel Efficiency | Up to 22.8% |
| Dimensions (LxWxH) | 1872 x 1032 x 40 mm |
| Weight | 21.8 kg |
| Number of Cells | 66 Monocrystalline Maxeon Gen 5 |
| Front Cover | High-transmission tempered anti-reflective glass |
| Frame | Black anodized aluminum (highest AAMA rating) |
| Junction Box | IP-68, TE (PV4S), 3 bypass diodes |
| Cable Length | 1320 mm +/- 10 mm |
| Max. System Voltage | 1000 V IEC |
| Maximum Series Fuse | 20 A |
| Operating Temperature | -40°C to +85°C |
Electrical Performance (STC)
| Parameter | SPR-MAX6-440 | SPR-MAX6-435 | SPR-MAX6-425 | SPR-MAX6-420 |
|---|---|---|---|---|
| Nominal Power (Pnom) | 440 W | 435 W | 425 W | 420 W |
| Panel Efficiency | 22.8% | 22.5% | 22.0% | 21.7% |
| Rated Voltage (Vmp) | 40.5 V | 40.3 V | 39.8 V | 39.6 V |
| Rated Current (Imp) | 10.87 A | 10.82 A | 10.68 A | 10.62 A |
| Open-Circuit Voltage (Voc) | 48.2 V | 48.2 V | 48.1 V | 48.1 V |
| Short-Circuit Current (Isc) | 11.58 A | 11.57 A | 11.55 A | 11.53 A |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Temperature Coefficient of Pmax | -0.29% / °C |
| Temperature Coefficient of Voc | -0.239% / °C |
| Temperature Coefficient of Isc | +0.057% mA / °C |
Mechanical Characteristics
| Parameter | Value |
|---|---|
| Dimensions (LxWxH) | 1872 x 1032 x 40 mm |
| Weight | 21.8 kg |
| Solar Cells | 66 Monocrystalline Maxeon Gen 5 |
| Front Cover | High-transmission tempered anti-reflective glass |
| Frame | Black anodized aluminum |
| Junction Box | IP-68, TE (PV4S), 3 bypass diodes |
| Cable Length | 1320 mm +/- 10 mm |
Certifications and Tests
| Certification | Details |
|---|---|
| Standard Tests | IEC 61215, IEC 61730 |
| Quality Management | ISO 9001:2015, ISO 14001:2015 |
| Ammonia Test | IEC 62716 |
| Desert Test | IEC 60068-2-68, MIL-STD-810G |
| Salt Spray Test | IEC 61701 (maximum severity) |
| PID Test | 1000 V, IEC 62804 |
| Available Listings | TUV |
Sustainability and Certifications
- IFU Declare Label: First solar panel labeled for ingredient transparency and LBC-compliance.
- Cradle to Cradle Certified™ Bronze: Recognized for material health, water stewardship, material reutilization, renewable energy & carbon management, and social fairness.
- Green Building Certification Contribution: Panels can contribute additional points toward LEED and BREEAM certifications.
- EHS Compliance: RoHS, OHSAS 18001:2007, lead-free, REACH SVHC-163.
The SunPower Maxeon 6 440W Solar Panel combines cutting-edge solar technology with robust construction and comprehensive warranties to deliver superior performance and long-term reliability. With its high efficiency, durable design, and sustainability credentials, this panel is an excellent choice for residential solar applications, ensuring maximum energy production and savings.

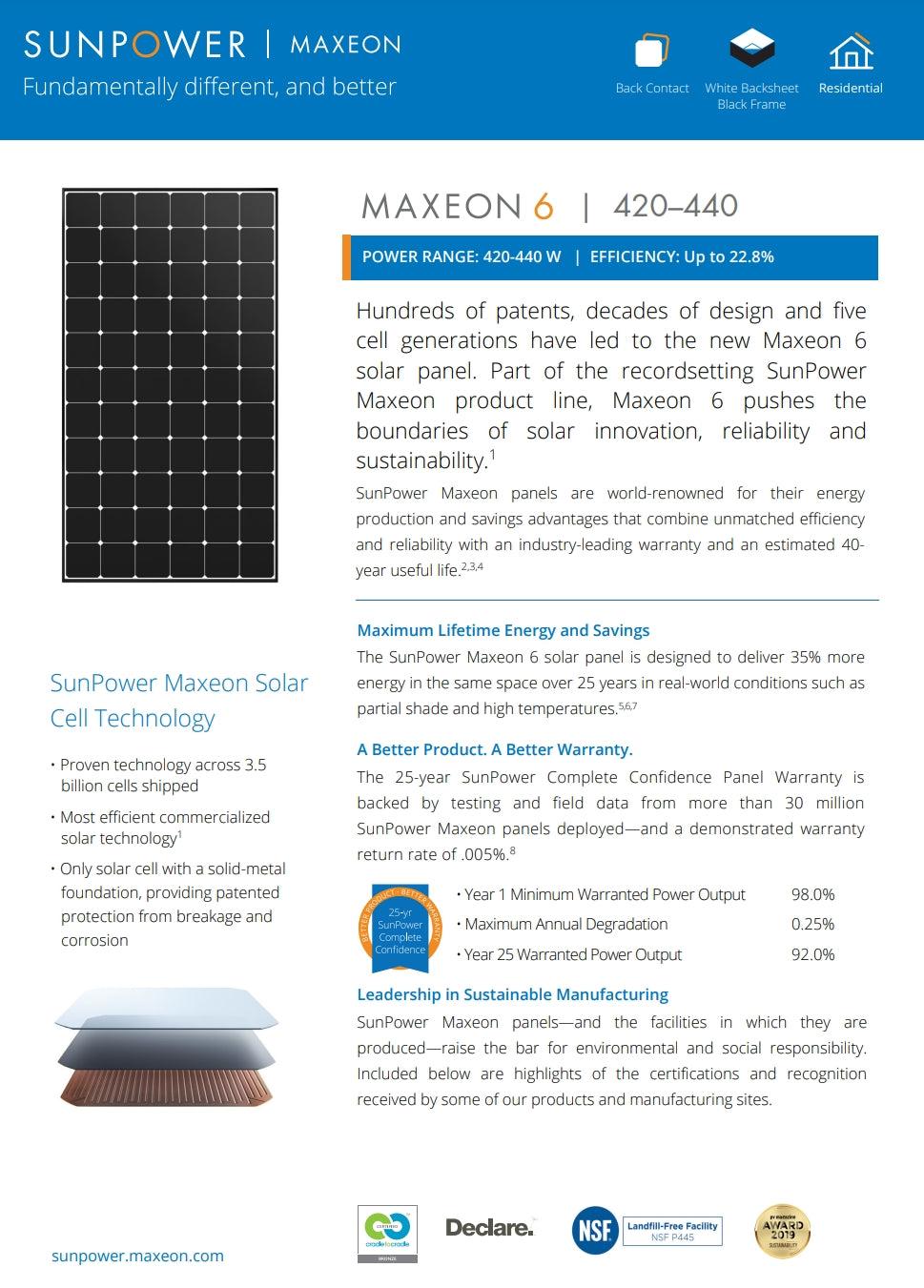

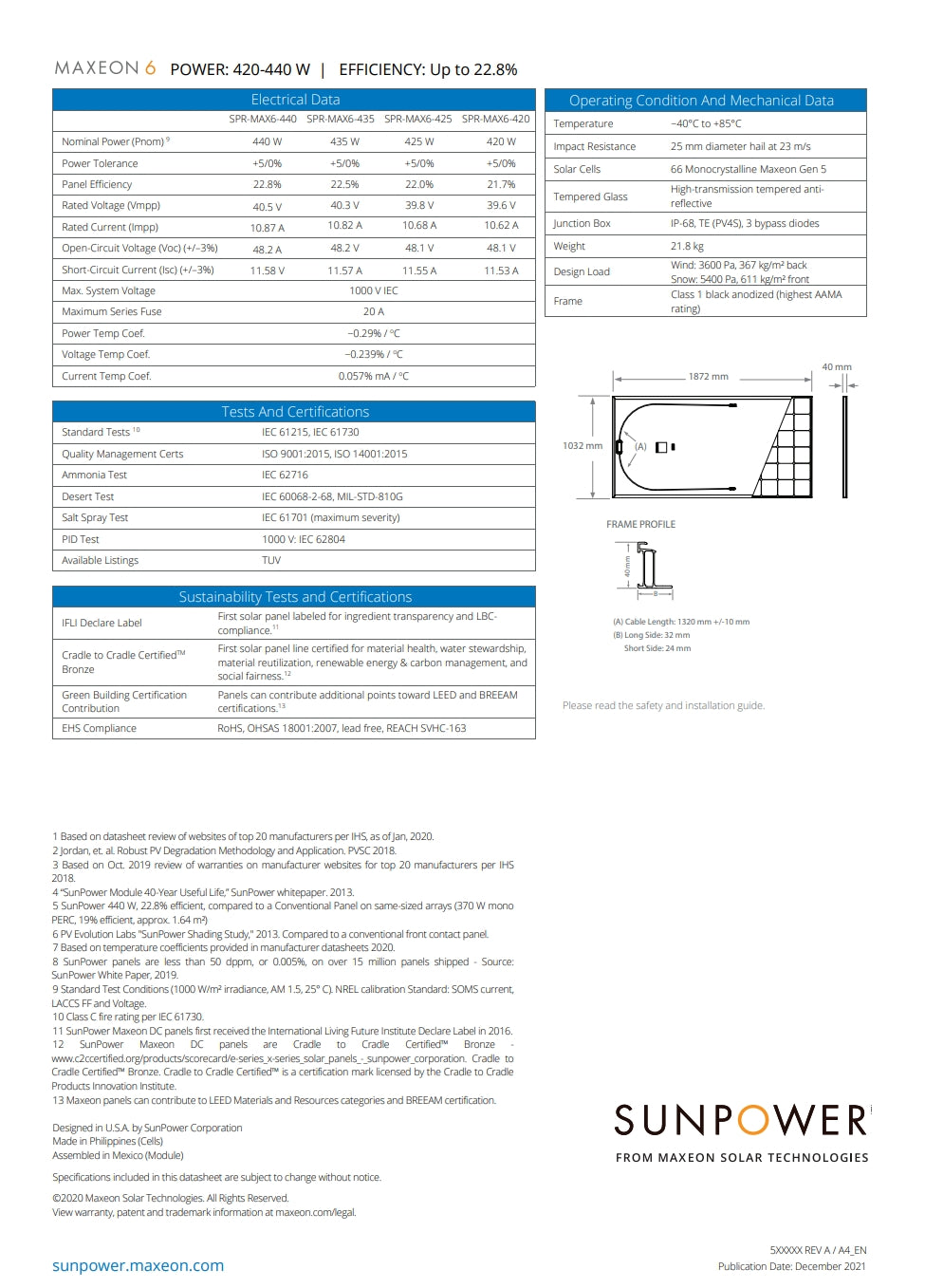

SunPower Maxeon 6 440W Datasheet
Discover the innovative SunPower Maxeon 6 solar panel, delivering up to 22.8% efficiency and a powerful 420-440W output. With hundreds of patents and decades of design experience, this panel pushes the boundaries of solar innovation, reliability, and sustainability. Enjoy unmatched efficiency, reliability, and an industry-leading 25-year warranty. Maxeon panels are renowned for their production and savings advantages, combining high efficiency with long-term durability. Designed to deliver more energy in the same space over 25 years, these panels excel in real-world conditions like partial shade and high temperatures. Backed by rigorous testing and field data from over 30 million deployed panels, SunPower's Complete Confidence Warranty provides peace of mind for your solar investment.
SunPower Maxeon 6 440W Solar Panel: • Power: 420-440 watts • Efficiency: Up to 22.8% • Operating Conditions: -40°C to +85°C • Electrical Data: Nominally 9A (440W), 10.87A (435W), etc. • Mechanical Data: Junction Box IP68, Tempered Glass, etc. • Rated Voltage and Current: 40.5V/10.87A, 40.3V/10.82A, etc. • Weight: 21.8kg • Certifications: IEC 61215, IEC 61730, ISO 9001, etc. • Tests: Desert Test, Salt Spray Test, PID Test, etc. • Available Listings: TUV Sustainability, Declare Label, Cradle to Cradle Certified Bronze Note: This rewritten text is grammatically correct and concise, while still conveying the key information about the SunPower Maxeon 6 440W Solar Panel. The original text was a result of OCR (Optical Character Recognition) and may have contained errors and grammatical issues.
