TATA Solar Panel 540W Overview
The TATA Power Solar 540W TP540HG10B Bifacial Mono PERC Solar Panel is a high-performance solar module designed for both durability and efficiency. This bifacial solar panel features advanced Mono PERC (Passivated Emitter and Rear Cell) technology, allowing it to capture sunlight from both sides, thereby maximizing energy output. With a robust glass-on-glass construction and a heavy-duty 6005-T6 grade aluminum frame, this panel is built to withstand challenging environmental conditions while delivering reliable performance.
Tata 540W Solar Panel Key Features:
- 21.29% Maximum Module Efficiency: Ensures high energy conversion rates for maximum power output.
- 550W Power Output: Delivers substantial energy production suitable for large-scale installations.
- Bifacial Design: Captures sunlight from both the front and back, enhancing energy yield by utilizing reflected light.
- PID Resistant Module: Ensures long-term reliability and performance by preventing potential-induced degradation.
- IP68 Rated Junction Box: Provides superior protection against dust and water, ensuring durability in harsh environments.
- Certified to Withstand Snow Loads up to 5400Pa: Built to endure extreme weather conditions.

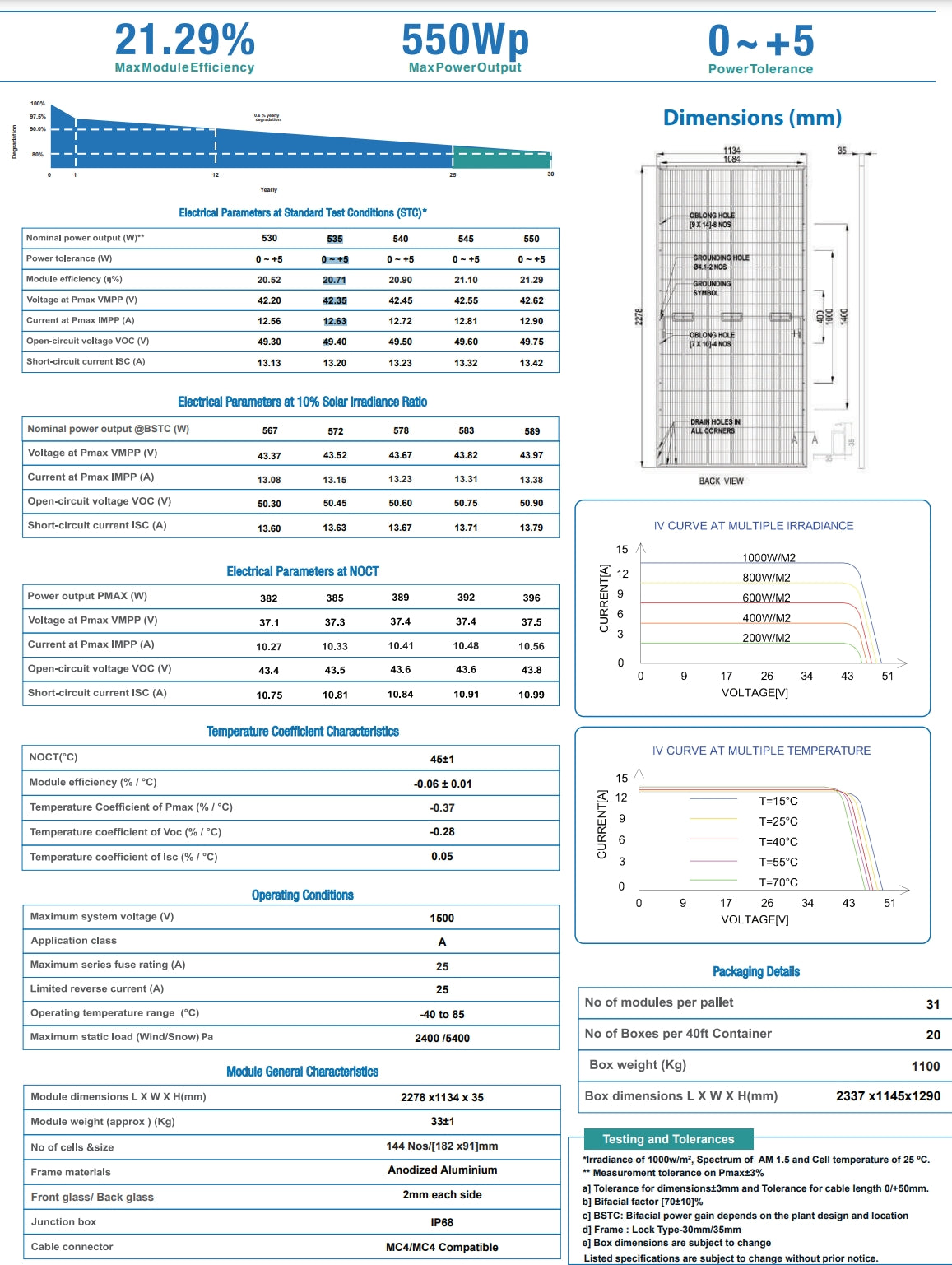

Tata Solar panel 545 watt datasheet
Electrical Parameters at Standard Test Conditions (STC)
| Parameter | 530W | 535W | 540W | 545W | 550W |
|---|---|---|---|---|---|
| Nominal Power Output (W) | 530 | 535 | 540 | 545 | 550 |
| Power Tolerance (W) | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 |
| Module Efficiency (%) | 20.65 | 20.85 | 21.07 | 21.17 | 21.29 |
| Voltage at Pmax VMPP (V) | 42.20 | 42.35 | 42.45 | 42.55 | 42.62 |
| Current at Pmax IMPP (A) | 12.57 | 12.65 | 12.72 | 12.81 | 12.90 |
| Open-Circuit Voltage VOC (V) | 49.30 | 49.40 | 49.50 | 49.60 | 49.75 |
| Short-Circuit Current ISC (A) | 13.13 | 13.20 | 13.23 | 13.32 | 13.42 |
Electrical Parameters at NOCT
| Parameter | 530W | 535W | 540W | 545W | 550W |
|---|---|---|---|---|---|
| Nominal Power Output (W) | 382 | 385 | 389 | 392 | 396 |
| Voltage at Pmax VMPP (V) | 37.1 | 37.3 | 37.4 | 37.4 | 37.5 |
| Current at Pmax IMPP (A) | 10.27 | 10.33 | 10.41 | 10.48 | 10.56 |
| Open-Circuit Voltage VOC (V) | 43.4 | 43.5 | 43.6 | 43.8 | 44.0 |
| Short-Circuit Current ISC (A) | 10.75 | 10.81 | 10.84 | 10.91 | 10.99 |
Temperature Coefficient Characteristics
| Parameter | Details |
|---|---|
| NOCT (°C) | 45 ± 2 |
| Temperature Coefficient of Pmax (%/°C) | -0.37 |
| Temperature Coefficient of Voc (%/°C) | -0.28 |
| Temperature Coefficient of Isc (%/°C) | +0.06 |
Operating Conditions
| Parameter | Details |
|---|---|
| Maximum System Voltage (V) | 1500 |
| Application Class | A |
| Maximum Series Fuse Rating (A) | 25 |
| Limited Reverse Current (A) | 25 |
| Operating Temperature Range (°C) | -40 to +85 |
| Maximum Static Load (Wind/Snow) (Pa) | 2400/5400 |
Module General Characteristics
| Parameter | Details |
|---|---|
| Module Dimensions (L x W x H) (mm) | 2278 x 1134 x 35 |
| Module Weight (approx.) (Kg) | 33 ± 1 |
| Number of Cells & Size | 144 Nos (182 x 91 mm) |
| Frame Materials | Anodized Aluminum |
| Front Glass/Back Glass | 2mm each side |
| Junction Box | IP68 |
| Cable Connector | MC4/MC4 Compatible |
Packaging Details:
- Number of Modules per Pallet: 31
- Number of Boxes per 40ft Container: 20
- Box Weight (Kg): 1100
- Box Dimensions (L x W x H) (mm): 2337 x 1145 x 1290
The TATA 540W Solar Panel TP540HG10B Bifacial Mono PERC Solar Panel is an ideal choice for those seeking high performance and reliability in their solar energy systems. Whether for large-scale commercial installations or residential projects, this solar panel provides superior efficiency, durability, and a robust design that can withstand even the most challenging environmental conditions.

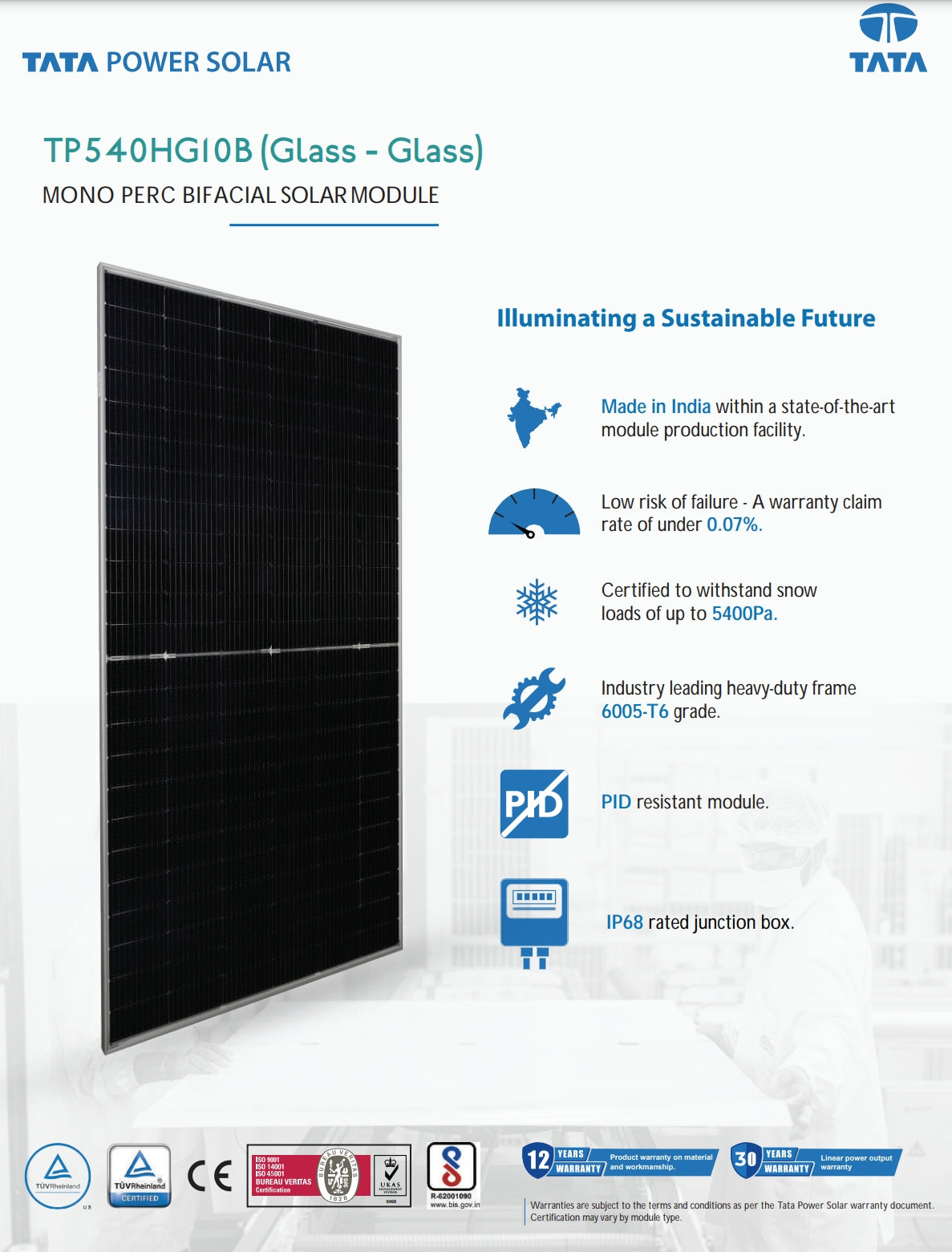

Tata Power Solar Tata TPS40HGIOB (Glass-Glass) Mono PERC Bifacial Solar Module Illuminating a Sustainable Future Made in India within a state-of-the-art module production facility. Low risk of failure, warranty claim rate under 0.07%. Certified to withstand snow loads up to 5400 Pa. Industry-leading heavy-duty frame 6005-T6 grade. PID-resistant module with IP68-rated junction box. VERSA product warranty on material for 30 years; linear output 18,581 MW. Certified by BUREAU VERITAS.
Tata Solar Panel 540W Product Specifications Maximum power output: 550Wp Power tolerance: 0% to +5% Module efficiency: 21.29% Dimensions (mm): 2278 x 1134 x 35 Electrical parameters at STC: Nominal power output: 540W Voltage at Pmax: 42.62V Current at Pmax: 12.90A Open-circuit voltage: 49.75V Short-circuit current: 13.42A IV curve characteristics: Power output at NOCT: 382W Voltage at Pmax: 37.5V Current at Pmax: 10.56A
