Thornova 580W Solar Panel Product Description
Overview
The Thornova 580W Solar Panel, model TS-BGT72-580, is a high-efficiency, bifacial dual glass TOPCon module. Utilizing advanced N-type half-cut cell technology, the Thornova 580W Solar Panel delivers superior power output and reliability, making it suitable for residential, commercial, and industrial applications.
Key Specifications
Parameter | Value |
---|---|
Brand | Thornova Solar |
Model | TS-BGT72-580 |
Power Output | 580W |
Peak Efficiency | 22.45% |
Type | 144-Half-Cell Module |
Facial | Bifacial |
Connection | MC4 |
Container Quantity | 558 |
Cell Count | 72 |
Frame Colour | Silver |
Backsheet Colour | N/A |
Pallet Quantity | 31 |
Thickness | 35mm |
Cell Type | N-type Monocrystalline |
Weight | 32.0445 kg |
Dimensions | 113.4 × 3.5 cm |
Product Model Number | TS-BG72(580) |
Colour | Silver/N/A (Frame/Backsheet) |
Details | TOPCon Technology |
Features
The Thornova 580W Solar Panel comes with a range of advanced features that enhance its performance and reliability:
- Bifacial Technology: Generates power from both sides of the panel, increasing overall efficiency and power output.
- High Efficiency: With a module efficiency of up to 22.45%, the Thornova 580W Solar Panel is one of the most efficient panels available.
- Half-Cut Cells: Reduces resistance and increases current, leading to higher power output.
- N-Type Cells: Known for high efficiency and low degradation, ensuring a longer lifespan.
- Durability: Designed to withstand harsh weather conditions, making it ideal for outdoor applications.
- Low Light Performance: Maintains excellent performance even in low light conditions.
- Thermal Performance: Industry-leading lowest thermal coefficient of power.
- Optimized Design: Lower operating current design minimizes hot spots and improves temperature coefficient.
Certifications and Insurance
- ISO 9001: Quality Management System
- ISO 14001: Environmental Management System Standard
- ISO 45001: International Occupational Health and Safety Management System Standard
- Product Quality and Process Guarantee: 15 years
- Linear Power Guarantee: 30 years, with an annual degradation rate of 0.40%
- Insurance: Performance guarantee insurance by Munich RE and Ariel Re
Structural Characteristics
- Dimensions: 2278 x 1134 x 35 mm
- Weight: 32.3 kg
- Number of Cells: 144
- Cell Type: N-type monocrystalline 182 x 91 mm
- Glass: Dual-layer anti-reflection coated, heat-strengthened glass
- Frame: Anodized aluminum alloy
- Junction Box: IP68, 3 bypass diodes
- Output Wire: 4.0 mm²
- Wire Length: 300 mm / 1200 mm / customized length
- Connector: MC4 - EVO2
- Packaging Specification: 31 panels per pallet, 558 panels per 40HQ container
Operating Parameters
- Power Tolerance: 0~+5W
- Maximum System Voltage: 1500V
- Maximum Rated Fuse Current: 25A
- Operating Temperature Range: -40°C to +85°C
- Bifaciality: 80±5%
- Mechanical Loading: Front side maximum static loading 5400Pa, back side maximum static loading 2400Pa
- Temperature Coefficient (Pmax): -0.30%/°C
- Temperature Coefficient (Voc): -0.28%/°C
- Temperature Coefficient (Isc): +0.048%/°C
- Nominal Operating Cell Temperature (NOCT): 45±2°C
These specifications and features of the Thornova 580W Solar Panel demonstrate its high efficiency, durability, and wide applicability, making it an ideal choice for various solar energy applications. By choosing the Thornova 580W Solar Panel, users benefit from enhanced power generation, longer lifespan, and significant cost savings. The Thornova 580W Solar Panel stands out as a top-tier option for those seeking reliable and efficient solar energy solutions.

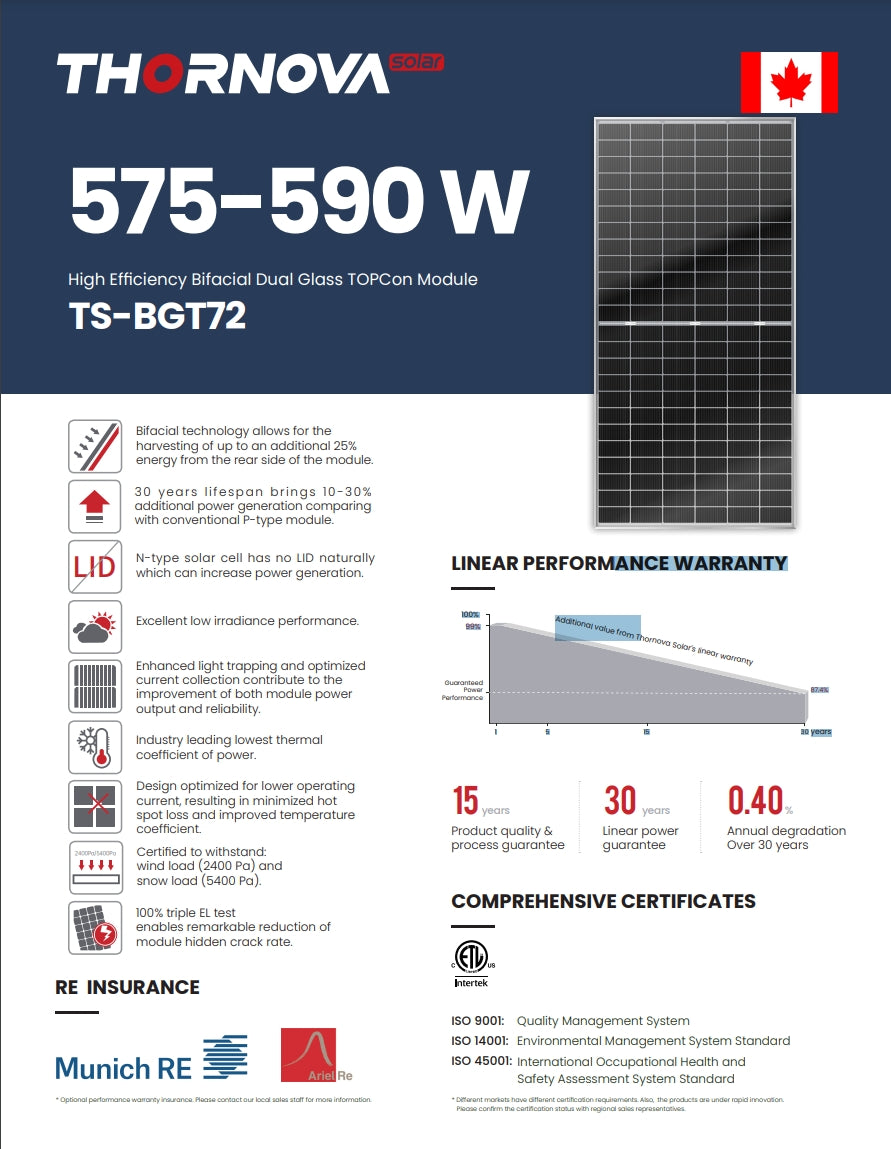

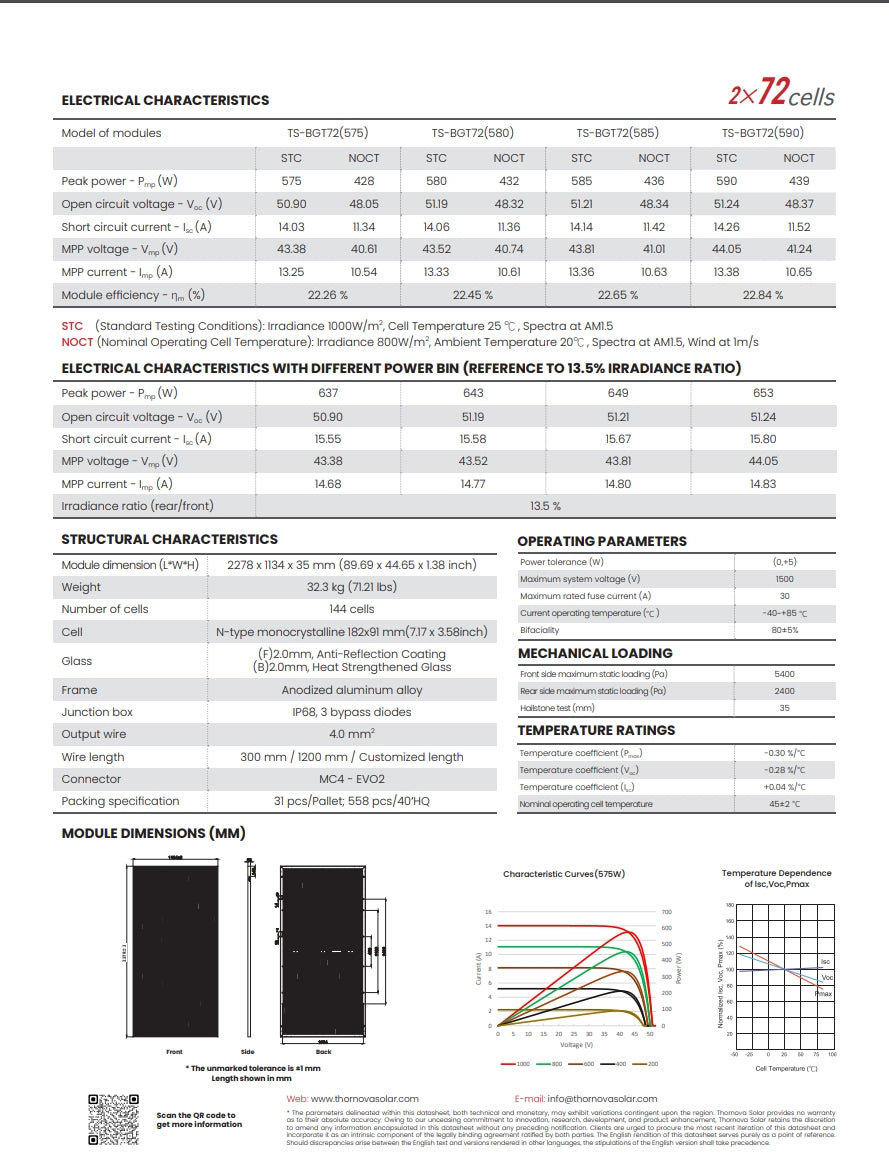

Thornova 580W Datasheet
Thornova's 580W Bifacial Solar Panel features high-efficiency bifacial technology, allowing for up to 25% additional energy harvesting from the rear side. With a lifespan of 30 years, this dual-glass TOPCon module offers enhanced power generation and reliability. It boasts excellent low irradiance performance, linear power output, and industry-low thermal coefficient of power. Certified to withstand over 30 years of wind and snow loads, this product guarantees 100% triple EL test and remarkable reduction in hidden crack rates.
