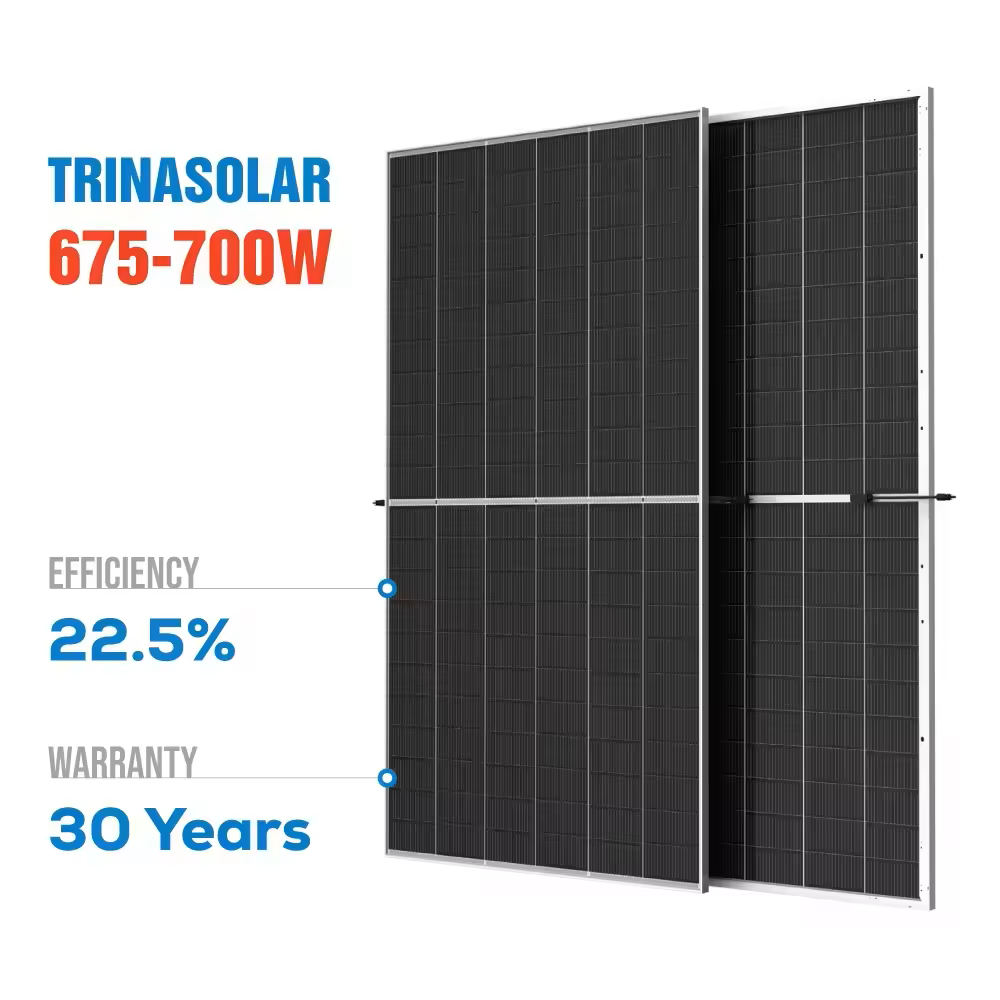

Trina 700 Watt Solar Panel Overview
The Trina 700 Watt Solar Panel is engineered for exceptional performance, utilizing advanced N-type TOPCon technology. With a power output range of 675-700W, this panel features a half-cell, bifacial, double-glass design. Measuring 2384 x 1303 x 33mm, it delivers an impressive efficiency of 22.5%. Built with monocrystalline cells, it comprises 132 cells in total. The panel also includes an IP68 rated junction box, ensuring superior water and dust resistance. Backed by a 30-year warranty, this solar panel is an ideal choice for both residential and commercial applications.
Trina 700 Watt Solar Panel Specifications
Attribute | Specification |
---|---|
Core Parameters | |
Power Output | 675-700W |
Dimensions | 2384 x 1303 x 33mm |
Efficiency | 22.5% |
Cell Type | Monocrystalline |
No. of Cells | 132 cells |
Waterproof Rating | IP68 |
Warranty | 30 years |
Industry-specific Attributes | |
Cell Size | 210mm x 210mm |
Type | Half Cell, Bifacial, Double-glass, HJT, N-TYPE, TOPCON, BIPV, Overlapping |
Encapsulant Material | EVA |
Other Attributes | |
Place of Origin | Anhui, China |
Brand Name | Trina |
Model Number | TSM-NEG21C.20 675-700M |
Backsheet | White |
Weight | 33.7kg |
Certificate | CE, TUV |
Trina Solar 700W Solar Panel Highlights
High Customer Value
- The Trina Solar panel stands out with its low Levelized Cost Of Energy (LCOE) due to its higher string power feature, which effectively reduces Balance of System (BOS) costs.
- The advanced N-type i-TOPCon technology ensures more energy harvest and compatibility with existing mainstream system components.
High Reliability
- The panel features innovative non-destructive cutting technology that minimizes micro-cracks.
- It offers excellent PID resistance through cell process and module material control.
- It is designed to withstand harsh environments including high salt, ammonia, sand, high temperature, and high humidity.
- Mechanical performance can endure up to 5400 Pa positive load and 2400 Pa negative load.
High Power Output
- Capable of reaching up to 700W power output with a 22.5% module efficiency.
- Utilizes SMB (Super Multi-Busbar) technology for better light trapping effect, lower series resistance, and improved current collection.
High Energy Yield
- Excellent IAM (Incident Angle Modifier) and low irradiation performance, validated by third-party certifications.
- Optimized energy production even under inter-row shading conditions.
- Features a lower temperature coefficient (-0.34%) and operating temperature, which can provide up to 30% additional power gain from the backside depending on the albedo.
Certifications and Projects
- The panel has received certifications such as CE, TUV, and INMETRO, ensuring its compliance with international standards.
- Trina Solar panels have been deployed in numerous large-scale projects worldwide, including installations in the US, Chile, Mexico, UK, Greece, Japan, and China.
With these comprehensive attributes and certifications, the Trina 700W Solar Panel is a highly reliable and efficient option for diverse solar power installations.
TrinaSolar 675-700W solar panel features 22.5% efficiency and a 30-year warranty, ideal for reliable renewable energy generation.

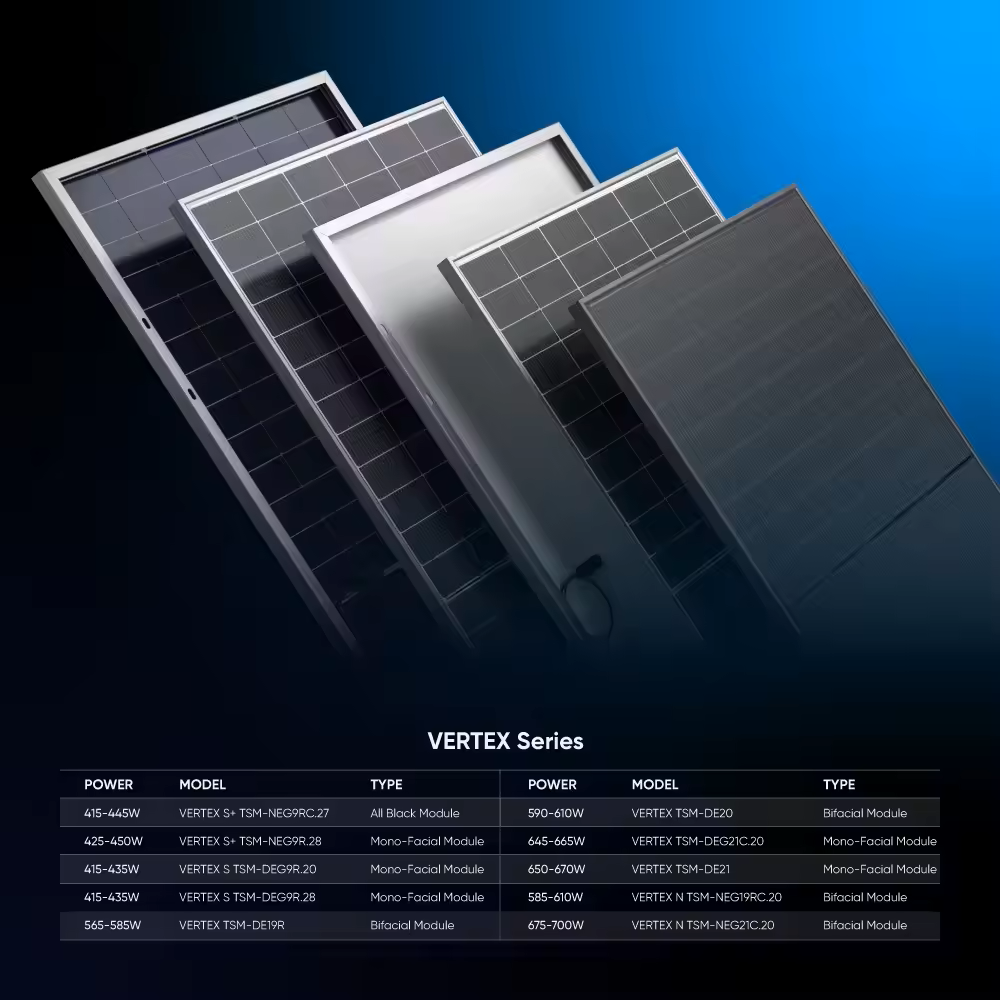

Trina's Vertex N series solar panel features high efficiency with module output ranging from 675W to 700W. With its bifacial design, it can generate up to 30% more power from the back side, depending on albedo. This panel also boasts high reliability, minimized micro cracks, and excellent irradiation performance validated by third-party certifications.
Equipped with 12% ultra-clear tempered glass, high-efficiency SBB cells, and anti-pid design, this solar panel features a tensile strength frame, lower reflection PV cells, and IP67 waterproofness. It also includes an innovative full-glue-filled junction box with MC4 waterproof labels and sealed lips for added durability.
Certified by CE, TÜV, INMETRO, SGS and conforming to certifications like ISO 9001 and ISO 14001, this product meets global standards for quality and environmental responsibility.
Trina's 700W N-type TOPCon Bifacial Vertex Solar Panel features a powerful output and advanced technology for efficient energy harvesting.
