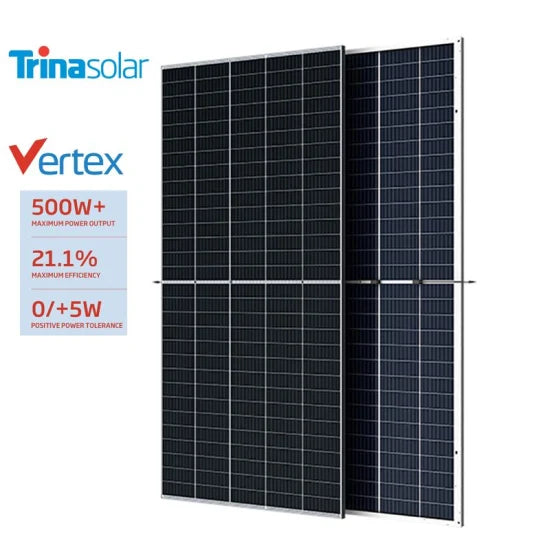

Trina Vertex 500W Monocrystalline Bifacial Solar Panel
The Trina Vertex 500W Monocrystalline Bifacial Solar Panel represents the pinnacle of solar technology, offering both efficiency and durability for large-scale energy projects. Built with 150 monocrystalline cells using cutting-edge 210mm wafers, this panel maximizes energy production with 20.7% efficiency. Its innovative ⅓ split-cell design and high-density interconnect technology ensure higher power output without increasing the physical footprint, making it an excellent choice for residential, commercial, or utility installations.
This bifacial solar panel is designed with a 2mm heat-strengthened glass backsheet, allowing it to capture additional energy from sunlight reflected on surfaces beneath the panel, such as concrete or light gravel. This design can enhance energy yield by up to 25%, making it ideal for ground-mount installations where reflective surfaces are available.
The 25-year product warranty and 25-year power output warranty give you peace of mind, ensuring both high performance and long-term reliability.
Trina Solar 500W Key Features:
- 210mm solar wafers: Deliver exceptional energy output with 20.7% maximum efficiency.
- High-density interconnect design: Ensures excellent energy density for small installation footprints.
- Bifacial design: The glass backsheet allows up to 25% additional power gain by capturing reflected sunlight.
- Durable construction: Rated for 5400 Pa snow loads and 2400 Pa wind loads, making it suitable for harsh climates.
- Multi-busbar technology: Increases light capture and reduces internal resistance for enhanced performance.
- Comprehensive warranty: 25-year product and 25-year performance warranty with the lowest degradation rates in the industry.
Trina 500 Watt Solar Panel Specifications:
| Specification: | TSM-DEG18MC.20-500 |
| Peak Power Watts (PMAX) | 500W |
| Power Tolerance (PMAX) | 0 ~ +5W |
| Maximum Power Voltage (VMPP) | 43.4V |
| Maximum Power Current (IMPP) | 11.53A |
| Open Circuit Voltage (VOC) | 51.5V |
| Short Circuit Current (ISC) | 12.13A |
| STC Efficiency | 20.7% |
| Solar Cells | Monocrystalline |
| Cell Count | 150 |
| Nominal Operating Cell Temperature (NOCT) | 43°C (±2°C) |
| Temperature Coefficient of PMAX | -0.34%/°C |
| Temperature Coefficient of VOC | -0.25%/°C |
| Temperature Coefficient of ISC | 0.04%/°C |
| Operational Temperature | -40~+85°C |
| Maximum System Voltage | 1500VDC |
| Max Series Fuse Rating | 25A |
| Glass | 0.08" (2.0mm) |
| Frame | 35mm anodized aluminium alloy |
| Backsheet | 0.08" (2.0mm) heat-strengthened glass (white grid glass) |
| J-Box | IP 68 rated |
| Connectors | MC4 EVO2 / TS4 |
| Dimensions | 86.1" x 43.39" x 1.38" (2187mm x 1102mm x 35mm) |
| Weight | 66.4 lb (30.1 kg) |
The Trina Vertex 500W Bifacial Solar Panel is an outstanding choice for projects where maximum energy yield and long-term performance are key. Whether you're aiming to power a commercial building, utility project, or a large residential system, this panel offers top-notch reliability, durability, and efficiency that stand the test of time.

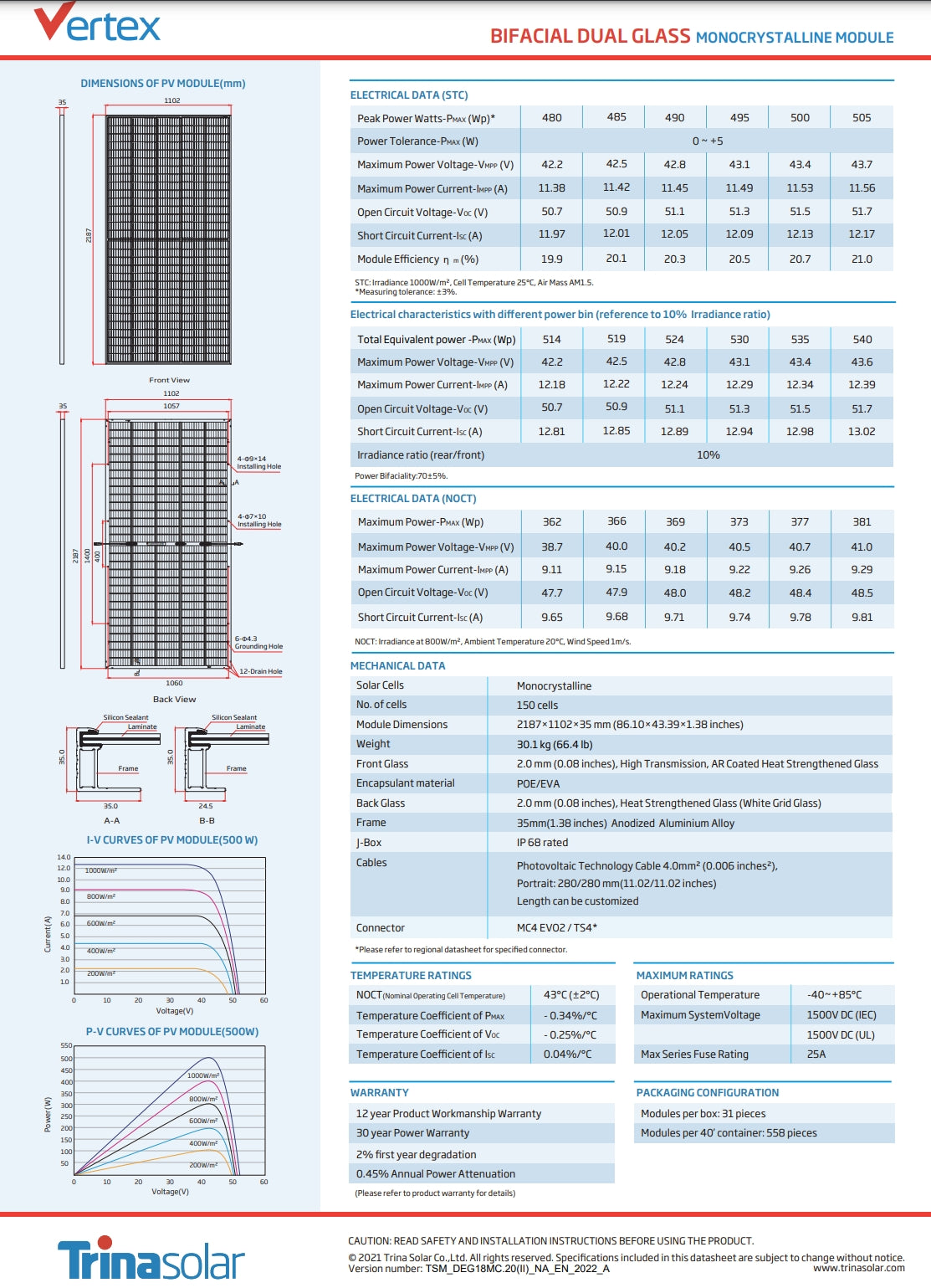

Trina Solar 500W Datasheet
Electrical Specifications (STC):
| Power Class | 480W | 485W | 490W | 495W | 500W | 505W |
|---|---|---|---|---|---|---|
| Power Tolerance (PMAX) | 0 ~ +5W | |||||
| Maximum Power Voltage (VMPP) | 42.2V | 42.5V | 42.8V | 43.1V | 43.4V | 43.7V |
| Maximum Power Current (IMPP) | 11.38A | 11.42A | 11.45A | 11.49A | 11.53A | 11.56A |
| Open Circuit Voltage (VOC) | 50.7V | 50.9V | 51.1V | 51.3V | 51.7V | 51.9V |
| Short Circuit Current (ISC) | 11.97A | 12.01A | 12.05A | 12.09A | 12.13A | 12.17A |
| Module Efficiency (%) | 19.9% | 20.1% | 20.3% | 20.5% | 20.7% | 21.0% |
Electrical Characteristics (NOCT):
| Power Class | 362W | 366W | 369W | 373W | 377W | 381W |
|---|---|---|---|---|---|---|
| Maximum Power Voltage (VMPP) | 38.7V | 40.0V | 40.2V | 40.5V | 40.7V | 41.0V |
| Maximum Power Current (IMPP) | 9.11A | 9.15A | 9.18A | 9.22A | 9.26A | 9.29A |
| Open Circuit Voltage (VOC) | 47.7V | 47.9V | 48.0V | 48.2V | 48.4V | 48.5V |
| Short Circuit Current (ISC) | 9.65A | 9.68A | 9.71A | 9.74A | 9.78A | 9.81A |
Mechanical Data:
| Specification | Details |
|---|---|
| Solar Cells | Monocrystalline |
| Cell Count | 150 cells |
| Module Dimensions | 2187 x 1102 x 35mm (86.1" x 43.39" x 1.38") |
| Weight | 30.1 kg (66.4 lb) |
| Front Glass | 2.0 mm (0.08 inches) High Transmission, AR Coated |
| Back Glass | 2.0 mm (0.08 inches) Heat Strengthened Glass |
| Frame | 35mm (1.38 inches) Anodized Aluminum Alloy |
| Encapsulant Material | POE/EVA |
| Junction Box | IP68 rated |
| Cables | 4.0mm² Photovoltaic Technology Cable |
| Connector | MC4 EVO2 / TS4 |
Temperature Ratings:
- Nominal Operating Cell Temperature (NOCT): 43°C (±2°C)
- Temperature Coefficient of PMAX: -0.34%/°C
- Temperature Coefficient of VOC: -0.25%/°C
- Temperature Coefficient of ISC: +0.04%/°C
Maximum Ratings:
- Operational Temperature: -40°C ~ +85°C
- Maximum System Voltage: 1500V DC (IEC/UL)
- Max Series Fuse Rating: 25A
Warranty:
- 12-year product workmanship warranty
- 30-year power output warranty with 2% first-year degradation and 0.45% annual power attenuation
Packaging Configuration:
- Modules per Box: 31 pieces
- Modules per 40' container: 558 pieces

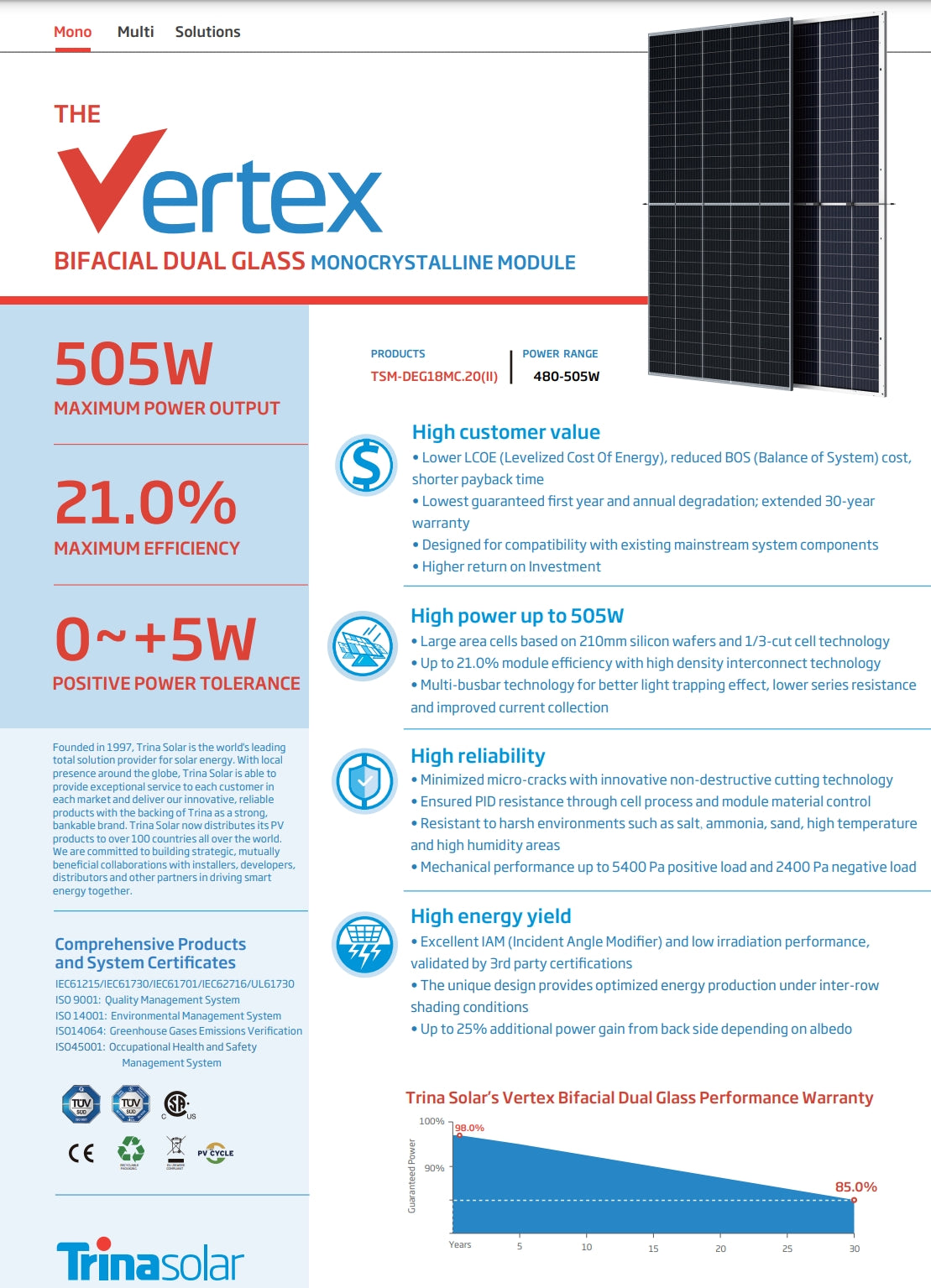

Trina Solar Vertex Bifacial Dual Glass Monocrystalline Module offers a power range of 480-505W, with maximum power output of 505W. This product provides high customer value, lower LCOE, and reduced BOS cost, resulting in a shorter payback time. It features a maximum efficiency of up to 21.0%, with a 30-year warranty. The module is designed for compatibility with existing mainstream system components, offering higher returns on investment.
Trina Solar 500W solar panel features a peak power output of 480-505 watts, making it an ideal choice for residential and commercial applications. The module dimensions are 2187 x 1102 x 35mm, with a weight of 30.1kg. The front glass is high transmission AR coated heat strengthened glass, while the back glass is white grid glass. The encapsulant material is POEZEVA. Peak power: 480-505 watts; Maximum power voltage: 42.2-43.7V; Maximum power current: 11.38-12.56A; Open circuit voltage: 50.7-51.7V; Short circuit current: 11.97-13.02A. Number of cells: 150; Module dimensions: 2187 x 1102 x 35mm; Weight: 30.1kg.
