Trina Solar TSM-DE19R - Vertex 580W Solar Panel (560-580W) Product Description
Trina Solar 580W Solar Panel Overview

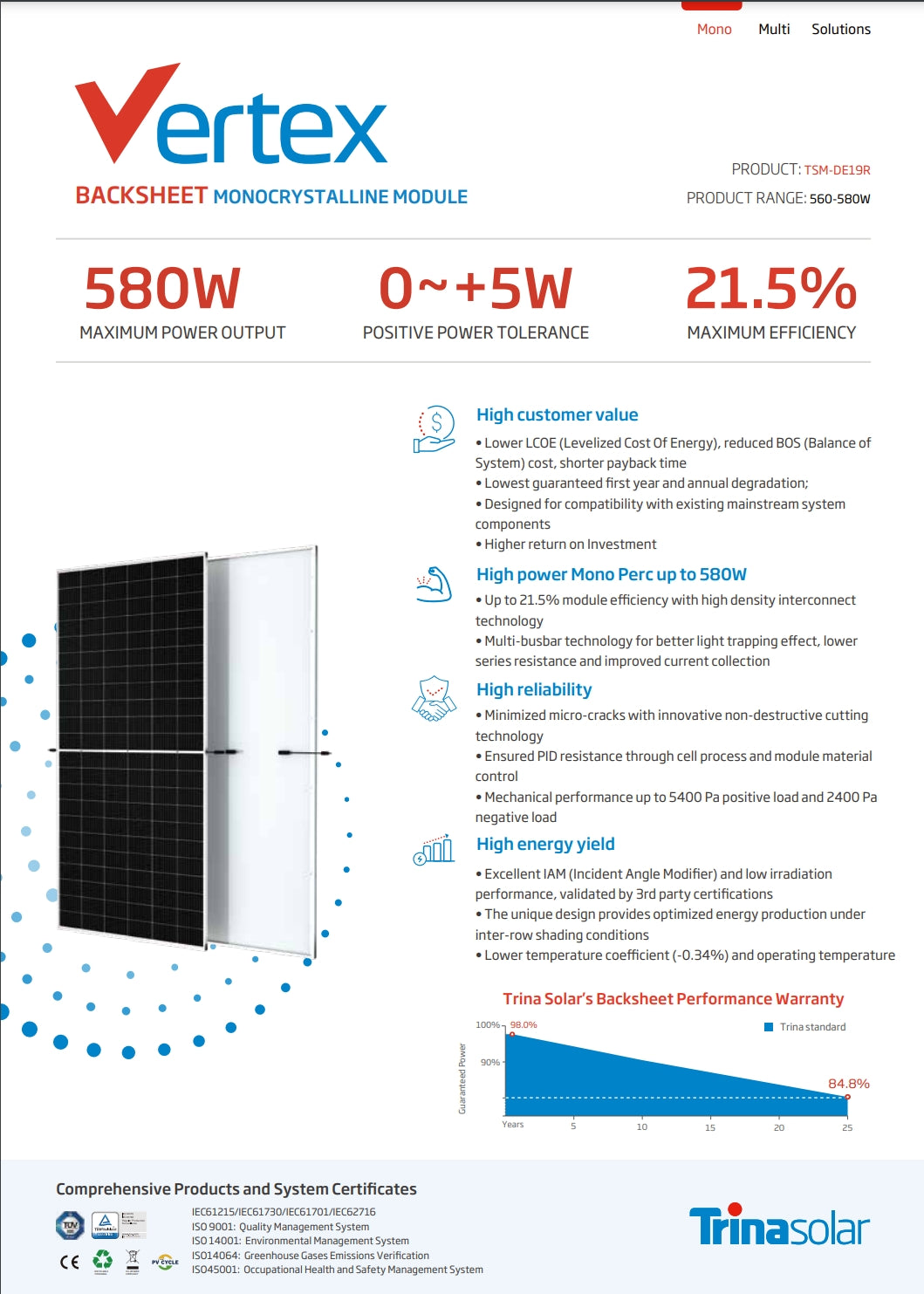

The Trina Solar TSM-DE19R Vertex 580W Solar Panel is a high-efficiency monocrystalline module designed to deliver exceptional power output and reliability. With a maximum power output of 580W, a positive power tolerance of 0~+5W, and an impressive efficiency of 21.5%, this solar panel is engineered to provide superior performance. The module features advanced multi-busbar technology, minimizing micro-cracks and ensuring high reliability. Additionally, the Vertex panel is capable of withstanding up to 5400 Pa positive load and 2400 Pa negative load, making it robust enough for diverse environmental conditions. It also boasts an excellent temperature coefficient of -0.34%/°C, ensuring optimal performance even in high-temperature environments.
Trina Solar 580W Solar Panel Features:
- Maximum Power Output: 580W
- Positive Power Tolerance: 0~+5W
- Maximum Efficiency: 21.5%
- Cell Type: 132 monocrystalline cells
- Mechanical Load Capacity: 5400 Pa positive, 2400 Pa negative
High Customer Value:
- Lower LCOE (Levelized Cost Of Energy): Reduced BOS (Balance of System) cost and shorter payback time.
- Low Degradation: Guaranteed lowest first-year and annual degradation.
- Compatibility: Designed for use with mainstream system components.
- Return on Investment: Ensures higher returns on investment.
High Power Mono PERC:
- Up to 580W Output: High-density interconnect technology boosts power output.
- Multi-busbar Technology: Enhances light trapping, lowers series resistance, and improves current collection.
High Reliability:
- Micro-crack Minimization: Uses innovative non-destructive cutting technology.
- PID Resistance: Ensured through advanced cell process and module material control.
- Mechanical Performance: Withstands up to 5400 Pa positive load and 2400 Pa negative load.
High Energy Yield:
- Excellent IAM (Incident Angle Modifier) and Low Irradiation Performance: Validated by third-party certifications.
- Optimized Design: Reduces energy loss under inter-row shading conditions and lower temperature coefficient (-0.34%) and operating temperature.

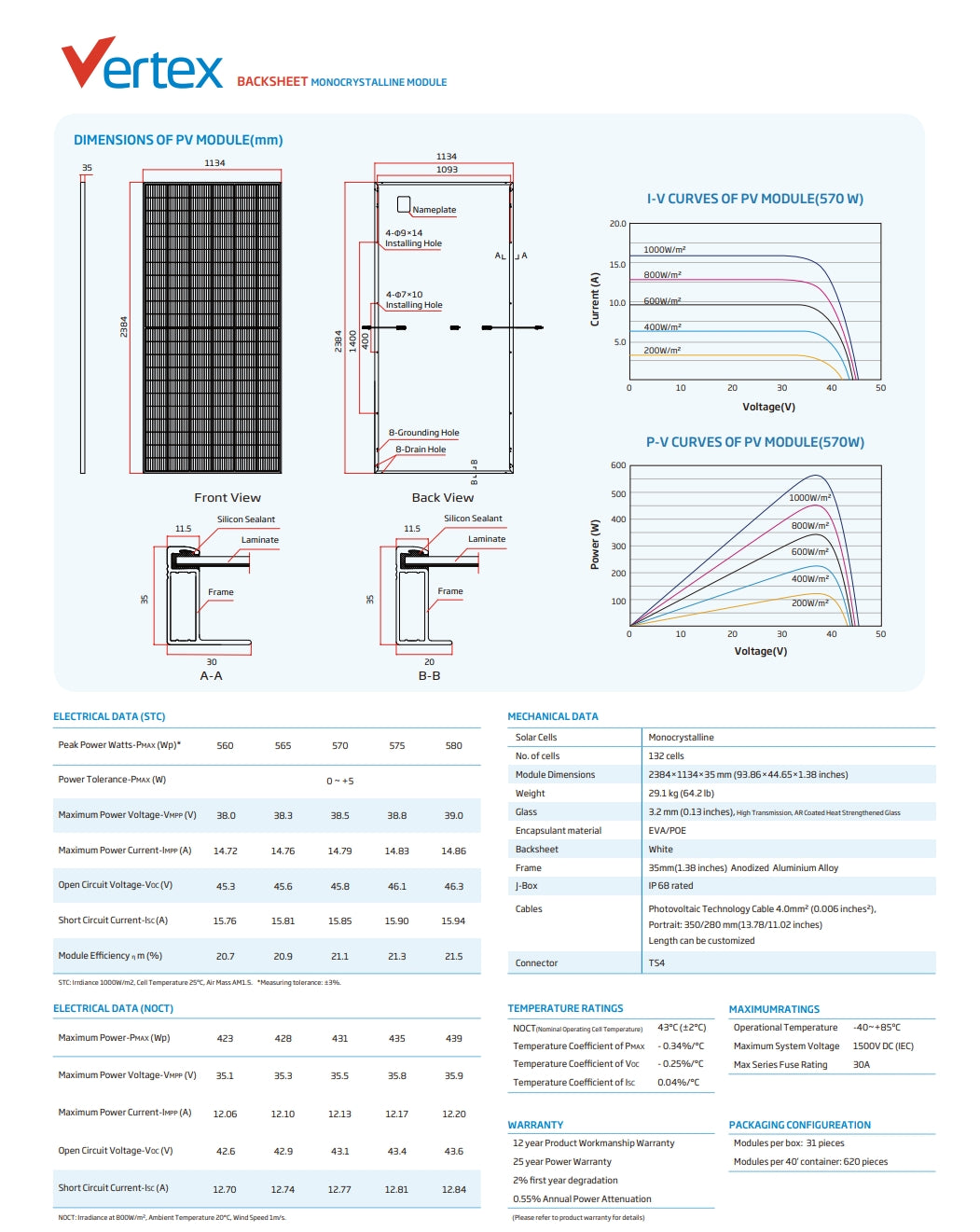

Trina Vertex 580 Watt Solar Panel Specifications
Dimensions and Mechanical Data:
Parameter | Value |
---|---|
Length | 2384 mm |
Width | 1134 mm |
Height | 35 mm |
Weight | 29.1 kg |
Electrical Data (STC):
Parameter | 560W | 565W | 570W | 575W | 580W |
---|---|---|---|---|---|
Power Tolerance (W) | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 |
Maximum Power Voltage (Vmp) | 38.0 | 38.3 | 38.5 | 38.8 | 38.8 |
Maximum Power Current (Imp) | 14.72 | 14.76 | 14.79 | 14.83 | 14.93 |
Open Circuit Voltage (Voc) | 45.3 | 45.6 | 45.8 | 46.1 | 46.3 |
Short Circuit Current (Isc) | 15.76 | 15.81 | 15.85 | 15.90 | 15.95 |
Module Efficiency (%) | 20.7 | 20.9 | 21.0 | 21.3 | 21.5 |
Electrical Data (NOCT):
Parameter | 560W | 565W | 570W | 575W | 580W |
---|---|---|---|---|---|
Maximum Power (Pmax) | 423 | 428 | 431 | 435 | 439 |
Maximum Power Voltage (Vmp) | 35.1 | 35.3 | 35.5 | 35.8 | 35.9 |
Maximum Power Current (Imp) | 12.06 | 12.10 | 12.13 | 12.17 | 12.20 |
Open Circuit Voltage (Voc) | 42.6 | 42.7 | 42.9 | 43.0 | 43.2 |
Short Circuit Current (Isc) | 12.70 | 12.74 | 12.77 | 12.81 | 12.84 |
Mechanical Data:
Parameter | Value |
---|---|
Solar Cells | Monocrystalline |
Number of Cells | 132 cells |
Module Dimensions | 2384 × 1134 × 35 mm (93.86 × 44.65 × 1.38 inches) |
Weight | 29.1 kg (64.2 lbs) |
Glass | 3.2 mm (0.13 inches), high transmission, AR coated heat strengthened glass |
Encapsulation Material | EVA/POE |
Backsheet | White |
Frame | 35 mm (1.38 inches) anodized aluminum alloy |
J-Box | IP68 rated |
Cables | Photovoltaic technology cable 4.0 mm² (0.006 inches²), customizable length |
Temperature Ratings:
Parameter | Value |
---|---|
NOCT (Nominal Operating Cell Temperature) | 43°C ± 2°C |
Temperature Coefficient of Pmax | -0.34%/°C |
Temperature Coefficient of Voc | -0.28%/°C |
Temperature Coefficient of Isc | 0.04%/°C |
Maximum Ratings:
Parameter | Value |
---|---|
Operational Temperature | -40°C ~ +85°C |
Maximum System Voltage | 1500V DC (IEC) |
Max Series Fuse Rating | 30A |
Warranty:
Warranty Type | Coverage |
---|---|
Product Workmanship Warranty | 12 years |
Power Warranty | 25 years |
First-year Degradation | 1% |
Annual Power Attenuation | 0.55% |
Packaging Configuration:
Parameter | Value |
---|---|
Modules per Box | 31 pieces |
Modules per 40' Container | 620 pieces |
Trina 580W Solar Panel Benefits
- Lower LCOE and BOS Costs: The Vertex module's high efficiency reduces overall system costs and shortens the payback period, providing a higher return on investment.
- High Efficiency: With up to 21.5% efficiency, the Vertex module maximizes energy production even in low light conditions, validated by third-party certifications.
- Enhanced Durability: The module's robust design and innovative cutting technology ensure long-term reliability, withstanding significant mechanical loads.
- Optimized Energy Yield: The advanced multi-busbar design and excellent IAM performance ensure superior energy output, even under challenging environmental conditions.
- Superior Warranty: The 12-year product workmanship warranty and 25-year linear power warranty provide peace of mind and assurance of long-term performance.
Trina Solar 580W Solar Panel Details

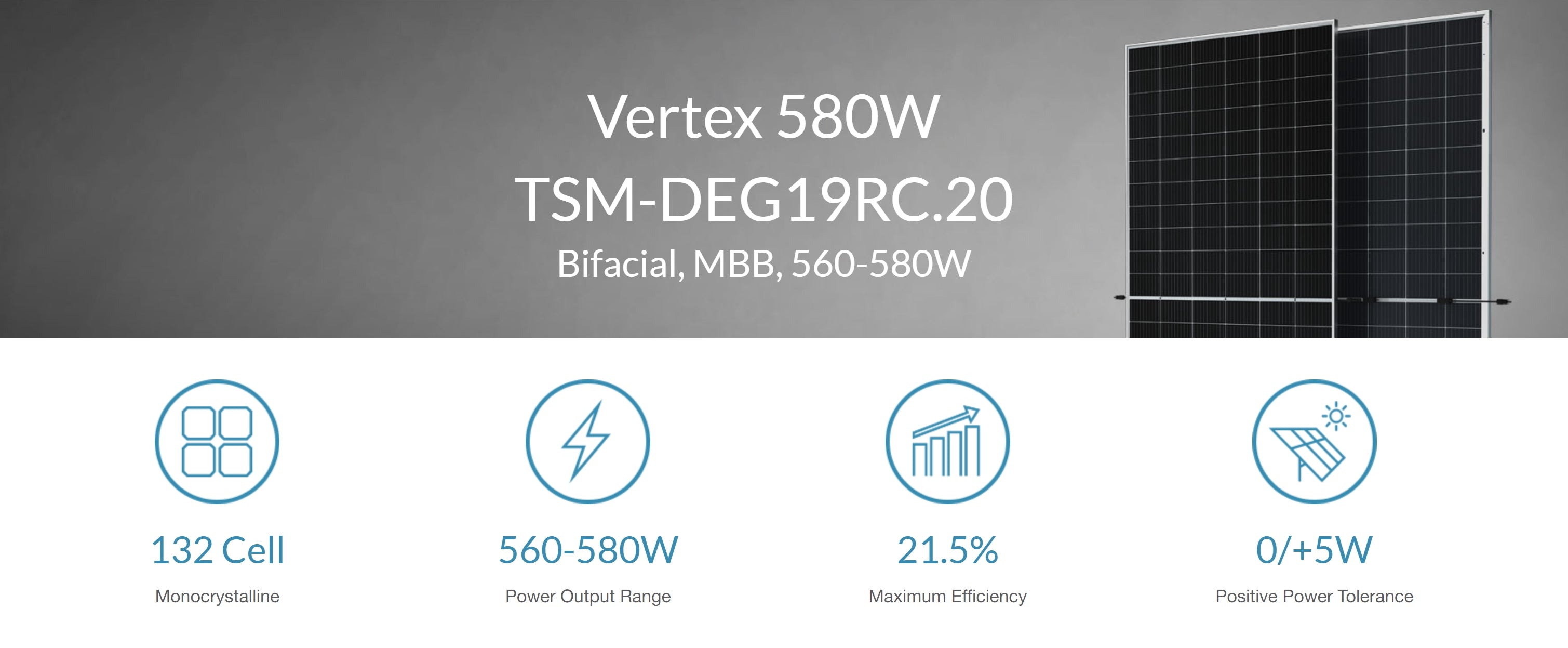

Trina Solar's Vertex series 580W solar panel features bifacial, monocrystalline technology with a power output range of 560-580W and maximum efficiency of 21.5%. It offers positive power tolerance (+5W).

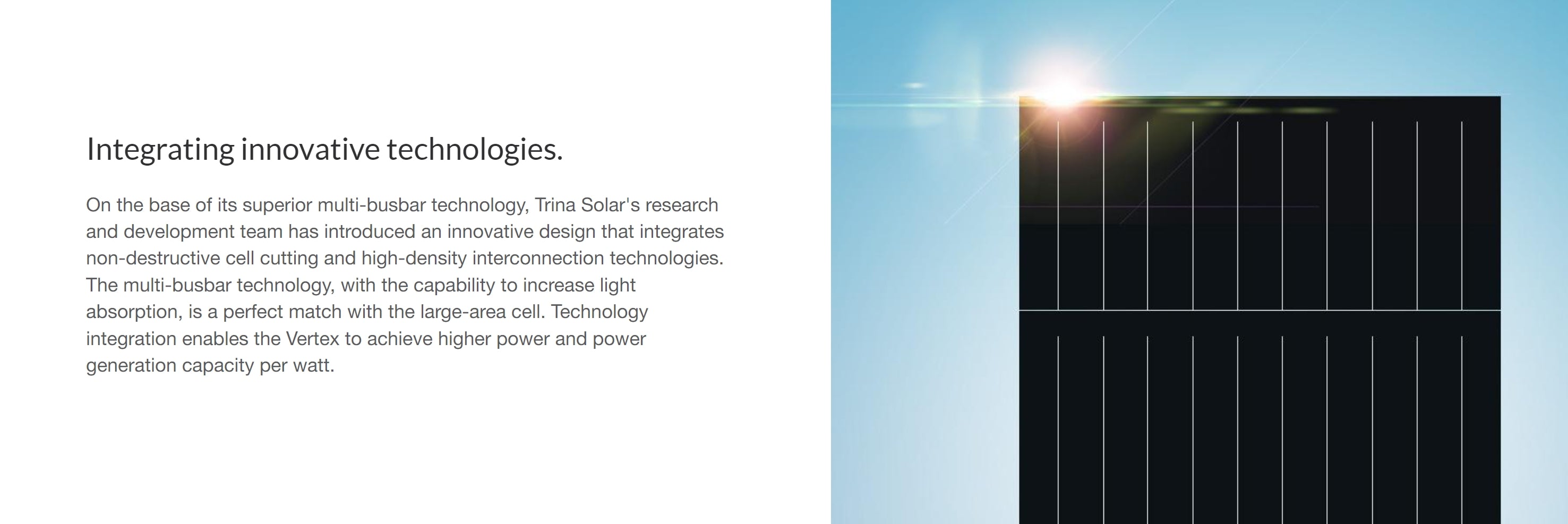

Trina Solar's innovative design integrates non-destructive cell cutting and high-density interconnection technologies, enhancing light absorption through multi-busbar technology. This combination optimizes large-area cells, enabling the Vertex to achieve higher power output and efficiency per watt.

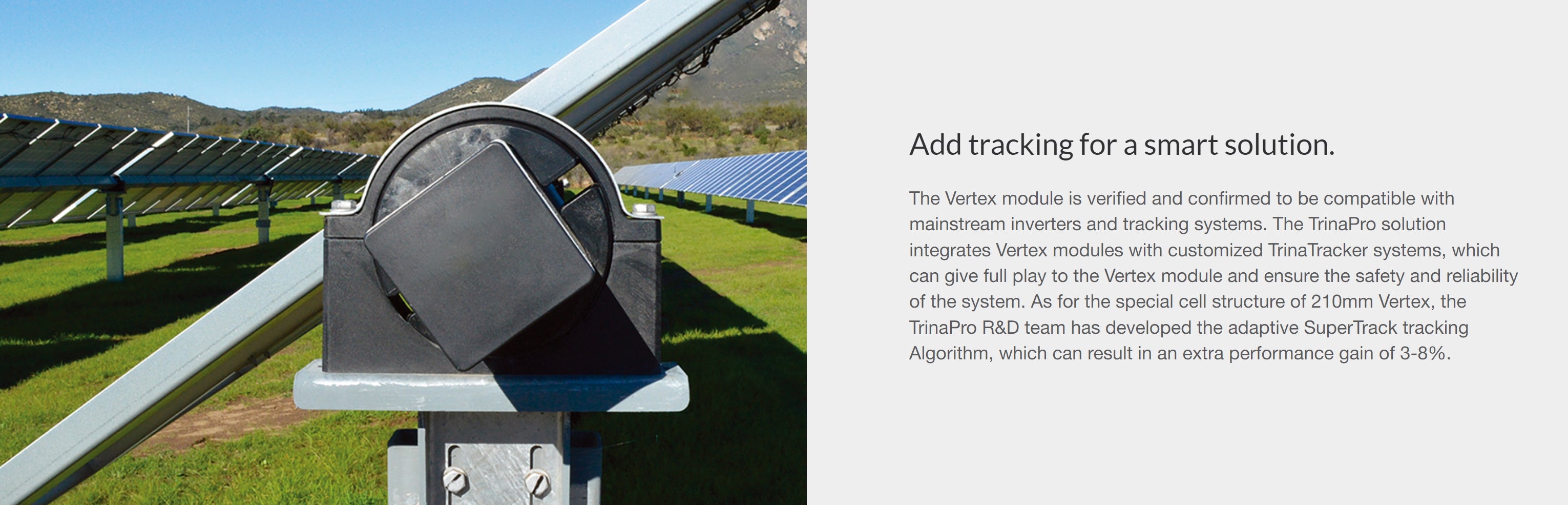

Experience smart solar solutions with our TrinaPro system, verified for compatibility with mainstream inverters and trackers. Our customized systems fully utilize Vertex modules, ensuring safety and reliability. Plus, our adaptive SuperTrack algorithm, developed specifically for Vertex's 21mm cell structure, boosts performance by an extra 3-8%.

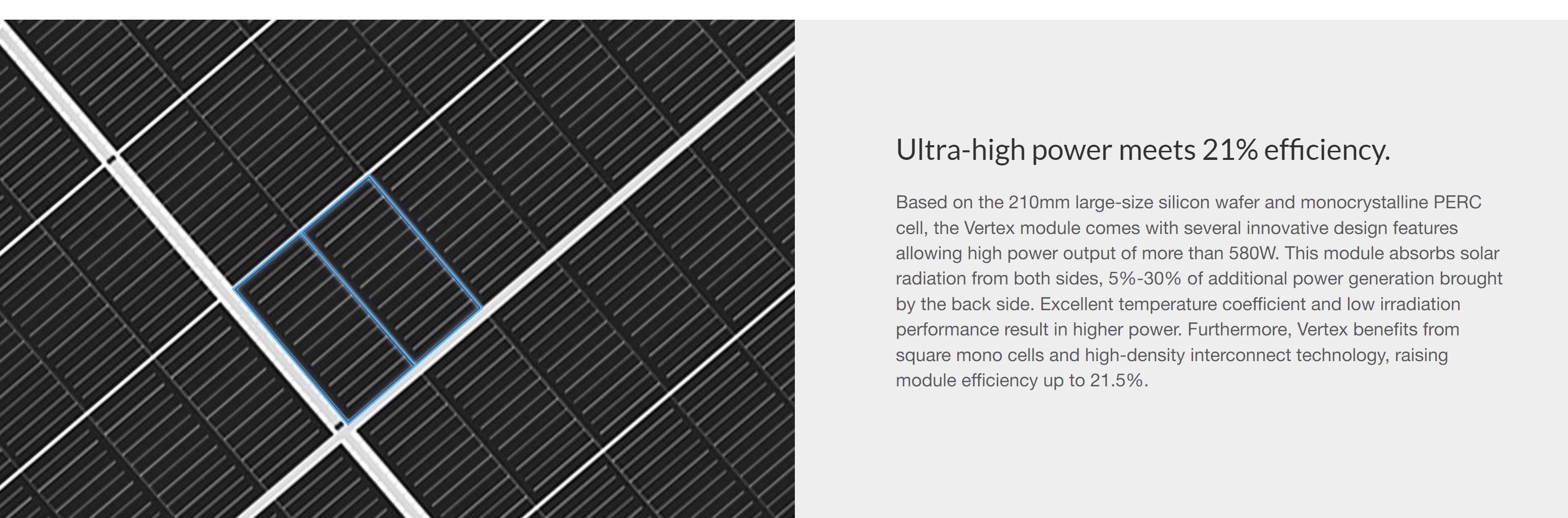

Meet the Trina Solar 580W Solar Panel, featuring ultra-high power with 21% efficiency. This innovative module uses monocrystalline PERC cells and large-size silicon wafers, providing exceptional performance. The backside design boosts power generation by up to 30%, while temperature coefficient and low irradiation capabilities ensure consistent results. With square mono cells and high-density interconnect tech, this panel achieves an impressive 21.5% efficiency.
Trina Solar's Vertex series offers a high-efficiency monocrystalline module with a power output range of 560-580W, featuring up to 21.5% maximum efficiency, high reliability, and minimized micro-cracks for optimal energy production.
Trina Solar's 580W Vertex TSM-DEG19RC.20 monocrystalline solar panel features a peak power output of 580W, with a maximum power voltage of 39V and a maximum power current of 14.86A. The module dimensions are 2384mm x 1134mm x 35mm, weighing approximately 29.1kg. Its electrical data includes an open-circuit voltage of 46.3V, short-circuit current of 15.54A, and a maximum power point temperature coefficient of 0.349%/C. The module is backed by a 25-year power warranty and a 12-year product workmanship warranty. It also comes with a 4-point M6 grounding hole and a drainage hole for easy installation.
