Trina Solar

Trina Solar 685 Watt Solar Panel (665-685W)

Trina Solar 685 Watt Solar Panel (665-685W)

Regular price $3,790.00 USD
Regular price Sale price $3,790.00 USD
Sale Sold out
Shipping calculated at checkout.

1 orders in last 30 days

Quantity
View full details

Trina Solar 685 Watt Solar Panel Overview

The Trina Solar 685W Solar Panel (TSM-NEG21.C20) is a cutting-edge bifacial dual glass module designed to deliver peak performance in commercial and utility-scale projects. Featuring advanced N-TYPE technology, this solar panel offers a maximum efficiency of 22.1%, ensuring high energy yields even under challenging conditions. The Trina Solar 685W module is engineered with high-density interconnect technology and multi-busbar for superior light trapping, improved current collection, and minimized energy loss.

Whether you’re looking for reliable power for large-scale commercial installations or residential projects, the Trina Solar 685W Solar Panel offers consistent performance and long-term reliability. With a robust design and positive power tolerance of up to +5W, this panel is built to perform in high-temperature, high-humidity environments and withstands heavy snow and wind loads.

Key Specifications for the Trina Solar 685W Solar Panel:

Parameter Details
Origin Mainland China
Certification CE, TUV, IEC
Brand Name Trina Solar
Model Number TSM-NEG21.C20
Place of Origin Changzhou
Cell Size 210mm x 210mm
Type N-TYPE
Panel Dimensions 2384 × 1303 × 33 mm (93.86 × 51.30 × 1.30 inches)
Weight 38.7 kg (85.3 lbs)
Panel Efficiency 22.1%
Warranty 30 Years
Maximum Power Voltage 39.8V
Maximum Power Current 17.19A
Open Circuit Voltage 47.4V
Short Circuit Current 18.21A
Module Efficiency 22.1%


Trina 685W Solar Panel Datasheet

Electrical Data (STC)

Model Peak Power (Pmax) (W) Maximum Power Voltage (Vmp) (V) Maximum Power Current (Imp) (A) Open Circuit Voltage (Voc) (V) Short Circuit Current (Isc) (A) Module Efficiency (%)
TSM-NEG21.C20-665 665W 39.0V 17.06A 46.8V 18.07A 21.4%
TSM-NEG21.C20-670 670W 39.2V 17.10A 47.0V 18.10A 21.6%
TSM-NEG21.C20-675 675W 39.4V 17.12A 47.2V 18.14A 21.7%
TSM-NEG21.C20-680 680W 39.6V 17.16A 47.4V 18.18A 21.9%
TSM-NEG21.C20-685 685W 39.8V 17.19A 47.7V 18.21A 22.1%

Mechanical Data

Specification Details
Solar Cells Monocrystalline
Number of Cells 132 cells
Dimensions 2384 × 1303 × 33 mm (93.86 × 51.30 × 1.30 inches)
Weight 38.7 kg (85.3 lbs)
Front Glass 2.0 mm (0.08 inches) High Transmission, AR Coated Heat Strengthened Glass
Encapsulant Material EVA/POE
Back Glass 2.0 mm (0.08 inches) Heat Strengthened Glass (White Grid Glass)
Frame 33 mm (1.30 inches) Anodized Aluminium Alloy
J-Box IP68 rated
Cables Photovoltaic Technology Cable 4.0mm² (0.006 inches²), customizable length
Connector MC4 EVO2 / TS4*

Temperature Characteristics

Specification Data
Nominal Operating Cell Temperature 43°C (±2°C)
Temperature Coefficient of Pmax -0.30% / °C
Temperature Coefficient of Voc -0.25% / °C
Temperature Coefficient of Isc 0.04% / °C

Warranty and Packaging

Warranty Details
Product Workmanship Warranty 12 years
Power Warranty 30 years (First-year degradation: 1%, Annual degradation: 0.4%)
Packaging Configuration 31 modules per box, 558 modules per 40’ container

The Trina Solar 685W Solar Panel is a highly reliable, high-efficiency option perfect for maximizing energy output in a variety of installations. This 685W Trina Solar panel is ideal for both large-scale commercial projects and residential applications, offering robust performance, high efficiency, and long-term reliability.

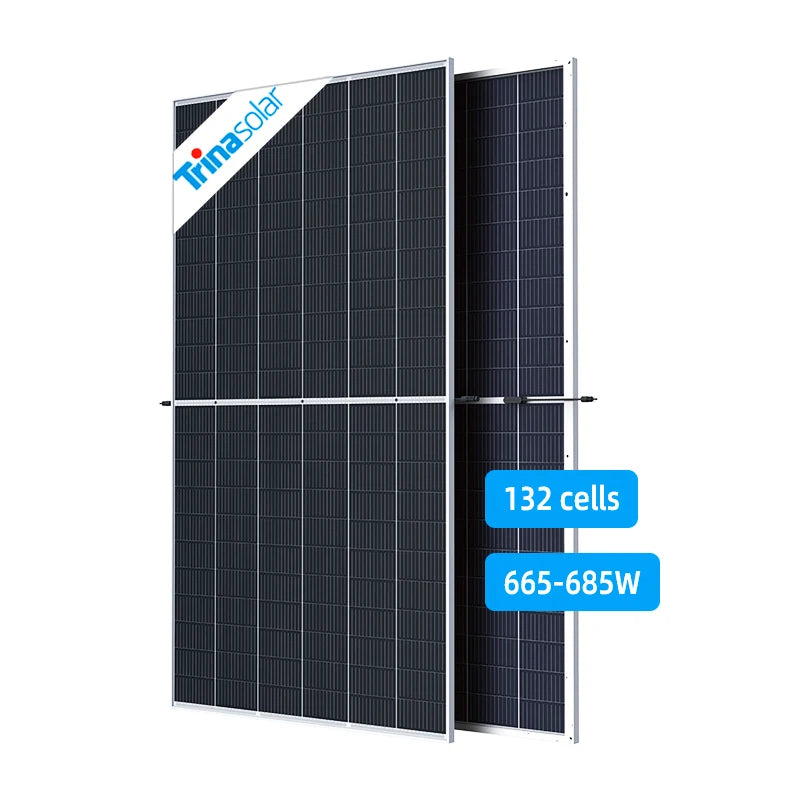

Trina Solar 685 Watt Solar Panel, Advanced N-TYPE tech for high energy yields

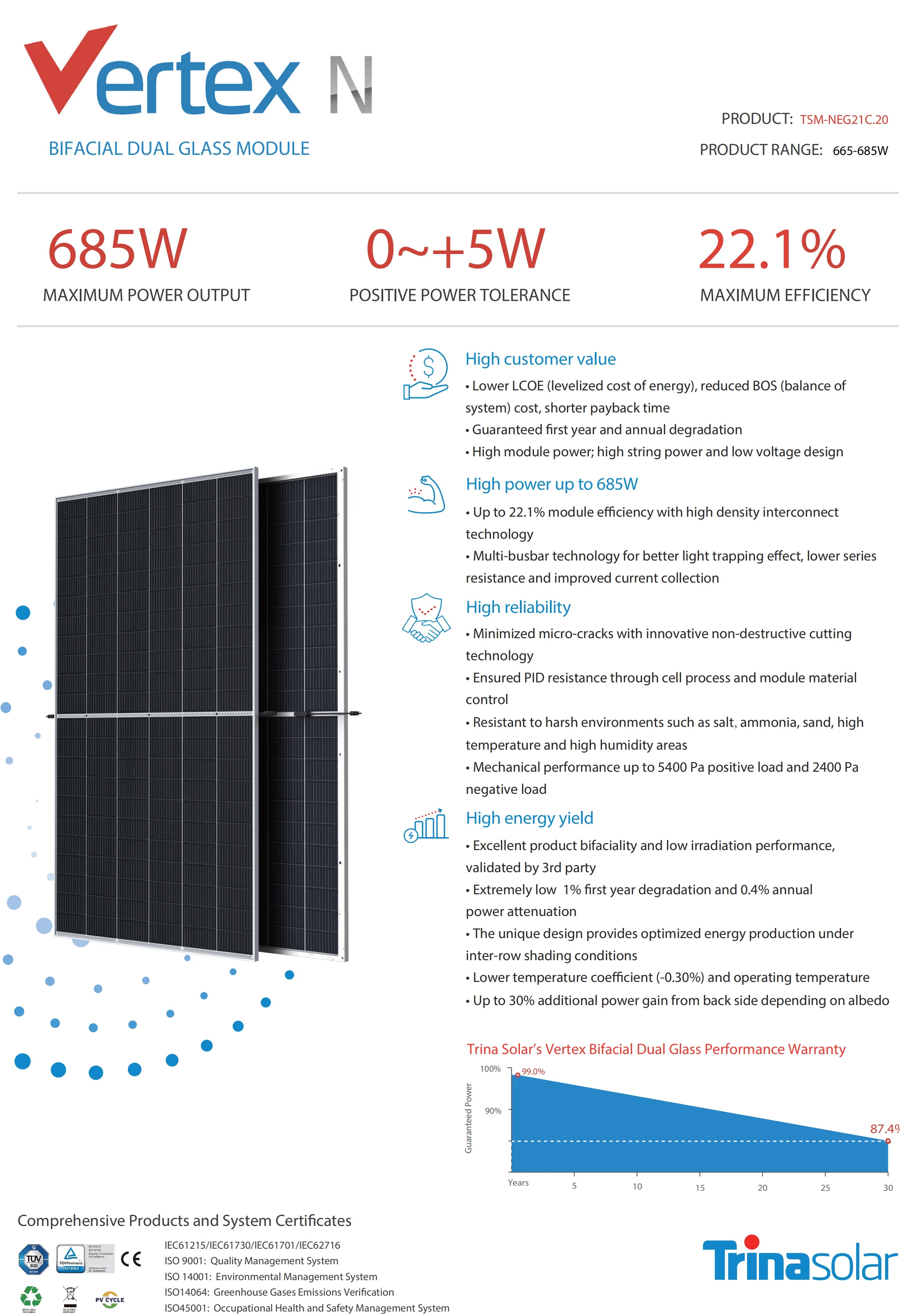

Trina Solar 685 Watt Solar Panel, High-efficiency solar panel with bifacial design.

Trina Solar 685W Solar Panel, 22.1% Efficiency, High Power Output, Bifacial, Dual Glass Module, Guaranteed First Year Degradation, Excellent Performance, ISO Certified

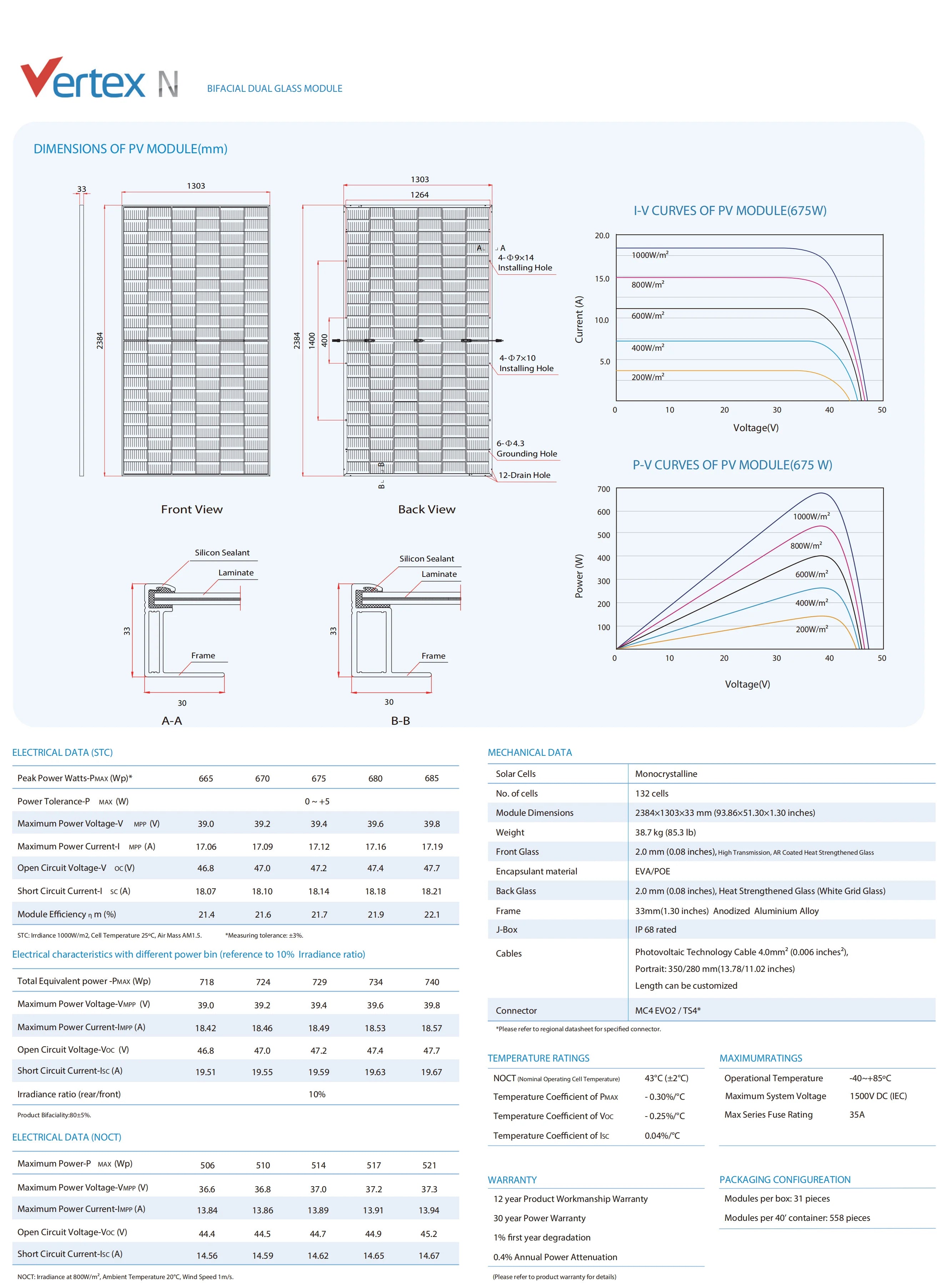

Trina Solar 685 Watt Solar Panel, Trina Solar module dimensions and power specifications.

Trina Solar 685W Bifacial Dual Glass Module Dimensions: 1303mm x 1303mm x 33mm. 1-V Curves: 20.0-49V, 4-99A. Peak Power: 665-685W. Maximum Power Voltage: 39.0-39.8V. Maximum Power Current: 17.06-17.19A.
