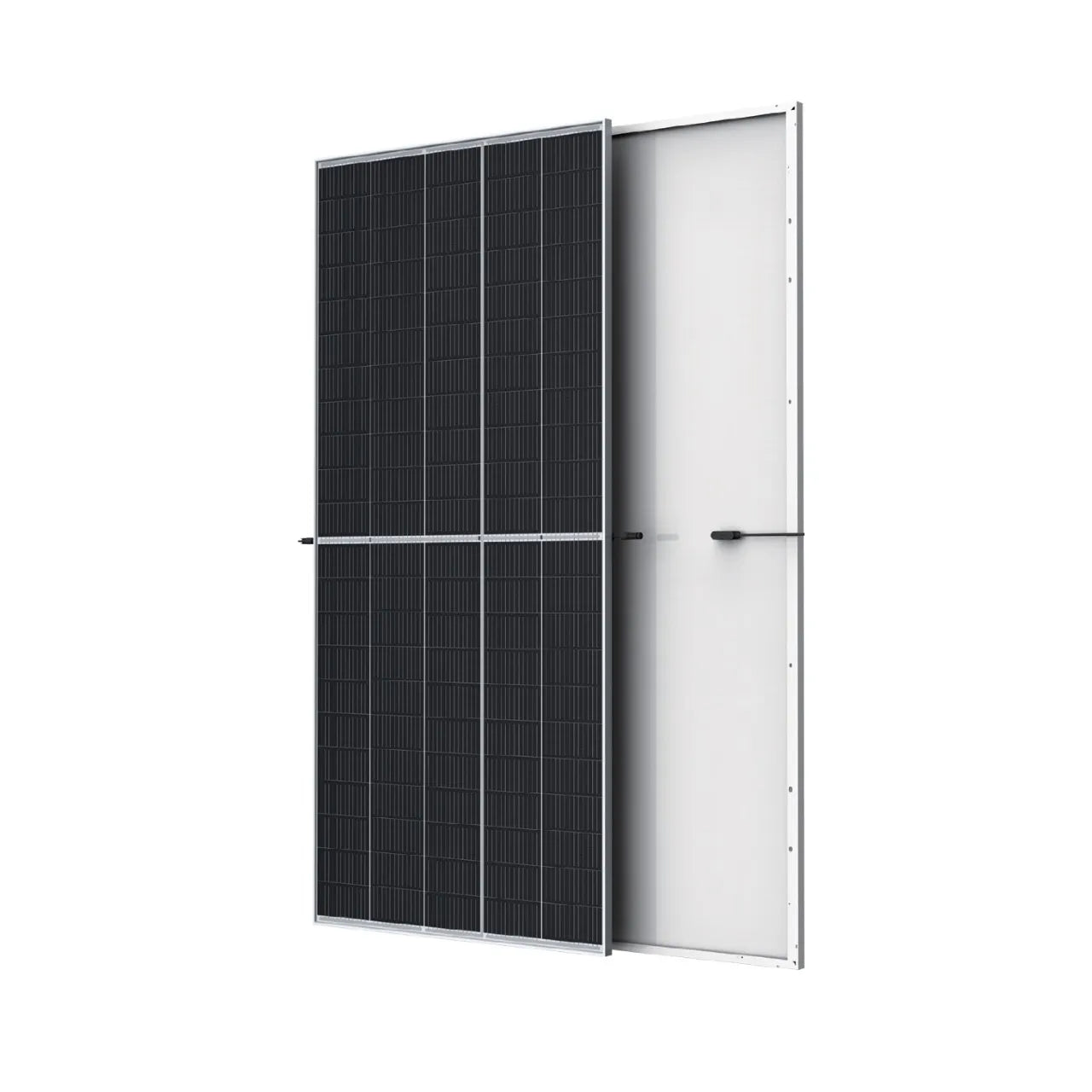

Trina 550W Solar Panel Overview
Experience superior solar power performance with the Trina Solar Vertex 550W Bifacial Dual Glass Monocrystalline Module, a pinnacle of advanced solar technology designed to deliver exceptional energy efficiency and durability. Whether for residential, commercial, or utility-scale projects, this module offers a powerful solution to meet your energy needs with optimized output, reliability, and environmental resilience.
The Trina Vertex 550W Solar Panel is engineered to provide high energy output with a module efficiency of up to 21.0%. It features cutting-edge multi-busbar technology and high-density interconnect (HDI) technology, which enhance light trapping and reduce series resistance, leading to improved current collection and overall higher energy yield. This panel is capable of generating up to 550W of power, making it ideal for large-scale installations.
Trina 550 Watt Solar Panel Key Features:
- High Power Output: With a peak power output of 550W, the Vertex module is designed to maximize energy generation, ensuring higher returns on investment.
- High Efficiency: Up to 21.0% module efficiency, leveraging multi-busbar and high-density interconnect technology to improve overall performance.
- Bifacial Technology: This module can generate up to 25% additional power from the rear side, depending on the albedo, thanks to its bifacial design.
- Durability: The module is resistant to harsh environments, including salt mist, ammonia, and high temperatures, ensuring long-term reliability.
- Reliability: The Vertex series is built with advanced non-destructive cutting and optimized encapsulation technology, minimizing micro-crack impacts and ensuring long-lasting performance.
Trina Vertex 550W Module Applications
The Trina Vertex 550W module is versatile, making it suitable for a wide range of applications, including:
- Residential Rooftop Installations: Ideal for homeowners looking to maximize their roof space with high-efficiency panels.
- Commercial Projects: Perfect for businesses aiming to reduce energy costs while increasing sustainability.
- Utility-Scale Projects: Suitable for large solar farms and energy generation projects, offering scalability and high energy yields.
Trina 550W Specifications
| Electrical Data (STC) | Value |
|---|---|
| Peak Power Output (Pmax) | 550W |
| Power Output Tolerance | 0 ~ +5W |
| Maximum Power Voltage (Vmp) | 31.8V |
| Maximum Power Current (Imp) | 13.80A |
| Open Circuit Voltage (Voc) | 37.9V |
| Short Circuit Current (Isc) | 14.10A |
| Module Efficiency | Up to 21.0% |
| Electrical Data (NOCT) | Value |
|---|---|
| Maximum Power Output (Pmax) | 416W |
| Maximum Power Voltage (Vmp) | 31.6V |
| Maximum Power Current (Imp) | 13.18A |
| Open Circuit Voltage (Voc) | 37.9V |
| Short Circuit Current (Isc) | 14.10A |
| Mechanical Data | Value |
|---|---|
| Solar Cells | 110 cells |
| Dimensions | 2384 × 1096 × 35 mm (93.86 × 43.15 × 1.38 in) |
| Weight | 32.6 kg (71.9 lbs) |
| Front Glass | 2.0mm AR-coated tempered glass |
| Frame | 35mm (1.38 in) Anodized Aluminum Alloy |
| Junction Box | IP68 rated |
| Cables | 4.0mm² (IEC), 12 AWG (UL) |
| Connector | MC4 EVO2 / TS4* |
| Temperature Ratings | Value |
|---|---|
| Nominal Operating Cell Temperature (NOCT) | 43°C (±2°C) |
| Temperature Coefficient of Pmax | -0.34%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
| Maximum Ratings | Value |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 35A |
| Warranty | Coverage |
|---|---|
| Product Workmanship Warranty | 12 years |
| Power Output Warranty | 30 years |
Conclusion:
The Trina Vertex 550W Bifacial Dual Glass Monocrystalline Module is a top-tier solar panel offering unparalleled efficiency, durability, and flexibility. Designed for those who demand the highest standards in their solar energy solutions, this module ensures exceptional power output and reliability, making it a valuable addition to any solar energy system. Whether for residential, commercial, or large-scale utility projects, the Vertex 550W is built to perform and endure, backed by industry-leading warranties.
Trina Vertex 550 Watt Solar Panel Details
Trina Vertex 550W Solar Panel: Bifacial, monocrystalline panel with 110 cells, 530-550W power output range, maximum efficiency 21.0%, and positive power tolerance.
Experience ultra-high power with a 21% efficient solar panel featuring a 21cm large-size silicon wafer and monocrystalline PERC cell, capable of producing over 550 watts.
Experience ultra-high power with 21% efficient solar panels featuring 21mm large-size silicon wafers and monocrystalline PERC cells, capable of generating over 550W.

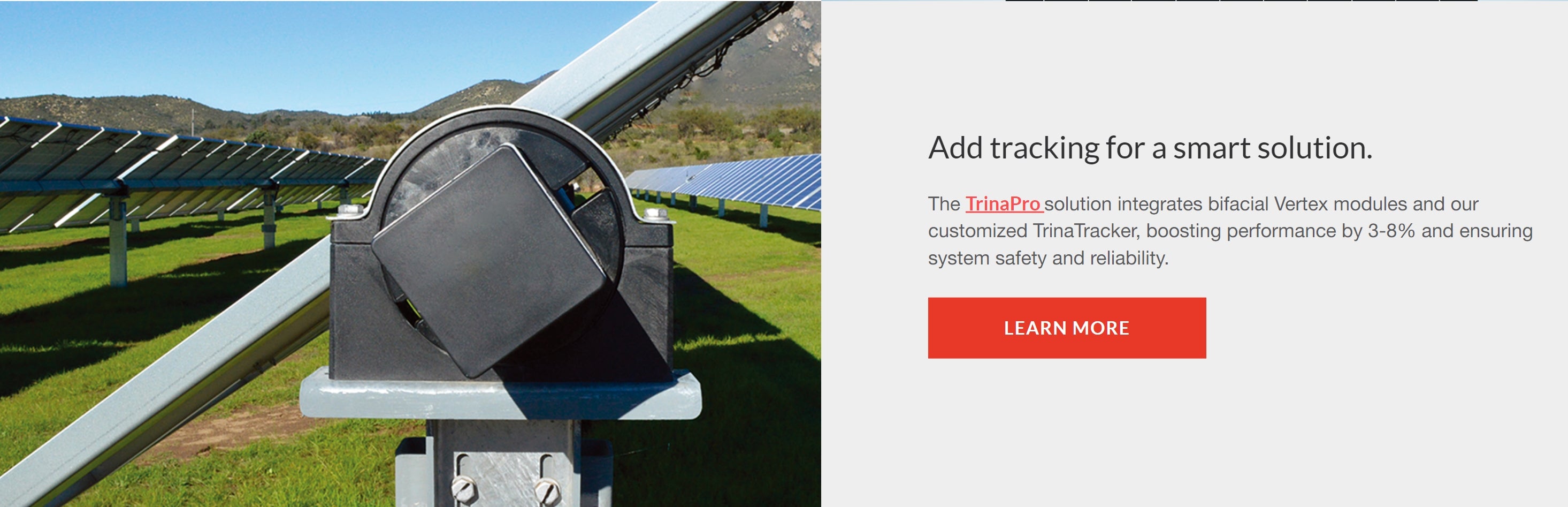

Boost performance by 3-8% with integrated bifacial Vertex modules and customized tracking, ensuring system safety and reliability.
Trina 550W Datasheet

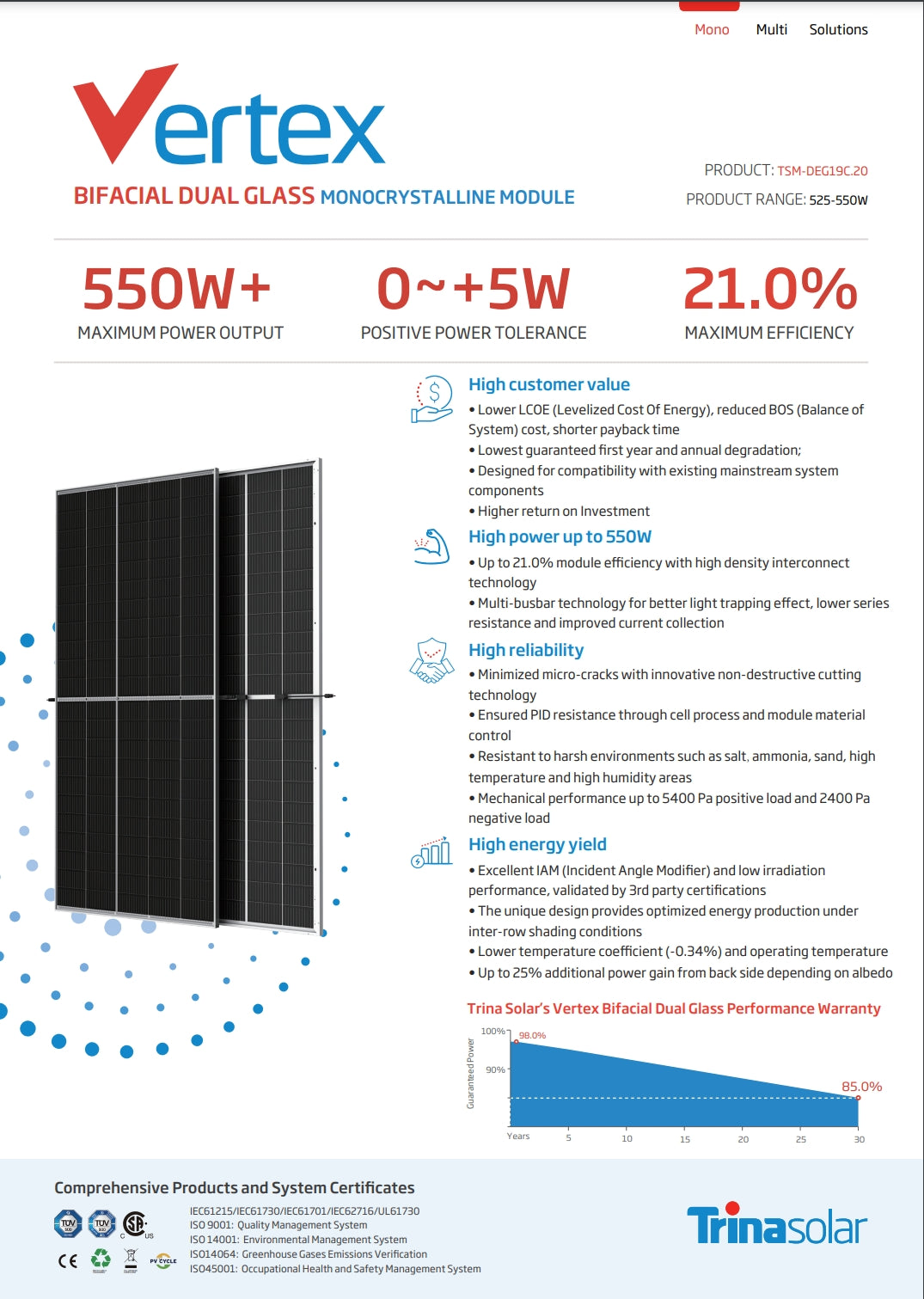

Trina Vertex 550W Solar Panel: High-efficiency bifacial dual glass module with up to 21.0% maximum power output. Features high density interconnect technology for optimized energy production, minimized micro-cracks, and PID resistance. Designed for compatibility with existing systems, this panel offers excellent IAM performance, low irradiation tolerance, and a comprehensive warranty. Certified by IEC and ISO standards, it's perfect for harsh environments and provides a high return on investment.

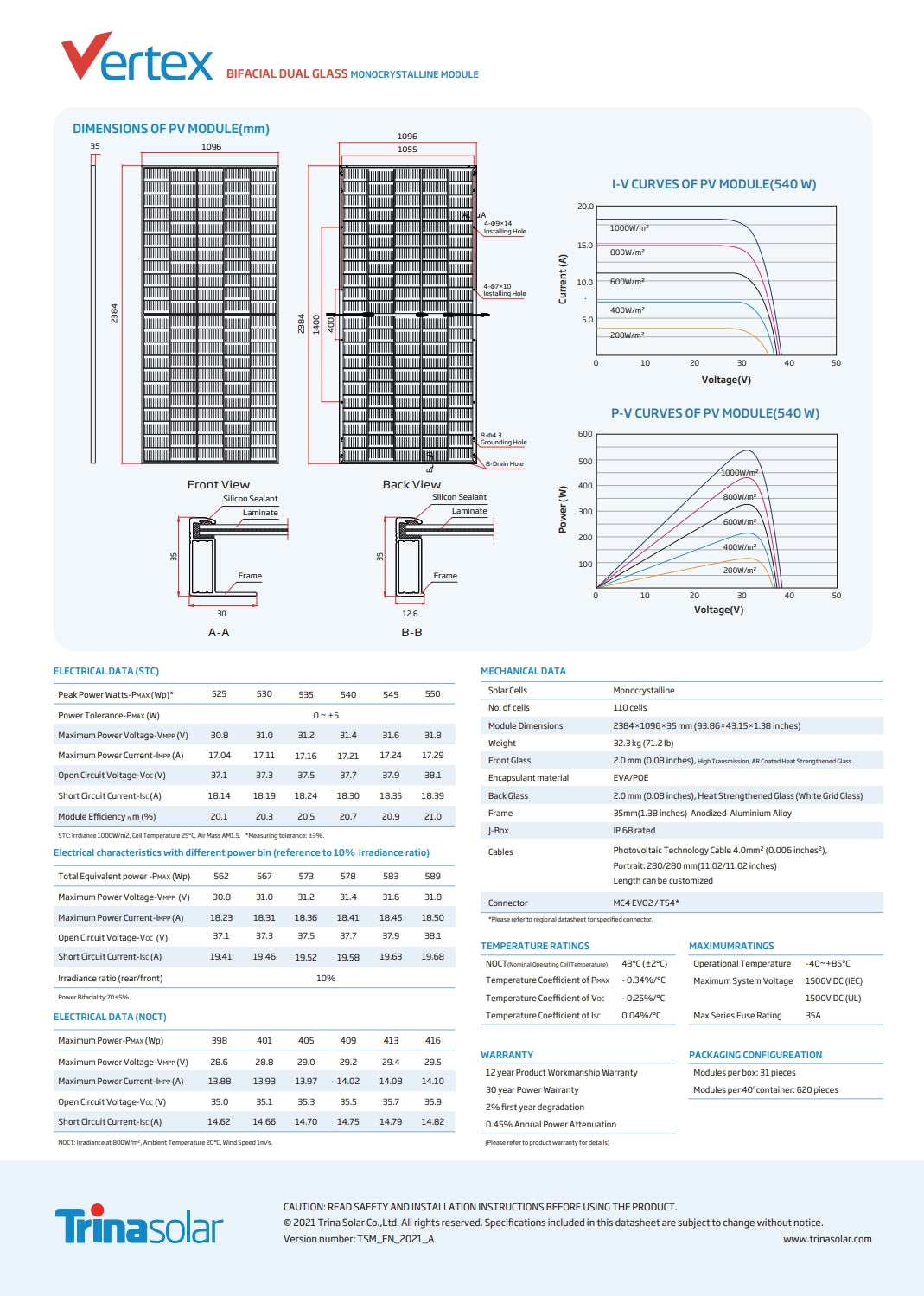

Trina Vertex 550W Solar Panel, a bifacial dual glass monocry Stalline module with dimensions 1096x1096x1055mm, featuring I-V curves and electrical data, including open circuit voltage, short circuit current, and maximum power voltage.
