Trina Vertex 650W Solar Panel Overview
The Trina Vertex 650 Watt Solar Panel (645-670W) is a top-tier solar solution designed to deliver high efficiency and durability for large-scale installations. Manufactured with advanced Mono PERC half-cell technology, this panel features dimensions of 2384×1303×35mm and weighs 33.6 kg. It boasts a maximum power output range of 645-670W, a panel efficiency of up to 21.6%, and can handle a maximum system voltage of 1500VDC. Each panel consists of 132 monocrystalline cells (210mm*210mm), encapsulated in high transmission, AR-coated heat-strengthened glass and an anodized aluminum alloy frame. With an open-circuit voltage range of 45.1-46.1V and a short-circuit current range of 18.39-18.62A, the Trina Vertex panel ensures robust and reliable energy conversion.
Trina 650W Solar Panel Features
- High Efficiency: Achieves up to 21.6% efficiency, maximizing energy yield.
- Advanced Technology: Utilizes PERC, half-cell technology with monocrystalline cells.
- Durable Construction: Features a robust anodized aluminum alloy frame and high transmission, AR-coated heat-strengthened glass.
- Certified Quality: Complies with CE, TUV, ISO, and IEC standards.
- Long-term Warranty: 12-year product workmanship warranty and 25-year power warranty.
- Efficient Packaging: 31 modules per pallet, 558 modules per 40' container.
Trina Solar 650W Technical Data
Electrical Data (STC)
Parameter | 645 | 650 | 655 | 660 | 665 | 670 |
---|---|---|---|---|---|---|
Peak Power Watts-Pmax (Wp) | 645 | 650 | 655 | 660 | 665 | 670 |
Power Tolerance-Pmax (W) | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 | 0 ~ +5 |
Maximum Power Voltage-Vmpp (V) | 37.2 | 37.4 | 37.6 | 37.8 | 38.0 | 38.2 |
Maximum Power Current-Impp (A) | 17.35 | 17.39 | 17.43 | 17.47 | 17.51 | 17.55 |
Open Circuit Voltage-Voc (V) | 45.1 | 45.3 | 45.5 | 45.7 | 45.9 | 46.1 |
Short Circuit Current-Isc (A) | 18.39 | 18.44 | 18.48 | 18.53 | 18.57 | 18.62 |
Module Efficiency ηm (%) | 20.8 | 20.9 | 21.1 | 21.2 | 21.4 | 21.6 |
*STC: Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5. *Measuring tolerance: ±3%.
Electrical Data (NOCT)
Parameter | 645 | 650 | 655 | 660 | 665 | 670 |
---|---|---|---|---|---|---|
Maximum Power-Pmax (Wp) | 488 | 492 | 496 | 500 | 504 | 508 |
Maximum Power Voltage-Vmpp (V) | 34.8 | 34.9 | 35.1 | 35.3 | 35.4 | 35.6 |
Maximum Power Current-Impp (A) | 14.05 | 14.09 | 14.13 | 14.17 | 14.22 | 14.26 |
Open Circuit Voltage-Voc (V) | 42.5 | 42.7 | 42.9 | 43.0 | 43.2 | 43.4 |
Short Circuit Current-Isc (A) | 14.82 | 14.86 | 14.89 | 14.93 | 14.96 | 15.01 |
*NOCT: Irradiance at 800 W/m², Ambient Temperature 20°C, Wind Speed 1m/s.
Mechanical Data
Parameter | Value |
---|---|
Solar Cells | Monocrystalline |
No. of Cells | 132 cells |
Module Dimensions | 2384×1303×35 mm (93.86×51.30×1.38 inches) |
Weight | 33.6 kg (74.1 lb) |
Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Heat Strengthened Glass |
Encapsulant Material | EVA |
Backsheet | White |
Frame | 35 mm (1.38 inches) Anodized Aluminium Alloy |
J-Box | IP 68 rated |
Cables | Photovoltaic Technology Cable 4.0mm² (0.006 inches²), Portrait: 280/280 mm (11.02/11.02 inches), Length can be customized |
Connector | MC4 EVO2 / TS4* |
*Please refer to regional datasheet for specified connector.
Temperature Ratings
Parameter | Value |
---|---|
NOCT (Nominal Operating Cell Temperature) | 43°C (±2°C) |
Temperature Coefficient of Pmax | -0.34%/°C |
Temperature Coefficient of Voc | -0.25%/°C |
Temperature Coefficient of Isc | 0.04%/°C |
Maximum Ratings
Parameter | Value |
---|---|
Operational Temperature | -40~+85°C |
Maximum System Voltage | 1500V DC (IEC) |
1500V DC (UL) | |
Max Series Fuse Rating | 30A |
Warranty
Parameter | Value |
---|---|
Product Workmanship Warranty | 12 years |
Power Warranty | 25 years |
First Year Degradation | 2% |
Annual Power Attenuation | 0.55% |

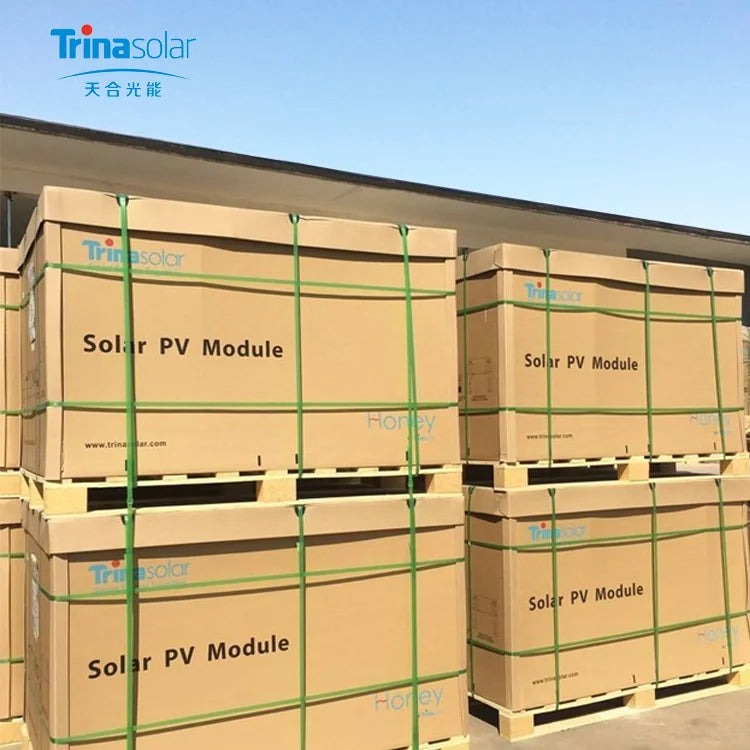

Packaging Configuration
Parameter | Value |
---|---|
Modules per Box | 31 pieces |
Modules per 40' Container | 558 pieces |
Additional Features
- High Customer Value: Lower Levelized Cost of Energy (LCOE), reduced Balance of System (BOS) cost, and shorter payback time. Designed for compatibility with existing mainstream system components.
- High Power Output: Up to 21.6% module efficiency with high-density interconnect technology. Multi-busbar technology improves light trapping effect, reduces series resistance, and enhances current collection.
- High Reliability: Minimized micro-cracks with innovative non-destructive cutting technology. Ensured PID resistance through cell process and module material control. Resistant to harsh environments such as salt, ammonia, sand, high temperature, and high humidity. Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load.
- High Energy Yield: Excellent Incident Angle Modifier (IAM) and low irradiance performance, validated by third-party certifications. Unique design optimized for energy production under inter-row shading conditions. Lower temperature coefficient (-0.34%) and operating temperature.

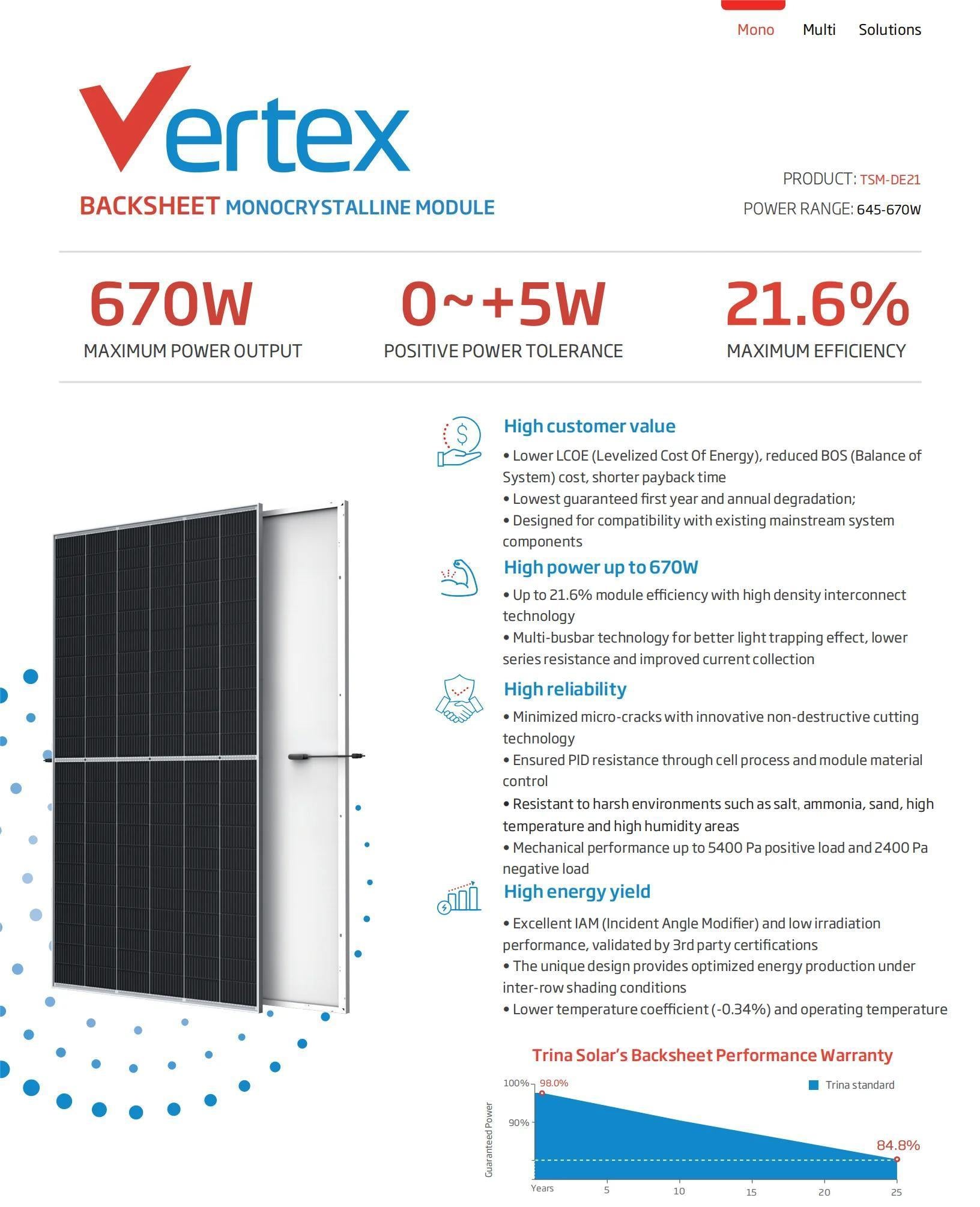

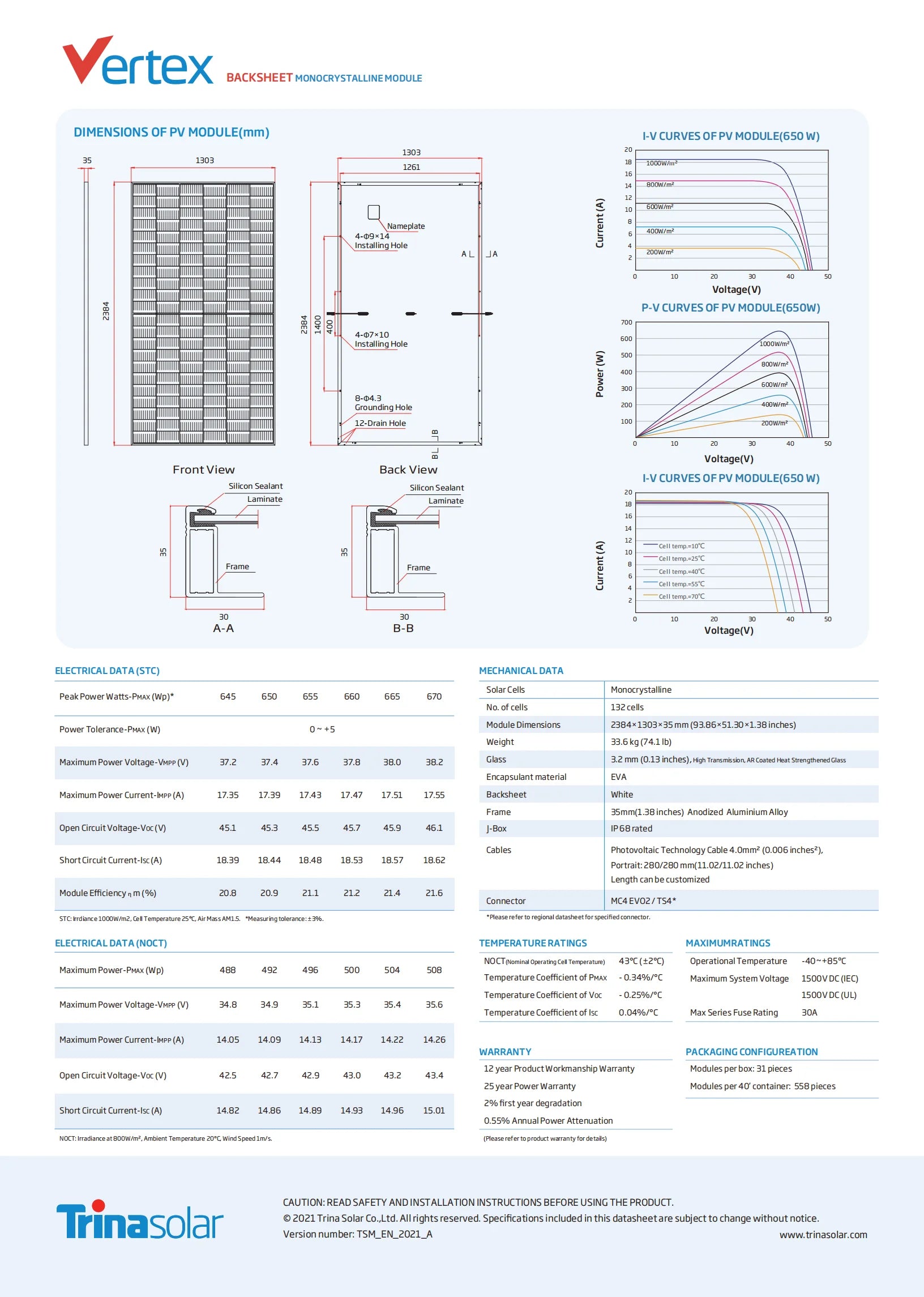

Trina Vertex 650W Datasheet
Trina Vertex 650W Solar Panel features a power range of 645-670W, with maximum power output and high efficiency, designed for compatibility with existing systems, offering high energy yield, excellent incident angle modifier, and low irradiation performance, backed by third-party certifications and Trina's Backsheet Performance Warranty.
Trina Vertex 650W Solar Panel: • Peak Power Watts (Pmax): 645-670W • Module Dimensions: 2384x1303x35mm • Weight: 33.6kg • Maximum Power Voltage (Vmmp): 37.2-38.2V • Maximum Power Current (Imp): 17.35-17.55A • Open Circuit Voltage (Voc): 451-461V • Short Circuit Current (Isc): 18.39-18.62A • Module Efficiency: 20.8-21.6% • Temperature Ratings: + Operating Temperature: -40°C to +85°C + Maximum System Voltage: 1000VDC (IEC) / 1500VDC (UL) • Warranty: + Product Workmanship Warranty: 12 years + Power Warranty: 25 years, with 2% degradation in the first year

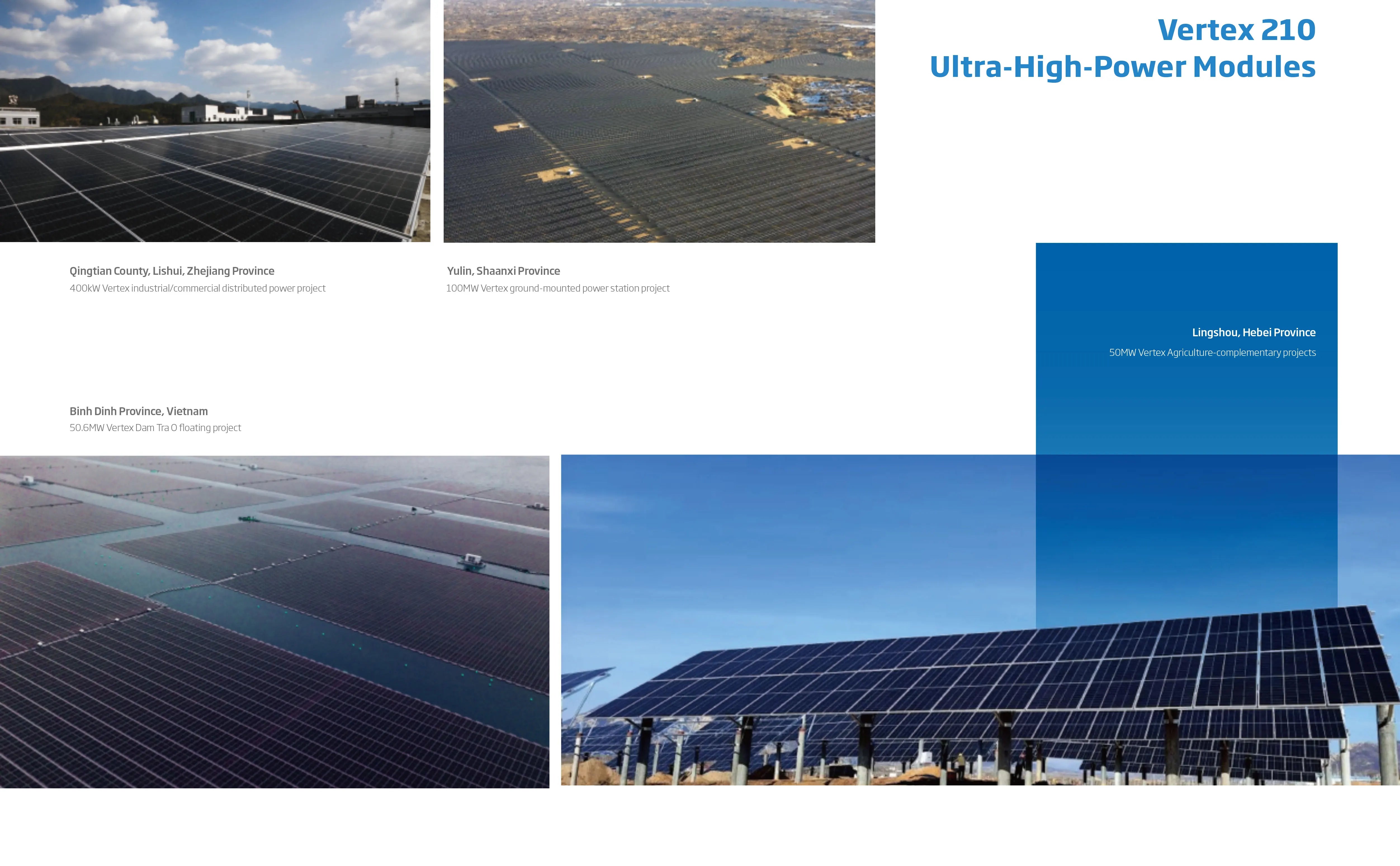

Trina Vertex 650W Solar Panel features high-performance modules from Qingtian County and Yulin, Shaanxi Province, designed for industrial/commercial distributed power projects, ground-mounted stations, and agriculture-complementary projects in Vietnam.
