Overview

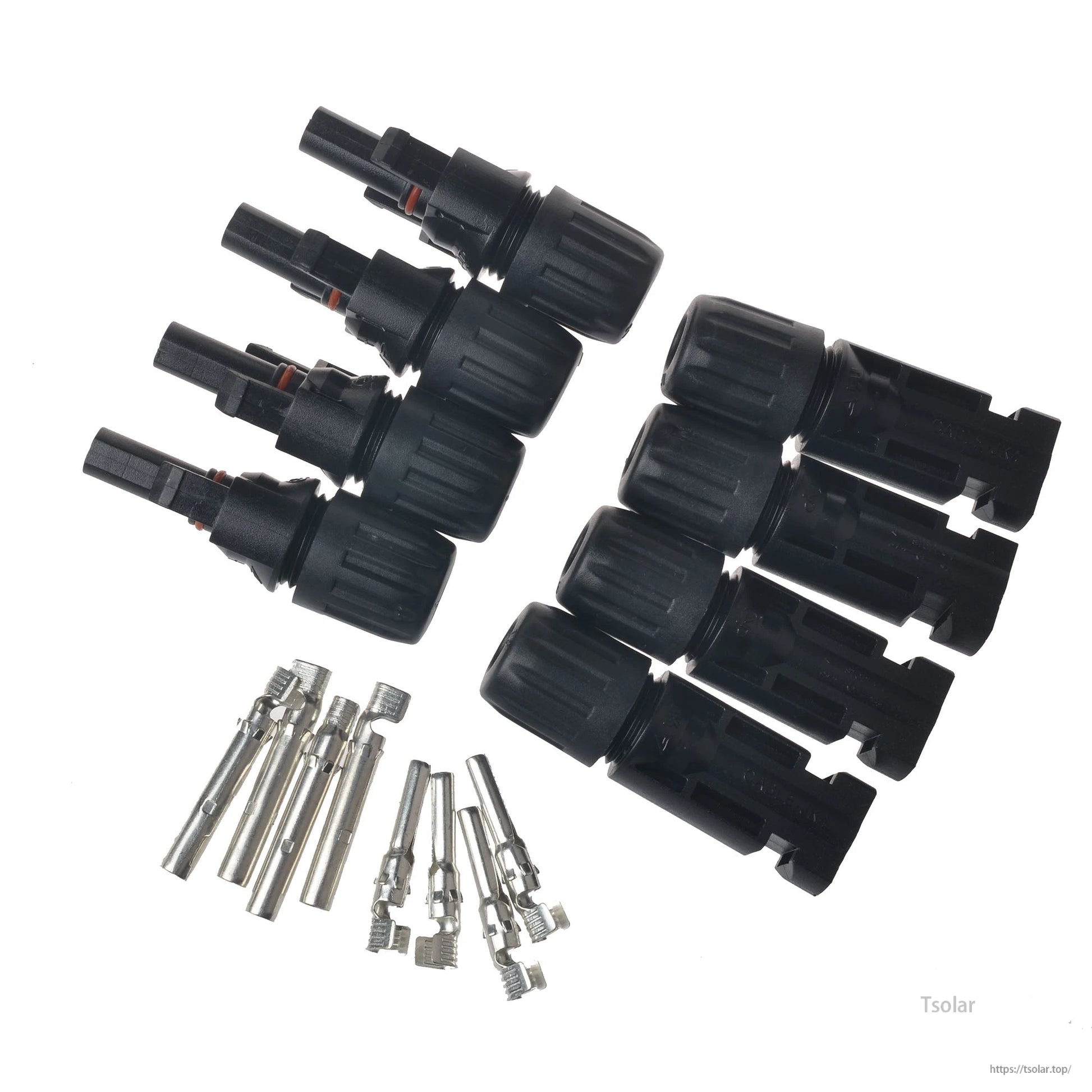

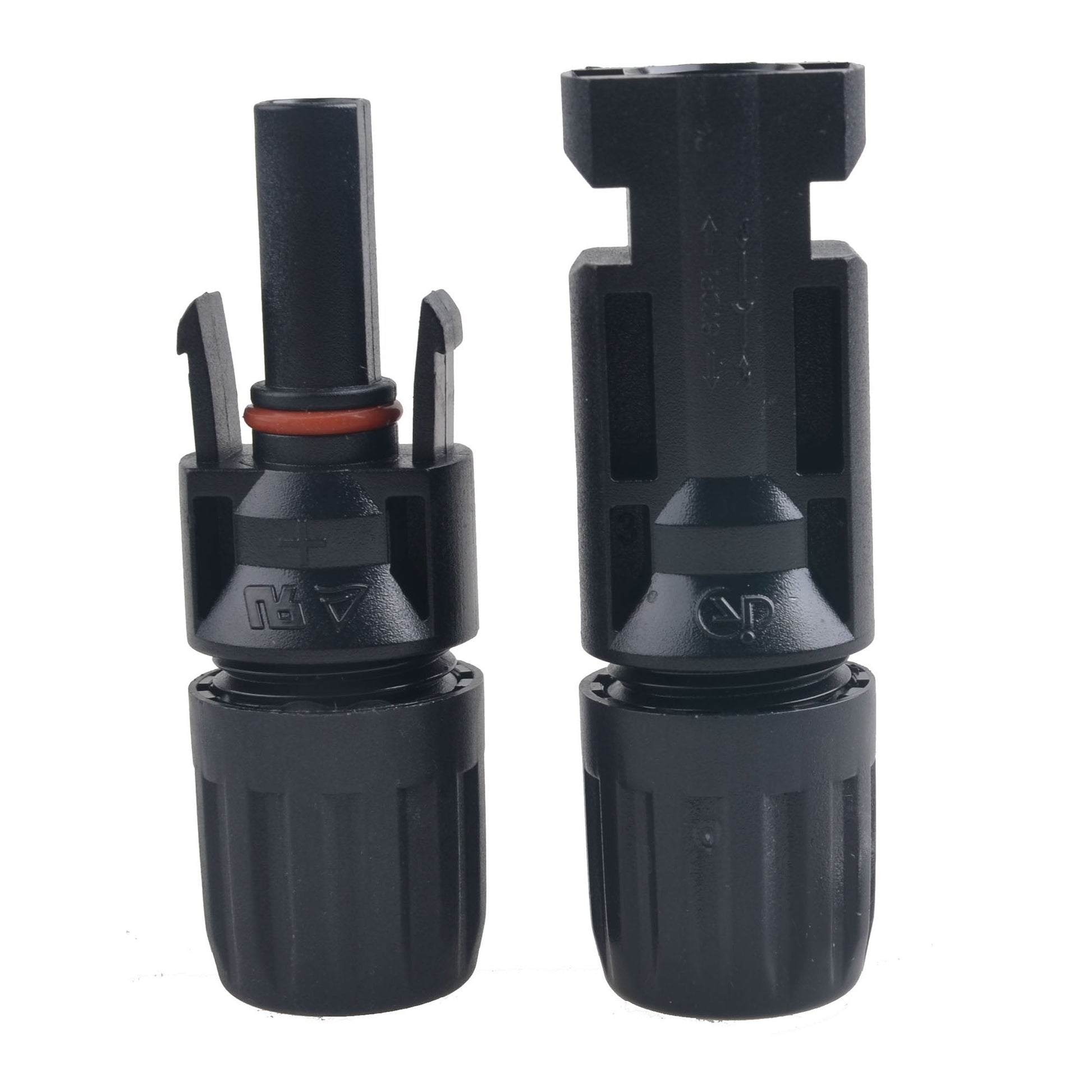

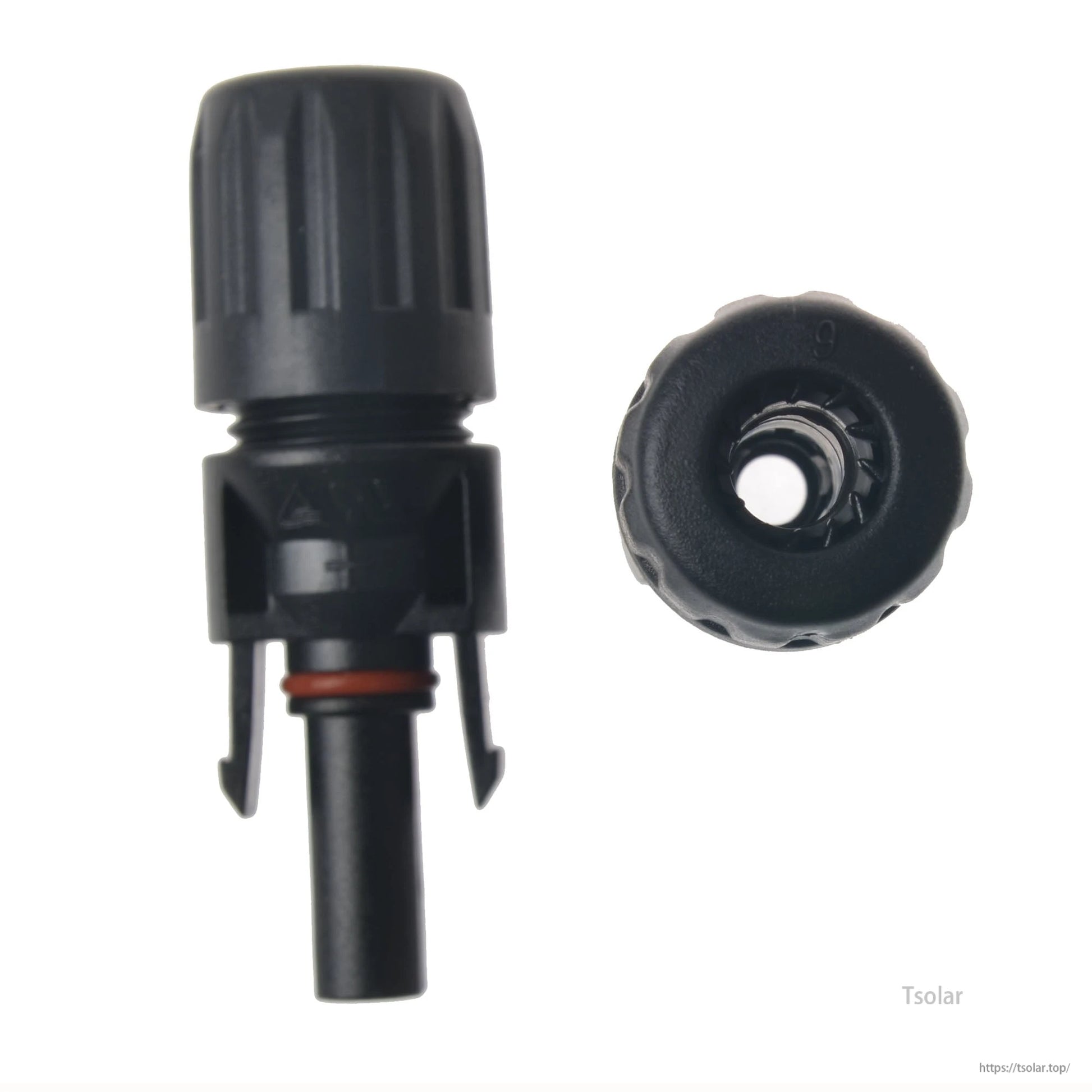

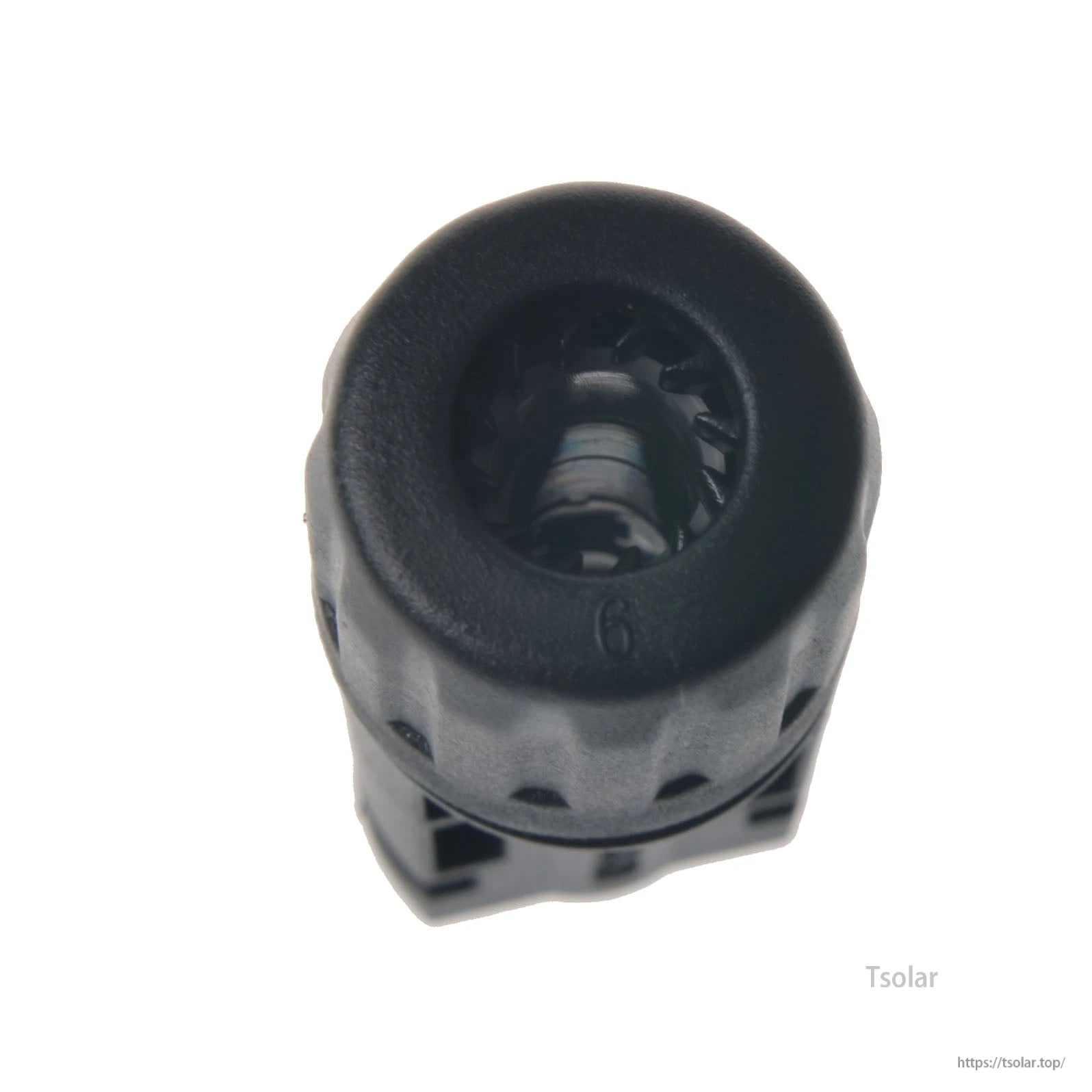

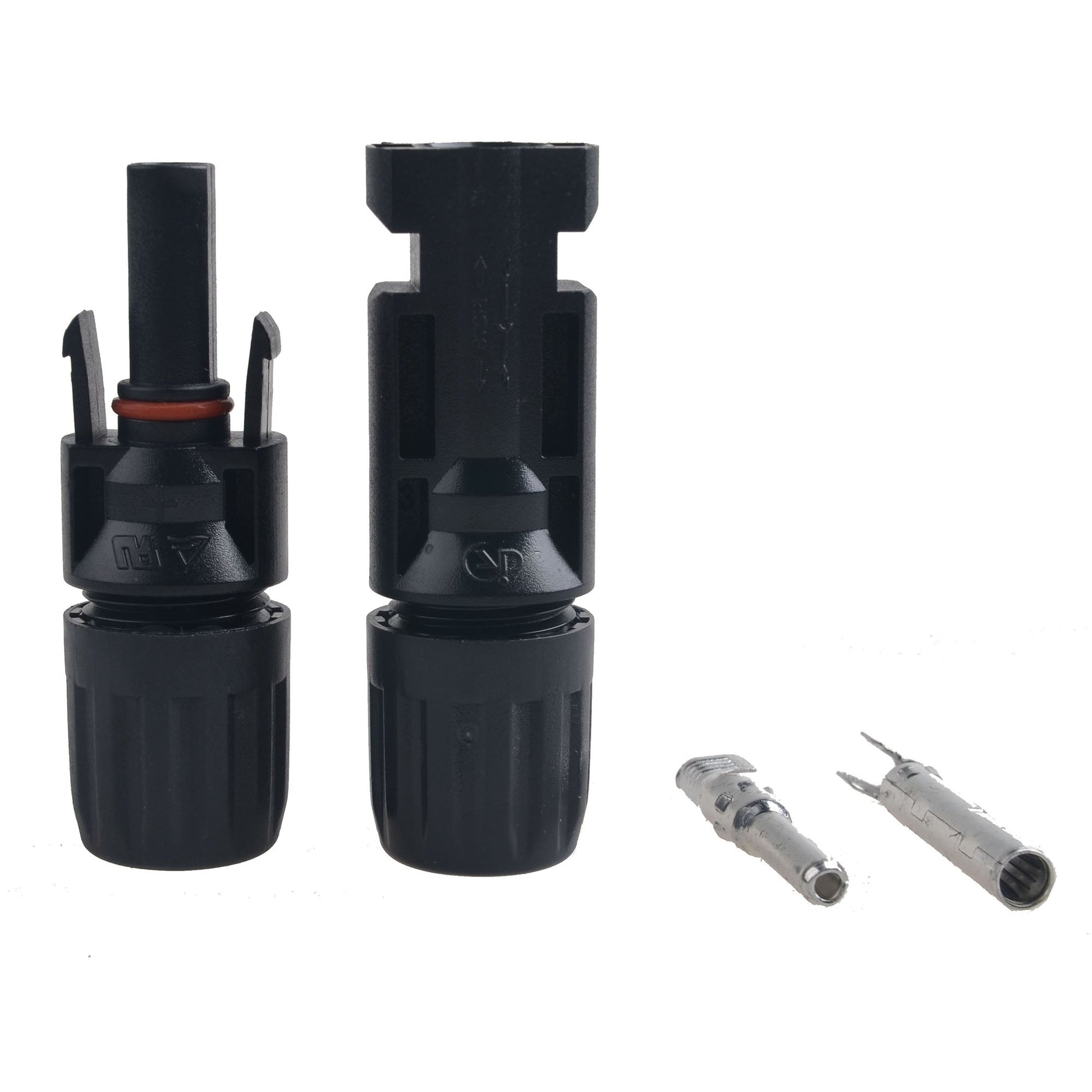

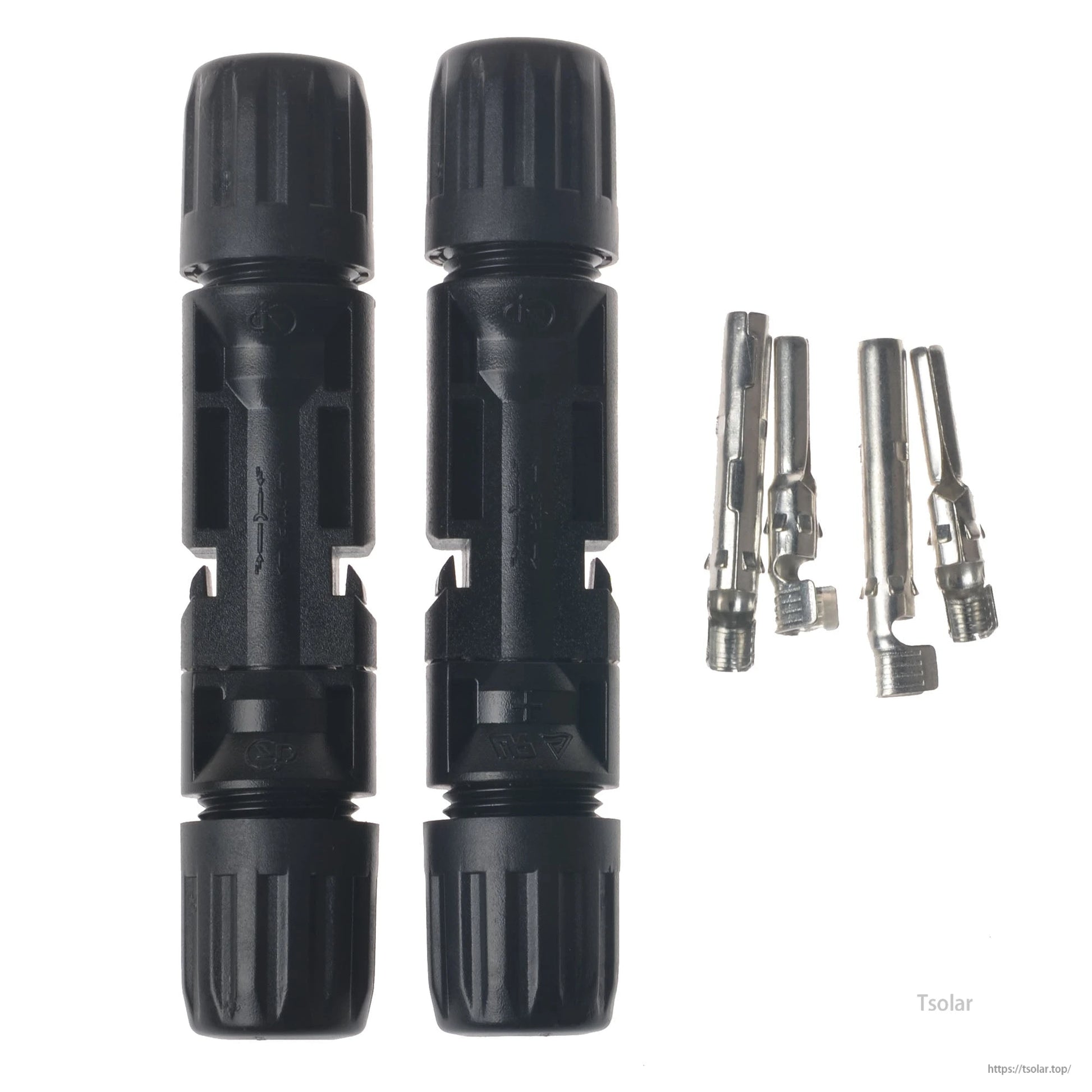

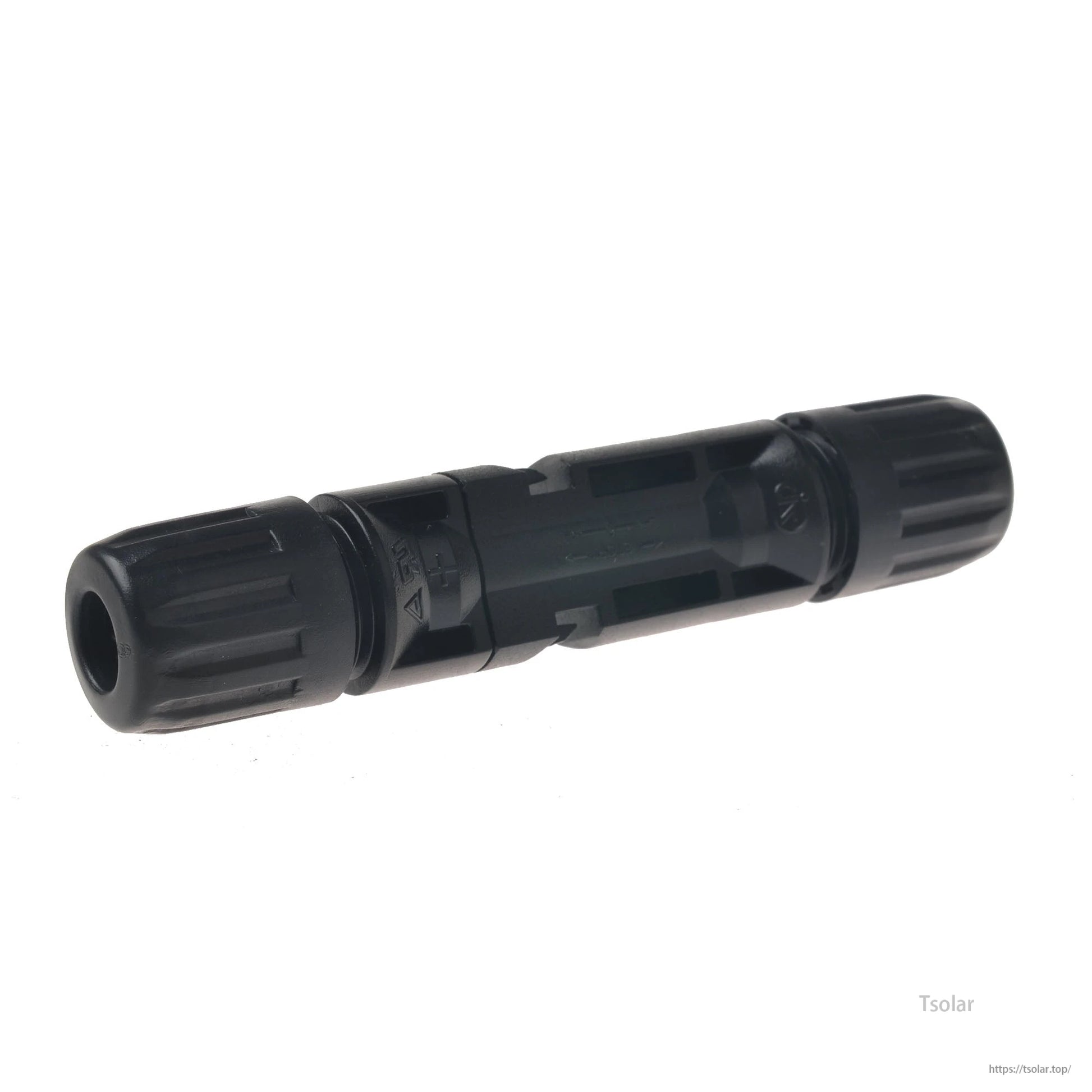

MC4 solar photovoltaic connector (Model: A601) for solar PV module cable connections. This set includes male and female connectors and uses an inner drum-shaped reed contact design. The housing is made of PPO material for anti-aging and UV resistance for operation in harsh power-station environments.
Key Features
- MC4 adapter connector interface
- PPO material with anti-aging and UV resistance
- Inner drum-shaped reed connector contact structure
- IP67 protection level
- Flame-retardant rating: UL94 V-0
For installation or compatibility questions, contact customer support at https://tsolar.top/ or service@tsolar.top.
Specifications
| Model | A601 |
| Technical specifications | 1000V DC |
| Rated current | 30A |
| Cable specifications | 2.5MM2 / 4.0MM2 / 6MM2; 14AWG / 12AWG / 10AWG |
| Adapter connector | MC4 |
| Protection type | IP address |
| Temperature range | -40°C to +85°C |
| Contact resistance | < 0.35 mΩ |
| Protection level | IP67 |
| Flame retardant rating | UL94 V-0 |
| Material | PPO |
What’s Included
- MC4 male connector x 1
- MC4 female connector x 1
