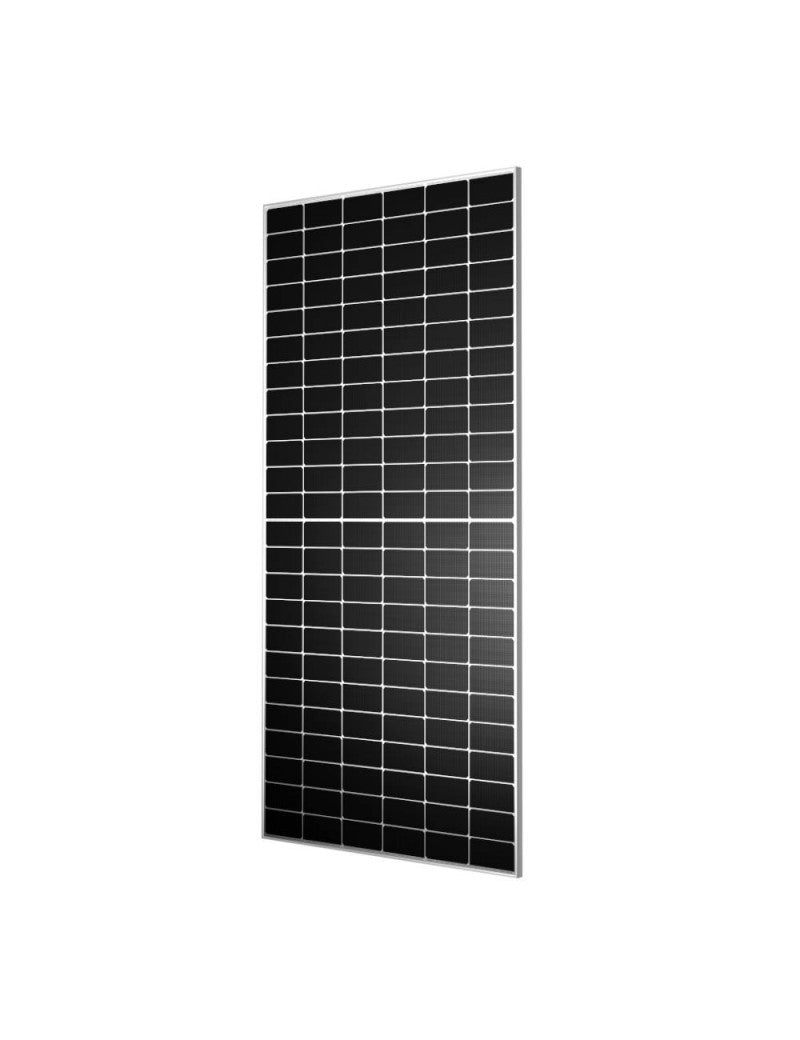

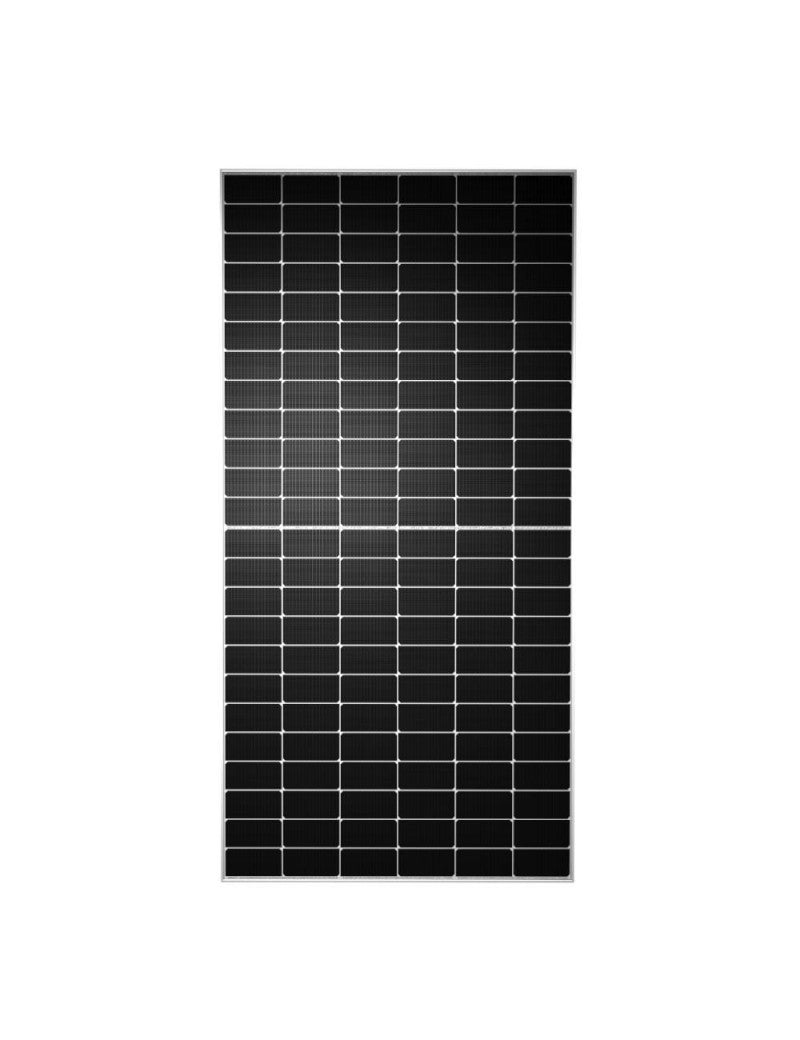

TW Solar 580W N-Type Bifacial Solar Panel Product Description
Overview
The TW Solar 580W N-Type Bifacial Solar Panel is engineered with cutting-edge Multi-busbar and Half-cut technologies, offering up to 22.5% efficiency and exceptional durability. This panel features 144 N-Type monocrystalline cells within an anodized aluminum alloy frame, making it a robust and reliable choice for residential, commercial, and industrial applications. Its bifacial design allows for additional energy capture from the panel's rear side, enhancing overall performance.
Key Specifications
| Attribute | Specification |
|---|---|
| PV Type | Monocrystalline |
| Module Technology | Half-Cut 144 cells |
| Power Output [W] | 580 |
| Performance [W/m²] | 224.52 |
| Panel Efficiency [%] | 22.5 |
| Frame Color | Silver |
| Max. System Voltage [V] | 1500 |
| Rated Voltage Vmpp [V] | 43.28 |
| Open Circuit Voltage Uoc [V] | 51.64 |
| Short-Circuit Current [A] | 14.29 |
| Rated Current [A] | 13.40 |
| Maximum Series Fuse [A] | 30 |
| Voltage Temperature Coefficient [%/°C] | -0.25 |
| Weight [kg] | 32.7 |
| Dimensions [mm] | 1134 x 2278 x 30 |
| Module Frame Thickness [mm] | 30 |
| Power Warranty | 30 years |
| Product Warranty | 12 years |
| Bifacial | Yes |
| Number of Modules on the Pallet | 36 |
| Glass | Double-layer |
Features and Benefits
- Bifacial Technology: The panel generates power from both sides, increasing overall energy output by up to 25%.
- Multi-Busbar Technology: Enhances power output by more than 5W and reduces power loss through improved current collection.
- Half-Cut Technology: Provides additional output gain of 5-10W by reducing power loss and increasing efficiency.
- High-Density Encapsulation: Increases module efficiency by 0.15% through better light absorption.
- N-Type Cells: Made using phosphorus, resulting in lower degradation rates and higher long-term efficiency.
- Durability: Constructed with 3.2 mm thick tempered glass and an anodized lightweight aluminum alloy frame that is corrosion-resistant.
- High and Stable Efficiency: Achieves up to 22.5% efficiency, ensuring excellent performance even in low sunlight conditions.
- Mechanical Strength: Withstands snow loads up to 5400 Pa and wind loads up to 2400 Pa.
- Low PID Susceptibility: Ensures long-term reliability and performance.
- High Output in Extreme Conditions: Performs excellently in both low and high-temperature environments.
Certifications
- IEC 61215/61730: Quality standards for photovoltaic modules.
- IEC 62804 (PID): Certification for Potential Induced Degradation resistance.
- IEC 61701 (Salt): Salt mist corrosion testing.
- IEC 62716 (Ammonia): Ammonia resistance testing.
- IEC 60068-2-68 (Sand): Sand and dust testing.
- ISO 9001: Quality Management System.
- ISO 14001: Environmental Management System.
- ISO 45001: Occupational Health and Safety Management System.
- ISO 50001: Energy Management System.
- IEC TS 62941: Guidelines for increased confidence in PV module design.
Warranty
- Product Warranty: 12 years
- Power Output Warranty: 30 years, with low degradation rates ensuring long-term performance.
Additional Information
- High Efficiency: With module efficiency of up to 22.5%, the TW Solar 580W N-Type Bifacial Solar Panel provides excellent performance, maximizing energy generation.
- Positive Power Tolerance: Ensures up to +5W additional power, providing more energy yield.
- Excellent Low Light Performance: Maintains high efficiency even under low sunlight conditions, making it ideal for various climates and installations.
- Advanced Encapsulation: Uses High-Density Encapsulation to further enhance efficiency and power output.
- Innovative Design: The unique cell design reduces the operating temperature of the PV module, resulting in higher efficiency and longer lifespan.
The TW Solar 580W N-Type Bifacial Solar Panel is an ideal choice for customers seeking high-quality and efficient solar panels at an affordable price. Perfect for both on-grid and off-grid applications, it offers robust performance, high energy output, and long-term reliability. With its advanced technology and comprehensive warranties, the TW Solar 580W N-Type Bifacial Solar Panel ensures sustainable and efficient solar energy production for years to come.
