Overview

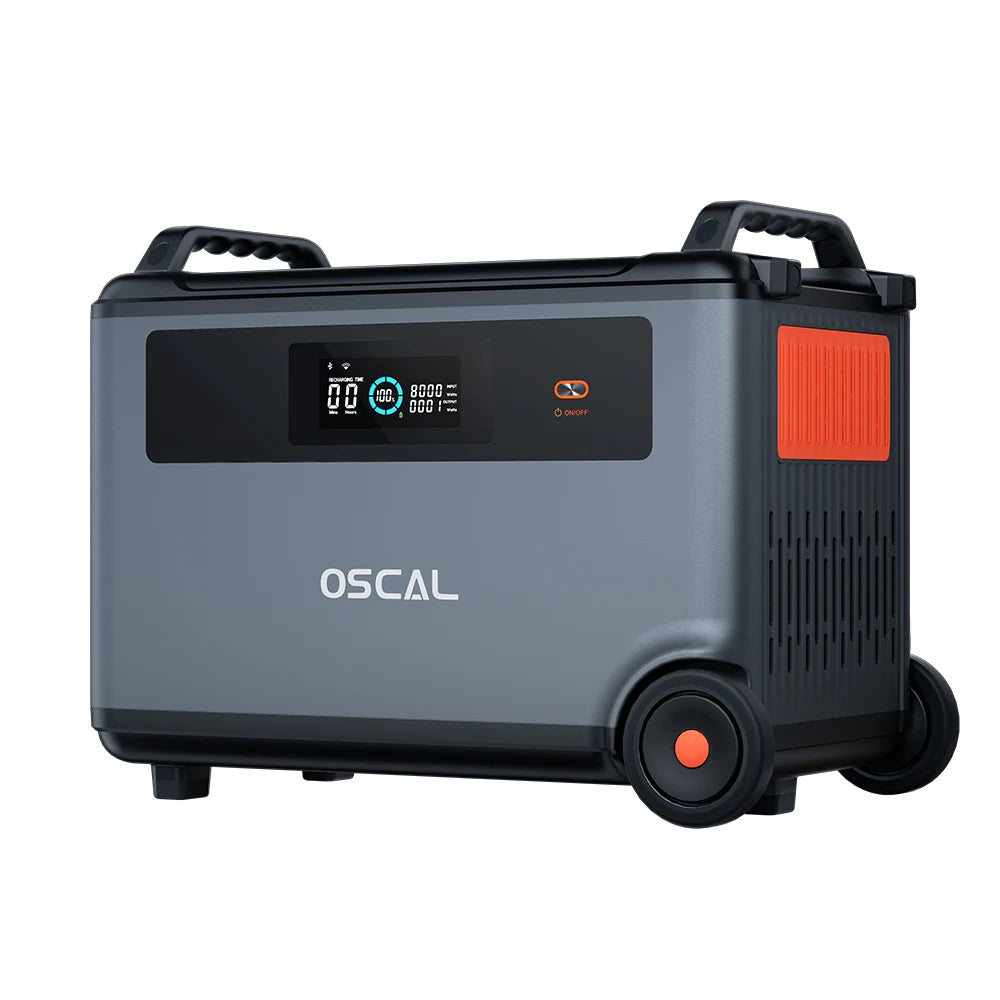

Oscal PowerMax 3600 Portable Power Station (US Plug, 110V) is a rugged, high-capacity LiFePO4 backup and outdoor power solution built for solar power storage, home backup, and car camping. It delivers a rated 3600W pure sine wave output with 14 versatile outlets, features UPS and BMS protection, 5 LED light modes with Morse signaling, and a modular battery design expandable up to 57.6 kWh using BP3600 battery packs.
Key Features
- 3600 Wh LiFePO4 battery; 3500+ cycles to 80% capacity
- Pure sine wave inverter: 3600W rated, 7200W surge
- 14 versatile outlets including AC, USB-C 100W, USB-A 12W/18W, Anderson, DC 5521, and cigarette lighter
- US Plug 110V; display screen for status and controls; app control via WiFi and Bluetooth
- UPS and BMS for safe, reliable operation
- 5 LED light modes plus Morse code signal

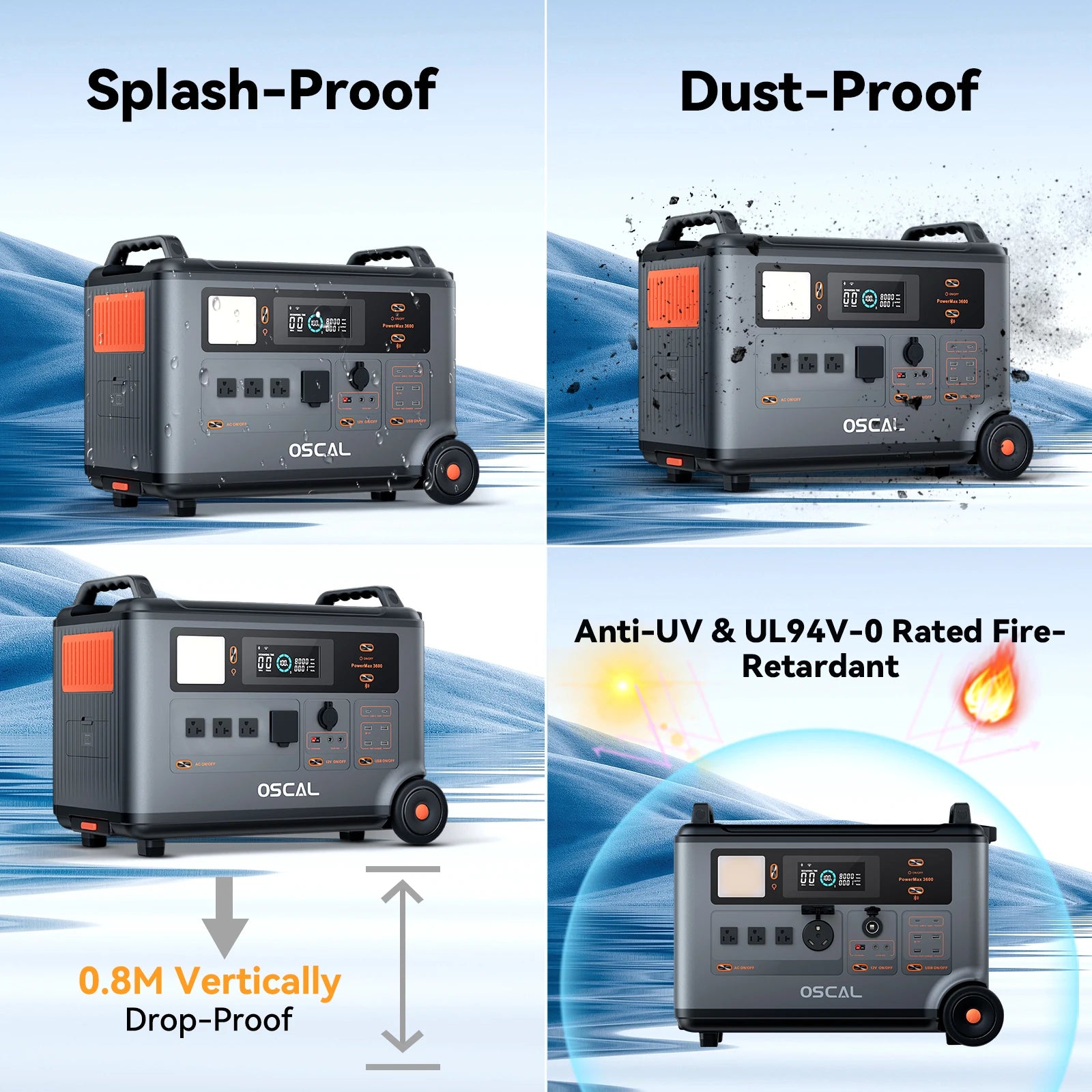

- Anti-UV & UL94V-0 rated fire-retardant case
- 0.8 m vertically drop-proof; splash-proof & dust-proof body

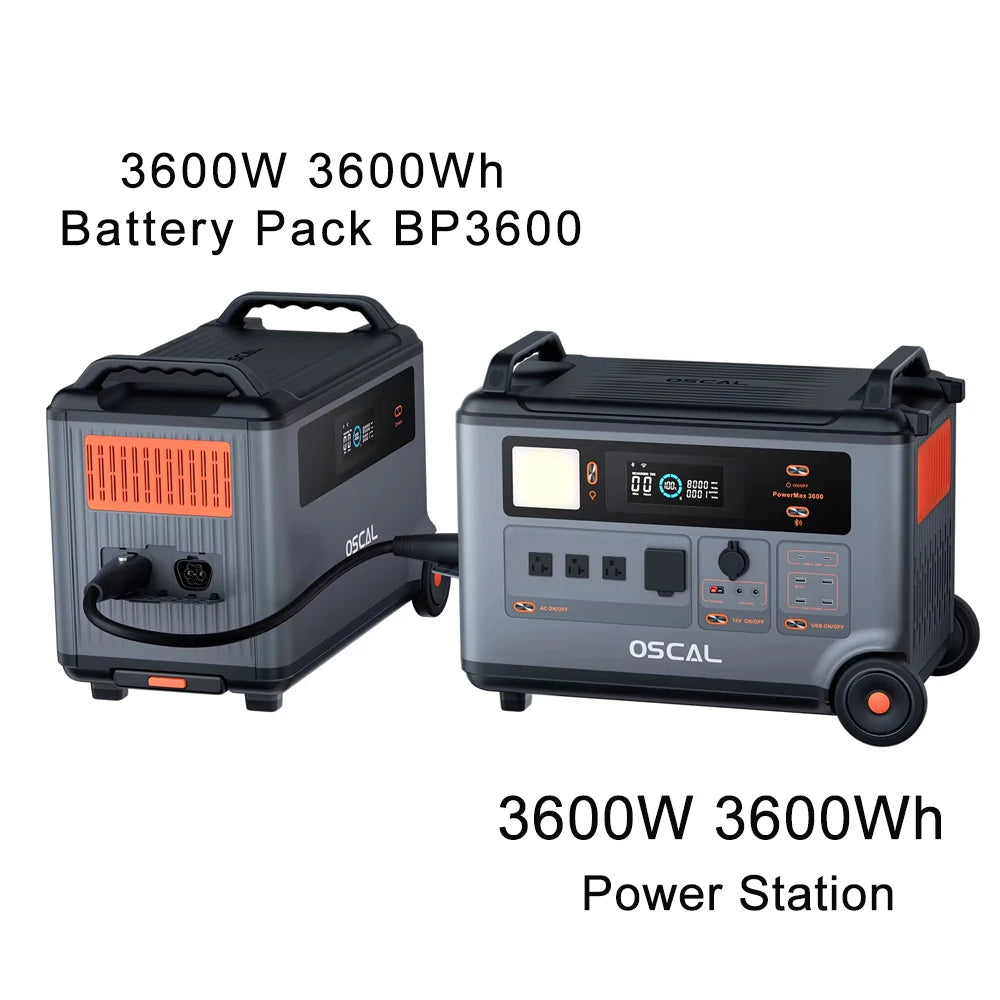

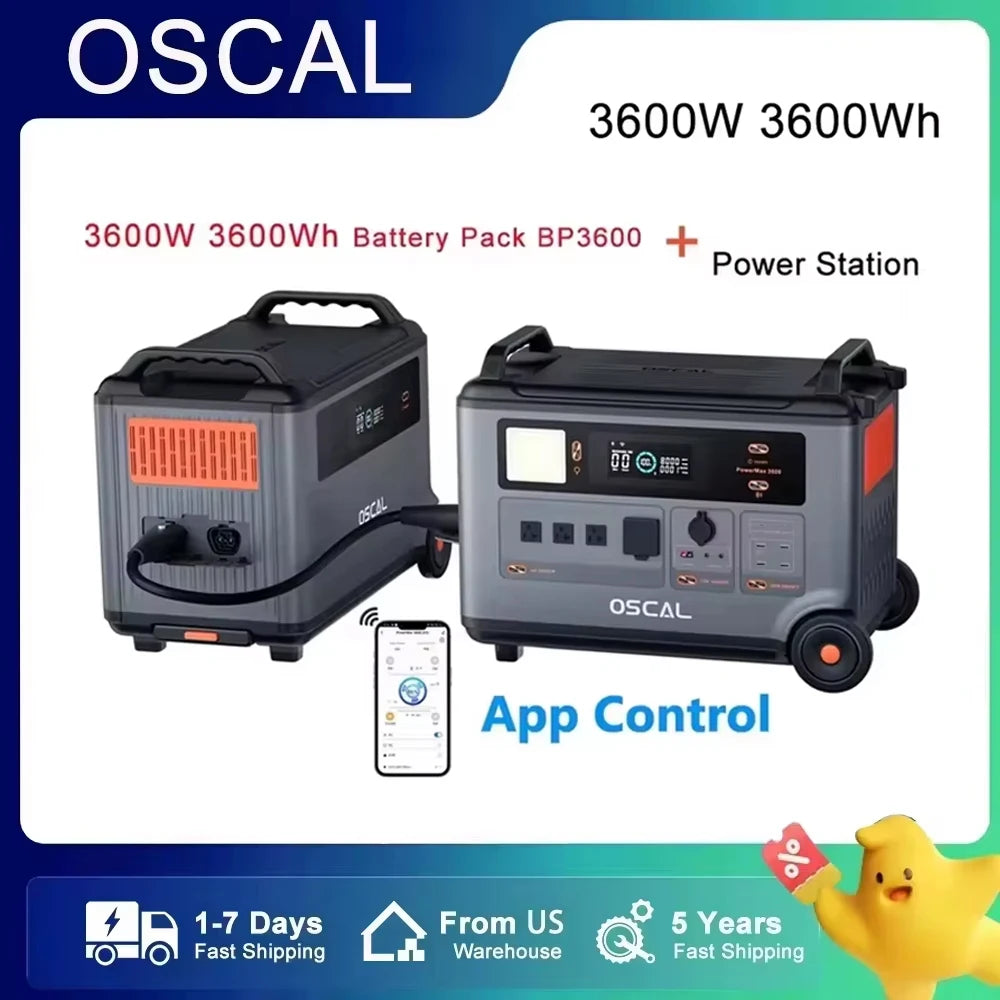

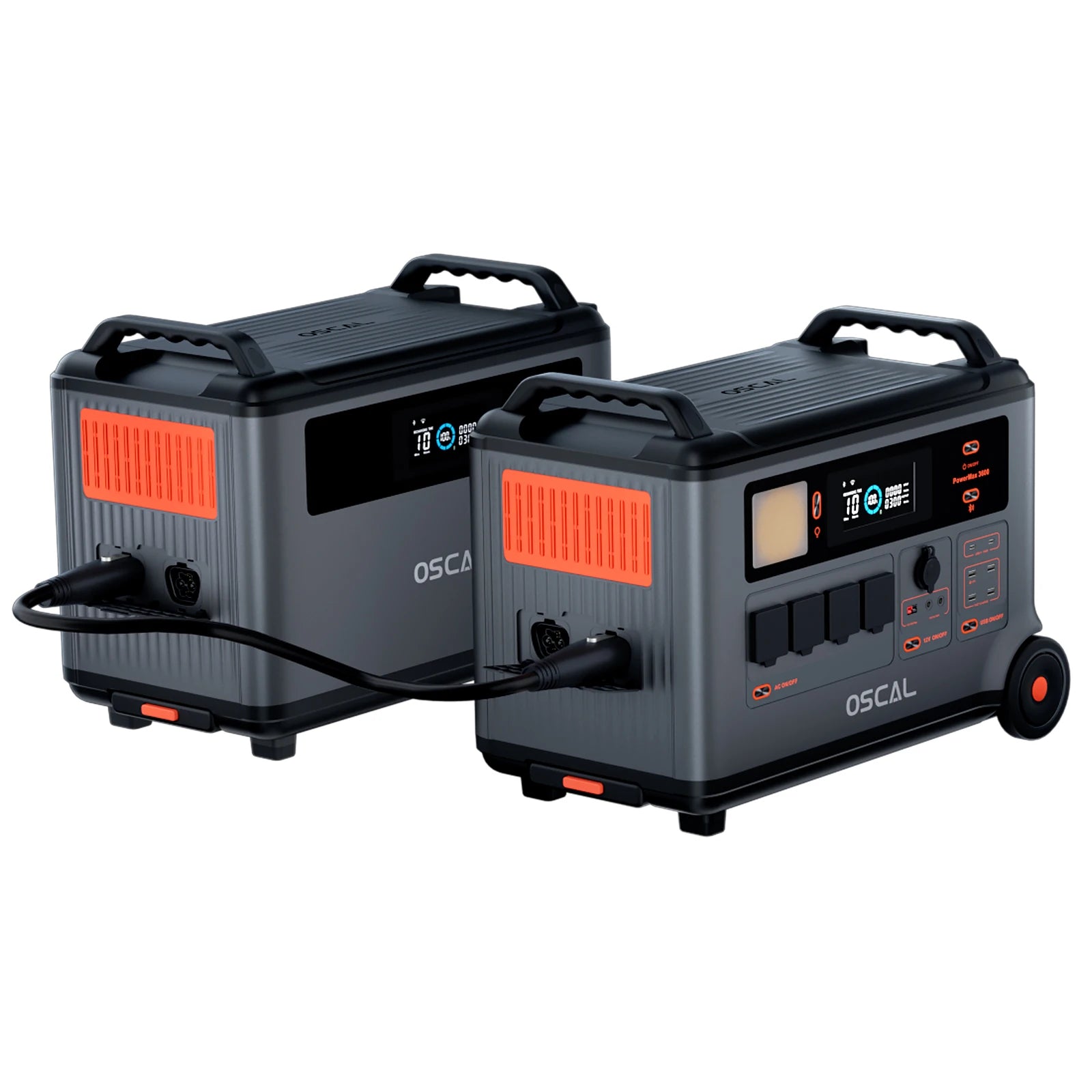

- Modular expansion up to 57.6 kWh with up to 15× BP3600 battery packs (3600 Wh per pack)
- Suitable for solar generator setups, portable generator use, external battery power, portable charger, powerbank, car camping
- Features include: Oscal Blackview Battery; trust bank 3600W; power stations; Power bank 110v Korean type
Specifications
| Brand | Oscal |
| Type | Rugged Power Station |
| Model | PowerMax 3600 |
| Color | Grey+Red |
| Battery Capacity | 3600 Wh |
| Battery Type | LiFePO4 |
| Battery Life Cycles | 3500+ cycles to 80% of original capacity |
| Battery Number | 1 |
| Nominal Capacity | 3600wh |
| Replacement Battery | No |
| Application | Solar Power Storage |
| Certification | CE, FCC |
| Display Screen | Yes |
| Inverter Type | Pure Sine Wave |
| AC Output | 4 × 3600W Output (Max) |
| Surge Power | 7200W |
| USB-C Ports | USB-C 100W ×2 |
| USB-A Ports | USB-A 12W ×1; USB-A 18W ×3 |
| DC Output | Anderson 378W ×1; DC 5521 36W ×2 |
| Cigarette Lighter Port | 120W ×1 |
| AC Charging Input | 2000W – 2500W |
| AC Adapter Input (Max) | 2200W (Max); 3600W (Max) [feature listing] |
| Solar Charging Input | 1000W – 1500W |
| Solar Input (Max) | 1600 W (Max) |
| Car Input (Max) | 120W (Max) |
| Recharging Times | AC Adapter: 1.96 h; Solar: 2.25 h (with prime sunshine, ideal orientation, low temperature); Car: 30 h |

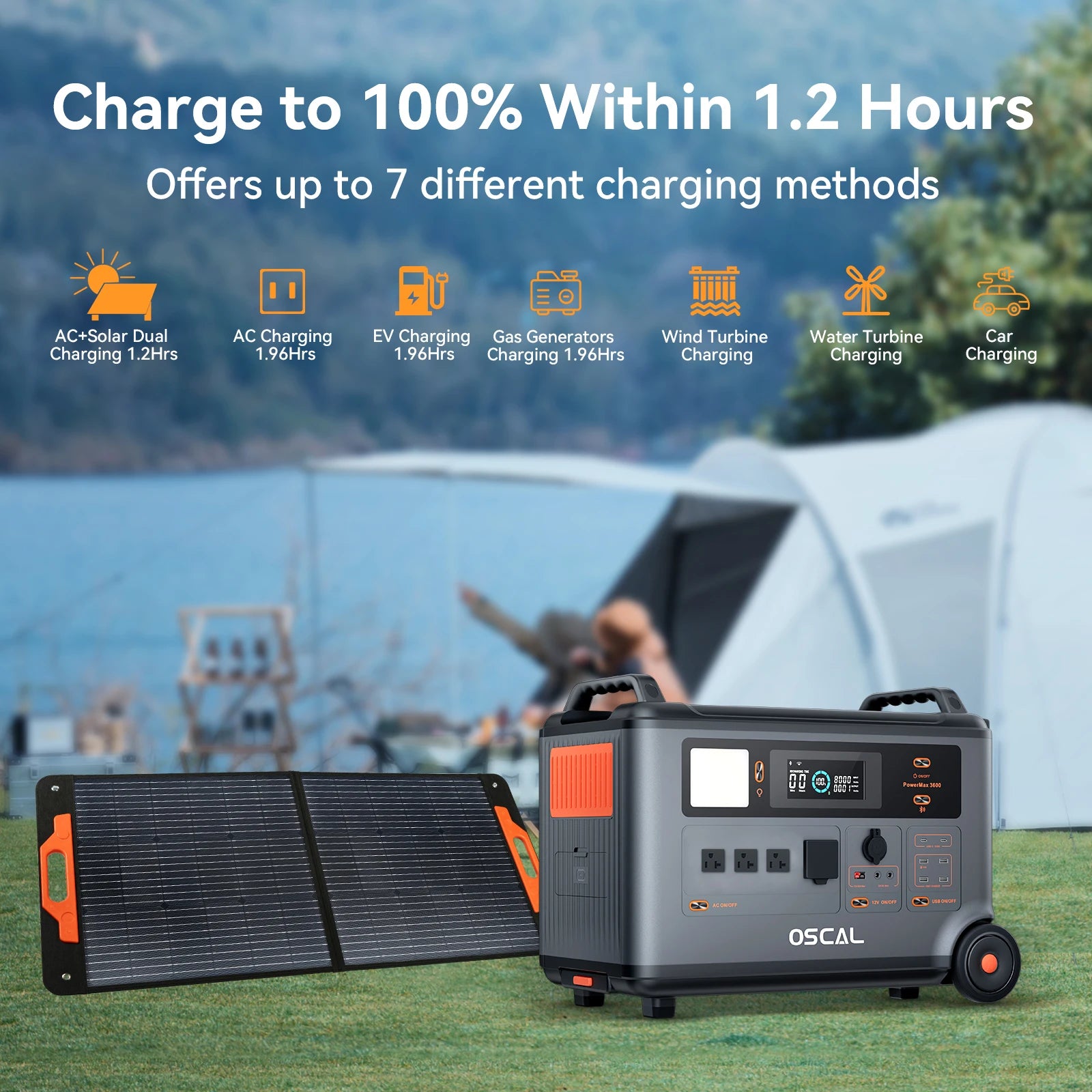

| Dual Charging | AC + DC Solar: 1.2 h; AC + DC Car: 1.86 h |
| Charging Temperature | 0–50°C (32°F–122°F); best 0–45°C (32°F–113°F) |
| Discharging Temperature | -20–55°C (-4°F–131°F); best -10–45°C (14°F–113°F) |
| Storage Temperature | -10–45°C (14°F–113°F) |
| App Control | Yes, via WiFi and Bluetooth |
| Product Size (L × W × H) | 59 × 35 × 44.1 cm; L590 × W350 × H441 mm |
| Package Size (L × W × H) | 66 × 40.5 × 52.5 cm |
| Product Weight | 44.5 kg |
| Package Weight | 47.6 kg |
| Net Weight | > 50 Kg |
| Origin | Mainland China |
| Bundle | Bundle 1 |
| Connection | Other |
| High-concerned Chemical | None |
Applications
- Solar power storage systems
- Car camping and outdoor power
- Portable generator and solar generator setups
Details

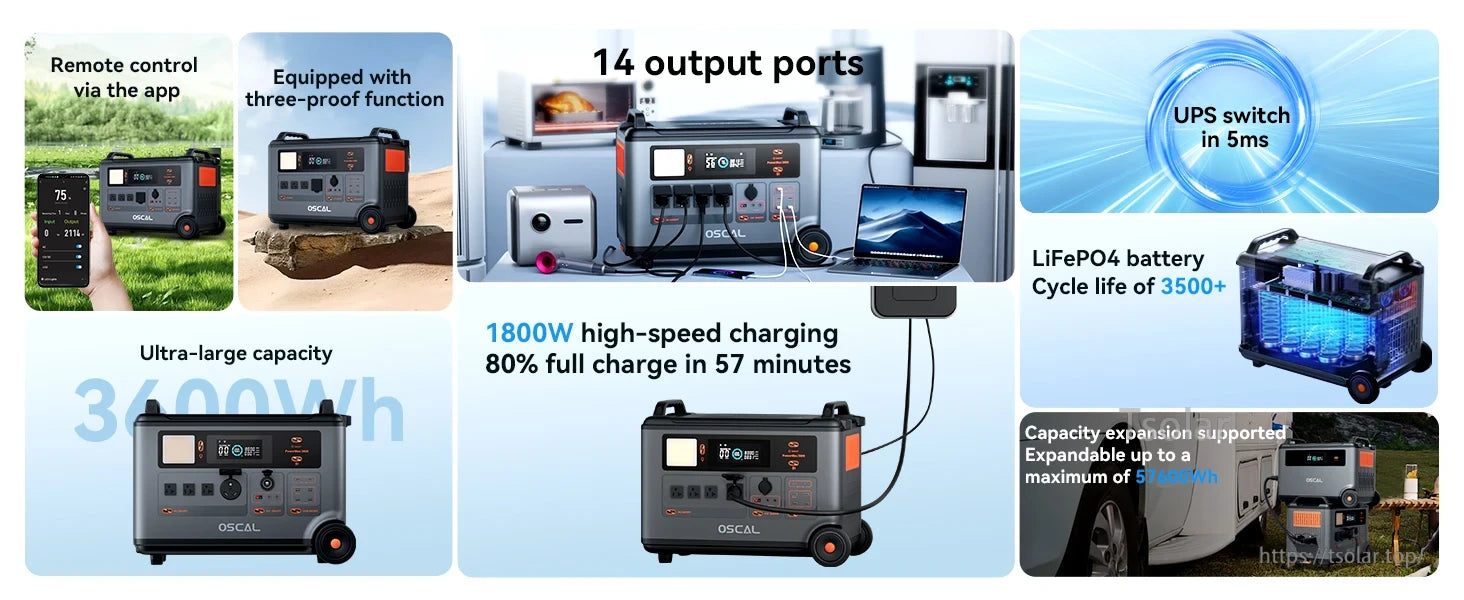

Oscal PowerMax 3600 offers 3600Wh capacity, 1800W output, 14 ports, LiFePO4 battery (3500+ cycles), 5ms UPS, app control, three-proof design, and expandable up to 57600Wh for reliable, scalable power.

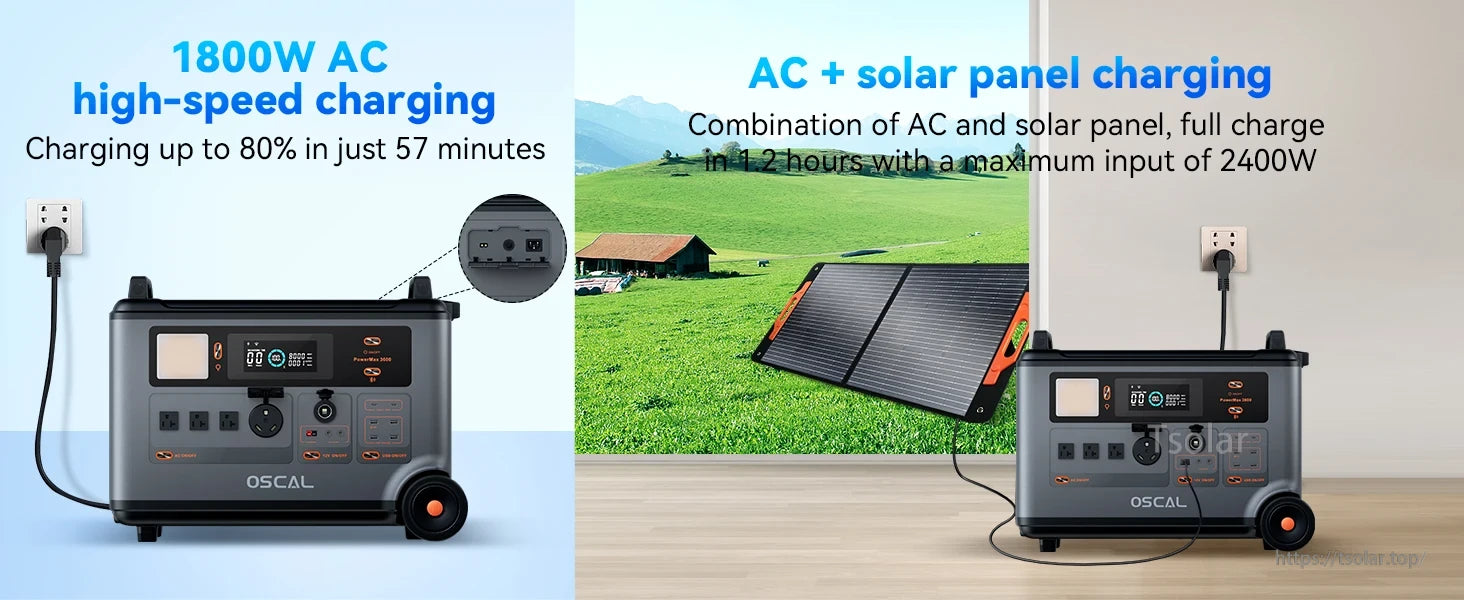

1800W AC fast charging, 80% in 57 mins. AC plus solar charging, full in 12 hours with 2400W input. OSCAL PowerMax 3600.
Oscal PowerMax 3600 charges up to 99% of essential devices, powering TV, gaming, and more.

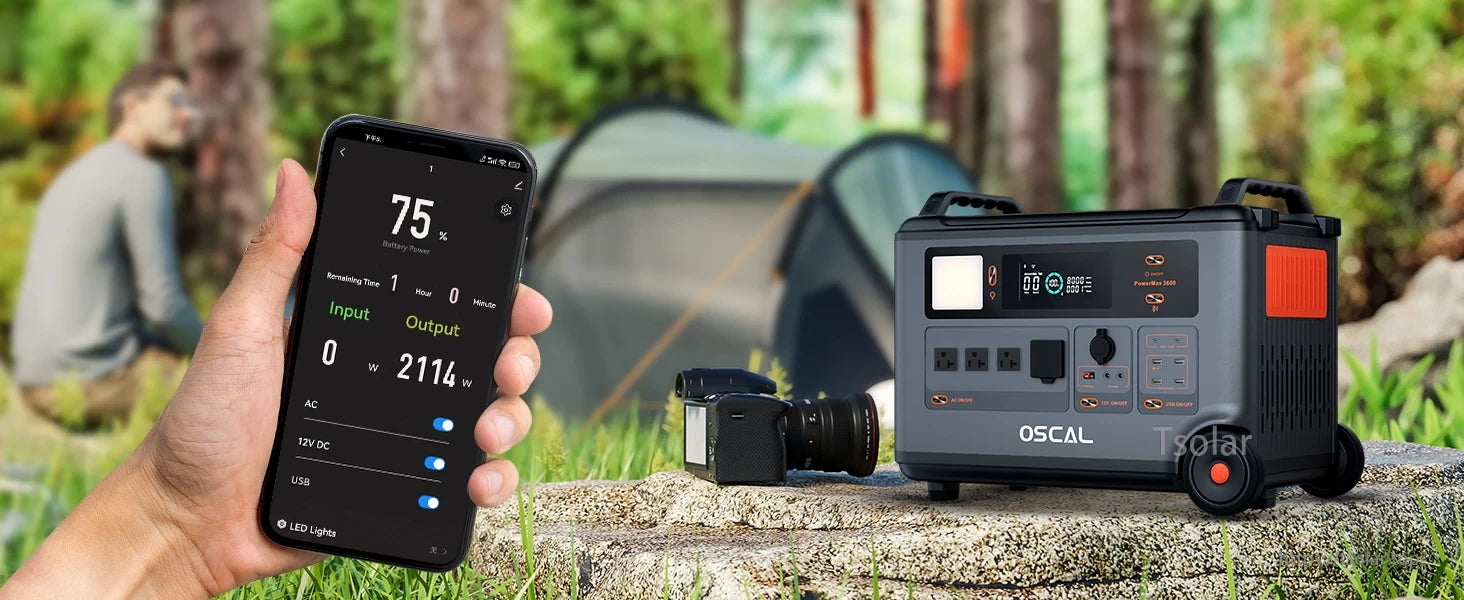

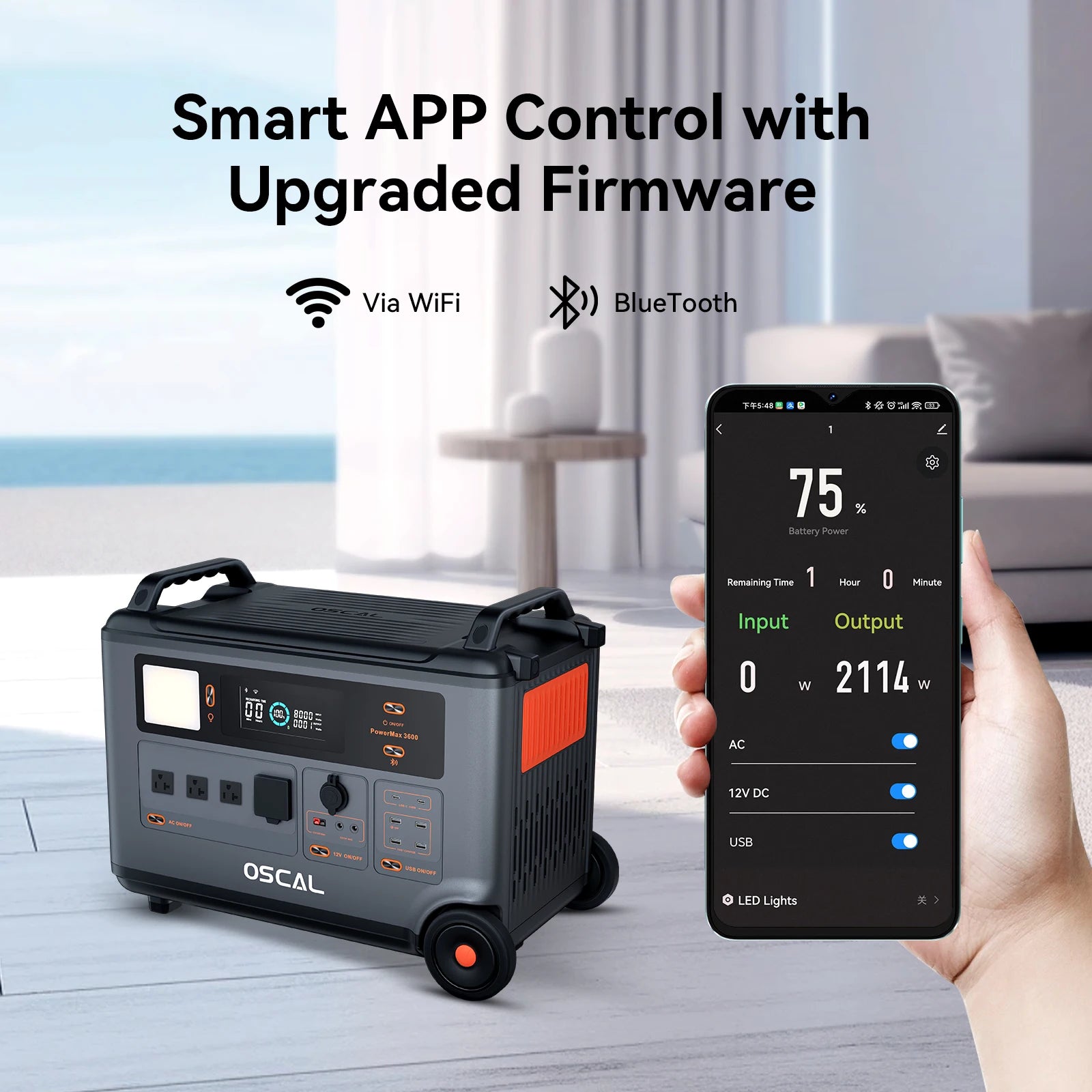

Oscal PowerMax 3600 power station with smartphone app control and outdoor camping setup.

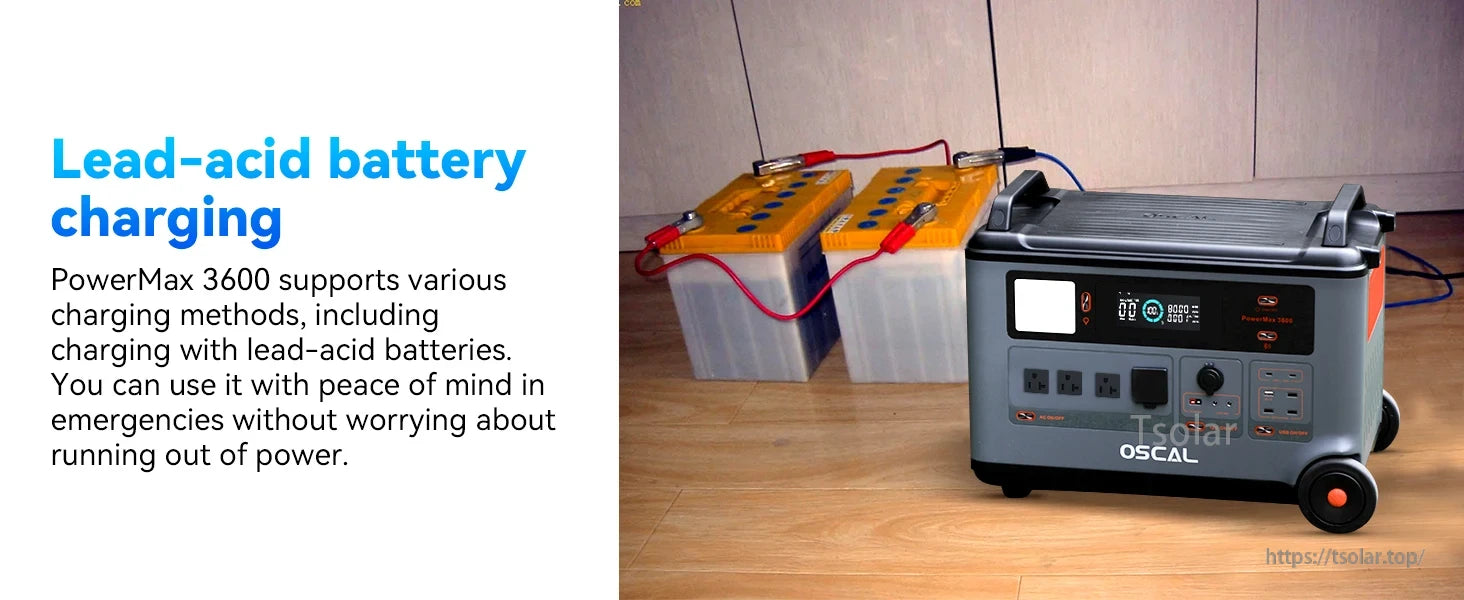

Oscal PowerMax 3600 supports lead-acid battery charging, offering reliable power in emergencies with multiple charging methods.

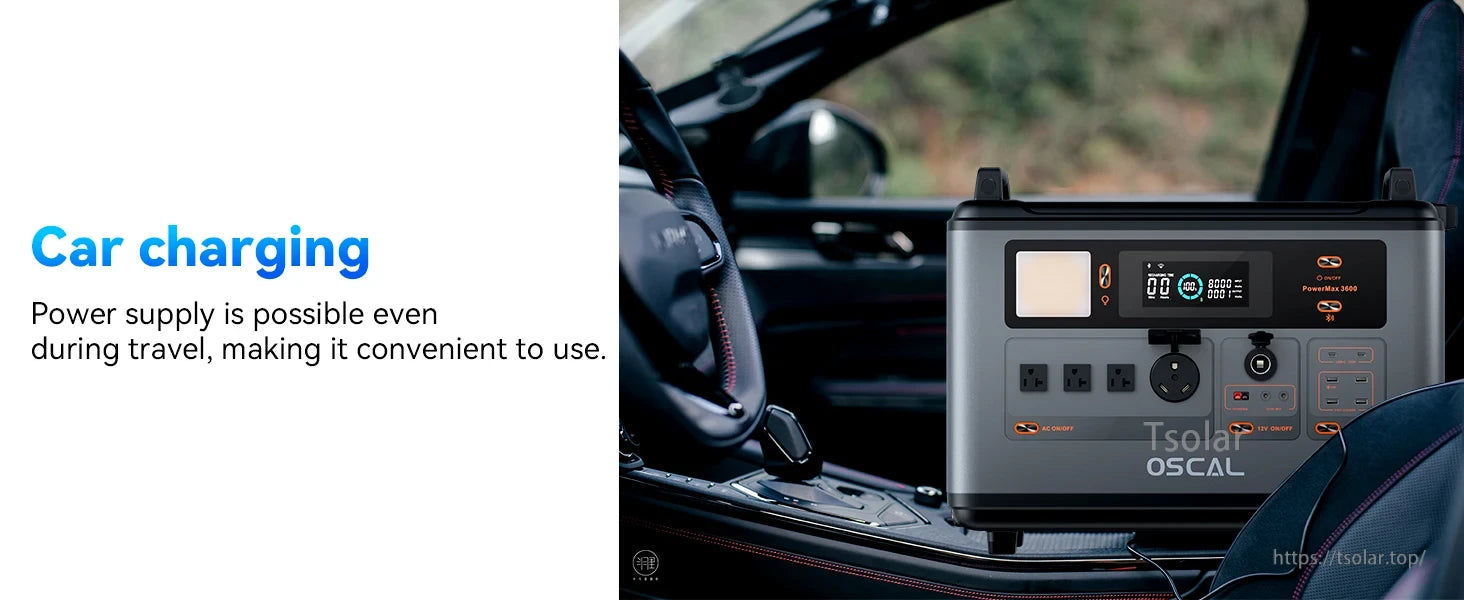

Oscal PowerMax 3600 enables car charging on the go.

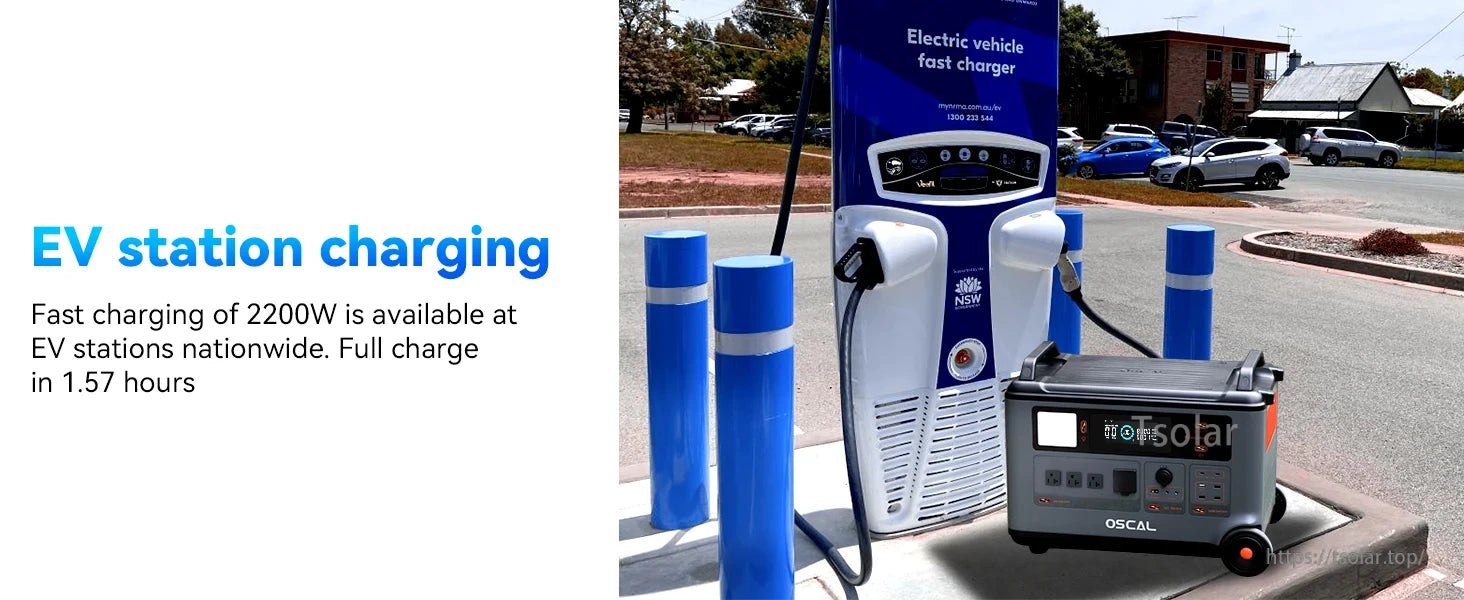

Oscal PowerMax 3600 power station charging at EV station, 2200W fast charge, full in 1.57 hours.

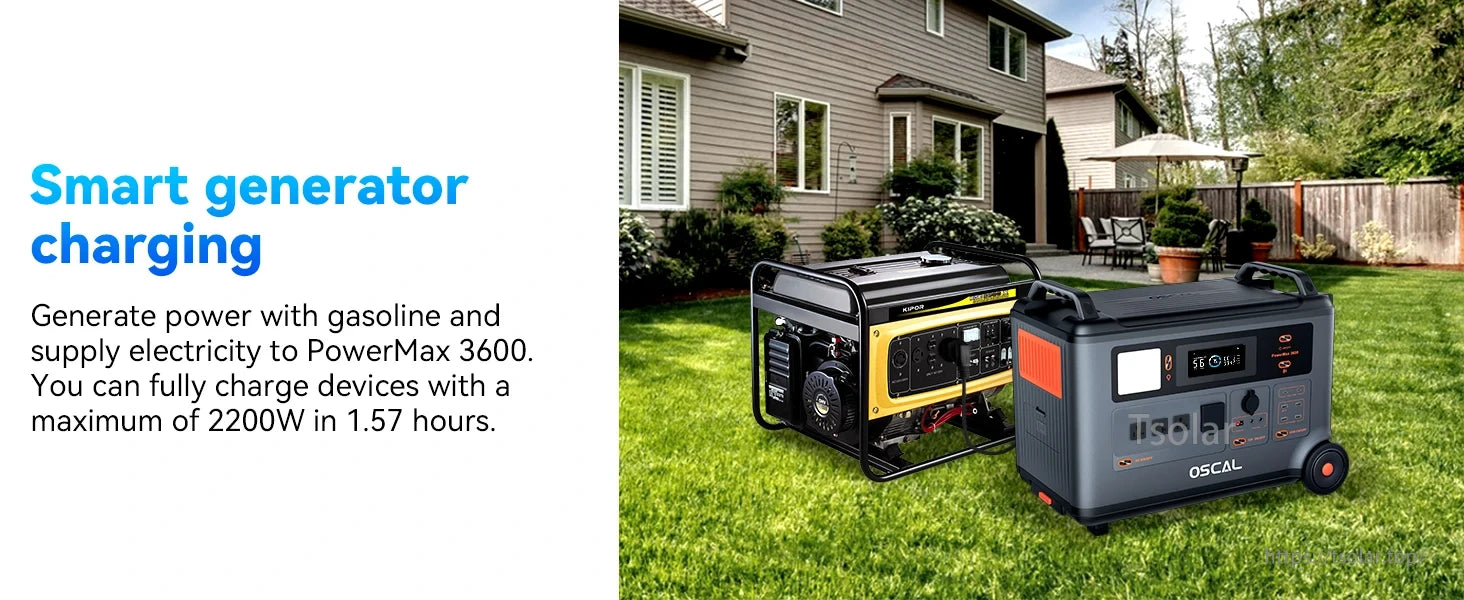

Smart generator charges PowerMax 3600 with gasoline, fully powers 2200W devices in 1.57 hours.
3.6kWh power station; 36-108km for e-scooters; up to 3 days for RV and camping.

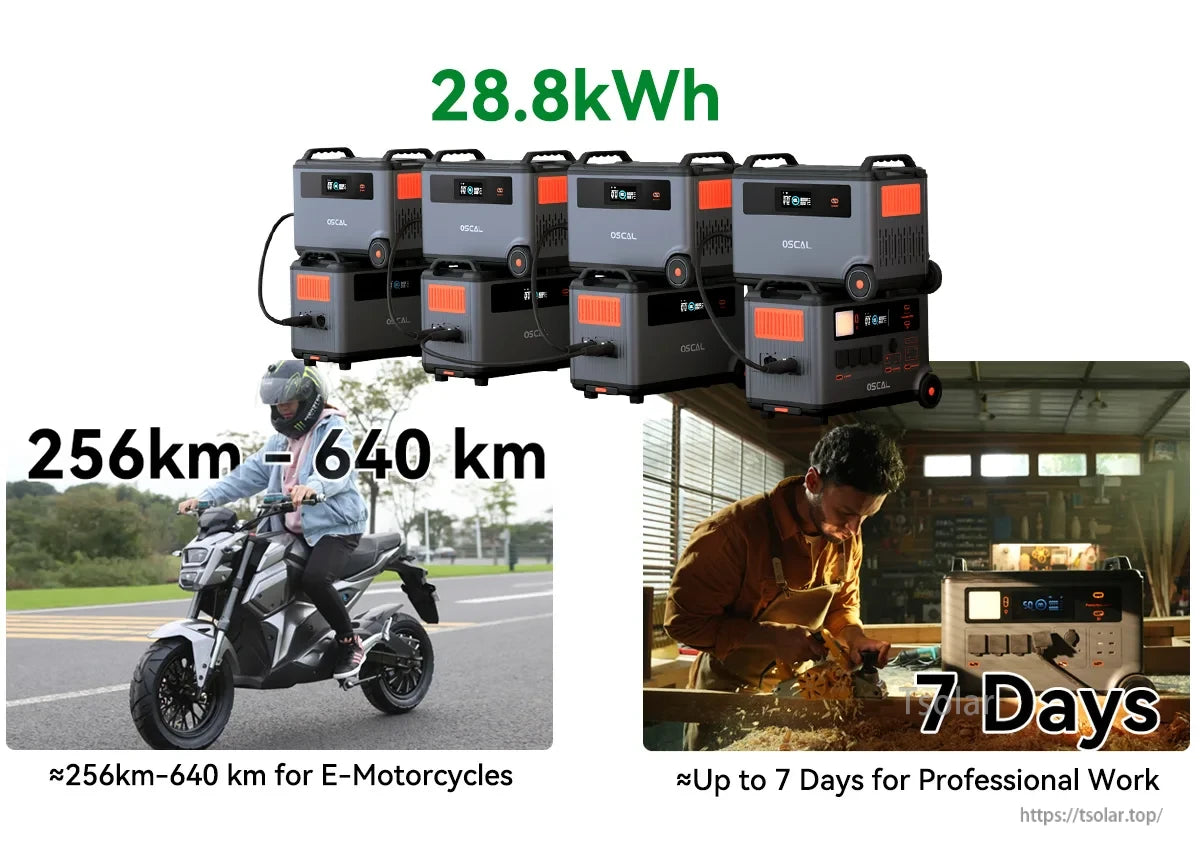

28.8kWh power station supports 256–640km for e-motorcycles and up to 7 days for professional work.

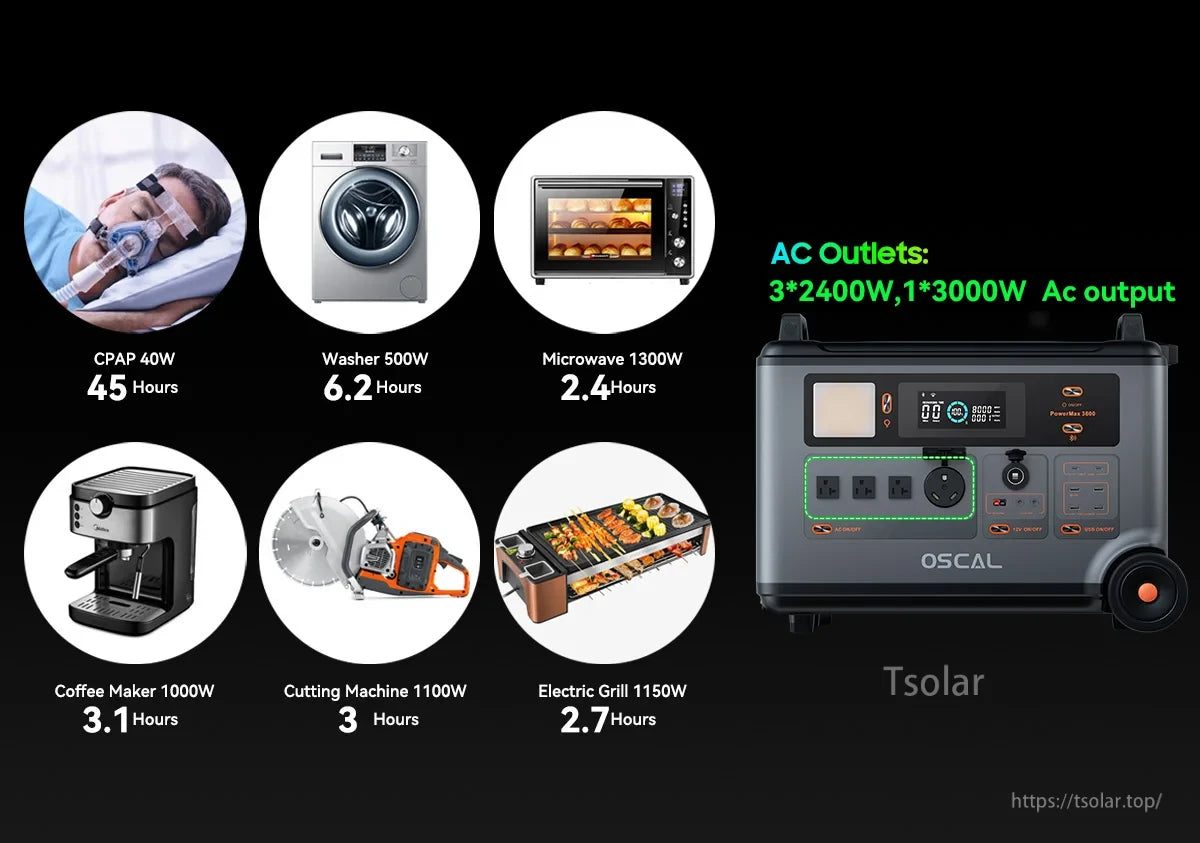

PowerMax 3600 supports CPAP, washer, microwave, coffee maker, cutting machine, and electric grill. Offers 3×2400W and 1×3000W AC outlets with detailed runtime and wattage for each appliance.

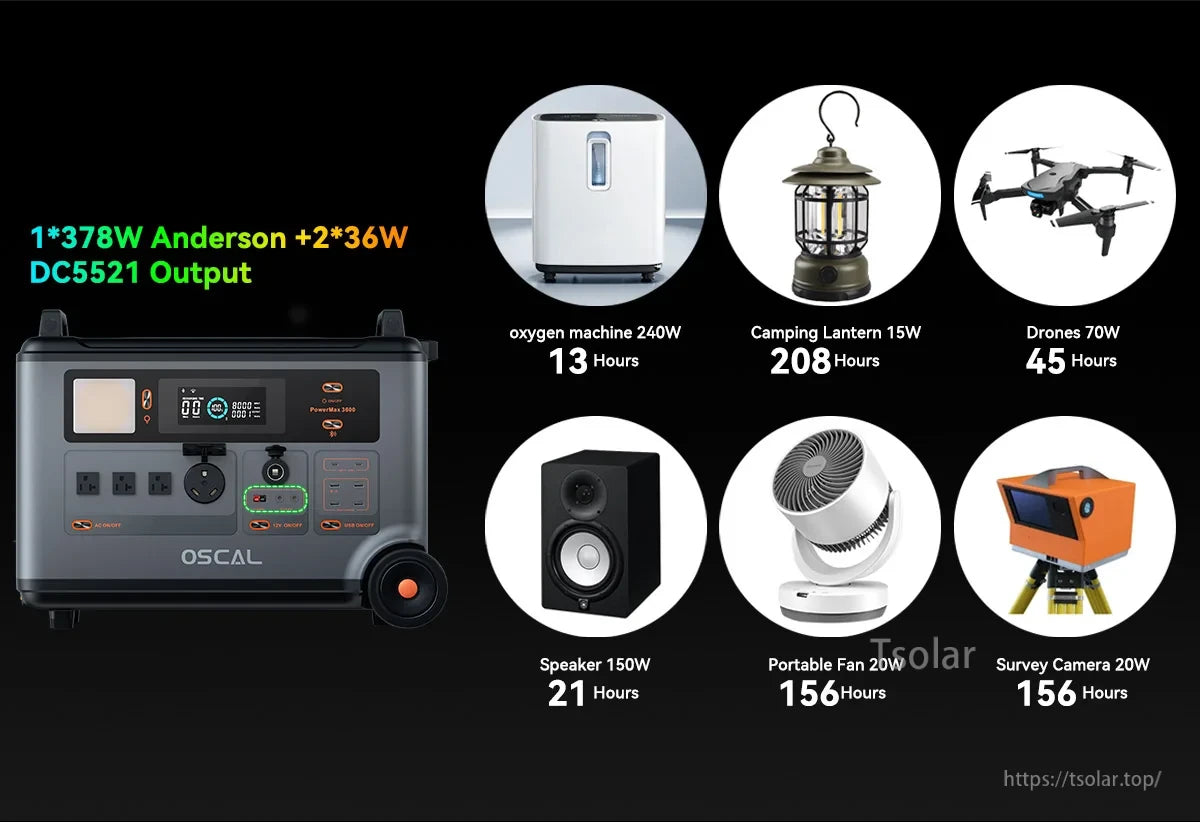

Oscal PowerMax 3600 power station with 1×378W Anderson and 2×36W DC5521 outputs. Supports devices like oxygen machine, lantern, drones, speaker, fan, and camera with runtime up to 208 hours.

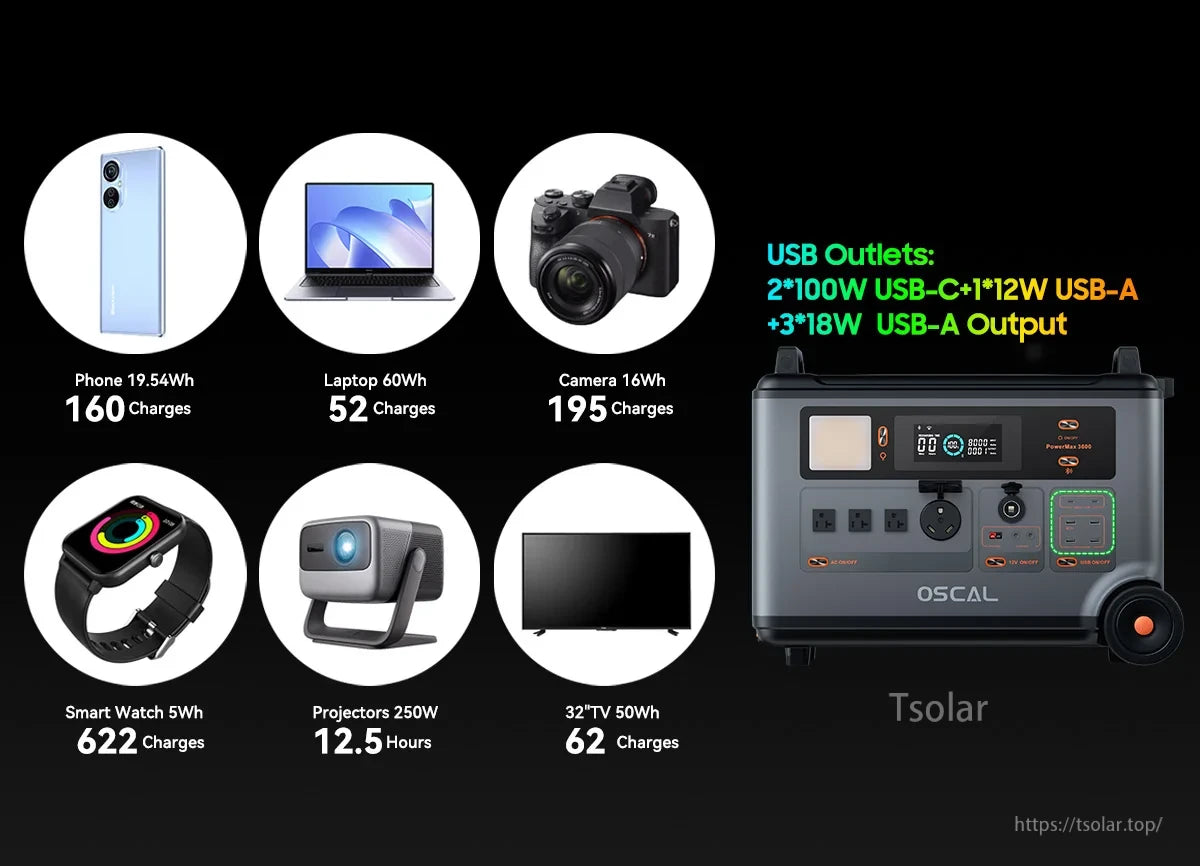

Oscal PowerMax 3600 power station offers 2×100W USB-C, 1×12W USB-A, and 3×18W USB-A outputs. It supports 160 phone charges, 52 laptop charges, 195 camera charges, 622 smartwatch charges, 12.5 hours for projectors, and 62 TV charges.

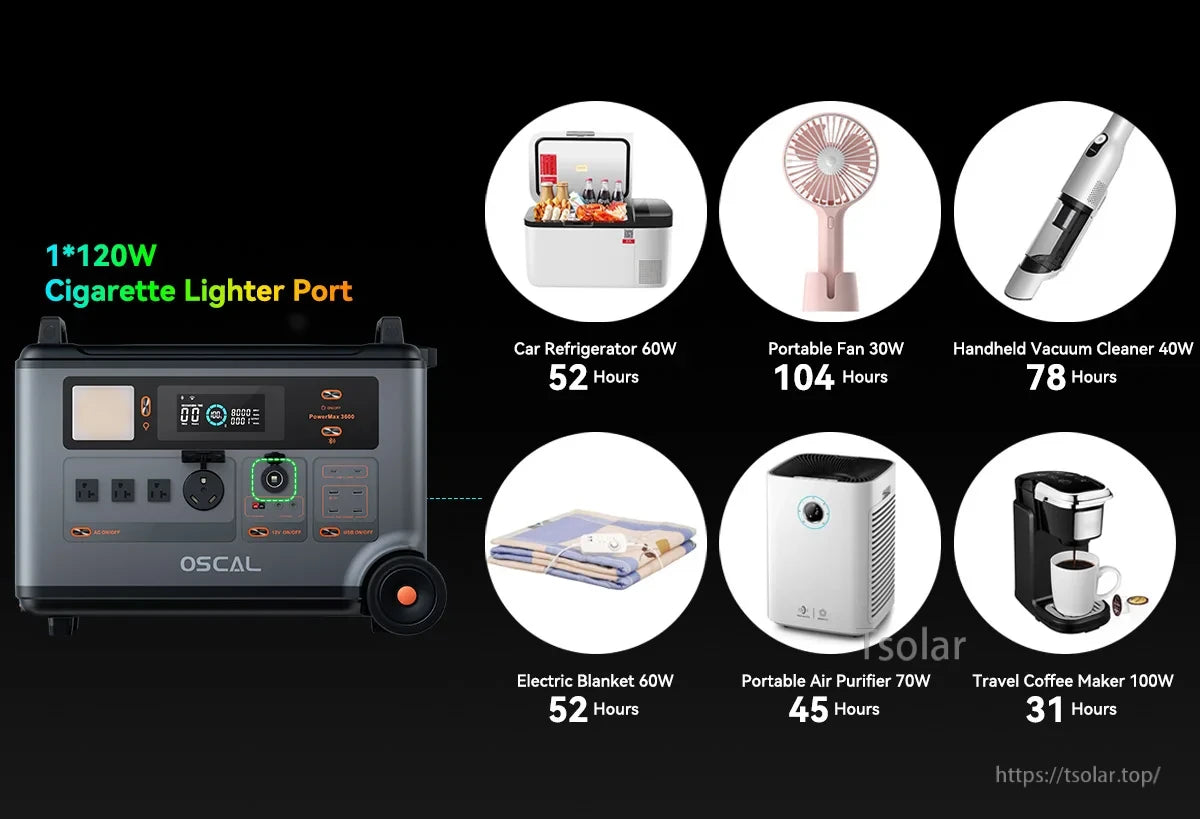

Pack includes: cigarette lighter adapter, portable fan, handheld vacuum cleaner, electric blanket, travel coffee maker, and air purifiers. Runs for up to 104 hours.
Oscal PowerMax 3600 is a 3600Wh LiFePO4 battery power station with pure sine wave AC output, multiple USB and DC ports, solar and car charging inputs, app control via WiFi/Bluetooth, and a 4-year warranty. Dimensions: 590×350×441 mm, weight: 44.45 kg.

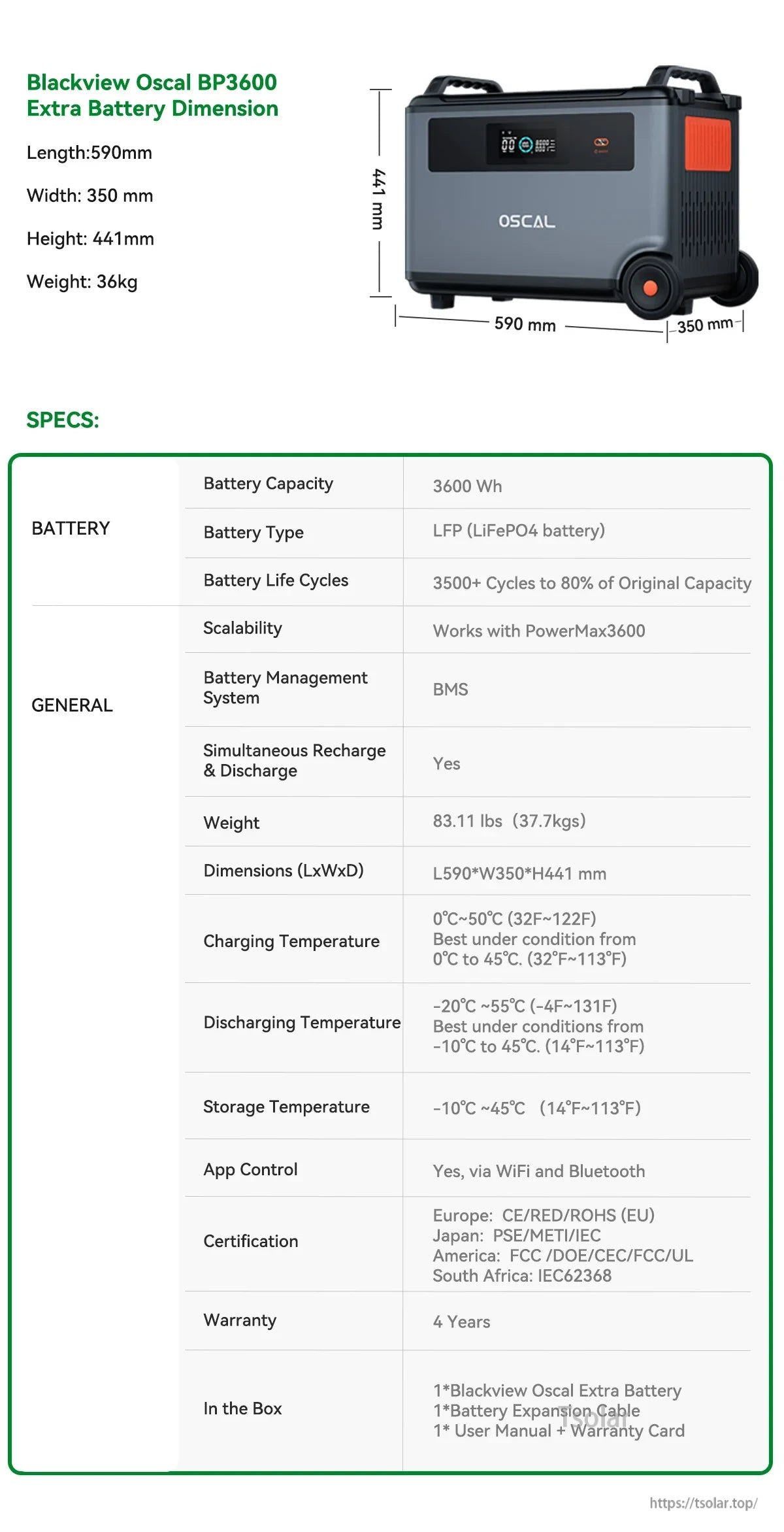

3600Wh LFP battery with 3500+ cycles, BMS, simultaneous charge/discharge. 590×350×441mm, 36kg. WiFi/Bluetooth app control, 4-year warranty, expansion cable included.
