Overview

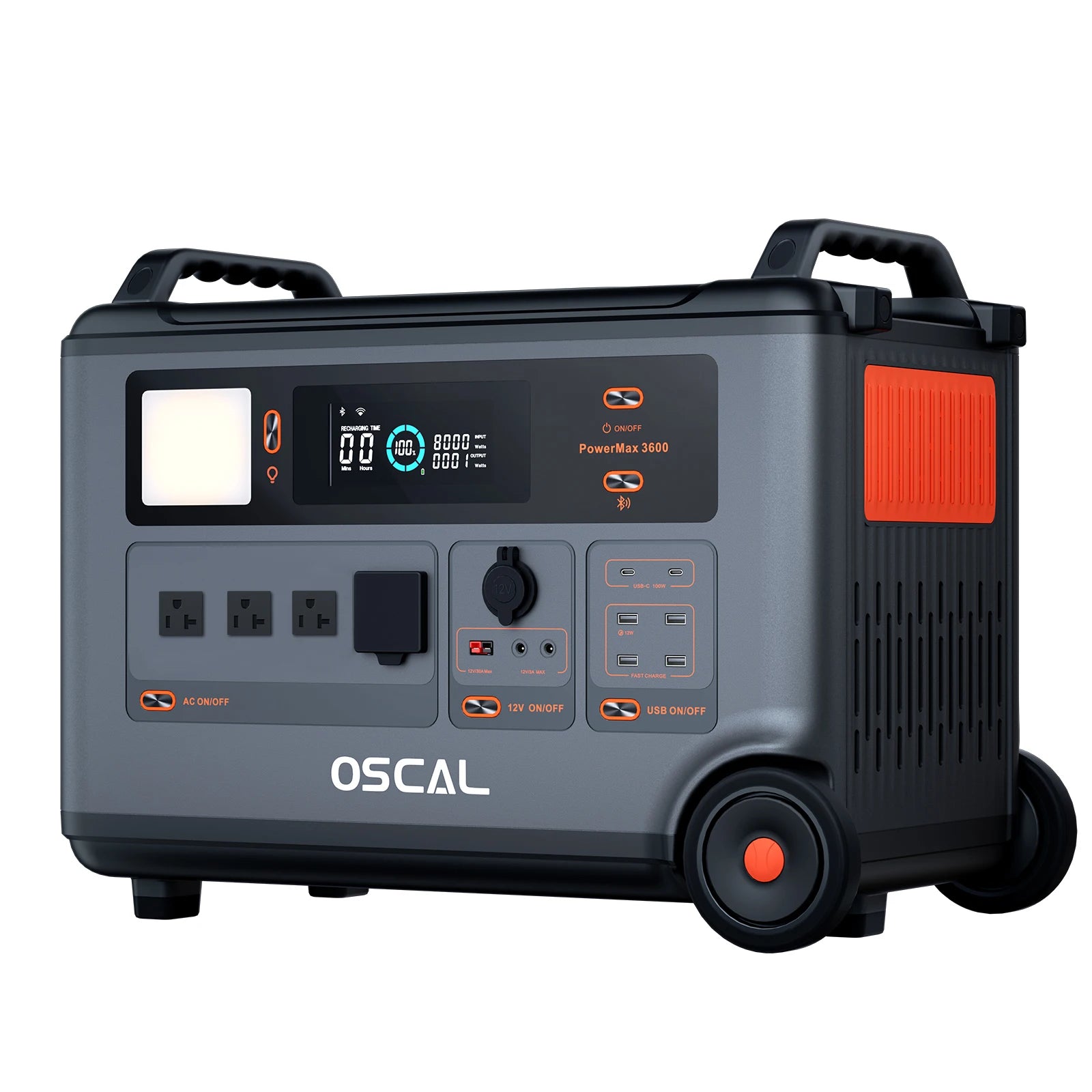

The Oscal PowerMax 3600 is a Portable Power Station With Battery Pack designed for home energy backup, road trips, and car camping. It integrates a 3600 Wh LiFePO4 battery, a 3600W pure sine wave inverter (7200W surge), and 14 versatile outlets. Capacity is modular and expandable from 3.6 kWh to up to 57.6 kWh using additional 3600 Wh battery packs. A rugged enclosure with Anti-UV and UL94V-0 rated flame-retardant materials, 0.8 m vertical drop resistance, and a splash- and dust-proof body enhances reliability in varied environments.
Key Features
High-power, clean output
3600W rated pure sine wave AC inverter (7200W surge) to run demanding appliances reliably.
Long-life LiFePO4 battery
3600 Wh LiFePO4 pack with 3500+ cycles to 80% of original capacity.
14 versatile outlets
4 x AC outlets, 2 x USB-C 100W, USB-A 12W x1, USB-A 18W x3, Anderson 378W x1, DC 5521 36W x2, and a 120W cigarette lighter port.
Fast, flexible recharging
AC Adapter Input 2200W (Max) with ~1.96 h recharge; AC Charging Input rated 2000W – 2500W; Solar Input 1600 W (Max) with ~2.25 h recharge (with prime sunshine, ideal orientation, and low temperature); Car Input 120W (Max) ~30 h. Dual charging: AC + solar ~1.2 h; AC + car ~1.86 h.
Expandable energy
Base 3600 Wh capacity; pair with one battery pack for 7200 Wh (3600 Wh + 3600 Wh). Modular design supports up to 15 battery packs for a maximum of 57,600 Wh.
Integrated lighting
5 LED light modes plus Morse code signaling for low-visibility communication or distress.
Rugged and safety-focused

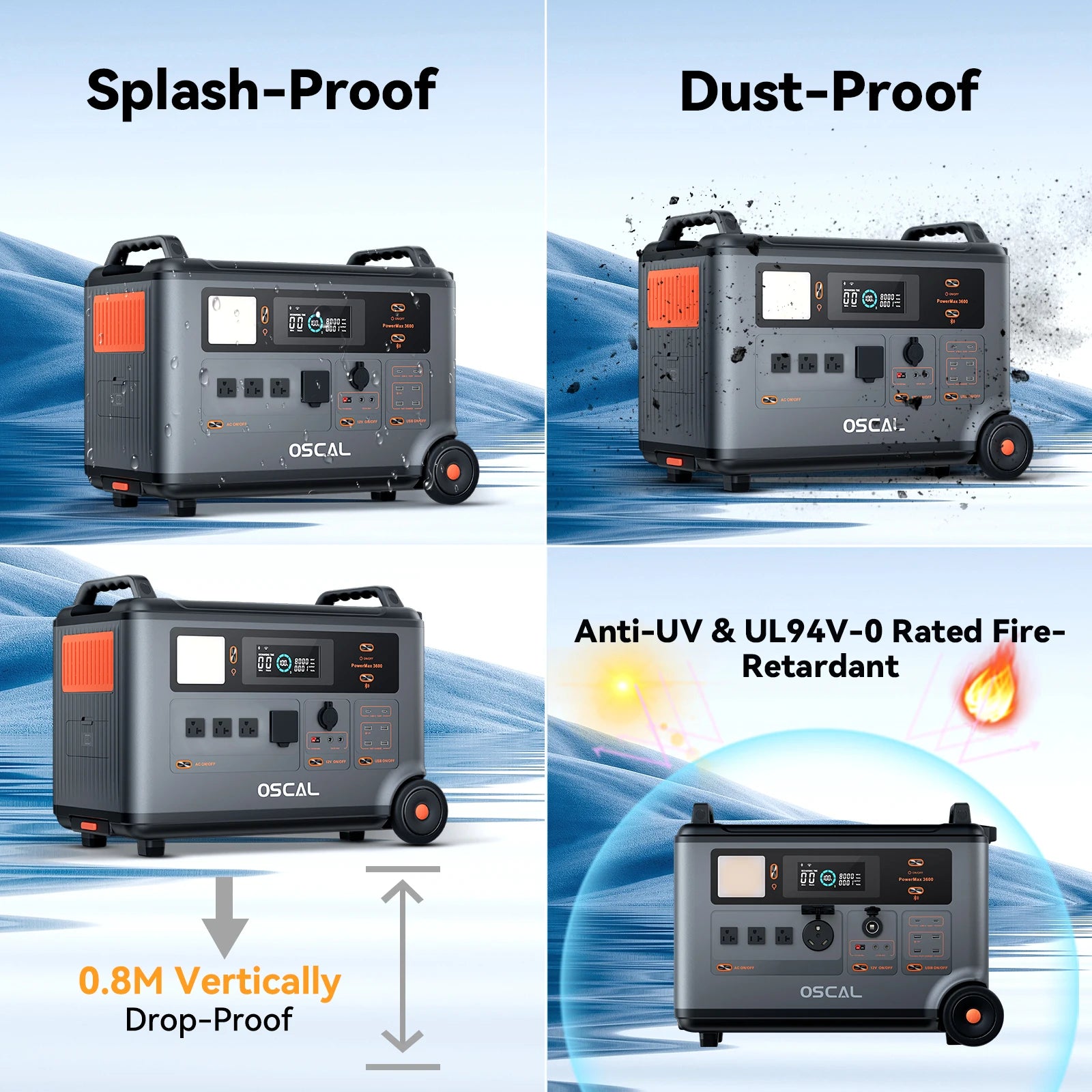

Anti-UV housing resists fading; UL94V-0 flame-retardant casing; built to withstand 0.8 m vertical drops; splash- and dust-resistant body.
Smart control and display

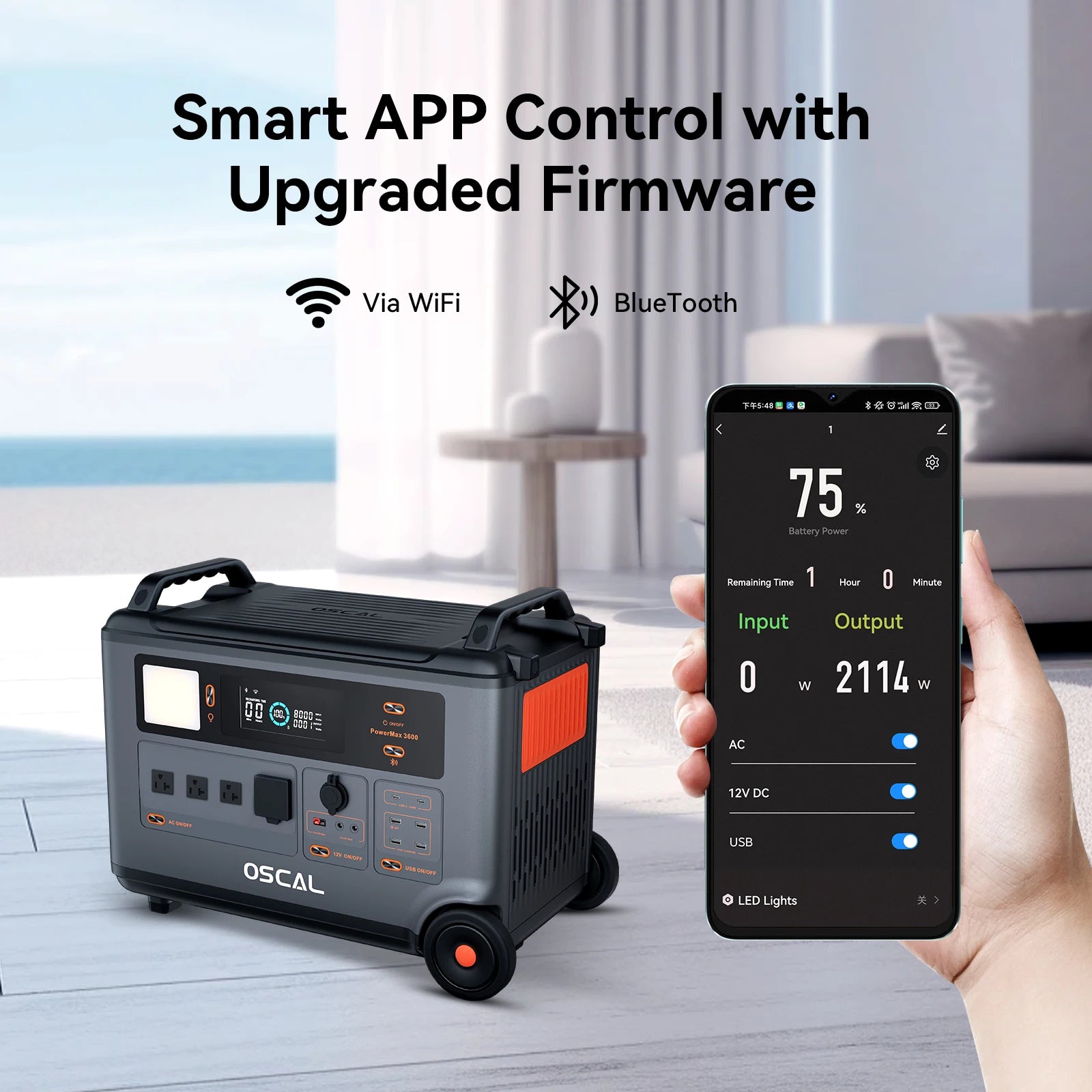

Display screen for real-time status and app control via WiFi and Bluetooth.
Certifications
CE, FCC.
Specifications
| Brand | OSCAL |
| Model | PowerMax 3600 (powermax 3600/BP3600) |
| Product Type | Portable Power Station With Battery Pack |
| Color | Grey+Red |
| Battery Type | LiFePO4 |
| Battery Capacity | 3600 Wh |
| Battery Life Cycles | 3500+ cycles to 80% of original capacity |
| Expandable Capacity | 7200 Wh (3600 Wh + 3600 Wh); up to 57,600 Wh with 15 battery packs |
| AC Output | 4 x 3600W (Max), pure sine wave |
| Surge Power | 7200W |
| USB-C | 100W x2 |
| USB-A | 12W x1; 18W x3 |
| DC Output | Anderson 378W x1; DC 5521 36W x2 |
| Cigarette Lighter Port | 120W x1 |
| Display Screen | Yes |
| App Control | Yes, via WiFi and Bluetooth |
| AC Charging Input | 2000W – 2500W |
| AC Adapter Input | 2200W (Max); recharge ~1.96 h |
| Solar Charging Input | 1500W – 2000W |
| Solar Input | 1600 W (Max); recharge ~2.25 h (prime sunshine, ideal orientation, low temperature) |
| Car Input | 120W (Max); recharge ~30 h |
| Dual Charging | AC + DC-solar ~1.2 h; AC + DC-car ~1.86 h |
| Charging Temperature | 0–50°C (best 0–45°C) |
| Discharging Temperature | -20–55°C (best -10–45°C) |
| Storage Temperature | -10–45°C |
| Certification | CE, FCC |
| Application | Home Energy |
| Battery Number | 1 |
| Replacement Battery | No |
| Connection | Other |
| Bundle | Bundle 1 |
| Set Type | Charger Sets |
| PowerMax3600 only | 3600 Wh Portable Power Station |
| With Battery Pack | 3600 Wh Portable Power Station + Battery Pack |
| Product Size | L590 × W350 × H441 mm (59 × 35 × 44.1 cm) |
| Product Weight | 44.5 kg |
| Package Size | 66 × 40.5 × 52.5 cm |
| Package Weight | 47.6 kg |
| Net Weight (range) | 30 kg – 50 kg |
| Origin | Mainland China |
Applications
Home energy backup, portable generator use, car camping, road trips, and outdoor events where a high-power solar generator and portable charger are required.
Details

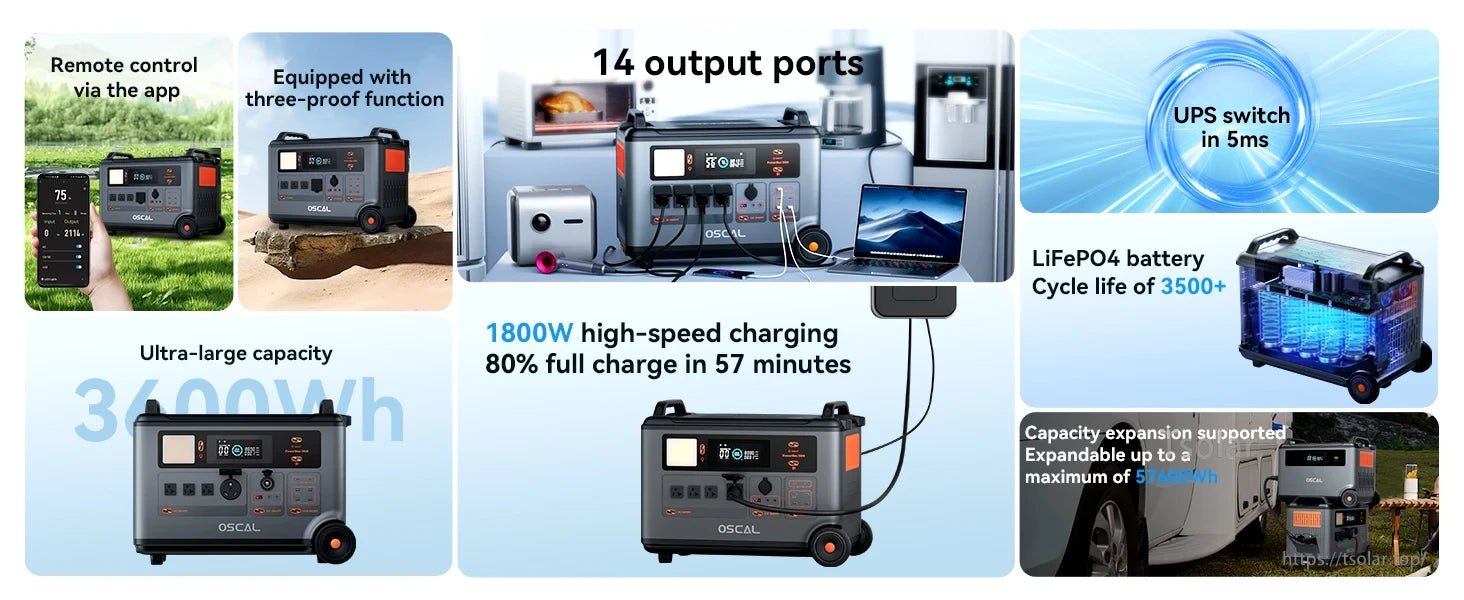

Oscal PowerMax 3600 offers 3600Wh capacity, 1800W output, 14 ports, LiFePO4 battery (3500+ cycles), 5ms UPS switch, app control, three-proof design, and expandable storage up to 57600Wh—ideal for reliable, high-performance power needs.

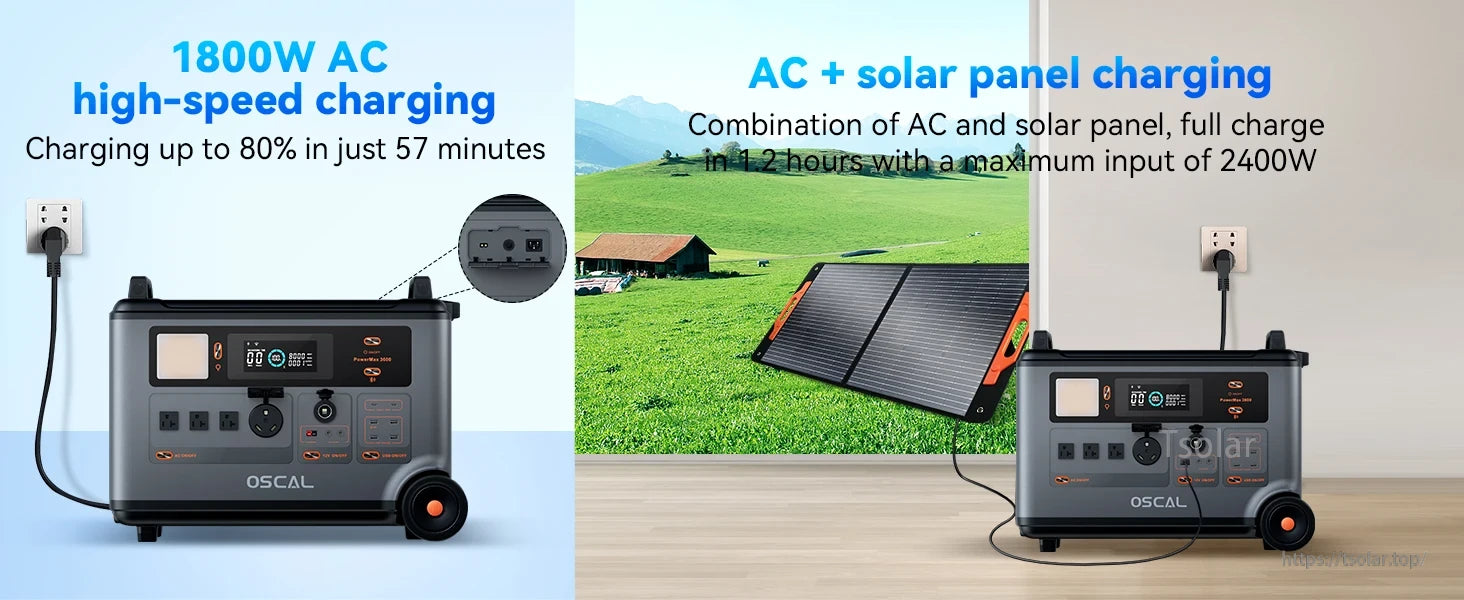

1800W AC fast charging, 80% in 57 mins; AC + solar charging, full charge in 12 hours with 2400W input.
Oscal PowerMax 3600 charges up to 99% of essential devices, powering TV, gaming, and home electronics.
Portable power station with app control and camping setup.

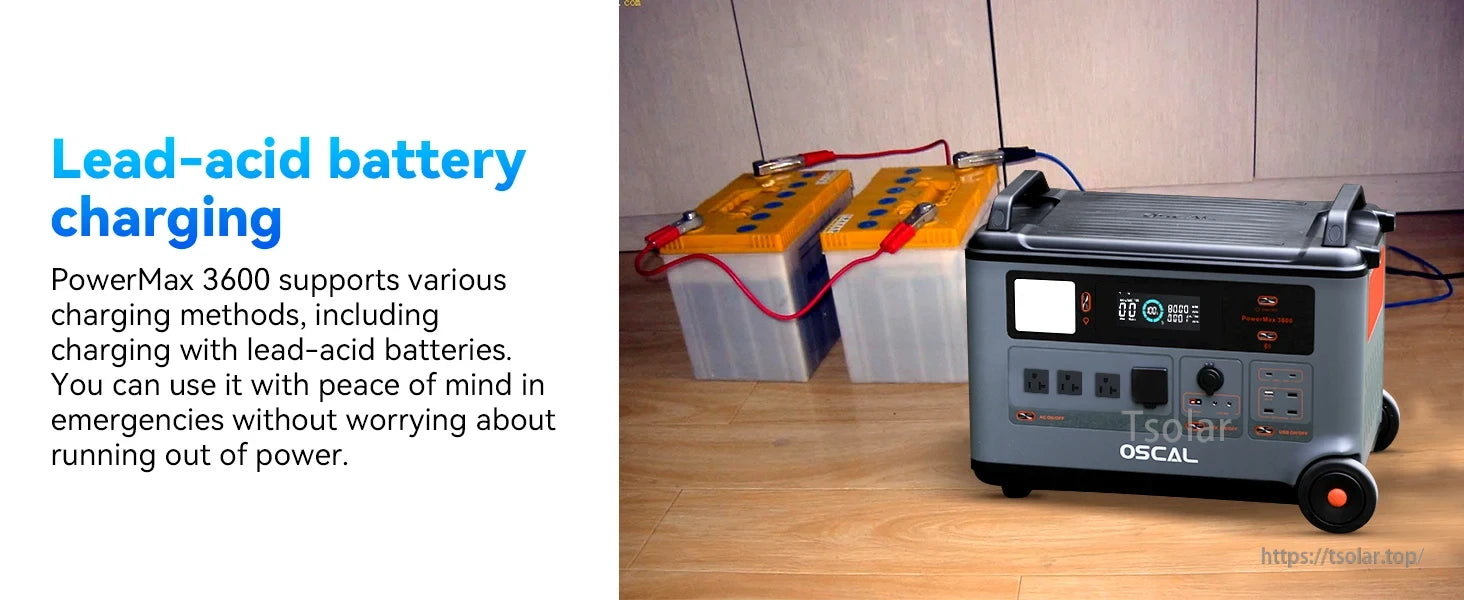

Oscal PowerMax 3600 supports lead-acid battery charging, offering reliable power in emergencies with multiple charging methods.

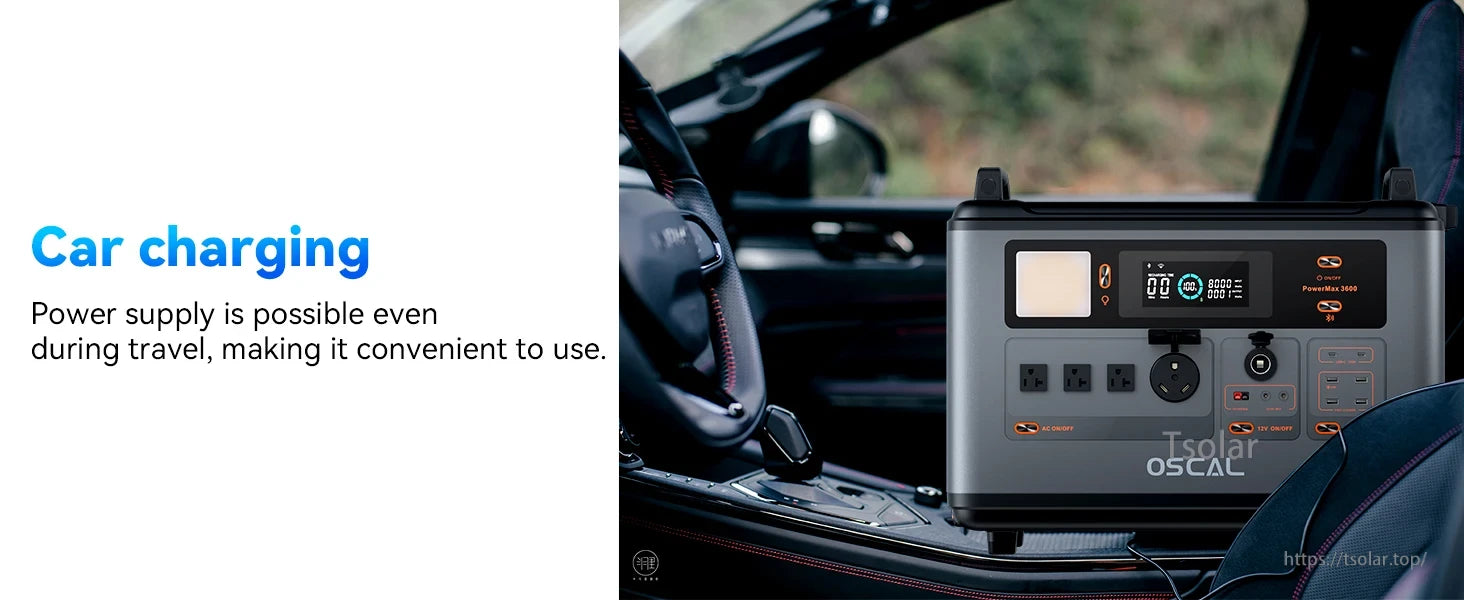

Oscal PowerMax 3600 enables portable car charging during travel.

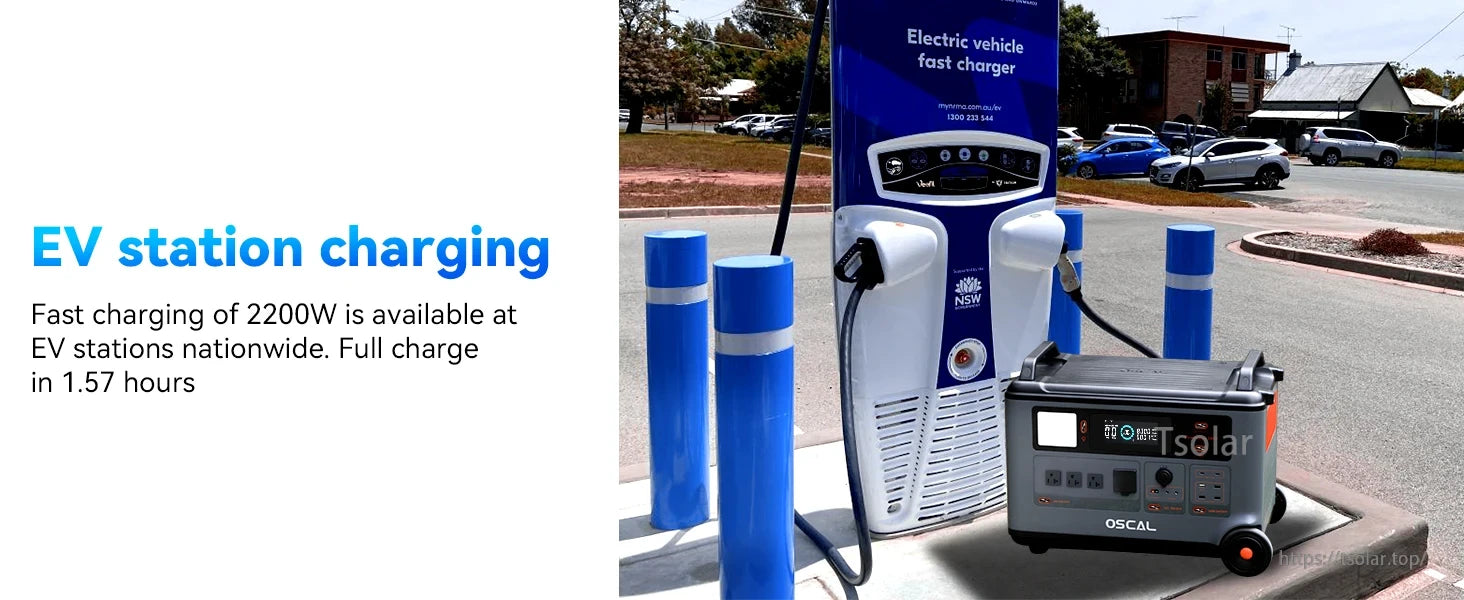

Oscal PowerMax 3600 charges at an EV fast charging station.

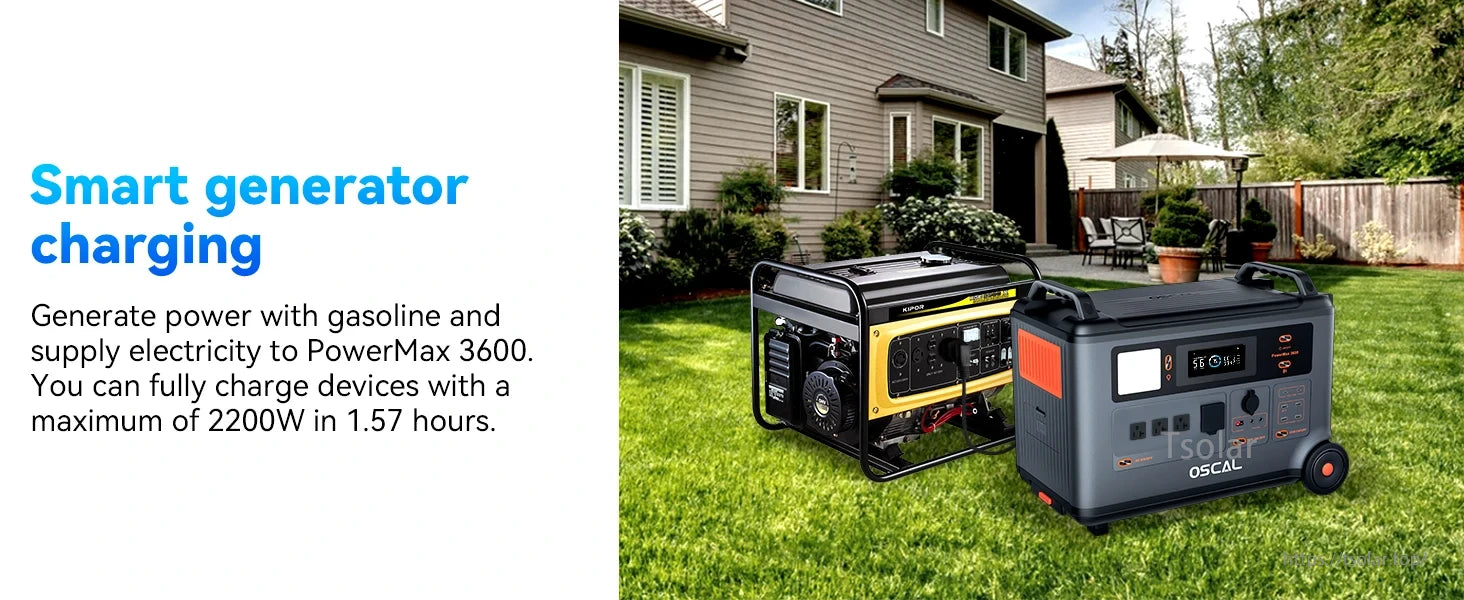

Smart generator charges devices up to 2200W in 1.57 hours using gasoline.
3.6kWh power station; 36-108km for e-scooters; up to 3 days for RV camping.

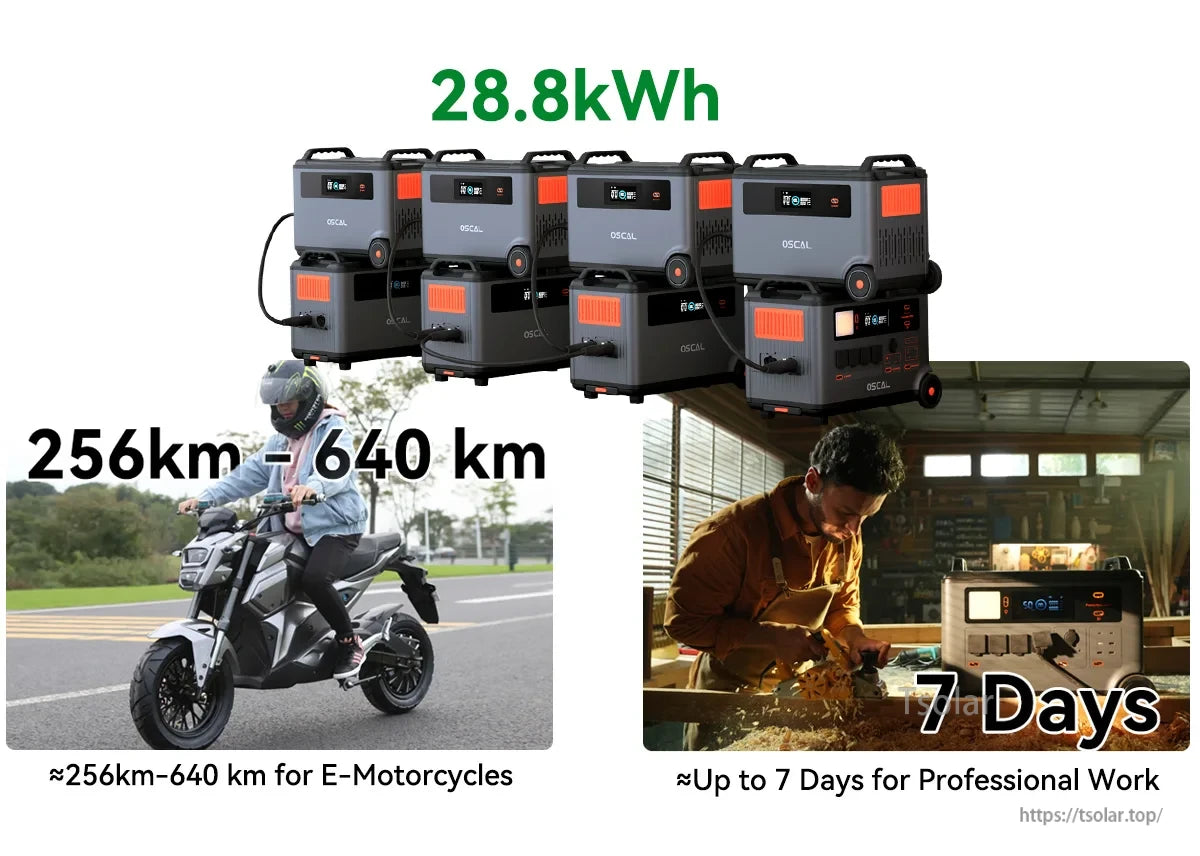

Oscal PowerMax 3600, 28.8kWh capacity, powers e-motorcycles 256–640km, supports professional work up to 7 days.

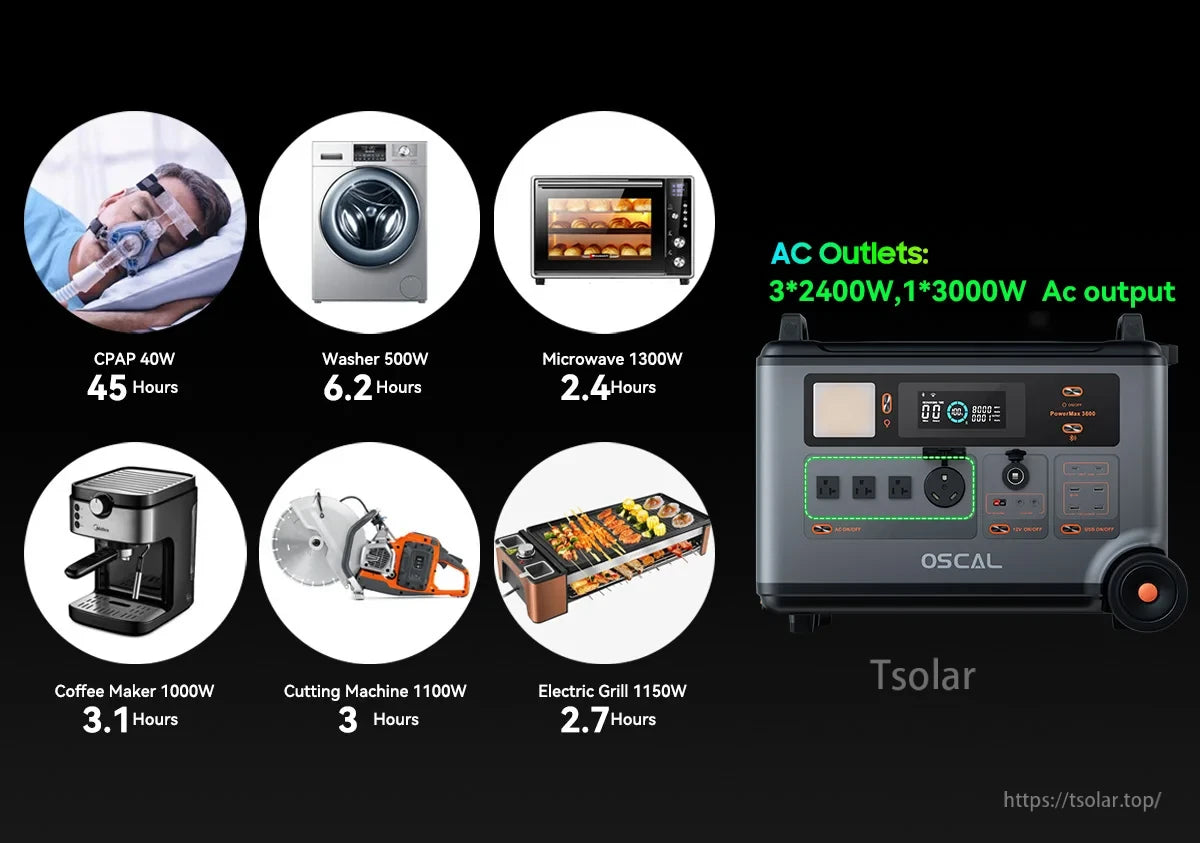

Oscal PowerMax 3600 offers 3×2400W and 1×3000W AC outlets. Powers CPAP, microwave, coffee maker, washer, cutting machine, electric grill, with specific runtime for each device.
Oscal PowerMax 3600 portable power station offers 378W Anderson and 2×36W DC5521 outputs. Powers oxygen machines, lanterns, drones, speakers, fans, and cameras with specified runtimes.
Oscal PowerMax 3600 offers 8020Wh capacity, charging up to 160 phones, 52 laptops, 195 cameras, 622 smartwatches, 62 TVs, or powering a projector for 12.5 hours. Includes 2×100W USB-C, 1×12W USB-A, and 3×18W USB-A ports.

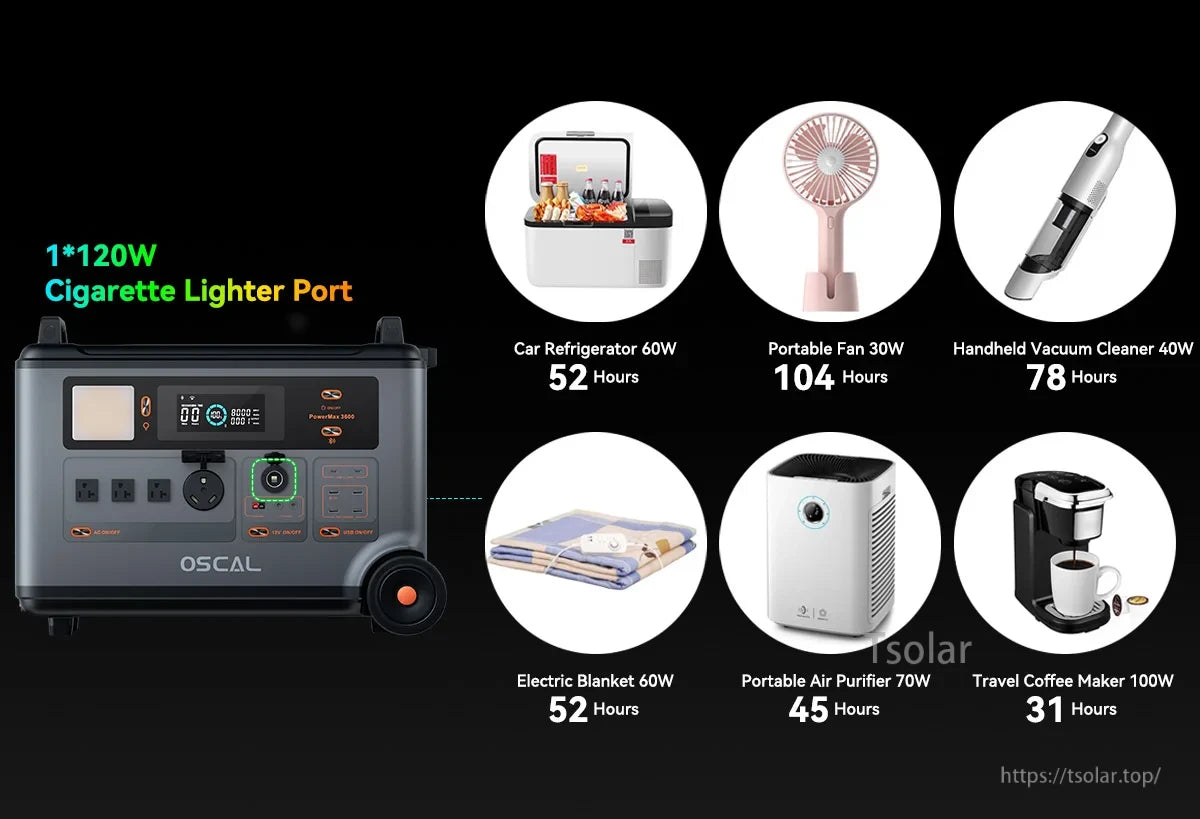

Oscal PowerMax 3600 has a 120W cigarette lighter port, powering devices such as refrigerators, fans, and coffee makers for 31 to 104 hours.

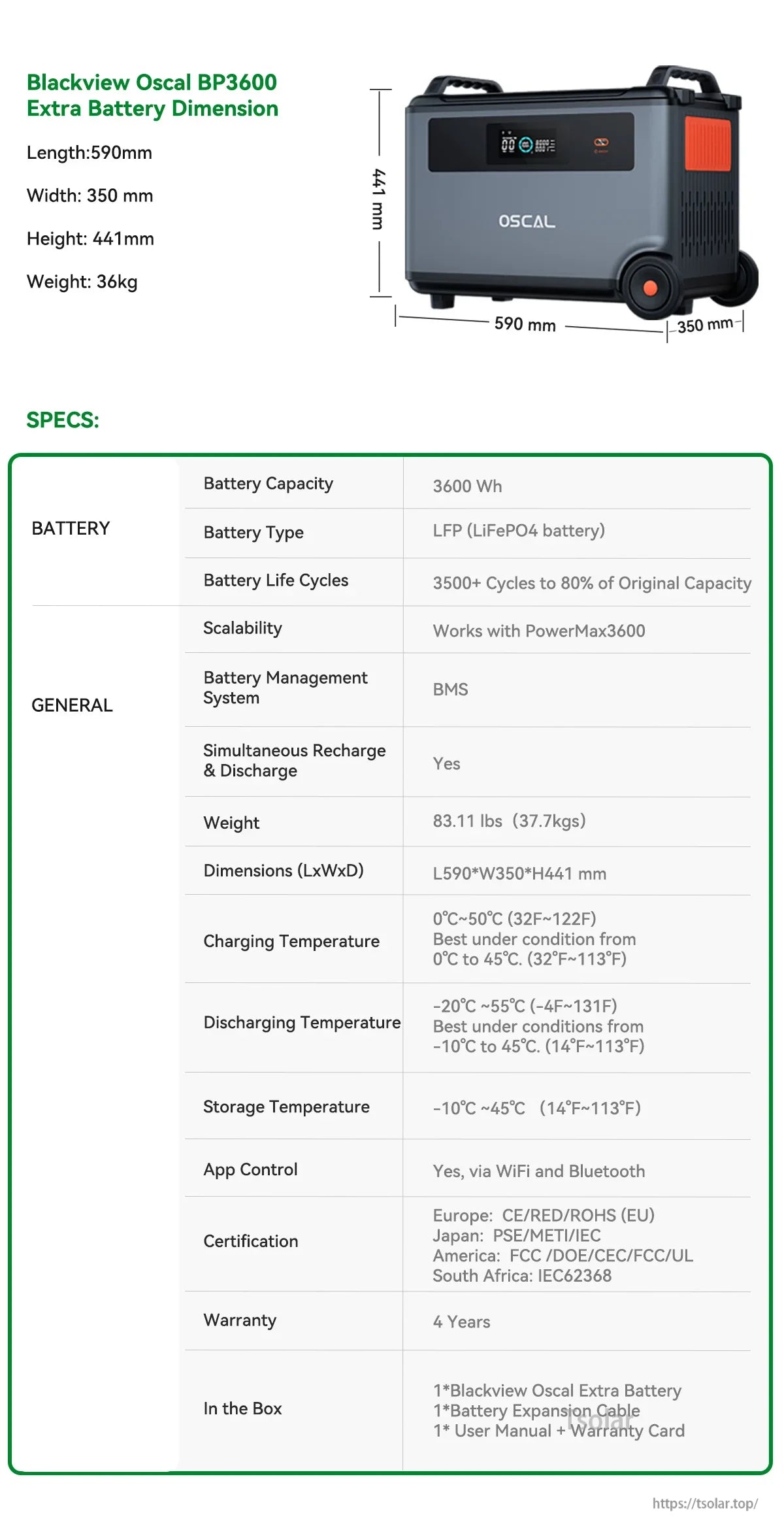

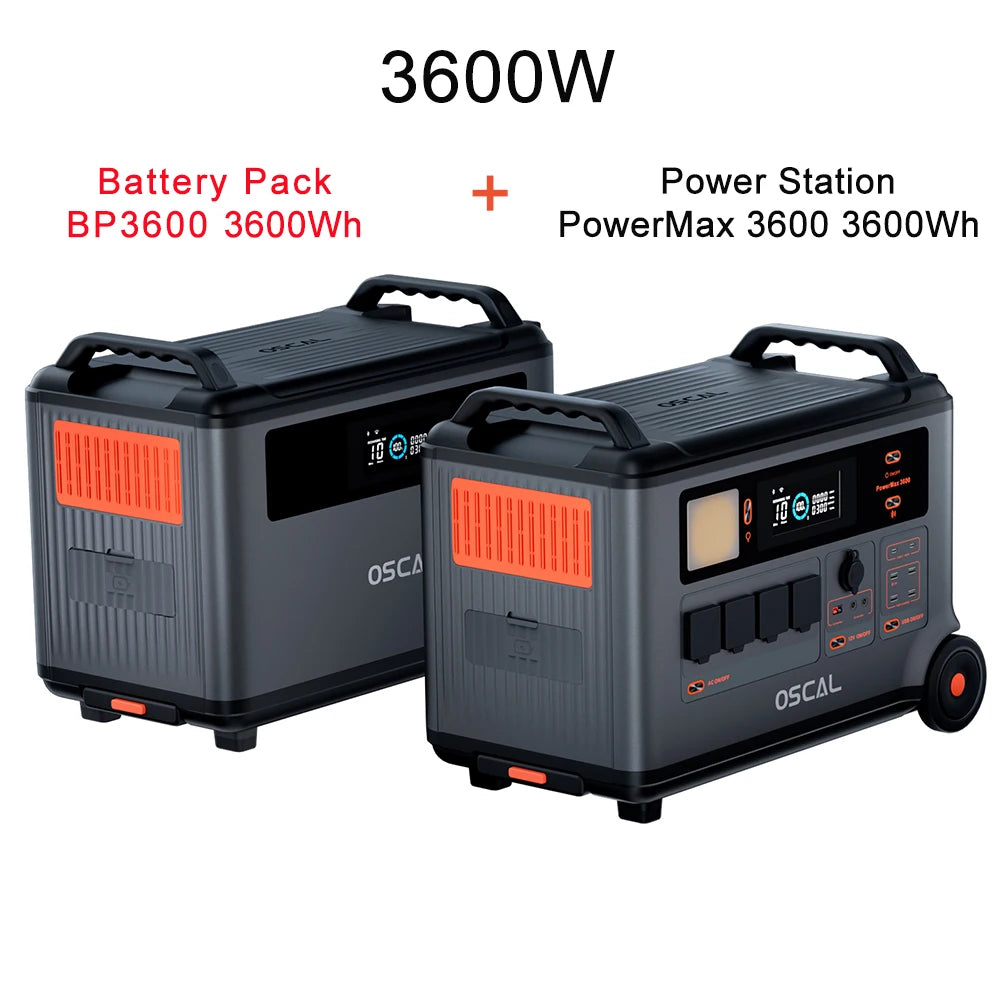

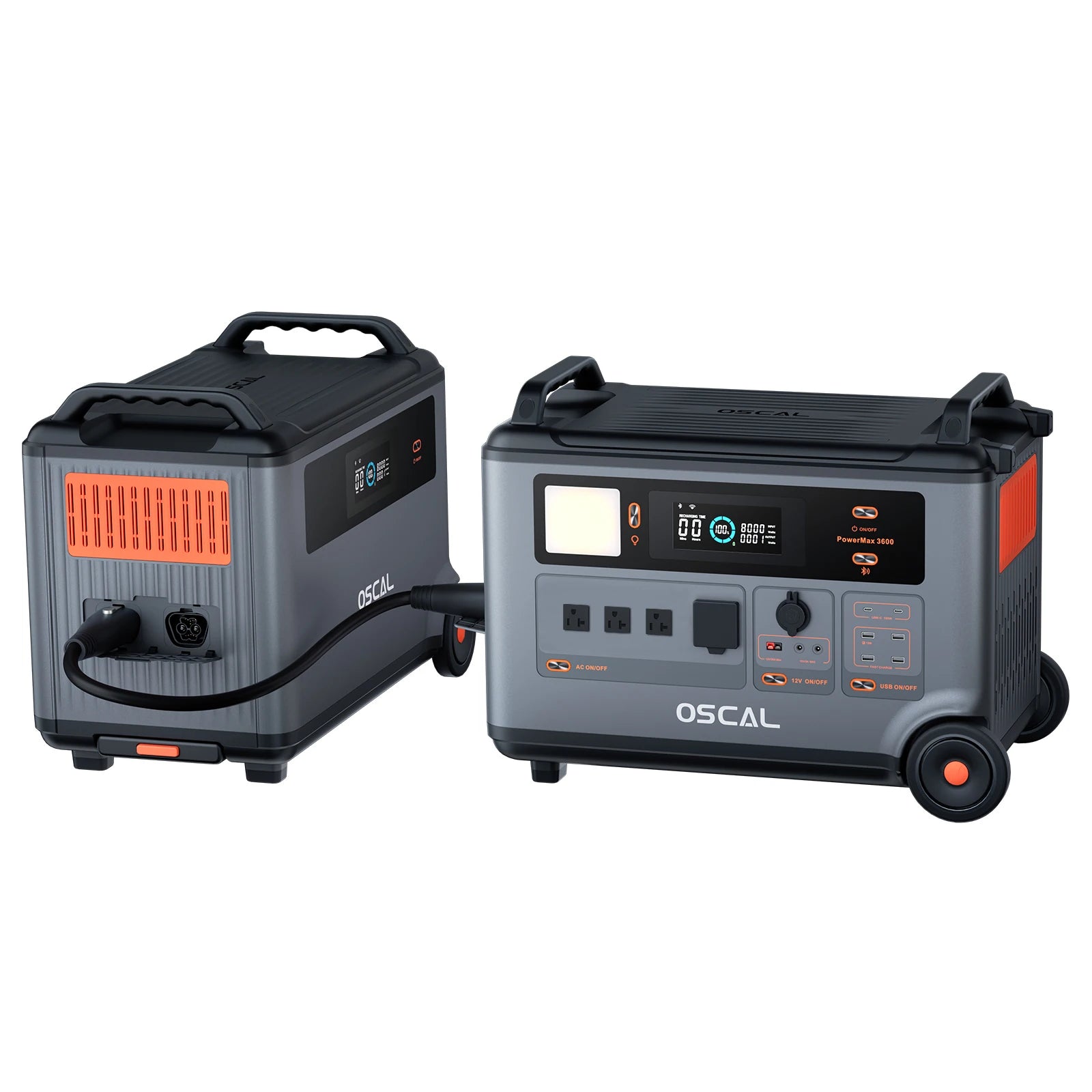

Blackview Oscal BP3600 extra battery, 3600Wh LFP battery, 3500+ cycles, BMS system, supports simultaneous charge/discharge. Dimensions: 590x350x441mm, weight 36kg. Features WiFi/Bluetooth control, 4-year warranty, and global certifications. Includes expansion cable and manual.

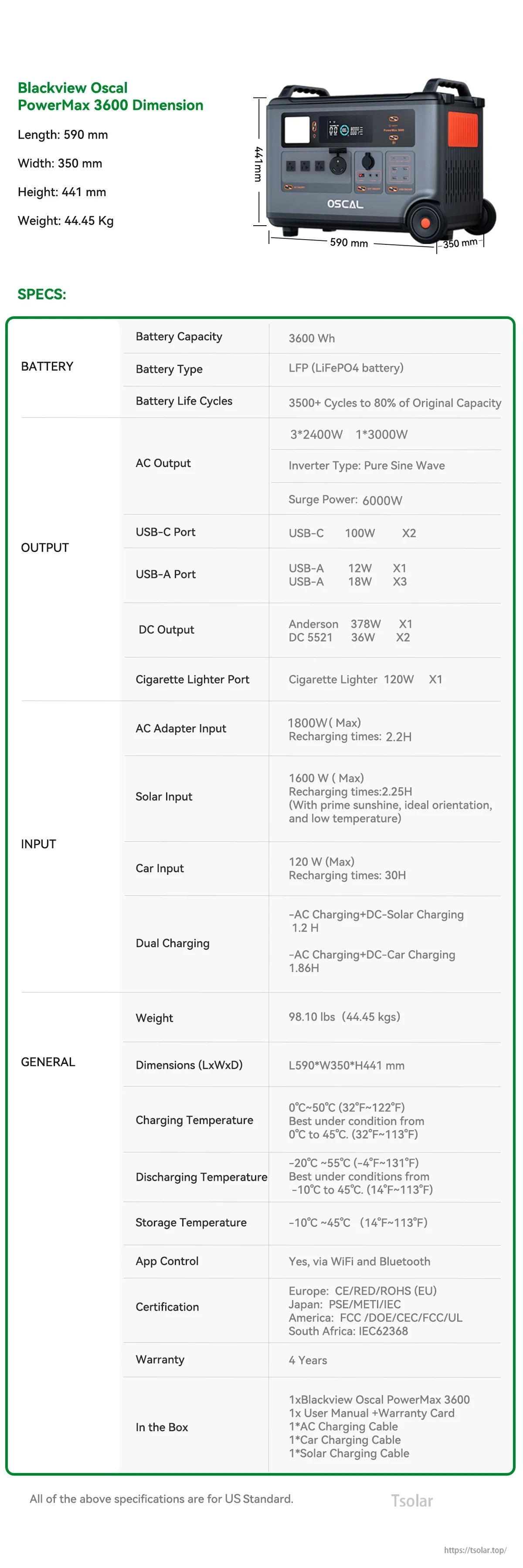

Oscal PowerMax 3600: 3600Wh LiFePO4 portable station with pure sine wave AC, USB/DC ports, solar/car charging, app control (WiFi/Bluetooth), 4-year warranty. Dimensions: 590×350×441mm; weight: 44.45kg.
