Yangtze

Yangtze Solar 700 Watt Monocrystalline Half Cell Bifacial Solar Panel

Yangtze Solar 700 Watt Monocrystalline Half Cell Bifacial Solar Panel

Regular price $3,499.00 USD
Regular price Sale price $3,499.00 USD
Sale Sold out
Shipping calculated at checkout.

3 orders in last 30 days

Quantity
View full details

Yangtze 700 Watt Solar Panel Overview

 The Yangtze 700 Watt Monocrystalline Half Cell Bifacial Solar Panel combines advanced PERC technology, high efficiency (22.3%), a durable anodized aluminum alloy frame, and a robust IP68 waterproof junction box. Designed for superior energy yield and long-term performance, this panel is ideal for both residential and commercial applications.

Yangtze Solar 700W Specifications

Parameter Details
Origin Mainland China
Brand Name Yangtze
Model Number YS700M-66B
Certification CE, TUV, ISO
Place of Origin China
Type PERC, Half Cell, Bifacial, Monocrystalline Solar Panel
Panel Efficiency 22.3%
Cell Size 210mm x 210mm
Panel Dimensions 2384mm x 1303mm x 35mm
Frame Anodized Aluminium Alloy
Solar Cell Mono 210mm x 105mm
Connector MC 4 Compatible Connector
Frame Color Silvery or Black
Backing Color White, Black, or Transparent
Warranty 25 years
Junction Box IP68 Waterproof
Front Cover 3.2mm High Transmission Low Iron Tempered Glass
Application Solar System
OEM Order Acceptable

Yangtze 700 watt Solar Panel Key Features

  • Multi Busbar Technology: Improves light trapping and current collection to enhance module power output and reliability.
  • PID Resistance: Excellent Anti-PID performance guaranteed through optimized mass-production process and materials control.
  • Durability Against Extreme Environmental Conditions: High salt mist and ammonia resistance ensure the panel's longevity in harsh environments.
  • Reduced Hot Spot Loss: Optimized electrical design and lower operating current reduce hot spot loss and improve temperature coefficient.
  • Enhanced Mechanical Load: Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal).

Engineering Drawings:

  • Mechanical Characteristics:
    • Cell Type: 210mm Mono PERC
    • Number of Cells: 132 (6 x 22)
    • Dimensions: 2400mm x 1303mm x 35mm (94.49in x 51.3in x 1.18in)
    • Weight: 36 kg (79.4 lbs)
    • Front Glass: 3.2mm Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
    • Junction Box: IP68 Rated
    • Output Cables: TUV 1 x 4.0mm² (+): 290mm, (-): 145mm or Customized Length

Technology Highlights:

  • Half Cell Module Technology: By using half-cells, the electrical current is halved, reducing internal losses to 1/4 of a full-sized cell module. This results in improved performance and efficiency.
  • Benefits of Half-cell: Provides more power (+5%) and reduces losses when partially shaded, ensuring up to 50% power output compared to full-cell modules which provide 0 power output under the same conditions.
  • NDC Technology: Non-destructive cutting technology achieves the best cell performance at the chip level by enhancing bending strength and appearance.
  • MBB Technology: Multi-busbar technology increases light absorption, optimizing power output and efficiency, leading to a 0.4%-0.6% increase in module efficiency.
  • High Density Interconnection Technology: Reduces cell spacing to 0.5mm, minimizing yield risk and damage to the modules, thereby optimizing module efficiency.

Warranty and Certification:

  • Linear Performance Warranty:
    • 12 Year Product Warranty
    • 25 Year Linear Power Warranty
    • 0.55% Annual Degradation Over 25 years

The Yangtze 700 Watt Monocrystalline Half Cell Bifacial Solar Panel is a cutting-edge solar solution designed for maximum efficiency and durability, making it ideal for both residential and commercial solar installations.

Yangtze Solar 660-700W Solar Panel

Model Type
YS660M-66
YS670M-66
YS680M-66
YS690M-66
YS700M-66
Rated Maximum Power at STC
660W
670W
680W
690W
700W
Maximum Power Voltage (Vmp)
38.38V
38.68V
38.98V
39.28V
39.58V
Maximum Power Current (Imp)
17.20A
17.33A
17.45A
17.57A
17.69A
Open Circuit Voltage ( Voc)
45.55V
45.85V
46.15V
46.45V
46.75V
Short Circuit Current (Isc)
18.45A
18.54A
18.66A
18.79A
18.92A
Module Efficiency
21.1%
21.4%
21.7%
22.0%
22.3%
Working Conditions&Working Conditions
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S

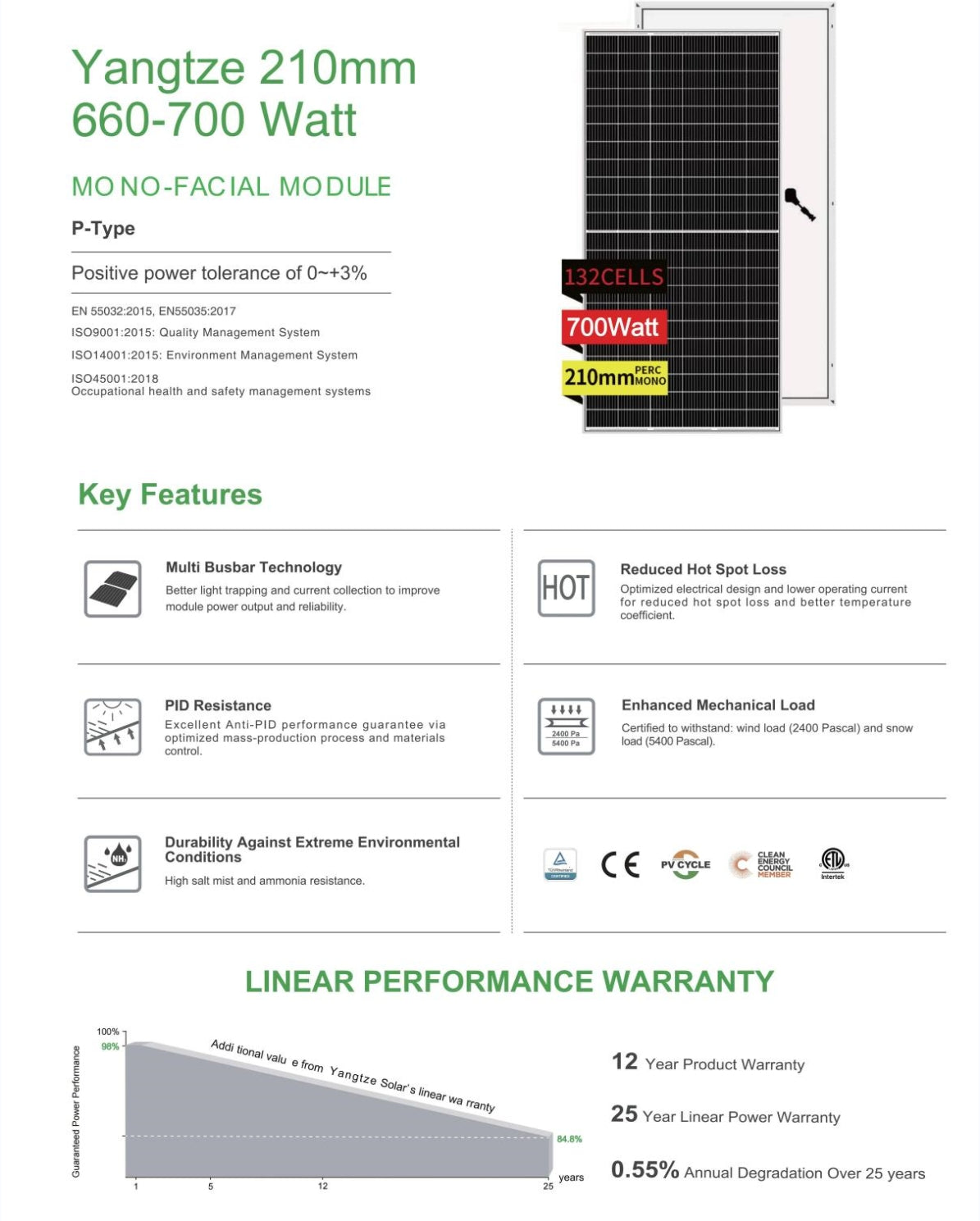

Yangtze 700W Solar Panel Details

High-performance solar panel with advanced features, durability, and long-lasting warranties.

Yangtze Solar's 700W monocrystalline half-cell bifacial solar panel features multi-busbar technology, reduced hot spot loss, and optimized electrical design for improved performance. It boasts excellent anti-PID performance, mechanical load resistance, and durability against extreme environmental conditions. With a high salt mist and ammonia resistance, this product comes with a 12-year product warranty and a 25-year linear power warranty guaranteeing 0.55% annual degradation over 25 years.

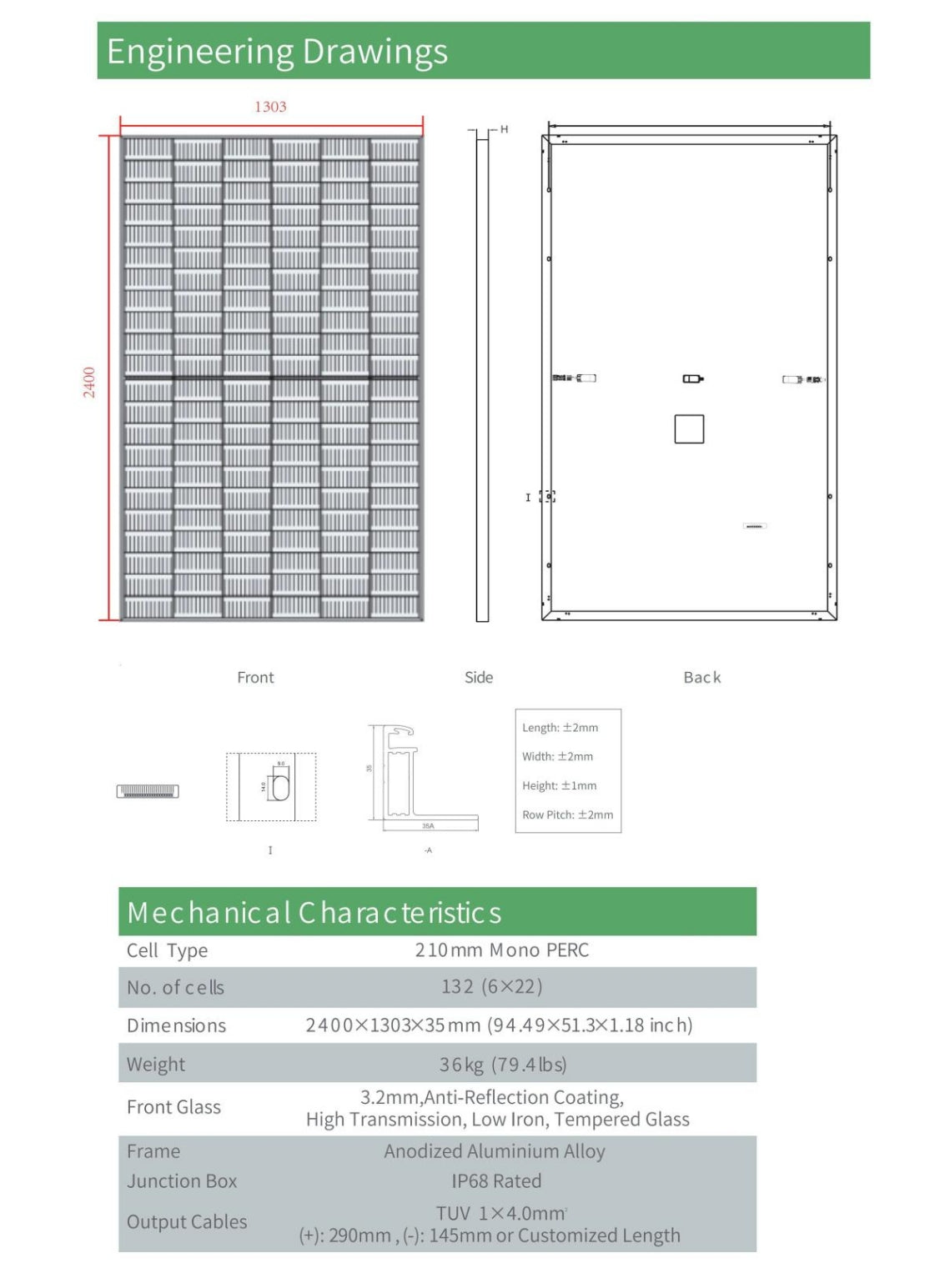

Yangtze Solar panel: 700W bifacial solar panel with dimensions and specifications.

Yangtze Solar presents a 700W monocrystalline half-cell bifacial solar panel with engineering drawings featuring dimensions of 2400x1303x35mm (94.49x51.3x1.18 inch), weighing 36kg (79.4lbs). The front glass is 3.2mm thick with anti-reflection coating, high transmission, and low iron; tempered glass frame made of anodized aluminum. Junction box rated IP68 with TUV-certified output cables (1x40mm) and customizable length options.

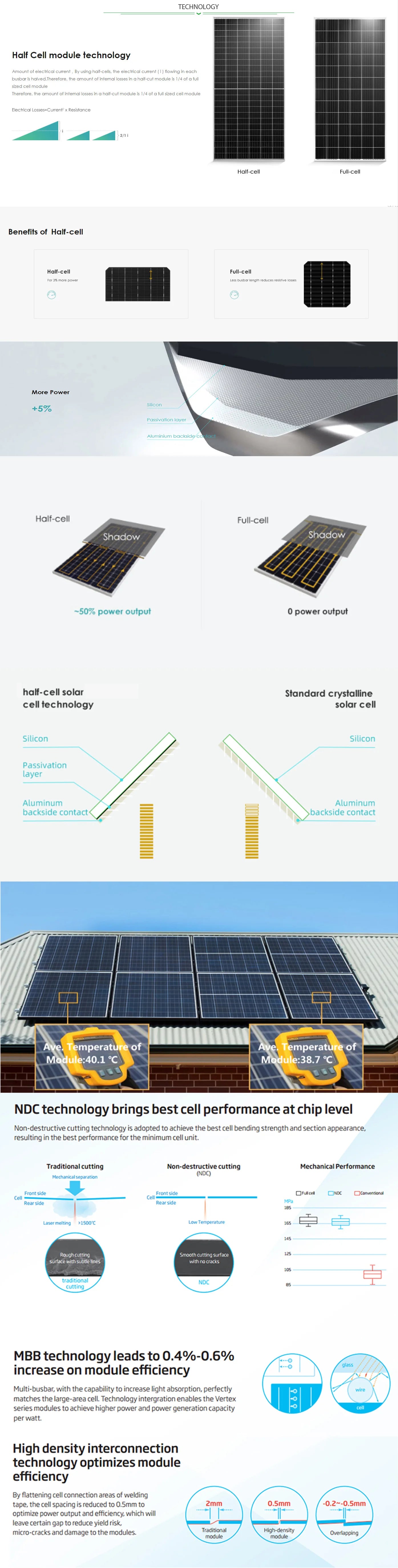

Yangtze Solar's half-cell bifacial solar panel with cutting-edge tech for high performance and efficiency.

Yangtze Solar's 700W Half-Cell Bifacial Monocrystalline Solar Panel utilizes cutting-edge technology. The half-cell design reduces internal losses and increases power output by 59%. With an aluminum backside and high-temperature resistance up to 40.1°C, this panel excels in performance. NDC technology ensures the best cell performance at a chip level, while non-destructive cutting achieves optimal bending strength and appearance. The module's MBB (Multi-Busbar) design increases light absorption and efficiency by 0.4-0.6%. High-density interconnection optimizes power output and reduces yield risk, micro-cracks, and damage to the modules.
