Znshine 550W Solar Panel Overview
The ZNShine 550W Bifacial Solar Panel is a cutting-edge solar solution designed for optimal performance and reliability. With a rated power output of 550W and an impressive efficiency of 21.29%, this panel excels in energy generation. The bifacial technology allows for up to 25% additional power gain from the rear side, making it perfect for installation in reflective environments. Built with 144 monocrystalline cells utilizing MBB technology, it minimizes power loss while enhancing performance in low-light conditions.
Znshine 550 Watt Solar Panel Specifications
| Length | 89.69in |
| Width | 44.65in |
| Rated Power Output | 550 W |
| Voltage (VOC) | 50.2V |
| Maximum String Voltage | 1500V |
| Number of cells | 144 |
| Cell Type | Monocrystalline |
| Rated Efficiency | 21.29% |
| Connector Type | MC4-compatible |
| Frame Color | silver |

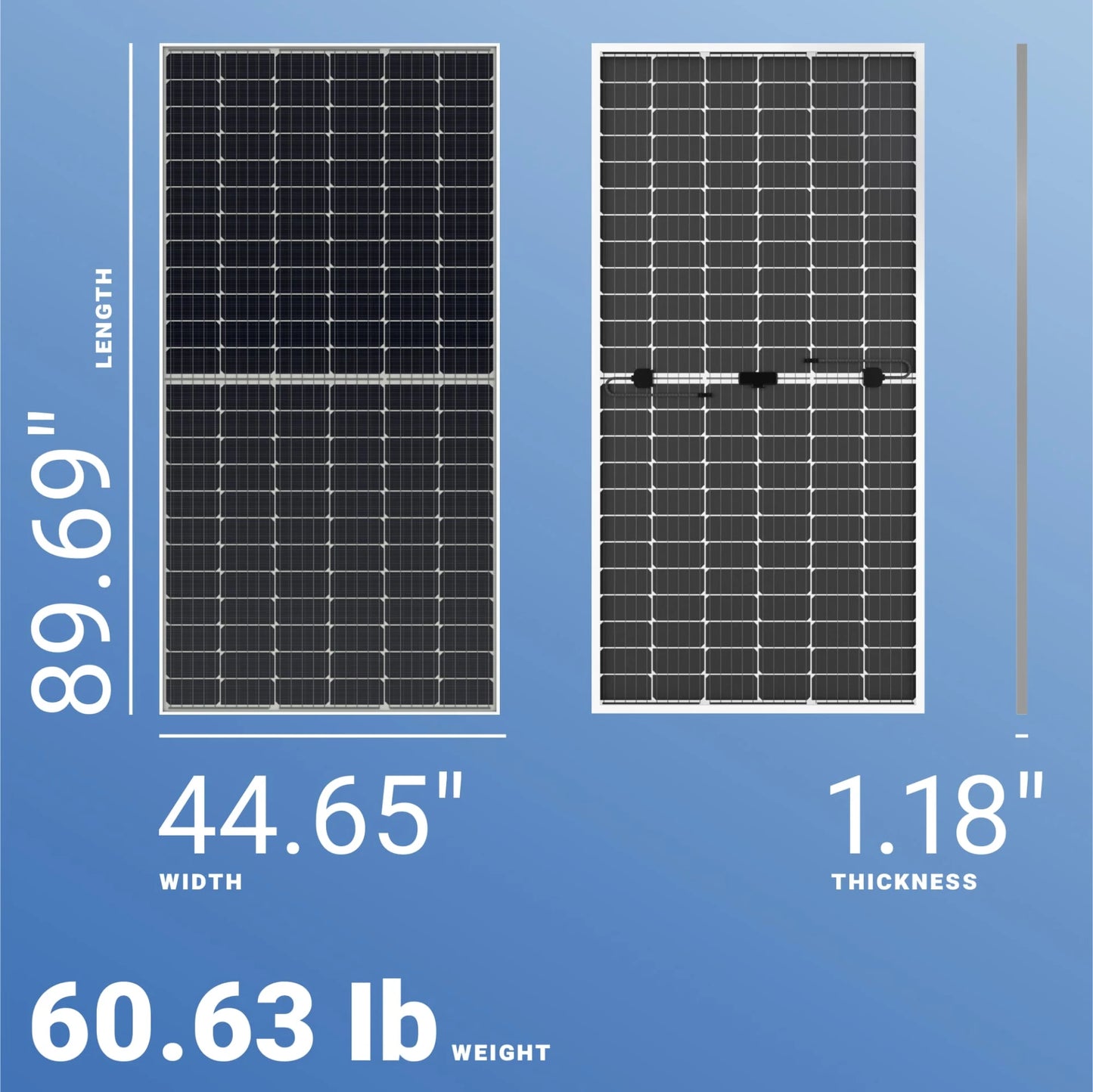

| Dimensions LxWxH | 89.69 × 44.65 × 1.18 in |
| Weight | 60.63 |
| Pallet Qty | 36 |
| Manufacturer | ZNShine Solar |
| Manufacturer Part # | ZXM7-SHDB144-550/M |
| Operating Temperatures | −40°F to +185°F |
| Scope of Application | Solar Panels for Commercial |
| Use |
|
| Warranty | 12-year warranty extendable 25 years |
Znshine 550W Solar Panel Key Features
High Power Output with Advanced Technology: The ZNShine 550W Solar Panel utilizes 144 half-cut monocrystalline PERC cells to achieve an impressive rated power output of 550 watts. The panel's efficiency stands at 21.29%, making it one of the most powerful and efficient panels available. The innovative Passivated Emitter Rear Contact (PERC) technology enhances energy capture by reflecting sunlight onto the rear of the cells, resulting in up to 12% additional energy generation.
Bifacial Design for Maximum Energy Gain: This solar panel features a bifacial design, which allows it to capture sunlight from both the front and back sides. In reflective environments such as near white rooftops or open fields, the panel can achieve up to 25% additional power gain, maximizing the energy output per square foot and ensuring a faster return on investment.
Exceptional Performance in Various Conditions: The ZNShine 550W Solar Panel is engineered to perform exceptionally well in both low-light conditions and high-temperature environments. The panel's superior weak illumination response ensures consistent energy production during hazy or cloudy days, early mornings, and evenings. Additionally, the low temperature coefficient of -0.35% per 1.8°F above 77°F minimizes efficiency loss in hot climates, providing more reliable energy output throughout the year.
Durability and Resistance to Harsh Environments: Built to withstand the most challenging outdoor conditions, the ZNShine 550W Solar Panel features a robust anodized aluminum frame and a protective layer of tempered glass. These materials enable the panel to endure high wind loads of up to 2400 Pa and snow loads of up to 5400 Pa. The panel is also resistant to salt, ammonia, and sand, making it ideal for coastal, desert, or industrial environments.
Low Degradation for a Longer Lifespan: ZNShine Solar guarantees that the 550W panel will retain more than 84.8% of its original output after 25 years. The panel experiences minimal degradation, with a power loss of no more than 2% in the first year and an average annual decline of just 0.55% from the 2nd to the 25th year. This ensures long-term performance and reliability, backed by ZNShine's 12-year product warranty and 25-year performance warranty.

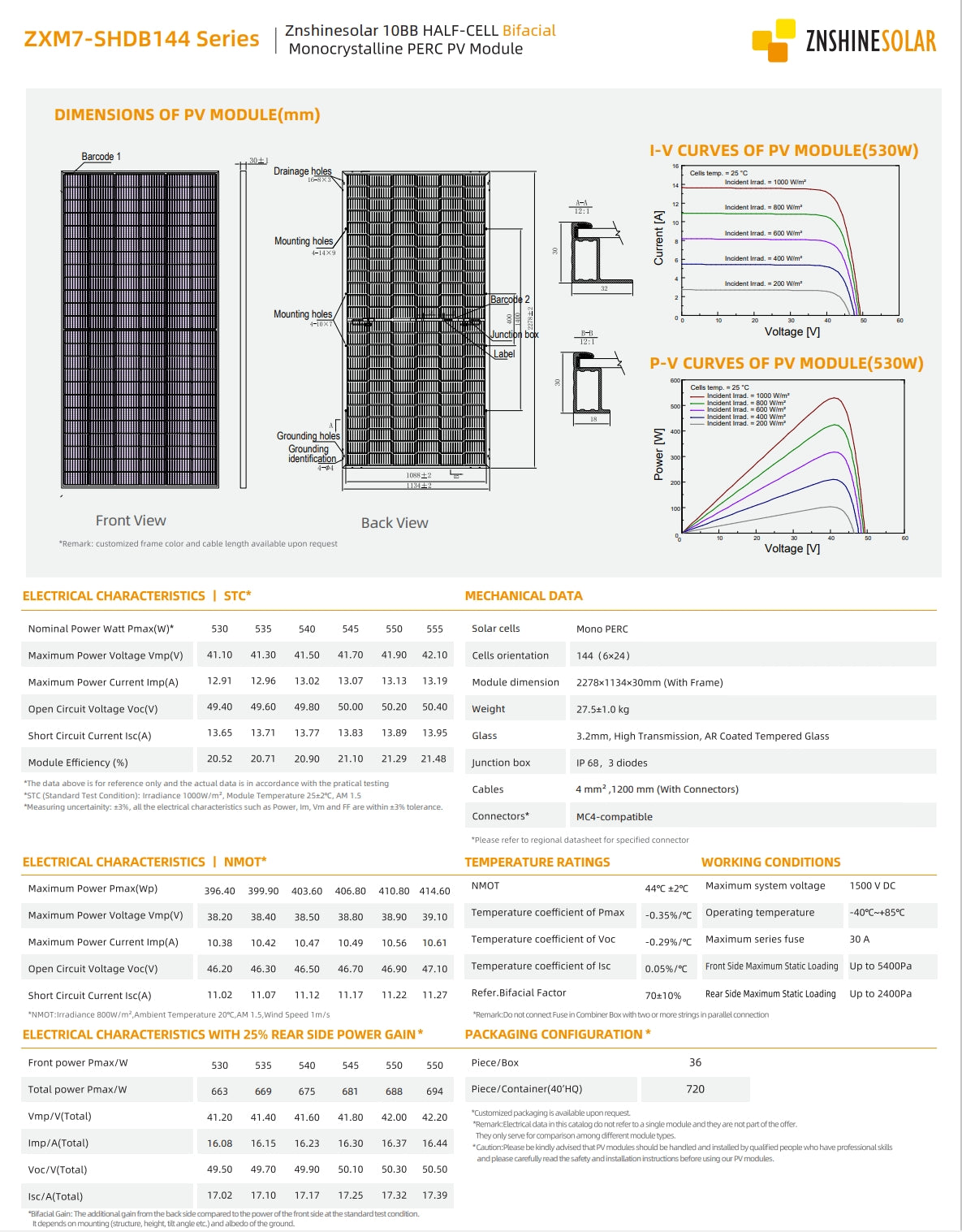

Znshine Solar 550W Datasheet

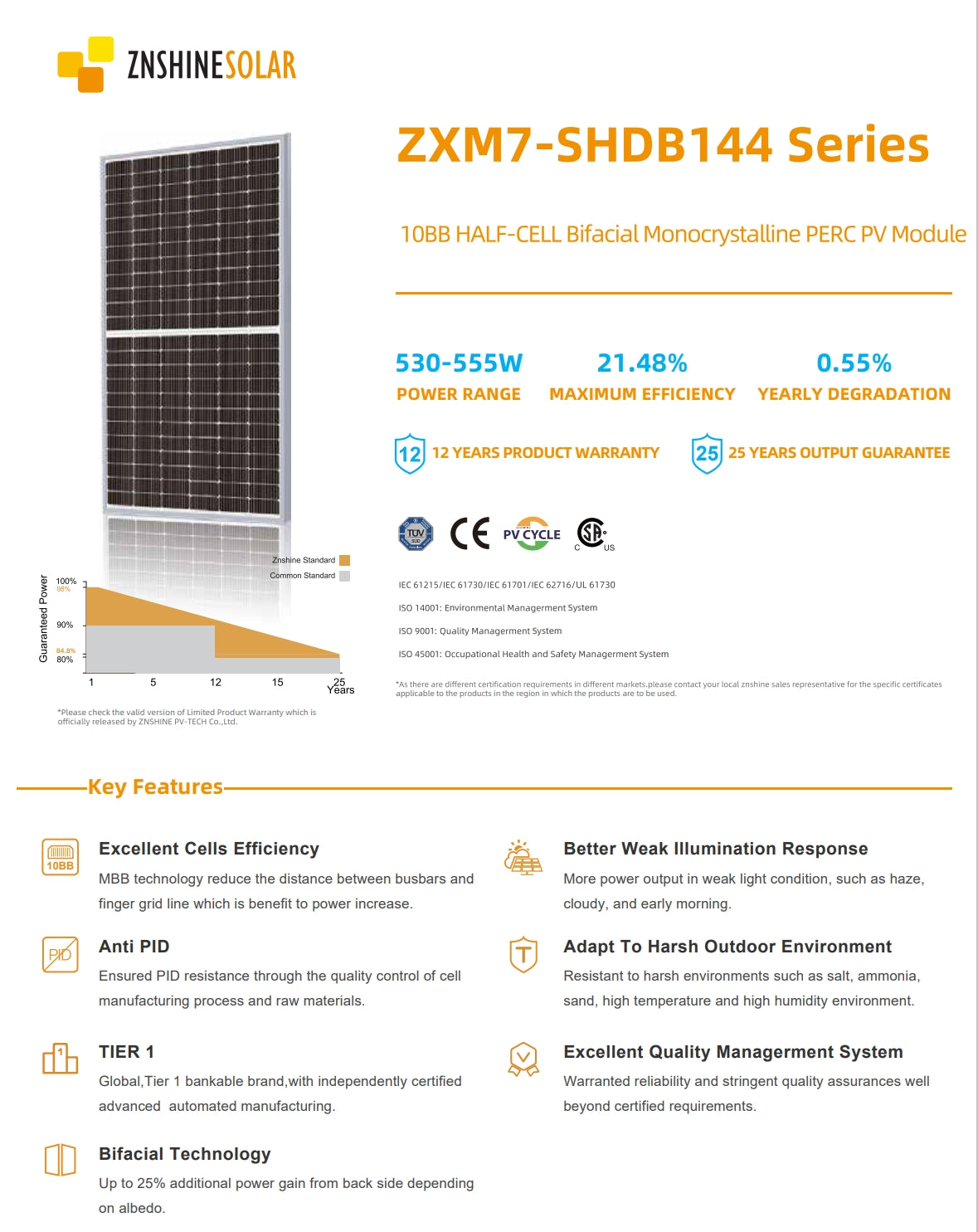

Znshine's 550W Solar Panel, ZXM7-SHDB144 Series, features excellent cell efficiency, OBB MBB technology for improved weak illumination response, PID anti-PID adaptation for harsh outdoor environments, and bifacial technology with up to 25% additional power gain from the back side. This product comes with a limited warranty, ISO certifications, and a global Tier bankable brand guaranteeing reliability and quality assurances.
Znshine 550W Solar Panel: Product Details: Monocrystalline PERC PV Module Dimensions: 2278 x 1134 x 30mm (with frame) Weight: 27.5 ± 1.0 kg Open Circuit Voltage: 49.40-50.40V Short Circuit Current: 13.65-13.77A Maximum Power Voltage: 41.10-42.10V Maximum Power Current: 12.91-13.19A Module Efficiency: 20.52-21.48% Junction Box IP68, diodes Cables: 1200mm (with connectors) Standard Test Condition: Irradiance 1000W/m², Module Temperature 25 ± 2°C, AM 1.5 Electrical Characteristics: Nominal Power: 530-550W Open Circuit Voltage: 49.40-50.40V Short Circuit Current: 13.65-13.77A Maximum Power Voltage: 41.10-42.10V Maximum Power Current: 12.91-13.19A Module Efficiency: 20.52-21.48% Bifacial Gain: 70-10% (rear side power gain) Packaging Configuration: Front Power: 530-550W Total Power: 663-694W Piece/Container: 720 (40' HQ) Customize packaging available upon request
